SUBARU BRZ 2016 1.G Navigation Manual

Other 289
Other Operations

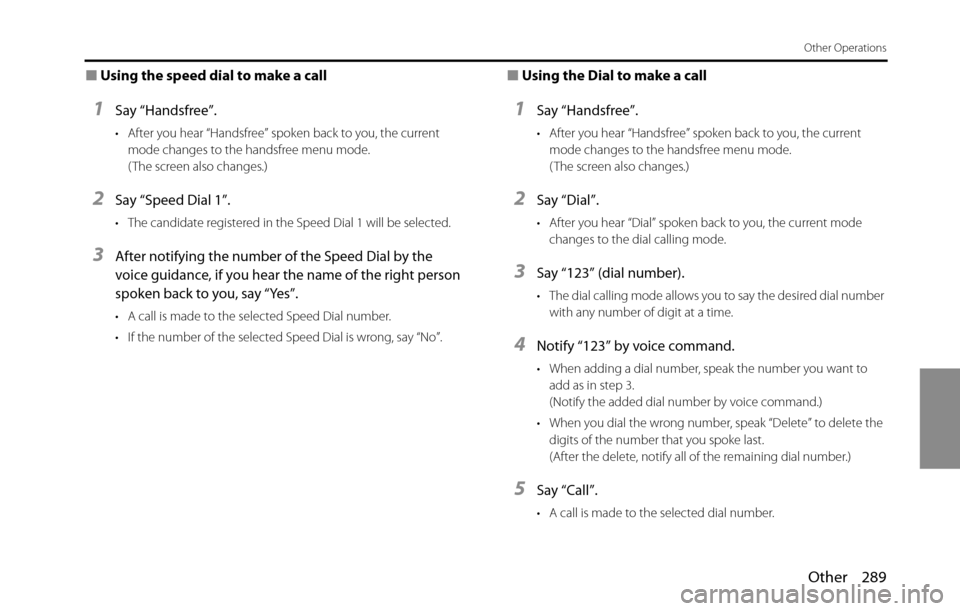

■Using the speed dial to make a call
1Say “Handsfree”.
• After you hear “Handsfree” spoken back to you, the current
mode changes to the handsfree menu mode.
( The screen also changes.)
2Say “Speed Dial 1”.
• The candidate registered in the Speed Dial 1 will be selected.
3After notifying the number of the Speed Dial by the
voice guidance, if you hear the name of the right person
spoken back to you, say “Yes”.
• A call is made to the selected Speed Dial number.
• If the number of the selected Speed Dial is wrong, say “No”.
■Using the Dial to make a call
1Say “Handsfree”.
• After you hear “Handsfree” spoken back to you, the current
mode changes to the handsfree menu mode.
( The screen also changes.)
2Say “Dial”.
• After you hear “Dial” spoken back to you, the current mode
changes to the dial calling mode.
3Say “123” (dial number).
• The dial calling mode allows you to say the desired dial number
with any number of digit at a time.
4Notify “123” by voice command.
• When adding a dial number, speak the number you want to
add as in step 3.
(Notify the added dial number by voice command.)
• When you dial the wrong number, speak “Delete” to delete the
digits of the number that you spoke last.
(After the delete, notify all of the remaining dial number.)
5Say “Call”.
• A call is made to the selected dial number.

290 Other
Other Operations
Voice Command Lists
The navigation or audio control function enables you to operate the
navigation or audio system by voice, using the voice input microphone
and button. This section shows the voice command lists for voice
control operations.
The notations used in the commands are as follows.
•[ ]: Commands that need not to be spoken
•<ccc>: Numbers or names to be spoken
•Jccc: Commands to be spoken after the voice guidance
■Commands for changing the audio mode
Enabled in all screens.
■Command for changing to the handsfree mode
Enabled in all screens.
■Command for changing to the navigation mode
Enabled in all screens.
Voice
commandPhrase Function
AM [ ] AMSets to AM mode
FM [ ] FMSets to FM mode
SAT [ ] Satellite radioSets to XM mode
Aha
*[] Aha, []
Aha RadioSets to Aha mode
CD
*[] CDSets to CD mode
USB*[] USBSets to USB mode
iPod*[] iPodSets to iPod mode
BTA [ ] Bluetooth
audio, [] BTASets to Bluetooth audio mode
AUX
*[] Auxiliary,
[] ox, [] AUXSets to AUX mode
Play
Play
Play
PlayPlay
Play
Play
Play
PlayPlay
PlayPlayPlay
Audio OFFAudio offTurns the audio system off
RadioRadioSets to radio mode (Changes to
the last mode used: FM, AM, or
satellite radio.)
* Enabled only when operation is possible
Voice
commandPhrase Function
PhoneHandsfree, PhoneSets to handsfree mode
Voice
commandPhrase Function
NavigationNavigationChanges to the Navigation screen Voice
commandPhrase Function

Other 291
Other Operations
■Commands available with AM radio
Enabled when the audio mode is AM radio.
■Commands available with FM radio
Enabled when the audio mode is FM radio.
■Commands available with XM radio
Enabled when the audio mode is XM radio.
* Some commands may not be recognized depending on the convenience of
XM radio station.
Voice
commandPhrase Function
Seek upSeek upTunes in the higher frequency
direction
Seek downSeek downTunes in the lower frequency
direction
AM frequencyFrequency
Tunes using a frequency
AM preset
numberPreset Tunes using a preset number
Voice
commandPhrase Function
Seek upSeek upTunes in the higher frequency
direction
Seek downSeek downTunes in the lower frequency
direction
FM frequencyFrequency
Tunes using a frequency
FM preset
numberPreset Tunes using a preset number
FMFMChanges the bandVoice
commandPhrase Function
SAT search
channelChannel Tunes using a channel number
SAT preset
numberPreset Tunes using a preset number
Search typeType classical, more music
channels, latin &
world, dance &
electronic, jazz, blues
& standards, christian,
country, hip-hop, r & b,
sports, talk, news &
npr, entertainment,
family & health,
religion, comedy,
traffic & weather>Tunes using a type
SATSatellite radioChanges the band

292 Other
Other Operations
■Commands available with Aha
Enabled when the audio mode is Aha.
* Some commands may not be recognized depending on the particular Aha
station.
■Commands available with CD operation
Enabled when the audio mode is CD.
Voice
commandPhrase Function
LikeLike, Thumbs upUpload or sever the Like
information
DislikeDislike, Thumbs downUpload or sever the Dislike
information
MapMap, Map location,
Upload location,
Refresh locationUp to server current position
RefreshRefreshRefresh the content information
GoGo, Send to map, Send
to navi, Send to
navigation, GuidanceMove to route setting on this
content information
CallCallMove to handsfree operation on
content information
Content upNext content, Content
up, Next screen, Scroll
upPlayback next Content
Content downPrevious content,
Content down,
Previous screen, Scroll
downPlayback previous Content
Station changeStation change,
Change station, New
stationDisplays the station list screenStation numberStation number>, number>Selects the station (Searching by
station name is not available.)
Voice
commandPhrase Function
Track upNext track, Track upSelects the next track
Track downPrevious track, Track
downSelects the current track (cues)
Show listShow listDisplays the list screen
Track numberTrack Selects using a track number Voice
commandPhrase Function

Other 293
Other Operations
■Commands available with MP3/WMA and Bluetooth audio
Enabled when the audio mode is MP3/WMA or Bluetooth audio.
■Commands available with USB
Enabled when the audio mode is USB.
■Commands available with iPod
Enabled when the audio mode is iPod.
Voice
commandPhrase Function
Track upNext track, Track upSelects the next track
Track downPrevious track or Track
downSelects the current track (cues)
Folder upNext folder, Folder upPlays from the start of the next
folder
Folder downPrevious folder, Folder
downPlays from the start of the
previous folder
Show listShow listDisplays the list screen
Voice
commandPhrase Function
Track upNext track, Track upSelects the next track
Track downPrevious track, Track
downSelects the current track (cues)
Folder upNext folder or Folder
upPlays from the start of the next
folder
Folder downPrevious folder, Folder
downPlays from the start of the
previous folder
Show listShow listDisplays the list screen
Search folderFolder
J Name>Searches for a folder
Voice
commandPhrase Function
Track upNext track, Track upSelects the next track
Track downPrevious track, Track
downSelects the current track (cues)
Folder upNext folder or Folder
upPlays from the start of the next
album
Folder downPrevious folder, Folder
downPlays from the start of the
previous album
Show listShow listDisplays the list screen
Search artistArtist
J Name>Searches using an artist
Search genreGenre
J Name>Searches using a genre
Search playlistPlaylist
J Name>Searches using a playlist
Shuffle On/OffShufflePlays randomly

294 Other
Other Operations

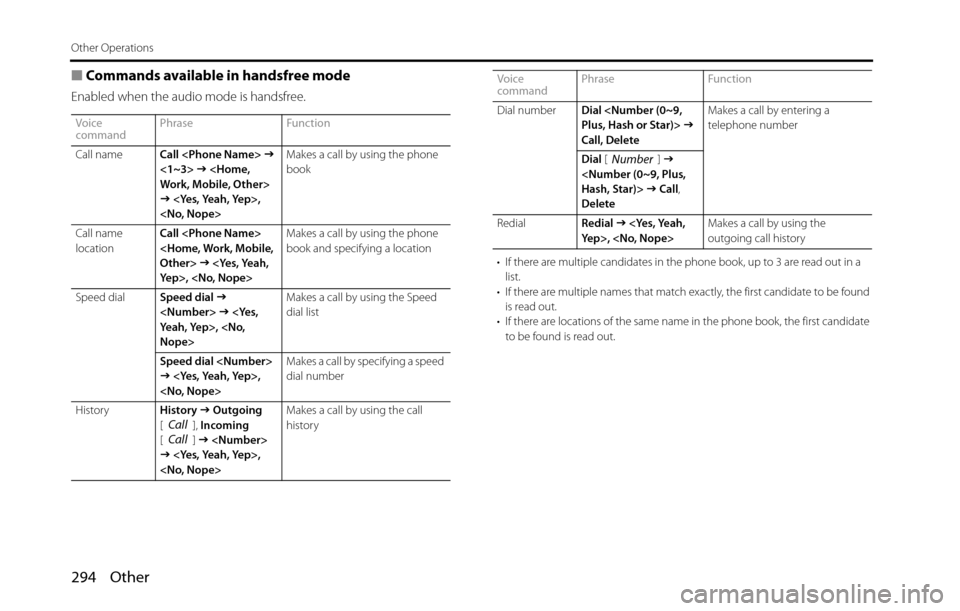

■Commands available in handsfree mode
Enabled when the audio mode is handsfree.
• If there are multiple candidates in the phone book, up to 3 are read out in a
list.
• If there are multiple names that match exactly, the first candidate to be found
is read out.
• If there are locations of the same name in the phone book, the first candidate
to be found is read out. Voice
commandPhrase Function
Call nameCall
J
<1~3> J Work, Mobile, Other>
J ,
Makes a call by using the phone
book
Call name
locationCall
Other>
J Yep>, Makes a call by using the phone
book and specifying a location
Speed dialSpeed dial
J
J Ye a h , Ye p > , < N o ,
Nope>Makes a call by using the Speed
dial list
Speed dial
J ,
Makes a call by specifying a speed
dial number
HistoryHistory
J Outgoing
[], Incoming
[]
J J ,
Makes a call by using the call
history
CallCall
Dial numberDial Plus, Hash or Star)> J
Call, DeleteMakes a call by entering a
telephone number
Dial []
J
Hash, Star)>
J Call,
Delete
RedialRedial
J Ye p > , < N o , N o p e >Makes a call by using the
outgoing call history Voice
commandPhrase Function
Number

Other 295
Other Operations
■Commands available in navigation mode
Enabled when the audio mode is navigation.
NOTE
•Do not press (Main Unit/Steering Wheel Switch) without touching (I Agree) on the Caution screen. Otherwise, Navigation commands cannot be used.
Quick Commands
Voice command PhraseFunction
Accommodation*AccommodationNarrows down POI search targets to
accommodations
Accommodation along
routeAccommodation along routeSearches for accommodations along
the route
Accommodation at my
destinationAccommodation at my destinationSearches for accommodations around
the destination
Accommodation near
hereAccommodation near hereSearches for accommodations around
the current position
AddressAddressTransits to the screen that allows you
to search for the destination by
reading the address
AvoidAvoidTransits to the screen that allows you
to set detour routes
Delete routeDelete routeDeletes the route that has been set
FavoriteFavoriteSelects the conditions to set the
destination from your favorite spots
FindFindTransits to the destination search
screen
HelpHelpTransits to the voice recognition
mode’s help screen
I Agree

296 Other
Other Operations
HistoryHistorySets the destination from the search
history results
InfoInfoReads the route information that has
been set (after the voice recognition
mode is turned off )
MoreMoreTransits to the information list
reception screen
Park ing
*ParkingNarrows down POI search targets to
parking lots
Parking along routeParking along routeSearches for parking lots along the
route
Parking at my
destinationParking at my destinationSearches for parking lots around the
destination
Parking near hereParking near hereSearches for parking lots around the
current position
PlacePlaceSelects POI search as the destination
search method (POI search method
searches only for petrol stations,
accommodations, parking lots and
restaurants.)
Gas station
*Gas stationNarrows down POI search targets to
gas stations
Gas station along routeGas station along routeSearches for gas stations along the
route
Gas station at my
destinationGas station at my destinationSearches for gas stations around the
destination
Gas station near hereGas station near hereSearches for gas stations around the
current position Voice command PhraseFunction

Other 297
Other Operations
* Searches for candidates close to your vehicle's position.
Restaurant*RestaurantNarrows down POI search targets to
restaurants
Restaurant along routeRestaurant along routeSearches for restaurants along the
route
Restaurant at my
destinationRestaurant at my destinationSearches for restaurants around the
destination
Restaurant near hereRestaurant near hereSearches for restaurants around the
current position
RouteRouteTransits to the route editing screen
Where am iWhere am iDisplays the vehicle position
information Voice command PhraseFunction

298 Other
Other Operations

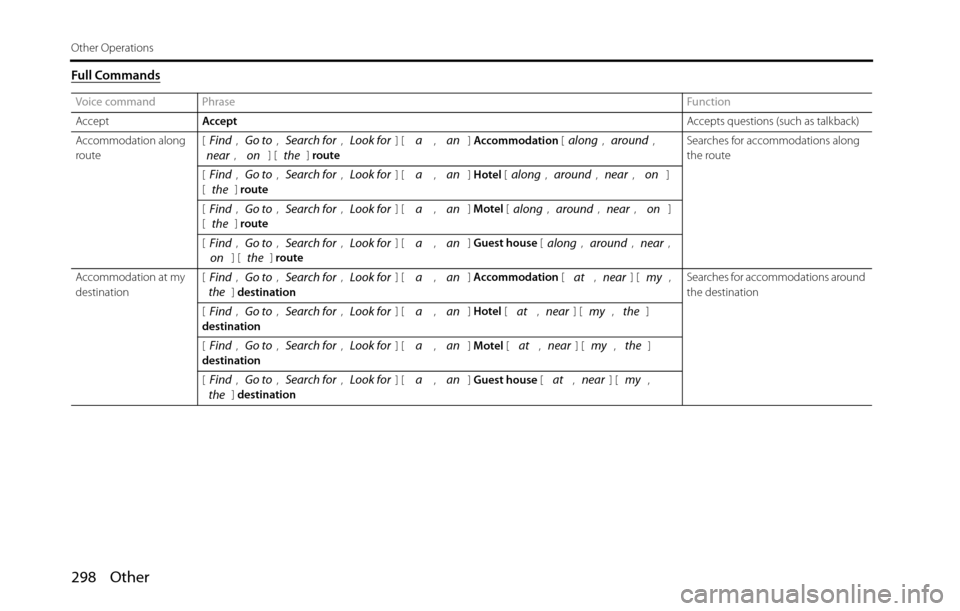

Full Commands
Voice command PhraseFunction
AcceptAcceptAccepts questions (such as talkback)
Accommodation along
route[ , , , ] [ , ] Accommodation [, ,
, ] [ ] routeSearches for accommodations along
the route
[ , , , ] [ , ] Hotel [ , , , ]
[] route
[ , , , ] [ , ] Motel [ , , , ]
[] route
[ , , , ] [ , ] Guest house [, , ,
] [ ] route
Accommodation at my
destination[ , , , ] [ , ] Accommodation [, ] [,
] destinationSearches for accommodations around
the destination
[ , , , ] [ , ] Hotel [, ] [, ]
destination
[ , , , ] [ , ] Motel [, ] [, ]
destination
[ , , , ] [ , ] Guest house [, ] [,
] destination
FindGo toSearch forLook foraanalongaroundnearonthe
FindGo toSearch forLook foraanalongaroundnearonthe
FindGo toSearch forLook foraanalongaroundnearonthe
FindGo toSearch forLook foraanalongaroundnearonthe
FindGo toSearch forLook foraanatnearmythe
FindGo toSearch forLook foraanatnearmythe
FindGo toSearch forLook foraanatnearmythe
FindGo toSearch forLook foraanatnearmythe
