SUBARU BRZ 2022 Owners Manual
Manufacturer: SUBARU, Model Year: 2022, Model line: BRZ, Model: SUBARU BRZ 2022Pages: 432, PDF Size: 50.66 MB
Page 361 of 432

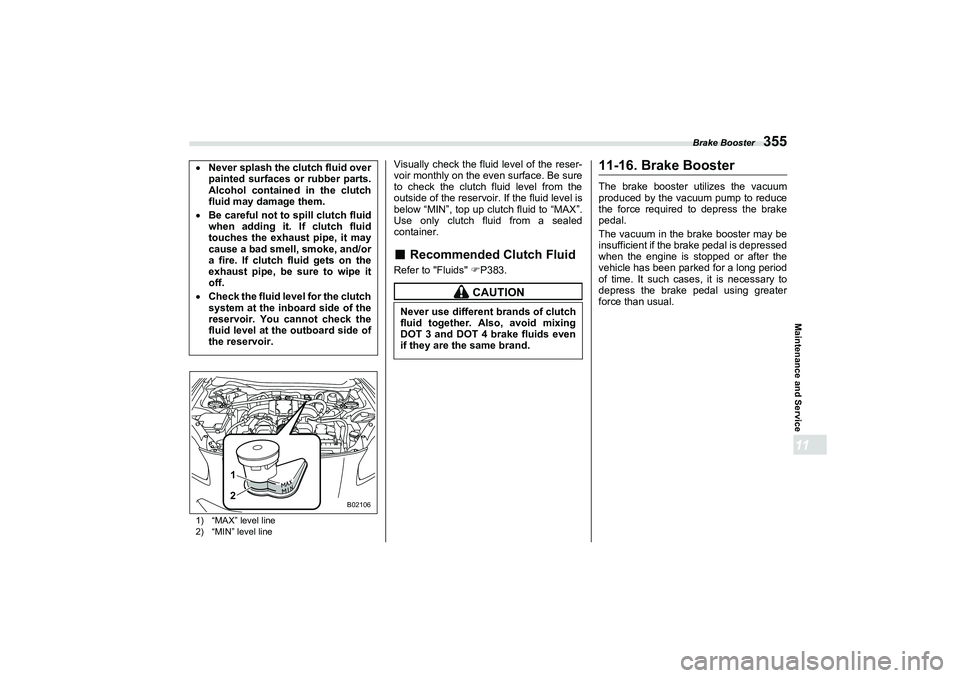

Brake Booster
355
Maintenance and Service11
1) “MAX” level line2) “MIN” level line
Visually check the fluid level of the reser-
voir monthly on the even surface. Be sure
to check the clutch fluid level from the
outside of the reservoir. If the fluid level is
below “MIN”, top up clutch fluid to “MAX”.
Use only clutch fluid from a sealed
container.■
Recommended Clutch Fluid
Refer to "Fluids" P383.
11-16. Brake BoosterThe brake booster utilizes the vacuum
produced by the vacuum pump to reduce
the force required to depress the brake
pedal.
The vacuum in the brake booster may be
insufficient if the brake pedal is depressed
when the engine is stopped or after the
vehicle has been parked for a long period
of time. It such cases, it is necessary to
depress the brake pedal using greater
force than usual.
Never splash the clutch fluid over
painted surfaces or rubber parts.
Alcohol containe d in the clutch
fluid may damage them. Be careful not to spill clutch fluid
when adding it. If clutch fluid
touches the exhaust pipe, it may
cause a bad smell, smoke, and/or
a fire. If clutch fluid gets on the
exhaust pipe, be sure to wipe it
off.Check the fluid level for the clutch
system at the inboard side of the
reservoir. You cannot check the
fluid level at the outboard side of
the reservoir.
12
B02106
CAUTION
Never use different brands of clutch
fluid together. Also, avoid mixing
DOT 3 and DOT 4 brake fluids even
if they are the same brand.
B 5 = B 8. E R R N 355 ページ 2021年7月5日 月曜日 午後>1時>1>1分

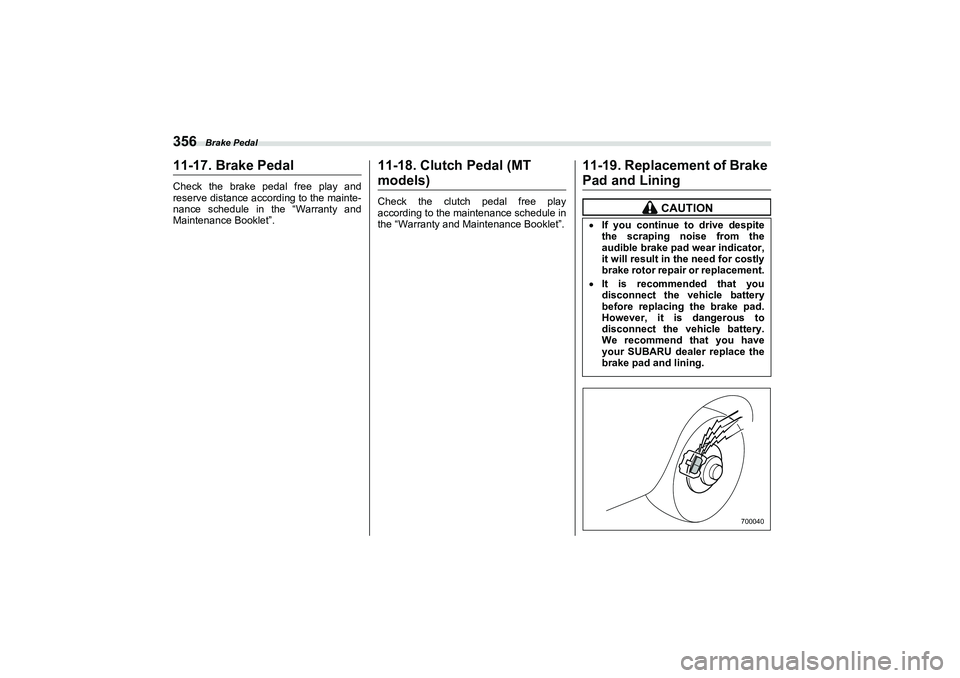

Page 362 of 432

Brake Pedal
35611-17. Brake PedalCheck the brake pedal free play and
reserve distance according to the mainte-
nance schedule in the “Warranty and
Maintenance Booklet”.
11-18. Clutch Pedal (MTmodels)Check the clutch pedal free play
according to the maintenance schedule in
the “Warranty and Maintenance Booklet”.
11-19. Replacement of BrakePad and Lining
CAUTION
If you continue to drive despite
the scraping noise from the
audible brake pad wear indicator,
it will result in the need for costly
brake rotor repair or replacement.It is recommended that you
disconnect the vehicle battery
before replacing the brake pad.
However, it is dangerous to
disconnect the vehicle battery.
We recommend that you have
your SUBARU dealer replace the
brake pad and lining.
700040
B 5 = B 8. E R R N 356 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 363 of 432

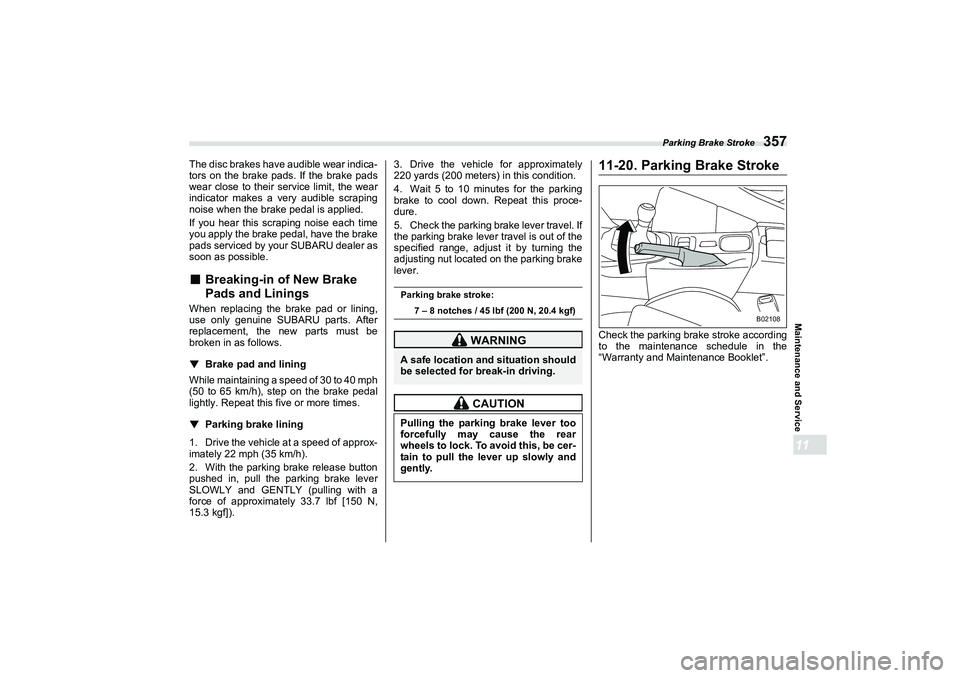

Parking Brake Stroke
357
Maintenance and Service11
The disc brakes have audible wear indica-
tors on the brake pads. If the brake pads
wear close to their service limit, the wear
indicator makes a very audible scraping
noise when the brake pedal is applied.
If you hear this scraping noise each time
you apply the brake pedal, have the brake
pads serviced by your SUBARU dealer as
soon as possible.■
Breaking-in of New Brake
Pads and Linings
When replacing the brake pad or lining,
use only genuine SUBARU parts. After
replacement, the new parts must be
broken in as follows.
▼
Brake pad and lining
While maintaining a speed of 30 to 40 mph
(50 to 65 km/h), step on the brake pedal
lightly. Repeat this five or more times.
▼Parking brake lining
1. Drive the vehicle at a speed of approx-
imately 22 mph (35 km/h).
2. With the parking brake release button
pushed in, pull the parking brake lever
SLOWLY and GENTLY (pulling with a
force of approximately 33.7 lbf [150 N,
15.3 kgf]). 3. Drive the vehicle for approximately
220 yards (200 meters) in this condition.
4. Wait 5 to 10 minutes for the parking
brake to cool down. Repeat this proce-
dure.
5. Check the parking brake lever travel. If
the parking brake lever travel is out of the
specified range, adjust it by turning the
adjusting nut located on the parking brake
lever.
11-20. Parking Brake StrokeCheck the parking brak
e stroke according
to the maintenance schedule in the
“Warranty and Maintenance Booklet”.
Parking brake stroke:
7 – 8 notches / 45 lbf (200 N, 20.4 kgf)
WARNING
A safe location and situation should
be selected for break-in driving.
CAUTION
Pulling the parking brake lever too
forcefully may cause the rear
wheels to lock. To avoid this, be cer-
tain to pull the lever up slowly and
gently.
B02108
B 5 = B 8. E R R N 35 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 364 of 432

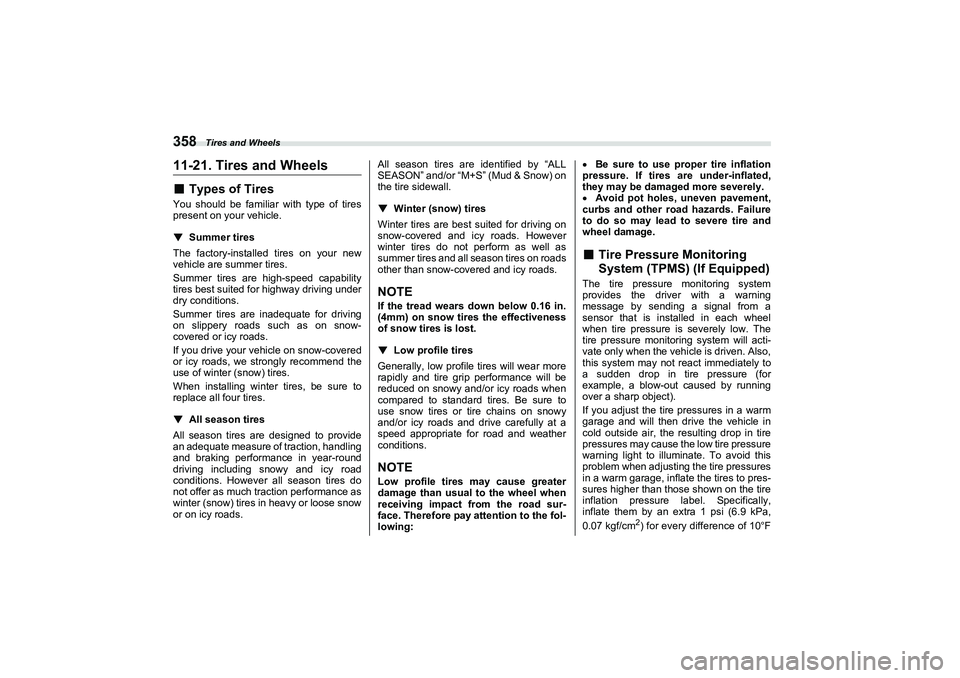

Tires and Wheels
35811-21. Tires and Wheels■
Types of Tires
You should be familiar with type of tires
present on your vehicle.
▼
Summer tires
The factory-installed tires on your new
vehicle are summer tires.
Summer tires are high-speed capability
tires best suited for highway driving under
dry conditions.
Summer tires are inadequate for driving
on slippery roads such as on snow-
covered or icy roads.
If you drive your vehicle on snow-covered
or icy roads, we strongly recommend the
use of winter (snow) tires.
When installing winter tires, be sure to
replace all four tires.
▼A ll season tires
All season tires are designed to provide
an adequate measure of traction, handling
and braking performance in year-round
driving including snowy and icy road
conditions. However all season tires do
not offer as much traction performance as
winter (snow) tires in heavy or loose snow
or on icy roads. All season tires are identified by “ALL
SEASON” and/or “M+S” (Mud & Snow) on
the tire sidewall.
▼
Wi
nter (snow) tires
Winter tires are best suited for driving on
sn ow-covered and icy roads. However
winter tires do not perform as well as
summer tires and all season tires on roads
other than snow-covered and icy roads.
NOTEIf the tread wears down below 0.16 in.
(4mm) on snow tires the effectiveness
of snow tires is lost.
▼
Lo w profile tires
Generally, low profile tires will wear more
rapidly and tire grip performance will be
reduced on snowy and/or icy roads when
compared to standard tires. Be sure to
use snow tires or tire chains on snowy
and/or icy roads and drive carefully at a
speed appropriate for road and weather
conditions.
NOTELow profile tires may cause greater
damage than usual to the wheel when
receiving impact from the road sur-
face. Therefore pay attention to the fol-
lowing:
Be sure to use proper tire inflation
pressure. If tires are under-inflated,
they may be damaged more severely.
Avoid pot holes, uneven pavement,
curbs and other road hazards. Failure
to do so may lead to severe tire and
wheel damage.
■
Tire Pressure Monitoring
Syste m (TPMS) (If Equipped)
The tire pressure monitoring system
provides the driver with a warning
message by sending a signal from a
sensor that is installed in each wheel
when tire pressure is severely low. The
tire pressure monitoring system will acti-
vate only when the vehicle is driven. Also,
this system may not react immediately to
a sudden drop in tire pressure (for
example, a blow-out caused by running
over a sharp object).
If you adjust the tire pressures in a warm
garage and will then drive the vehicle in
cold outside air, the resulting drop in tire
pressures may cause the low tire pressure
warning light to illuminate. To avoid this
problem when adjusting the tire pressures
in a warm garage, inflate the tires to pres-
sures higher than those shown on the tire
inflation pressure label. Specifically,
inflate them by an extra 1 psi (6.9 kPa,
0.07 kgf/cm
2) for every difference of 10°F
B 5 = B 8. E R R N 35 ページ 2021年7月5日 月曜日 午後>1時>1>1分

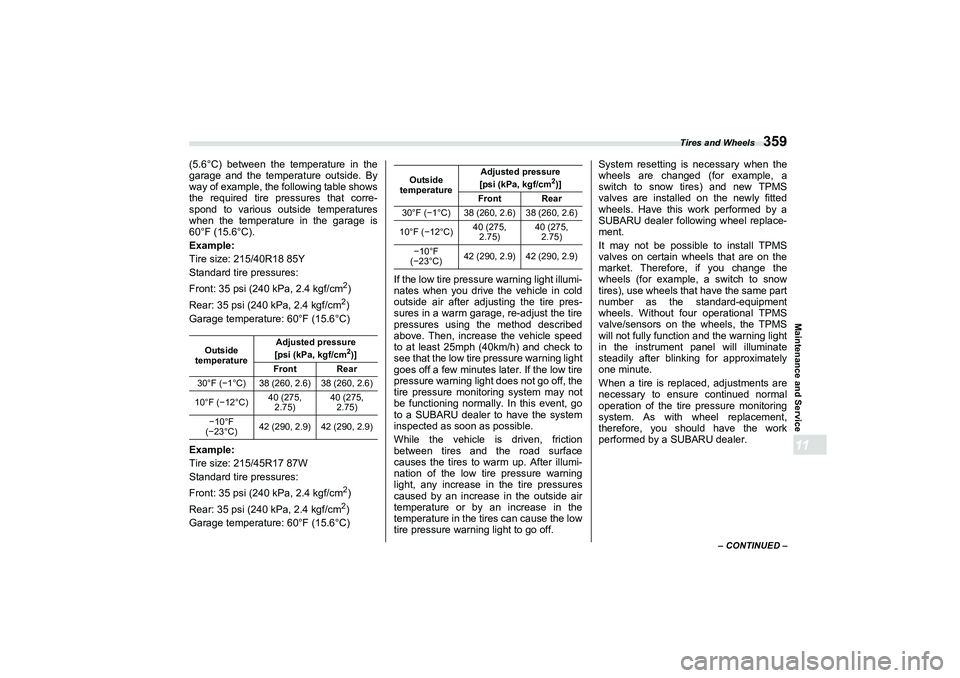

Page 365 of 432

Tires and Wheels
359
Maintenance and Service11
– CONTINUED –
(5.6°C) between the temperature in the
garage and the temperature outside. By
way of example, the following table shows
the required tire pressures that corre-
spond to various outside temperatures
when the temperature in the garage is
60°F (15.6°C).
Example:
Tire size: 215/40R18 85Y
Standard tire pressures:
Front: 35 psi (240 kPa, 2.4 kgf/cm
2)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2)
Garage temperature: 60°F (15.6°C)
Example:
Tire size: 215/45R17 87W
Standard tire pressures:
Front: 35 psi (240 kPa, 2.4 kgf/cm2)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2)
Garage temperature: 60°F (15.6°C) If the low tire pressure warning light illumi-
nates when you drive the vehicle in cold
outside air after adjusting the tire pres-
sures in a warm garage, re-adjust the tire
pressures using the method described
above. Then, increase the vehicle speed
to at least 25mph (40km/h) and check to
see that the low tire pressure warning light
goes off a few minutes later. If the low tire
pressure warning light does not go off, the
tire pressure monito
ring system may not
be functioning normally. In this event, go
to a SUBARU dealer to have the system
inspected as soon as possible.
While the vehicle is driven, friction
between tires and the road surface
causes the tires to warm up. After illumi-
nation of the low tire pressure warning
light, any increase in the tire pressures
caused by an increase in the outside air
temperature or by an increase in the
temperature in the tires can cause the low
tire pressure warning light to go off. System resetting is
necessary when the
wheels are changed (for example, a
switch to snow tires) and new TPMS
valves are installed on the newly fitted
wheels. Have this work performed by a
SUBARU dealer following wheel replace-
ment.
It may not be possible to install TPMS
valves on certain wheels that are on the
market. Therefore, if you change the
wheels (for example, a switch to snow
tires), use wheels that have the same part
number as the standard-equipment
wheels. Without four operational TPMS
valve/sensors on the wheels, the TPMS
will not fully function and the warning light
in the instrument panel will illuminate
steadily after blinking for approximately
one minute.
When a tire is replaced, adjustments are
necessary to ensure continued normal
operation of the tire pressure monitoring
system. As with wheel replacement,
therefore, you s hould have the work
performed by a SUBARU dealer.
Outside
temperature Adjusted pressure
[psi (kPa, kgf/cm
2)]
Front Rear
30°F ( −1°C) 38 (260, 2.6) 38 (260, 2.6)
10°F ( −12°C) 40 (275,
2.75) 40 (275,
2.75)
− 10°F
( − 23°C) 42 (290, 2.9) 42 (290, 2.9)
Outside
temperature Adjusted pressure
[psi (kPa, kgf/cm
2)]
Front Rear
30°F ( −1°C) 38 (260, 2.6) 38 (260, 2.6)
10°F ( −12°C) 40 (275,
2.75) 40 (275,
2.75)
− 10°F
( − 23°C) 42 (290, 2.9) 42 (290, 2.9)
B 5 = B 8. E R R N 35 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 366 of 432

Tires and Wheels
360
■

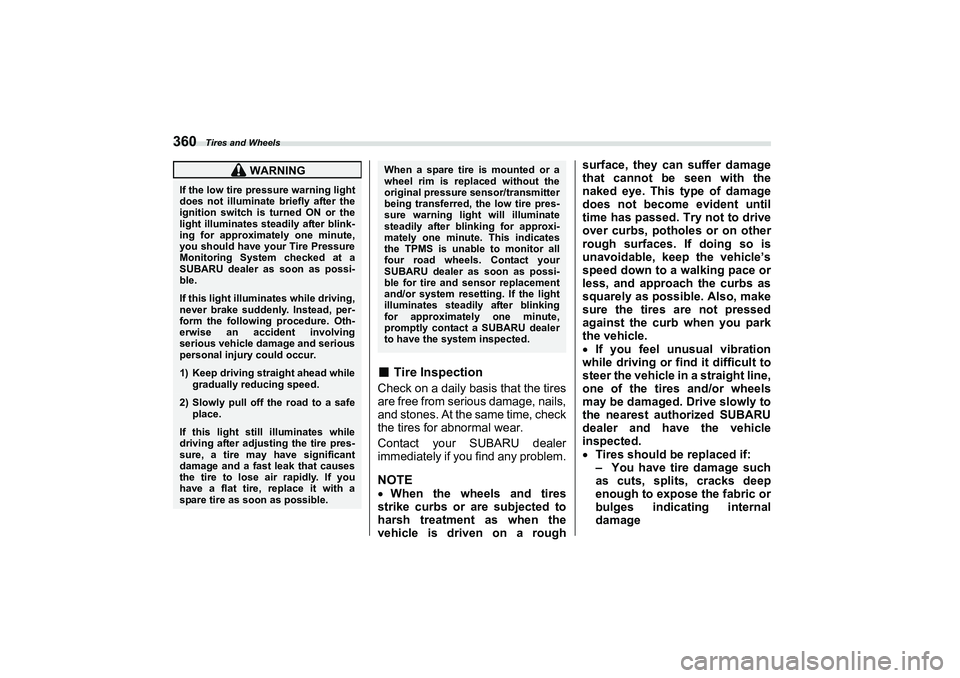

Tire Inspection
Check on a daily basis that the tires
are free from serious damage, nails,
and stones. At the same time, check
the tires for abnormal wear.
Contact your SUBARU dealer
immediately if you find any problem.NOTEWhen the wheels and tires
strike curbs or are subjected to
harsh treatment as when the
vehicle is driven on a rough surface, they can suffer damage
that cannot be seen with the
naked eye. This type of damage
does not become evident until
time has passed. Try not to drive
over curbs, potholes or on other
rough surfaces. If doing so is
unavoidable, keep the vehicle’s
speed down to a walking pace or
less, and approach the curbs as
squarely as possible. Also, make
sure the tires are not pressed
against the curb when you park
the vehicle.
If you feel unusual vibration
while driving or find it difficult to
steer the vehicle in a straight line,
one of the tires and/or wheels
may be damaged. Drive slowly to
the nearest authorized SUBARU
dealer and have the vehicle
inspected.
Tires should be replaced if:
– You have tire damage such
as cuts, splits, cracks deep
enough to expose the fabric or
bulges indicating internal
damage
WARNING
If the low tire pressure warning light
does not illuminate briefly after the
ignition switch is turned ON or the
light illuminates steadily after blink-
ing for approximately one minute,
you should have your Tire Pressure
Monitoring System checked at a
SUBARU dealer as so on as possi-
ble.If this light illuminates while driving,
never brake suddenly. Instead, per-
form the following procedure. Oth-
erwise an accident involving
serious vehicle damage and serious
personal injury could occur.1) Keep driving straight ahead while gradually reducing speed.2) Slowly pull off the road to a safeplace.If this light still illuminates while
driving after adjusting the tire pres-
sure, a tire may have significant
damage and a fast leak that causes
the tire to lose ai r rapidly. If you
have a flat tire, replace it with a
spare tire as soon as possible.
When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/transmitter
being transferred, the low tire pres-
sure warning light will illuminate
steadily after blinking for approxi-
mately one minute. This indicates
the TPMS is unable to monitor all
four road wheels. Contact your
SUBARU dealer as soon as possi-
ble for tire and sensor replacement
and/or system resetting. If the light
illuminates steadily after blinking
for approximately one minute,
promptly contact a SUBARU dealer
to have the system inspected.
B 5 = B 8. E R R N 360 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 367 of 432

Tires and Wheels
361
Maintenance and Service11
– CONTINUED –

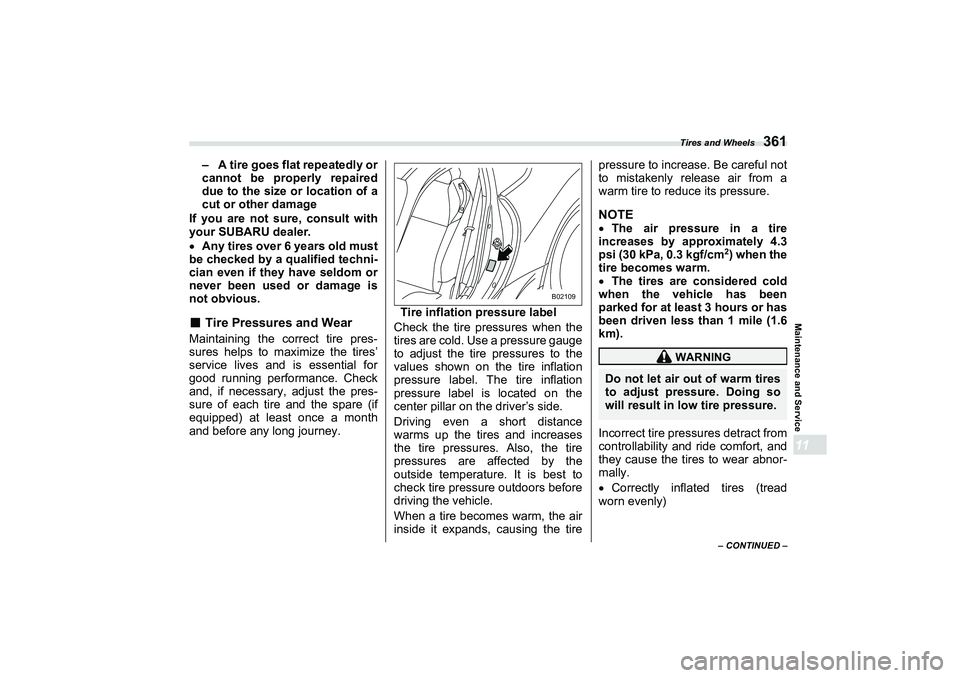

– A tire goes flat repeatedly or
cannot be properly repaired
due to the size or location of a
cut or other damage
If you are not su re, consult with
your SUBARU dealer.
Any tires over 6 years old must
be checked by a qualified techni-
cian even if they have seldom or
never been used or damage is
not obvious.
■
Tire Pressures and Wear
Maintaining the correct tire pres-
sures helps to maximize the tires’
service lives and is essential for
good running performance. Check
and, if necessary, adjust the pres-
sure of each tire and the spare (if
equipped) at least once a month
and before any long journey. Tire inflation pressure label
Check the tire pressures when the
tires are cold. Use a pressure gauge
to adjust the tire pressures to the
values shown on the tire inflation
pressure label. The tire inflation
pressure label is located on the
center pillar on the driver’s side.
Driving even a short distance
warms up the tires and increases
the tire pressures. Also, the tire
pressures are affected by the
outside temperature. It is best to
check tire pressure outdoors before
driving the vehicle.
When a tire becomes warm, the air
inside it expands, causing the tire pressure to increase. Be careful not
to mistakenly release air from a
warm tire to reduce its pressure.
NOTE
The air pressure in a tire
increases by approximately 4.3
psi (30 kPa, 0.3 kgf/cm
2) when the
tire becomes warm.
The tires are considered cold
when the vehicle has been
parked for at least 3 hours or has
been driven less than 1 mile (1.6
km).
Incorrect tire pressures detract from
controllability and ride comfort, and
they cause the tires to wear abnor-
mally.
Correctly inflated tires (tread
worn evenly)
B02109
WARNING
Do not let air out of warm tires
to adjust pressure. Doing so
will result in low tire pressure.
B 5 = B 8. E R R N 361 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 368 of 432

Tires and Wheels

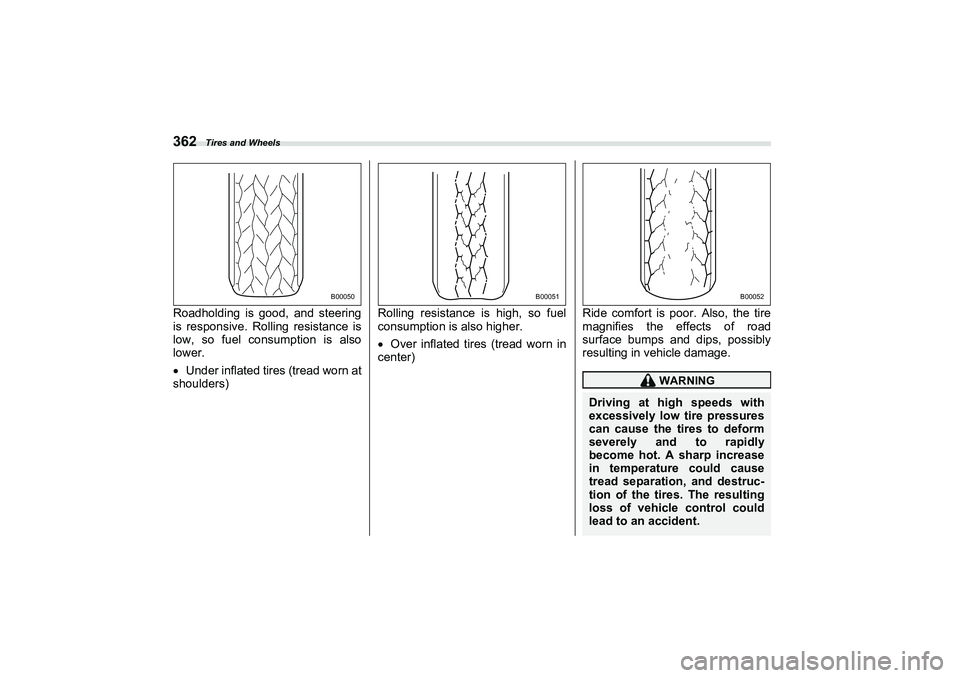

362Roadholding is good, and steering
is responsive. Rolling resistance is
low, so fuel consumption is also
lower.
Under inflated tires (tread worn at
shoulders) Rolling resistance is high, so fuel
consumption is also higher.
Over inflated tires (tread worn in
center) Ride comfort is poor. Also, the tire
magnifies the effects of road
surface bumps and dips, possibly
resulting in vehicle damage.
B00050
B00051
WARNING
Driving at high speeds with
excessively low tire pressures
can cause the tires to deform
severely and to rapidly
become hot. A sharp increase
in temperature could cause
tread separation, and destruc-
tion of the tires. The resulting
loss of vehicle control could
lead to an accident.
B00052
B 5 = B 8. E R R N 362 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 369 of 432

Tires and Wheels
363
Maintenance and Service11
– CONTINUED –
■

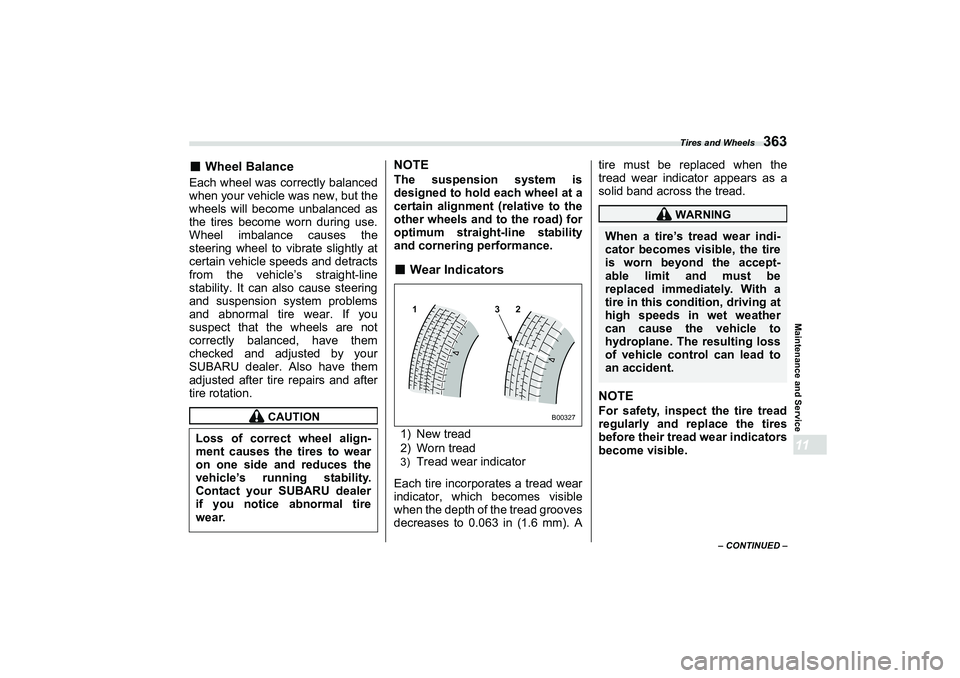

Wheel Balance
Each wheel was correctly balanced
when your vehicle was new, but the
wheels will become unbalanced as
the tires become worn during use.
Wheel imbalance causes the
steering wheel to vibrate slightly at
certain vehicle speeds and detracts
from the vehicle’s straight-line
stability. It can also cause steering
and suspension system problems
and abnormal tire wear. If you
suspect that the wheels are not
correctly balanced, have them
checked and adjusted by your
SUBARU dealer. Also have them
adjusted after tire repairs and after
tire rotation.
NOTEThe suspension system is
designed to hold each wheel at a
certain alignment (relative to the
other wheels and to the road) for
optimum straight-line stability
and cornering performance.■
Wear Indicators1) New tread
2) Worn tread3)
Tread wear indicator
Each tire incorporates a tread wear
indicator, which becomes visible
when the depth of the tread grooves
decreases to 0.063 in (1.6 mm). A tire must be replaced when the
tread wear indicator appears as a
solid band across the tread.
NOTEFor safety, inspect the tire tread
regularly and replace the tires
before their tread wear indicators
become visible.
CAUTION
Loss of correct wheel align-
ment causes the tires to wear
on one side and reduces the
vehicle’s running stability.
Contact your SUBARU dealer
if you notice abnormal tire
wear.
12
3
B00327
WARNING
When a tire’s tread wear indi-
cator becomes visible, the tire
is worn beyond the accept-
able limit and must be
replaced immediately. With a
tire in this condition, driving at
high speeds in wet weather
can cause the vehicle to
hydroplane. The resulting loss
of vehicle control can lead to
an accident.
B 5 = B 8. E R R N 363 ページ 2021年7月5日 月曜日 午後>1時>1>1分
Page 370 of 432

Tires and Wheels
364■

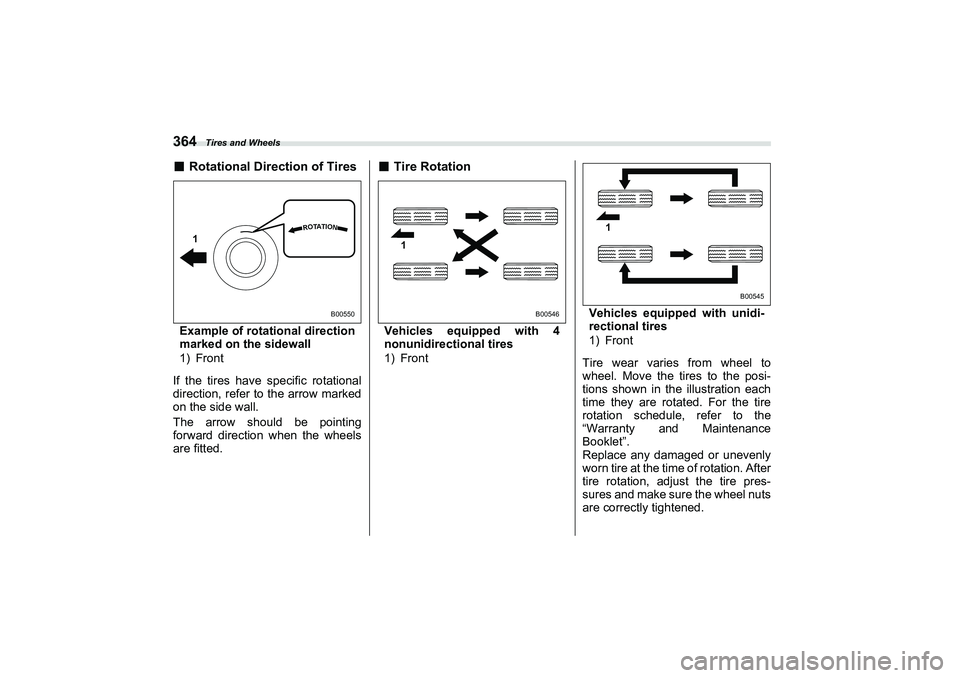

Rotational Direction of TiresExample of rotational direction
marked on the sidewall
1) Front
If the tires have specific rotational
direction, refer to the arrow marked
on the side wall.
The arrow should be pointing
forward direction when the wheels
are fitted.
■
Tire RotationVehicles equipped with 4
nonunidirectional tires
1) Front Vehicles equipped with unidi-
rectional tires
1) Front
Tire wear varies from wheel to
wheel. Move the tires to the posi-
tions shown in the illustration each
time they are rotated. For the tire
rotation schedule, refer to the
“Warranty and Maintenance
Booklet”.
Replace any damaged or unevenly
worn tire at the time of rotation. After
tire rotation, adjust the tire pres-
sures and make sure the wheel nuts
are correctly tightened.
ROTATION
1
B00550
1
B00546
1
B00545
B 5 = B 8. E R R N 364 ページ 2021年7月5日 月曜日 午後>1時>1>1分
