Specifications
385

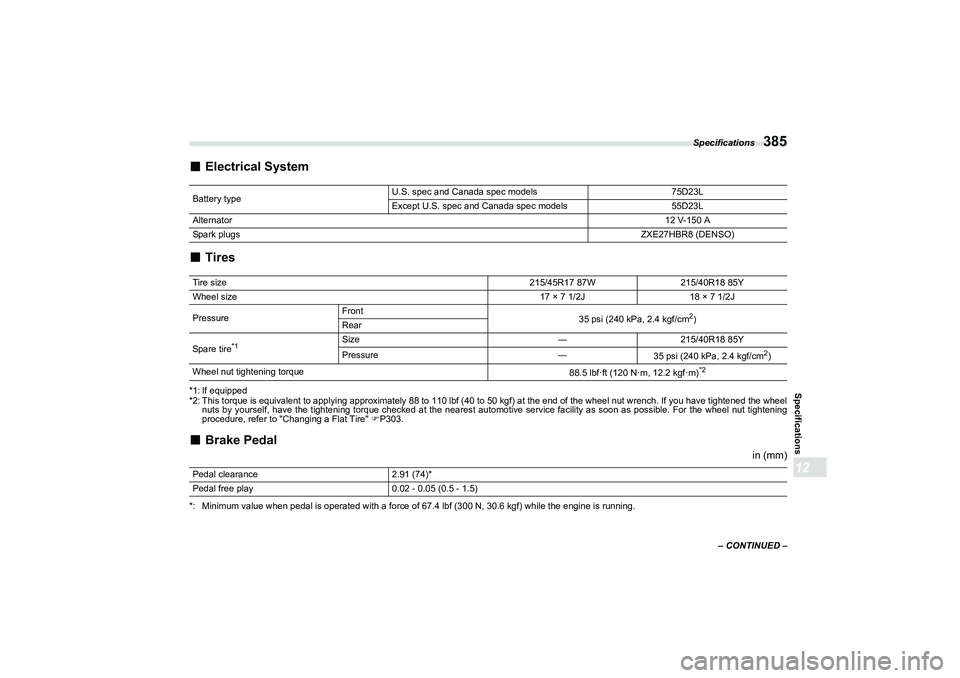

Specifications12
– CONTINUED –
■
Electrical System
■Tires
*1: If equipped
*2: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wh eel nut tightening
procedure, refer to "Changing a Flat Tire"  P303.■
Brake Pedal
in (mm)
*: Minimum value when pedal is operated with a force of 67.4 lbf (300 N, 30.6 kgf) while the engine is running.
Battery type
U.S. spec and Canada spec models
75D23L
Except U.S. spec and Canada spec models 55D23L
Alternator 12 V-150 A
Spark plugs ZXE27HBR8 (DENSO)
Tire size 215/45R17 87W215/40R18 85Y
Wheel size 17 × 7 1/2J18 × 7 1/2J
Pressure Front
35 psi (240 kPa, 2.4 kgf/cm
2)
Rear
Spare tire
*1
Size ―215/40R18 85Y
Pressure ―
35 psi (240 kPa, 2.4 kgf/cm
2)
Wheel nut tightening torque 88.5 lbf·ft (120 N·m, 12.2 kgf·m)
*2
Pedal clearance2.91 (74)*
Pedal free play 0.02 - 0.05 (0.5 - 1.5)
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

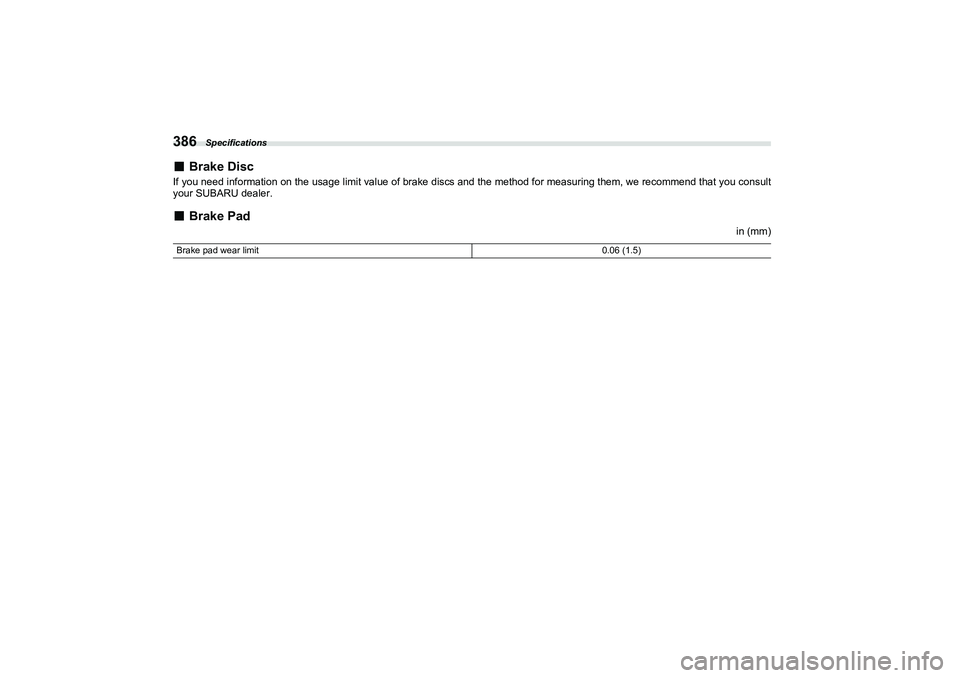

Specifications
386■
Brake Disc
If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consul t
your SUBARU dealer.■
Brake Pad
in (mm)
Brake pad wear limit 0.06 (1.5)B5=B8.ERRN 36 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

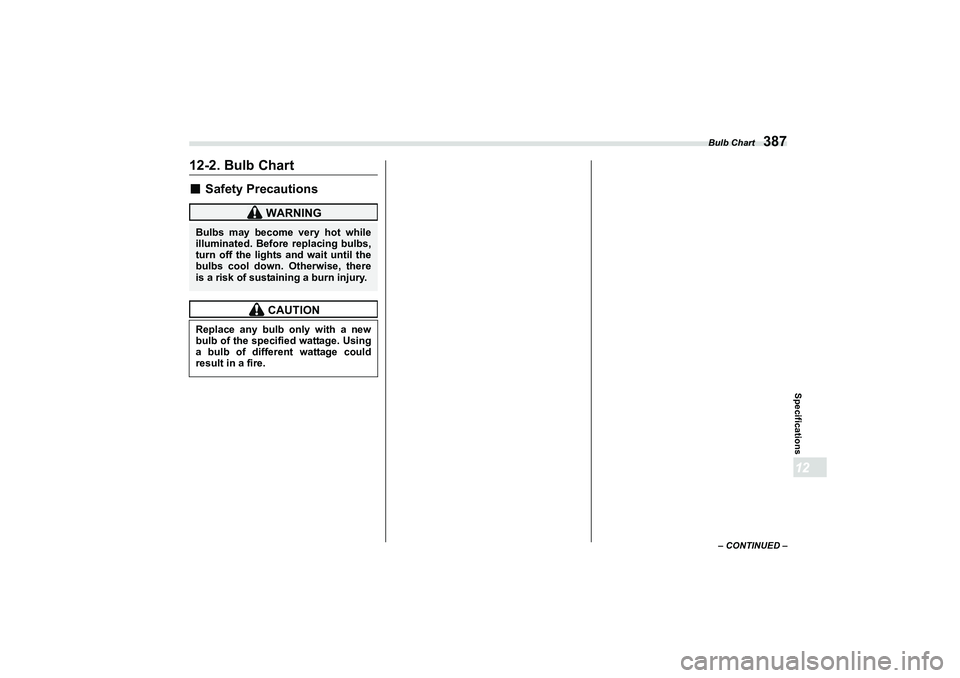

Bulb Chart
387
Specifications12
12-2. Bulb Chart■
Safety Precautions
WARNING
Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down. Otherwise, there
is a risk of sustaining a burn injury.
CAUTION
Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire.
B5=B8.ERRN 3 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
– CONTINUED –

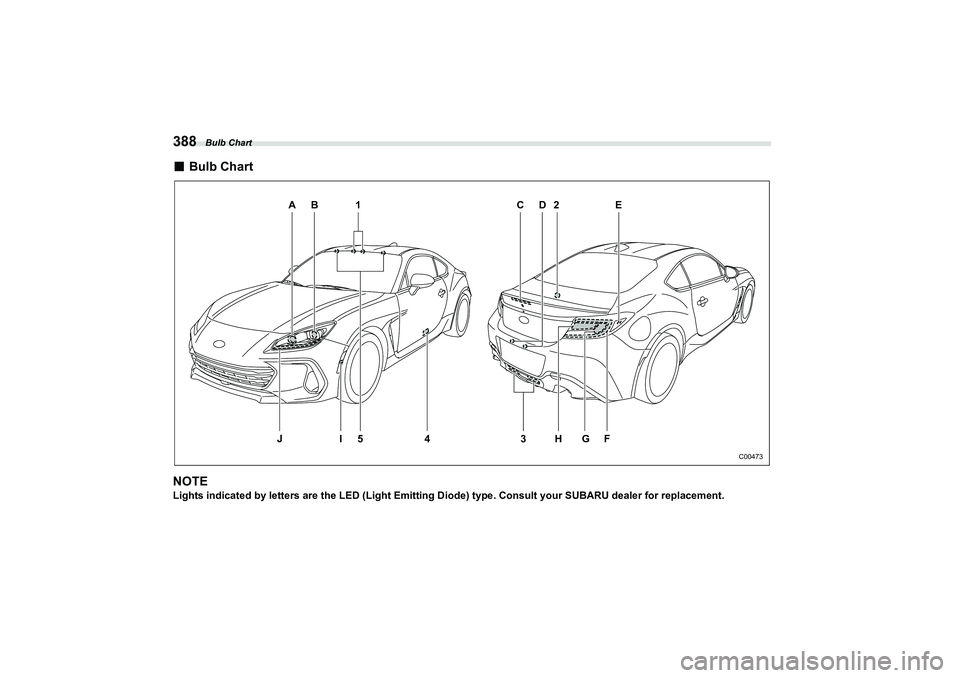

Bulb Chart
388■
Bulb Chart
NOTE
Lights indicated by le tters are the LED (Light Emitting Diode) type . Consult your SUBARU dealer for replacement.
A
C
2
E
F
G
4
J
I
5
3
H
D
B
1
C00473
B5=B8.ERRN 3 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

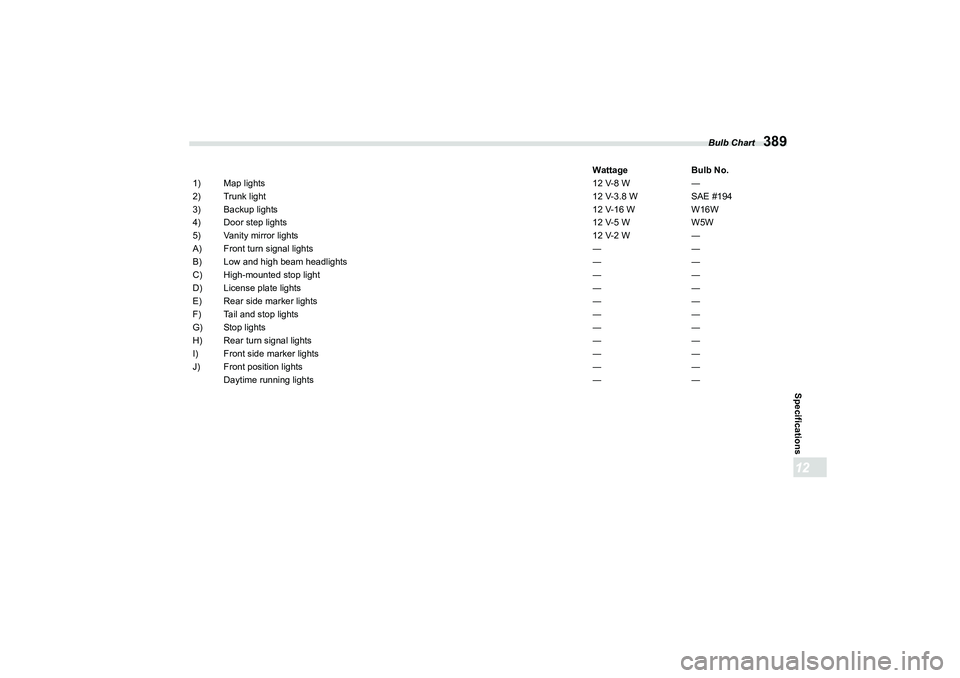

Bulb Chart
389
Specifications12
WattageBulb No.
1) Map lights 12 V-8 W―
2) Trunk light 12 V-3.8 WSAE #194
3) Backup lights 12 V-16 WW16W
4) Door step lights 12 V-5 WW5W
5) Vanity mirror lights 12 V-2 W―
A) Front turn signal lights ――
B) Low and high beam headlights ――
C) High-mounted stop light ――
D) License plate lights ――
E) Rear side marker lights ――
F) Tail and stop lights ――
G) Stop lights ――
H) Rear turn signal lights ――
I) Front side marker lights ――
J) Front position lights ――
Daytime running lights ――
B5=B8.ERRN 3 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

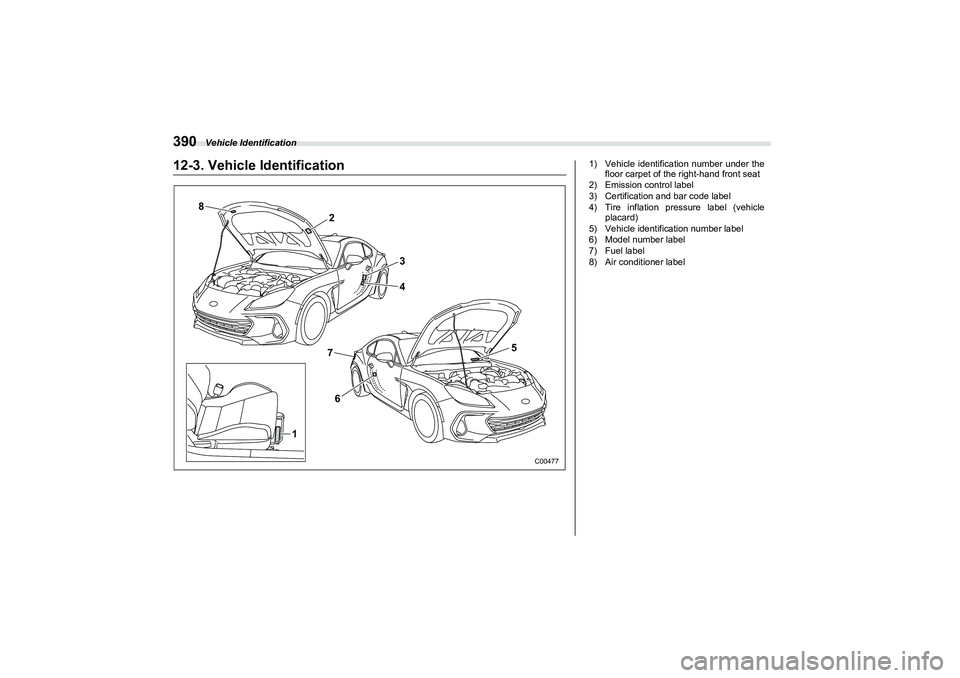

Vehicle Identification
39012-3. Vehicle Identification
8
762
3
4
5
1
C00477
1) Vehicle identification number under thefloor carpet of the right-hand front seat
2) Emission control label
3) Certification and bar code label
4) Tire inflation pressure label (vehicle placard)
5) Vehicle identification number label
6) Model number label
7) Fuel label
8) Air conditioner label
B5=B8.ERRN 30 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

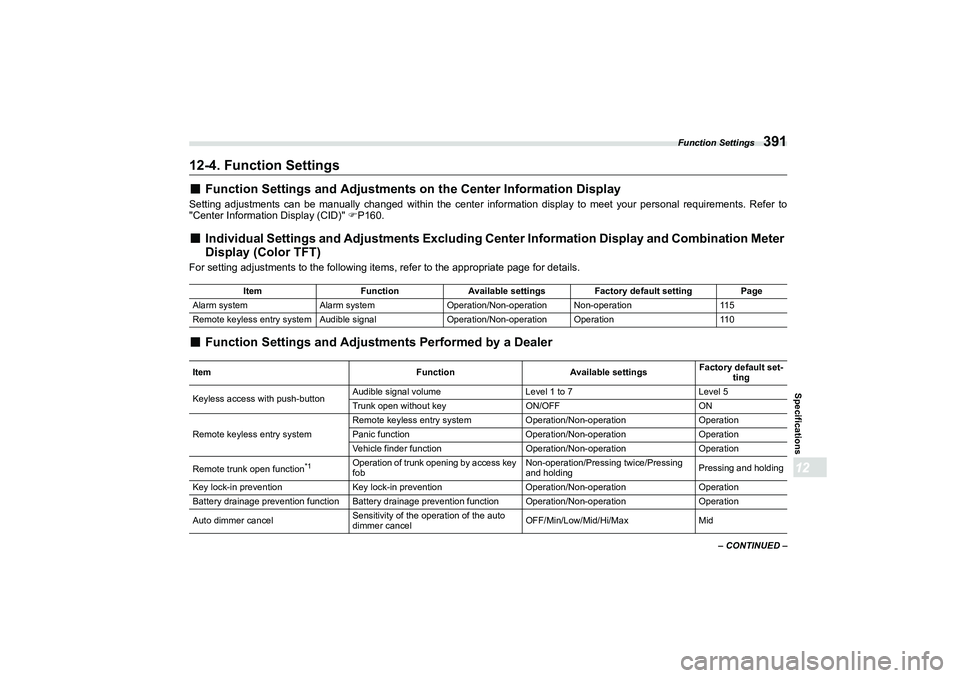

Function Settings
391
Specifications12
– CONTINUED –
12-4. Function Settings■
Function Settings and Adjustments on the Center Information Display
Setting adjustments can be manually changed within the center information display to meet your personal requirements. Refer to
"Center Information Display (CID)" P160.■
Individual Settings and Adjustments Excluding Center Information Display and Combination Meter
Display (Color TFT)
For setting adjustments to the following items, refer to the appropriate page for details.■
Function Settings and Adjustments Performed by a Dealer
Item FunctionAvailable settings Factory default setting Page
Alarm system Alarm system Operation/Non-operation Non-operation 11 5
Remote keyless entry system Audible signal Operation/Non-operation Operation 11 0
Item FunctionAvailable settingsFactory default set-
ting
Keyless access with push-button Audible signal volume
Level 1 to 7 Level 5
Trunk open without key ON/OFFON
Remote keyless entry system Remote keyless entry system
Operation/Non-operation Operation
Panic function Operation/Non-operation Operation
Vehicle finder function Operation/Non-operationOperation
Remote trunk open function
*1
Operation of trunk opening by access key
fob Non-operation/Pressing twice/Pressing
and holding
Pressing and holding
Key lock-in prevention Key lock-in prevention Operation/Non-operation Operation
Battery drainage prevention function Battery drainage prevention function Operation/Non-operationOperation
Auto dimmer cancel Sensitivity of the operation of the auto
dimmer cancel OFF/Min/Low/Mid/Hi/Max
Mid
B5=B8.ERRN 31 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

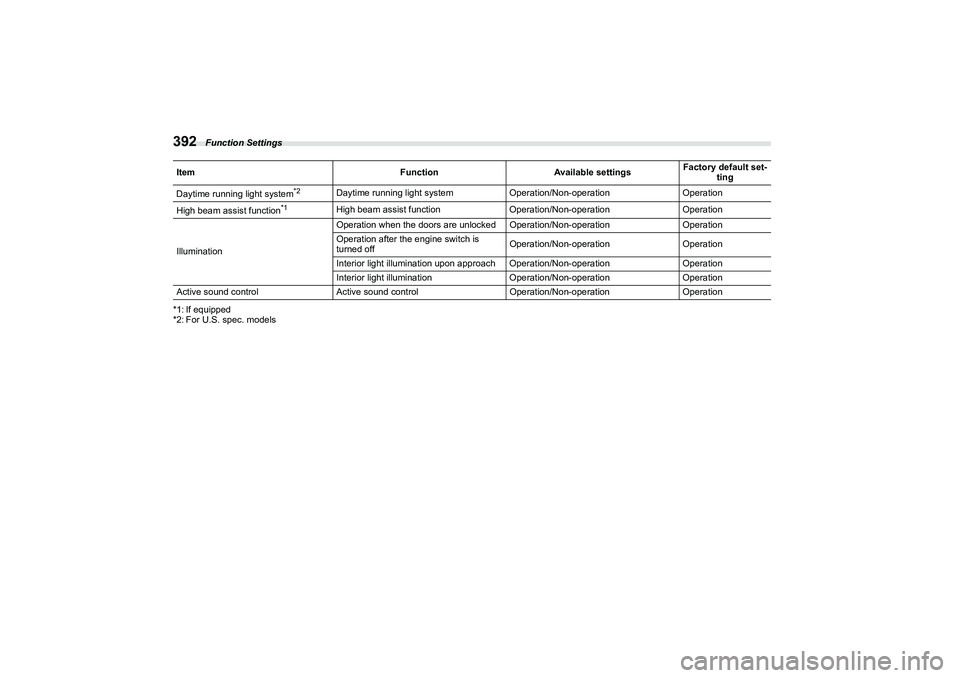

Function Settings
392*1: If equipped
*2: For U.S. spec. modelsDaytime running light system
*2
Daytime running light system
Operation/Non-operationOperation
High beam assist function
*1
High beam assist function Operation/Non-operation Operation
Illumination Operation when the doors are unlocked Operation/Non-operation
Operation
Operation after the engine switch is
turned off Operation/Non-operation
Operation
Interior light illumination upon appr oach Operation/Non-operation Operation
Interior light illumination Operation/Non-operation Operation
Active sound control Active sound control Operation/Non-operation Operation
Item
FunctionAvailable settingsFactory default set-
ting
B5=B8.ERRN 32 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

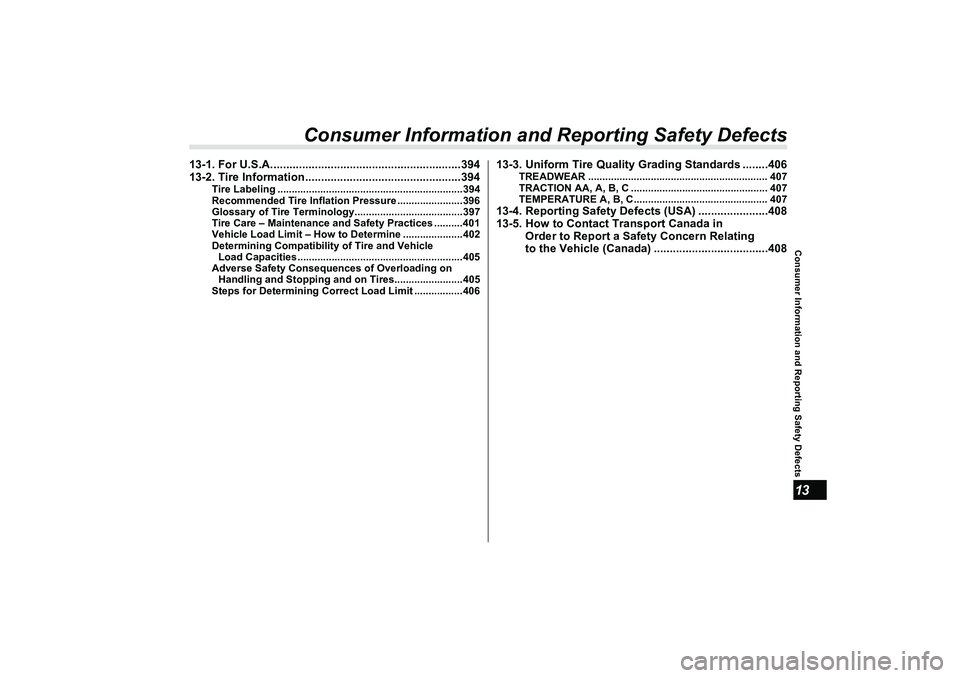

Consumer Information and Reporting Safety Defects13
Consumer Information and Reporting Safety Defects
13-1. For U.S.A............................................................394
13-2. Tire Information.................................................394
Tire Labeling .................................................................394
Recommended Tire Inflation Pressure .......................396
Glossary of Tire Terminology......................................397
Tire Care – Maintenance and Safety Practices ..........401
Vehicle Load Limit – How to Determine .....................402
Determining Compatibility of Tire and Vehicle Load Capacities..........................................................405
Adverse Safety Consequences of Overloading on Handling and Stopping and on Tires........................405
Steps for Determining Correct Load Limit .................406
13-3. Uniform Tire Quality Grading Standards ........406
TREADWEAR ............................................................... 407
TRACTION AA, A, B, C ................................................ 407
TEMPERATURE A, B, C............................................... 407
13-4. Reporting Safety Defe cts (USA) ......................408
13-5. How to Contact Transport Canada in Order to Report a Safety Concern Relating
to the Vehicle (Canada) ....................................408
A4600BEscusenvhch13.fm 393 ページ ２０２１年７月９日　金曜日　午後４時３９分

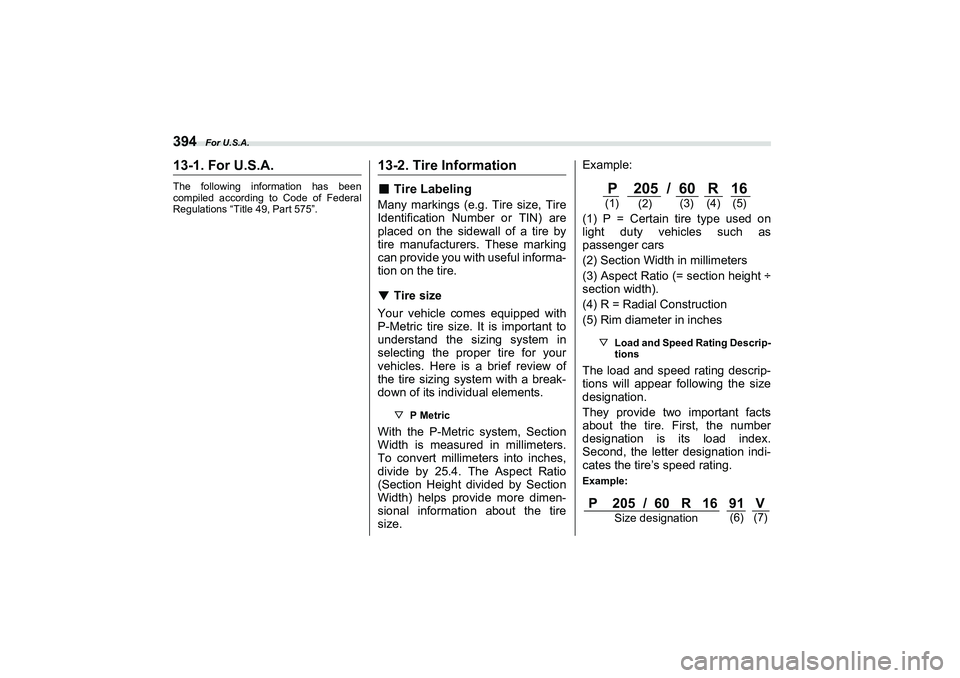

For U.S.A.
39413-1. For U.S.A.The following information has been
compiled according to Code of Federal
Regulations “Title 49, Part 575”.
13-2. Tire Information■Tire LabelingMany markings (e.g . Tire size, Tire
Identification Number or TIN) are
placed on the sidewall of a tire by
tire manufacturers. These marking
can provide you with useful informa-
tion on the tire.
▼ Tire size
Your vehicle comes equipped with
P-Metric tire size. It is important to
understand the sizing system in
selecting the proper tire for your
vehicles. Here is a brief review of
the tire sizing system with a break-
down of its individual elements.
▽ P Metric
With the P-Metric system, Section
Width is measured in millimeters.
To convert millimeters into inches,
divide by 25.4. The Aspect Ratio
(Section Height divided by Section
Width) helps provide more dimen-
sional information about the tire
size. Example:
(1) P = Certain tire type used on
light duty vehicles such as
passenger cars
(2) Section Width in millimeters
(3) Aspect Ratio (= section height ÷
section width).
(4) R = Radial Construction
(5) Rim diameter in inches
▽
Load and Speed Rating Descrip-
tions
The load and speed rating descrip-
tions will appear following the size
designation.
They provide two important facts
about the tire. First, the number
designation is its load index.
Second, the letter designation indi-
cates the tire’s speed rating.Example:
P 205 / 60 R 16(1)
(2) (3) (4) (5)
P 205 / 60 R 16 91 V
Size designation (6) (7)
