SUBARU CROSSTREK 2017 1.G Driving Assist Manual

Conventional Cruise Control

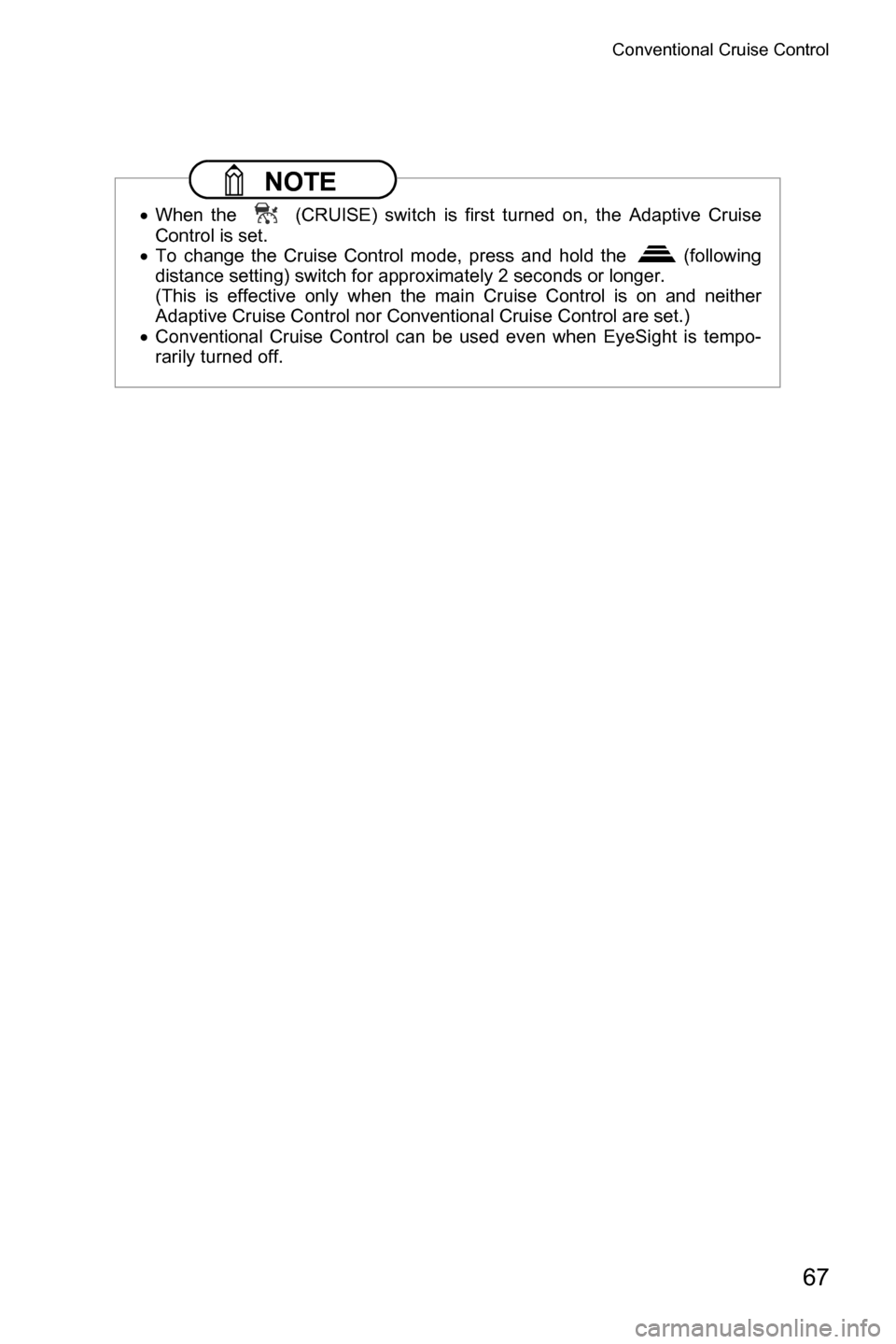

67
NOTE
xWhen the (CRUISE) switch is first turned on, the Adaptive Cruise
Control is set.
xTo change the Cruise Control mode, press and hold the (following
distance setting) switch for approximately 2 seconds or longer.
(This is effective only when the main Cruise Control is on and neither
Adaptive Cruise Control nor Conventional Cruise Control are set.)
xConventional Cruise Control can be used even when EyeSight is tempo-
rarily turned off.

Conventional Cruise Control

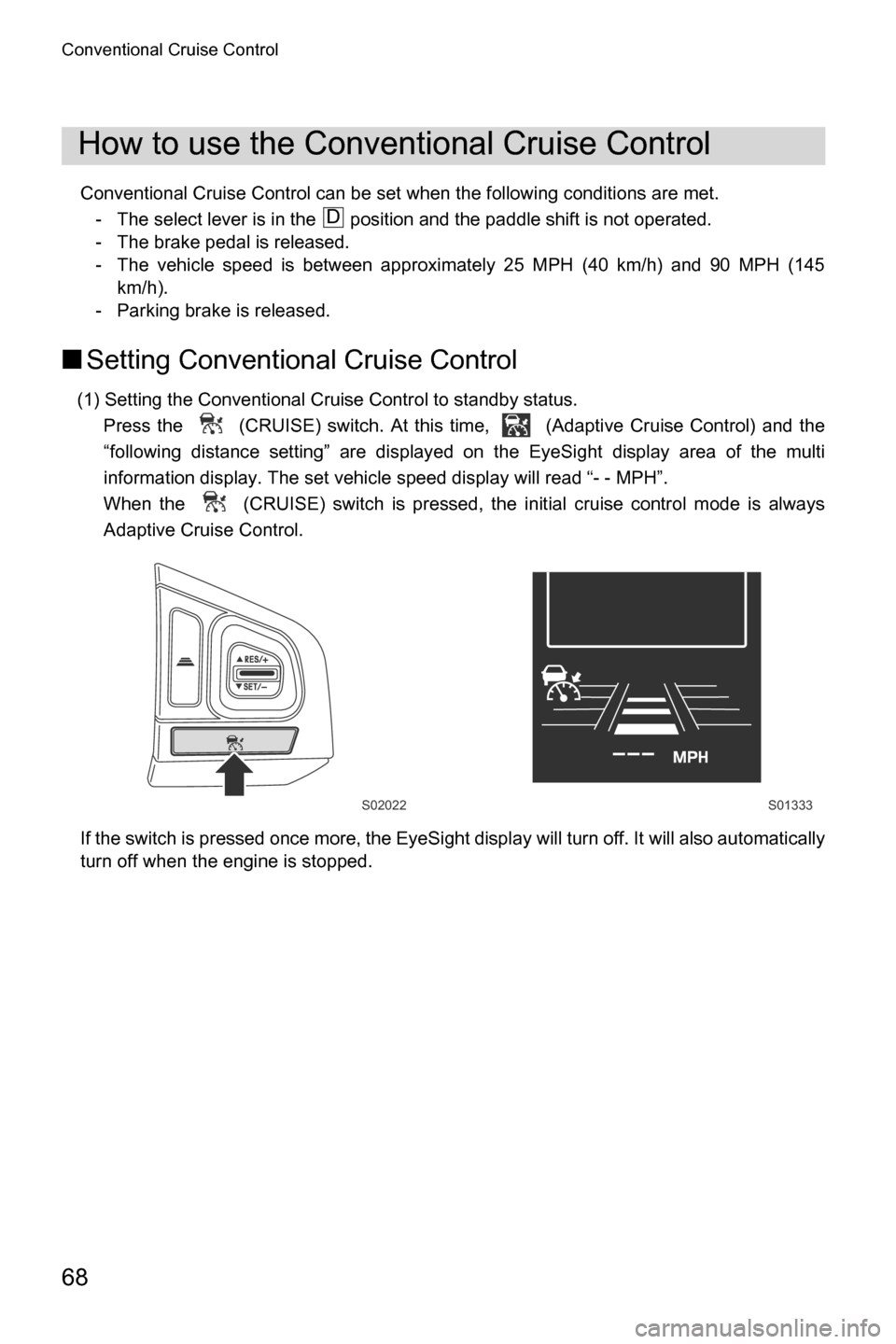

68
Conventional Cruise Control can be set when the following conditions are met.
- The select lever is in the position and the paddle shift is not operated.
- The brake pedal is released.
- The vehicle speed is between approximately 25 MPH (40 km/h) and 90 MPH (145
km/h).
- Parking brake is released.
■Setting Conventional Cruise Control
(1) Setting the Conventional Cruise Control to standby status.
Press the (CRUISE) switch. At this time, (Adaptive Cruise Control) and the
“following distance setting” are displayed on the EyeSight display area of the multi
information display. The set vehicle speed display will read “- - MPH”.
When the (CRUISE) switch is pressed, the initial cruise control mode is always
Adaptive Cruise Control.
If the switch is pressed once more, the EyeSight display will turn off. It will also automatically
turn off when the engine is stopped.
How to use the Conventional Cruise Control
D
S02022S01333

Conventional Cruise Control

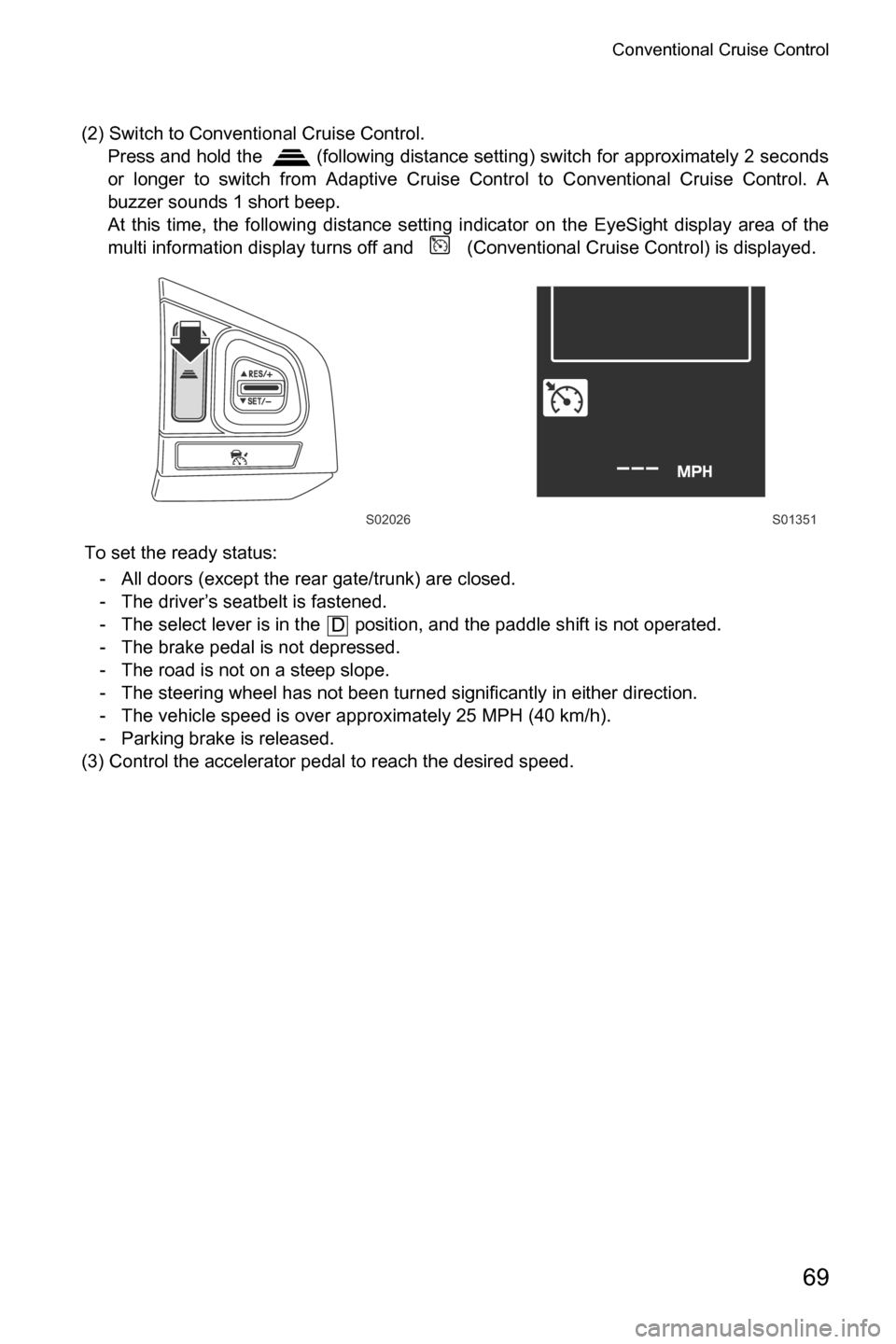

69
(2) Switch to Conventional Cruise Control.
Press and hold the (following distance setting) switch for approximately 2 seconds
or longer to switch from Adaptive Cruise Control to Conventional Cruise Control. A
buzzer sounds 1 short beep.
At this time, the following distance setting indicator on the EyeSight display area of the
multi information display turns off and (Conventional Cruise Control) is displayed.
To set the ready status:
- All doors (except the rear gate/trunk) are closed.
- The driver’s seatbelt is fastened.
- The select lever is in the position, and the paddle shift is not operated.
- The brake pedal is not depressed.
- The road is not on a steep slope.
- The steering wheel has not been turned significantly in either direction.
- The vehicle speed is over approximately 25 MPH (40 km/h).
- Parking brake is released.
(3) Control the accelerator pedal to reach the desired speed.
S02026S01351
D

Conventional Cruise Control

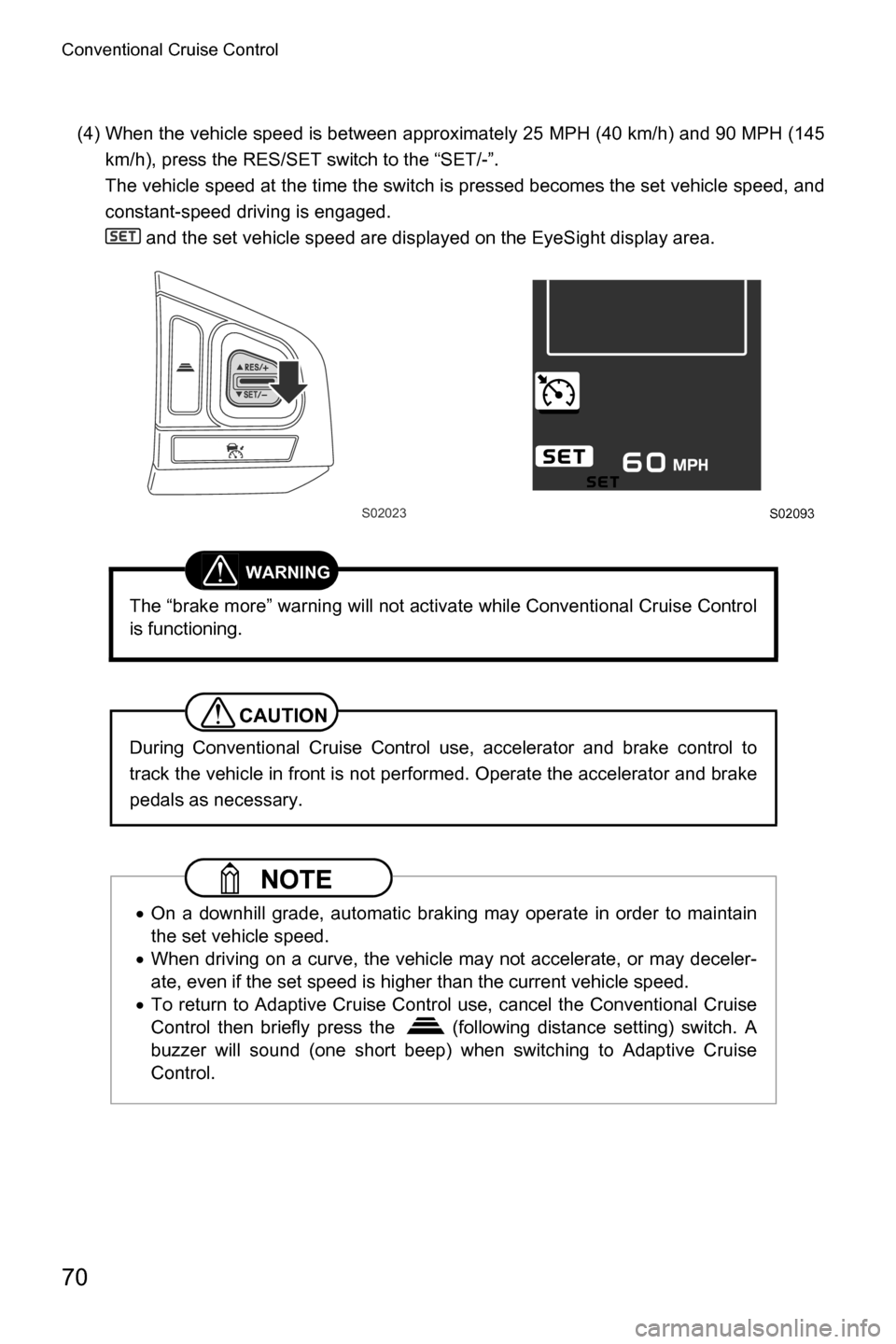

70
(4) When the vehicle speed is between approximately 25 MPH (40 km/h) and 90 MPH (145
km/h), press the RES/SET switch to the “SET/-”.
The vehicle speed at the time the switch is pressed becomes the set vehicle speed, and
constant-speed driving is engaged.
and the set vehicle speed are displayed on the EyeSight display area.
WARNING
The “brake more” warning will not activate while Conventional Cruise Control
is functioning.
CAUTION
During Conventional Cruise Control use, accelerator and brake control to
track the vehicle in front is not performed. Operate the accelerator and brake
pedals as necessary.
NOTE
xOn a downhill grade, automatic braking may operate in order to maintain
the set vehicle speed.
xWhen driving on a curve, the vehicle may not accelerate, or may deceler-
ate, even if the set speed is higher than the current vehicle speed.
xTo return to Adaptive Cruise Control use, cancel the Conventional Cruise
Control then briefly press the (following distance setting) switch. A
buzzer will sound (one short beep) when switching to Adaptive Cruise
Control.
S02023S02093

Conventional Cruise Control
71

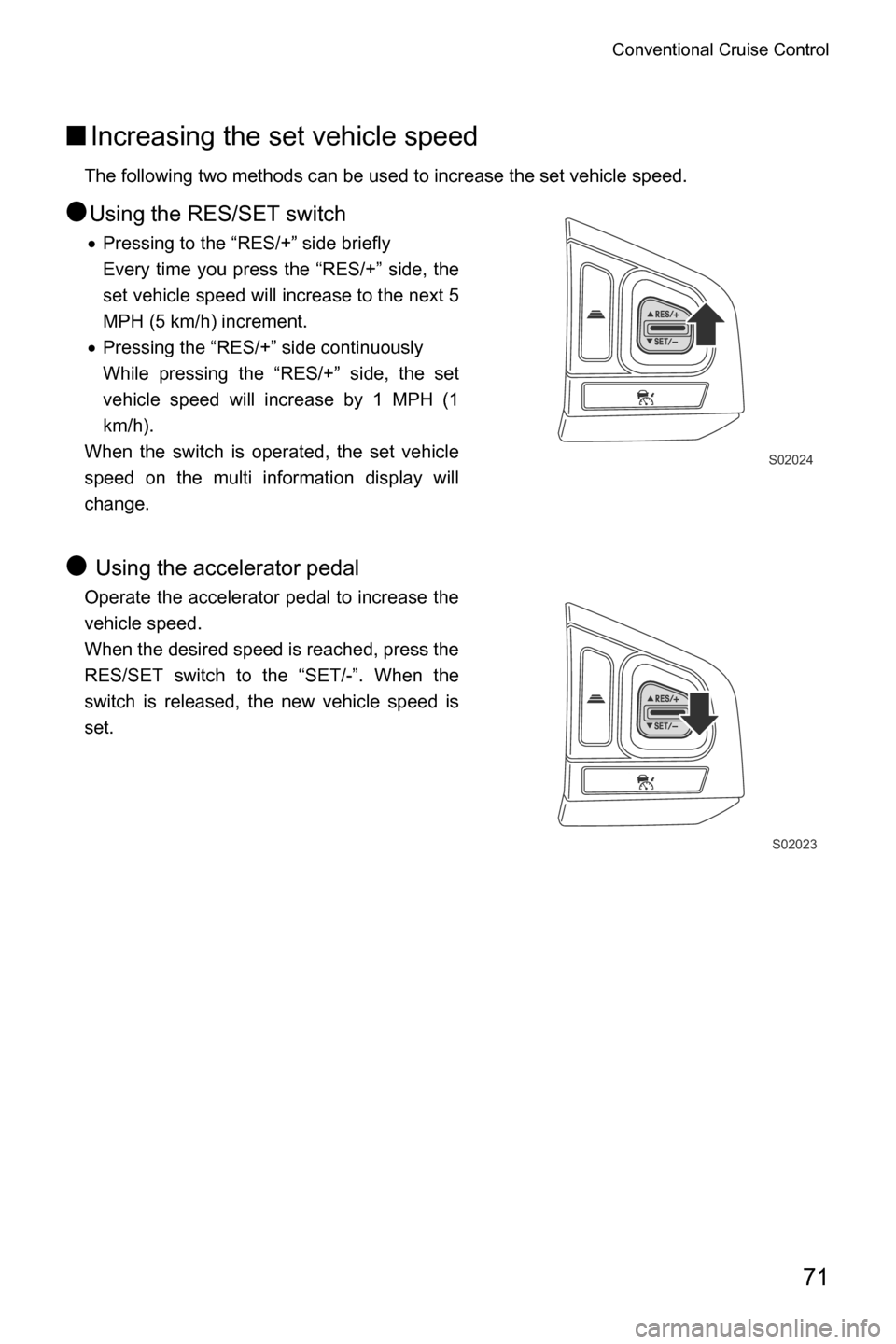

■Increasing the set vehicle speed
The following two methods can be used to increase the set vehicle speed.
●Using the RES/SET switch
xPressing to the “RES/+” side briefly
Every time you press the “RES/+” side, the
set vehicle speed will increase to the next 5
MPH (5 km/h) increment.
xPressing the “RES/+” side continuously
While pressing the “RES/+” side, the set
vehicle speed will increase by 1 MPH (1
km/h).
When the switch is operated, the set vehicle
speed on the multi information display will
change.
● Using the accelerator pedal
Operate the accelerator pedal to increase the
vehicle speed.
When the desired speed is reached, press the
RES/SET switch to the “SET/-”. When the
switch is released, the new vehicle speed is
set.
S02024
S02023

Conventional Cruise Control

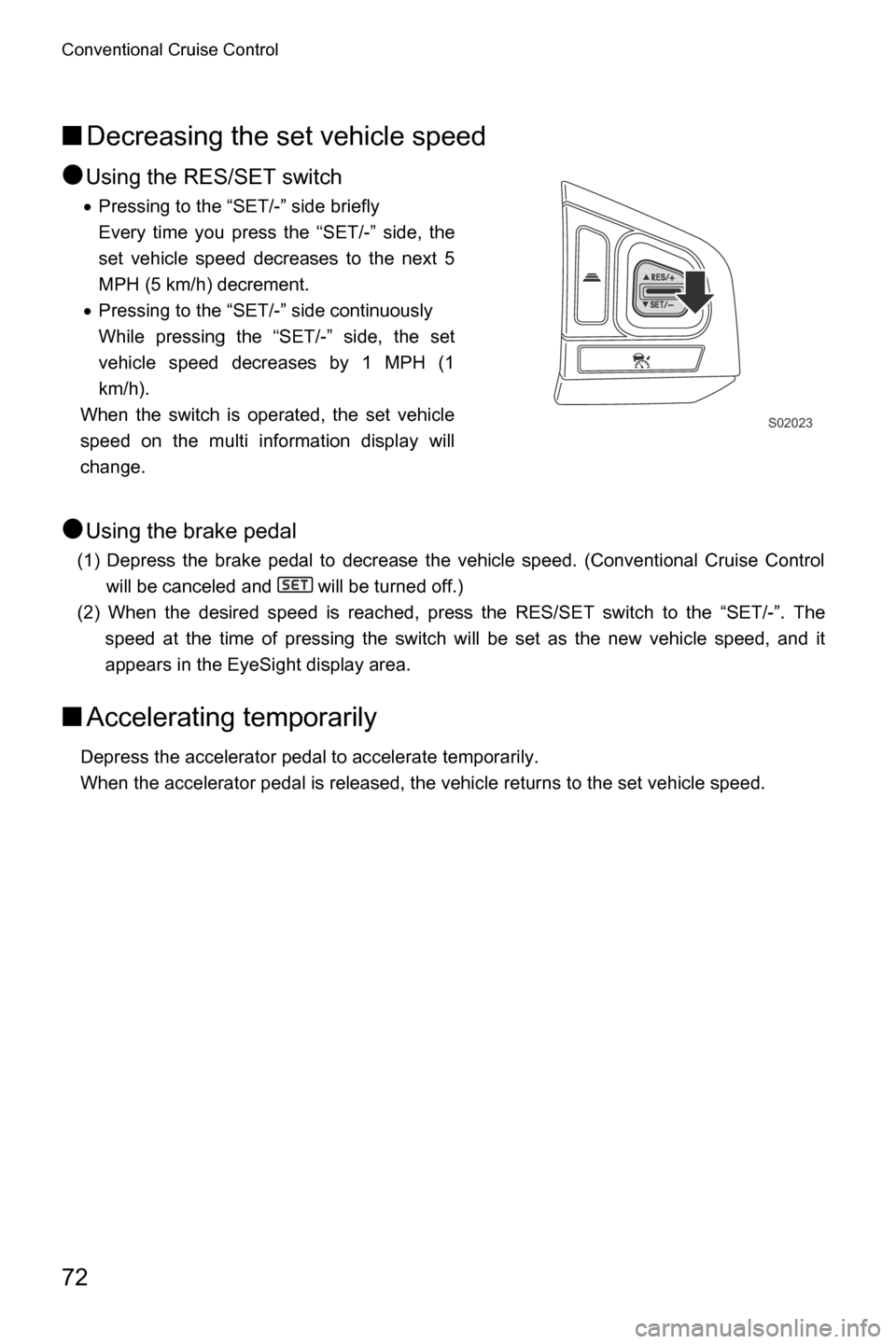

72
■Decreasing the set vehicle speed
●
Using the RES/SET switch
xPressing to the “SET/-” side briefly
Every time you press the “SET/-” side, the
set vehicle speed decreases to the next 5
MPH (5 km/h) decrement.
xPressing to the “SET/-” side continuously
While pressing the “SET/-” side, the set
vehicle speed decreases by 1 MPH (1
km/h).
When the switch is operated, the set vehicle
speed on the multi information display will
change.
●Using the brake pedal
(1) Depress the brake pedal to decrease the vehicle speed. (Conventional Cruise Control
will be canceled and will be turned off.)
(2) When the desired speed is reached, press the RES/SET switch to the “SET/-”. The
speed at the time of pressing the switch will be set as the new vehicle speed, and it
appears in the EyeSight display area.
■Accelerating temporarily
Depress the accelerator pedal to accelerate temporarily.
When the accelerator pedal is released, the vehicle returns to the set vehicle speed.
S02023

Conventional Cruise Control

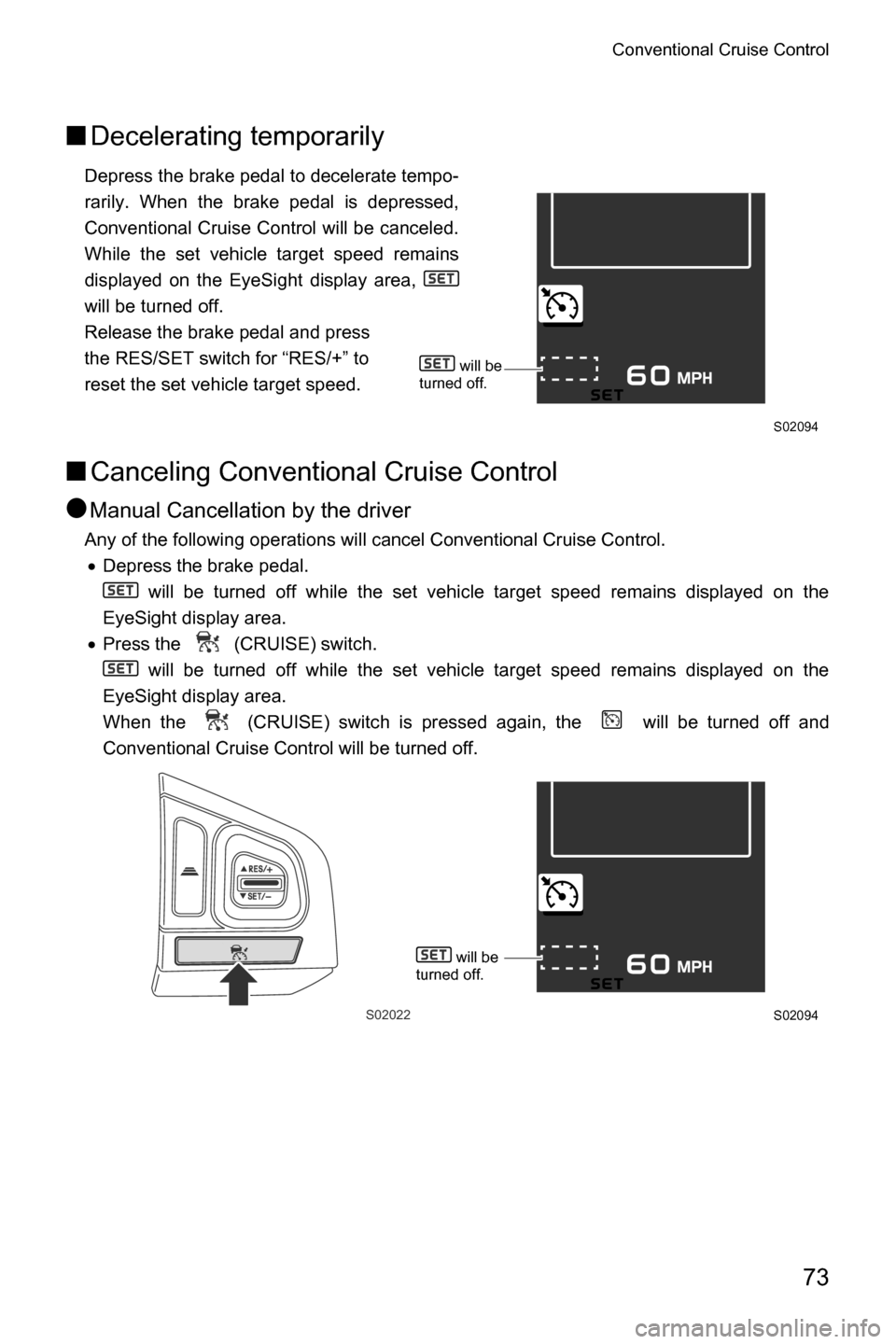

73
■Decelerating temporarily
Depress the brake pedal to decelerate tempo-
rarily. When the brake pedal is depressed,
Conventional Cruise Control will be canceled.
While the set vehicle target speed remains
displayed on the EyeSight display area,
will be turned off.
Release the brake pedal and press
the RES/SET switch for “RES/+” to
reset the set vehicle target speed.
■Canceling Conventional Cruise Control
●
Manual Cancellation by the driver
Any of the following operations will cancel Conventional Cruise Control.
xDepress the brake pedal.
will be turned off while the set vehicle target speed remains displayed on the
EyeSight display area.
xPress the (CRUISE) switch.
will be turned off while the set vehicle target speed remains displayed on the
EyeSight display area.
When the (CRUISE) switch is pressed again, the will be turned off and
Conventional Cruise Control will be turned off.
S02094
S02022S02094
will be
turned off.
will be
turned off.

Conventional Cruise Control

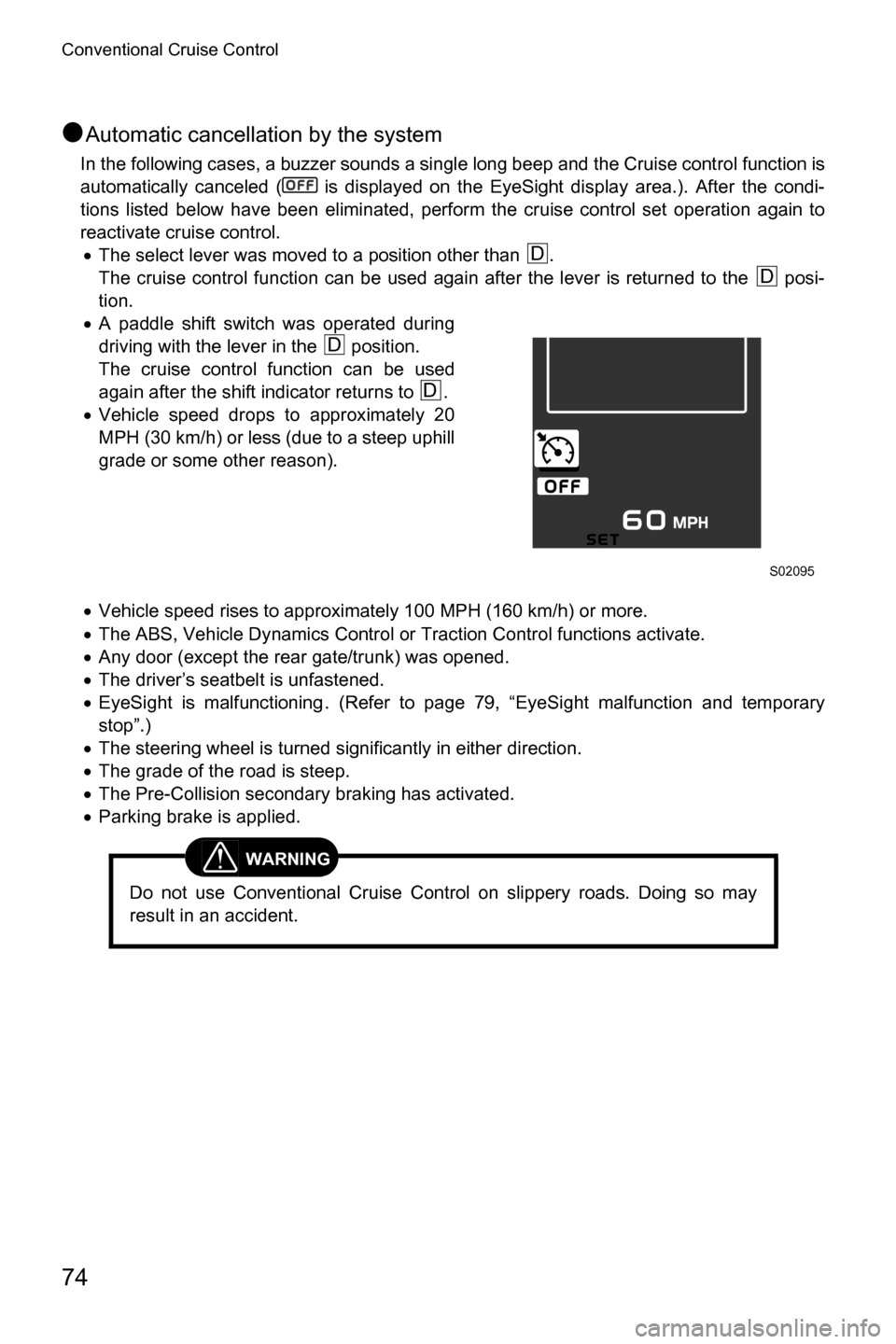

74
●Automatic cancellation by the system
In the following cases, a buzzer sounds a single long beep and the Cruise control function is
automatically canceled ( is displayed on the EyeSight display area.). After the condi-
tions listed below have been eliminated, perform the cruise control set operation again to
reactivate cruise control.
xThe select lever was moved to a position other than .
The cruise control function can be used again after the lever is returned to the posi-
tion.
xA paddle shift switch was operated during
driving with the lever in the position.
The cruise control function can be used
again after the shift indicator returns to .
xVehicle speed drops to approximately 20
MPH (30 km/h) or less (due to a steep uphill
grade or some other reason).
xVehicle speed rises to approximately 100 MPH (160 km/h) or more.
xThe ABS, Vehicle Dynamics Control or Traction Control functions activate.
xAny door (except the rear gate/trunk) was opened.
xThe driver’s seatbelt is unfastened.
xEyeSight is malfunctioning . (Refer to page 79, “EyeSight malfunction and temporary
stop”.)
xThe steering wheel is turned significantly in either direction.
xThe grade of the road is steep.
xThe Pre-Collision secondary braking has activated.
xParking brake is applied.
WARNING
Do not use Conventional Cruise Control on slippery roads. Doing so may
result in an accident.
D
D
S02095
D
D

Conventional Cruise Control
75

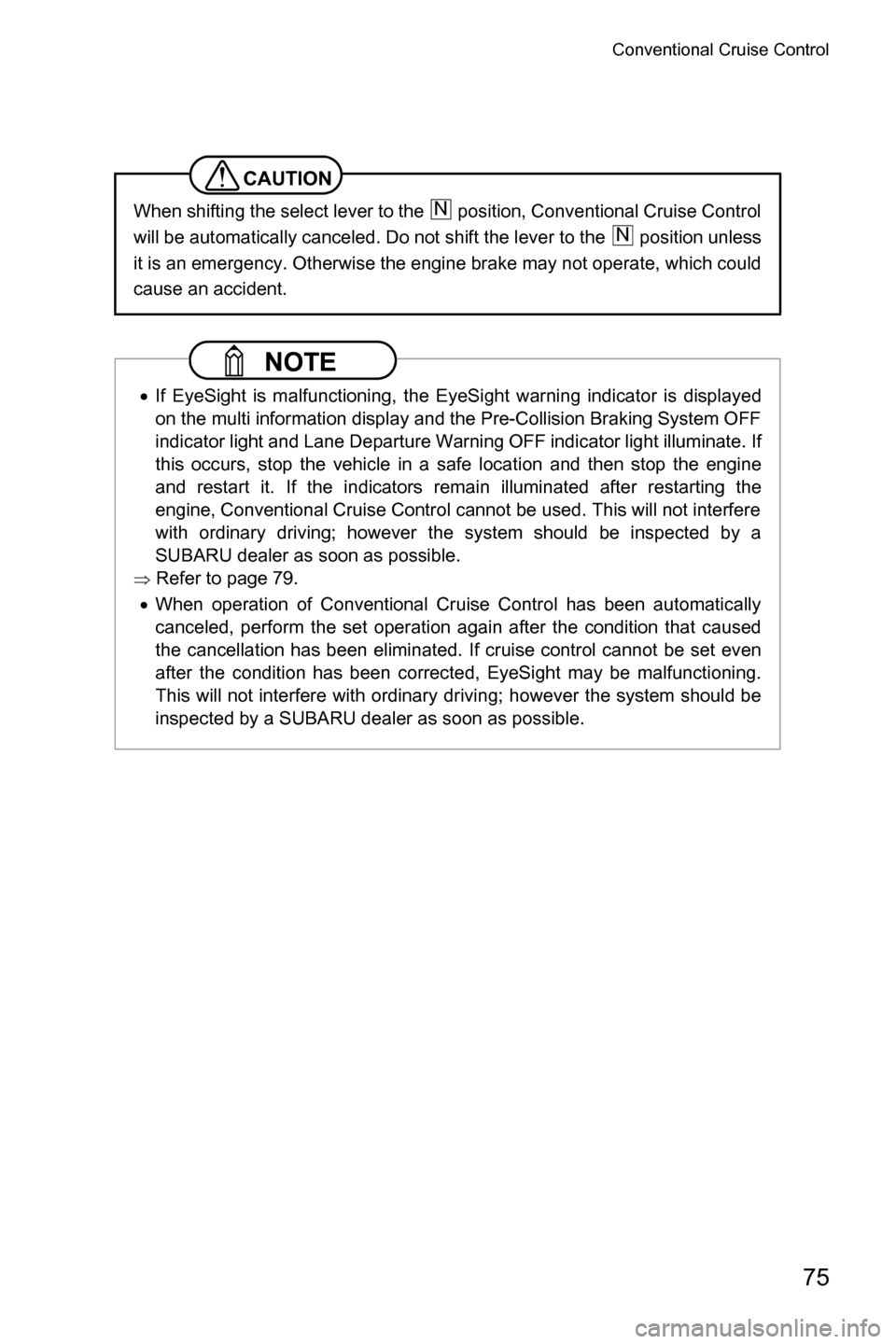

CAUTION
When shifting the select lever to the position, Conventional Cruise Control
will be automatically canceled. Do not shift the lever to the position unless
it is an emergency. Otherwise the engine brake may not operate, which could
cause an accident.
NOTE
xIf EyeSight is malfunctioning, the EyeSight warning indicator is displayed
on the multi information display and the Pre-Collision Braking System OFF
indicator light and Lane Departure Warning OFF indicator light illuminate. If
this occurs, stop the vehicle in a safe location and then stop the engine
and restart it. If the indicators remain illuminated after restarting the
engine, Conventional Cruise Control cannot be used. This will not interfere
with ordinary driving; however the system should be inspected by a
SUBARU dealer as soon as possible.
Ÿ Refer to page 79.
xWhen operation of Conventional Cruise Control has been automatically
canceled, perform the set operation again after the condition that caused
the cancellation has been eliminated. If cruise control cannot be set even
after the condition has been corrected, EyeSight may be malfunctioning.
This will not interfere with ordinary driving; however the system should be
inspected by a SUBARU dealer as soon as possible.
N
N

Conventional Cruise Control

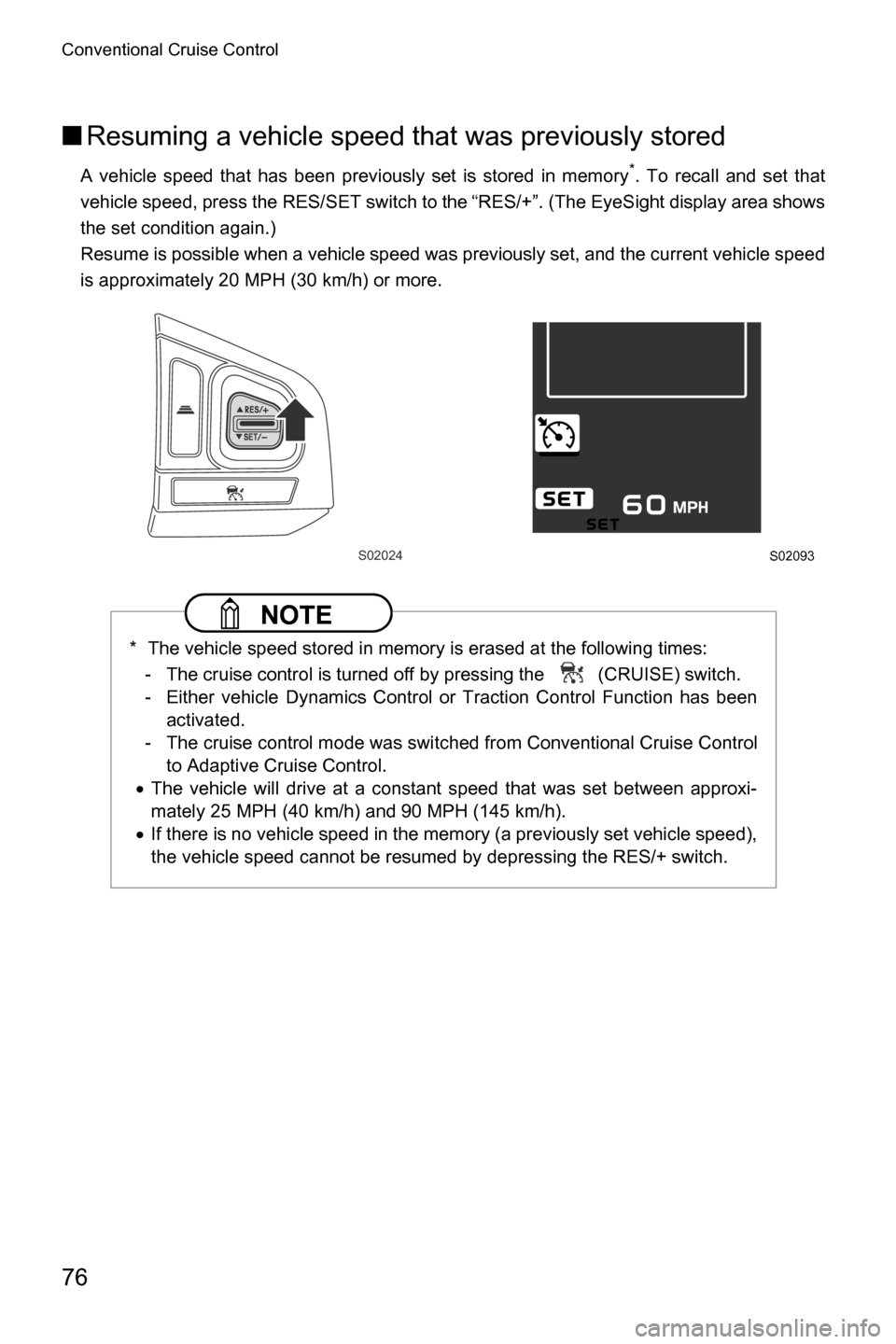

76
■Resuming a vehicle speed that was previously stored
A vehicle speed that has been previously set is stored in memory*. To recall and set that
vehicle speed, press the RES/SET switch to the “RES/+”. (The EyeSight display area shows
the set condition again.)
Resume is possible when a vehicle speed was previously set, and the current vehicle speed
is approximately 20 MPH (30 km/h) or more.

NOTE
* The vehicle speed stored in memory is erased at the following times:
- The cruise control is turned off by pressing the (CRUISE) switch.
- Either vehicle Dynamics Control or Traction Control Function has been
activated.
- The cruise control mode was switched from Conventional Cruise Control
to Adaptive Cruise Control.
xThe vehicle will drive at a constant speed that was set between approxi-
mately 25 MPH (40 km/h) and 90 MPH (145 km/h).
xIf there is no vehicle speed in the memory (a previously set vehicle speed),
the vehicle speed cannot be resumed by depressing the RES/+ switch.
S02024 S02093
