SUBARU CROSSTREK 2017 1.G Driving Assist Manual

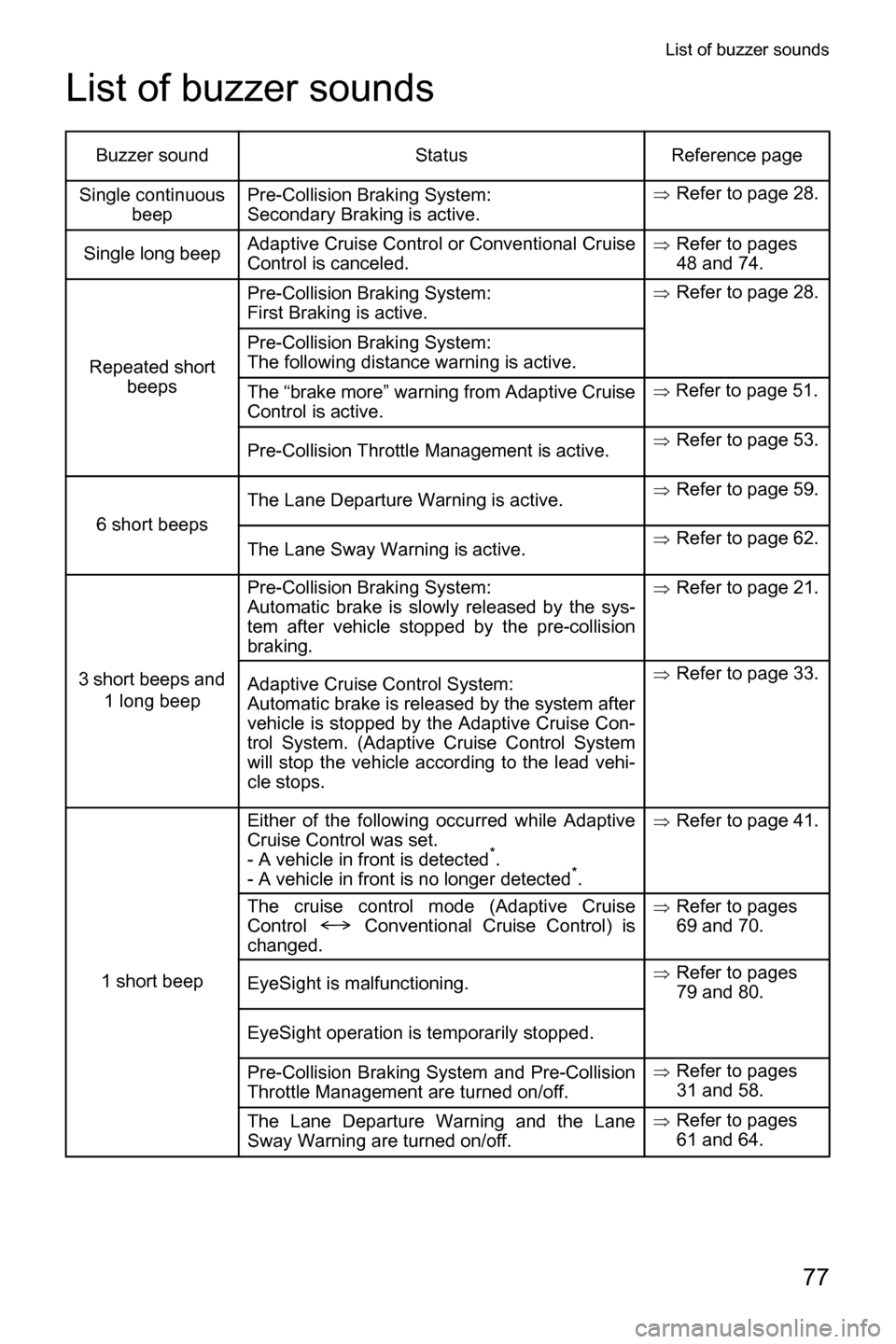

List of buzzer sounds
77
List of buzzer sounds
Buzzer sound Status Reference page
Single continuous
beepPre-Collision Braking System:
Secondary Braking is active.
ŸRefer to page 28.
Single long beepAdaptive Cruise Control or Conventional Cruise
Control is canceled.
ŸRefer to pages
48 and 74.
Repeated short
beepsPre-Collision Braking System:
First Braking is active.
ŸRefer to page 28.
Pre-Collision Braking System:
The following distance warning is active.
The “brake more” warning from Adaptive Cruise
Control is active.
Ÿ Refer to page 51.
Pre-Collision Throttle Management is active.
ŸRefer to page 53.
6 short beepsThe Lane Departure Warning is active.
ŸRefer to page 59.
The Lane Sway Warning is active.
ŸRefer to page 62.
3 short beeps and
1 long beepPre-Collision Braking System:
Automatic brake is slowly released by the sys-
tem after vehicle stopped by the pre-collision
braking.
ŸRefer to page 21.
Adaptive Cruise Control System:
Automatic brake is released by the system after
vehicle is stopped by the Adaptive Cruise Con-
trol System. (Adaptive Cruise Control System
will stop the vehicle according to the lead vehi-
cle stops.
ŸRefer to page 33.
1 short beepEither of the following occurred while Adaptive
Cruise Control was set.
- A vehicle in front is detected
*.
- A vehicle in front is no longer detected*.
ŸRefer to page 41.
The cruise control mode (Adaptive Cruise
Control Conventional Cruise Control) is
changed.
ŸRefer to pages
69 and 70.
EyeSight is malfunctioning.
ŸRefer to pages
79 and 80.
EyeSight operation is temporarily stopped.
Pre-Collision Braking System and Pre-Collision
Throttle Management are turned on/off.
ŸRefer to pages
31 and 58.
The Lane Departure Warning and the Lane
Sway Warning are turned on/off.
ŸRefer to pages
61 and 64.

List of buzzer sounds
78

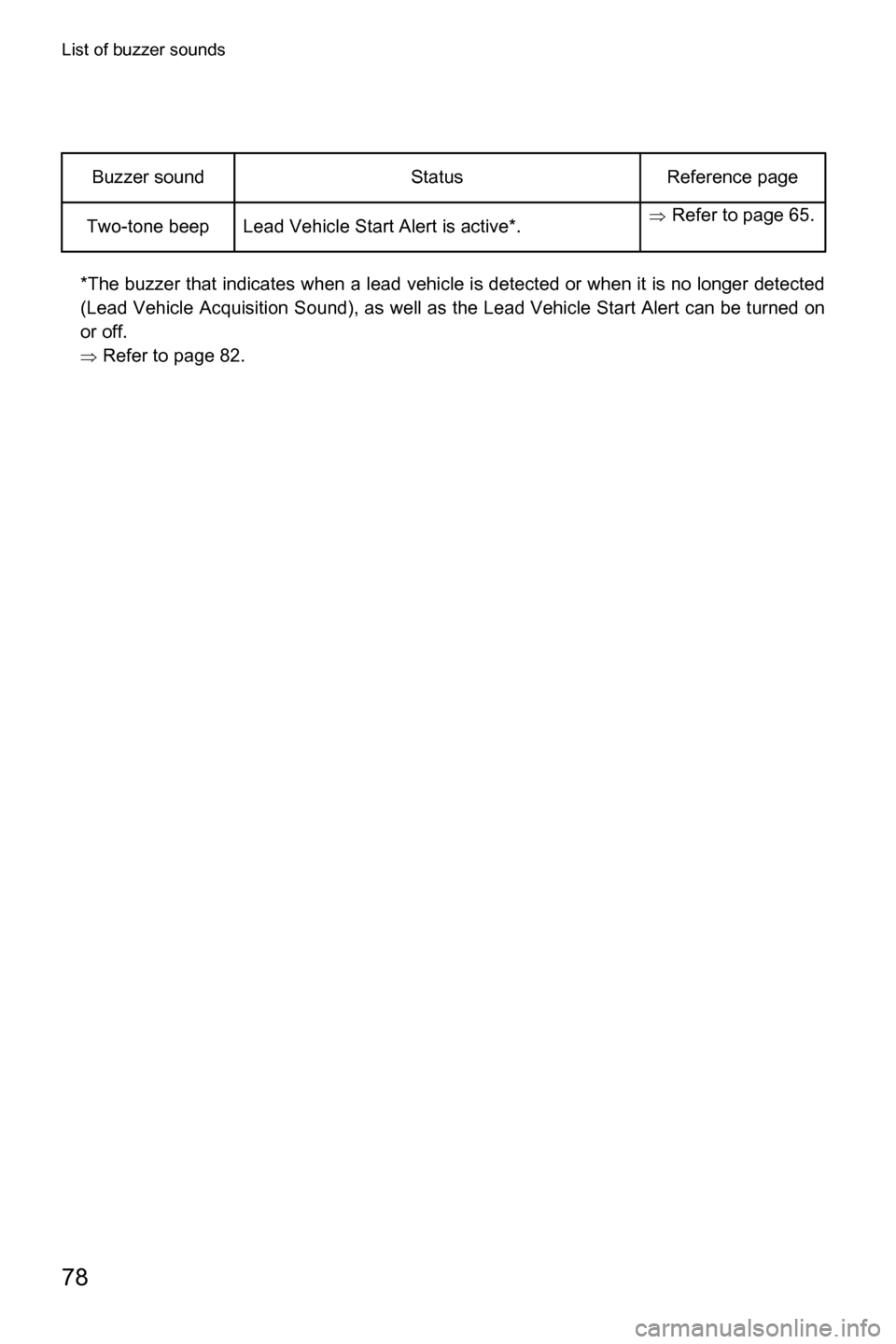

*The buzzer that indicates when a lead vehicle is detected or when it is no longer detected
(Lead Vehicle Acquisition Sound), as well as the Lead Vehicle Start Alert can be turned on
or off.
Ÿ Refer to page 82. Buzzer sound Status Reference page
Two-tone beep Lead Vehicle Start Alert is active*.
ŸRefer to page 65.

EyeSight malfunction and temporary stop
79
EyeSight malfunction and temporary stop
If a malfunction is detected in the EyeSight system, the indicators in the instrument panel
and the multi information display inform the driver of the malfunction. Check the displayed
contents and take the appropriate action.
■Malfunction (including position/angle misalignment of stereo
cameras)
The buzzer sounds 1 short beep and the
EyeSight warning indicator (yellow)
flashes or illuminates. At the same time, the
Pre-Collision Braking System OFF indicator
light and the Lane Departure Warning OFF
indicator light will illuminate. A message will
also be displayed on the multi information
display.
Displayed screen Cause Action
An EyeSight malfunction or
position/angle misalignment
of stereo cameras has
occurred.Inspection and adjustment is
necessary.
Contact your SUBARU
dealer.
CAUTION
If both the EyeSight warning indicator and the CHECK ENGINE warning
light/malfunction indicator light illuminate at the same time while driving, have
your vehicle checked/repaired by a SUBARU dealer as soon as possible.
EyeSight cannot be used if there is an abnormality with the engine, etc.
NOTE
xIf the EyeSight warning indicator illuminated or flashed, stop the vehicle in
a safe location, and after stopping the engine once by turning off the
engine, restart the engine.
xIf the indicator continues illuminating or flashing even after the engine has
been restarted, the EyeSight system has a malfunction. In this case, all
EyeSight functions will be stopped. Normal driving will still be possible.
However, contact a SUBARU dealer for an inspection.
S02073
S00699

EyeSight malfunction and temporary stop
80

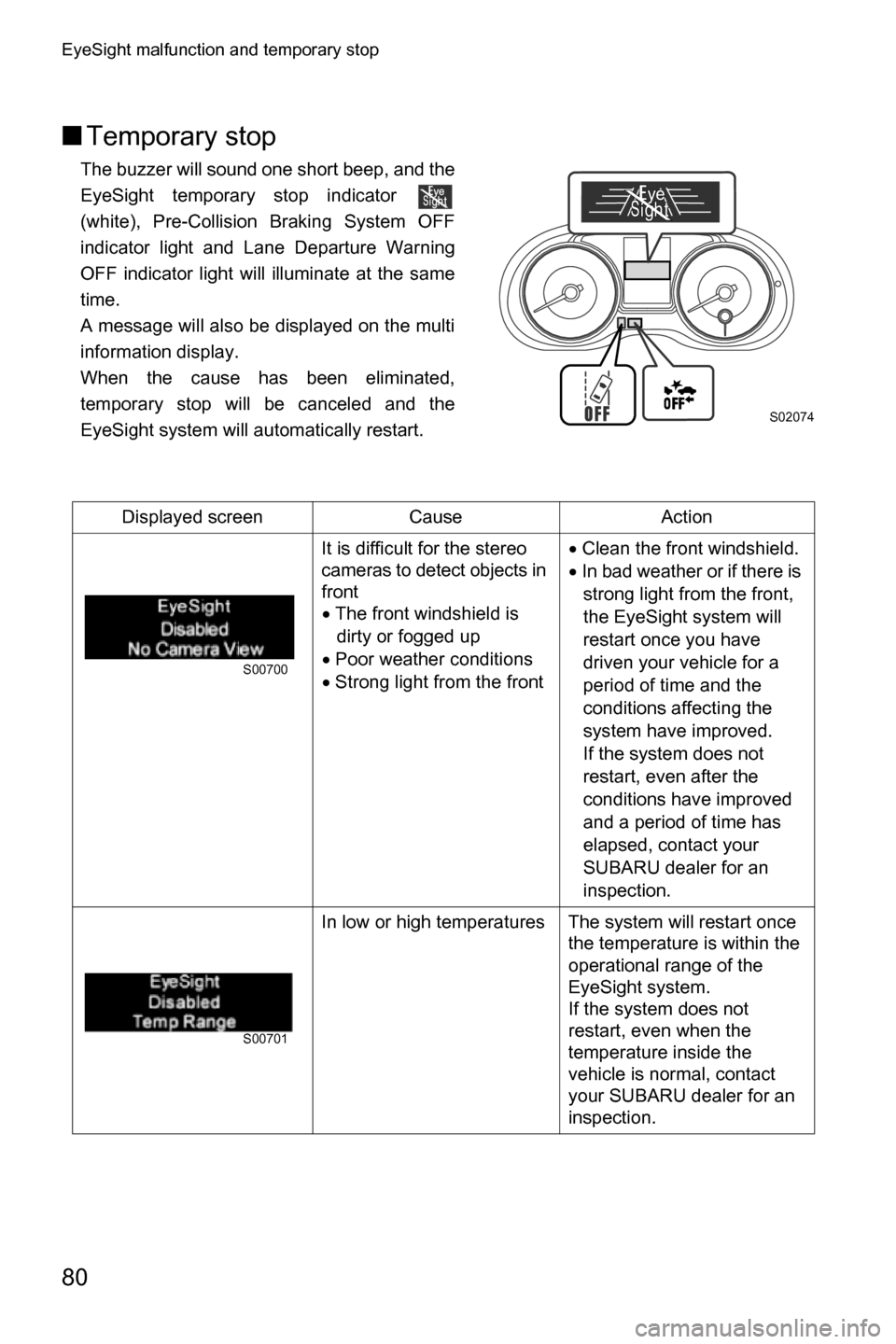

■Temporary stop
The buzzer will sound one short beep, and the
EyeSight temporary stop indicator
(white), Pre-Collision Braking System OFF
indicator light and Lane Departure Warning
OFF indicator light will illuminate at the same
time.
A message will also be displayed on the multi
information display.
When the cause has been eliminated,
temporary stop will be canceled and the
EyeSight system will automatically restart.
Displayed screen Cause Action
It is difficult for the stereo
cameras to detect objects in
front
xThe front windshield is
dirty or fogged up
xPoor weather conditions
xStrong light from the frontxClean the front windshield.
xIn bad weather or if there is
strong light from the front,
the EyeSight system will
restart once you have
driven your vehicle for a
period of time and the
conditions affecting the
system have improved.
If the system does not
restart, even after the
conditions have improved
and a period of time has
elapsed, contact your
SUBARU dealer for an
inspection.
In low or high temperatures The system will restart once
the temperature is within the
operational range of the
EyeSight system.
If the system does not
restart, even when the
temperature inside the
vehicle is normal, contact
your SUBARU dealer for an
inspection.
S02074
S00700
S00701

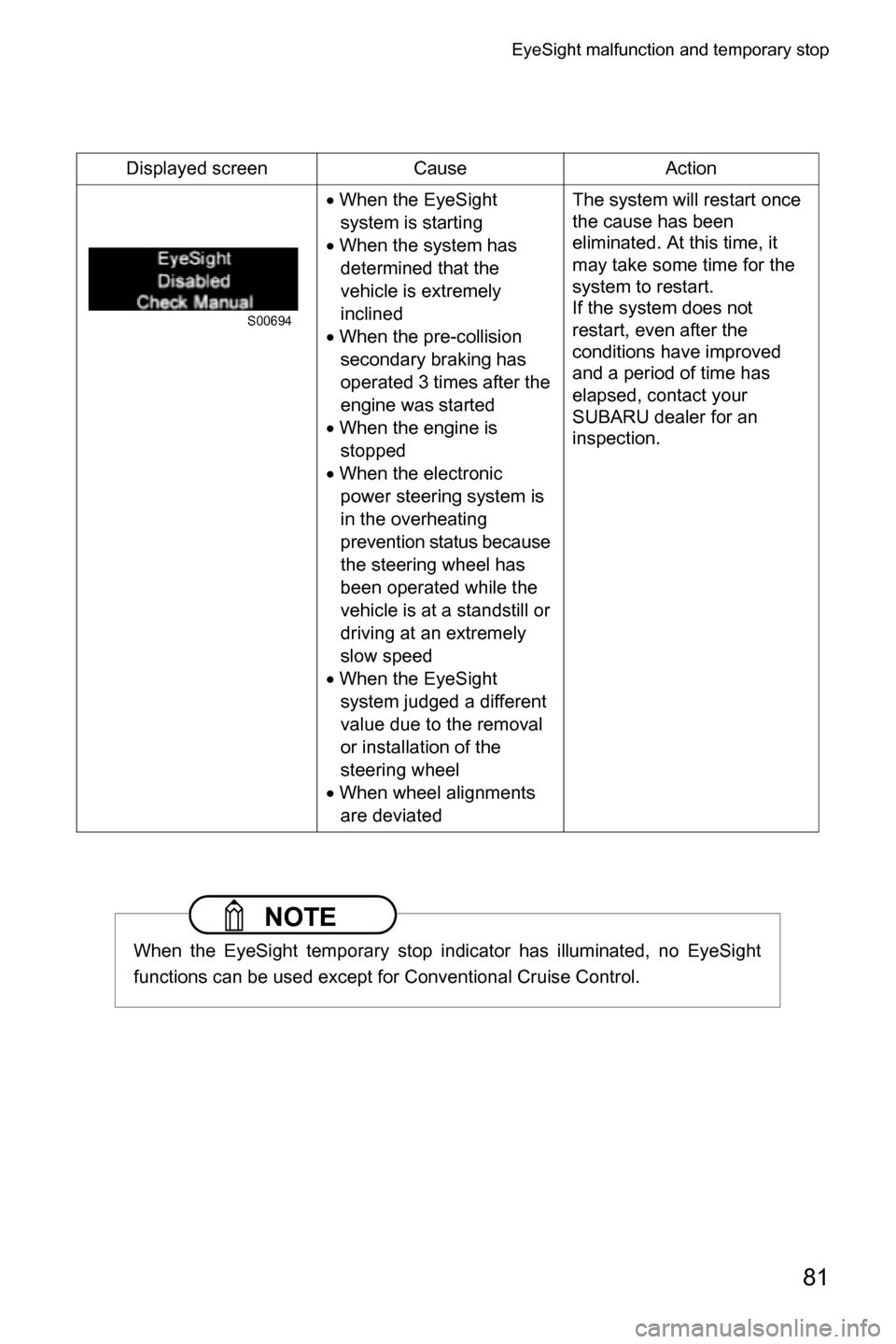

EyeSight malfunction and temporary stop
81
Displayed screen Cause Action
xWhen the EyeSight
system is starting
xWhen the system has
determined that the
vehicle is extremely
inclined
xWhen the pre-collision
secondary braking has
operated 3 times after the
engine was started
xWhen the engine is
stopped
xWhen the electronic
power steering system is
in the overheating
prevention status because
the steering wheel has
been operated while the
vehicle is at a standstill or
driving at an extremely
slow speed
xWhen the EyeSight
system judged a different
value due to the removal
or installation of the
steering wheel
xWhen wheel alignments
are deviatedThe system will restart once
the cause has been
eliminated. At this time, it
may take some time for the
system to restart.
If the system does not
restart, even after the
conditions have improved
and a period of time has
elapsed, contact your
SUBARU dealer for an
inspection.
NOTE
When the EyeSight temporary stop indicator has illuminated, no EyeSight
functions can be used except for Conventional Cruise Control.
S00694

82

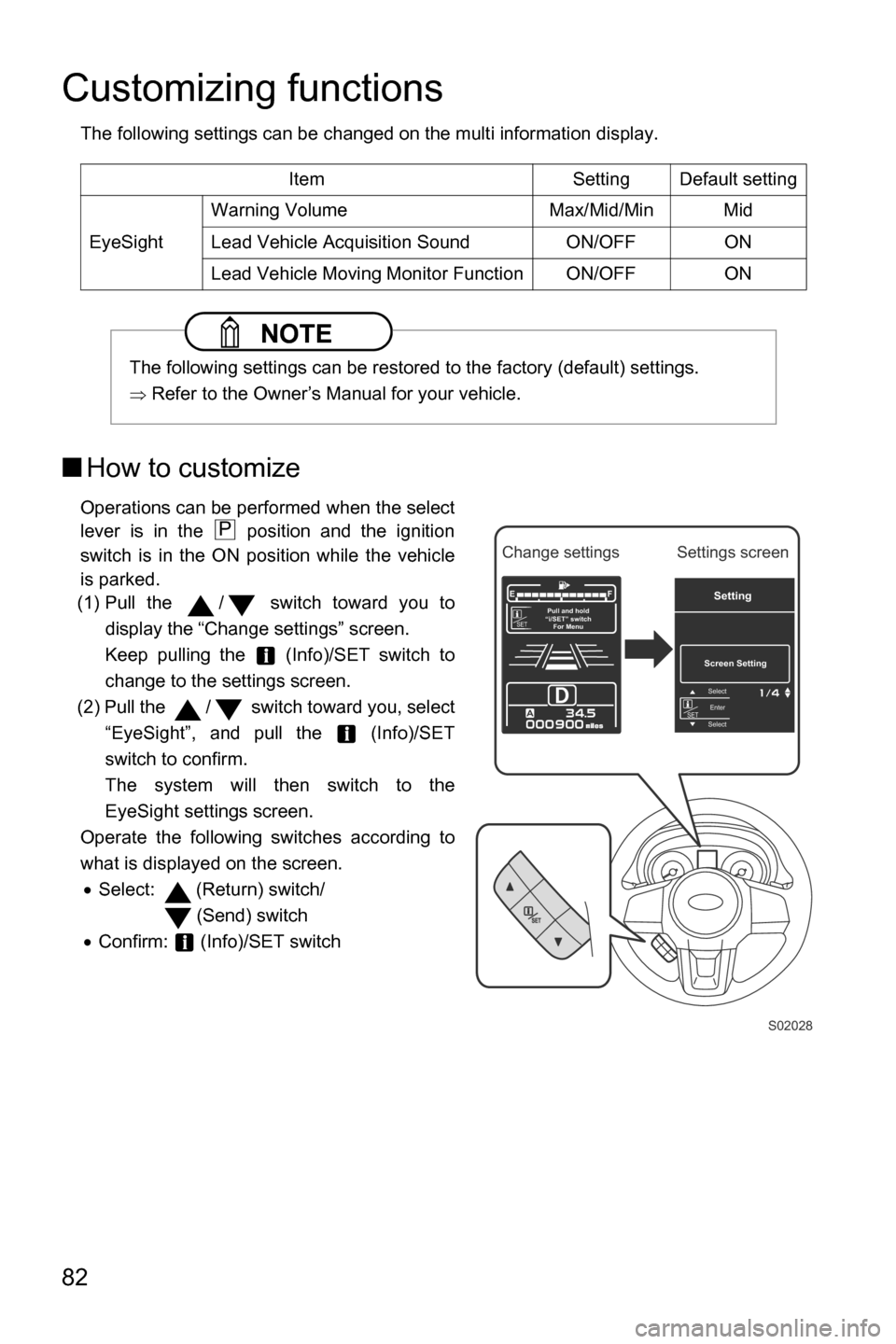

Customizing functions
The following settings can be changed on the multi information display.
■How to customize
Operations can be performed when the select
lever is in the position and the ignition
switch is in the ON position while the vehicle
is parked.
(1) Pull the / switch toward you to
display the “Change settings” screen.
Keep pulling the (Info)/SET switch to
change to the settings screen.
(2) Pull the / switch toward you, select
“EyeSight”, and pull the (Info)/SET
switch to confirm.
The system will then switch to the
EyeSight settings screen.
Operate the following switches according to
what is displayed on the screen.
xSelect: (Return) switch/
(Send) switch
xConfirm: (Info)/SET switchItem Setting Default setting
EyeSightWarning Volume Max/Mid/Min Mid
Lead Vehicle Acquisition Sound ON/OFF ON
Lead Vehicle Moving Monitor Function ON/OFF ON
NOTE
The following settings can be restored to the factory (default) settings.
Ÿ Refer to the Owner’s Manual for your vehicle.
A
EF
SEPull and hold
“i/SET” switch
For MenuT
SETEnterSelect
Select
Screen Setting
Setting
S02028
Change settings Settings screenP

Customizing functions
83
●Warning Volume setting
The volume can be set to Max/Mid/Min.
When on the Warning Volume settings screen, if the volume is selected with the /
switch, 3 short beeps will sound.
●Lead Vehicle Acquisition Sound setting
The Lead Vehicle Acquisition Sound setting can be activated (ON) or deactivated (OFF).
●Lead Vehicle Moving Monitor Function
The Lead Vehicle Start Alert function setting can be activated (ON) or deactivated (OFF).
●Canceling the custom functions
In the following cases, the custom functions will be canceled and the “Change settings”
screen will be displayed.
xWhen you keep pulling the (Info)/SET switch toward you
xWhen the engine is turned off
xWhen the switch is not operated for approximately 30 seconds
NOTE
When “Return” is selected, the system will return to the screen directly above
the current one.

84

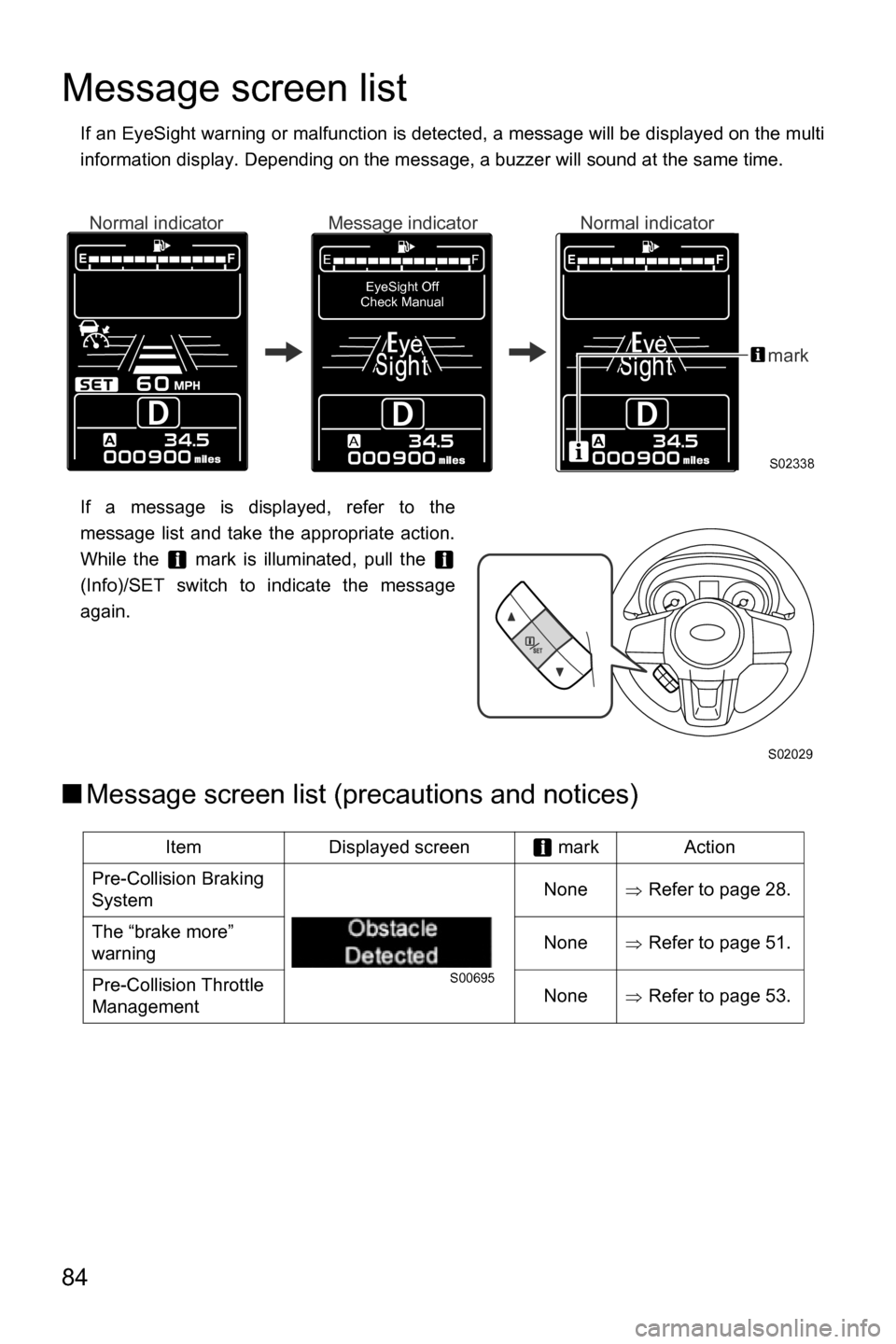

Message screen list
If an EyeSight warning or malfunction is detected, a message will be displayed on the multi
information display. Depending on the message, a buzzer will sound at the same time.
If a message is displayed, refer to the
message list and take the appropriate action.
While the mark is illuminated, pull the
(Info)/SET switch to indicate the message
again.
■Message screen list (precautions and notices)
Item Displayed screen mark Action
Pre-Collision Braking
SystemNone
ŸRefer to page 28.
The “brake more”
warningNone
ŸRefer to page 51.
Pre-Collision Throttle
ManagementNone
ŸRefer to page 53.
A
EF
A
EF
A
EF
Normal indicator Normal indicator
mark Message indicator
EyeSight Off
Check Manual
S02338
S02029
S00695

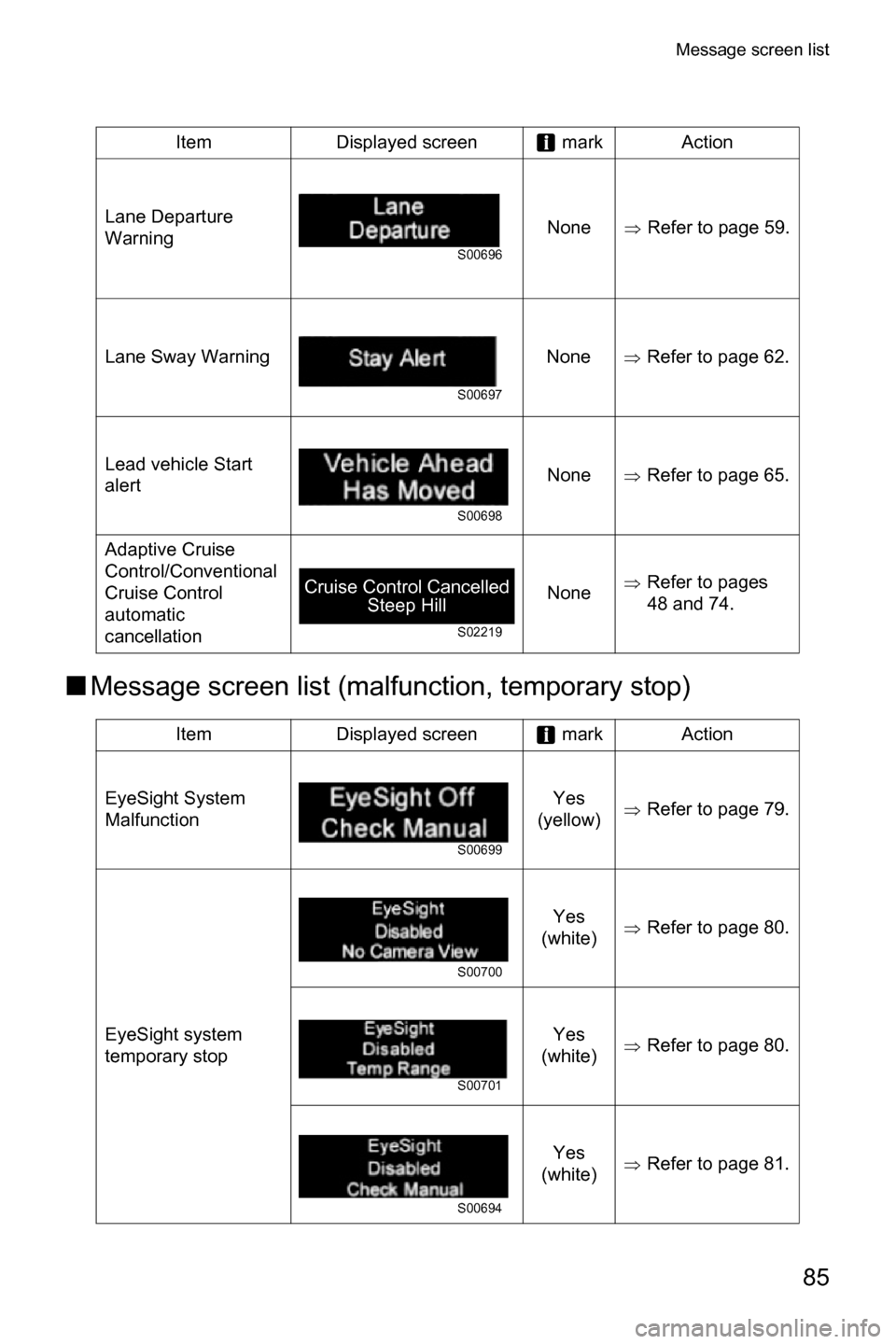

Message screen list
85
■Message screen list (malfunction, temporary stop)
Item Displayed screen mark Action
Lane Departure
WarningNone
ŸRefer to page 59.
Lane Sway Warning None
ŸRefer to page 62.
Lead vehicle Start
alertNone
ŸRefer to page 65.
Adaptive Cruise
Control/Conventional
Cruise Control
automatic
cancellationNone
ŸRefer to pages
48 and 74.
Item Displayed screen mark Action
EyeSight System
MalfunctionYes
(yellow)
ŸRefer to page 79.
EyeSight system
temporary stopYes
(white)
ŸRefer to page 80.
Yes
(white)
ŸRefer to page 80.
Yes
(white)
ŸRefer to page 81.
S00696
S00697
S00698
S02219
Cruise Control Cancelled
Steep Hill
S00699
S00700
S00701
S00694

86

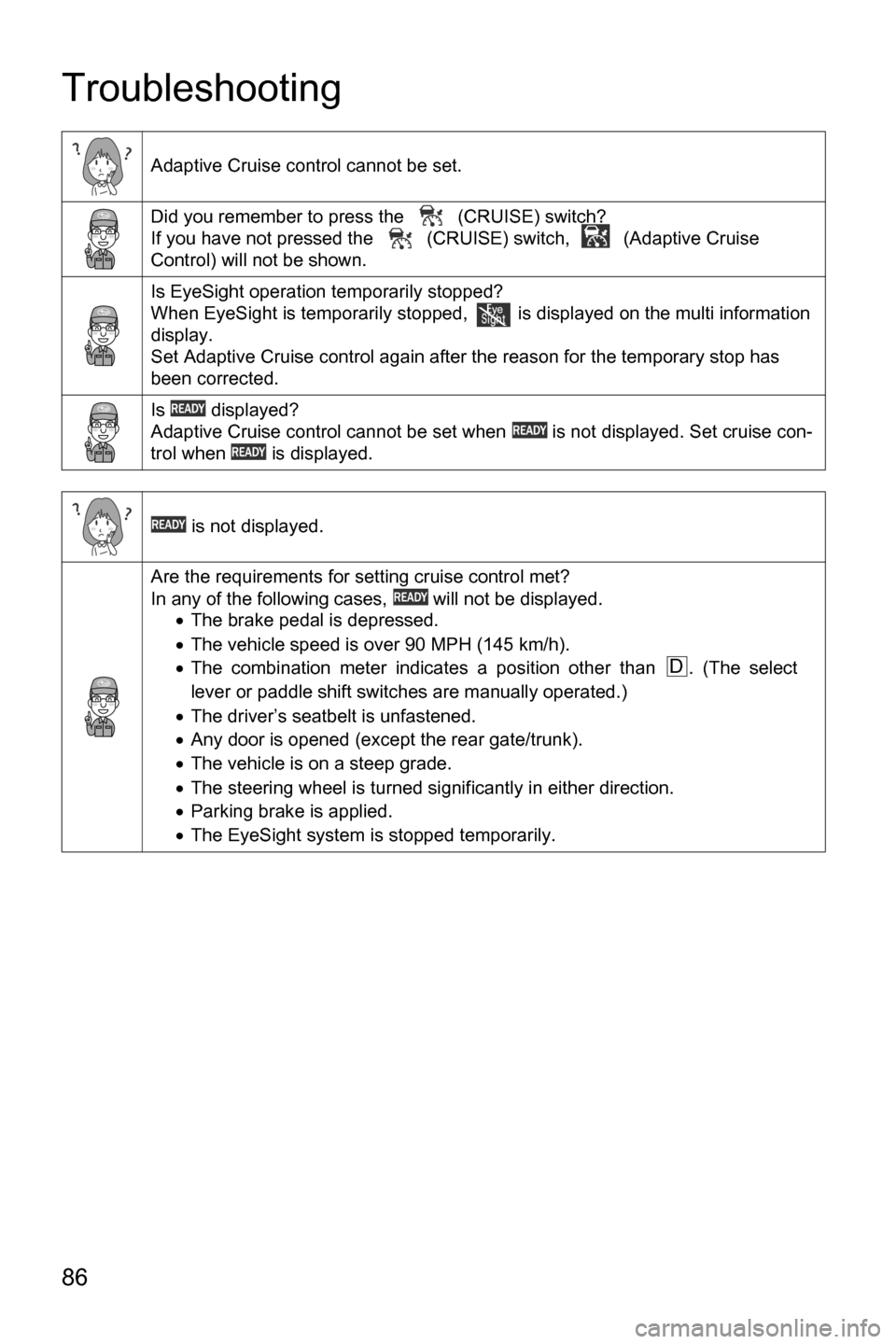

Troubleshooting
Adaptive Cruise control cannot be set.
Did you remember to press the (CRUISE) switch?
If you have not pressed the (CRUISE) switch, (Adaptive Cruise
Control) will not be shown.
Is EyeSight operation temporarily stopped?
When EyeSight is temporarily stopped, is displayed on the multi information
display.
Set Adaptive Cruise control again after the reason for the temporary stop has
been corrected.
Is displayed?
Adaptive Cruise control cannot be set when is not displayed. Set cruise con-
trol when is displayed.
is not displayed.
Are the requirements for setting cruise control met?
In any of the following cases, will not be displayed.
xThe brake pedal is depressed.
xThe vehicle speed is over 90 MPH (145 km/h).
xThe combination meter indicates a position other than . (The select
lever or paddle shift switches are manually operated.)
xThe driver’s seatbelt is unfastened.
xAny door is opened (except the rear gate/trunk).
xThe vehicle is on a steep grade.
xThe steering wheel is turned significantly in either direction.
xParking brake is applied.
xThe EyeSight system is stopped temporarily.
D
