SUBARU CROSSTREK 2017 1.G Multimedia System Manual

Siri
249
Siri/VOICE RECOGNITION SYSTEM
9

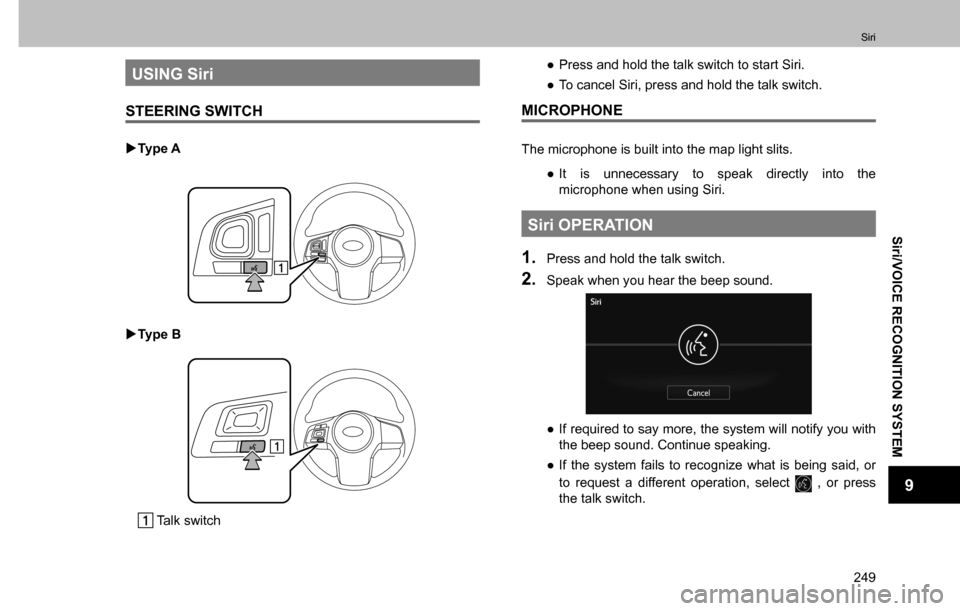

USING Siri
STEERING SWITCH
XTy p e A
XTy p e B
Talk switch

”Press and hold the talk switch to start Siri.

”To cancel Siri, press and hold the talk switch.
MICROPHONE
The microphone is built into the map light slits.

”It is unnecessary to speak directly into the
microphone when using Siri.
Siri OPERATION
1. Press and hold the talk switch.
2. Speak when you hear the beep sound.

”If required to say more, the system will notify you with
the beep sound. Continue speaking.

”If the system fails to recognize what is being said, or
to request a different operation, select
, or press
the talk switch.

Siri
250
”To cancel Siri, select
Cancel (Cancel), or press and
hold the talk switch.
NOTE
OSiri cannot be started while placing or receiving hands-free
calls with your iPhone and iPod touch (including while holding
incoming calls), or while having a hands-free conversation.
OSiri cannot be used while using the system’s voice recognition
function. Start Siri after exiting the voice recognition function.
OThe system screen will display the calling screen when a hands-
free call is placed.
OUnit operation while using Siri will differ depending on your
iPhone or iPod touch.
OSiri may not recognize what is being said if:
‡Spoken too quickly.
‡Spoken at a low or high volume.
‡Driving with a window open.
‡Passengers are talking while using Siri.
‡The air conditioning speed is set high.
‡When air from the ventilator blows directly toward the
microphone.
OIn the following conditions, the system may not recognize what is
being said properly, and use of Siri may not be possible.
‡What is being said is incorrect or unclear. Note that certain
ZRUGV DFFHQWV RU VSHHFK SDWWHUQV PD\ EH GLI

VOICE RECOGNITION SYSTEM OPERATION
251
Siri/VOICE RECOGNITION SYSTEM
9
VOICE RECOGNITION SYSTEM OPERATION
VOICE RECOGNITION SYSTEM
The voice recognition system enables the navigation,
audio, hands-free systems, etc. to be operated using voice
commands.
Refer to the command list for samples of voice commands.

:3
USING THE VOICE RECOGNITION SYSTEM
STEERING SWITCH
XTy p e A
XTy p e B
Talk switch

”Press the talk switch to start the voice recognition
system.

”To cancel voice recognition, press and hold the talk
switch or the source switch.
MICROPHONE
The microphone is built into the map light slits.

”It is unnecessary to speak directly into the
microphone when giving a command.
NOTE
O:<0044004c0057000300490052005500030057004b0048000300460052005100bf0055005000440057004c0052005100030045004800480053000300450048004900520055004800030056005300480044004e004c0051004a00030044000300460052005000
500044005100470011>

VOICE RECOGNITION SYSTEM OPERATION
252
NOTE
OVoice commands may not be recognized if:
‡Spoken too quickly.
‡Spoken at a low or high volume.
‡Driving with a window open.
‡Passengers are talking while voice commands are spoken.
‡The air conditioning speed is set high.
‡When air from the ventilator blows directly toward the
microphone.
OIn the following conditions, the system may not recognize the
command properly and using voice commands may not be
possible:
‡The command is incorrect or unclear. Note that certain words,
DFFHQWV RU VSHHFK SDWWHUQV PD\ EH GLI

VOICE RECOGNITION SYSTEM OPERATION
253
Siri/VOICE RECOGNITION SYSTEM
9

”With navigation function:
To use the voice recognition system for navigation
function, say the command to change to the
QDYLJDWLRQIXQFWLRQ

VOICE RECOGNITION SYSTEM OPERATION
254
NOTE
OWhile the recognition data is being created or being updated, a
track search cannot be performed using a voice command.
VOICE COMMAND EXAMPLE: CALL NAME
1. Press the talk switch.
2. Say “Call ”.

”If multiple matching items are found, a selection
screen will be displayed. Say “” or select
the number.
NOTE
OIn the same manner as it is displayed on the screen, “Call
(Call )”,
after saying “Call a contact” say the name, or the name and
type of phone, of a contact.
For example: “Call a contact”, “John Smith” or “Call a
contact”, “Mary Davis”, “Mobile”
OThere are 4 types of phones: Home, Mobile, Work and Other.
OShort or abbreviated names in the contacts list may not be
recognized. Change names in the contacts list to full names.
O6RPHWLPHVDYRLFHUHFRJQLWLRQUHVXOWFRQ

VOICE RECOGNITION SYSTEM OPERATION
255
Siri/VOICE RECOGNITION SYSTEM
9

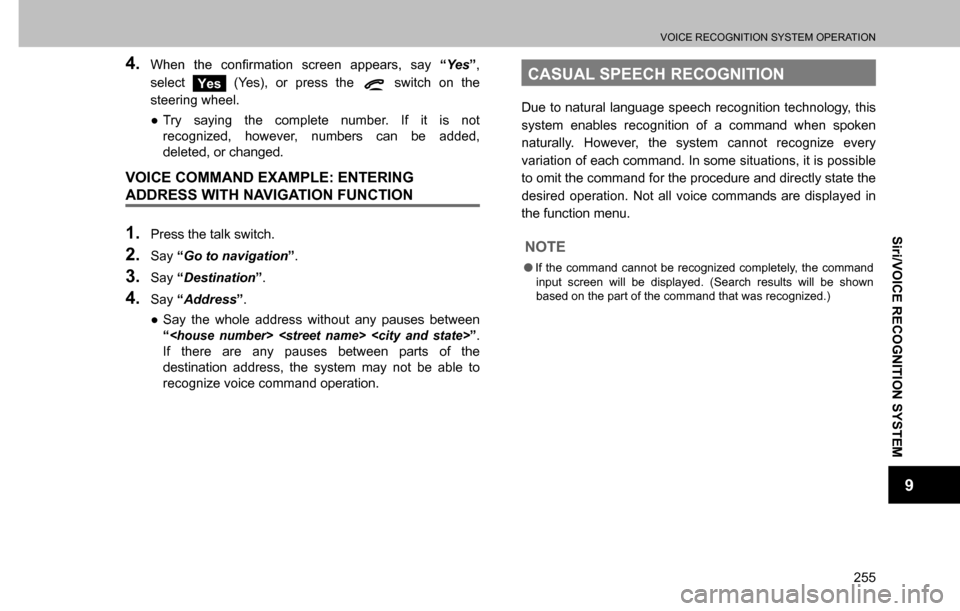

4. :KHQ WKH FRQ

VOICE RECOGNITION SYSTEM OPERATION
256
EXPRESSION EXAMPLES FOR EACH FUNCTION
Command Expression examples
Call by specifying
contactPhone the number of
,
Ring ’s
number
Call by specifying
phone numberPhone
Search artists to
listen to songPut on the artist ,
Listen to the singer
Search album names
to listen to songListen to album,
Play me the album
Use navigation
function*Go to GPS,
Go to address entry
*: With navigation function

COMMAND LIST
257
Siri/VOICE RECOGNITION SYSTEM
9
COMMAND LIST
Recognizable voice commands and their actions are shown
below.

”Frequently used commands are listed in the following
tables.

”For devices that are not installed in the vehicle, the
related commands will not be displayed in the screen.
Also, according to conditions, other commands may
not be displayed in the screen.

”The functions available may vary according to the
system installed.

”Voice recognition language can be changed.

:3
NOTE
OThe notations used in the commands are as follows.
‡>
|
|
|UUU]: Commands that need not to be spoken
‡<UUU>: Numbers, titles, or names to be spoken
XBasic command
Voice command Phrase Function
System pause pausePause the current
voice interaction
System back [go] backGo back one
hierarchy
System cancel cancelCancel the current
task
System help helpAsk for help with
the current task
System start over start overStart the current
task over
Page change¿UVWSDJHODVW
page, previous
page, next pageChange display
page

COMMAND LIST
258 XCommands for changing the audio mode
Voice command Phrase Function
AM mode
changeplay AM, select AMSwitch to AM
mode
FM mode change play FM, select FMSwitch to FM
mode
SiriusXM radio
mode change play XM, select XMSwitch to SiriusXM
mode
CD mode change play CD, select CDSwitch to CD
mode
USB mode
changeplay USB, select USBSwitch to USB
mode
SD mode
change*play microSD, select
microSDSwitch to SD
mode
iPod mode
changeplay iPod, select iPodSwitch to iPod
mode
AUX mode
changeselect AUXSwitch to AUX
mode
Audio off mode
changeaudio off, turn off audio Turn off the Audio
Audio on mode
changeaudio on, turn on audio Turn on the Audio
*: With navigation function
XCommands for changing the mode
Voice command Phrase Function
Hands-free mode
change[go to] phone, phone
screen, phone menuSwitch to HF mode
Audio mode
changego to audioSwitch to audio
mode
aha mode
changego to ahaSwitch to aha
mode
Pandora*
1 mode
changego to PandoraSwitch to Pandora
mode
Navigation mode
change*
2
navigation,
go to navigation,
go to NAV systemSwitch to the voice
command on NAV
system
*1: Pandora is available in the United States, Australia, and New Zealand.
*2: With navigation function
