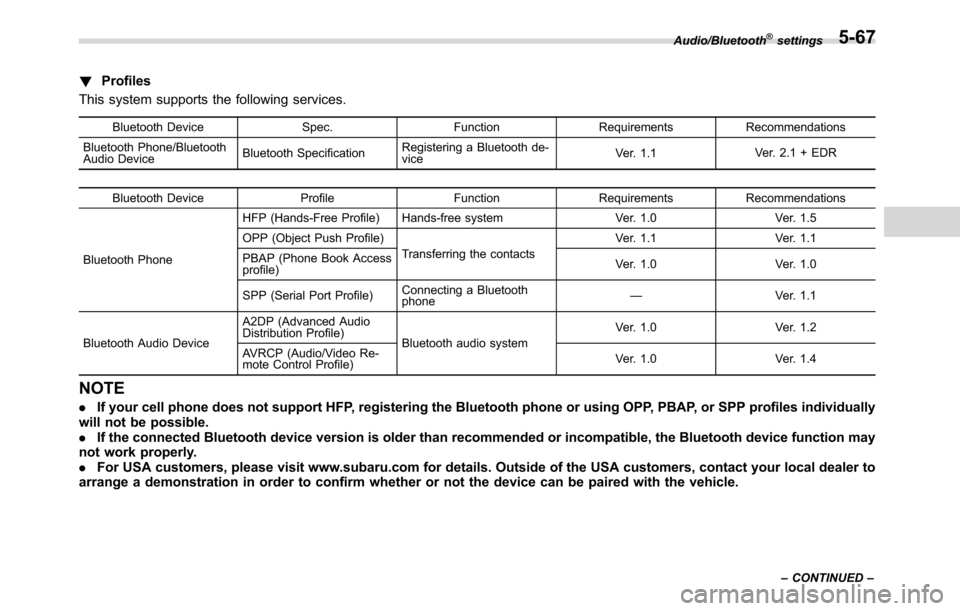

!Profiles
This system supports the following services.
Bluetooth Device Spec. Function Requirements Recommendations
Bluetooth Phone/Bluetooth
Audio DeviceBluetooth SpecificationRegistering a Bluetooth de-
viceVer. 1.1Ver. 2.1 + EDR
Bluetooth Device Profile Function Requirements Recommendations
Bluetooth PhoneHFP (Hands-Free Profile) Hands-free system Ver. 1.0 Ver. 1.5
OPP (Object Push Profile)
Transferring the contactsVer. 1.1 Ver. 1.1
PBAP (Phone Book Access
profile)Ver. 1.0 Ver. 1.0
SPP (Serial Port Profile)Connecting a Bluetooth
phone—Ver. 1.1
Bluetooth Audio DeviceA2DP (Advanced Audio
Distribution Profile)
Bluetooth audio systemVer. 1.0 Ver. 1.2
AVRCP (Audio/Video Re-
mote Control Profile)Ver. 1.0Ver. 1.4
NOTE
.If your cell phone does not support HFP, registering the Bluetooth phone or using OPP, PBAP, or SPP profiles individually
will not be possible.
.If the connected Bluetooth device version is older than recommended or incompatible, the Bluetooth device function may
not work properly.
.For USA customers, please visit www.subaru.com for details. Outside of the USA customers, contact your local dealer to
arrange a demonstration in order to confirm whether or not the device can be paired with the vehicle.
Audio/Bluetooth®settings
–CONTINUED–5-67

Audio/Bluetooth®settings

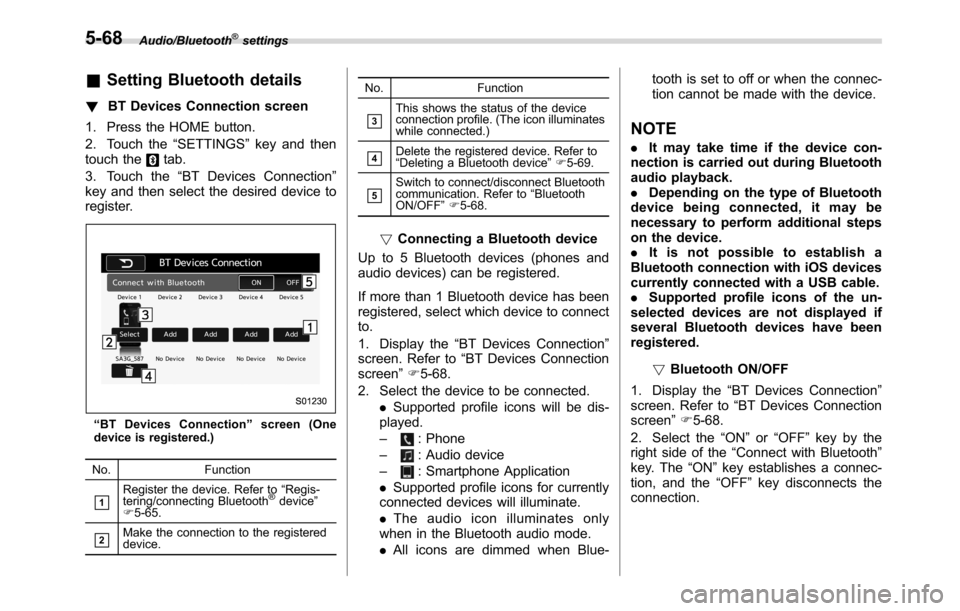

&Setting Bluetooth details
!BT Devices Connection screen
1. Press the HOME button.
2. Touch the“SETTINGS”key and then
touch the
tab.
3. Touch the“BT Devices Connection”
key and then select the desired device to
register.
“BT Devices Connection”screen (One
device is registered.)
No. Function
&1Register the device. Refer to“Regis-
tering/connecting Bluetooth®device”
F5-65.
&2Make the connection to the registered
device.No. Function
&3This shows the status of the device
connection profile. (The icon illuminates
while connected.)
&4Delete the registered device. Refer to
“Deleting a Bluetooth device”F5-69.
&5Switch to connect/disconnect Bluetooth
communication. Refer to“Bluetooth
ON/OFF”F5-68.
!Connecting a Bluetooth device
Up to 5 Bluetooth devices (phones and
audio devices) can be registered.
If more than 1 Bluetooth device has been
registered, select which device to connect
to.
1. Display the“BT Devices Connection”
screen. Refer to“BT Devices Connection
screen”F5-68.
2. Select the device to be connected.
.Supported profile icons will be dis-
played.
–
: Phone
–
: Audio device
–
: Smartphone Application
.Supported profile icons for currently
connected devices will illuminate.
.The audio icon illuminates only
when in the Bluetooth audio mode.
.All icons are dimmed when Blue-tooth is set to off or when the connec-
tion cannot be made with the device.
NOTE
.It may take time if the device con-
nection is carried out during Bluetooth
audio playback.
.Depending on the type of Bluetooth
device being connected, it may be
necessary to perform additional steps
on the device.
.It is not possible to establish a
Bluetooth connection with iOS devices
currently connected with a USB cable.
.Supported profile icons of the un-
selected devices are not displayed if
several Bluetooth devices have been
registered.
!Bluetooth ON/OFF
1. Display the“BT Devices Connection”
screen. Refer to“BT Devices Connection
screen”F5-68.
2. Select the“ON”or“OFF”key by the
right side of the“Connect with Bluetooth”
key. The“ON”key establishes a connec-
tion, and the“OFF”key disconnects the
connection.
5-68

NOTE
The setting is fixed as the“OFF”key
when no device is registered.
!Deleting a Bluetooth device
1. Display the“BT Devices Connection”
screen. Refer to“BT Devices Connection
screen”F5-68.
2. Select the desired device.
3. Touch the
key for the device to be
deleted, and then select the“OK”key.
NOTE
When deleting a Bluetooth phone, the
contact data will be deleted at the same
time.

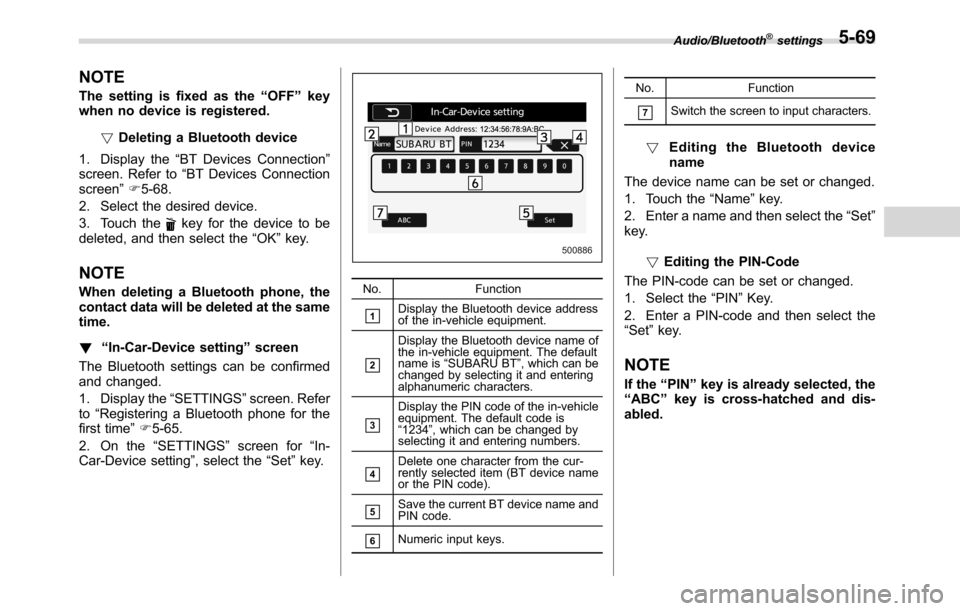

!“In-Car-Device setting”screen
The Bluetooth settings can be confirmed
and changed.
1. Display the“SETTINGS”screen. Refer
to“Registering a Bluetooth phone for the
first time”F5-65.
2. On the“SETTINGS”screen for“In-
Car-Device setting”, select the“Set”key.No. Function
&1Display the Bluetooth device address
of the in-vehicle equipment.
&2
Display the Bluetooth device name of
the in-vehicle equipment. The default
name is“SUBARU BT”, which can be
changed by selecting it and entering
alphanumeric characters.
&3
Display the PIN code of the in-vehicle
equipment. The default code is
“1234”, which can be changed by
selecting it and entering numbers.
&4Delete one character from the cur-
rently selected item (BT device name
or the PIN code).
&5Save the current BT device name and
PIN code.
&6Numeric input keys.No. Function
&7Switch the screen to input characters.
!Editing the Bluetooth device
name
The device name can be set or changed.
1. Touch the“Name”key.
2. Enter a name and then select the“Set”
key.
!Editing the PIN-Code
The PIN-code can be set or changed.
1. Select the“PIN”Key.
2. Enter a PIN-code and then select the
“Set”key.
NOTE
If the“PIN”key is already selected, the
“ABC”key is cross-hatched and dis-
abled.
Audio/Bluetooth®settings5-69

Audio/Hands–free phone system

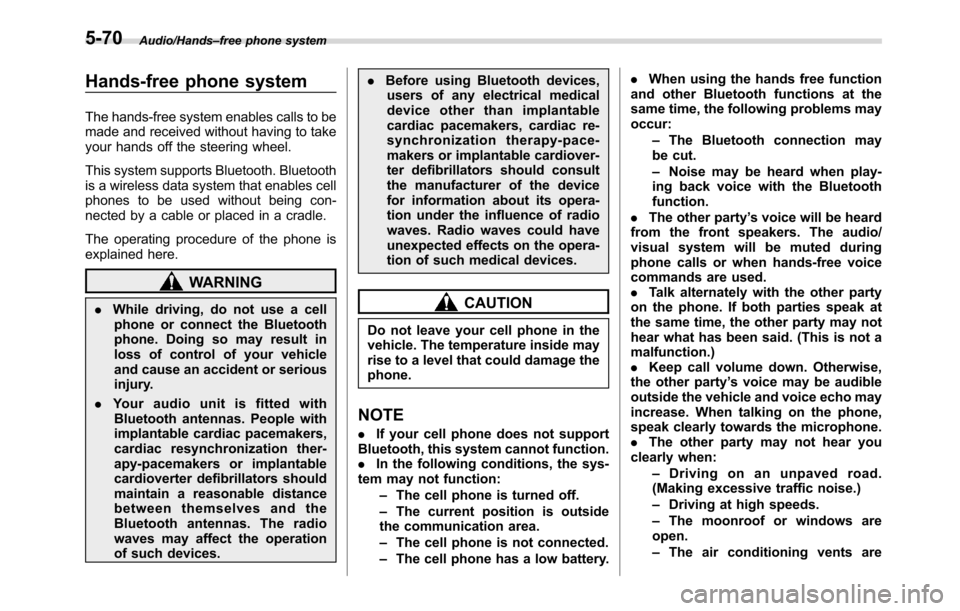

Hands-free phone system
The hands-free system enables calls to be
made and received without having to take
your hands off the steering wheel.
This system supports Bluetooth. Bluetooth
is a wireless data system that enables cell
phones to be used without being con-
nected by a cable or placed in a cradle.
The operating procedure of the phone is
explained here.
WARNING
.While driving, do not use a cell
phone or connect the Bluetooth
phone. Doing so may result in
loss of control of your vehicle
and cause an accident or serious
injury.
.Your audio unit is fitted with
Bluetooth antennas. People with
implantable cardiac pacemakers,
cardiac resynchronization ther-
apy-pacemakers or implantable
cardioverter defibrillators should
maintain a reasonable distance
between themselves and the
Bluetooth antennas. The radio
waves may affect the operation
of such devices..Before using Bluetooth devices,
users of any electrical medical
device other than implantable
cardiac pacemakers, cardiac re-
synchronization therapy-pace-
makers or implantable cardiover-
ter defibrillators should consult
the manufacturer of the device
for information about its opera-
tion under the influence of radio
waves. Radio waves could have
unexpected effects on the opera-
tion of such medical devices.CAUTION
Do not leave your cell phone in the
vehicle. The temperature inside may
rise to a level that could damage the
phone.
NOTE
.If your cell phone does not support
Bluetooth, this system cannot function.
.In the following conditions, the sys-
tem may not function:
–The cell phone is turned off.
–The current position is outside
the communication area.
–The cell phone is not connected.
–The cell phone has a low battery..When using the hands free function
and other Bluetooth functions at the
same time, the following problems may
occur:
–The Bluetooth connection may
be cut.
–Noise may be heard when play-
ing back voice with the Bluetooth
function.
.The other party’s voice will be heard
from the front speakers. The audio/
visual system will be muted during
phone calls or when hands-free voice
commands are used.
.Talk alternately with the other party
on the phone. If both parties speak at
the same time, the other party may not
hear what has been said. (This is not a
malfunction.)
.Keep call volume down. Otherwise,
the other party’s voice may be audible
outside the vehicle and voice echo may
increase. When talking on the phone,
speak clearly towards the microphone.
.The other party may not hear you
clearly when:
–Drivingonanunpavedroad.
(Making excessive traffic noise.)
–Driving at high speeds.
–The moonroof or windows are
open.
–The air conditioning vents are
5-70

pointed towards the microphone.
–The sound of the air conditioning
fan is loud.
–Thereisanegativeeffecton
sound quality due to the phone
and/or network being used.
.When another phone is connected,
the following registered data cannot be
read:
–Contact data
–Call history data
–All phone settings
.When selling or disposing of the
vehicle, initialize the data. Refer to
“Unit settings”F5-19.
.Once initialized, the data and set-
tings will be erased. Take extra caution
when initializing the data.
.The voice command system sup-
ports phone commands, so dialing a
phone number using your voice is
possible. Refer to“Vo i c e c o m m a n d
system”F5-80.
.The images shown in this Owner’s
Manual are sample images. The actual
images may vary depending on the
market and specifications of your ve-

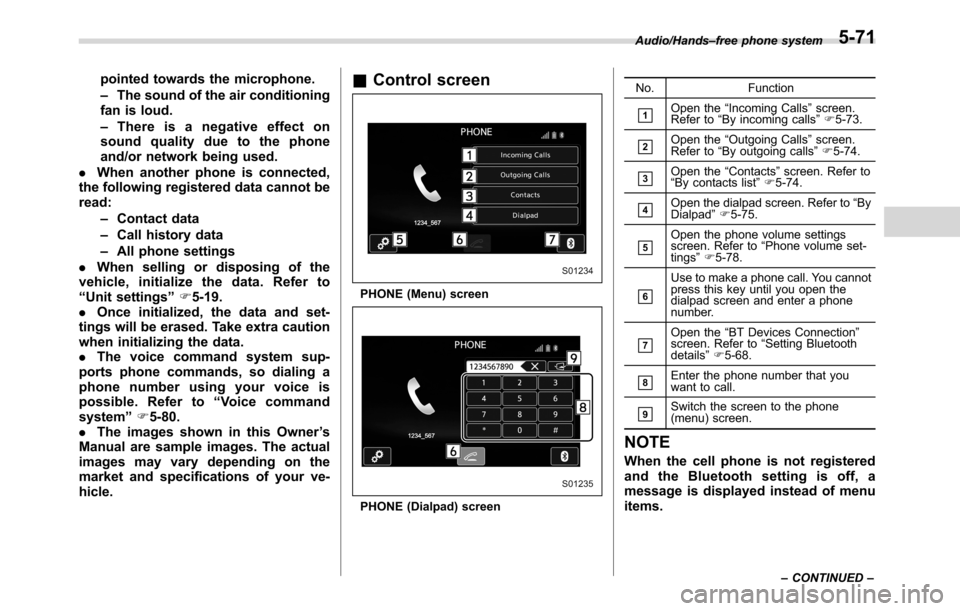

hicle.&Control screen
PHONE (Menu) screen
PHONE (Dialpad) screenNo. Function
&1Open the“Incoming Calls”screen.
Refer to“By incoming calls”F5-73.
&2Open the“Outgoing Calls”screen.
Refer to“By outgoing calls”F5-74.
&3Open the“Contacts”screen. Refer to
“By contacts list”F5-74.
&4Open the dialpad screen. Refer to“By
Dialpad”F5-75.
&5Open the phone volume settings
screen. Refer to“Phone volume set-
tings”F5-78.
&6
Use to make a phone call. You cannot
press this key until you open the
dialpad screen and enter a phone
number.
&7Open the“BT Devices Connection”
screen. Refer to“Setting Bluetooth
details”F5-68.
&8Enter the phone number that you
want to call.
&9Switch the screen to the phone
(menu) screen.
NOTE
When the cell phone is not registered
and the Bluetooth setting is off, a
message is displayed instead of menu
items.
Audio/Hands–free phone system
–CONTINUED–5-71

Audio/Hands–free phone system

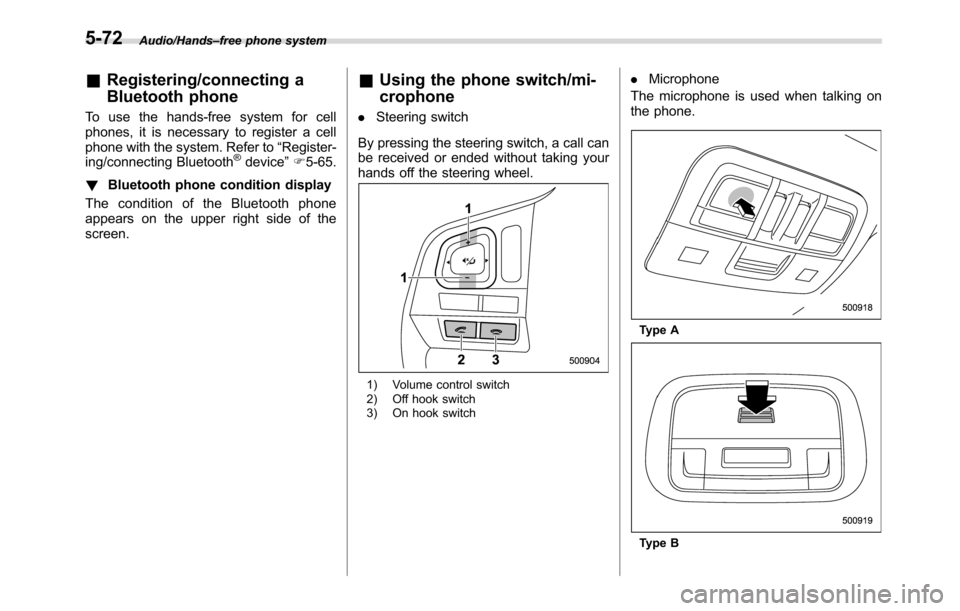

&Registering/connecting a
Bluetooth phone
To use the hands-free system for cell
phones, it is necessary to register a cell
phone with the system. Refer to“Register-
ing/connecting Bluetooth
®device”F5-65.
!Bluetooth phone condition display
The condition of the Bluetooth phone
appears on the upper right side of the
screen.
&Using the phone switch/mi-
crophone
.Steering switch
By pressing the steering switch, a call can
be received or ended without taking your
hands off the steering wheel.
1) Volume control switch
2) Off hook switch
3) On hook switch
.Microphone
The microphone is used when talking on
the phone.
Type A
Type B
5-72

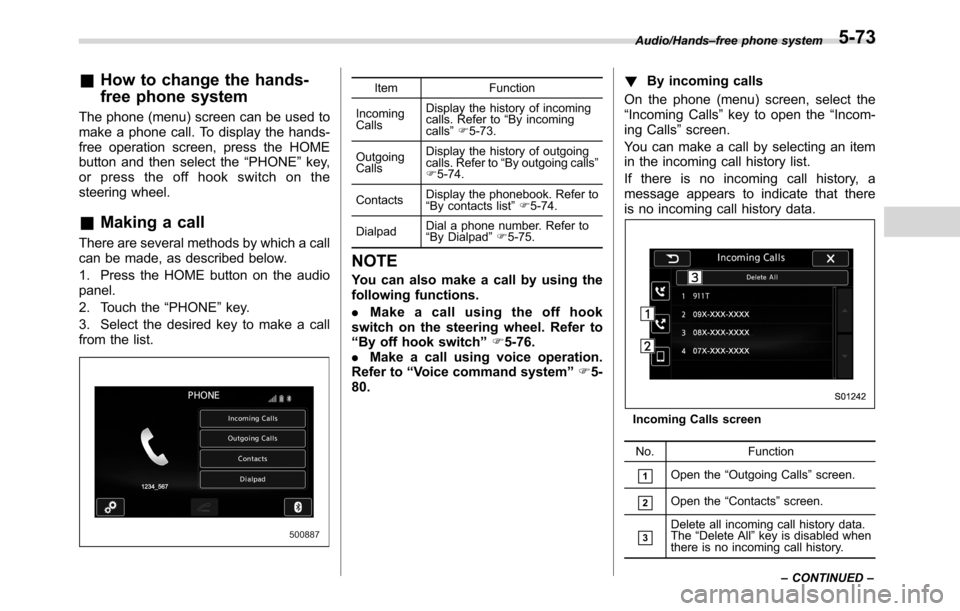

&How to change the hands-
free phone system
The phone (menu) screen can be used to
make a phone call. To display the hands-
free operation screen, press the HOME
button and then select the“PHONE”key,
or press the off hook switch on the
steering wheel.
&Making a call
There are several methods by which a call
can be made, as described below.
1. Press the HOME button on the audio
panel.
2. Touch the“PHONE”key.
3. Select the desired key to make a call
from the list.
Item Function
Incoming
CallsDisplay the history of incoming
calls. Refer to“By incoming
calls”F5-73.
Outgoing
CallsDisplay the history of outgoing
calls. Refer to“By outgoing calls”
F5-74.
ContactsDisplay the phonebook. Refer to
“By contacts list”F5-74.
DialpadDial a phone number. Refer to
“By Dialpad”F5-75.
NOTE
You can also make a call by using the
following functions.
.Make a call using the off hook
switch on the steering wheel. Refer to
“By off hook switch”F5-76.
.Make a call using voice operation.
Refer to“Voice command system”F5-
80.!By incoming calls
On the phone (menu) screen, select the
“Incoming Calls”key to open the“Incom-
ing Calls”screen.
You can make a call by selecting an item
in the incoming call history list.
If there is no incoming call history, a
message appears to indicate that there
is no incoming call history data.
Incoming Calls screen
No. Function
&1Open the“Outgoing Calls”screen.
&2Open the“Contacts”screen.
&3Delete all incoming call history data.
The“Delete All”key is disabled when
there is no incoming call history. Audio/Hands–free phone system
–CONTINUED–
5-73

Audio/Hands–free phone system
When you select an item in the history list
on the“Incoming Calls”screen, the out-
going call screen opens.
NOTE
.Up to 10 items in the incoming call
history are listed. Scroll the screen to
see items that are not on the screen.
.When making a call to the same
number continuously, only the most
recent call is listed in call history.
.When a phone number registered in
the contact list is received, the name is
displayed.
.Number-withheld calls are also
memorized in the system.
.International phone calls may not be
made depending on the type of cell
phone you have.
.The list should group together con-
secutive entries with the same phone

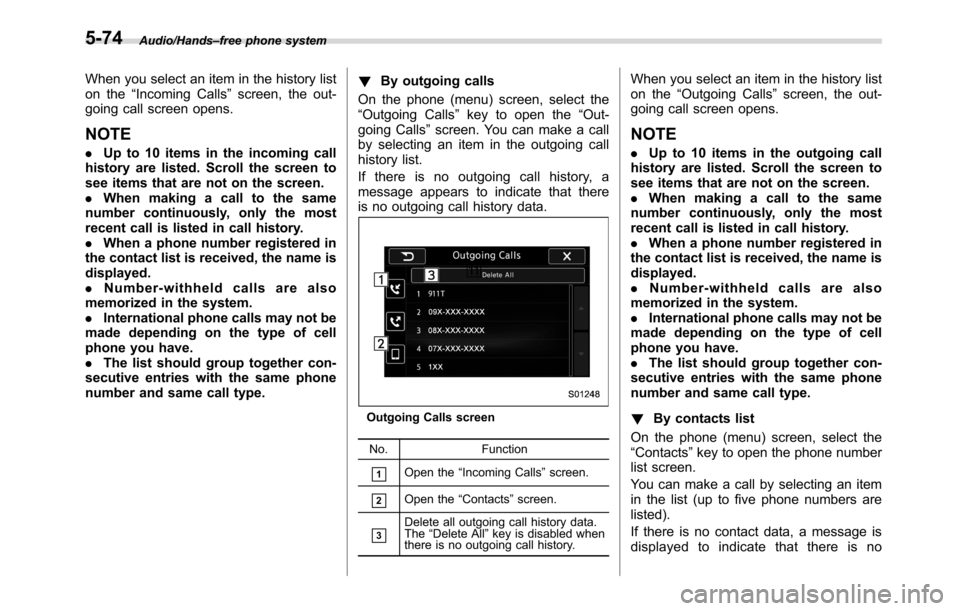

number and same call type.!By outgoing calls
On the phone (menu) screen, select the
“Outgoing Calls”key to open the“Out-
going Calls”screen. You can make a call
by selecting an item in the outgoing call
history list.
If there is no outgoing call history, a
message appears to indicate that there
is no outgoing call history data.
Outgoing Calls screen
No. Function
&1Open the“Incoming Calls”screen.
&2Open the“Contacts”screen.
&3Delete all outgoing call history data.
The“Delete All”key is disabled when
there is no outgoing call history.
When you select an item in the history list
on the“Outgoing Calls”screen, the out-
going call screen opens.
NOTE
.Up to 10 items in the outgoing call
history are listed. Scroll the screen to
see items that are not on the screen.
.When making a call to the same
number continuously, only the most
recent call is listed in call history.
.When a phone number registered in
the contact list is received, the name is
displayed.
.Number-withheld calls are also
memorized in the system.
.International phone calls may not be
made depending on the type of cell
phone you have.
.The list should group together con-
secutive entries with the same phone
number and same call type.
!By contacts list
On the phone (menu) screen, select the
“Contacts”key to open the phone number
list screen.
You can make a call by selecting an item
in the list (up to five phone numbers are
listed).
If there is no contact data, a message is
displayed to indicate that there is no
5-74

contact data.

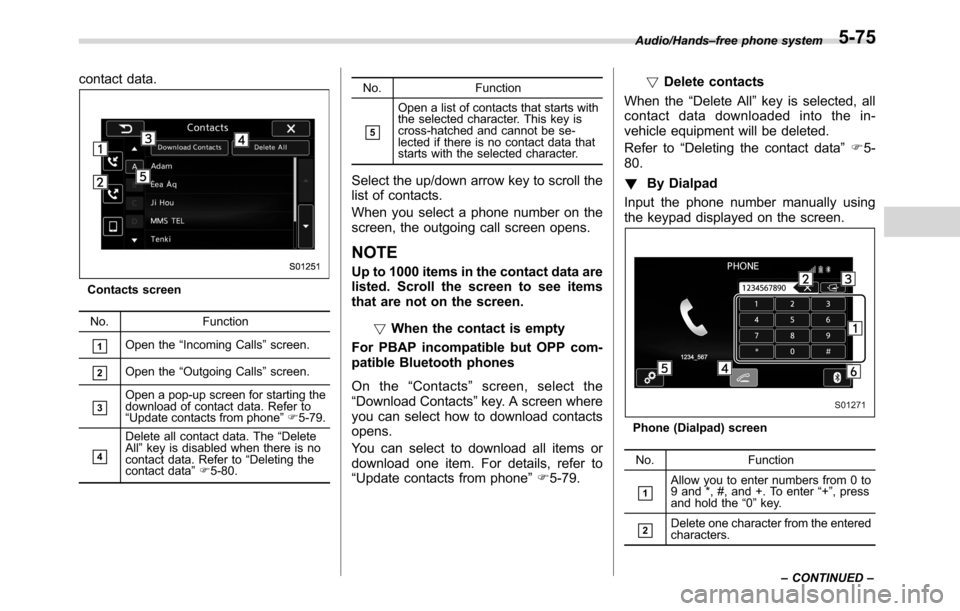

Contacts screen
No. Function
&1Open the“Incoming Calls”screen.
&2Open the“Outgoing Calls”screen.
&3Open a pop-up screen for starting the
download of contact data. Refer to
“Update contacts from phone”F5-79.
&4
Delete all contact data. The“Delete
All”key is disabled when there is no
contact data. Refer to“Deleting the
contact data”F5-80.No. Function
&5
Open a list of contacts that starts with
the selected character. This key is
cross-hatched and cannot be se-
lected if there is no contact data that
starts with the selected character.
Select the up/down arrow key to scroll the
list of contacts.
When you select a phone number on the
screen, the outgoing call screen opens.
NOTE
Up to 1000 items in the contact data are
listed. Scroll the screen to see items
that are not on the screen.
!When the contact is empty
For PBAP incompatible but OPP com-
patible Bluetooth phones
On the“Contacts”screen, select the
“Download Contacts”key. A screen where
you can select how to download contacts
opens.
You can select to download all items or
download one item. For details, refer to
“Update contacts from phone”F5-79.!Delete contacts
When the“Delete All”key is selected, all
contact data downloaded into the in-
vehicle equipment will be deleted.
Refer to“Deleting the contact data”F5-
80.
!By Dialpad
Input the phone number manually using
the keypad displayed on the screen.
Phone (Dialpad) screen
No. Function
&1Allow you to enter numbers from 0 to
9 and *, #, and +. To enter“+”, press
and hold the“0”key.
&2Delete one character from the entered
characters. Audio/Hands–free phone system
–CONTINUED–
5-75

Audio/Hands–free phone system

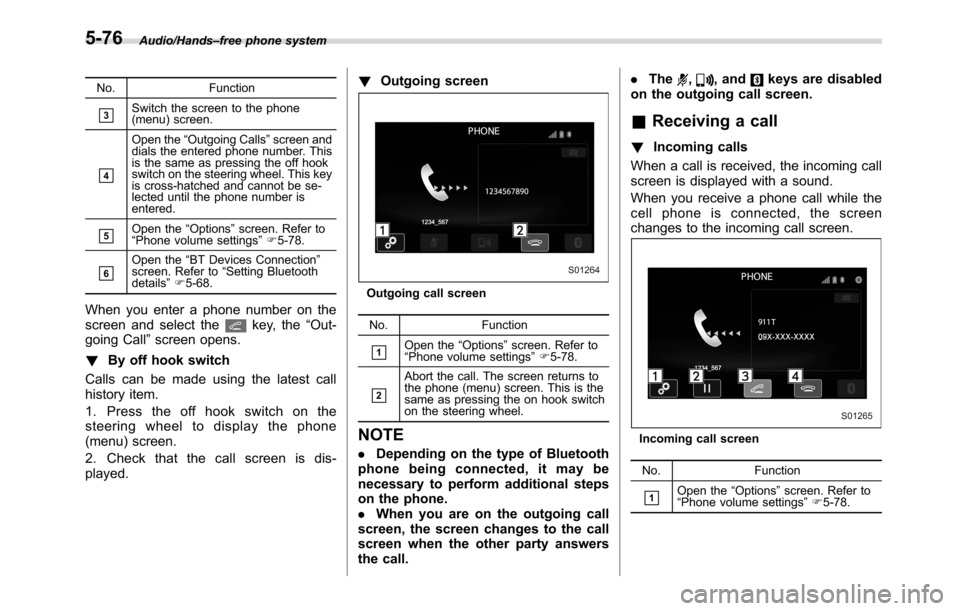

No. Function
&3Switch the screen to the phone
(menu) screen.
&4
Open the“Outgoing Calls”screen and
dials the entered phone number. This
is the same as pressing the off hook
switch on the steering wheel. This key
is cross-hatched and cannot be se-
lected until the phone number is
entered.
&5Open the“Options”screen. Refer to
“Phone volume settings”F5-78.
&6Open the“BT Devices Connection”
screen. Refer to“Setting Bluetooth
details”F5-68.
When you enter a phone number on the
screen and select thekey, the“Out-
going Call”screen opens.
!By off hook switch
Calls can be made using the latest call
history item.
1. Press the off hook switch on the
steering wheel to display the phone
(menu) screen.
2. Check that the call screen is dis-
played.!Outgoing screen
Outgoing call screen
No. Function
&1Open the“Options”screen. Refer to
“Phone volume settings”F5-78.
&2
Abort the call. The screen returns to
the phone (menu) screen. This is the
same as pressing the on hook switch
on the steering wheel.
NOTE
.Depending on the type of Bluetooth
phone being connected, it may be
necessary to perform additional steps
on the phone.
.When you are on the outgoing call
screen, the screen changes to the call
screen when the other party answers
the call..The
,, andkeys are disabled
on the outgoing call screen.
&Receiving a call
!Incoming calls
When a call is received, the incoming call
screen is displayed with a sound.
When you receive a phone call while the
cell phone is connected, the screen
changes to the incoming call screen.
Incoming call screen
No. Function
&1Open the“Options”screen. Refer to
“Phone volume settings”F5-78.
5-76
