SUBARU FORESTER 2017 SJ / 4.G Multimedia System Manual

149

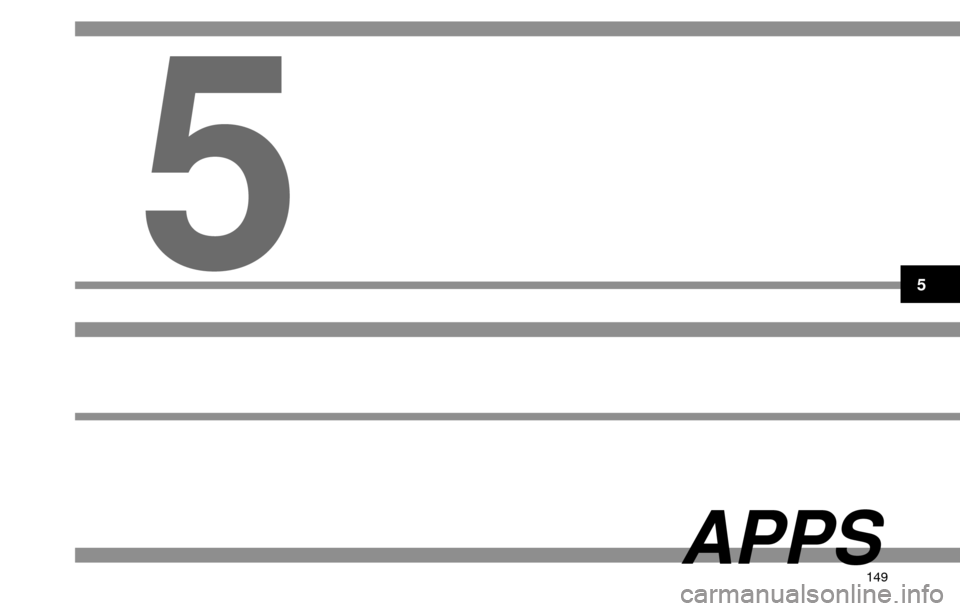

APPS
5
5

BEFORE USING THE APPLICATION
150

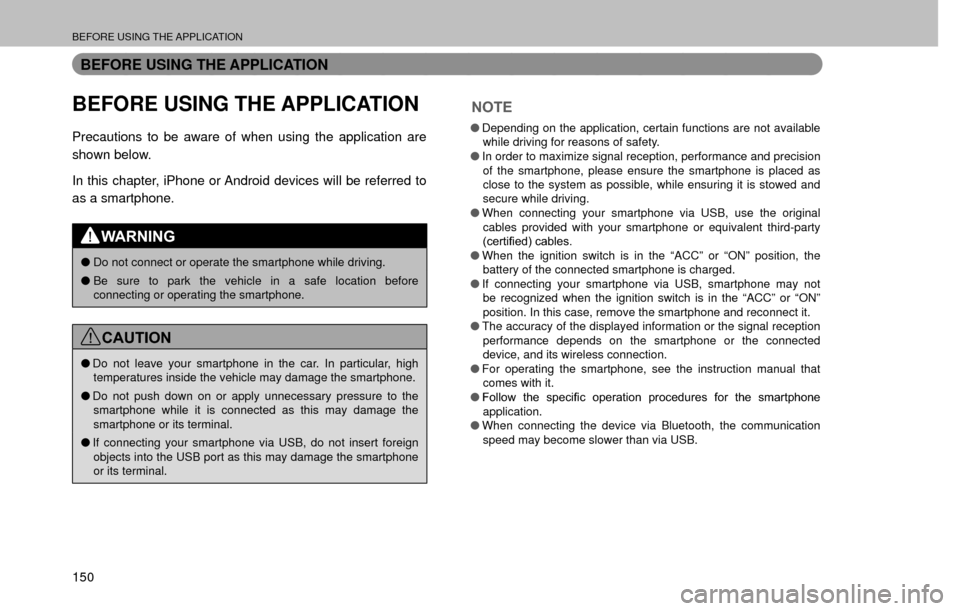

BEFORE USING THE APPLICATION
BEFORE USING THE APPLICATION
Precautions to be aware of when using the application are
shown below.
In this chapter, iPhone or Android devices will be referred to
as a smartphone.
WARNING
ODo not connect or operate the smartphone while driving.
O Be sure to park the vehicle in a safe location before
connecting or operating the smartphone.
CAUTION
ODo not leave your smartphone in the car. In particular, high
temperatures inside the vehicle may damage the smartphone.
O Do not push down on or apply unnecessary pressure to the
smartphone while it is connected as this may damage the
smartphone or its terminal.
O If connecting your smartphone via USB, do not insert foreign
objects into the USB port as this may damage the smartphone
or its terminal.
NOTE
O Depending on the application, certain functions are not available
while driving for reasons of safety.
O In order to maximize signal reception, performance and precision
of the smartphone, please ensure the smartphone is placed as
close to the system as possible, while ensuring it is stowed and
secure while driving.
O When connecting your smartphone via USB, use the original
cables provided with your smartphone or equivalent third-party
FHUWL¿HGFDEOHV
O When the ignition switch is in the “ACC” or “ON” position, t\
he
battery of the connected smartphone is charged.
O If connecting your smartphone via USB, smartphone may not
be recognized when the ignition switch is in the “ACC” or “ON”\

position. In this case, remove the smartphone and reconnect it.
O The accuracy of the displayed information or the signal reception
performance depends on the smartphone or the connected
device, and its wireless connection.
O For operating the smartphone, see the instruction manual that
comes with it.
O )ROORZ WKH VSHFL

BEFORE USING THE APPLICATION
151
APPS
5

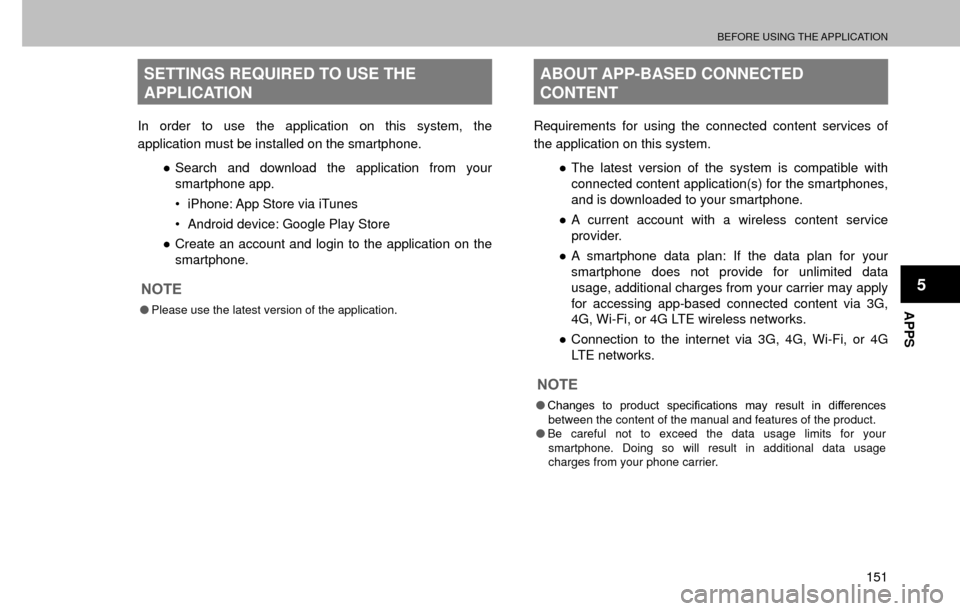

SETTINGS REQUIRED TO USE THE
APPLICATION
In order to use the application on this system, the
application must be installed on the smartphone.

”Search and download the application from your
smartphone app.
‡iPhone: App Store via iTunes
‡ Android device: Google Play Store

” Create an account and login to the application on the
smartphone.
NOTE
O Please use the latest version of the application.
ABOUT APP-BASED CONNECTED
CONTENT
Requirements for using the connected content services of
the application on this system.

”The latest version of the system is compatible with
connected content application(s) for the smartphones,
and is downloaded to your smartphone.

” A current account with a wireless content service
provider.

” A smartphone data plan: If the data plan for your
smartphone does not provide for unlimited data
usage, additional charges from your carrier may apply
for accessing app-based connected content via 3G,
4G, Wi-Fi, or 4G LTE wireless networks.

” Connection to the internet via 3G, 4G, Wi-Fi, or 4G
LTE networks.
NOTE
O &KDQJHV WR SURGXFW VSHFL

BEFORE USING THE APPLICATION
152

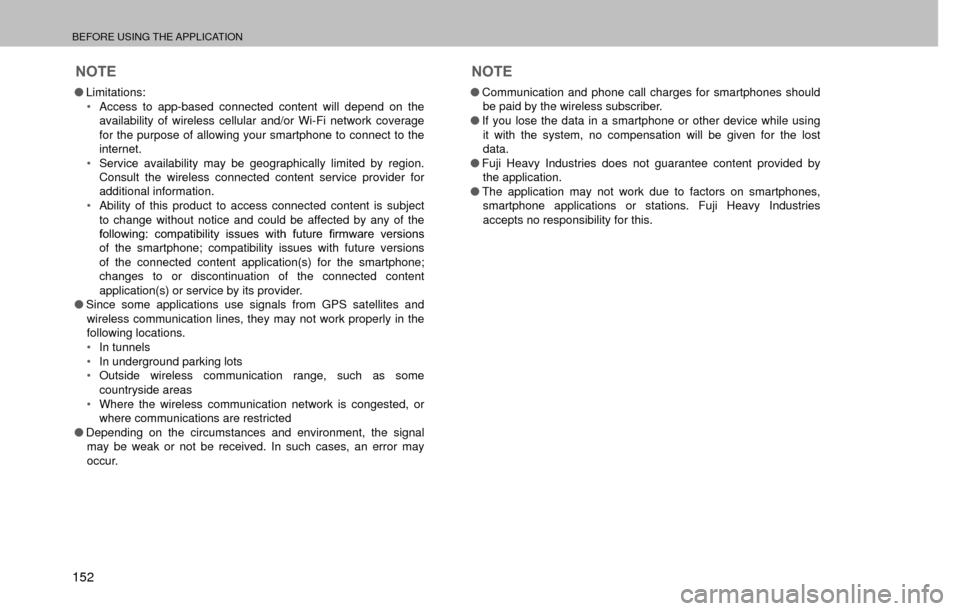

NOTE
OLimitations:
‡ Access to app-based connected content will depend on the
availability of wireless cellular and/or Wi-Fi network coverage
for the purpose of allowing your smartphone to connect to the
internet.
‡ Service availability may be geographically limited by region.
Consult the wireless connected content service provider for
additional information.
‡ Ability of this product to access connected content is subject
to change without notice and could be affected by any of the
IROORZLQJ FRPSDWLELOLW\ LVVXHV ZLWK IXWXUH

SUBARU STARLINK
153
APPS
5

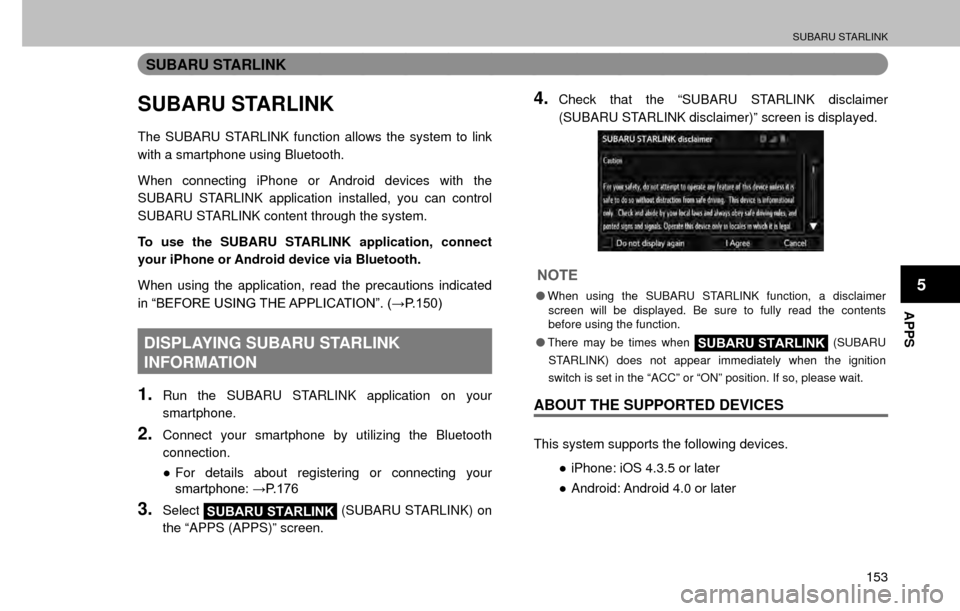

SUBARU STARLINK
SUBARU STARLINK
The SUBARU STARLINK function allows the system to link
with a smartphone using Bluetooth.
When connecting iPhone or Android devices with the
SUBARU STARLINK application installed, you can control
SUBARU STARLINK content through the system.
To use the SUBARU STARLINK application, connect
your iPhone or Android device via Bluetooth.
When using the application, read the precautions indicated
LQ

MirrorLink™
154

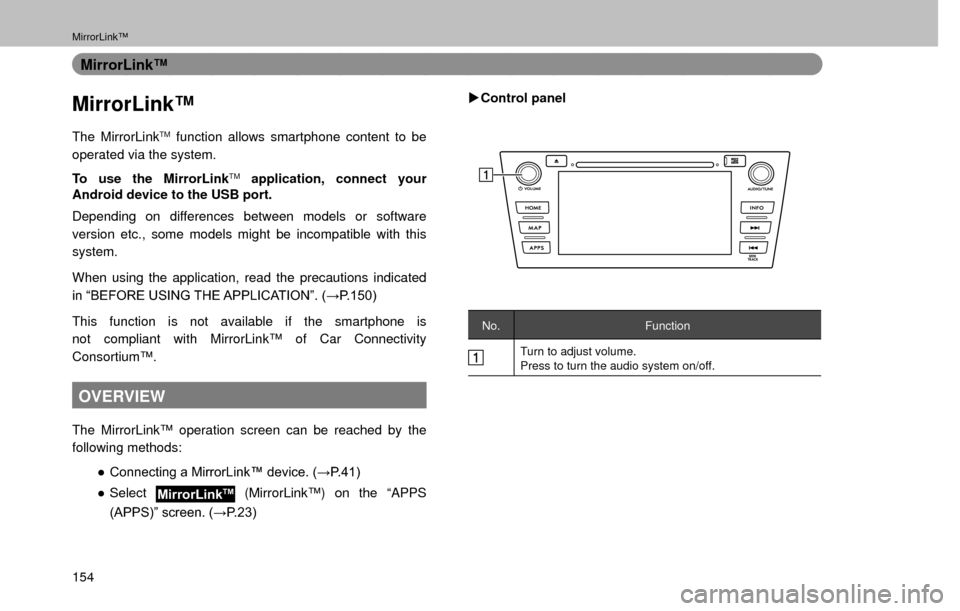

MirrorLink™
MirrorLink™
The MirrorLinkTM function allows smartphone content to be
operated via the system.
To use the MirrorLink
TM application, connect your
Android device to the USB port.
Depending on differences between models or software
version etc., some models might be incompatible with this
system.
When using the application, read the precautions indicated
LQ

MirrorLink™
155
APPS
5

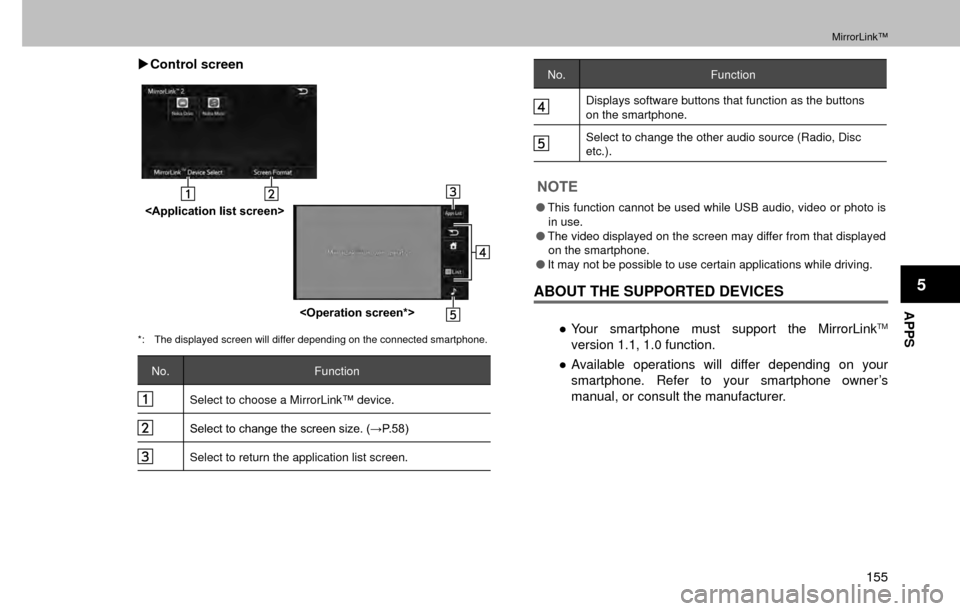

XControl screen


*: The displayed screen will differ depending on the connected smartphone.
No. Function
Select to choose a MirrorLink™ device.
6HOHFWWRFKDQJHWKHVFUHHQVL]H
:3
Select to return the application list screen.
No.Function
Displays software buttons that function as the buttons
on the smartphone.
Select to change the other audio source (Radio, Disc
etc.).
NOTE
OThis function cannot be used while USB audio, video or photo is
in use.
O The video displayed on the screen may differ from that displayed
on the smartphone.
O It may not be possible to use certain applications while driving.
ABOUT THE SUPPORTED DEVICES

”Your smartphone must support the MirrorLinkTM
version 1.1, 1.0 function.

” Available operations will differ depending on your
smartphone. Refer to your smartphone owner’s
manual, or consult the manufacturer.

ahaTM by HARMAN
156

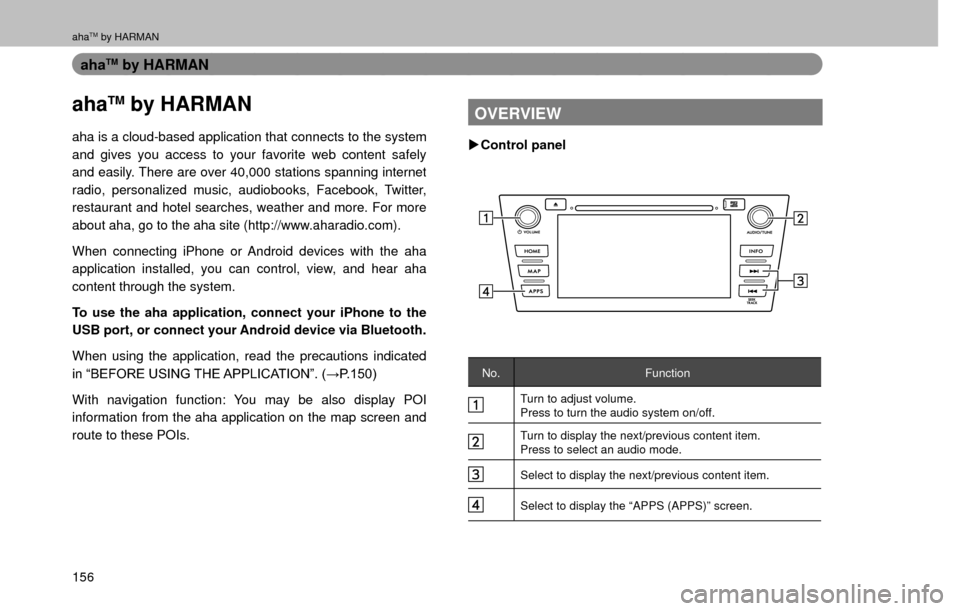

ahaTM by HARMAN
ahaTM by HARMAN
aha is a cloud-based application that connects to the system
and gives you access to your favorite web content safely
and easily. There are over 40,000 stations spanning internet
radio, personalized music, audiobooks, Facebook, Twitter,
restaurant and hotel searches, weather and more. For more
about aha, go to the aha site (http://www.aharadio.com).
When connecting iPhone or Android devices with the aha
application installed, you can control, view, and hear aha
content through the system.
To use the aha application, connect your iPhone to the
USB port, or connect your Android device via Bluetooth.
When using the application, read the precautions indicated
LQ

APPS
5
ahaTM by HARMAN
157

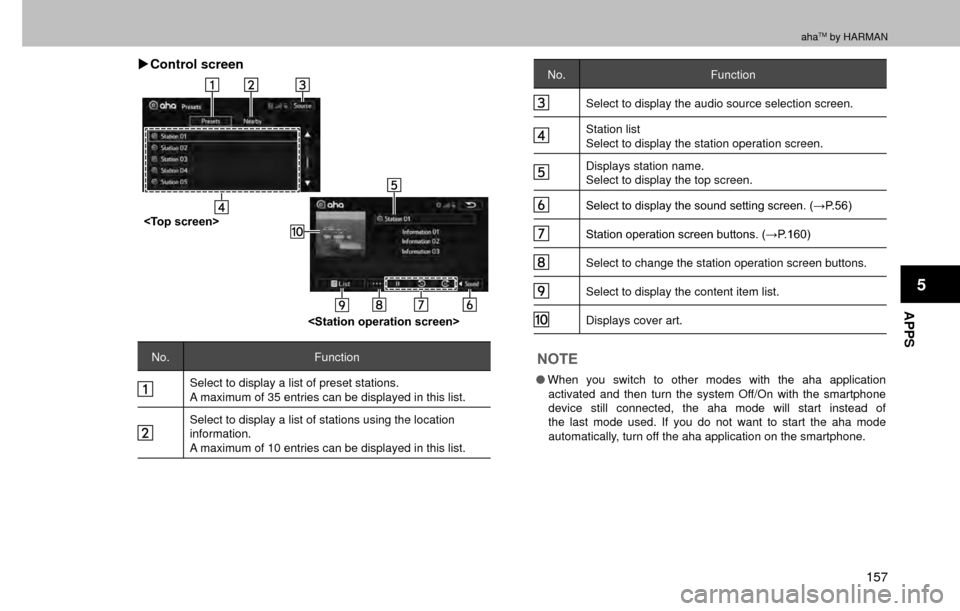

X
Control screen


No.Function
Select to display a list of preset stations.
A maximum of 35 entries can be displayed in this list.
Select to display a list of stations using the location
information.
A maximum of 10 entries can be displayed in this list.
No.Function
Select to display the audio source selection screen.
Station list
Select to display the station operation screen.
Displays station name.
Select to display the top screen.
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVFUHHQ
:3
6WDWLRQRSHUDWLRQVFUHHQEXWWRQV
:3
Select to change the station operation screen buttons.
Select to display the content item list.
Displays cover art.
NOTE
OWhen you switch to other modes with the aha application
activated and then turn the system Off/On with the smartphone
device still connected, the aha mode will start instead of
the last mode used. If you do not want to start the aha mode
automatically, turn off the aha application on the smartphone.

ahaTM by HARMAN
158

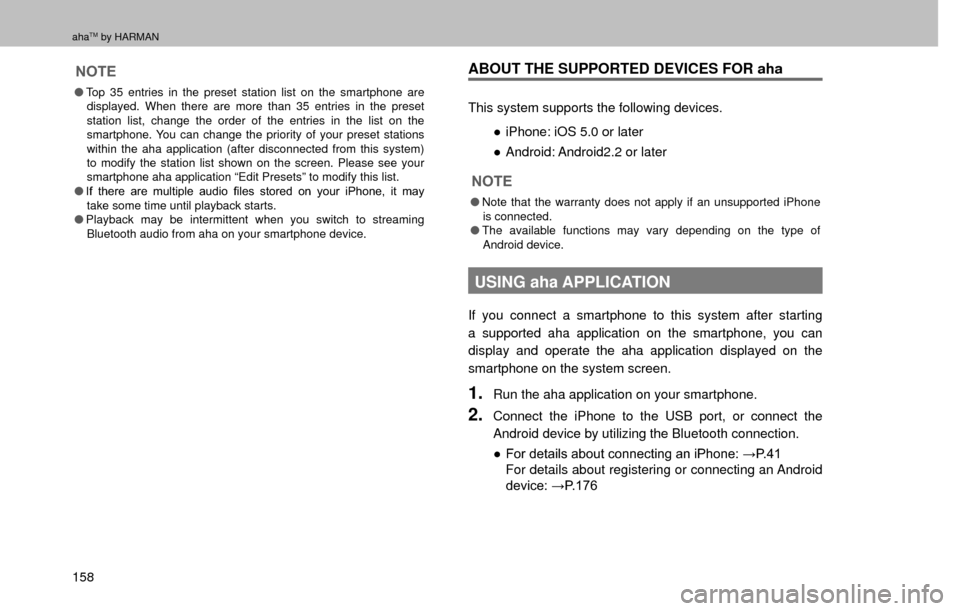

NOTE
OTop 35 entries in the preset station list on the smartphone are
displayed. When there are more than 35 entries in the preset
station list, change the order of the entries in the list on the
smartphone. You can change the priority of your preset stations
within the aha application (after disconnected from this system)
to modify the station list shown on the screen. Please see your
smartphone aha application “Edit Presets” to modify this list.
O ,I WKHUH DUH PXOWLSOH DXGLR
