SUBARU LEGACY 1997 Service Repair Manual

3. AIR CONDITIONING SYSTEM

RHD model
BUR45-02
32
6-3WIRING DIAGRAM
6. Wiring Diagram

4. ANTI-LOCK BRAKE SYSTEM
BU82-04A
33
6-3WIRING DIAGRAM
6. Wiring Diagram

BU82-04B
34
6-3WIRING DIAGRAM
6. Wiring Diagram

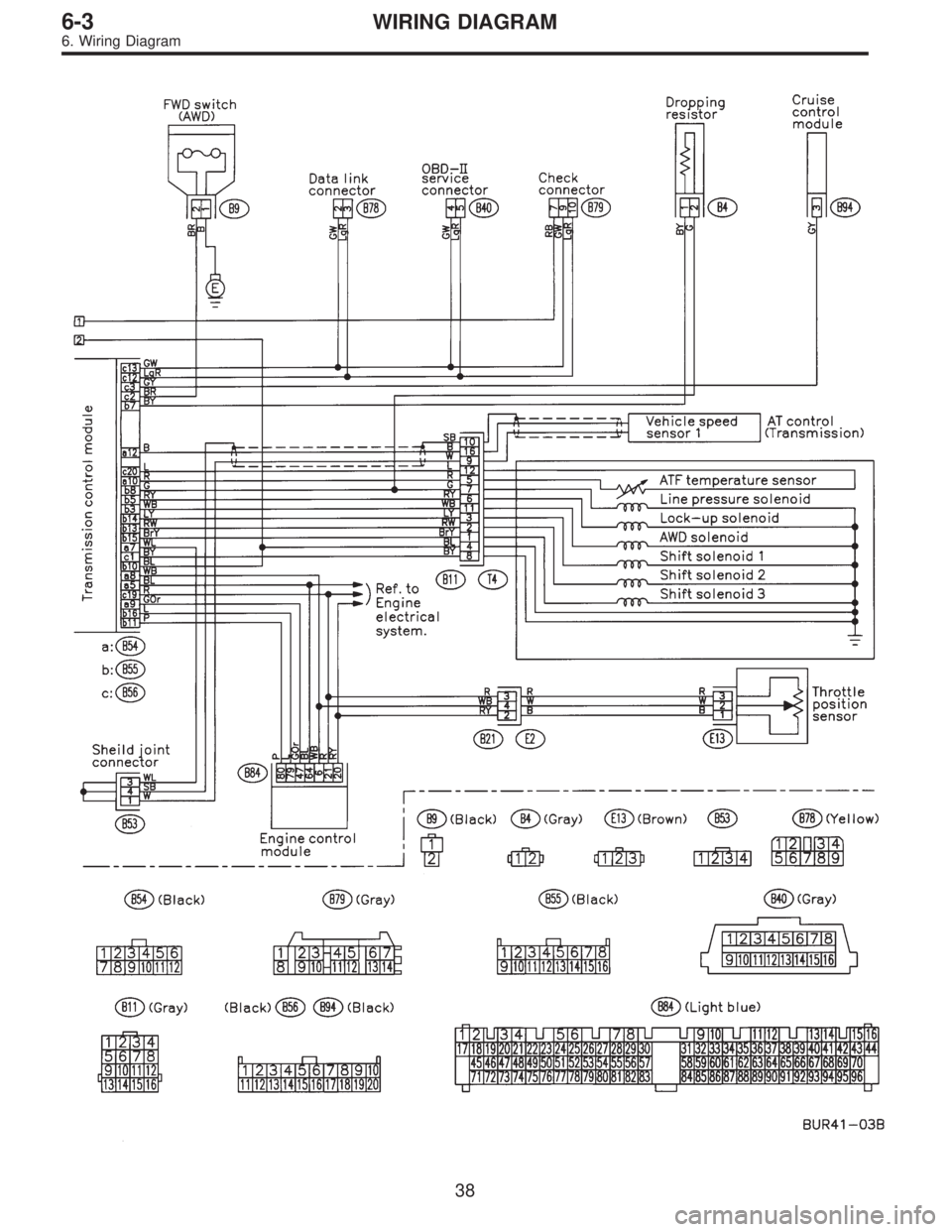

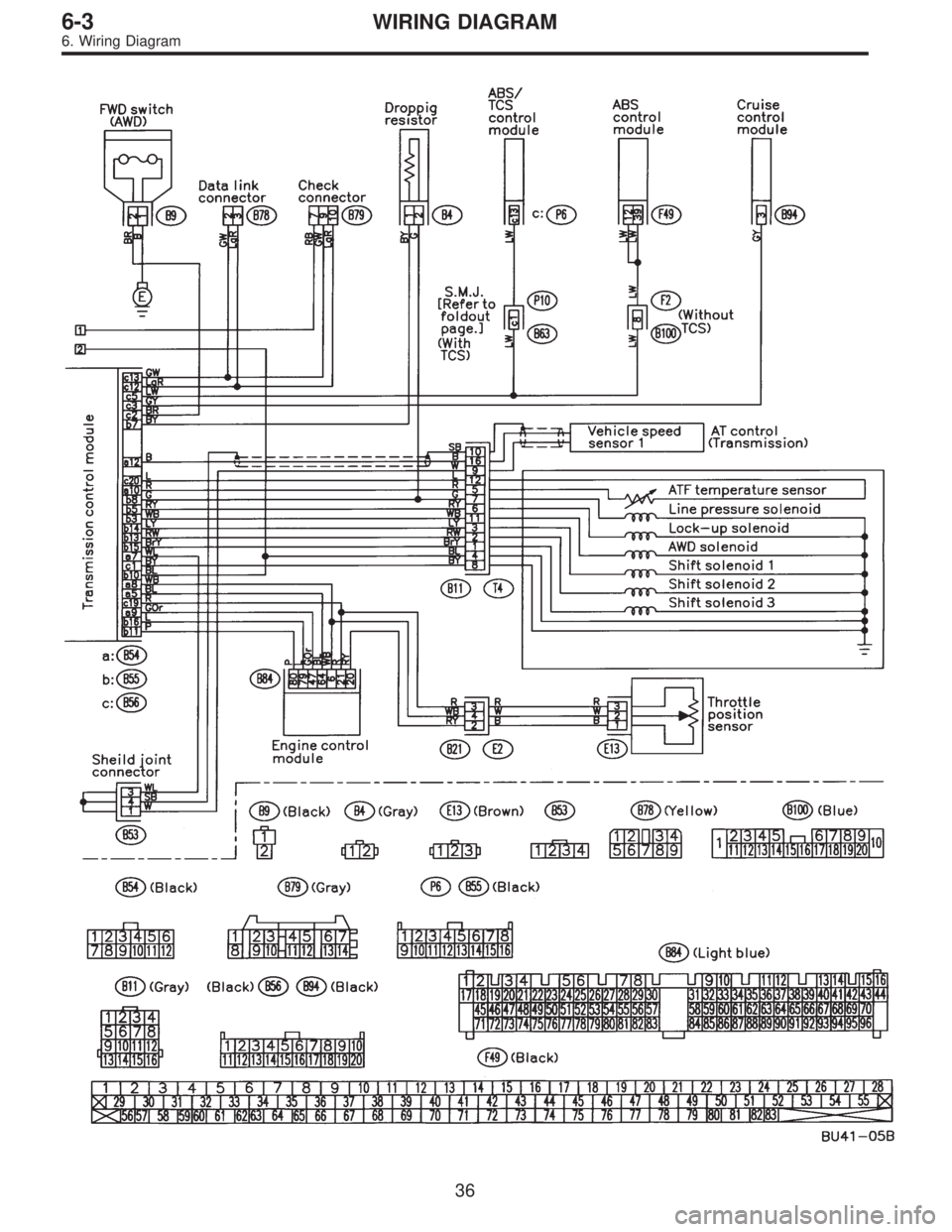

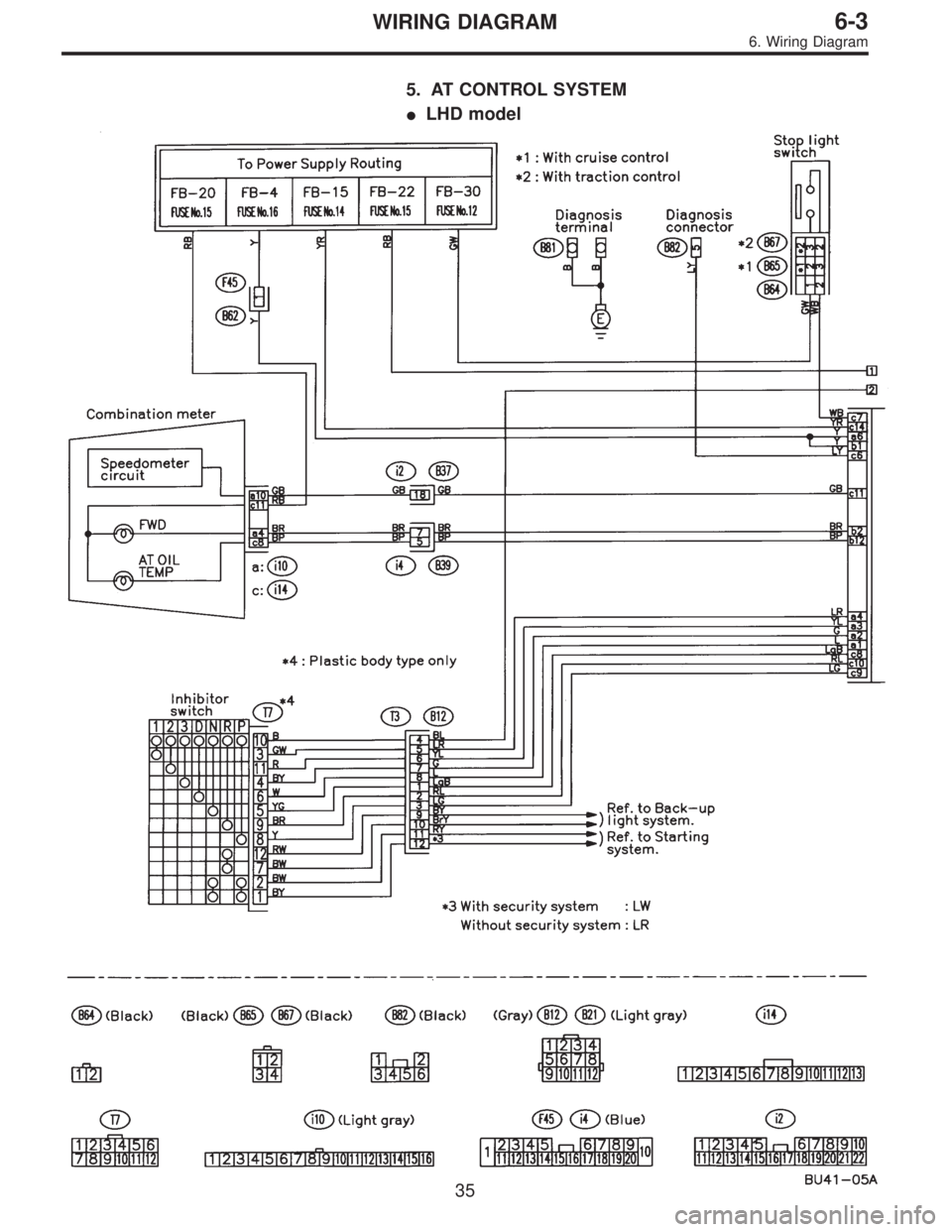

5. AT CONTROL SYSTEM

LHD model
35
6-3WIRING DIAGRAM
6. Wiring Diagram

36
6-3WIRING DIAGRAM
6. Wiring Diagram

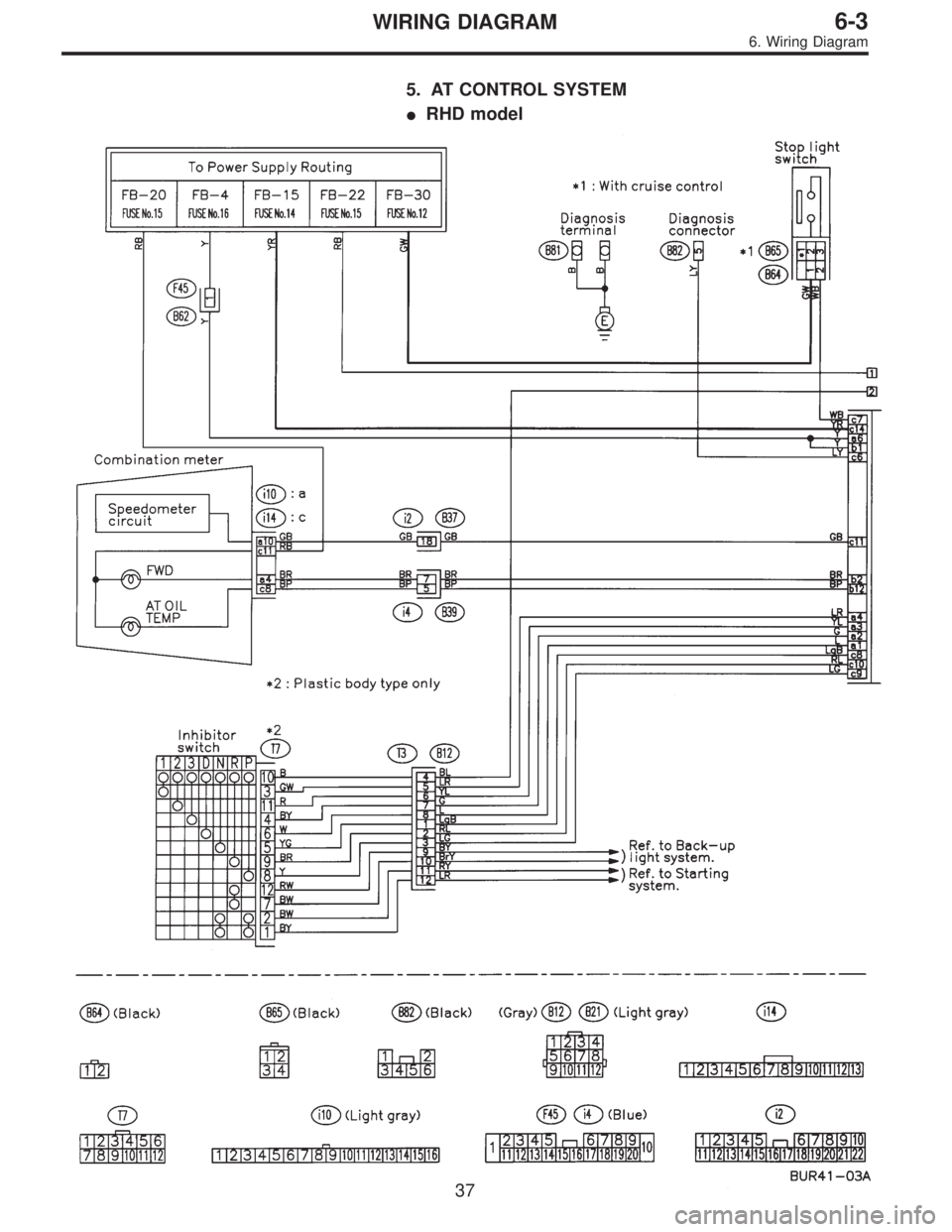

5. AT CONTROL SYSTEM

RHD model
37
6-3WIRING DIAGRAM
6. Wiring Diagram

38
6-3WIRING DIAGRAM
6. Wiring Diagram

6. AT SHIFT LOCK SYSTEM

LHD model
BU42-03
39
6-3WIRING DIAGRAM
6. Wiring Diagram

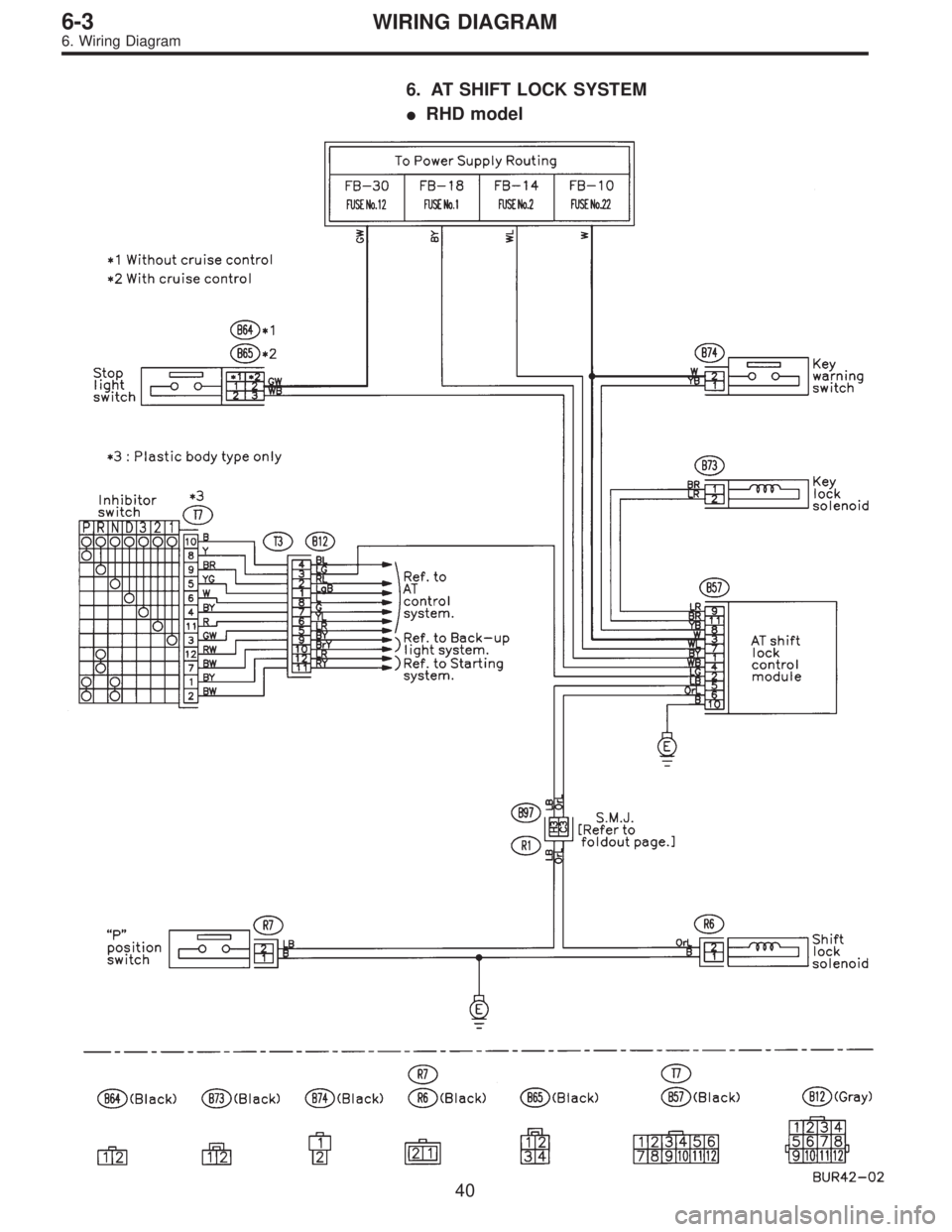

6. AT SHIFT LOCK SYSTEM

RHD model
40
6-3WIRING DIAGRAM
6. Wiring Diagram

7. AUDIO SYSTEM

LHD model
BU76-01
41
6-3WIRING DIAGRAM
6. Wiring Diagram
