SUBARU LEGACY 1997 Service Repair Manual

7. AUDIO SYSTEM

RHD model
42
6-3WIRING DIAGRAM
6. Wiring Diagram

8. BACK-UP LIGHT SYSTEM

LHD model
43
6-3WIRING DIAGRAM
6. Wiring Diagram

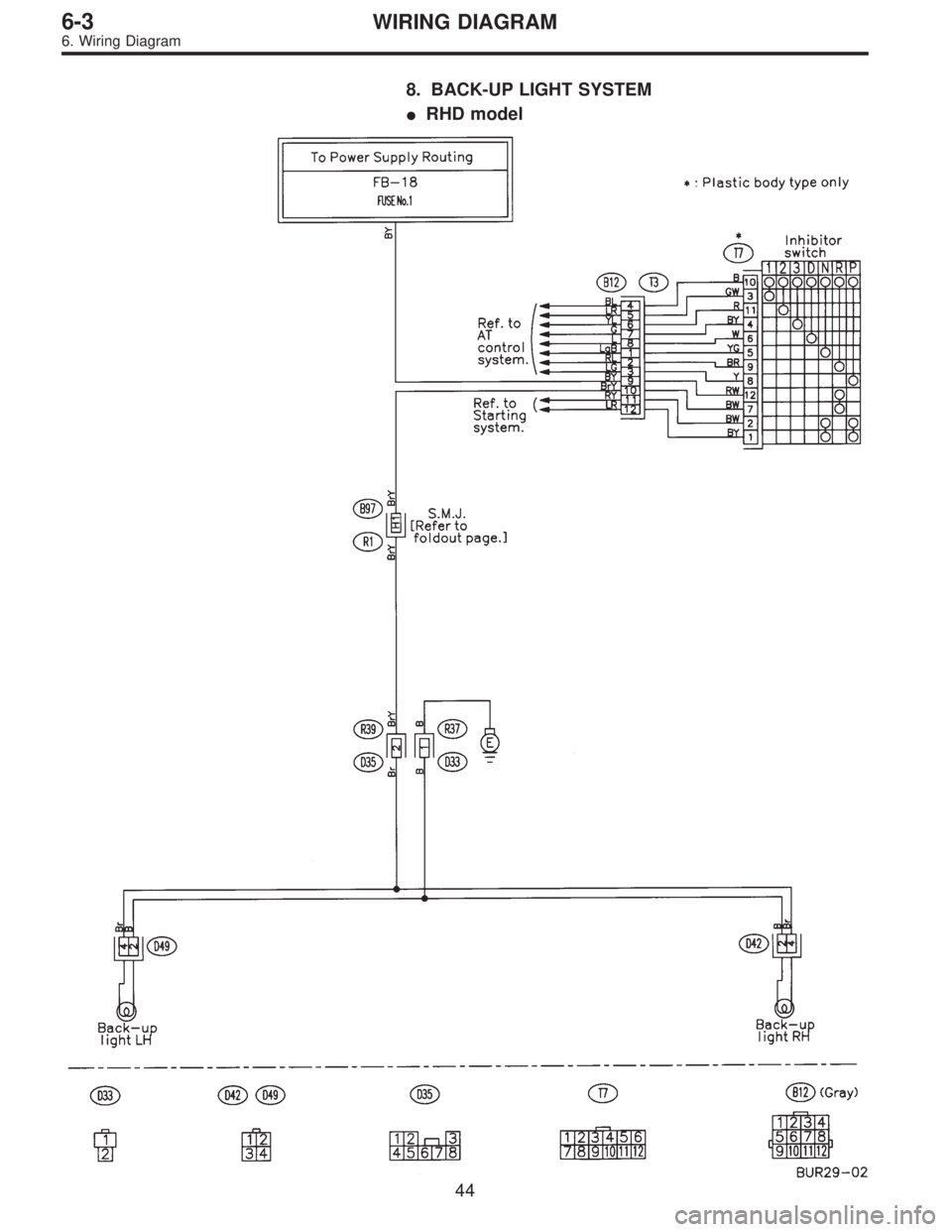

8. BACK-UP LIGHT SYSTEM

RHD model
44
6-3WIRING DIAGRAM
6. Wiring Diagram

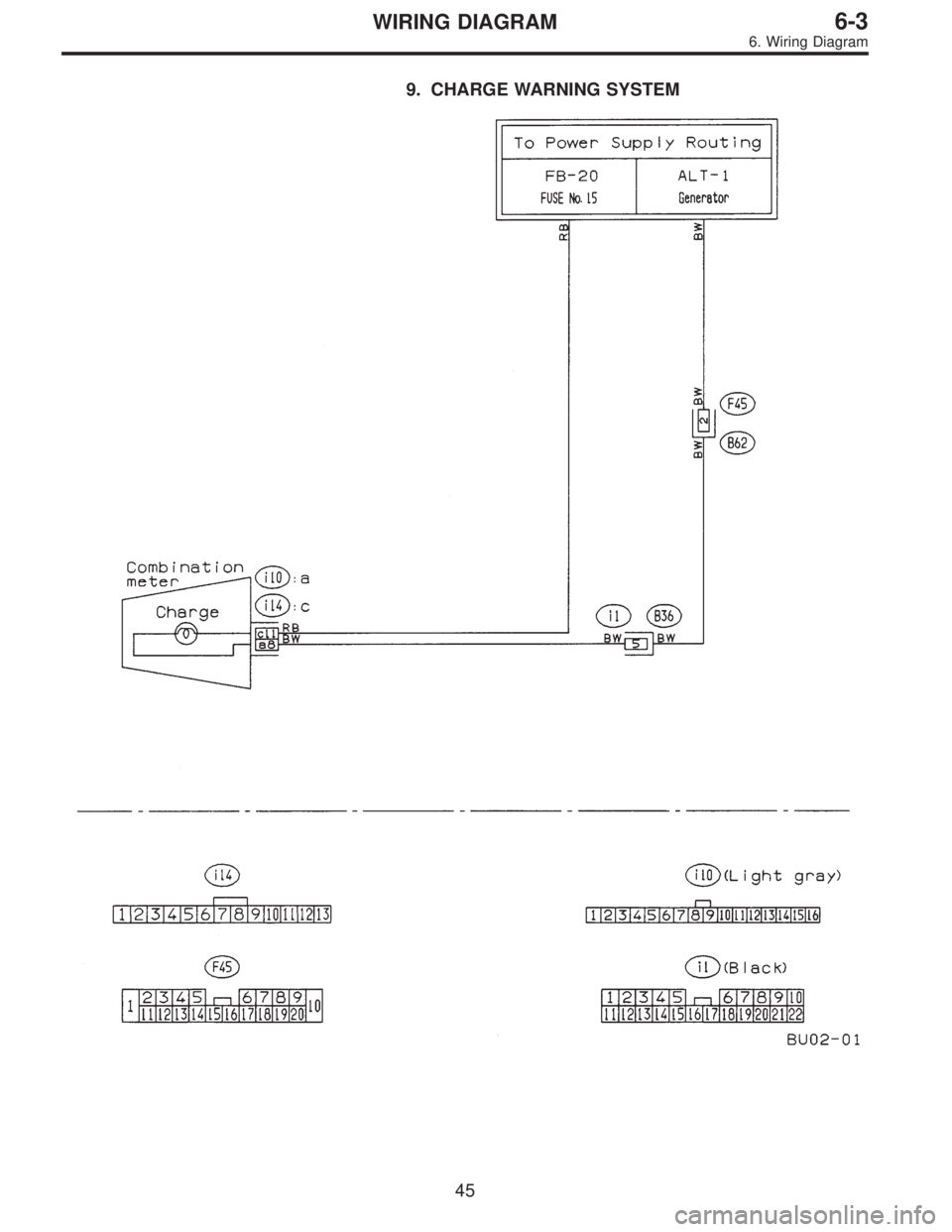

9. CHARGE WARNING SYSTEM
45
6-3WIRING DIAGRAM
6. Wiring Diagram

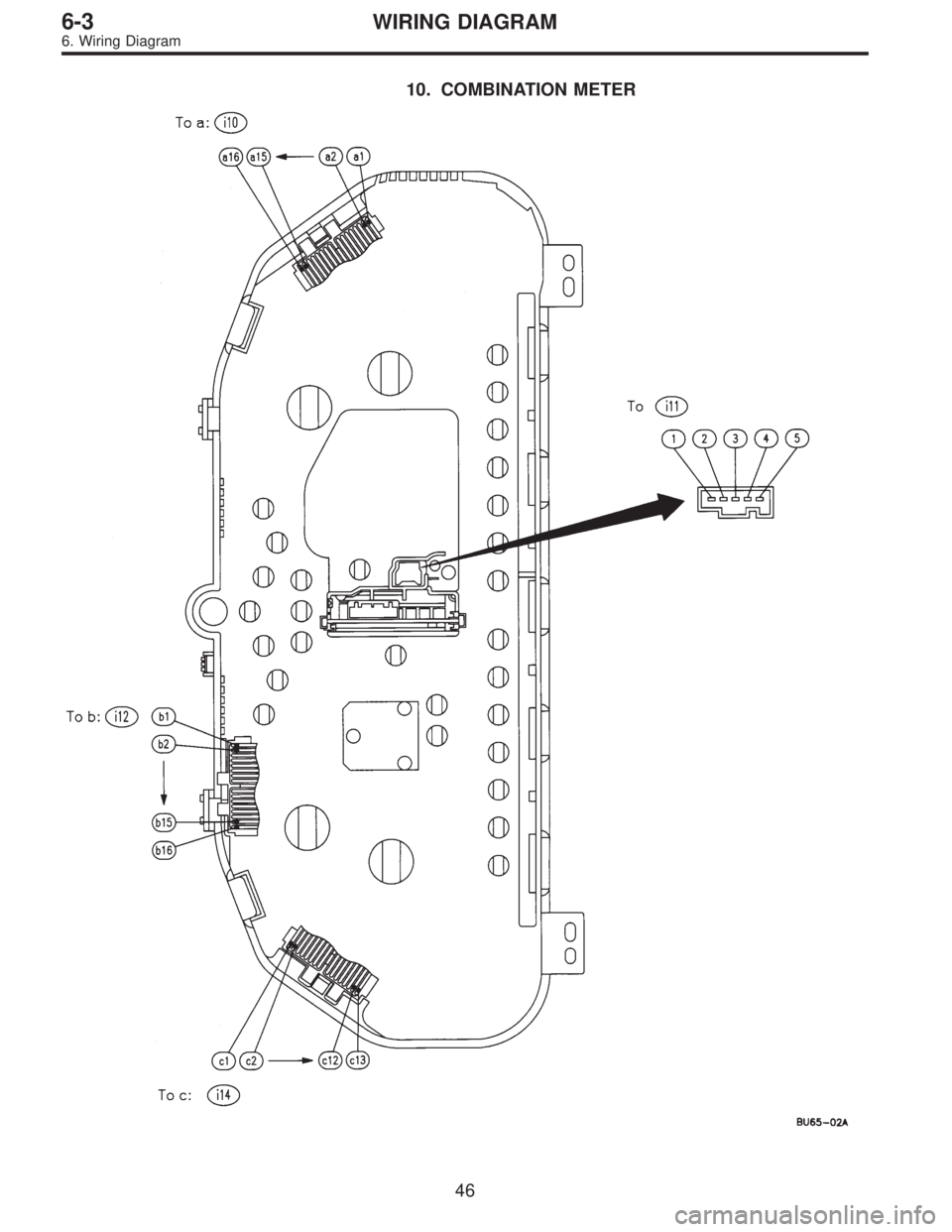

10. COMBINATION METER
46
6-3WIRING DIAGRAM
6. Wiring Diagram

47
6-3WIRING DIAGRAM
6. Wiring Diagram

11. CRUISE CONTROL SYSTEM
BU71-03
48
6-3WIRING DIAGRAM
6. Wiring Diagram

12. DOOR LOCK SYSTEM

LHD model
BU73-03
49
6-3WIRING DIAGRAM
6. Wiring Diagram

12. DOOR LOCK SYSTEM

RHD model
50
6-3WIRING DIAGRAM
6. Wiring Diagram

13. ENGINE ELECTRICAL SYSTEM

LHD 2200 cc engine AWD model
BU10-05A
51
6-3WIRING DIAGRAM
6. Wiring Diagram
