Page 111 of 164

SUBARU LEGACY 2022  Getting Started Guide DROWSY/INATTENTIVE WARNINGS
DriverFocus®detects when the driver is possibly not paying
attention or is becoming drowsy while driving. It works whether you
are a registered user or not. The system doe

Page 112 of 164

SUBARU LEGACY 2022  Getting Started Guide Recognizing a Driver
DriverFocus®will scan and recognize you as
soon as you enter the vehicle. The
Combination Meter Display will show a
welcome screen with your user name and
personal icon. The vehi

Page 113 of 164

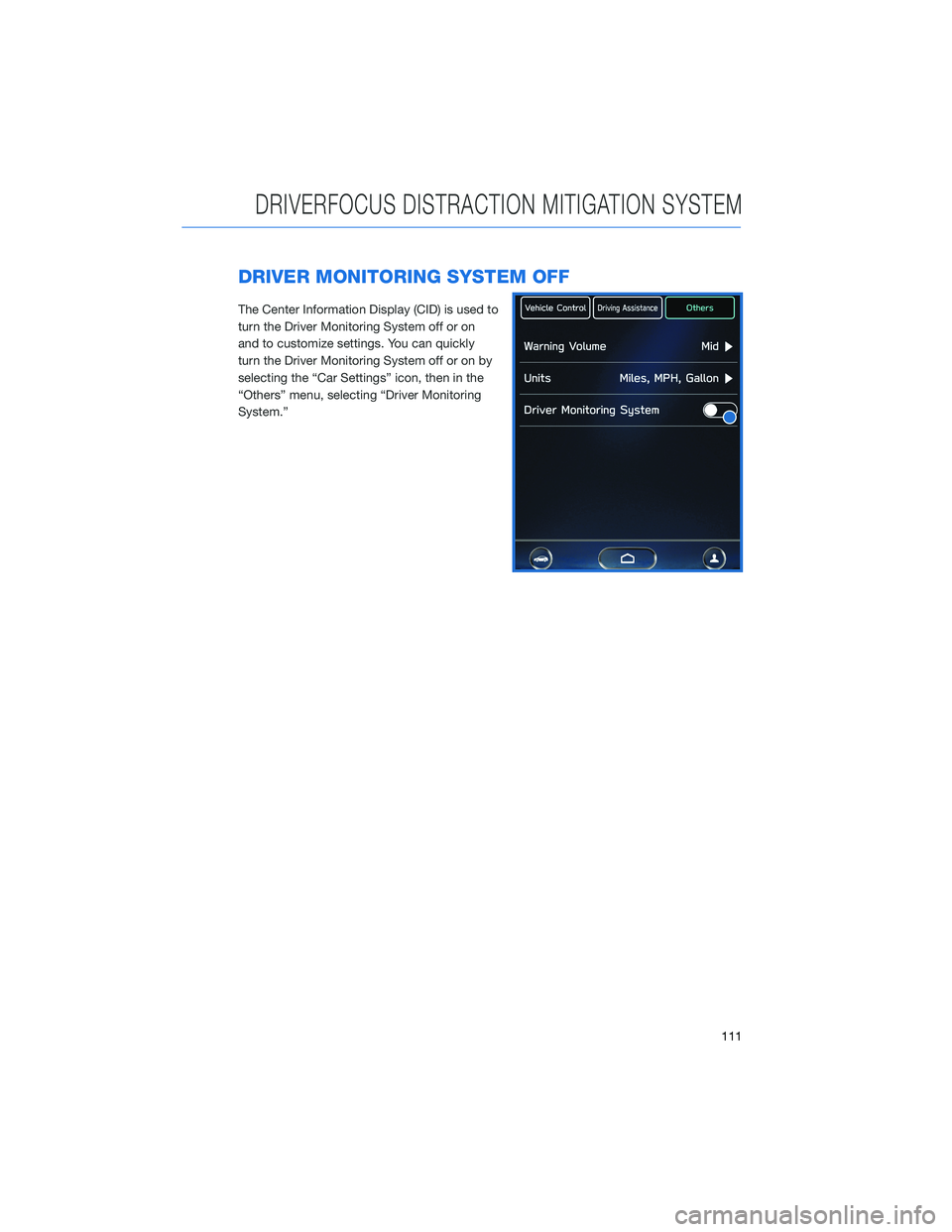

SUBARU LEGACY 2022  Getting Started Guide DRIVER MONITORING SYSTEM OFF
The Center Information Display (CID) is used to
turn the Driver Monitoring System off or on
and to customize settings. You can quickly
turn the Driver Monitoring System of

Page 114 of 164

SUBARU LEGACY 2022  Getting Started Guide STEREO CAMERA PRECAUTIONS
Your EyeSight®stereo cameras are precision components that must be kept free from
obstruction and contamination, such as fingerprints or cleaning solutions. When the
system

Page 115 of 164

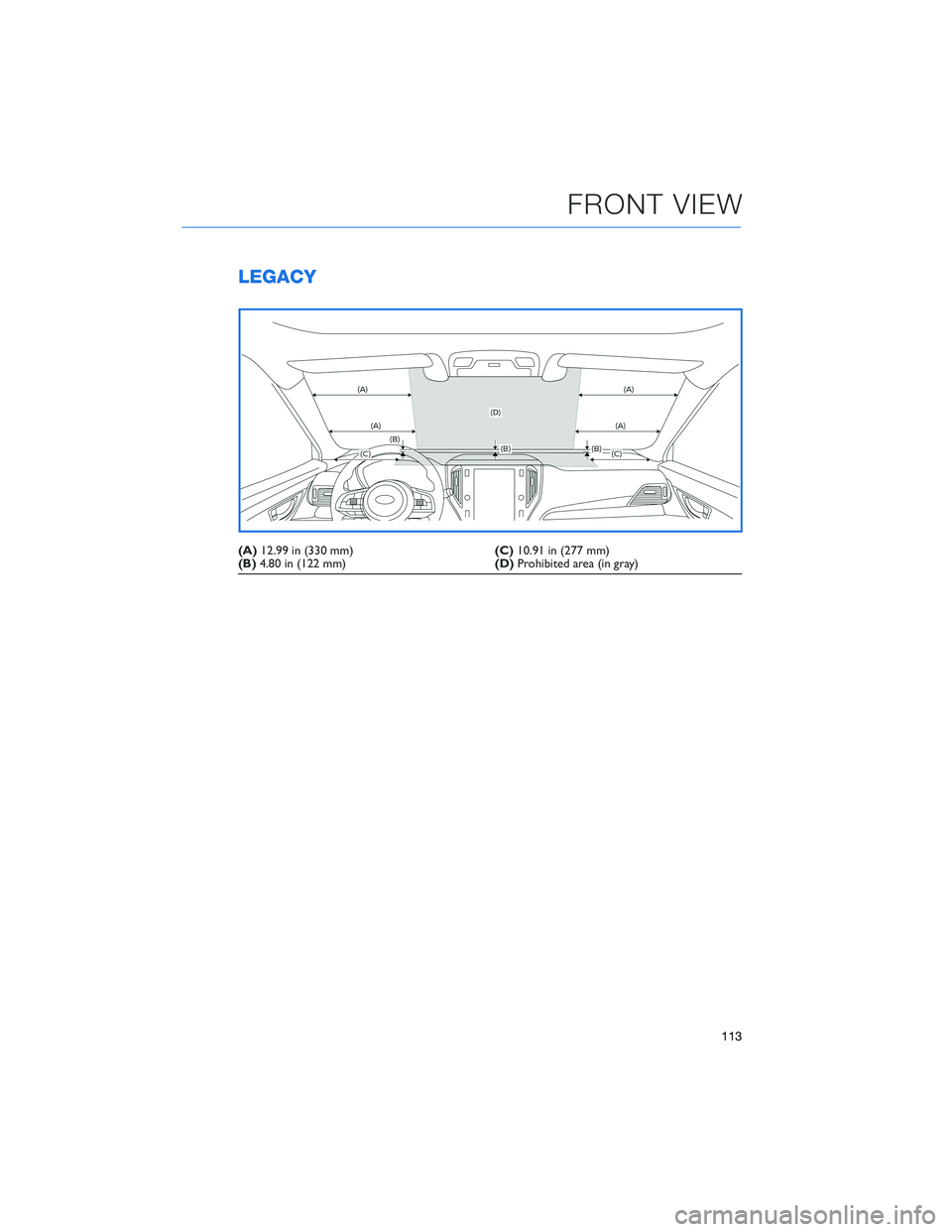

SUBARU LEGACY 2022  Getting Started Guide LEGACY
(A)12.99 in (330 mm)(C)10.91 in (277 mm)
(B)4.80 in (122 mm)(D)Prohibited area (in gray)
FRONT VIEW
113

Page 116 of 164

SUBARU LEGACY 2022  Getting Started Guide EYESIGHT®DISCLAIMER
EyeSight®is a driver assist technology which may not operate optimally under all driving
conditions. The driver is always responsible for safe and attentive driving. System
effec

Page 117 of 164

SUBARU LEGACY 2022  Getting Started Guide HOW TO OVERVIEW
This “How To” appendix provides detailed, step-by-step instructions to easily connect with
features of your Legacy.
If you need some help with these features or want to
learn more,

Page 118 of 164

SUBARU LEGACY 2022  Getting Started Guide Manually
To set the clock manually:
1Select the Clock Display in the Status
Bar.
2Select “Time Setting”.
NOTE: On this screen, you can also
adjust the clock format (12H or 24H) and,
for vehicles w

Page 119 of 164

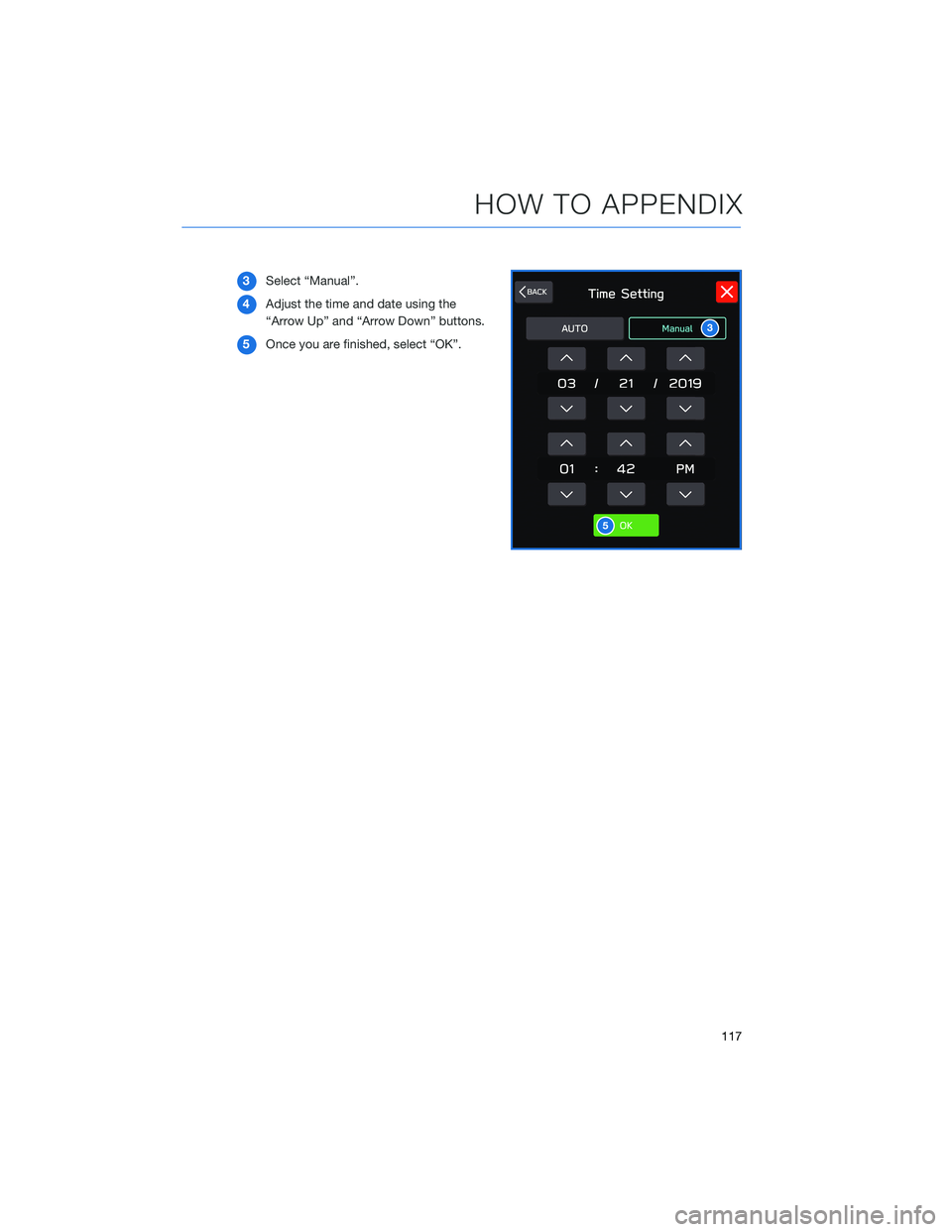

SUBARU LEGACY 2022  Getting Started Guide 3Select “Manual”.
4Adjust the time and date using the
“Arrow Up” and “Arrow Down” buttons.
5Once you are finished, select “OK”.
3
5
HOW TO APPENDIX
117

Page 120 of 164

SUBARU LEGACY 2022  Getting Started Guide Automatically
To set the clock automatically:
1Select the Clock Display in the Status
Bar.
2Select “Time Setting”.
NOTE: On this screen, you can also
adjust the clock format (12H or 24H) and,
for
