Page 191 of 308
OTHER SETTINGS
189
SETTINGS
7
No. Function
*1 6 H O H F W W R F K D Q J H W K H Y H K L F O H F O R F N V H W W L Q J V : 3
Select to change the language.
Select to turn the beep sound on/off.
Select to change the button and screen color.
Select to change the keyboard layout.
Select to turn on/off the setting that returns the display
to the split screen automatically after 20 seconds when
a screen other than the split screen is displayed.
Select to turn the animation function on/off.
6 H O H F W W R F X V W R P L ] H W K H V F U H H Q R I I L P D J H : 3
6 H O H F W W R G H O H W H S H U V R Q D O G D W D : 3
No. Function
Select to set the connected device when using aha.
Select
USB (USB) when using an iPhone, and then
select
Bluetooth (Bluetooth) when using Android
devices.
Select to set the connected device when using
Pandora*2. Select USB (USB) when using an iPhone,
and then select
Bluetooth (Bluetooth) when using
Android devices.
Select to update the Gracenote® database. For details,
contact your SUBARU dealer.
Select to display the software information. Notices
related to third party software used in this product are
enlisted. (This includes instructions for obtaining such
software, where applicable.)
Select to set the back camera delay control on/off.
When set to on, the back camera image displays for
approximately 6 seconds after moving the shift lever/
select lever “R” to any position other than “R”.
The display disappears when the shift lever/select lever
is moved to “P”, or when the vehicle speed reaches
approximately 5 mph (8 km/h) or faster.
Select to set the welcome display on/off when getting
into the vehicle.
*1Select to set the low fuel - gas station search on/off.
Page 192 of 308
OTHER SETTINGS
190
No. Function
*1 6 H O H F W W R V H W W K H S H U L R G L F U H V W Q R W L
Page 193 of 308
OTHER SETTINGS
191
SETTINGS
7
CUSTOMIZING THE SCREEN OFF IMAGES
When the screen is turned off, the desired set image
can be displayed as the screen off image. Images
can be copied from a USB memory or SD card*.
A USB memory or SD card* must be connected when
H G L W L Q J V F U H H Q R I I L P D J H V : 3
*: With navigation function
NOTE
OWhen saving the images to a USB or SD card* name the folder
that the screen off image is saved to “Image”. If this folder name
is not used, the system cannot download the images. (The folder
name is case sensitive.)
*: With navigation function O<002c00500044004a0048000300bf004f0048005600030056004400590048004700030057005200030057004b0048000300500044005300030036002700030046004400550047000300460044005100510052005700030045004800030053004f0044005c00
48004700110003>
QTRANSFERRING IMAGES
1. Select .
2. Select SETTINGS (SETTINGS).
3. Select General (General).
4. Select Customize Screen Off Image (Customize
Screen Off Image).
5. Select the device that the image is stored on.
6. Select Copy from [device] (Copy from [device]).
7. Select the desired images from the list and then select
Copy (Copy).
”The selected image is displayed on the right side
R I W K H V F U H H Q , I W K H V H O H F W H G L P D J H

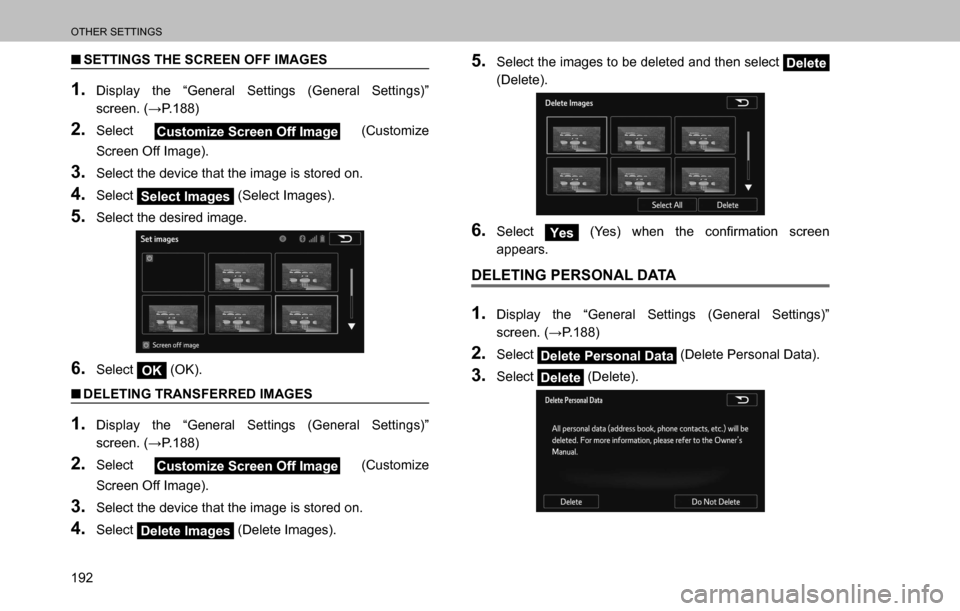

Page 194 of 308
OTHER SETTINGS
192
QSETTINGS THE SCREEN OFF IMAGES
1. Display the “General Settings (General Settings)”
V F U H H Q : 3
2. Select Customize Screen Off Image (Customize
Screen Off Image).
3. Select the device that the image is stored on.
4. Select Select Images (Select Images).
5. Select the desired image.
6. Select OK (OK).
QDELETING TRANSFERRED IMAGES
1. Display the “General Settings (General Settings)”
V F U H H Q : 3
2. Select Customize Screen Off Image (Customize
Screen Off Image).
3. Select the device that the image is stored on.
4. Select Delete Images (Delete Images).
5. Select the images to be deleted and then select Delete
(Delete).
6. Select Yes < H V Z K H Q W K H F R Q

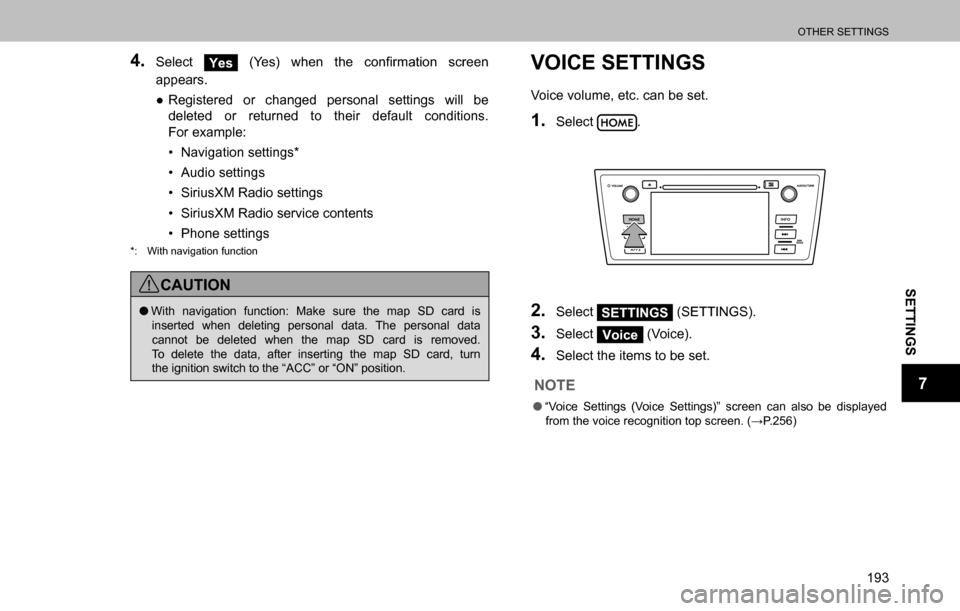

Page 195 of 308
OTHER SETTINGS
193
SETTINGS
7
4. Select Yes < H V Z K H Q W K H F R Q

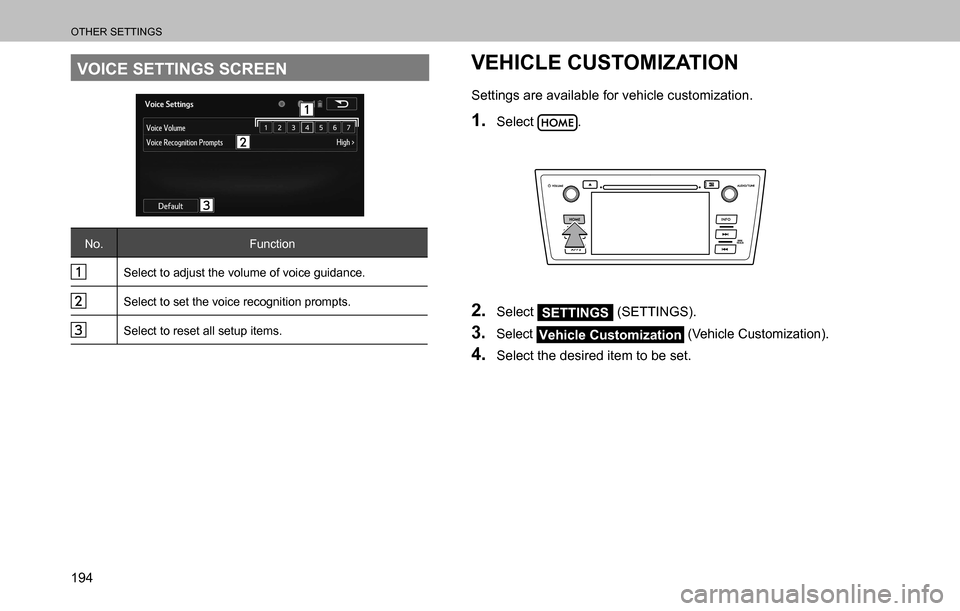

Page 196 of 308
OTHER SETTINGS
194
VOICE SETTINGS SCREEN
No. Function
Select to adjust the volume of voice guidance.
Select to set the voice recognition prompts.
Select to reset all setup items.
VEHICLE CUSTOMIZATION
Settings are available for vehicle customization.
1. Select .
2. Select SETTINGS (SETTINGS).
3. Select Vehicle Customization (Vehicle Customization).
4. Select the desired item to be set.

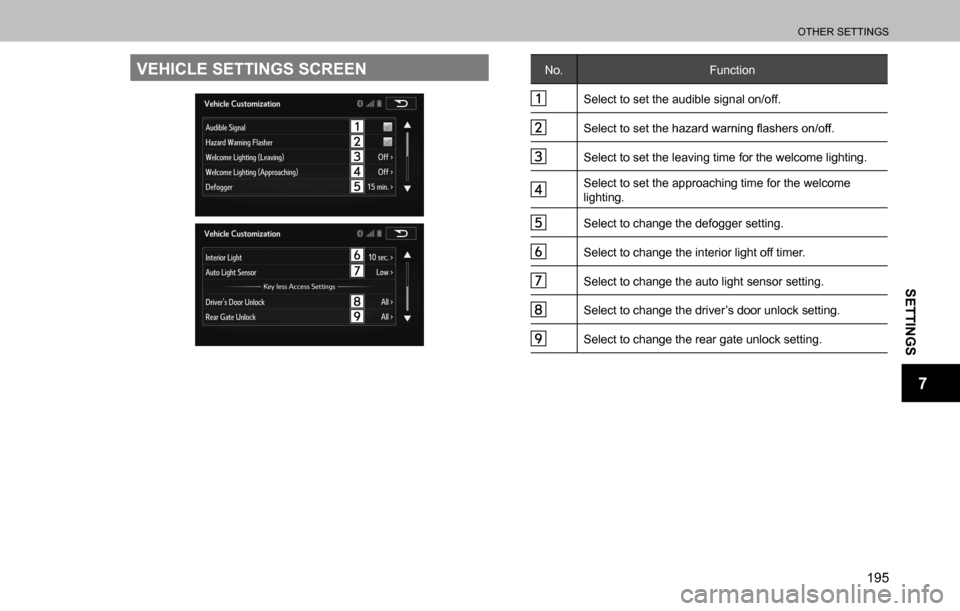

Page 197 of 308
![SUBARU OUTBACK 2016 6.G Navigation Manual
OTHER SETTINGS
195
SETTINGS
7
VEHICLE SETTINGS SCREENNo. Function
Select to set the audible signal on/off.
6 H O H F W W R V H W W K H K D ] D U G Z D U Q L Q J](/img/17/7312/w960_7312-196.png "SUBARU OUTBACK 2016 6.G Navigation Manual
OTHER SETTINGS
195
SETTINGS
7
VEHICLE SETTINGS SCREENNo. Function
Select to set the audible signal on/off.
6 H O H F W W R V H W W K H K D ] D U G Z D U Q L Q J")
OTHER SETTINGS
195
SETTINGS
7
VEHICLE SETTINGS SCREENNo. Function
Select to set the audible signal on/off.
6 H O H F W W R V H W W K H K D ] D U G Z D U Q L Q J

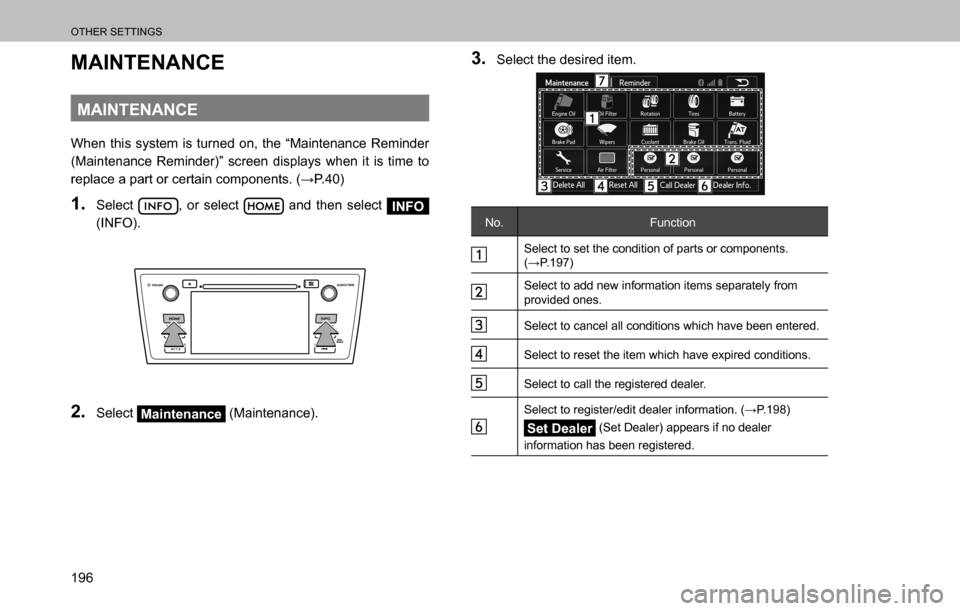

Page 198 of 308
OTHER SETTINGS
196
MAINTENANCE
MAINTENANCE
When this system is turned on, the “Maintenance Reminder
(Maintenance Reminder)” screen displays when it is time to
U H S O D F H D S D U W R U F H U W D L Q F R P S R Q H Q W V : 3
1. Select , or select and then select INFO
(INFO).
2. Select Maintenance (Maintenance).
3. Select the desired item.
No. Function
Select to set the condition of parts or components.
: 3
Select to add new information items separately from
provided ones.
Select to cancel all conditions which have been entered.
Select to reset the item which have expired conditions.
Select to call the registered dealer.
6 H O H F W W R U H J L V W H U H G L W G H D O H U L Q I R U P D W L R Q : 3
Set Dealer (Set Dealer) appears if no dealer
information has been registered.
Page 199 of 308
OTHER SETTINGS
197
SETTINGS
7
No. Function
When set to on, the indicator will illuminate. The
system is set to give maintenance information with the
“Maintenance Reminder (Maintenance Reminder)”
V F U H H Q : 3
NOTE
OWhen the vehicle needs to be serviced, the screen button color
will change to orange.
MAINTENANCE INFORMATION SETTING
1. Select the desired part or component screen button.
”When the vehicle needs to be serviced, the screen
button color will change to orange.
2. Set the conditions.
No. Function
Select to enter the next maintenance date.
Select to enter the driving distance until the next
maintenance check.
Select to cancel the conditions which have been
entered.
Select to reset the conditions which have expired.
3. Select OK (OK) after entering the conditions.
NOTE
ODepending on driving or road conditions, the actual date and
distance that maintenance should be performed may differ from
the stored date and distance in the system.
OWithout navigation function: No reminder is given even if the
entered date has passed. A reminder is only given when the
entered distance is reached.
Page 200 of 308
OTHER SETTINGS
198
DEALER SETTING
Dealer information can be registered in the system.
1. Select Set Dealer (Set Dealer).
2. Select the items to be edited.
No. Function Page
Select to enter the name of a dealer. 198
Select to enter the name of a dealer member. 198
Select to enter the phone number. 198
Select to delete the dealer information
displayed on the screen.-
QEDITING DEALER OR CONTACT NAME
1. Select next to “Dealer (Dealer)” or “Contact
(Contact)”.
2. Enter the name and then select OK (OK).
QEDITING PHONE NUMBER
1. Select next to “Phone # (Phone #)”.
2. Enter the phone number and then select OK (OK).
