SUBARU OUTBACK 2016 6.G Navigation Manual

USEFUL INFORMATION
169
INFORMATION
6

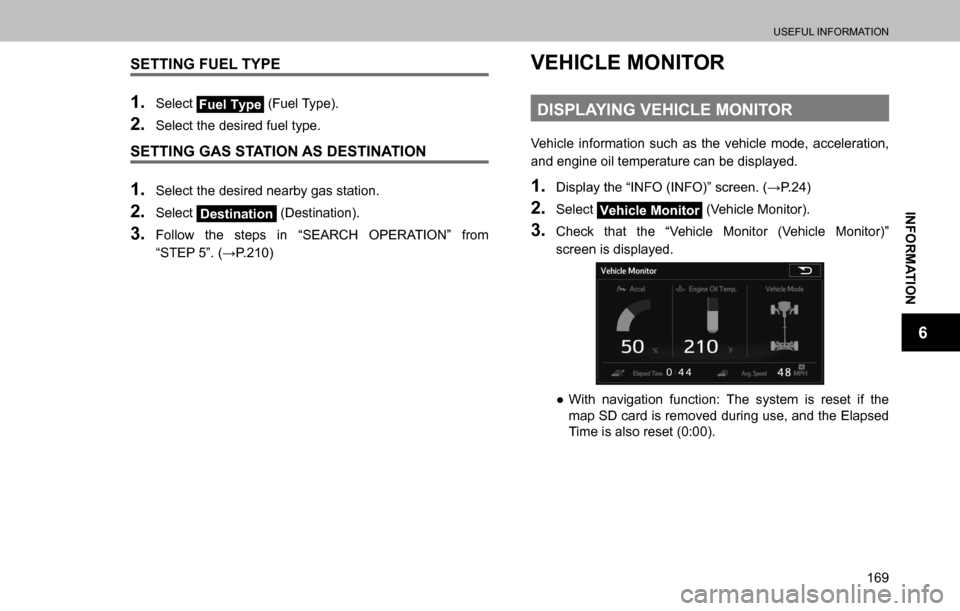

SETTING FUEL TYPE
1. Select Fuel Type (Fuel Type).
2. Select the desired fuel type.
SETTING GAS STATION AS DESTINATION
1. Select the desired nearby gas station.
2. Select Destination (Destination).
3. Follow the steps in “SEARCH OPERATION” from

USEFUL INFORMATION
170
ECO MONITOR
DISPLAYING ECO MONITOR
Three items of information can be displayed from remaining
travel distance (range), instantaneous fuel consumption,
average interval fuel consumption, and lifetime fuel
consumption.
1. 'LVSOD\WKH

USEFUL INFORMATION
171
INFORMATION
6
CUSTOMIZE ECO MONITOR
Three items can be selected and displayed from remaining
travel distance (range), instantaneous fuel consumption,
average interval fuel consumption, and lifetime fuel
consumption.
1. Display the “SETTINGS (SETTINGS)” screen.

:3
2. Select Info (Info).
3. Select Eco Monitor (Eco Monitor).
4. Select Customize Eco Monitor (Customize Eco
Monitor).
5. Select the area to be displayed from the left, right, or
center display area.
6. Select the desired item.

”If an item displayed in another area is selected,
the display area changes. The same items are not
displayed simultaneously.
FUEL HISTORY SETTINGS
The scale of the time axis used to display Eco history can
be changed.
1. Display the “SETTINGS (SETTINGS)” screen.

:3
2. Select Info (Info).
3. Select Eco Monitor (Eco Monitor).
4. Select Fuel History Settings (Fuel History Settings).
5. Select the desired item to be set.

USEFUL INFORMATION
172
RESETTING THE LIFETIME FUEL CONSUMPTION
The lifetime fuel consumption can be reset.
1. Display the “SETTINGS (SETTINGS)” screen.

:3
2. Select Info (Info).
3. Select Eco Monitor (Eco Monitor).
4. Select Lifetime Fuel Cons Reset (Lifetime Fuel Cons
Reset).
5. Select Yes (Yes).

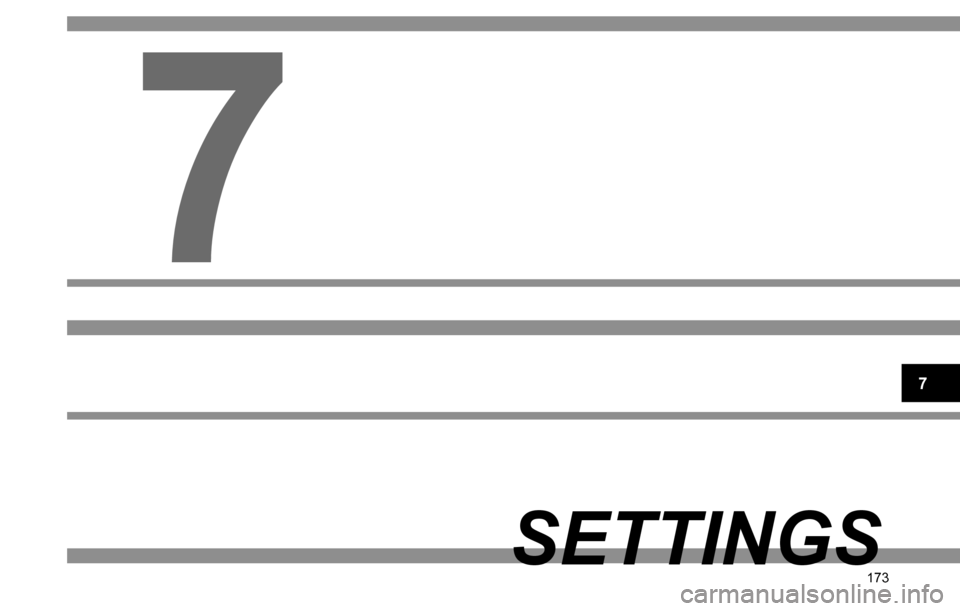

173
SETTINGS
7
7

Bluetooth® SETTINGS
174
Bluetooth® SETTINGS
REGISTERING/CONNECTING
Bluetooth
® DEVICE
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc.
REGISTERING A Bluetooth PHONE FOR
THE FIRST TIME
To use the hands-free system, it is necessary to register a
Bluetooth phone with the system.
Once the phone has been registered, it is possible to use
the hands-free system.
This operation cannot be performed while driving.
<00290052005500030047004800570044004c004f0056000300440045005200580057000300550048004a004c0056005700480055004c0051004a0003004400030025004f005800480057005200520057004b0003004700480059004c00460048001d000301
3a0033>
1. Turn the Bluetooth connection setting of your cellular
phone on.

”This function is not available when Bluetooth
connection setting of your cellular phone is set to off.
XWithout navigation function
2. Select to display the phone top screen.

”Operations up to this point can also be performed by
pressing the
switch on the steering wheel.
XWith navigation function
2. Select and select PHONE (PHONE) to display
the phone top screen.

”Operations up to this point can also be performed by
pressing the
switch on the steering wheel.
3. Select Yes (Yes) to register a phone.

SETTINGS
7
Bluetooth® SETTINGS
175
4. When this screen is displayed, search for the device
name displayed on this screen on the screen of your
Bluetooth device.

”For details about operating the Bluetooth device, see
the manual that comes with it.

”To cancel the registration, select
Cancel (Cancel).
5. Register the Bluetooth device using your Bluetooth
device.

”A PIN-code is not required for SSP (Secure Simple
Pairing) compatible Bluetooth devices. Depending
on the type of Bluetooth device being connected, a
PHVVDJH FRQ

Bluetooth® SETTINGS
176 XFor OPP compatible Bluetooth phones
6. Select OK (OK).
NOTE
OThe system waits for connection requests from the registered
device.
OIf an error message is displayed, follow the guidance on the
screen and try again.
7. Select , or select and then select
PHONE (PHONE) to display the telephone top screen.
8. Select the desired item.

”Transfer (Transfer): Select to transfer contacts from
the connected cellular phone.

”
Add (Add): Select to add a new contact manually.

”
Cancel (Cancel): Select to cancel transfer.

SETTINGS
7
Bluetooth® SETTINGS
177

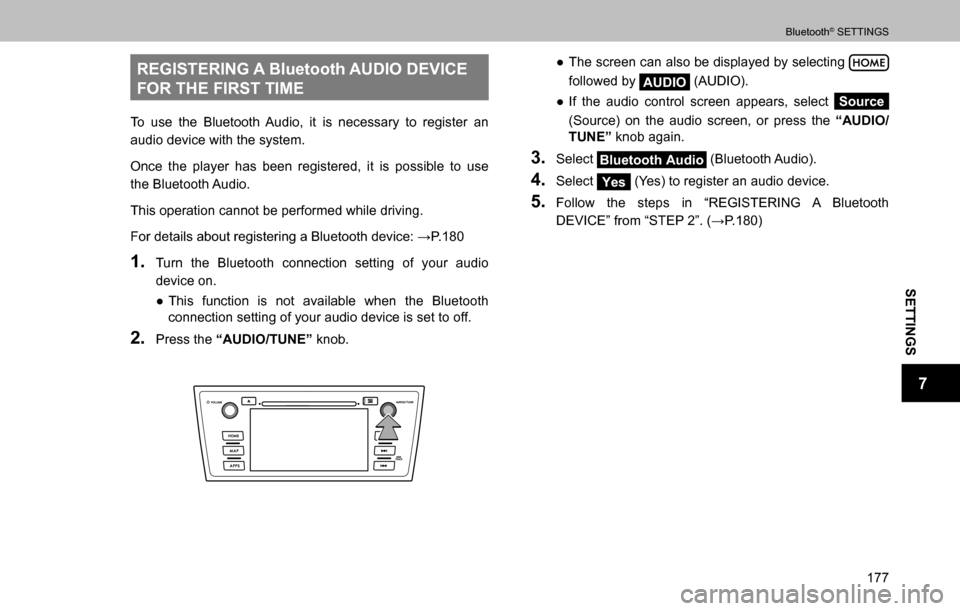

REGISTERING A Bluetooth AUDIO DEVICE
FOR THE FIRST TIME
To use the Bluetooth Audio, it is necessary to register an
audio device with the system.
Once the player has been registered, it is possible to use
the Bluetooth Audio.
This operation cannot be performed while driving.
<00290052005500030047004800570044004c004f0056000300440045005200580057000300550048004a004c0056005700480055004c0051004a0003004400030025004f005800480057005200520057004b0003004700480059004c00460048001d000301
3a0033>
1. Turn the Bluetooth connection setting of your audio
device on.

”This function is not available when the Bluetooth
connection setting of your audio device is set to off.
2. Press the “AUDIO/TUNE” knob.

”The screen can also be displayed by selecting
followed by
AUDIO (AUDIO).

”If the audio control screen appears, select
Source
(Source) on the audio screen, or press the “AUDIO/
TUNE” knob again.
3. Select Bluetooth Audio (Bluetooth Audio).
4. Select Yes (Yes) to register an audio device.
5. Follow the steps in “REGISTERING A Bluetooth
'(9,&(

Bluetooth® SETTINGS
178

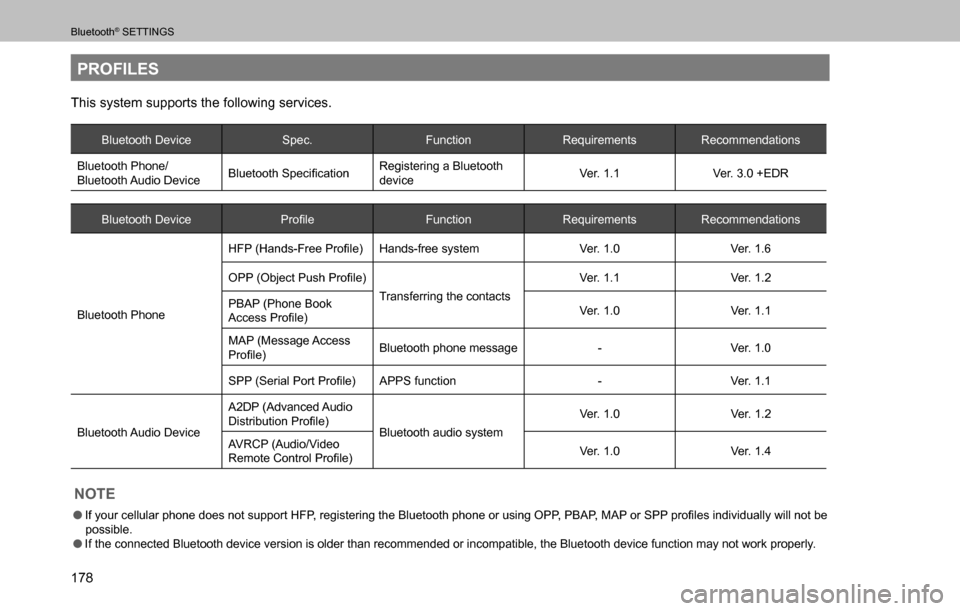

PROFILES
This system supports the following services.
Bluetooth Device Spec. Function Requirements Recommendations
Bluetooth Phone/
Bluetooth Audio Device%OXHWRRWK6SHFL¿FDWLRQRegistering a Bluetooth
deviceVe r. 1 . 1 Ve r. 3 . 0 + E D R
Bluetooth Device3UR¿OHFunction Requirements Recommendations
Bluetooth Phone+)3+DQGV)UHH3UR
