BASIC OPERATION
200
BASIC OPERATION
QUICK REFERENCE
MAP SCREEN
To display this screen, select , or select and
then select
MAP (MAP).
No. Name Information/Function Page
2D North-up, 2D
heading-up or
3D symbolSelect to change the map
display mode between 2D
north-up, 2D heading-up
or 3D. In 3D map, only
a heading-up view is
available.207
*
7UDI

BASIC OPERATION
201
NAVIGATION SYSTEM
8
No. Name Information/Function Page
*Highway
informationSelect to display the
highway information.227
Speed Limit
indicatorDisplays the speed limit for
the road being driven on.-
*: The default setting is not displayed, and can be displayed from “Display
<0052005100030030004400530003000b0027004c00560053004f0044005c0003005200510003003000440053000c00b40003004c0051000300b300300044005300030036004800570057004c0051004a00560003000b003000440053000300360048005700
57004c0051004a0056000c00b400110003000b013a0033>
NOTE
OAn “Unable to read the map SD data. Check the map SD. If
necessary, consult your dealer.” message appears if the map SD
card is not inserted, or if an SD card containing no map data is
inserted.
MAP OPERATIONS
You can touch a position on the map, and then check that
position during navigation. The map’s current position
tracking function stops (the car marker (a blue arrow by
GHIDXOW LV QRW

BASIC OPERATION
202
No. Operation Function
Point
informationSelect to open another screen
displaying information on the
selected map position (cursor). When
Bluetooth is enabled on your cellular
phone, a call can be placed if the
displayed information screen contains
phone number information.
Return to
normal
navigationSelect to return the map to the current
GPS position. Auto map rotation is
also enabled. The map operation
buttons are not displayed, and
navigation restarts.
Tilt up/downSelect to change the vertical display
angle of the map in 3D mode. Select
and hold to continue changing the
motion of the map screen.
No. Operation Function
Selecting a
destinationSelect to select the cursor as a new
destination. The route is researched
automatically.
Additional
functionsSelect to display the additional
functions list. For example, saving
the cursor to the destination list, and
searching the area around the cursor.
Zoom in/outSelect to change the area of the map
displayed on the screen. Select and
hold to continue changing the scale of
the map screen.
NOTE
OThe map screen scale can be changed by double-touching or
SLQFKLQJWKHVFUHHQ
:3
OThe map direction can be changed by rotating the screen.

:3

BASIC OPERATION
203
NAVIGATION SYSTEM
8
NAVIGATION MENU
When you select Menu (Menu) on the navigation screen,
the navigation menu (main menu) appears. You can access
all of the software’s functions from this menu.
No. Function
Select to start navigation on the map. The button itself
shows the current position, recommended route, and
reduces the surrounding area to display on the map
being used. Select to enlarge the map to full-screen
size.
No. Function
Select to search for a destination. You can select which
method to use to reach your destination by entering the
address, selecting a favorite spot, selecting a position
on the map, or selecting from the destination list. You
can also select recent destinations from Smart History,
or enter coordinates into the system.
Select to perform various route related functions such
as editing or canceling the route, setting the route
departure point, selecting a different route, avoiding a
part of the route, performing a navigation simulation, or
adding an entry to the destination list.
Select to set the navigation software operating method,
start the tutorial, show a demo route simulation, or start
various other auxiliary applications.
Select or to adjust the guidance volume.
Select to clear the route and cancel navigation.
6HOHFWWRRSHQWKH³7UDI¿F6XPPDU\7UDI¿F6XPPDU\´
screen.
NOTE
OGuidance volume can be adjusted during guidance by turning
the “POWER/VOLUME” knob, or by using the volume control
switch on the steering wheel.

BASIC OPERATION
204

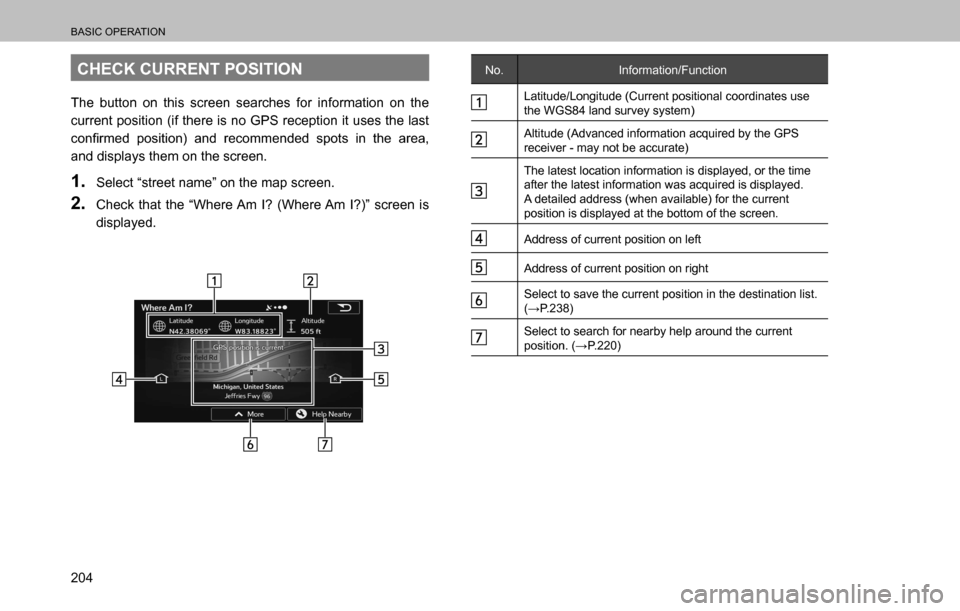

CHECK CURRENT POSITION
The button on this screen searches for information on the
current position (if there is no GPS reception it uses the last
FRQ

BASIC OPERATION
205
NAVIGATION SYSTEM
8
MAP SCREEN OPERATION
CURRENT POSITION DISPLAY
1. Select , or select and then select MAP
(MAP).
2. Check that the current position map is displayed.
NOTE
O:KLOH GULYLQJ WKH FXUUHQW SRVLWLRQ PDUN LV

BASIC OPERATION
206

”This map shows the current position (shown as the
vehicle marked as a blue arrow), recommended
routes (blue lines), and the immediate surrounding
area.

”When GPS positioning is not active, the vehicle
PDUNHU LV FOHDU 7KH ODWHVW FRQ

BASIC OPERATION
207
NAVIGATION SYSTEM
8
ORIENTATION OF THE MAP
The orientation of the map can be changed between 2D
north-up, 2D heading-up and 3D.
1. Select or .
XNorth-up screen
XHeading-up screen
X3D screen

”: 2D north-up symbol
Regardless of the direction of vehicle travel, north is
always up.

”
: 2D heading-up and 3D symbol
The direction of vehicle travel is always up.

”The letter(s) indicate the vehicle’s heading direction
(e.g. N for north).

BASIC OPERATION
208
POSITION MARKER
SELECTED MAP LOCATION (CURSOR)
Use one of the following methods to mark a map location.

”Select the map during navigation.

”Select the map when the destination you want is
displayed in the search results.

”Select the map in “Find on Map (Find on Map)”.
You can use the cursor’s position as the route’s destination,
search for locations around the cursor, and save the position
in the destination list.

”After selecting a map location, a cursor is displayed
at the point selected on the map. The cursor is
displayed as a red point (
) and can be checked at
all zoom levels.
TRAFFIC INFORMATION
DISPLAYING TRAFFIC INFORMATION
5RDG VHFWLRQV DIIHFWHG E\ WUDI
