12-4Specifications

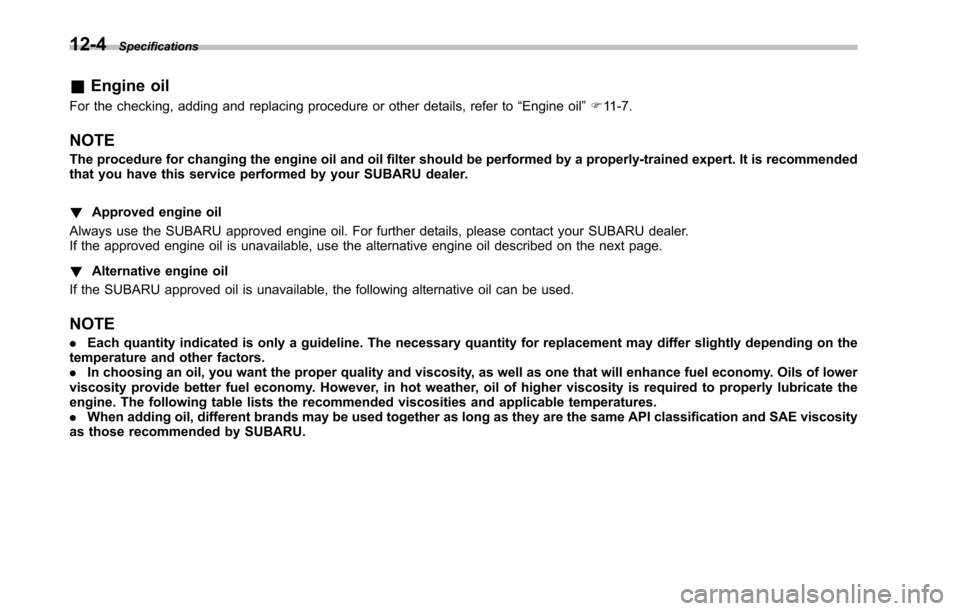

&Engine oil
For the checking, adding and replacing procedure or other details, refer to“Engine oil”F11-7.
NOTE
The procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommendedthat you have this service performed by your SUBARU dealer.
!Approved engine oil
Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.If the approved engine oil is unavailable, use the alternative engine oil described on the next page.
!Alternative engine oil
If the SUBARU approved oil is unavailable, the following alternative oil can be used.
NOTE
.Each quantity indicated is only a guideline. The necessary quantity for replacement may differ slightly depending on thetemperature and other factors..In choosing an oil, you want the proper quality and viscosity, as well as one that will enhance fuel economy. Oils of lowerviscosity provide better fuel economy. However, in hot weather, oil of higher viscosity is required to properly lubricate theengine. The following table lists the recommended viscosities and applicable temperatures..When adding oil, different brands may be used togetheras long as they are the same API classification and SAE viscosityas those recommended by SUBARU.

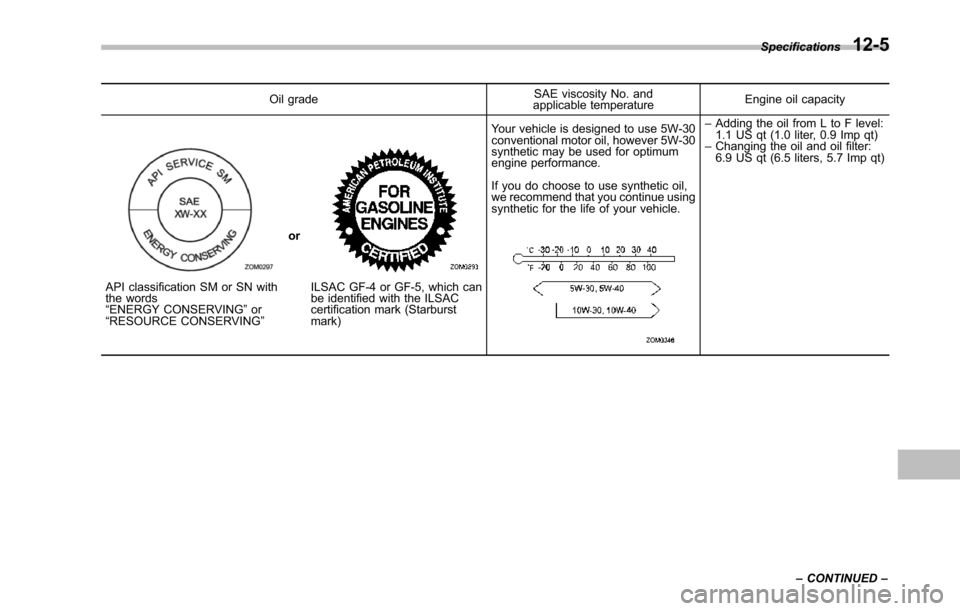

Oil gradeSAE viscosity No. andapplicable temperatureEngine oil capacity
API classification SM or SN withthe words“ENERGY CONSERVING”or“RESOURCE CONSERVING”
or
ILSAC GF-4 or GF-5, which canbe identified with the ILSACcertification mark (Starburstmark)
Your vehicle is designed to use 5W-30conventional motor oil, however 5W-30synthetic may be used for optimumengine performance.
If you do choose to use synthetic oil,we recommend that you continue usingsynthetic for the life of your vehicle.
–Adding the oil from L to F level:1.1 US qt (1.0 liter, 0.9 Imp qt)–Changing the oil and oil filter:6.9 US qt (6.5 liters, 5.7 Imp qt)
Specifications12-5
–CONTINUED–

12-6Specifications

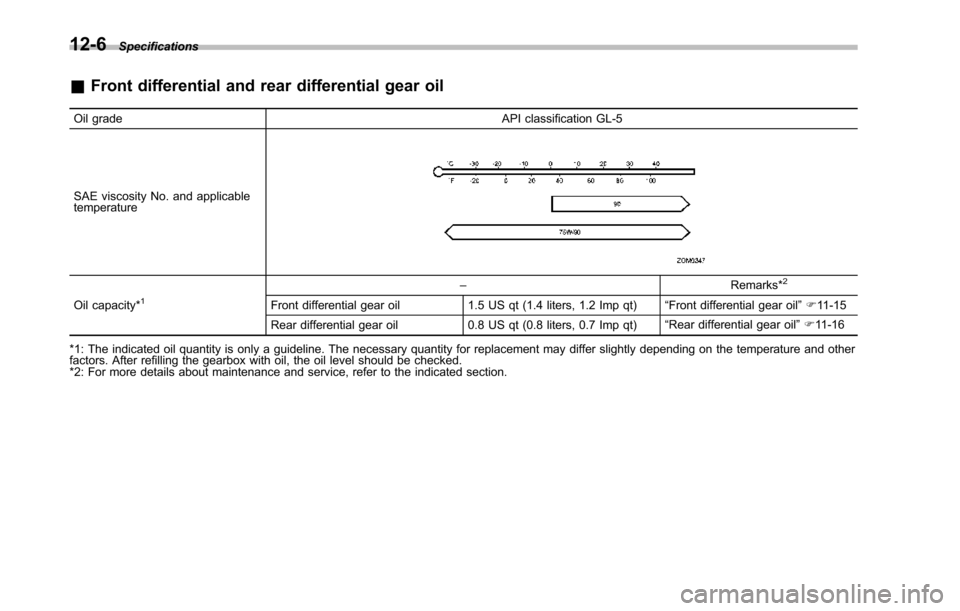

&Front differential and rear differential gear oil
Oil grade API classification GL-5
SAE viscosity No. and applicabletemperature
Oil capacity*1–Remarks*2
Front differential gear oil 1.5 US qt (1.4 liters, 1.2 Imp qt)“Front differential gear oil”F11-15
Rear differential gear oil 0.8 US qt (0.8 liters, 0.7 Imp qt)“Rear differential gear oil”F11-16
*1: The indicated oil quantity is only a guideline.The necessary quantityfor replacement may differ slightlydepending on the temperature and otherfactors. After refilling the gearbox with oil, the oil level should be checked.*2: For more details about maintenance and service, refer to the indicated section.

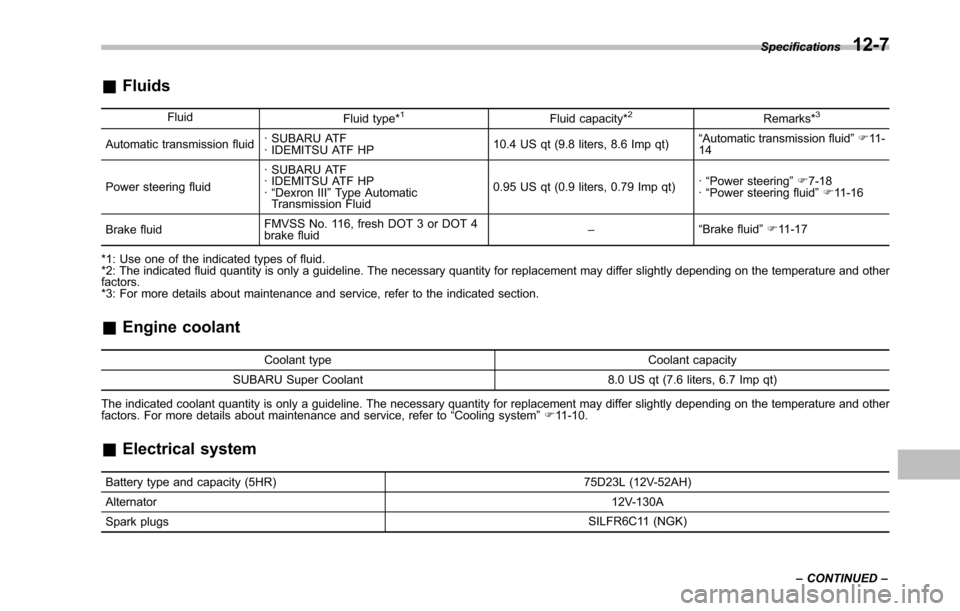

&Fluids
FluidFluid type*1Fluid capacity*2Remarks*3
Automatic transmission fluid· SUBARU ATF· IDEMITSU ATF HP10.4 US qt (9.8 liters, 8.6 Imp qt)“Automatic transmission fluid”F11 -14
Power steering fluid
· SUBARU ATF· IDEMITSU ATF HP·“Dexron III”Type AutomaticTransmission Fluid
0.95 US qt (0.9 liters, 0.79 Imp qt)·“Power steering”F7-18·“Power steering fluid”F11-16
Brake fluidFMVSSNo. 116, fresh DOT 3 or DOT 4brake fluid–“Brake fluid”F11-17
*1: Use one of the indicated types of fluid.*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and otherfactors.*3: For moredetails about maintenance and service,referto the indicated section.
&Engine coolant
Coolant type Coolant capacity
SUBARU Super Coolant8.0 US qt (7.6 liters, 6.7 Imp qt)
The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and otherfactors. For more details about maintenance and service, refer to“Cooling system”F11-10.
&Electrical system
Battery type and capacity (5HR) 75D23L (12V-52AH)
Alternator12V-130A
Spark plugsSILFR6C11 (NGK)
Specifications12-7
–CONTINUED–

12-8Specifications

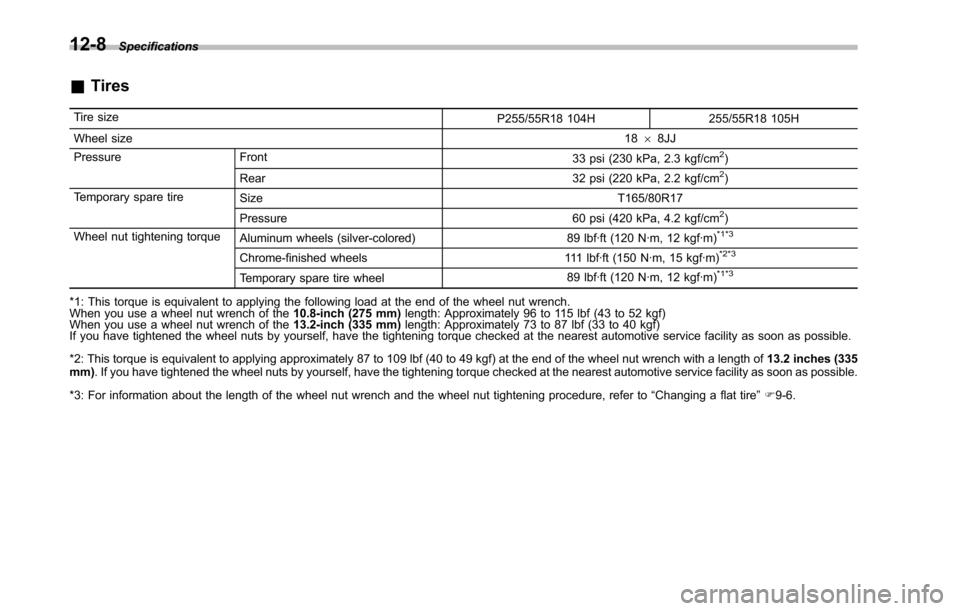

&Tires
Tire sizeP255/55R18 104H 255/55R18 105H
Wheel size1868JJ
Pressure Front33 psi (230 kPa, 2.3 kgf/cm2)
Rear 32 psi (220 kPa, 2.2 kgf/cm2)
Temporary spare tireSize T165/80R17
Pressure 60 psi (420 kPa, 4.2 kgf/cm2)
Wheel nut tightening torqueAluminum wheels (silver-colored) 89 lbf·ft (120 N·m, 12 kgf·m)*1*3
Chrome-finished wheels 111 lbf·ft (150 N·m, 15 kgf·m)*2*3
Temporary spare tire wheel89 lbf·ft (120 N·m, 12 kgf·m)*1*3
*1: This torque is equivalent to applying the following load at the end of the wheel nut wrench.When you use a wheel nut wrench of the10.8-inch (275 mm)length: Approximately 96 to 115 lbf (43 to 52 kgf)When you use a wheel nut wrench of the13.2-inch (335 mm)length: Approximately 73 to 87 lbf (33 to 40 kgf)If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible.
*2: This torque is equivalent to applying approximately 87 to 109 lbf (40 to 49 kgf) at the end of the wheel nut wrench with a length of13.2 inches (335mm). If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible.
*3: For informationabout the length of the wheelnut wrenchand the wheel nut tightening procedure, refer to“Changinga flat tire”F9-6.

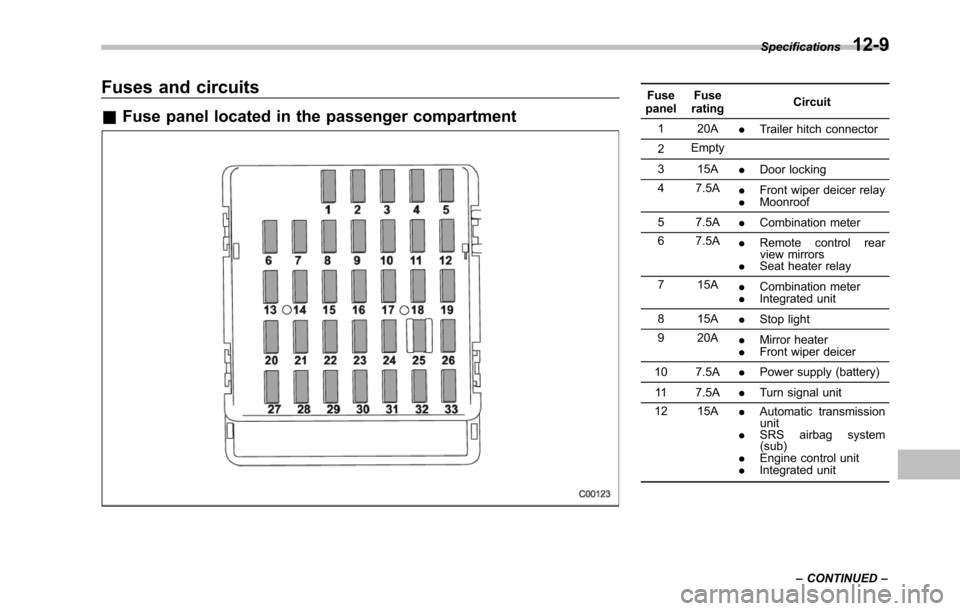

Fuses and circuits
&Fuse panel located in the passenger compartment
FusepanelFuseratingCircuit
1 20A.Trailer hitch connector
2Empty
3 15A.Door locking
4 7.5A.Front wiper deicer relay.Moonroof
5 7.5A.Combination meter
6 7.5A.Remote control rearview mirrors.Seat heater relay
7 15A.Combination meter.Integrated unit
8 15A.Stop light
9 20A.Mirror heater.Front wiper deicer
10 7.5A.Power supply (battery)
11 7.5A.Turn signal unit
12 15A.Automatic transmissionunit.SRS airbag system(sub).Engine control unit.Integrated unit
Specifications12-9
–CONTINUED–

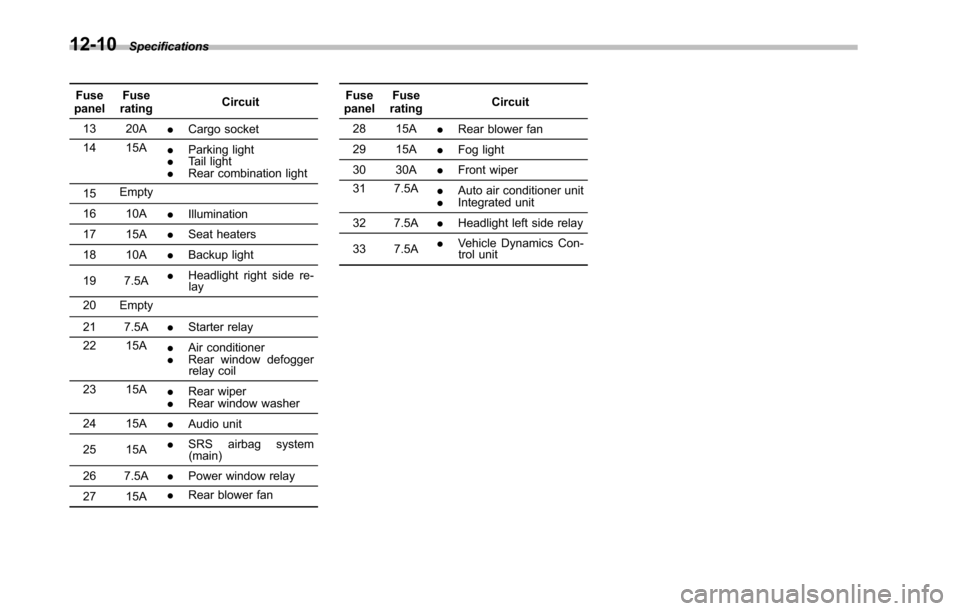

12-10Specifications
FusepanelFuseratingCircuit
13 20A.Cargo socket
14 15A.Parking light.Tail light.Rear combination light
15Empty
16 10A.Illumination
17 15A.Seat heaters
18 10A.Backup light
19 7.5A.Headlight right side re-lay
20 Empty
21 7.5A.Starter relay
22 15A.Air conditioner.Rear window defoggerrelay coil
23 15A.Rear wiper.Rear window washer
24 15A.Audio unit
25 15A.SRS airbag system(main)
26 7.5A.Power window relay
27 15A.Rear blower fan
FusepanelFuseratingCircuit
28 15A.Rear blower fan
29 15A.Fog light
30 30A.Front wiper
31 7.5A.Auto air conditioner unit.Integrated unit
32 7.5A.Headlight left side relay
33 7.5A.Vehicle Dynamics Con-trol unit

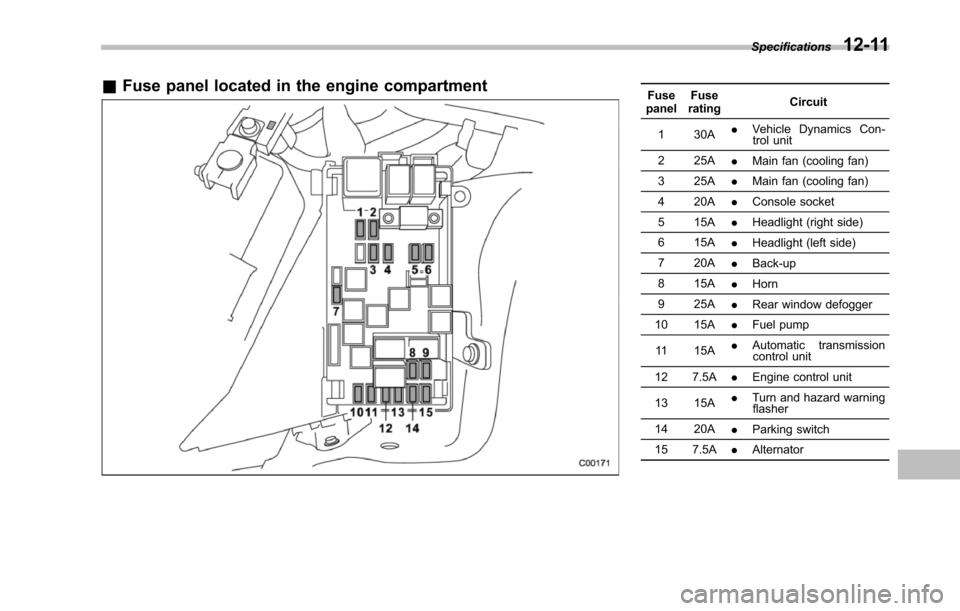

&Fuse panel located in the engine compartmentFusepanelFuseratingCircuit
1 30A.Vehicle Dynamics Con-trol unit
2 25A.Main fan (cooling fan)
3 25A.Main fan (cooling fan)
4 20A.Console socket
5 15A.Headlight (right side)
6 15A.Headlight (left side)
7 20A.Back-up
8 15A.Horn
9 25A.Rear window defogger
10 15A.Fuel pump
11 15A.Automatic transmissioncontrol unit
12 7.5A.Engine control unit
13 15A.Turn and hazard warningflasher
14 20A.Parking switch
15 7.5A.Alternator
Specifications12-11

12-12Specifications

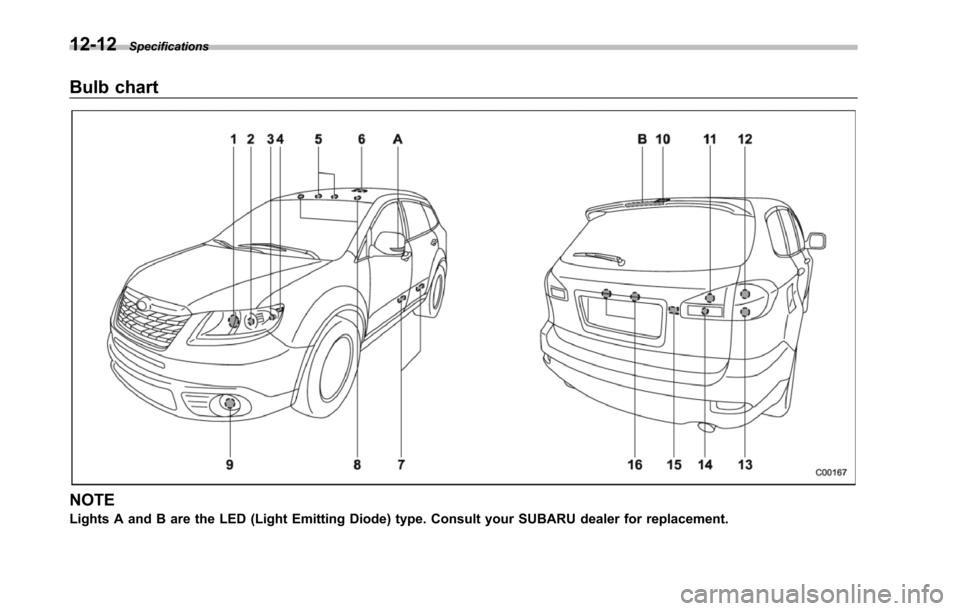

Bulb chart
NOTE
Lights A and B are the LED (Light Emitting Diode) type. Consult your SUBARU dealer for replacement.

Wattage Bulb No.
1) High beam headlight 12V-60W HB3
2) Low beam headlight
Models with HID light 12V-35W D1S
Models with halogen light 12V-55W H7
3) Front turn signal/Parking light 12V-28/8W 2357NA
4) Parking/Front side marker light 12V-5W 168(W5W)
5) Map light 12V-8W–
6) Dome light
Models with Rear Seat Entertainment 12V-5W–
Models without Rear Seat Entertainment 12V-8W–
7) Door step light 12V-3W–
8) Vanity mirror light 12V-3W
9) Fog light 12V-55W H3
10) Cargo area light 12V-13W 912
11) Tail light 12V-5W 168(W5W)
12) Stop light/Tail light12V-27/8W 1157(W27/8W)
13) Rear turn signal light12V-27W1156(W27W)
14) Backup light 12V-16W 921(W16W)
15) Rear gate light 12V-5W (W5W)
16) License plate light 12V-5W 168(W5W)
A)Side turn signal light––
B)High-mounted stop light––
WARNING
.Bulbs may become very hot whileilluminated. Before replacingbulbs, turn off the bulbs and waituntil the bulbs cool down. Other-wise, there is a risk of sustaininga burn injury.
.For models with HID low beamheadlights, observe the followingprecautions.Not doing so carriesthe risk of an electric shock thatcould result in serious injurybecause the HID bulbs use anextremely high voltage.
–Do not replace any headlightbulbs (both low beam andhigh beam) by yourself.
–Do not remove/restore theheadlight assemblies by your-self.
–Do not remove any headlight-assembly components byyourself.
For replacement, contact yourSUBARU dealer.
Specifications12-13
–CONTINUED–
