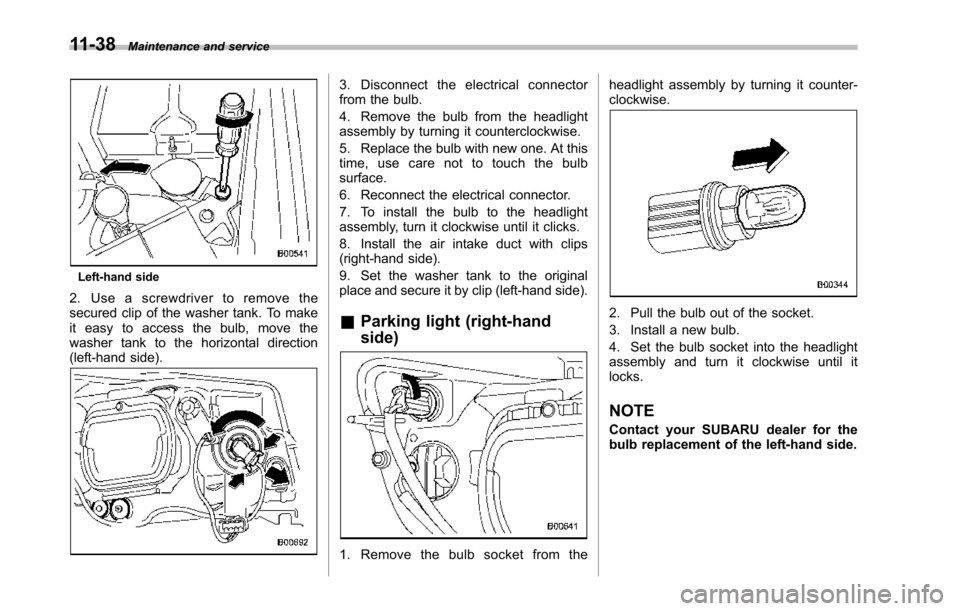

Left-hand side
2. Use a screwdriver to remove thesecured clip of the washer tank. To makeit easy to access the bulb, move thewasher tank to the horizontal direction(left-hand side).
3. Disconnect the electrical connectorfrom the bulb.
4. Remove the bulb from the headlightassembly by turning it counterclockwise.
5. Replace the bulb with new one. At thistime, use care not to touch the bulbsurface.
6. Reconnect the electrical connector.
7. To install the bulb to the headlightassembly, turn it clockwise until it clicks.
8. Install the air intake duct with clips(right-hand side).
9. Set the washer tank to the originalplace andsecure it by clip (left-hand side).
&Parking light (right-hand
side)
1. Remove the bulb socket from the
headlight assembly by turning it counter-clockwise.
2. Pull the bulb out of the socket.
3. Install a new bulb.
4. Set the bulb socket into the headlightassembly and turn it clockwise until itlocks.
NOTE
Contact your SUBARU dealer for thebulb replacement of the left-hand side.

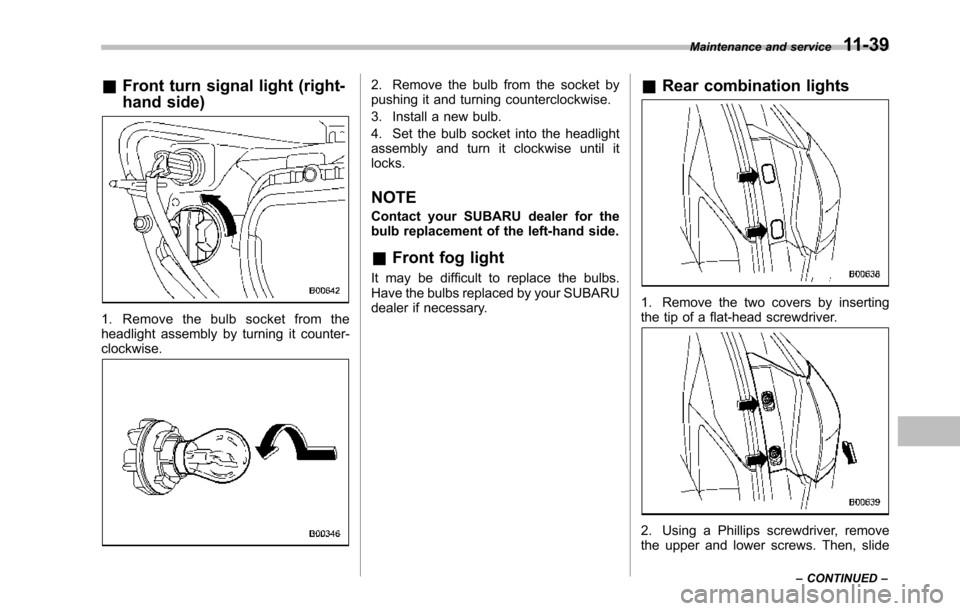

&Front turn signal light (right-
hand side)
1. Remove the bulb socket from theheadlight assembly by turning it counter-clockwise.
2. Remove the bulb from the socket bypushing it and turning counterclockwise.
3. Install a new bulb.
4. Set the bulb socket into the headlightassembly and turn it clockwise until itlocks.
NOTE
Contact your SUBARU dealer for thebulb replacement of the left-hand side.
&Front fog light
It may be difficult to replace the bulbs.Have the bulbs replaced by your SUBARUdealer if necessary.
&Rear combination lights
1. Remove the two covers by insertingthe tip of a flat-head screwdriver.
2. Using a Phillips screwdriver, removethe upper and lower screws. Then, slide
Maintenance and service11-39
–CONTINUED–

11-40Maintenance and service

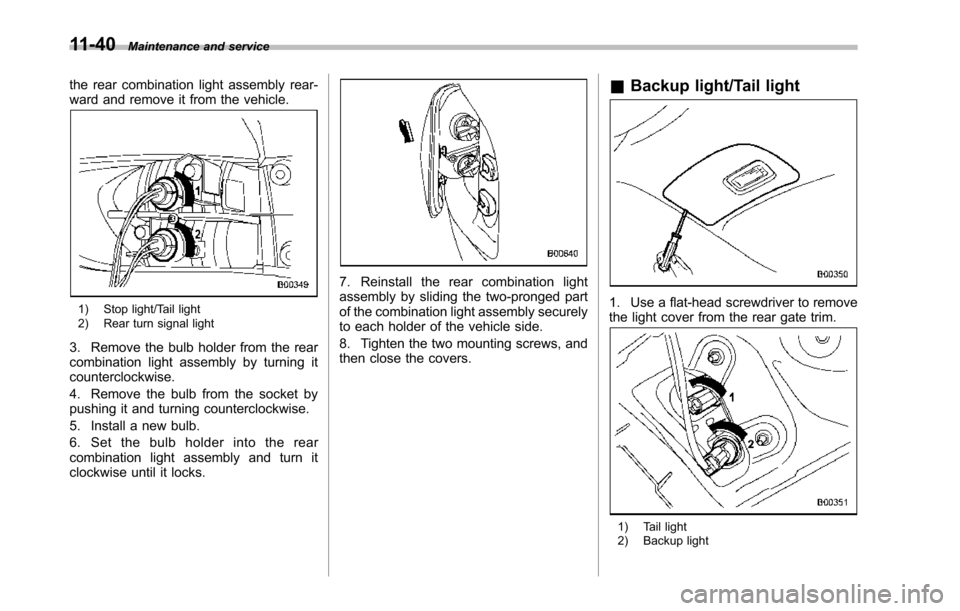

the rear combination light assembly rear-ward and remove it from the vehicle.
1) Stop light/Tail light2) Rear turn signal light
3. Remove the bulb holder from the rearcombination light assembly by turning itcounterclockwise.
4. Remove the bulb from the socket bypushing it and turning counterclockwise.
5. Install a new bulb.
6. Set the bulb holder into the rearcombination light assembly and turn itclockwise until it locks.
7. Reinstall the rear combination lightassembly by sliding the two-pronged partof the combination light assembly securelyto each holder of the vehicle side.
8. Tighten the two mounting screws, andthen close the covers.
&Backup light/Tail light

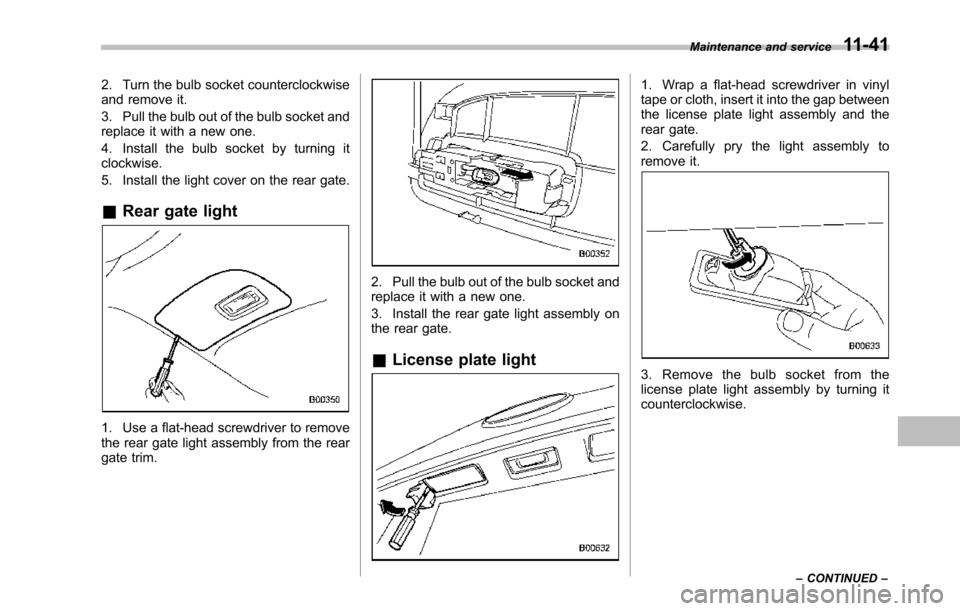

1. Use a flat-head screwdriver to removethe light cover from the rear gate trim.
1) Tail light2) Backup light

2. Turn the bulb socket counterclockwiseand remove it.
3. Pull the bulb out of the bulb socket andreplace it with a new one.
4. Install the bulb socket by turning itclockwise.
5. Install the light cover on the rear gate.
&Rear gate light
1. Use a flat-head screwdriver to removetherear gate light assembly from the reargate trim.
2. Pull the bulb out of the bulb socket andreplace it with a new one.
3. Install the rear gate light assembly onthe rear gate.
&License plate light
1. Wrap a flat-head screwdriver in vinyltape or cloth, insert it into the gap betweenthe license plate light assembly and therear gate.
2. Carefully pry the light assembly toremove it.
3. Remove the bulb socket from thelicense plate light assembly by turning itcounterclockwise.
Maintenance and service11-41
–CONTINUED–

11-42Maintenance and service
4. Pull the bulb out of the socket. Install anew bulb.
5. Set the bulb socket into the licenseplate light assembly and turn it clockwiseuntil it locks.
6. Reinstall the license plate light assem-bly to the rear gate.

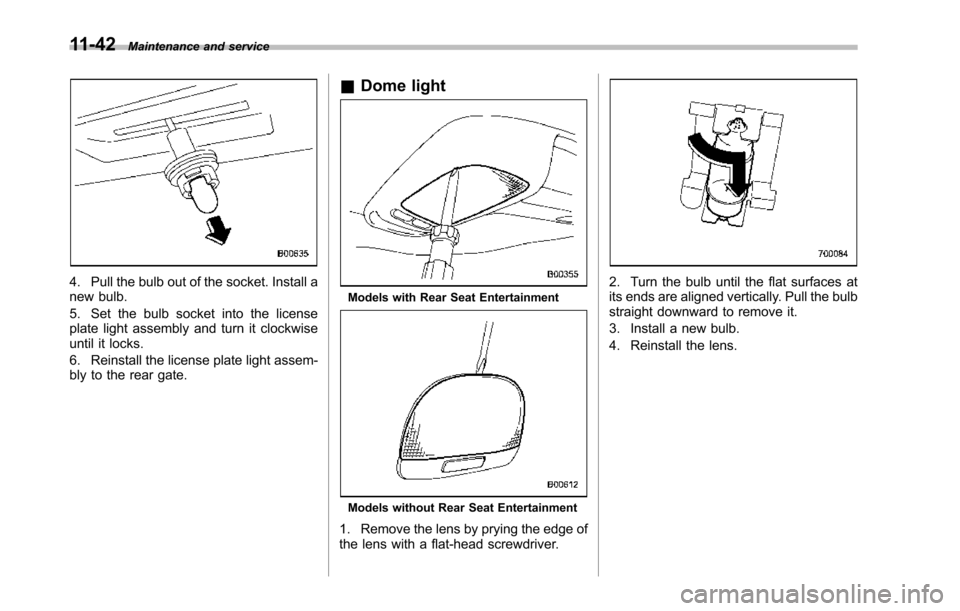

&Dome light
Models with Rear Seat Entertainment
Models without Rear Seat Entertainment
1. Remove the lens by prying the edge ofthe lens with a flat-head screwdriver.
2. Turn the bulb until the flat surfaces atits ends are aligned vertically. Pull the bulbstraight downward to remove it.
3. Install a new bulb.
4. Reinstall the lens.

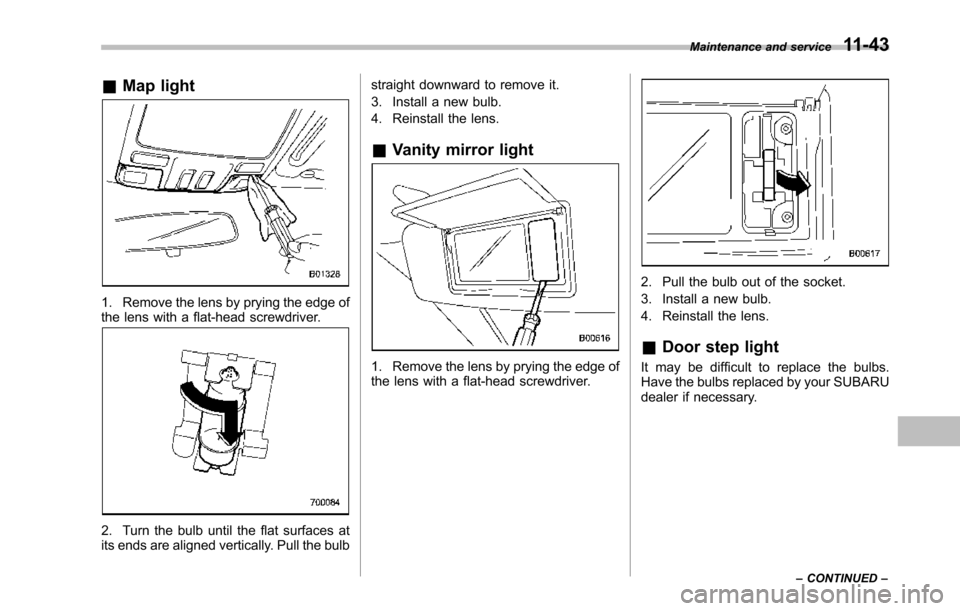

&Map light
1. Remove the lens by prying the edge ofthe lens with a flat-head screwdriver.
2. Turn the bulb until the flat surfaces atits ends are aligned vertically. Pull the bulb
straight downward to remove it.
3. Install a new bulb.
4. Reinstall the lens.
&Vanity mirror light
1. Remove the lens by prying the edge ofthe lens with a flat-head screwdriver.
2. Pull the bulb out of the socket.
3. Install a new bulb.
4. Reinstall the lens.
&Door step light
It may be difficult to replace the bulbs.Have the bulbs replaced by your SUBARUdealer if necessary.
Maintenance and service11-43
–CONTINUED–

11-44Maintenance and service

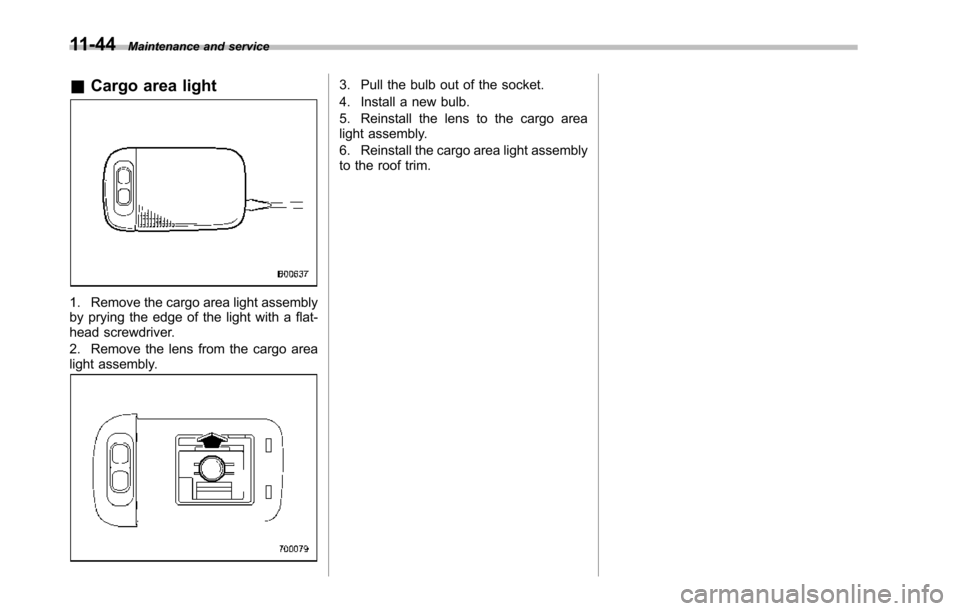

&Cargo area light
1. Remove the cargo area light assemblyby prying the edge of the light with a flat-head screwdriver.
2. Remove the lens from the cargo arealight assembly.
3. Pull the bulb out of the socket.
4. Install a new bulb.
5. Reinstall the lens to the cargo arealight assembly.
6. Reinstall the cargo area light assemblyto the roof trim.

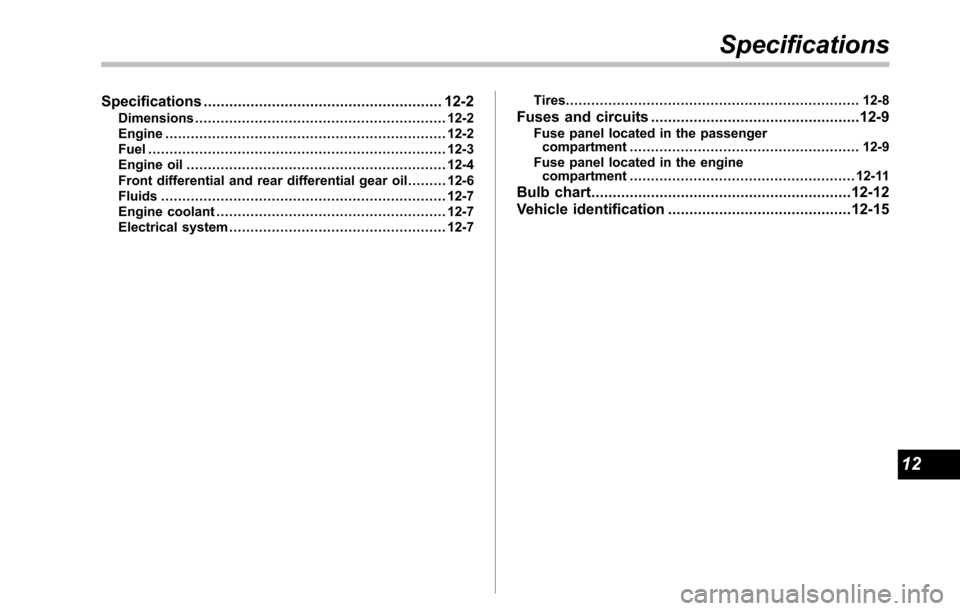

Specifications........................................................ 12-2Dimensions........................................................... 12-2Engine.................................................................. 12-2Fuel...................................................................... 12-3Engine oil............................................................. 12-4Front differential and rear differential gear oil......... 12-6Fluids................................................................... 12-7Enginecoolant...................................................... 12-7Electrical system................................................... 12-7
Tires..................................................................... 12-8
Fuses and circuits.................................................12-9Fuse panel located in the passengercompartment...................................................... 12-9Fuse panel located in the enginecompartment..................................................... 12-11
Bulb chart.............................................................12-12
Vehicle identification...........................................12-15
Specifications
12

12-2Specifications
Specifications
These specifications are subject to change without notice.

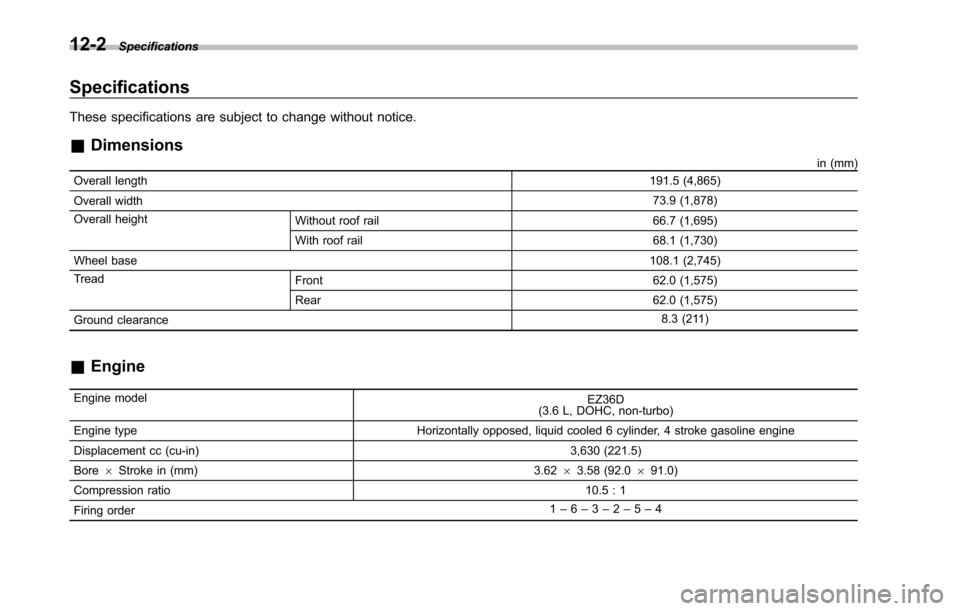

&Dimensions
in (mm)
Overall length191.5 (4,865)
Overall width73.9 (1,878)
Overall heightWithout roof rail 66.7 (1,695)
With roof rail 68.1 (1,730)
Wheel base108.1 (2,745)
TreadFront 62.0 (1,575)
Rear 62.0 (1,575)
Ground clearance8.3 (211)
&Engine
Engine modelEZ36D(3.6 L, DOHC, non-turbo)
Engine type Horizontally opposed, liquid cooled 6 cylinder, 4 strokegasoline engine
Displacement cc (cu-in) 3,630 (221.5)
Bore6Stroke in (mm) 3.6263.58 (92.0691.0)
Compression ratio10.5 : 1
Firing order1–6–3–2–5–4

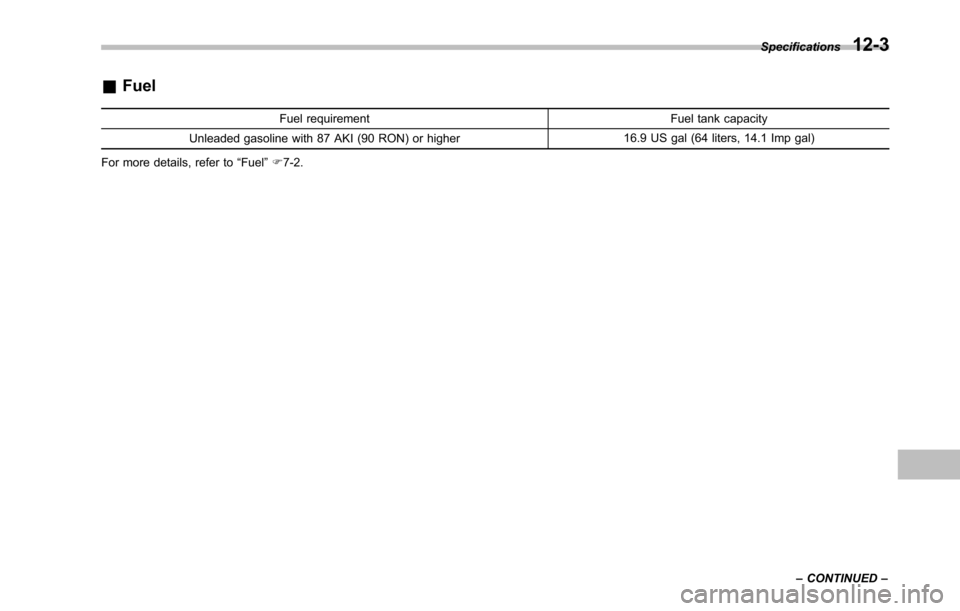

&Fuel
Fuel requirement Fuel tank capacity
Unleaded gasoline with 87 AKI (90 RON) or higher16.9 US gal (64 liters, 14.1 Imp gal)
For more details, refer to“Fuel”F7-2.
Specifications12-3
–CONTINUED–
