北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&SiriusXM Satellite Radio (if
equipped)!SiriusXM Data Service
Data service information, which is com-
prised of traffic information and weather
information, can be received via the
SiriusXM Radio.
To receive the data service information in
the vehicle, a subscription to the SiriusXM
Satellite Radio service is necessary.
Content set to use the SiriusXM data
service is reset when personal information
is initialized.!Control screen and audio panel
Control screen
No. Function&1
Perform the SXM setting. See below.
Refer to“
SXM setting”F5-41.
&2
Search for a channel which the
direction of higher frequency from
current frequency. Reproduce the
channel that can receive by 5 sec-
onds.No. Function
&3
A list is displayed. There are three
types of lists (“Presets”,“Categories”
or“All Channels”) available.
.“Presets”: Preset channels are
displayed in a list.
.“Categories”: The channels of
the selected category are dis-
played in a list.
.“All Channels”: All selectable
channels are displayed in a list.
Audio/Audio set
5-36

(281,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
No. Function&4
Display the contents information of a
channel receiving.
&5
Presets list (30 channels max.) is
displayed. Refer to“
Presetting a
channel”F5-39.
&6
Categories list is displayed. Refer to
“Selecting a channel from the list”F5-
40.
&7
All channels list is displayed.
The available received channels are
displayed, and you can select a
channel.
&8
Change to the Direct Tune display.
Refer to“
Direct Tune”F5-41.
&9
Return to the previous display.
&10
Return to the playback display.
Audio panel
No. Function&1
Turn to adjust volume.
Press to turn the audio system on/off.
&2
Press to display the sound setting
screen. Refer to“
Unit settings”F5-18.
&3
Turn right to step up channels and
turn left to step down channels.
Press to select an audio source.
Refer to“
Selecting an audio source”
F5-17.
&4
Press to step up/down channels.
Press and hold to step up/down
channels fast.
–CONTINUED–
Audio/Audio set
5-37
5

(282,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!How to subscribe to SiriusXM Sa-
tellite Radio
To listen to a satellite radio broadcast in the
vehicle, a subscription to the SiriusXM
Satellite Radio service is necessary.
A SiriusXM Satellite Radio is a tuner
designed exclusively to receive broad-
casts provided under a separate subscrip-
tion.
!How to subscribe
It is necessary to enter into a separate
service agreement with SiriusXM Satellite
Radio in order to receive satellite broad-
cast programming in the vehicle. Addi-
tional activation and service subscription
fees apply that are not included in the
purchase price of the vehicle and digital
satellite tuner.
For complete information on subscription
rates and terms, or to subscribe to
SiriusXM Satellite Radio:
.U.S. customers:
Refer to www.siriusxm.com or call
1-866-635-2349
.Canadian customers:
Refer to www.siriusxm.ca or call
1-877-209-0079

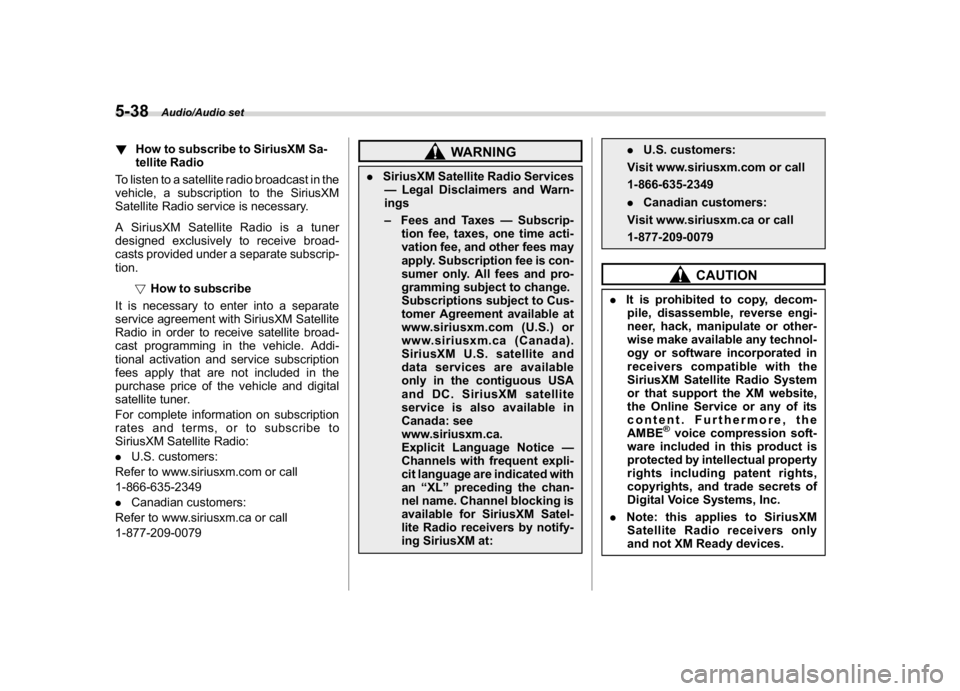

WARNING
.SiriusXM Satellite Radio Services
—Legal Disclaimers and Warn-
ings
–Fees and Taxes—Subscrip-
tion fee, taxes, one time acti-
vation fee, and other fees may
apply. Subscription fee is con-
sumer only. All fees and pro-
gramming subject to change.
Subscriptions subject to Cus-
tomer Agreement available at
www.siriusxm.com (U.S.) or
www.siriusxm.ca (Canada).
SiriusXM U.S. satellite and
data services are available
only in the contiguous USA
and DC. SiriusXM satellite
service is also available in
Canada: see
www.siriusxm.ca.
Explicit Language Notice—
Channels with frequent expli-
cit language are indicated with
an“XL”preceding the chan-
nel name. Channel blocking is
available for SiriusXM Satel-
lite Radio receivers by notify-
ing SiriusXM at:.U.S. customers:
Visit www.siriusxm.com or call
1-866-635-2349
.Canadian customers:
Visit www.siriusxm.ca or call
1-877-209-0079
CAUTION
.It is prohibited to copy, decom-
pile, disassemble, reverse engi-
neer, hack, manipulate or other-
wise make available any technol-
ogy or software incorporated in
receivers compatible with the
SiriusXM Satellite Radio System
or that support the XM website,
the Online Service or any of its
content. Furthermore, the
AMBE
®voice compression soft-
ware included in this product is
protected by intellectual property
rights including patent rights,
copyrights, and trade secrets of
Digital Voice Systems, Inc.
.Note: this applies to SiriusXM
Satellite Radio receivers only
and not XM Ready devices.
Audio/Audio set
5-38

(283,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
NOTE.SiriusXM Satellite Services—De-
scriptions
–Only SiriusXM Satellite Radio
®
brings you more of what you love,
all in one place. Get over 175
channels, including commercial-
free music, plus the best sports,
news, talk, comedy and entertain-
ment. Welcome to the world of
satellite radio. More information
about SiriusXM Satellite Radio is
available online at
www.siriusxm.com (U.S.) and
www.siriusxm.ca (Canada).
.SiriusXM Satellite Services—Sub-
scription Instructions
–For SiriusXM Services requiring a
subscription (such as SiriusXM Sa-
tellite Radio, and some Infotainment
& data services), the following para-
graph shall be included.
Required SiriusXM Satellite Radio
and some Infotainment & data ser-
vices monthly subscriptions sold
separately after trial period. Sub-
scription fee is consumer only. All
fees and programming subject to
change. Subscriptions are subject
to the Customer Agreement avail-
able at www.siriusxm.com (U.S.) or
www.siriusxm.ca (Canada). Sirius,XM and all related marks and logos
are trademarks of Sirius XM Radio
Inc. All other marks, channel names
and logos are the property of their
respective owners.
For more information, program
schedules, and to subscribe or
extend subscription after compli-
mentary trial period; more informa-
tion is available at:
.U.S. customers:
Visit www.siriusxm.com or call
1-866-635-2349
.Canadian customers:
Visit www.siriusxm.ca or call
1-877-209-0079
.SiriusXM Satellite Radio is solely
responsible for the quality, availability
and content of the satellite radio ser-
vices provided, which are subject to the
terms and conditions of the SiriusXM
Satellite Radio customer service agree-
ment.
.Customers should have their radio
ID ready; the radio ID can be found by
tuning to“Ch 000”on the radio. For
details, see“DISPLAYING THE RADIO
ID”below.
.All fees and programming are the
responsibility of SiriusXM Satellite
Radio and are subject to change.!How to change the source
Select the“Sirius XM”key on the source
select screen. Refer to“Selecting an audio
source”F5-17.
!Presetting a channel
1. The presets list is displayed via either
of the following procedures.
.When you touch the
tab in the
SiriusXM main screen (if the list that
was displayed the last time is Presets).
.When you select thetab in each
list screen.
2. The current channel is stored if you
touch and hold the preset list key. You can
store up to 30 channels (A beep sounds
when a channel stored).
The playing icon is displayed for the
currently selected channel.
–CONTINUED–
Audio/Audio set
5-39
5

(284,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!Selecting a channel from the list
1. The categories list is displayed via
either of the following procedures.
.When you touch the
tab in the
SiriusXM main screen (if the list that
was displayed the last time is Cate-
gories).
.When you select thetab in each
list screen.
2. Each channel list is displayed when
you select each category item.
In addition, the following messages appear.
Display Message Contents
“Subscription Update”
“Press OK to Continue”An update to your SiriusXM subscription has
been received by the SiriusXM tuner. Touch any
key to continue.
“Channel XXX Not Available”
(“XXX”refers to the selected channel number.)This channel is not a valid SiriusXM channel.
The channel number has been entered incor-
rectly, or the channel was removed from the
SiriusXM channel lineup.
“Channel XXX Not Subscribed Call.”
“Call SiriusXM to Subscribed.”
(“XXX”refers to the selected channel number.)This channel is not included in your SiriusXM
subscription plan.
“Ch Locked”
“Lock Code?”The selected channel has been locked by the
parental controls.
A prompt to enter the unlock code will appear.
“Check Antenna”Ensure the SiriusXM antenna cable is con-
nected to the SiriusXM tuner correctly.
Check the SiriusXM antenna wire for breaks or
sharp bends.
Replace the antenna if necessary.
“No Signal”The vehicle must be outside, and the antenna
must have a clear view of the southern sky.
NOTEContact SiriusXM
.Listener Care Center (U.S. customers):
1-866-635-2349
.Listener Care Centre (Canadian customers):
1-877-209-0079
Audio/Audio set
5-40

(285,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!Direct Tune
1. A channel input screen is displayed
when you touch the
tab.
2. Input any number and touch the“OK”
key, receive the channel which input.
!SXM setting
1. An option menu screen is displayed
when you touch the
tab on the lower
left side of the screen. The“Options”
screen will appear.
Option menu screen
No. Function&1
Set the lock function of each chan-
nel. Input the password is necessary
for operation.
&2
Set the password of the lock func-
tion.
2. A password input screen is displayed
when you touch the“Set”key of the
Channel Lock function.
Password input screen3. When the input password is approved,
change to the lock channel selection
screen.
–CONTINUED–
Audio/Audio set
5-41
5

(286,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
Lock channel selection screen4. In the channel list, touch the channel
that should be locked.
!Displaying the Radio ID
Each SiriusXM tuner is identified with a
unique radio ID. The“Radio ID”is required
when activating an SiriusXM Satellite
Services or when reporting a problem.
.If“Ch 000”is selected using the AUDIO/
TUNE knob, the ID code will be displayed.
.Touch the
key. The Radio ID will be
displayed on the“Options”screen.
&aha
TM
by HARMAN
aha is a cloud-based application that
connects to the system and gives you
access to your favorite web content safely
and easily. There are over 30,000 stations
spanning internet radio, personalized mu-
sic, audiobooks, Facebook, Twitter, res-
taurant and hotel searches, weather and
more. For more about aha, go to the aha
site (http://www.aharadio.com).
When connecting iPhone and iPod touch
or Android devices with the aha application
installed, you can control, view, and hear
aha content through the system.
In order to connect to this system, use a
USB port for an iPhone or iPod touch and
Bluetooth for Android devices.In this chapter, iPhone and iPod touch or
Android devices will be referred to as a
smartphone.
WARNING
Do not connect or operate the
smartphone while driving. Doing so
may result in loss of control of your
vehicle and cause an accident or
serious injury.
CAUTION
.Do not leave your smartphone in
the car. In particular, high tem-
peratures inside the vehicle may
damage the smartphone.
.Do not push down on or apply
unnecessary pressure to the
smartphone while it is connected
as this may damage the smart-
phone or its terminal.
.Do not insert foreign objects into
the port as this may damage the
smartphone or its terminal.
Audio/Audio set
5-42

(287,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!Control screen and panelControl screen (main screen and station screen)
No. Function&1
Select to display the audio source
selection screen.
&2
Select to open the station list. Refer to
“Using aha application”F5-47.
&3
Select to fast forward the current con-
tent item by 30 seconds.
&4
Select to display the contents list of the
selected station.
&5
Select to make a phone call to the
current content item.
A phone number is distributed depend-
ing on content items.
This feature is available only in these
cases.No. Function
&6
The track pauses when pressed during
playback and plays back when touched
during pause.
&7
Select to set thumbs up.
&8
Select to set thumbs down.
&9
Select to start the playback from the
beginning of the content in the target
station.
&10
Select to rewind the current content item
by 15 seconds.
&11
Select to display the preset list.
&12
Return to the control screen.
&13
Select to display the nearby list.
–CONTINUED–
Audio/Audio set
5-43
5

(288,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
Audio panel
No. Function&1
Turn to adjust volume.
Press to turn the audio system on/off.
&2
Press to display the sound setting
screen. Refer to“
Unit settings”F5-18.
&3
Press to display the station operation
screen.
Press to select an audio mode.
&4
Turn to display the next/previous con-
tent item.
Press to select an audio source. Refer
to“
Selecting an audio source”F5-17.
&5
Press to display the next/previous con-
tent item.
NOTE.For safety reasons, certain func-
tions are not available while your
vehicle is in motion.
.In order to maximize signal recep-
tion, performance and precision of the
smartphone, please ensure the smart-
phone is placed as close to the system
as possible, while ensuring it is stowed
and secure while driving.
.When the ignition switch is in the
“ACC”or“ON”position, the battery of
the connected iPhone/iPod touch is
charged.
.iPhone/iPod touch may not be re-
cognized when the ignition switch is in
the“ACC”or“ON”position. In this
case, remove the iPhone/iPod touch
and reconnect it.
.The accuracy of the displayed in-
formation or the signal reception per-
formance depends on the smartphone
or the connected device, and it’s wire-
less connection.
.Since the aha application uses sig-
nals from GPS satellites and wireless
communication lines, it may not work
properly in the following locations.
–In a tunnel
–In underground parking lots
Audio/Audio set
5-44

(289,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
–Outside wireless communication
range, such as some countryside
areas
–Where the wireless communica-
tion network is congested, or where
communications are restricted
.Depending on the circumstances
and environment, the signal may be
weak or not be received. In such cases,
an error may occur.
.Top 35 entries in the preset station
list on the smartphone are displayed.
When there are more than 35 entries in
the preset station list, change the order
of the entries in the list on the smart-
phone. You can change the priority of
your preset stations within the aha
application (after disconnected from
this system) to modify the station list
shown on the screen. Please see your
smartphone aha application“Edit Pre-
sets (in Main menu)”to modify this list.
.For operating the smartphone, see
the instruction manual that comes with
it.
.If there are multiple music files
stored on your iPhone or iPod touch,
it may take some time until playback
starts.
.Playback may be intermittent when
you switch to streaming Bluetooth
audio from aha on your smartphonedevice.
.When connecting the device via
Bluetooth, the communication speed
may become slower than via USB.
!Before using aha application
In order to use the aha application on this
system, the application must be installed
on the smartphone.
!Settings required to use aha
application
.Search and download the aha applica-
tion from your smartphone app store.
–iPhone and iPod touch: Apple App
Store via iTunes
–Android device: Google Play Store
.Create an account and login to the aha
application on the smartphone.
NOTEPlease use the latest version of the aha
application.
!About app-based connected con-
tent
Requirements for using the connected
content services of the aha application on
this system.
.Latest version of the system is compa-
tible with connected content application(s)
for the smartphone, available from aha,downloaded to your smartphone.
.A current account with a wireless
content service provider.
.A smartphone data plan: If the data plan
for your smartphone does not provide for
unlimited data usage, additional charges
from your carrier may apply for accessing
app-based connected content via 3G, 4G,
Wi-Fi or 4G LTE wireless networks.
.Connection to the internet via 3G, 4G,
Wi-Fi or 4G LTE networks.
NOTE.Changes to product specifications
may result in differences between the
content of the manual and features of
the product.
.Be careful not to exceed the data
usage limits for your smartphone.
Doing so will result in additional data
usage charges from your phone carrier.
.Access to app-based connected
content will depend on the availability
of wireless cell and/or Wi-Fi network
coverage for the purpose of allowing
your smartphone to connect to the
internet.
.Service availability may be geogra-
phically limited by region. Consult the
wireless connected content service
provider for additional information.
.Ability of this product to access
–CONTINUED–
Audio/Audio set
5-45
5
