SUBARU WRX 2018 Owners Manual

(290,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
connected content is subject to change
without notice and could be affected by
any of the following: compatibility
issues with future firmware versions
of the smartphone; compatibility is-
sues with future versions of the con-
nected content application(s) for the
smartphone; changes to or disconti-
nuation of the connected content ap-
plication(s) or service by its provider.
.Communication and phone call
charges for smartphones should be
paid by the wireless subscriber.
.If you lose the data in a smartphone
or other device while using it with the
system, no compensation will be given
for the lost data.
.SUBARU CORPORATION makes no
guarantee regarding the content pro-
vided by aha.
.aha may not work due to factors on
smartphones, smartphone applica-
tions or stations. SUBARU CORPORA-
TION is not responsible for it.!About the supported devices
This system supports the following de-
vices.
.For iPhone/iPod touch users
Type GenerationFirmware
version or
OS
iPhoneiPhone 3G iOS 4.2.x
iPhone 3GS iOS 6.1.x
iPhone 4 iOS 7.0.x
iPhone 4s iOS 7.0.x
iPhone 5 iOS 7.0.x
iPhone 5c iOS 7.0.x
iPhone 5s iOS 7.0.x
iPod touchiPod touch iOS 3.1.x
iPod touch 2 iOS 4.2.x
iPod touch 3 iOS 5.1.x
iPod touch 4 iOS 6.1.x
iPod touch 5iOS 7.0.x
NOTENote that the warranty does not apply if
an unsupported iPhone/iPod touch is
connected..For Android device users
Android OS Specification Profile
Android
Ver. 2.2 or
Ver. 2.3Bluetooth
Specification
Ver. 1.1 or
higher
(Ver. 2.0 +
EDR or higher
is recom-
mended).aha Con-
nect Bin-
ary API
over SPP
.Digital
audio by
A2DPNOTEThe available functions may vary de-
pending on the type of Android device.
!Connecting a smartphone
If you connect a smartphone to this system
after starting a supported aha application
on the smartphone, you can display and
operate the aha application displayed on
the smartphone on the system screen.
1. Runtheahaapplicationonyour
smartphone.
2. Connect the iPhone/iPod touch to the
USB port or connect the Android device by
utilizing the Bluetooth connection (SPP
and A2DP profile).
.For details about connecting an
iPhone/iPod touch: Refer to“Connect-
ing and disconnecting a USB memory/
portable device”F5-16.
.For details about registering or con-
Audio/Audio set
5-46

(291,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
necting an Android device: Refer to
“Registering/connecting Bluetooth
®
device”F5-64.
NOTEWhen iPhone/iPod touch and Android
devices are connected at the same
time, iPhone/iPod touch is prioritized.
!How to change the source
.Select the“aha”key on the source
select screen. Refer to“Basic operation”
F5-17.
.Select the“aha”key on the APPS
screen. Refer to“SUBARU STARLINK”
F5-25.NOTEWhen starting-up“aha”, there are some
smartphone models for which“aha”
application does not start up automati-
cally.!Using aha application
1. When the top screen is displayed,
touch the station key.
Example of the main screen2. Select the desired station from the list.
The selected station is displayed.
NOTE.The following operations are not
available on this system. Perform these
operations on the smartphone.
–Add/Reorder/Delete stations
–Login to Facebook/Twitter
.For the aha function, the following
touch screen gestures are not avail-
able.
–Multi-touch operation
–Double-tap
.For details on the services or the
operations, check the aha site
(http://www.aharadio.com) on the inter-
net.
.The button display will vary depend-
ing on each station or content item.
–CONTINUED–
Audio/Audio set
5-47
5

(292,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&Pandora
®(if equipped)
Pandora is an application for a smart-
phone. This can automatically select and
play recommended tracks.
By rating the track currently playing, tracks
that better match your preference will be
recommended.
In order to connect to this system, use a
USB port for an iPhone or iPod touch and
Bluetooth for Android devices.
Depending on differences between mod-
els or software version etc., some models
might be incompatible with this system.
This function is not available if the Pandora
application has not been installed on the
smartphone.
WARNING
Do not operate the player’s controls
or connect the smartphone while
driving. Doing so may result in loss
of control of your vehicle and cause
an accident or serious injury.
CAUTION
.Do not leave your smartphone in
the car. In particular, high tem-
peratures inside the vehicle may
damage the smartphone.
.Do not push down on or apply
unnecessary pressure to the
smartphone while it is connected
as this may damage the smart-
phone or its terminal.
.Do not insert foreign objects into
the port as this may damage the
smartphone or its terminal.NOTEFollow the specific operation proce-
dures for the smartphone application.
Audio/Audio set
5-48

(293,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!Control screen and audio panelNo. Function&1
Select to display the audio source
selection screen.
&2
Select to open the station list. Refer to
“Station list”F5-50.
&3
Select to skip the current track.
&4
The track pauses when touched during
playback and plays when touched dur-
ing pause.
&5
Select to set thumbs up.
This gives a high rating to the current
song.
All other similar songs will be played
back more frequently.No. Function
&6
Select to set thumbs down.
This gives a low rating to the current
song.
All other similar songs will be played
back less frequently.
When you select thumbs down, the
current track is skipped.
&7
During playback of a station, you can
use this key to bookmark a song or
artist. Refer to“
Registering Bookmarks”
F5-50.
&8
Turn to adjust volume.
Press to turn the audio system on/off.
&9
Turn clockwise to skip to the next track.
Press to select an audio source. Refer
to“
Selecting an audio source”F5-17.
&10
Press to display the sound setting
screen. Refer to“
Unit settings”F5-18.
No. Function&11
Press to skip to the next track/cover art.
!Connecting a smartphone
Connect the iPhone/iPod touch to the USB
port or connect the Android device by
using Bluetooth connection (SPP and
A2DP profile).
.For details about connecting an
iPhone/iPod touch: Refer to“Connecting
and disconnecting a USB memory/porta-
ble device”F5-16.
.For details about registering or con-
necting an Android device: Refer to“Re-
gistering/connecting Bluetooth
®
device”
F5-64.
!How to change the source
The Pandora operation screen can be
reached by the following methods:
.Connecting a Pandora device. Refer to
“Connecting a Bluetooth device”F5-67 or
“Connecting and disconnecting a USB
memory/portable device”F5-16.
.Select the“Pandora”key on the source
select screen. Refer to“Selecting an audio
source”F5-17.
.Select the“Pandora”key on the APPS
screen. Refer to“SUBARU STARLINK”
F5-25.
–CONTINUED–
Audio/Audio set
5-49
5

(294,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
NOTEWhen starting-up Pandora, there are
some smartphone models for which
Pandora application does not start up
automatically.
!Registering Bookmarks
You can register the music and artist now
being played in Bookmark.
1. Touch the
tab.
2. Select the desired key. The following
items are appeared on the screen.
Item Function
TrackWhen selected after the Book-
mark key is pressed, the current
track is bookmarked.
ArtistWhen selected after the Book-
mark key is pressed, the current
artist is bookmarked.
CancelSelect to cancel the bookmark
operation.
!Station list
You can select, add or delete a station.
When the
tab is touched on the main
screen, a station list will be displayed.
No. Function&1
Select to sort the list in the chronological
order of when the Station List was
created.
&2
Select to create a station.
The station can be created using track
names or artist names.
&3
Select to delete a station.
&4
Return to the control screen.
&5
Select to sort the list based on the
alphabetical order of the station names.
!Store the station
You can register a station.
1. Touch the
tab on the Pandora main
screen.
2. Touch the“New Station”key, and then
select the desired key.
Item Function
From TrackSelect to create a station using a
track name.
From ArtistSelect to create a station using
an artist name.
CancelSelect to cancel the operation to
add a station.!Delete the station
You can delete a station.
1. Touch the
tab on the Pandora top
screen.
2. Touch the“Delete Station”key, and
then the station list is appeared.
3. Select the item to delete the station. If
the confirmation screen appears and the
“OK”key is selected, the selected station
will be deleted from station list.
Audio/Audio set
5-50

(295,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&CD!Control screen and audio panelNo. Function&1
Select to display the audio source
selection screen.
&2
Select to display the play mode
currently selected. Refer to“
Select
play mode”F5-52.
&3
Audio CD:
Select to display a track list.
MP3/WMA/AAC disc:
Select to display a folder list.
&4
Shows progress.
&5
The tracks in the disc are played back
for 10 seconds each from the begin-
ning of the track.No. Function
&6
MP3/WMA/AAC disc:
Select to choose a folder.
&7
Turn to adjust volume.
Press to turn the audio system on/off.
&8
Press to eject a disc.
&9
Disc slot
&10
Turn to select a track/file.
Press to select an audio source.
Refer to“
Selecting an audio source”
F5-17.
&11
Press to display the sound setting
screen. Refer to“
Unit settings”F5-18.
No. Function&12
Press to select a track/file.
Press and hold to fast forward/re-
wind.
NOTE.Depending on the compression data
format of the inserted CD, some keys
may not be displayed on the screen.
.If a disc contains CD-DA files and
MP3/WMA/AAC files, only the CD-DA
files can be played back.
.If a CD-TEXT disc is inserted, the title
of the disc and track will be displayed.
Up to 32 characters can be displayed.
.If the disc contains no CD-TEXT, only
the track number would be displayed
on the screen.
–CONTINUED–
Audio/Audio set
5-51
5

(296,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!Loading a disc
CAUTION
Never try to disassemble the audio
kit or lubricate any part of the CD
player. Do not insert anything other
than a disc into the slot.
Insert a disc into the disc slot. After
insertion, the disc is automatically loaded.NOTEWhen inserting a disc, gently insert it
with the label facing up.!Unloading a disc
Press the eject button to remove the disc.
!How to change the source
The CD operation screen can be reached
by the following methods:
.Insert a disc. Refer to“Loading a disc”
F5-52.
.Select the“DISC”key on the source
select screen. Refer to“Selecting an audio
source”F5-17.!Select play mode
The play mode settings display will appear
when play mode key is touched. Select the
preferred play mode from the following
items.
Icon Function
Touch to start 1 track repeat.Touch to start repeat all.Touch to start folder repeat.Touch to start shuffle all.Touch to start shuffle folder.Return to the control screen.
NOTEDepending on the compression data
formant of the inserted CD, the dis-
played play mode may differ from the
illustration shown here.
Audio/Audio set
5-52

(297,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&USB memoryAudio files on the USB memory can be
played.
WARNING
Do not operate the player’s controls
or connect the USB memory while
driving. Doing so may result in
losing control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not leave your USB memory in
the car. In particular, high tem-
peratures inside the vehicle may
damage the USB memory.
.Do not push down on or apply
unnecessary pressure to the USB
memory while it is connected as
this may damage the USB mem-
ory or its terminal.
.Do not insert foreign objects into
the port as this may damage the

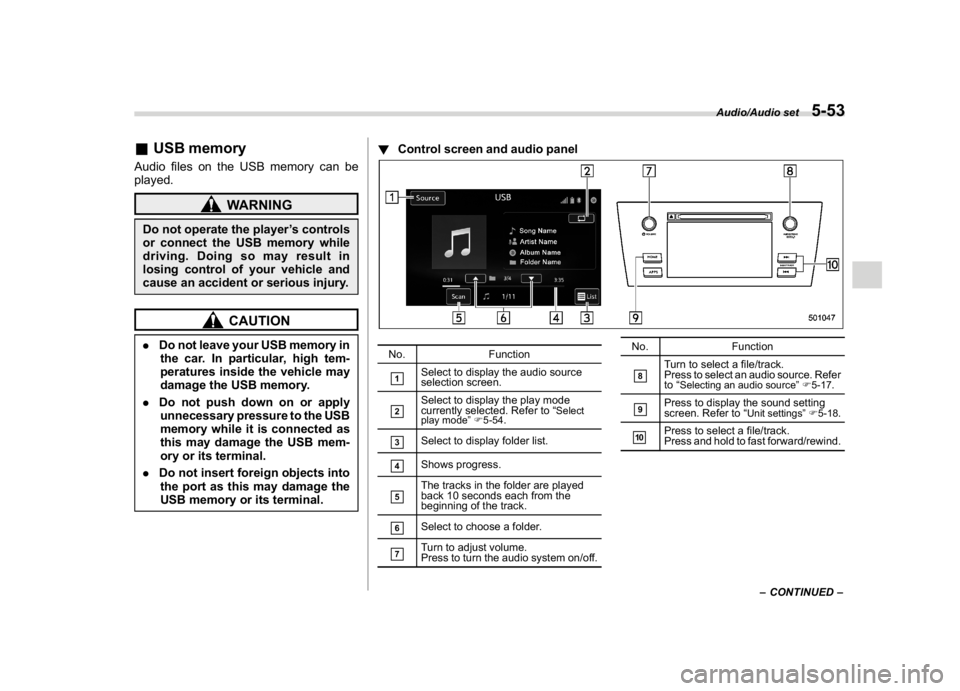

USB memory or its terminal.!Control screen and audio panel
No. Function&1
Select to display the audio source
selection screen.
&2
Select to display the play mode
currently selected. Refer to“
Select
play mode”F5-54.
&3
Select to display folder list.
&4
Shows progress.
&5
The tracks in the folder are played
back 10 seconds each from the
beginning of the track.
&6
Select to choose a folder.
&7
Turn to adjust volume.
Press to turn the audio system on/off.No. Function
&8
Turn to select a file/track.
Press to select an audio source. Refer
to“
Selecting an audio source”F5-17.
&9
Press to display the sound setting
screen. Refer to“
Unit settings”F5-18.
&10
Press to select a file/track.
Press and hold to fast forward/rewind.
–CONTINUED–
Audio/Audio set
5-53
5

(298,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!Connecting a USB device
You can connect a USB device to the
vehicle USB port. Refer to“Connecting
and disconnecting a USB memory/porta-
ble device”F5-16.
!How to change the source
The USB Audio playback screen can be
reached by the following methods:
.Connect a USB memory. Refer to
“Connecting and disconnecting a USB
memory/portable device”F5-16.
.Select the“USB/iPod”key on the
source select screen. Refer to“Selecting
an audio source”F5-17.!Select play mode
The play mode settings display will appear
when play mode key is touched. Select the
preferred play mode from the following
items.
Icon Function
Touch to start 1 track repeat.Touch to start repeat all.Touch to start folder repeat.Touch to start shuffle all.Touch to start shuffle folder.Return to the control screen.
&iPodAudio files on the iPod can be played.

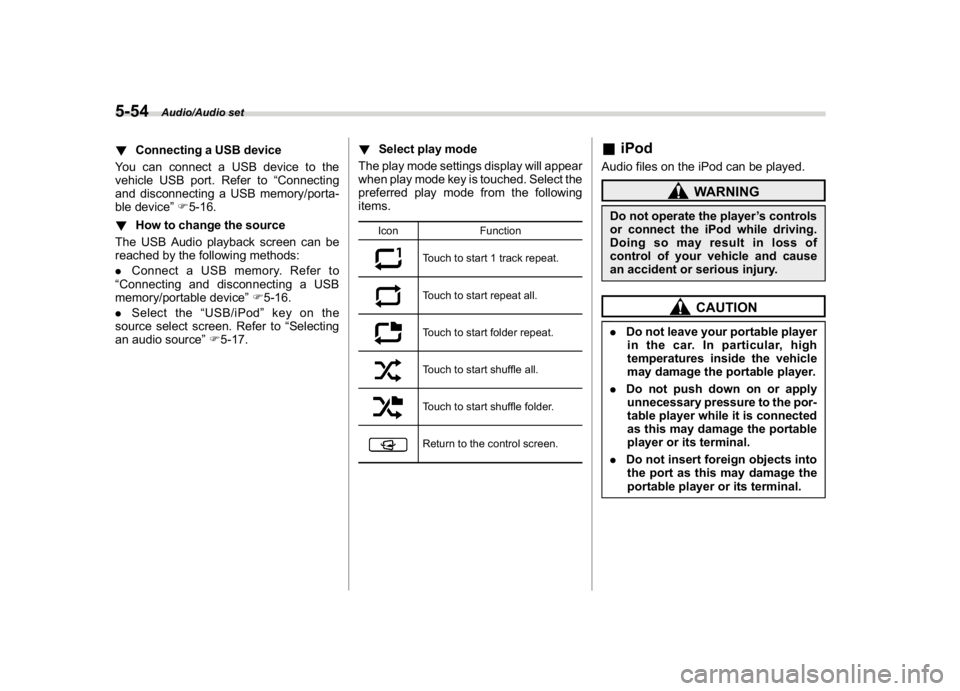

WARNING
Do not operate the player’s controls
or connect the iPod while driving.
Doing so may result in loss of
control of your vehicle and cause
an accident or serious injury.
CAUTION
.Do not leave your portable player
in the car. In particular, high
temperatures inside the vehicle
may damage the portable player.
.Do not push down on or apply
unnecessary pressure to the por-
table player while it is connected
as this may damage the portable
player or its terminal.
.Do not insert foreign objects into
the port as this may damage the
portable player or its terminal.
Audio/Audio set
5-54

(299,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11

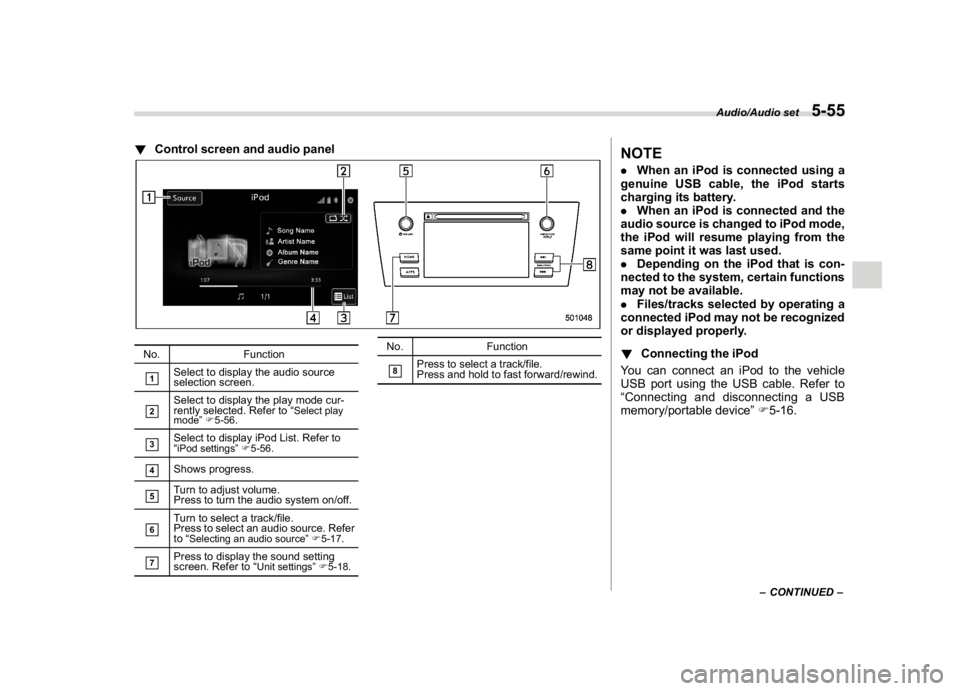

!Control screen and audio panelNo. Function&1
Select to display the audio source
selection screen.
&2
Select to display the play mode cur-
rently selected. Refer to“
Select play
mode”F5-56.
&3
Select to display iPod List. Refer to
“iPod settings”F5-56.
&4
Shows progress.
&5
Turn to adjust volume.
Press to turn the audio system on/off.
&6
Turn to select a track/file.
Press to select an audio source. Refer
to“
Selecting an audio source”F5-17.
&7
Press to display the sound setting
screen. Refer to“
Unit settings”F5-18.
No. Function&8
Press to select a track/file.
Press and hold to fast forward/rewind.
NOTE.When an iPod is connected using a
genuine USB cable, the iPod starts
charging its battery.
.When an iPod is connected and the
audio source is changed to iPod mode,
the iPod will resume playing from the
same point it was last used.
.Depending on the iPod that is con-
nected to the system, certain functions
may not be available.
.Files/tracks selected by operating a
connected iPod may not be recognized
or displayed properly.
!Connecting the iPod
You can connect an iPod to the vehicle
USB port using the USB cable. Refer to
“Connecting and disconnecting a USB
memory/portable device”F5-16.
–CONTINUED–
Audio/Audio set
5-55
5
