.You can also switch to aha or
Pandora (if equipped) from the APPS
screen.
!APPS main screenNo. Function&1
Select to go to the Music APPS
screen.
&2
Select to go to the News APPS
screen.
&3
Select to go to the Calender APPS
screen.
&4
Select to go to the iHeartRadio
APPS screen.
&5
Select to go to the Weather APPS
screen.
NOTE.The error screen will be displayed
while using SUBARU STARLINK due to
one of the following possible reasons.
–When your smartphone has no
service or the Bluetooth communi-
cation is not possible.
–When your smartphone is turned
off.
–When the SUBARU STARLINK
APPS is quit.
–When connection to the SUBARU
STARLINK server is not possible.
–When a problem occurs other
than a server error.
.When using the SUBARU STARLINK
function, a disclaimer screen will be
displayed. Be sure to fully read the
contents before using the function.
.Supported devices
–iPhone: iPhone 4/iPhone 4s/
iPhone 5 (iOS Ver. 5.1 or later)/
iPhone 5c/iPhone 5s
–Android: (OS Ver. 4.0 or later)
Audio/Audio set
5-26

(271,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11

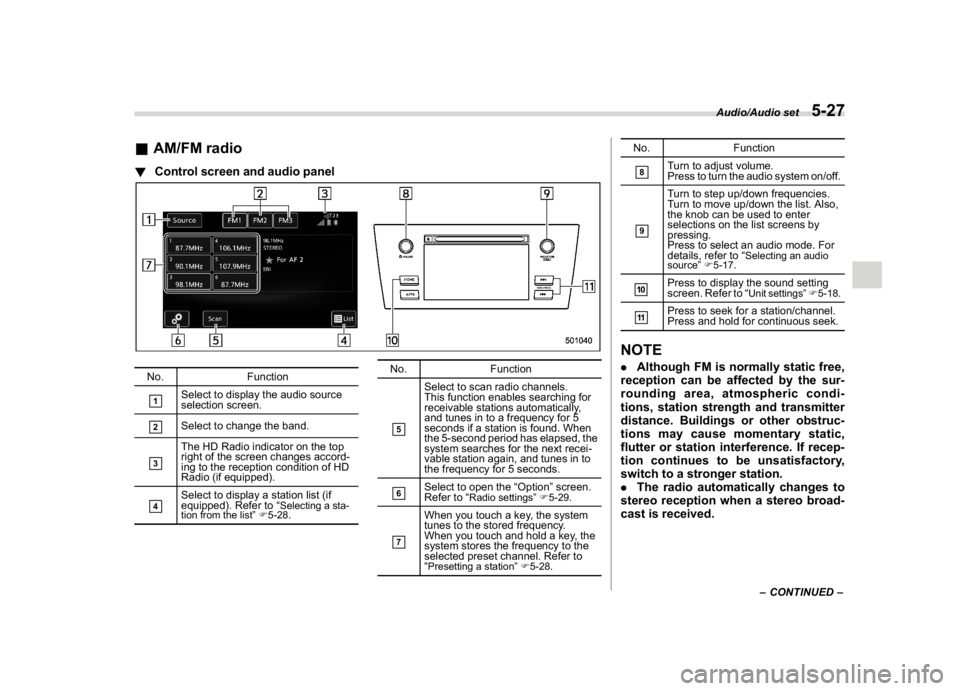

&AM/FM radio!Control screen and audio panelNo. Function&1
Select to display the audio source
selection screen.
&2
Select to change the band.
&3
The HD Radio indicator on the top
right of the screen changes accord-
ing to the reception condition of HD
Radio (if equipped).
&4
Select to display a station list (if
equipped). Refer to“
Selecting a sta-
tion from the list”F5-28.
No. Function&5
Select to scan radio channels.
This function enables searching for
receivable stations automatically,
and tunes in to a frequency for 5
seconds if a station is found. When
the 5-second period has elapsed, the
system searches for the next recei-
vable station again, and tunes in to
the frequency for 5 seconds.
&6
Select to open the“Option”screen.
Refer to“
Radio settings”F5-29.
&7
When you touch a key, the system
tunes to the stored frequency.
When you touch and hold a key, the
system stores the frequency to the
selected preset channel. Refer to
“Presetting a station”F5-28.
No. Function&8
Turn to adjust volume.
Press to turn the audio system on/off.
&9
Turn to step up/down frequencies.
Turn to move up/down the list. Also,
the knob can be used to enter
selections on the list screens by
pressing.
Press to select an audio mode. For
details, refer to“
Selecting an audio
source”F5-17.
&10
Press to display the sound setting
screen. Refer to“
Unit settings”F5-18.
&11
Press to seek for a station/channel.
Press and hold for continuous seek.
NOTE.Although FM is normally static free,
reception can be affected by the sur-
rounding area, atmospheric condi-
tions, station strength and transmitter
distance. Buildings or other obstruc-
tions may cause momentary static,
flutter or station interference. If recep-
tion continues to be unsatisfactory,
switch to a stronger station.
.The radio automatically changes to
stereo reception when a stereo broad-
cast is received.
–CONTINUED–
Audio/Audio set
5-27
5

(272,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
.The radio automatically blends to an
HD Radio signal (if equipped) in AM or
FM where available.
!How to change the source
Select the“AM”or“FM”key on the source
select screen. Refer to“Selecting an audio
source”F5-17.
!Presetting a station
In total 18 stations can be set for the FM
band (6 each for FM1, FM2 and FM3) and
12 stations can be set for the AM band (6
each for AM1 and AM2).
1. Tune in the desired station.
2. If you touch and hold a key, the system
stores the frequency to the selected preset
channel.
!Selecting a station from the list (if
equipped)
A station list can be displayed.
1. Touch the
tab.
2. Touch the
tab and the station list will
appear.
3. Select the desired station.

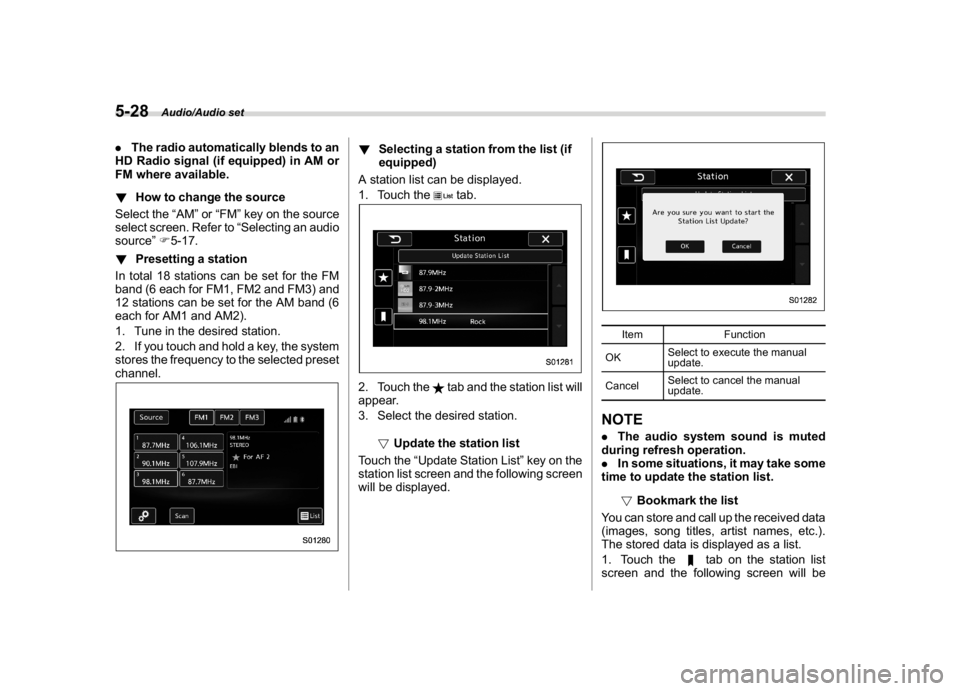

!Update the station list
Touch the“Update Station List”key on the
station list screen and the following screen
will be displayed.
Item Function
OKSelect to execute the manual
update.
CancelSelect to cancel the manual
update.
NOTE.The audio system sound is muted
during refresh operation.
.In some situations, it may take some
time to update the station list.

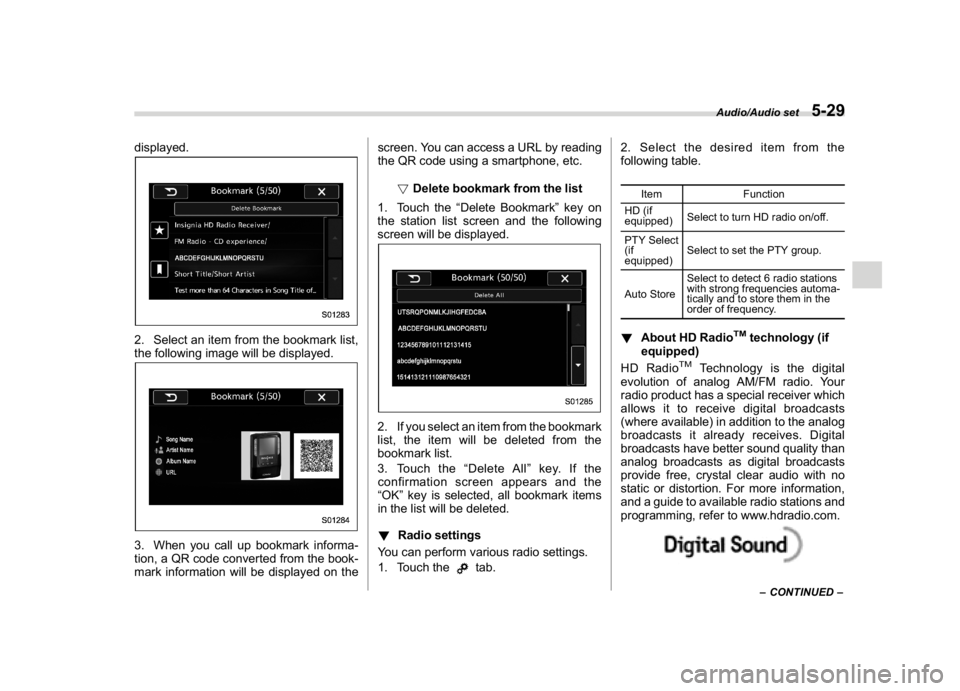

!Bookmark the list
You can store and call up the received data
(images, song titles, artist names, etc.).
The stored data is displayed as a list.
1. Touch the
tab on the station list
screen and the following screen will be
Audio/Audio set
5-28

(273,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
displayed.2. Select an item from the bookmark list,
the following image will be displayed.3. When you call up bookmark informa-
tion, a QR code converted from the book-
mark information will be displayed on thescreen. You can access a URL by reading
the QR code using a smartphone, etc.
!Delete bookmark from the list
1. Touch the“Delete Bookmark”key on
the station list screen and the following
screen will be displayed.
2. If you select an item from the bookmark
list, the item will be deleted from the
bookmark list.
3. Touch the“Delete All”key. If the
confirmation screen appears and the
“OK”key is selected, all bookmark items
in the list will be deleted.
!Radio settings
You can perform various radio settings.
1. Touch the
tab.2. Select the desired item from the
following table.
Item Function
HD (if
equipped)Select to turn HD radio on/off.
PTY Select
(if
equipped)Select to set the PTY group.
Auto StoreSelect to detect 6 radio stations
with strong frequencies automa-
tically and to store them in the
order of frequency.
!About HD Radio
TM
technology (if
equipped)
HD Radio
TM
Technology is the digital
evolution of analog AM/FM radio. Your
radio product has a special receiver which
allows it to receive digital broadcasts
(where available) in addition to the analog
broadcasts it already receives. Digital
broadcasts have better sound quality than
analog broadcasts as digital broadcasts
provide free, crystal clear audio with no
static or distortion. For more information,
and a guide to available radio stations and
programming, refer to www.hdradio.com.
–CONTINUED–
Audio/Audio set
5-29
5

(274,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
AM and FM broadcast sound quality is now
crystal clear, with AM sound quality that
virtually matches FM quality of the past,
and FM broadcasts that have near CD-
level sound quality.HD Radio Technology manufactured un-
der license from iBiquity Digital Corpora-
tion. Foreign Patents. HD Radio
TM
and the
HD, HD Radio, and“Arc”logos are
proprietary trademarks of iBiquity Digital
Corp.
FM stations can provide additional digital-only audio programming on HD2/HD3
Channels.
!Available HD Radio
TM
technology (if
equipped)

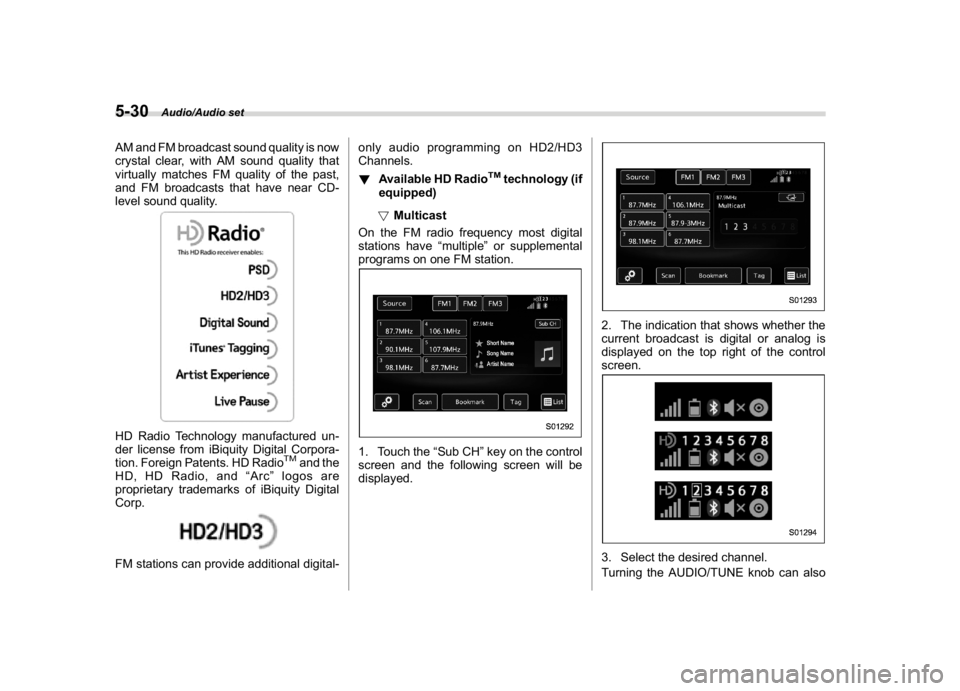

!Multicast
On the FM radio frequency most digital
stations have“multiple”or supplemental
programs on one FM station.
1. Touch the“Sub CH”key on the control
screen and the following screen will be
displayed.
2. The indication that shows whether the
current broadcast is digital or analog is
displayed on the top right of the control
screen.3. Select the desired channel.
Turning the AUDIO/TUNE knob can also
Audio/Audio set
5-30

(275,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
select the desired multicast channel.NOTE.HD Radio
TM
stations can be preset.
.An orangewill be displayed on the
screen when in digital. The
will first
appear in a gray color indicating the
station is indeed (an analog and) a
digital station. Once the digital signal
is acquired, the logo will change to a
bright orange color.
.The song title and artist name will
appear on the screen when available by
the radio station. The radio station can
send album pictures when available.
.As a user works through the analog
radio stations, (where applicable) the
radio receiver will automatically tune
from an analog signal to a digital signal
within 5 seconds.
!Preserving a music information
Tag information in the music broadcasting
is preserved in the system and transmits to
an iPod.

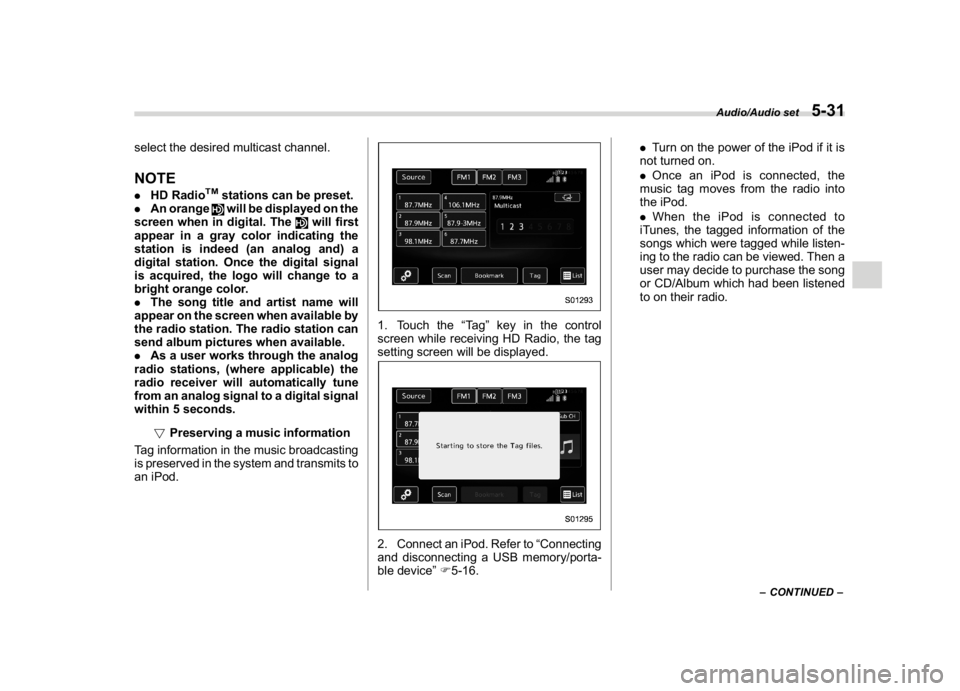

1. Touch the“Ta g”key in the control
screen while receiving HD Radio, the tag
setting screen will be displayed.2. Connect an iPod. Refer to“Connecting
and disconnecting a USB memory/porta-
ble device”F5-16..Turn on the power of the iPod if it is
not turned on.
.Once an iPod is connected, the
music tag moves from the radio into
the iPod.
.When the iPod is connected to
iTunes, the tagged information of the
songs which were tagged while listen-
ing to the radio can be viewed. Then a
user may decide to purchase the song
or CD/Album which had been listened
to on their radio.
–CONTINUED–
Audio/Audio set
5-31
5

(276,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
In addition, the following messages appear.
Display Message Contents
“Tag storage full”If there is not enough memory in the digital
audio
“Already Stored”If the same information is stored in the digital
audio
“Storing Failed”If the store process in the digital audio failed
“iPod full Tags cannot be stored”If there is not enough memory in the iPod
“Starting to transfer the Tag files.”If the system starts to transmit music informa-
tion to an iPod
“Transferring Failed”If the transmitting process of music information
to an iPod failed
“X Tag(s) Sent”(X = number of transmitted
information) will be displayed.If the transmitting process of music information
to an iPod is successful
NOTE.The tag information can not be
preserved while scanning or caching
the radio station.
.If tagging the music information
fails,“Saving the HD Radio tag was
unsuccessful. (Saving the HD Radio tag
was unsuccessful.)”will be displayed
on the screen. If this occurs, tag the
information again..Program Service Data: Presents song
name, artist, station IDs, and other rele-
vant data streams..iTunes Tagging provides you the op-
portunity to discover a wide range of
content and the means to“tag”that content
for later review and purchase from the
iTunes Store. Also refer to the Apple
Automotive specifications for implement-
ing iTunes Tagging.
Audio/Audio set
5-32

(277,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
.Visual information related to content
being played on your HD Radio receiver,
such as Album Art, historical photographs,
still art from live broadcasts, among other
related content.
–CONTINUED–
Audio/Audio set
5-33
5

(278,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!Troubleshooting guide
Experience Cause Action
Mismatch of time alignment - a user may hear a
short period of programming replayed or an
echo, stutter or skip.The radio stations analog and digital volume is
not properly aligned or the station is in ballgame
mode.None, radio broadcast issue. A user can contact the
radio station.
Sound fades, blending in and out.Radio is shifting between analog and digital
audio.Reception issue. May clear-up as the vehicle
continues to be driven. Turning the indicator of the
HD Radio
TM
off will change the radio mode to
analog audio.
Audio mute condition when an HD2/HD3
multicast channel had been playing.The radio does not have access to digital signals
at the moment.This is normal behavior, wait until the digital signal
returns. If out of the coverage area, seek a new
station.
Audio mute delay when selecting an HD2/HD3
multicast channel preset.The digital multicast content is not available until
HD Radio
TM
broadcast can be decoded and
make the audio available. This takes up to 7
seconds.This is normal behavior, wait for the audio to
become available.
Text information does not match the present
song audio.Data service issue by the radio broadcaster.Broadcaster should be notified. Complete the form;
www.ibiquity.com/automotive/report_radio
_station_experiences.
No text information shown for the present
selected frequency.Data service issue by the radio broadcaster.Broadcaster should be notified. Complete the form;
www.ibiquity.com/automotive/report_radio
_station_experiences.
The“Acquiring”caution message appears
when the system attempts to acquire digital
transmission.When acquiring digital data while receiving a
digital broadcast and SPS station..When the reception in digital of the SPS station
is confirmed.
.When the system determined that the SPS
station could not be received.
.When the SPS broadcast is ended (stopped) by
the radio station while receiving SPS.
Audio/Audio set
5-34

(279,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
Experience Cause Action
The“HD Channel is unavailable”caution
message appears when digital reception is not
possible..When the system determined that the SPS
station could not be received while receiving
a digital broadcast and SPS station.
.When the SPS broadcast is ended
(stopped) by the radio station while receiv-
ing SPS..When the status is changed to acquiring digital
data because the reception condition of SPS
station has improved.
.When the received station is changed.
–CONTINUED–
Audio/Audio set
5-35
5
