SUZUKI ALTO 2007 6.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine 92
76G-74E
w ww w
w WARNING
The rear shock absorbers are filled with
high pressure gas. Never attempt to
disassemble it or throw it into a fire.
Avoid storing it near a heater or heating
device. When scrapping the absorber,
the gas must be released from the
absorber safely. Ask your dealer for
assistance. All maintenance should be carried out with
the ignition switch in the “OFF” position
and the car parked securely on the level
ground unless otherwise specified.
If you are in any way unsure of your
ability to undertake a task, then do not
start it but contact your MARUTI SUZUKI
dealer to perform the work for you.
w ww w
w WARNING
INSPECTION AND MAINTENANCE9-9

Downloaded from www.Manualslib.com manuals search engine 9376G-74E
INSPECTION AND MAINTENANCE
9-10

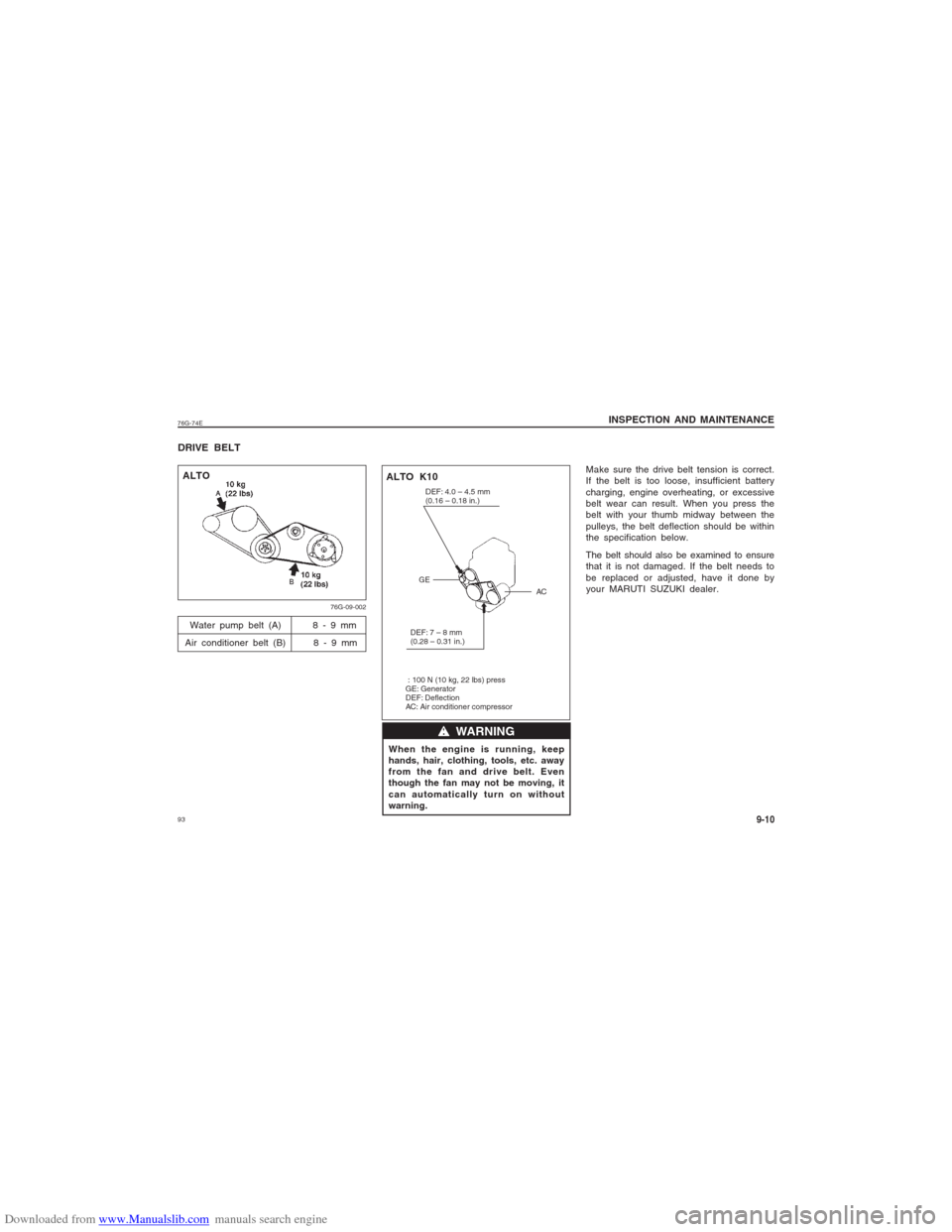

DRIVE BELT
When the engine is running, keep
hands, hair, clothing, tools, etc. away
from the fan and drive belt. Even
though the fan may not be moving, it
can automatically turn on without
warning. Water pump belt (A) 8 - 9 mm
Air conditioner belt (B) 8 - 9 mm
w ww w
w WARNING
76G-09-002
Make sure the drive belt tension is correct.
If the belt is too loose, insufficient battery
charging, engine overheating, or excessive
belt wear can result. When you press the
belt with your thumb midway between the
pulleys, the belt deflection should be within
the specification below.
The belt should also be examined to ensure
that it is not damaged. If the belt needs to
be replaced or adjusted, have it done by
your MARUTI SUZUKI dealer.
DEF: 4.0 – 4.5 mm
(0.16 – 0.18 in.)
DEF: 7 – 8 mm
(0.28 – 0.31 in.)
: 100 N (10 kg, 22 lbs) press
GE: Generator
DEF: Deflection
AC: Air conditioner compressorGE
AC
ALTO K10 ALTO

Downloaded from www.Manualslib.com manuals search engine 94
76G-74E

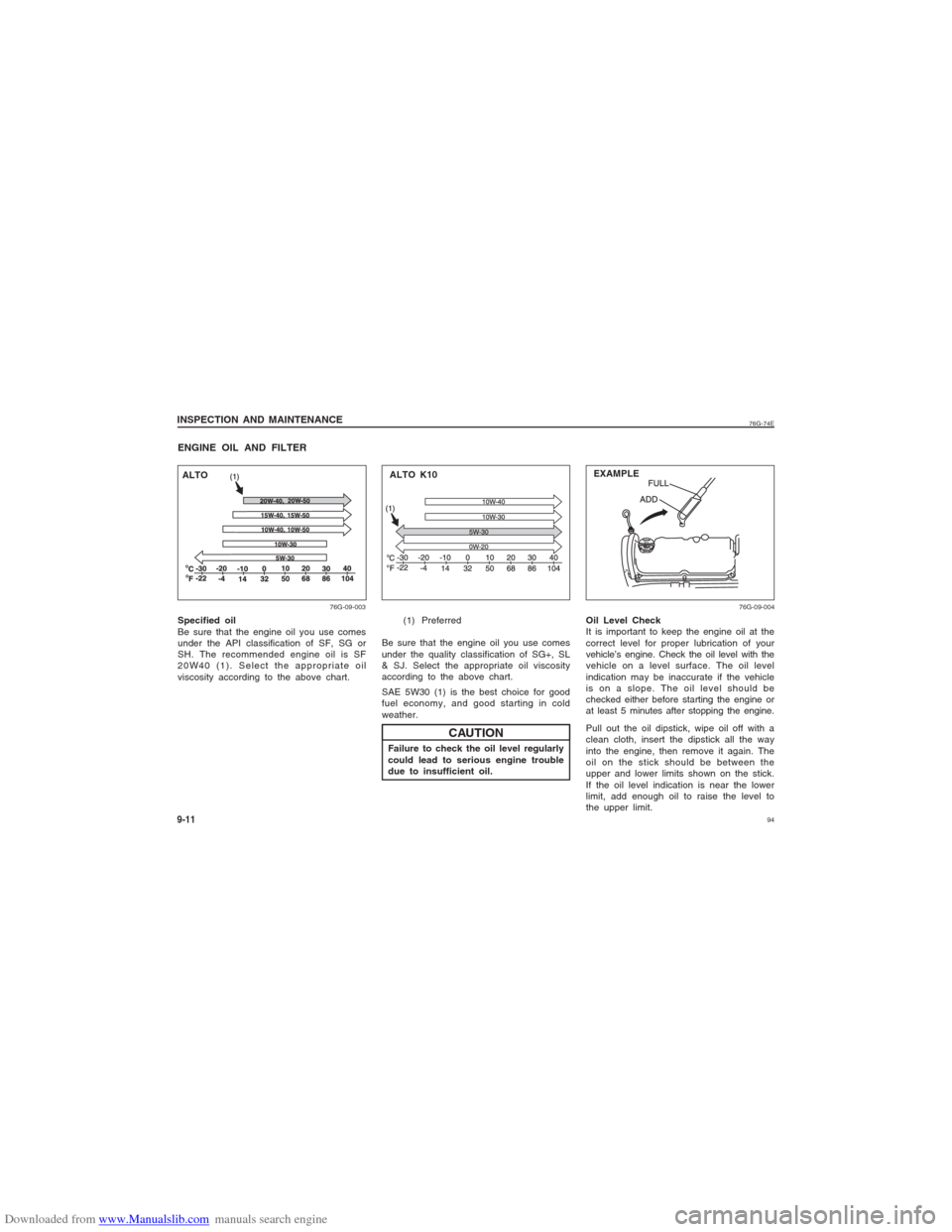

INSPECTION AND MAINTENANCE9-11ENGINE OIL AND FILTERSpecified oil
Be sure that the engine oil you use comes
under the API classification of SF, SG or
SH. The recommended engine oil is SF
20W40 (1). Select the appropriate oil
viscosity according to the above chart.
Oil Level Check
It is important to keep the engine oil at the
correct level for proper lubrication of your
vehicle’s engine. Check the oil level with the
vehicle on a level surface. The oil level
indication may be inaccurate if the vehicle
is on a slope. The oil level should be
checked either before starting the engine or
at least 5 minutes after stopping the engine.
Pull out the oil dipstick, wipe oil off with a
clean cloth, insert the dipstick all the way
into the engine, then remove it again. The
oil on the stick should be between the
upper and lower limits shown on the stick.
If the oil level indication is near the lower
limit, add enough oil to raise the level to
the upper limit.
76G-09-00376G-09-004
(1) Preferred
Be sure that the engine oil you use comes
under the quality classification of SG+, SL
& SJ. Select the appropriate oil viscosity
according to the above chart.
SAE 5W30 (1) is the best choice for good
fuel economy, and good starting in cold
weather.
Failure to check the oil level regularly
could lead to serious engine trouble
due to insufficient oil.
ALTO K10
ALTOEXAMPLE
CAUTION

Downloaded from www.Manualslib.com manuals search engine 9576G-74E
INSPECTION AND MAINTENANCE
9-12

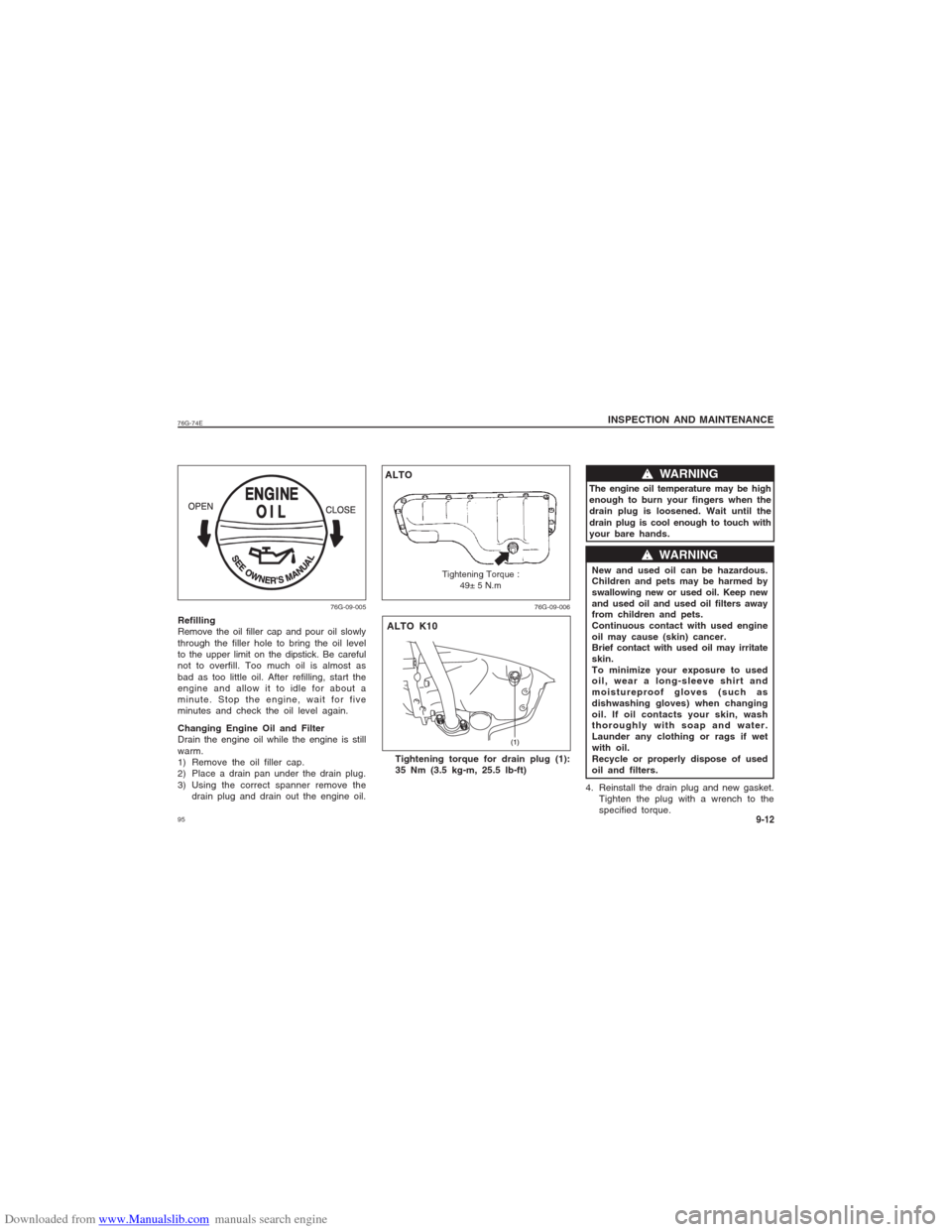

Refilling
Remove the oil filler cap and pour oil slowly
through the filler hole to bring the oil level
to the upper limit on the dipstick. Be careful
not to overfill. Too much oil is almost as
bad as too little oil. After refilling, start the
engine and allow it to idle for about a
minute. Stop the engine, wait for five
minutes and check the oil level again.
Changing Engine Oil and Filter
Drain the engine oil while the engine is still
warm.
1) Remove the oil filler cap.
2) Place a drain pan under the drain plug.
3) Using the correct spanner remove the
drain plug and drain out the engine oil.
The engine oil temperature may be high
enough to burn your fingers when the
drain plug is loosened. Wait until the
drain plug is cool enough to touch with
your bare hands.
w ww w
w WARNING
New and used oil can be hazardous.
Children and pets may be harmed by
swallowing new or used oil. Keep new
and used oil and used oil filters away
from children and pets.
Continuous contact with used engine
oil may cause (skin) cancer.
Brief contact with used oil may irritate
skin.
To minimize your exposure to used
oil, wear a long-sleeve shirt and
moistureproof gloves (such as
dishwashing gloves) when changing
oil. If oil contacts your skin, wash
thoroughly with soap and water.
Launder any clothing or rags if wet
with oil.
Recycle or properly dispose of used
oil and filters.
4. Reinstall the drain plug and new gasket.
Tighten the plug with a wrench to the
specified torque.
w ww w
w WARNING
76G-09-005 76G-09-006
Tightening torque for drain plug (1):
35 Nm (3.5 kg-m, 25.5 lb-ft)ALTO
ALTO K10
Tightening Torque :
49± 5 N.m

Downloaded from www.Manualslib.com manuals search engine 96
76G-74E

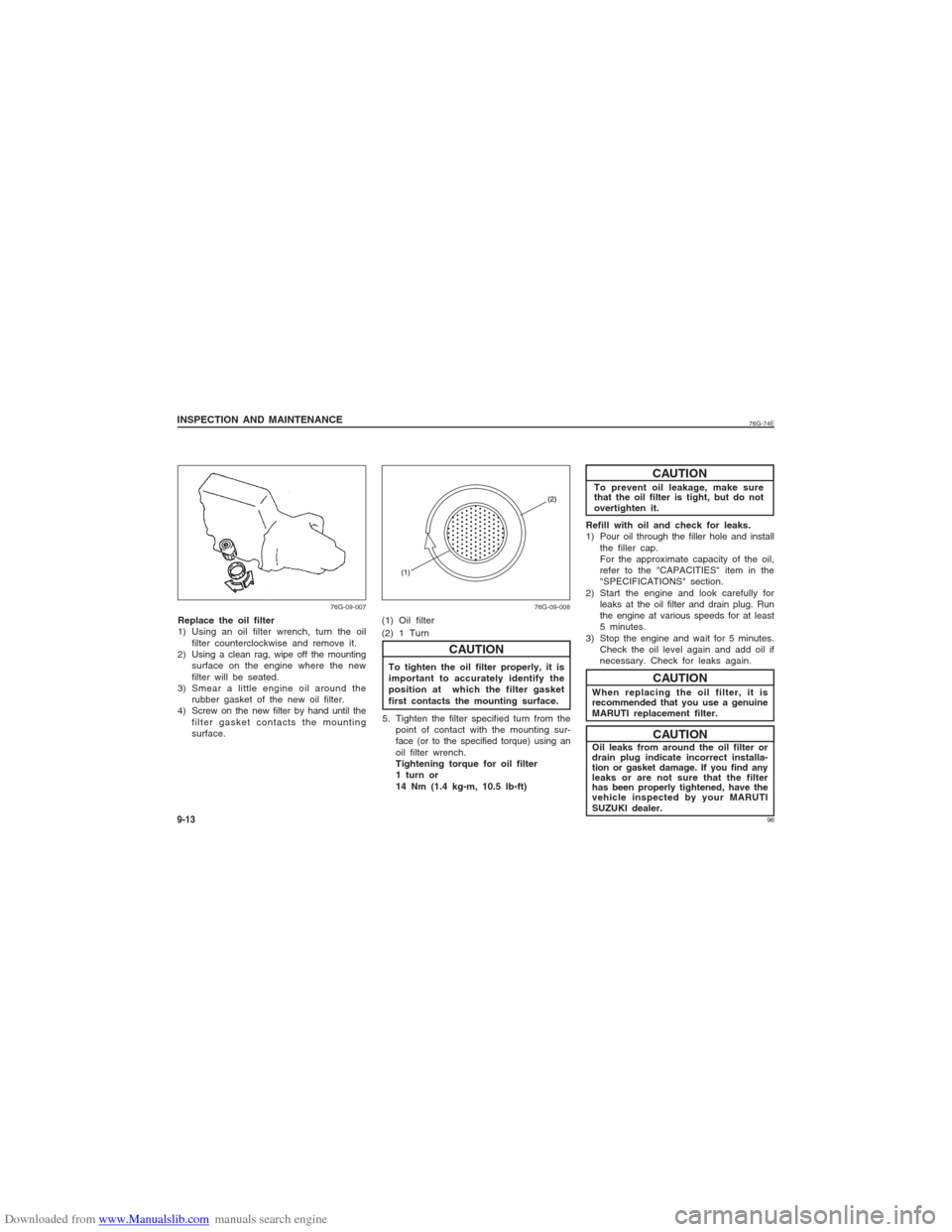

INSPECTION AND MAINTENANCE9-13Replace the oil filter
1) Using an oil filter wrench, turn the oil
filter counterclockwise and remove it.
2) Using a clean rag, wipe off the mounting
surface on the engine where the new
filter will be seated.
3) Smear a little engine oil around the
rubber gasket of the new oil filter.
4) Screw on the new filter by hand until the
filter gasket contacts the mounting
surface.
To tighten the oil filter properly, it is
important to accurately identify the
position at which the filter gasket
first contacts the mounting surface.
5. Tighten the filter specified turn from the
point of contact with the mounting sur-
face (or to the specified torque) using an
oil filter wrench.
Tightening torque for oil filter
1 turn or
14 Nm (1.4 kg-m, 10.5 lb-ft)
CAUTION
Refill with oil and check for leaks.
1) Pour oil through the filler hole and install
the filler cap.
For the approximate capacity of the oil,
refer to the "CAPACITIES" item in the
"SPECIFICATIONS" section.
2) Start the engine and look carefully for
leaks at the oil filter and drain plug. Run
the engine at various speeds for at least
5 minutes.
3) Stop the engine and wait for 5 minutes.
Check the oil level again and add oil if
necessary. Check for leaks again.
When replacing the oil filter, it is
recommended that you use a genuine
MARUTI replacement filter.
Oil leaks from around the oil filter or
drain plug indicate incorrect installa-
tion or gasket damage. If you find any
leaks or are not sure that the filter
has been properly tightened, have the
vehicle inspected by your MARUTI
SUZUKI dealer.
CAUTIONCAUTIONCAUTION
76G-09-007 76G-09-008
To prevent oil leakage, make sure
that the oil filter is tight, but do not
overtighten it.
(1) Oil filter
(2) 1 Turn

Downloaded from www.Manualslib.com manuals search engine 9776G-74E
INSPECTION AND MAINTENANCE
9-14

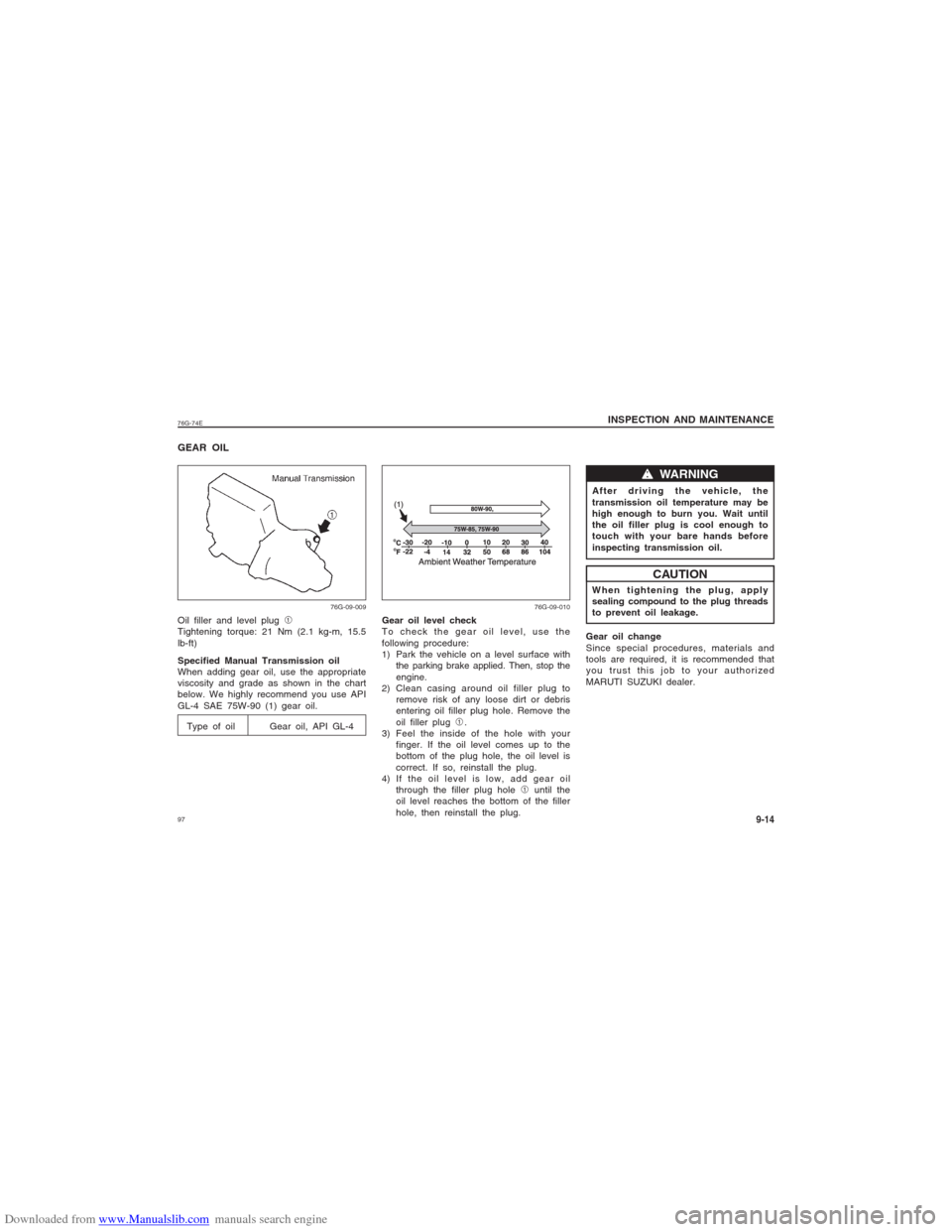

GEAR OILOil filler and level plug 1
Tightening torque: 21 Nm (2.1 kg-m, 15.5
lb-ft)
Specified Manual Transmission oil
When adding gear oil, use the appropriate
viscosity and grade as shown in the chart
below. We highly recommend you use API
GL-4 SAE 75W-90 (1) gear oil.
Type of oil Gear oil, API GL-4
Gear oil level check
To check the gear oil level, use the
following procedure:
1) Park the vehicle on a level surface with
the parking brake applied. Then, stop the
engine.
2) Clean casing around oil filler plug to
remove risk of any loose dirt or debris
entering oil filler plug hole. Remove the
oil filler plug 1.
3) Feel the inside of the hole with your
finger. If the oil level comes up to the
bottom of the plug hole, the oil level is
correct. If so, reinstall the plug.
4) If the oil level is low, add gear oil
through the filler plug hole 1 until the
oil level reaches the bottom of the filler
hole, then reinstall the plug.After driving the vehicle, the
transmission oil temperature may be
high enough to burn you. Wait until
the oil filler plug is cool enough to
touch with your bare hands before
inspecting transmission oil.
When tightening the plug, apply
sealing compound to the plug threads
to prevent oil leakage.
Gear oil change
Since special procedures, materials and
tools are required, it is recommended that
you trust this job to your authorized
MARUTI SUZUKI dealer.
w ww w
w WARNINGCAUTION
76G-09-009 76G-09-010

Downloaded from www.Manualslib.com manuals search engine 98
76G-74E

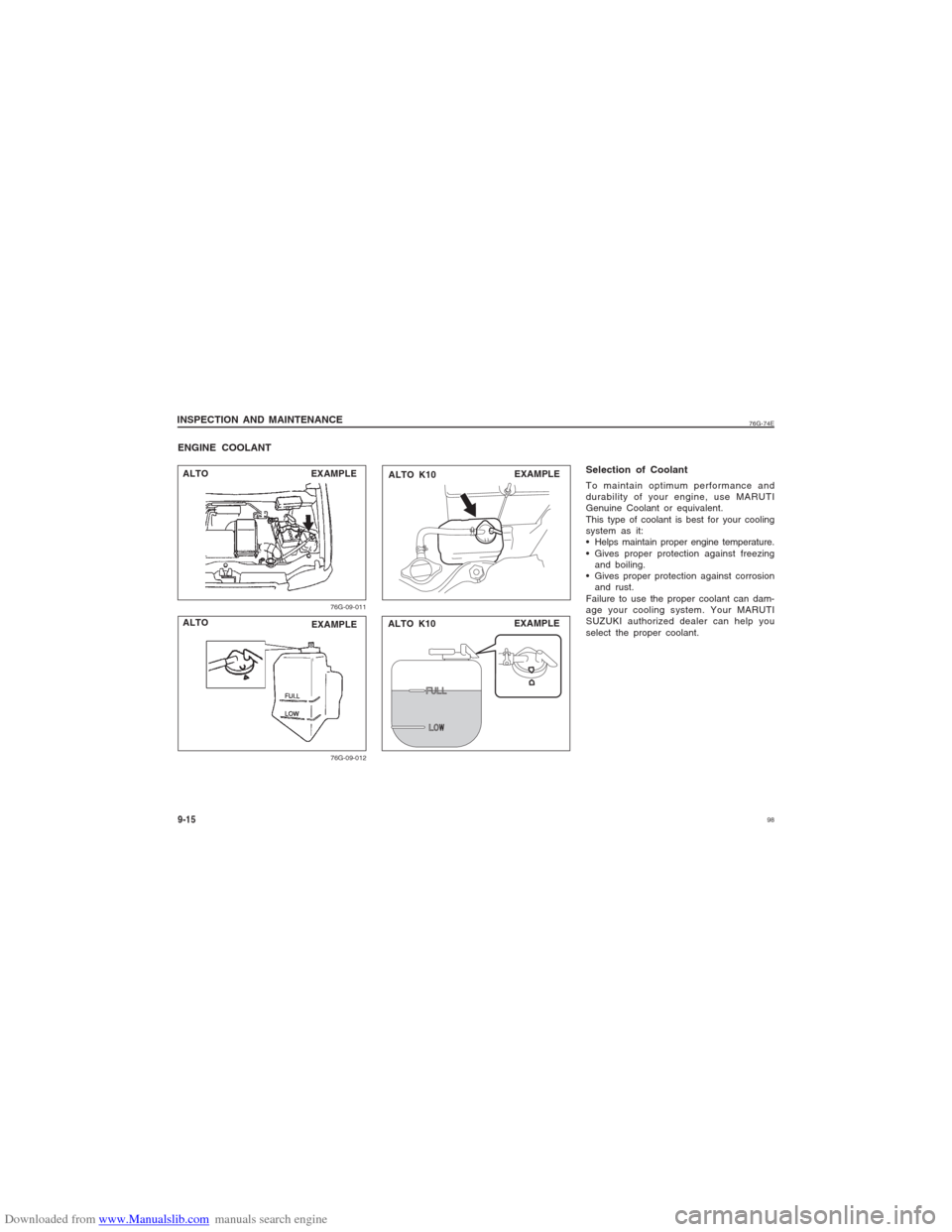

INSPECTION AND MAINTENANCE9-15ENGINE COOLANT
76G-09-011
ALTO
76G-09-012
EXAMPLE
EXAMPLE EXAMPLE
ALTO K10
EXAMPLE ALTO
ALTO K10
Selection of CoolantTo maintain optimum performance and
durability of your engine, use MARUTI
Genuine Coolant or equivalent.
This type of coolant is best for your cooling
system as it:
Helps maintain proper engine temperature.
Gives proper protection against freezing
and boiling.
Gives proper protection against corrosion
and rust.
Failure to use the proper coolant can dam-
age your cooling system. Your MARUTI
SUZUKI authorized dealer can help you
select the proper coolant.

Downloaded from www.Manualslib.com manuals search engine 9976G-74E
INSPECTION AND MAINTENANCE
9-16
CAUTION
To avoid damaging your cooling sys-
tem:
Always use a high quality ethylene
glycol base non-silicate type cool-
ant diluted with distilled water at
the correct mixture concentration.
Make sure that the proper mix is 30/
70 coolant to distilled water.
Concentrations greater than 70/30
coolant to distilled water will cause
over heating conditions.
Do not use straight coolant nor
plain water.
Do not add extra inhibitors or addi-
tives. They may not be compatible
with your cooling system.
Do not mix different types of base
coolants. Doing so may result in
accelerated seal wear and/or the
possibility of severe overheating
and extensive engine damage.Coolant Level Check
Check the coolant level at the reservoir
tank, not at the radiator. With the engine
cool, the coolant level should be between
the “FULL” and “LOW” marks.
Adding Coolant
If the coolant level is below the “LOW”
mark, more coolant should be added.
Remove the reservoir tank cap and add
coolant until the reservoir tank level reaches
the “FULL” mark. Never fill the reservoir
tank above the “FULL” mark.
CAUTION
The mixture you use should con-
tain 50% concentration of anti-
freeze.
If the lowest ambient temperature
in your area is expected to be –
35°C (–31°F) or below, use higher
concentrations up to 60% following
the instructions on the antifreeze
container.
When putting the cap on the reser-
voir tank, line up the arrow on the
cap and the arrow on the tank. Fail-
ure to follow this can result in cool-
ant leakage.

Downloaded from www.Manualslib.com manuals search engine 100
76G-74E

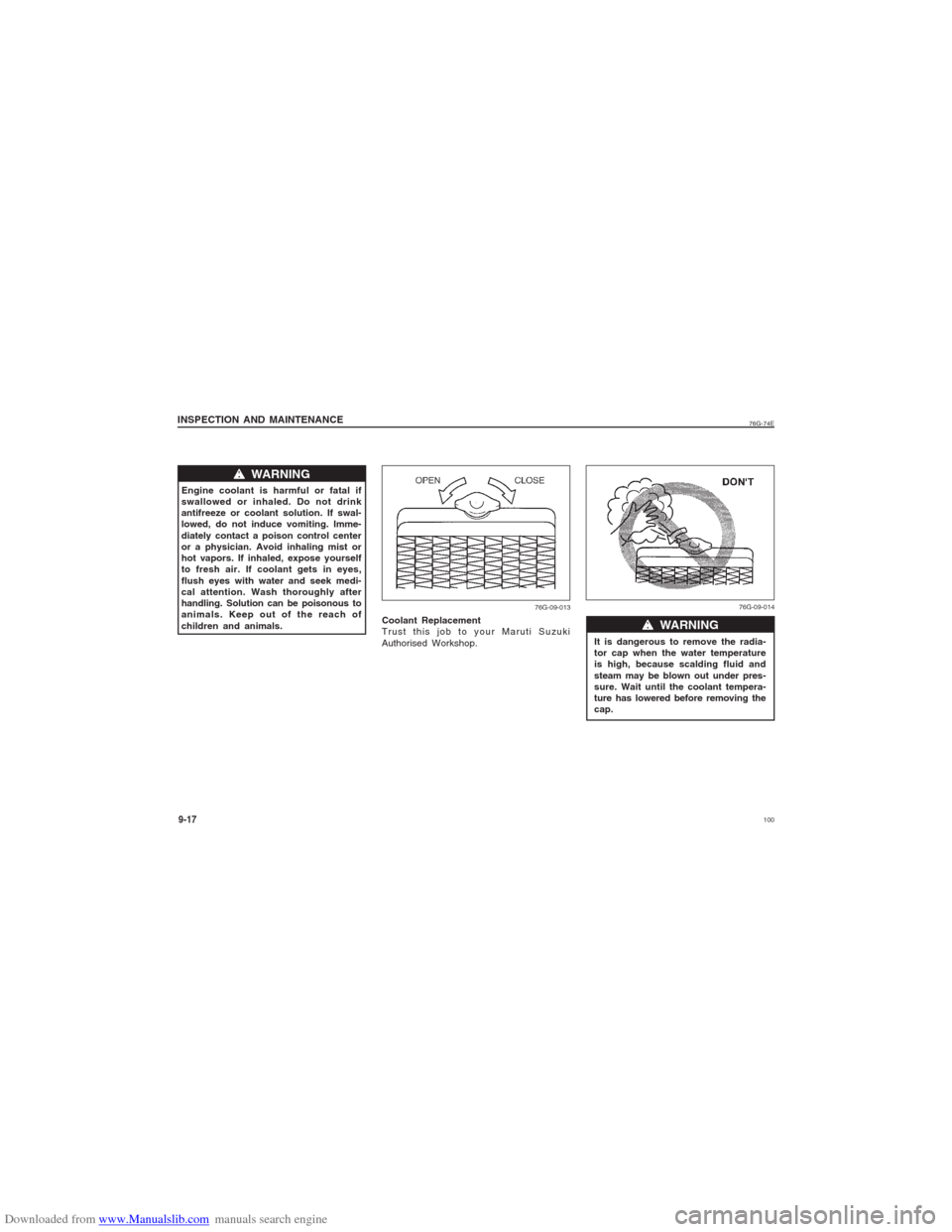

Coolant Replacement
Trust this job to your Maruti Suzuki
Authorised Workshop.
76G-09-013
w ww w
w WARNING
76G-09-014
It is dangerous to remove the radia-
tor cap when the water temperature
is high, because scalding fluid and
steam may be blown out under pres-
sure. Wait until the coolant tempera-
ture has lowered before removing the
cap.
w ww w
w WARNING
Engine coolant is harmful or fatal if
swallowed or inhaled. Do not drink
antifreeze or coolant solution. If swal-
lowed, do not induce vomiting. Imme-
diately contact a poison control center
or a physician. Avoid inhaling mist or
hot vapors. If inhaled, expose yourself
to fresh air. If coolant gets in eyes,
flush eyes with water and seek medi-
cal attention. Wash thoroughly after
handling. Solution can be poisonous to
animals. Keep out of the reach of
children and animals.9-17INSPECTION AND MAINTENANCE

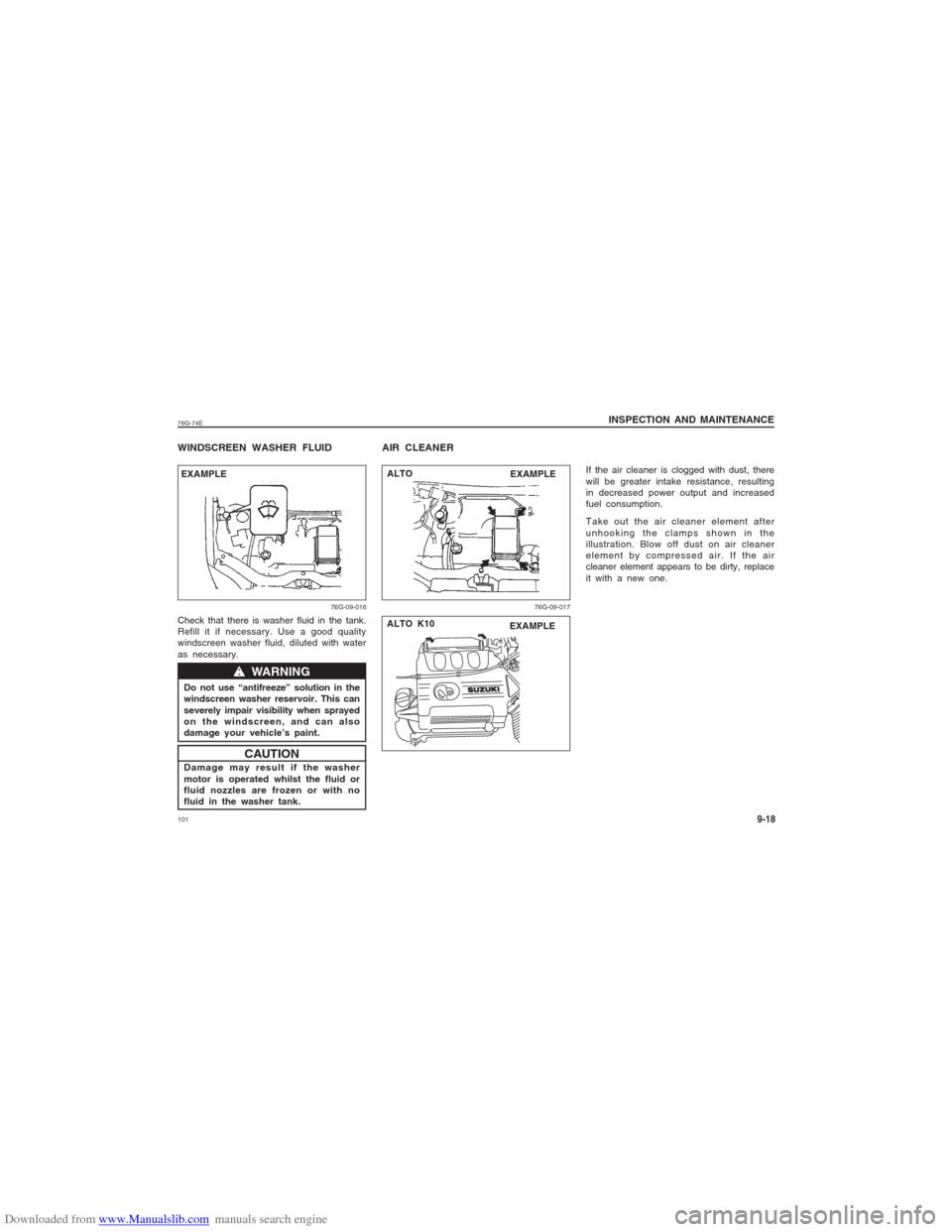

Downloaded from www.Manualslib.com manuals search engine 10176G-74EWINDSCREEN WASHER FLUIDCheck that there is washer fluid in the tank.
Refill it if necessary. Use a good quality
windscreen washer fluid, diluted with water
as necessary.
Do not use “antifreeze” solution in the
windscreen washer reservoir. This can
severely impair visibility when sprayed
on the windscreen, and can also
damage your vehicle’s paint.
Damage may result if the washer
motor is operated whilst the fluid or
fluid nozzles are frozen or with no
fluid in the washer tank.
w ww w
w WARNINGCAUTION
76G-09-016
AIR CLEANER
If the air cleaner is clogged with dust, there
will be greater intake resistance, resulting
in decreased power output and increased
fuel consumption.
Take out the air cleaner element after
unhooking the clamps shown in the
illustration. Blow off dust on air cleaner
element by compressed air. If the air
cleaner element appears to be dirty, replace
it with a new one.
76G-09-017
ALTO K10
INSPECTION AND MAINTENANCE
9-18
EXAMPLEALTO
EXAMPLE
EXAMPLE
