SUZUKI ALTO 2007 6.G Workshop Manual
Manufacturer: SUZUKI, Model Year: 2007, Model line: ALTO, Model: SUZUKI ALTO 2007 6.GPages: 139, PDF Size: 2.63 MB
Page 51 of 139
Downloaded from www.Manualslib.com manuals search engine 52
76G-74E

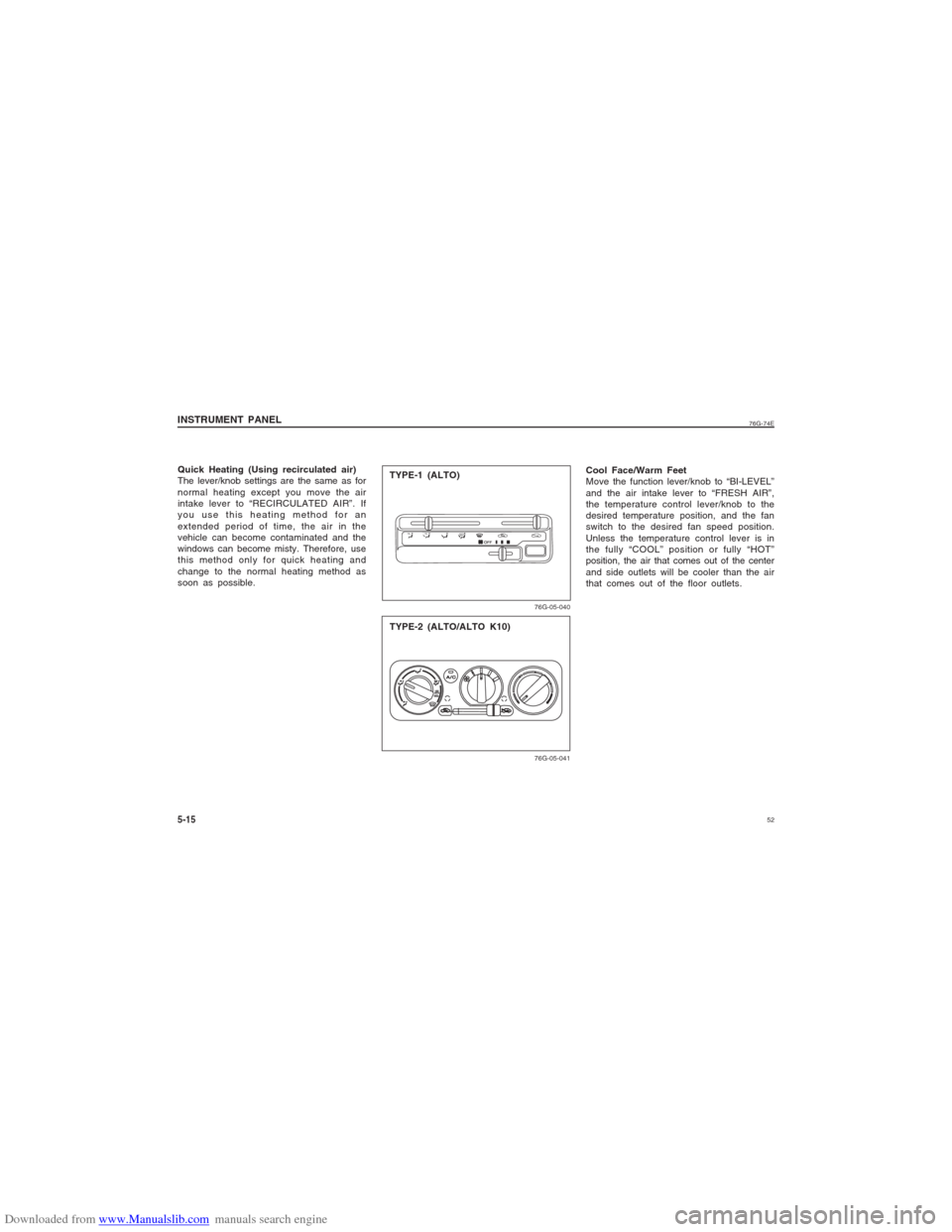

Quick Heating (Using recirculated air)
The lever/knob settings are the same as for
normal heating except you move the air
intake lever to “RECIRCULATED AIR”. If
you use this heating method for an
extended period of time, the air in the
vehicle can become contaminated and the
windows can become misty. Therefore, use
this method only for quick heating and
change to the normal heating method as
soon as possible.
Cool Face/Warm Feet
Move the function lever/knob to “BI-LEVEL”
and the air intake lever to “FRESH AIR”,
the temperature control lever/knob to the
desired temperature position, and the fan
switch to the desired fan speed position.
Unless the temperature control lever is in
the fully “COOL” position or fully “HOT”
position, the air that comes out of the center
and side outlets will be cooler than the air
that comes out of the floor outlets.
5-15INSTRUMENT PANEL
76G-05-040
76G-05-041
TYPE-1 (ALTO)
TYPE-2 (ALTO/ALTO K10)
Page 52 of 139
Downloaded from www.Manualslib.com manuals search engine 5376G-74E
INSTRUMENT PANEL
Defrosting/Warm Feet
Move the function lever/knob to “HEAT &
DEFROST” and the air intake lever to
“FRESH AIR”, the temperature control lever
/knob to the desired temperature position,
and the fan switch to “HIGH”. When the
windscreen has become clear, move the fan
switch to the desired fan speed position.
5-16
76G-05-04276G-05-044
76G-05-04376G-05-045
TYPE-1 (ALTO)
TYPE-2 (ALTO / ALTO K10) TYPE-1 (ALTO)
TYPE-2 (ALTO / ALTO K10)
Page 53 of 139
Downloaded from www.Manualslib.com manuals search engine 54
76G-74E
Defrosting
Move the function lever/knob to “DEFROST”
and the air intake lever to “FRESH AIR”,
the temperature control lever/knob to the
desired temperature position, and the fan
switch to “HIGH” Moving the temperature
control lever/knob to a higher temperature
position increases defrosting efficiency.
When the windscreen has become clear,
move the fan switch to the desired fan
speed position.
AIR CONDITIONING SYSTEM
(if equipped)If your vehicle is equipped with air
conditioner, it has an A/C button located on
the heater control panel. The air conditioning
system can be used to provide cooling and
dehumidifying, as described below. To turn
on the air conditioning system, push in the
A/C button and move the fan switch to a
position other than “OFF”. An indicator light
will come on when the air conditioning
system is on. To turn off the air conditioning
system, push the A/C button again.
During operation of the air conditioner, you
may notice slight changes in engine speed.
These changes are normal, the system is
designed so that the compressor turns on
or off to maintain the desired temperature.
Less operation of the compressor results in
better fuel economy.
5-17INSTRUMENT PANEL
76G-05-047
(ALTO / ALTO K10)
SYSTEM OPERATING INSTRUCTIONSNormal Cooling (using outside air)
Push in the A/C button, move the function
lever/knob to "VENTILATION", the air
intake lever to “FRESH AIR”, the
temperature control lever/knob to the
“COOL” position, and the fan switch to the
desired fan speed position. Moving the fan
switch to a higher fan speed position
increases cooling efficiency.
If the ambient temperature is high enough
to cause insufficient cooling, use the "Quick
Cooling" as following.
76G-05-049
(ALTO / ALTO K10)
Page 54 of 139
Downloaded from www.Manualslib.com manuals search engine 5576G-74E
INSTRUMENT PANEL
5-18
76G-05-051
(ALTO / ALTO K10)

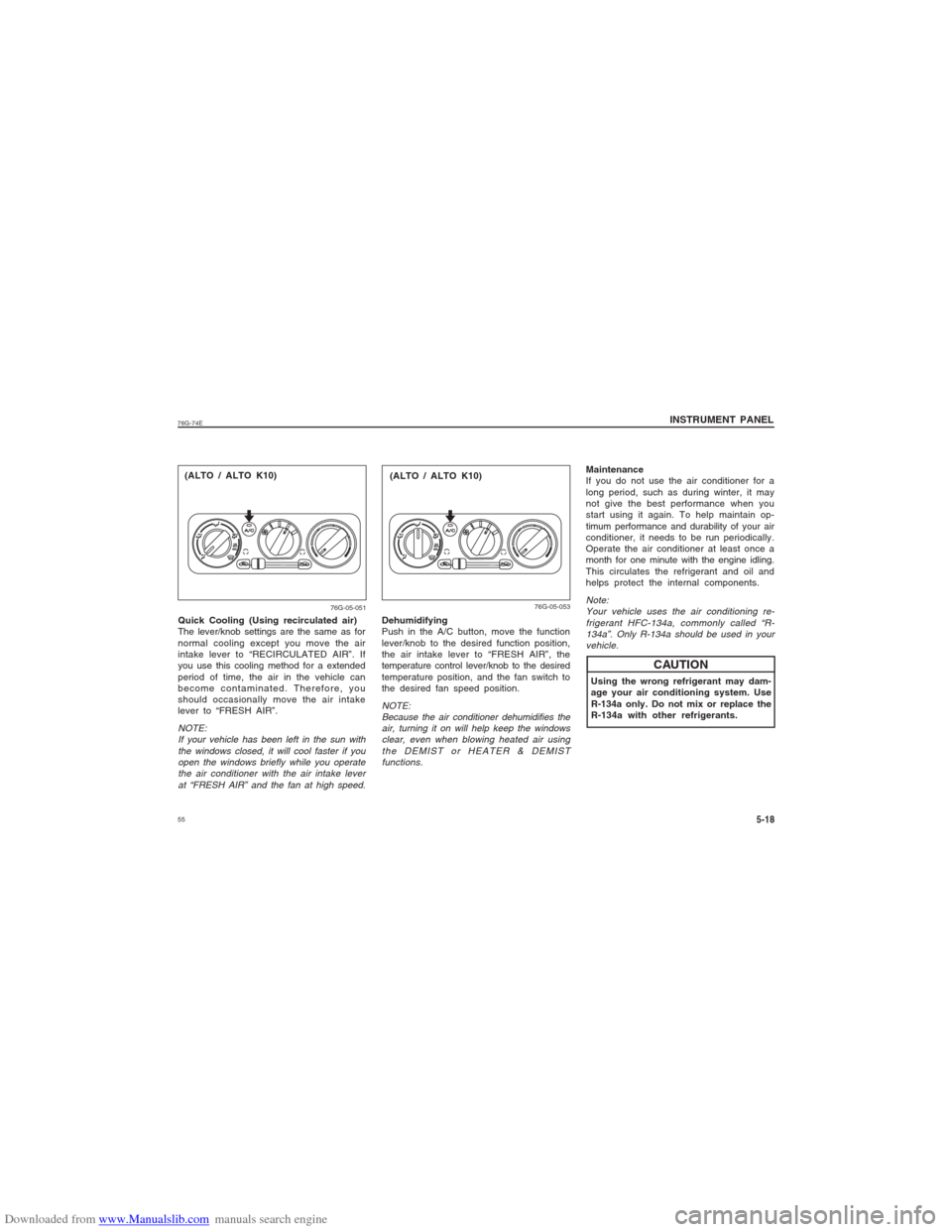

Quick Cooling (Using recirculated air)
The lever/knob settings are the same as for
normal cooling except you move the air
intake lever to “RECIRCULATED AIR”. If
you use this cooling method for a extended
period of time, the air in the vehicle can
become contaminated. Therefore, you
should occasionally move the air intake
lever to “FRESH AIR”.NOTE:
If your vehicle has been left in the sun with
the windows closed, it will cool faster if you
open the windows briefly while you operate
the air conditioner with the air intake lever
at “FRESH AIR” and the fan at high speed.
Dehumidifying
Push in the A/C button, move the function
lever/knob to the desired function position,
the air intake lever to “FRESH AIR”, the
temperature control lever/knob to the desired
temperature position, and the fan switch to
the desired fan speed position.NOTE:
Because the air conditioner dehumidifies the
air, turning it on will help keep the windows
clear, even when blowing heated air using
the DEMIST or HEATER & DEMIST
functions.
76G-05-053
(ALTO / ALTO K10)Maintenance
If you do not use the air conditioner for a
long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain op-
timum performance and durability of your air
conditioner, it needs to be run periodically.
Operate the air conditioner at least once a
month for one minute with the engine idling.
This circulates the refrigerant and oil and
helps protect the internal components.
Note:
Your vehicle uses the air conditioning re-
frigerant HFC-134a, commonly called “R-
134a”. Only R-134a should be used in your
vehicle.
CAUTION
Using the wrong refrigerant may dam-
age your air conditioning system. Use
R-134a only. Do not mix or replace the
R-134a with other refrigerants.
Page 55 of 139
Downloaded from www.Manualslib.com manuals search engine 56
76G-74E
MEMO
Page 56 of 139
Downloaded from www.Manualslib.com manuals search engine 5776G-74E
OTHER CONTROLS AND EQUIPMENT
6
OTHER CONTROLS AND EQUIPMENT
Parking Brake Lever.......................................................................................... 6-1
Pedals................................................................................................................... 6-2
Gear Lever........................................................................................................... 6-3
Fuel Filler Cap.................................................................................................... 6-3
Folding Rear Seats............................................................................................ 6-5
Sun Visor............................................................................................................. 6-5
Interior Light Switch.......................................................................................... 6-6
Assist Grips........................................................................................................ 6-6
Bonnet................................................................................................................... 6-6
Frame Hooks (if equipped).............................................................................. 6-7
Cup Holder (if equipped)................................................................................. 6-8
Tyre Changing Tools......................................................................................... 6-8
High Mount Stop Lamp.................................................................................... 6-9
Page 57 of 139
Downloaded from www.Manualslib.com manuals search engine 58
76G-74E
PARKING BRAKE LEVER
Never drive your vehicle with the
parking brake on: rear brake
effectiveness can be reduced from
over heating, brake life may be
shortened, or permanent brake
damage may result.
If the parking brake does not hold
the vehicle securely or does not
fully release, have your vehicle
inspected immediately by an
authorized MARUTI SUZUKI dealer.
Always apply the parking brake fully
before leaving your vehicle or it may
move, causing injury or damage.
When parking, make sure the gear
shift lever for manual transmission is
left in first gear or reverse. Remember,
even though the transmission is in
gear, you must always apply the
parking brake fully. The parking brake lever is located between
the seats. To apply the parking brake, hold
the brake pedal down and pull the parking
brake lever all the way up.
To release the parking brake, hold the brake
pedal down, pull up slightly on the parking
brake lever, push the button on the end of
the lever with your thumb, and lower the
lever to its original position.
w ww w
w WARNING
6-1
w ww w
w WARNING
OTHER CONTROLS AND EQUIPMENT
76G-06-001
76G-06-002
Page 58 of 139
Downloaded from www.Manualslib.com manuals search engine 5976G-74EPEDALS
6-2
Clutch Pedal
1 11 1
1
The clutch pedal is used to disengage the
drive to the wheels when starting the
engine, stopping, or shifting the transmission
lever. Depressing the pedal disengages the
clutch.
Do not drive with your foot resting on
the clutch pedal. It could result in
excessive clutch wear, clutch damage,
or unexpected loss of engine braking.Brake Pedal
2 22 2
2
Your MARUTI SUZUKI vehicle is equipped
with front disc brakes and rear drum brakes.
Depressing the brake pedal applies both
sets of brakes.
You may hear occasional brake squeal
when you apply the brakes. This is a
normal condition caused by environmental
factors such as cold, wet, snow, etc.
If brake squeal is excessive and
occurs each time the brakes are
applied, you should have the brakes
checked by your MARUTI SUZUKI
dealer.
w ww w
w WARNING
CAUTION
w ww w
w WARNING
OTHER CONTROLS AND EQUIPMENTDo not “ride” the brakes by applying
them continuously or resting your foot
on the pedal. This will result in
overheating of the brakes which could
cause unpredictable braking action,
longer stopping distances, or
permanent brake damage.
Accelerator Pedal
3 33 3
3
This pedal controls the speed of the
engine. Depressing the accelerator pedal
increases power output and speed.
76G-06-003
Page 59 of 139
Downloaded from www.Manualslib.com manuals search engine 60
76G-74E
FUEL FILLER CAP
6-3
The fuel filler cap is located on the left rear
side of the vehicle. The fuel filler lid can be
unlocked by pulling up the opener lever (if
equipped) located on the outboard side of
the driver’s seat and locked by simply
closing the lid.
w ww w
w WARNING
OTHER CONTROLS AND EQUIPMENT
w ww w
w WARNING
GEAR LEVER
Your vehicle is equipped with a manual
transmission. The gear change pattern for
manual transmission is shown in the
illustration. For details on how to use the
transmission, refer to USING THE
TRANSMISSION in the OPERATING YOUR
VEHICLE section.
76G-06-00476G-06-005
MANUAL TRANSMISSIONALTO
76G-06-004A
ALTO K10TYPE-1 (ALTO / ALTO K10)
Remove the fuel filler cap slowly. The
fuel may be under pressure and may
spray out, causing injury.
Petrol is extremely flammable. Do not
smoke when refuelling, and make
sure there are no open flames or
sparks in the area.
Page 60 of 139
Downloaded from www.Manualslib.com manuals search engine 6176G-74E
6-4
OTHER CONTROLS AND EQUIPMENTIf you need to replace the fuel cap,
use only a cap specified for your
model. Using an improper fuel cap
can cause a serious malfunction of
the fuel system. You can get the
correct replacement cap from your
MARUTI SUZUKI dealer. The fuel tank filler cap has a "screw-on
ratcheting type" feature.
To remove - turn the cap counter clock-
wise. Turn the cap slowly to allow any
residual pressure to escape.
To install - turn the cap clockwise and
tighten it securely until a "ratcheting"
(clicking) sound is heard. The
"ratcheting" sound indicates that the cap
is on properly.
CAUTION
76G-06-007 76G-06-008
The fuel filler cap is located on the left rear
side of the vehicle. To unlock the fuel filler
lid, turn the key clockwise. To lock turn the
key anticlockwise.
76G-06-006
TYPE-2 (ALTO)EXAMPLE EXAMPLE
