Page 171 of 207
Downloaded from www.Manualslib.com manuals search engine 7-26
INSPECTION AND MAINTENANCE
60MK0-14E
81A283

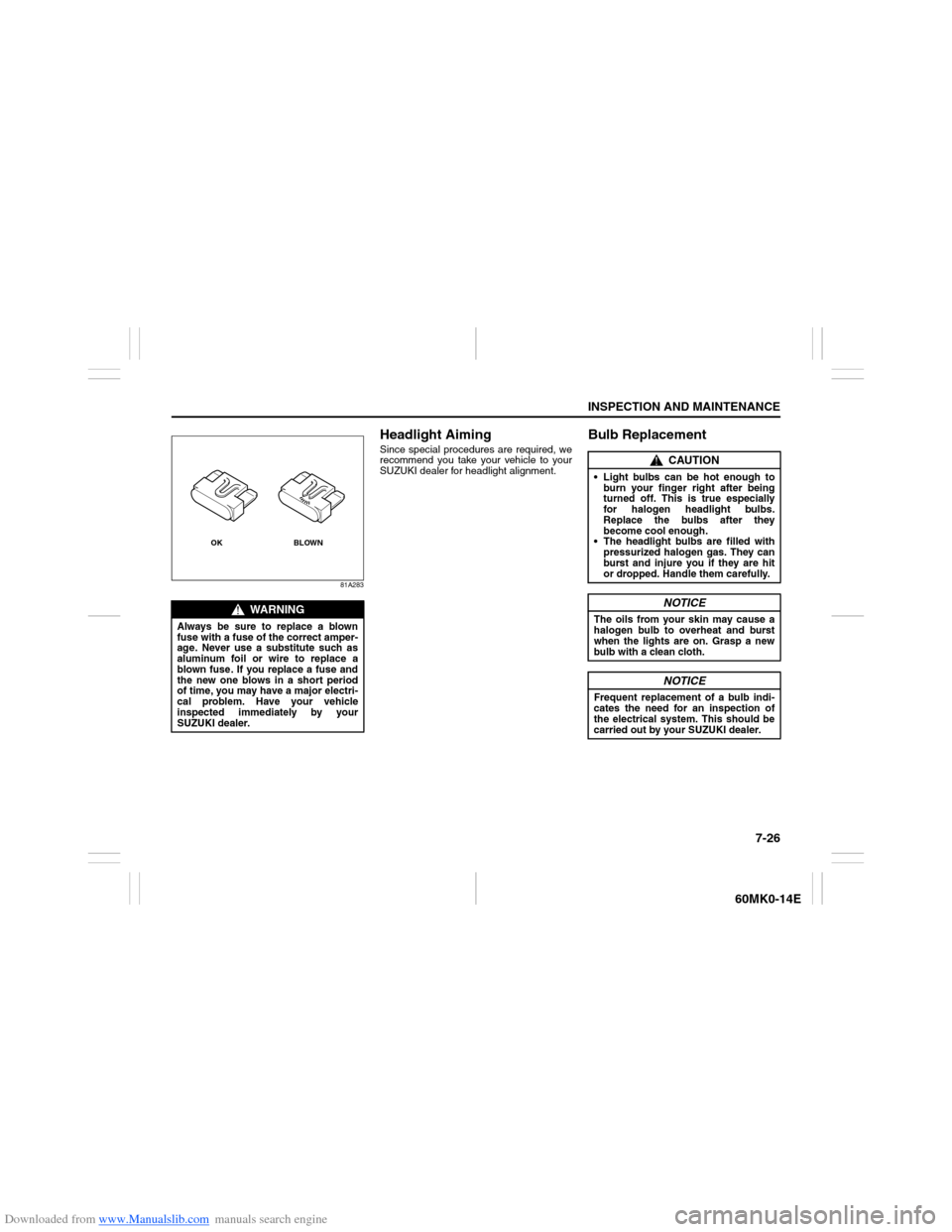

Headlight AimingSince special procedures are required, we
recommend you take your vehicle to your
SUZUKI dealer for headlight alignment.
Bulb Replacement
WARNING
Always be sure to replace a blown
fuse with a fuse of the correct amper-
age. Never use a substitute such as
aluminum foil or wire to replace a
blown fuse. If you replace a fuse and
the new one blows in a short period
of time, you may have a major electri-
cal problem. Have your vehicle
inspected immediately by your
SUZUKI dealer.
BLOWN OK
CAUTION
Light bulbs can be hot enough to
burn your finger right after being
turned off. This is true especially
for halogen headlight bulbs.
Replace the bulbs after they
become cool enough.
The headlight bulbs are filled with
pressurized halogen gas. They can
burst and injure you if they are hit
or dropped. Handle them carefully.
NOTICE
The oils from your skin may cause a
halogen bulb to overheat and burst
when the lights are on. Grasp a new
bulb with a clean cloth.
NOTICE
Frequent replacement of a bulb indi-
cates the need for an inspection of
the electrical system. This should be
carried out by your SUZUKI dealer.
Page 172 of 207
Downloaded from www.Manualslib.com manuals search engine 7-27INSPECTION AND MAINTENANCE
60MK0-14E

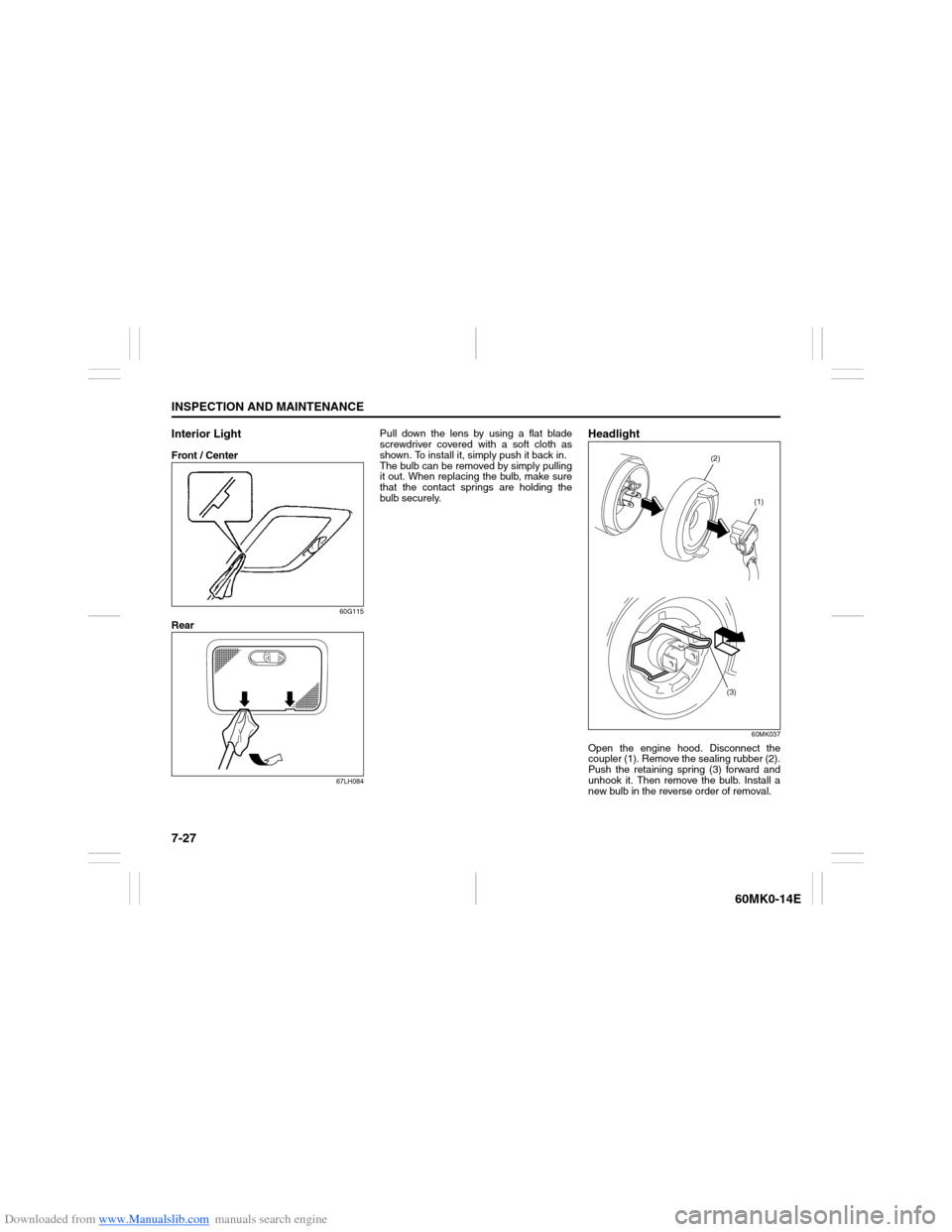

Interior Light Front / Center
60G115
Rear
67LH084
Pull down the lens by using a flat blade
screwdriver covered with a soft cloth as
shown. To install it, simply push it back in.
The bulb can be removed by simply pulling
it out. When replacing the bulb, make sure
that the contact springs are holding the
bulb securely.
Headlight
60MK037
Open the engine hood. Disconnect the
coupler (1). Remove the sealing rubber (2).
Push the retaining spring (3) forward and
unhook it. Then remove the bulb. Install a
new bulb in the reverse order of removal.
(2)
(1)
(3)
Page 173 of 207
Downloaded from www.Manualslib.com manuals search engine 7-28
INSPECTION AND MAINTENANCE
60MK0-14E
60MH050
NOTE:
You can see the position of retaining spring
(3) from the hole of headlight.
Side Turn Signal Light (if equipped)
64J195
As the bulb is built-in type, the light assem-
bly must be replaced. Remove the light
assembly by sliding the light housing to left
with your finger.
Other General LightsBulb holder
54G123
(1) Removal
(2) Installation
To remove a bulb holder from a light hous-
ing, turn the holder counterclockwise and
pull it out. To install the holder, push the
holder in and turn it clockwise.
(3)
(1)
(1) (2)(2)
EXAMPLE
Page 174 of 207
Downloaded from www.Manualslib.com manuals search engine 7-29INSPECTION AND MAINTENANCE
60MK0-14E
Bulb
54G124
(3) Removal
(4) Installation
There are two types of bulb, “Full glass
type” (1) and “Glass/metal type” (2).
To remove and install a full glass type bulb
(1), simply pull out or push in the bulb.
To remove a glass metal type bulb (2) from
a bulb holder, push in the bulb and turn it
counterclockwise. To install a new bulb,
push it in and turn it clockwise.
You can access the individual bulb or bulb
holders as follows.Front turn signal light (1)
Front position light (2)
60MH051
Front fog light (if equipped)
1) Start the engine. Turn the steering
wheel to the opposite side of the replac-
ing fog light to replace the bulb easily.
Then turn off the engine.
60MH052
2) Insert a flat blade screwdriver into the
hole (2) and remove the clips (1) by
twist the driver as shown in the illustra-
tion.
(1)
(2) (3)
(4)EXAMPLE
(1)
(2)
(1)
(2)
EXAMPLE
Page 175 of 207
Downloaded from www.Manualslib.com manuals search engine 7-30
INSPECTION AND MAINTENANCE
60MK0-14E
80JM071

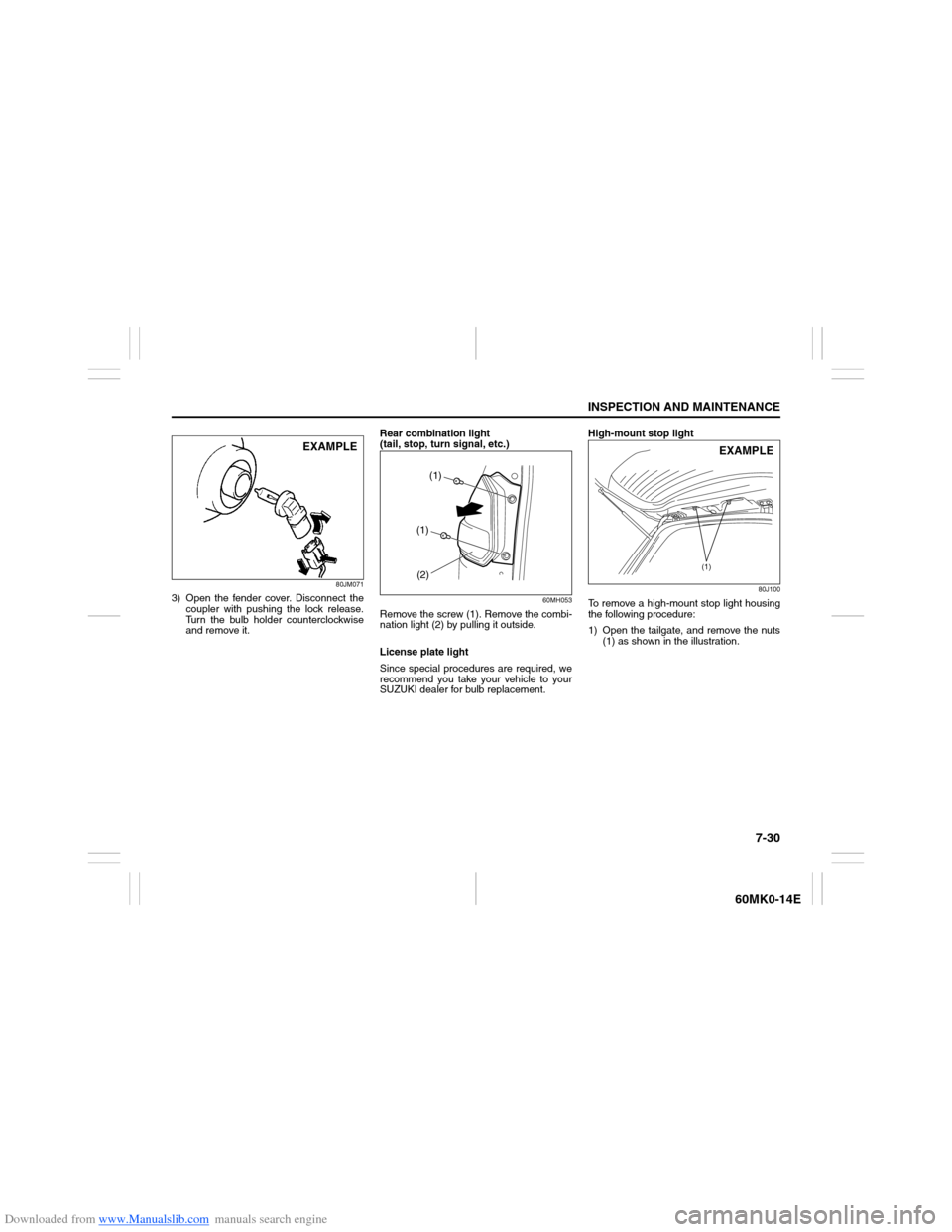

3) Open the fender cover. Disconnect the
coupler with pushing the lock release.
Turn the bulb holder counterclockwise
and remove it.Rear combination light
(tail, stop, turn signal, etc.)
60MH053
Remove the screw (1). Remove the combi-
nation light (2) by pulling it outside.
License plate light
Since special procedures are required, we
recommend you take your vehicle to your
SUZUKI dealer for bulb replacement.High-mount stop light
80J100
To remove a high-mount stop light housing
the following procedure:
1) Open the tailgate, and remove the nuts
(1) as shown in the illustration.
EXAMPLE
(1)
(1)(2)
(1)
EXAMPLE
Page 176 of 207
Downloaded from www.Manualslib.com manuals search engine 7-31INSPECTION AND MAINTENANCE
60MK0-14E
60MH054
2) Close the tailgate. Release the claws
(3) of the light housing by a flat blade
screwdriver, etc. The claws are shown
in the next illustration. Remove a high-
mount stop light housing (2) from the
tailgate.
60MH070
3) Remove the each bulb.
4) Replace the bulbs.
To install a high-mounted stop light
housing in the reverse order of removal.
Wiper Blades
54G129
If the wiper blades become brittle or dam-
aged, or make streaks when wiping,
replace the wiper blades.
To install new wiper blades, follow the pro-
cedures below.
NOTE:
Some wiper blades may be different from
the ones described here depending on
vehicle specifications. If so, consult your
SUZUKI dealer for proper replacement
method.
(2) (3)
EXAMPLE
(3)
NOTICE
To avoid scratching or breaking the
window, do not let the wiper arm
strike the window while replacing the
wiper blade.
Page 177 of 207
Downloaded from www.Manualslib.com manuals search engine 7-32
INSPECTION AND MAINTENANCE
60MK0-14E

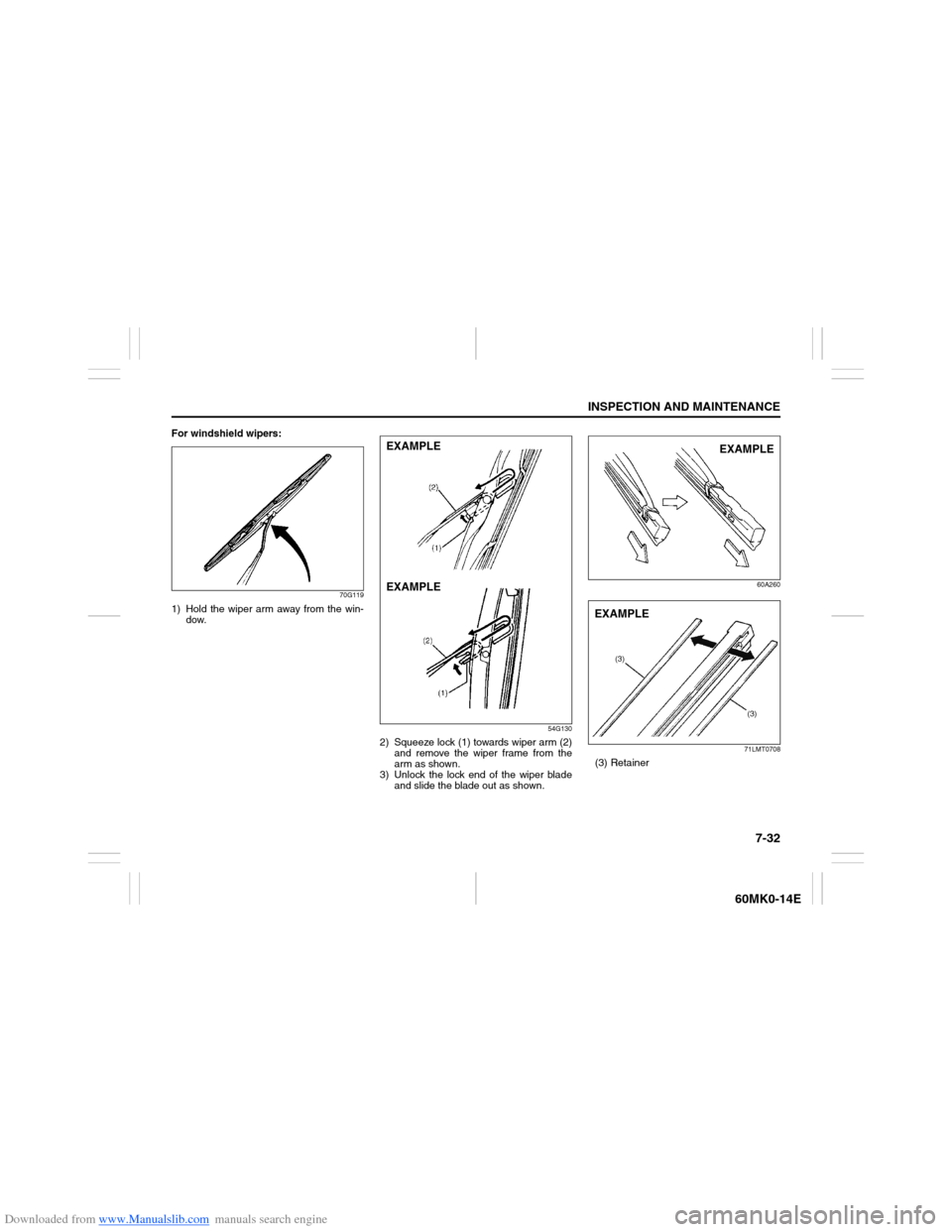

For windshield wipers:
70G119
1) Hold the wiper arm away from the win-
dow.
54G130
2) Squeeze lock (1) towards wiper arm (2)
and remove the wiper frame from the
arm as shown.
3) Unlock the lock end of the wiper blade
and slide the blade out as shown.
60A260
71LMT0708
(3) Retainer
EXAMPLE
EXAMPLE
EXAMPLE
(3)
(3)
EXAMPLE
Page 178 of 207
Downloaded from www.Manualslib.com manuals search engine 7-33INSPECTION AND MAINTENANCE
60MK0-14E

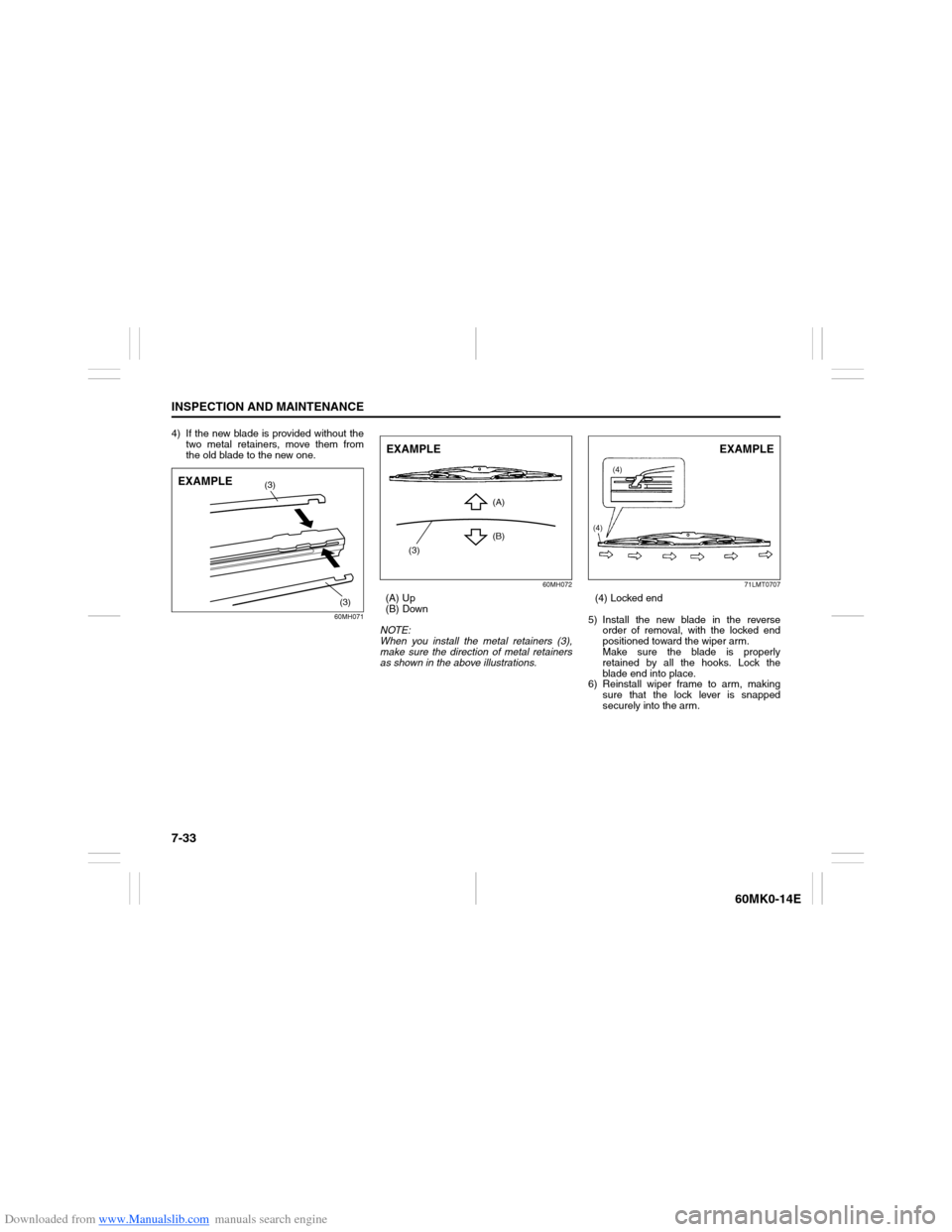

4) If the new blade is provided without the
two metal retainers, move them from
the old blade to the new one.
60MH07160MH072
(A) Up
(B) Down
NOTE:
When you install the metal retainers (3),
make sure the direction of metal retainers
as shown in the above illustrations.
71LMT0707
(4) Locked end
5) Install the new blade in the reverse
order of removal, with the locked end
positioned toward the wiper arm.
Make sure the blade is properly
retained by all the hooks. Lock the
blade end into place.
6) Reinstall wiper frame to arm, making
sure that the lock lever is snapped
securely into the arm.
(3)
(3)
EXAMPLE
(3)(A)
(B)
EXAMPLE
(4)(4)
EXAMPLE
Page 179 of 207
Downloaded from www.Manualslib.com manuals search engine 7-34
INSPECTION AND MAINTENANCE
60MK0-14E

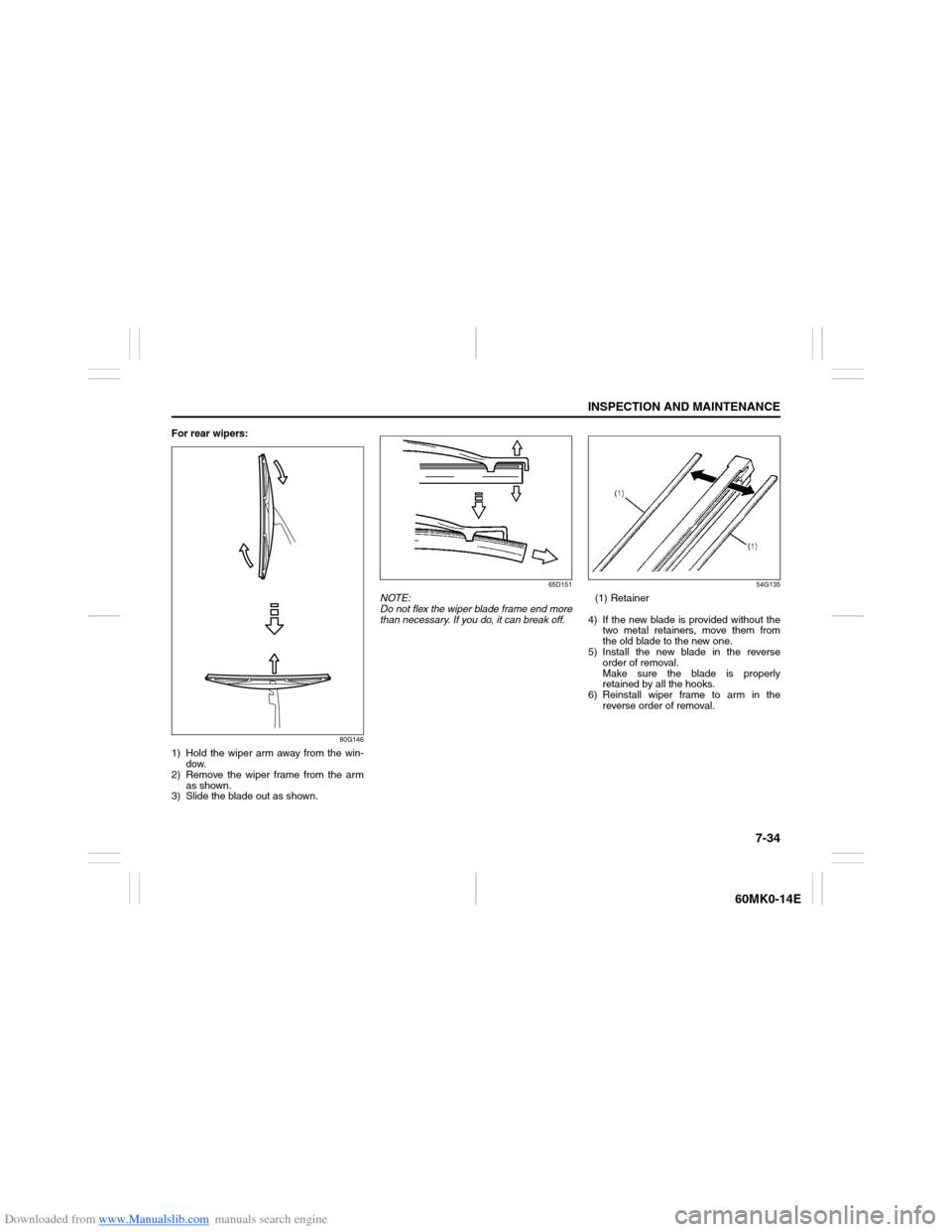

For rear wipers:
80G146
1) Hold the wiper arm away from the win-
dow.
2) Remove the wiper frame from the arm
as shown.
3) Slide the blade out as shown.
65D151
NOTE:
Do not flex the wiper blade frame end more
than necessary. If you do, it can break off.
54G135
(1) Retainer
4) If the new blade is provided without the
two metal retainers, move them from
the old blade to the new one.
5) Install the new blade in the reverse
order of removal.
Make sure the blade is properly
retained by all the hooks.
6) Reinstall wiper frame to arm in the
reverse order of removal.
Page 180 of 207
Downloaded from www.Manualslib.com manuals search engine 7-35INSPECTION AND MAINTENANCE
60MK0-14E

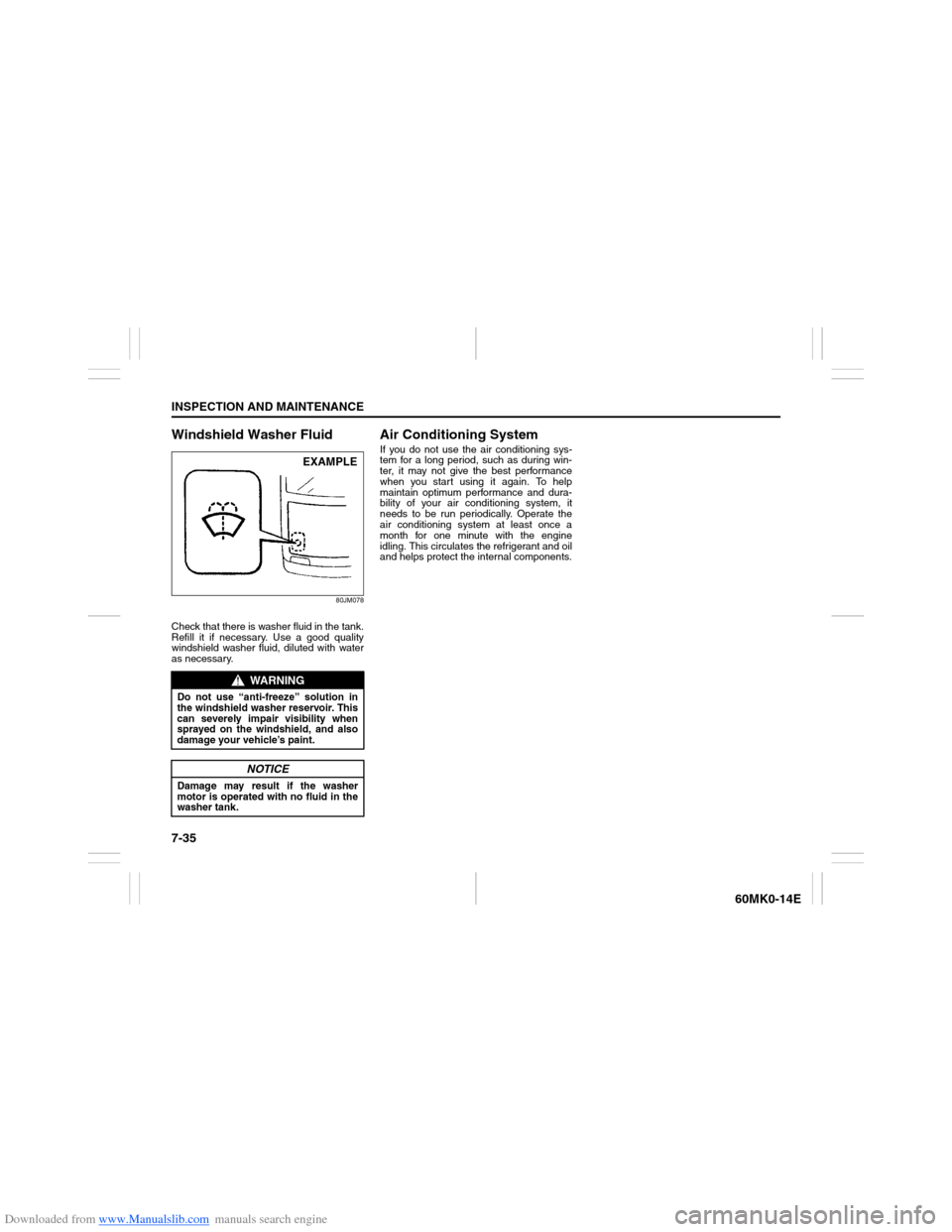

Windshield Washer Fluid
80JM078
Check that there is washer fluid in the tank.
Refill it if necessary. Use a good quality
windshield washer fluid, diluted with water
as necessary.
Air Conditioning SystemIf you do not use the air conditioning sys-
tem for a long period, such as during win-
ter, it may not give the best performance
when you start using it again. To help
maintain optimum performance and dura-
bility of your air conditioning system, it
needs to be run periodically. Operate the
air conditioning system at least once a
month for one minute with the engine
idling. This circulates the refrigerant and oil
and helps protect the internal components.
WARNING
Do not use “anti-freeze” solution in
the windshield washer reservoir. This
can severely impair visibility when
sprayed on the windshield, and also
damage your vehicle’s paint.
NOTICE
Damage may result if the washer
motor is operated with no fluid in the
washer tank.
