SUZUKI GRAND VITARA 1999 2.G Owners Manual

6-1-110 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
DTC P0601 (DTC No.71) Internal Control Module Memory Check Sum Error
SYSTEM DESCRIPTION
Internal control module is installed in ECM (PCM).
DTC DETECTING CONDITION AND TROUBLE AREA
DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool.
3) Start engine and run it at idle if possible.
4) Check DTC by using scan tool.
TROUBLESHOOTING
Substitute a known-good ECM (PCM) and recheck.6 Was idle speed higher than specification in
Step 2?Check FIA valve for mal-
function.
Check abnormal air inhal-
ing from intake manifold,
throttle body, PCV valve
and EVAP canister purge
control system.Check parts or system
which can cause engine
low idle.
Check FIA valve for stuck.
Air inhaling from between
throttle body and MAF
sensor, EGR valve mal-
function (leakage from
valve seat), accessory
engine load, clog of idle
air passage, engine
mechanical, engine over-
heat and etc. Step Action Yes No
DTC DETECTING CONDITION TROUBLE AREA
Data write error or check sum error ECM (PCM)

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-111
DTC P1408 Manifold Absolute Pressure Sensor Circuit Malfunction
WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
DTC CONFIRMATION PROCEDURE
1. MAP sensor
2. ECM (PCM)
DTC DETECTING CONDITION TROUBLE AREA
•While engine is running after being warmed up and
with throttle opening smaller than specification,
higher than 4.6 V manifold absolute pressure sen-
sor output voltage is detected for specified time or
with throttle opening larger than specification, lower
than 0.2 V manifold absolute pressure output volt-
age is detected for specified time.
(2 driving cycle detection logic)•Manifold absolute pressure sensor
•Manifold absolute pressure sensor vacuum pas-
sage
•ECM (PCM)
WARNING:
When performing a road test, select a place where there is no traffic or possibility of a traffic acci-
dent and be very careful during testing to avoid occurrence of an accident.
Road test should be carried out with 2 persons, a driver and a tester, on a level road.
NOTE:
Check to make sure that following condition is satisfied when using this “DTC CONFIRMATION PRO-
CEDURE”.
Intake air temp. : – 8°C (18°F) or higher
Engine coolant temp. : – 8 – 110°C (18 – 230°F)
Altitude (barometric pressure) : 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)

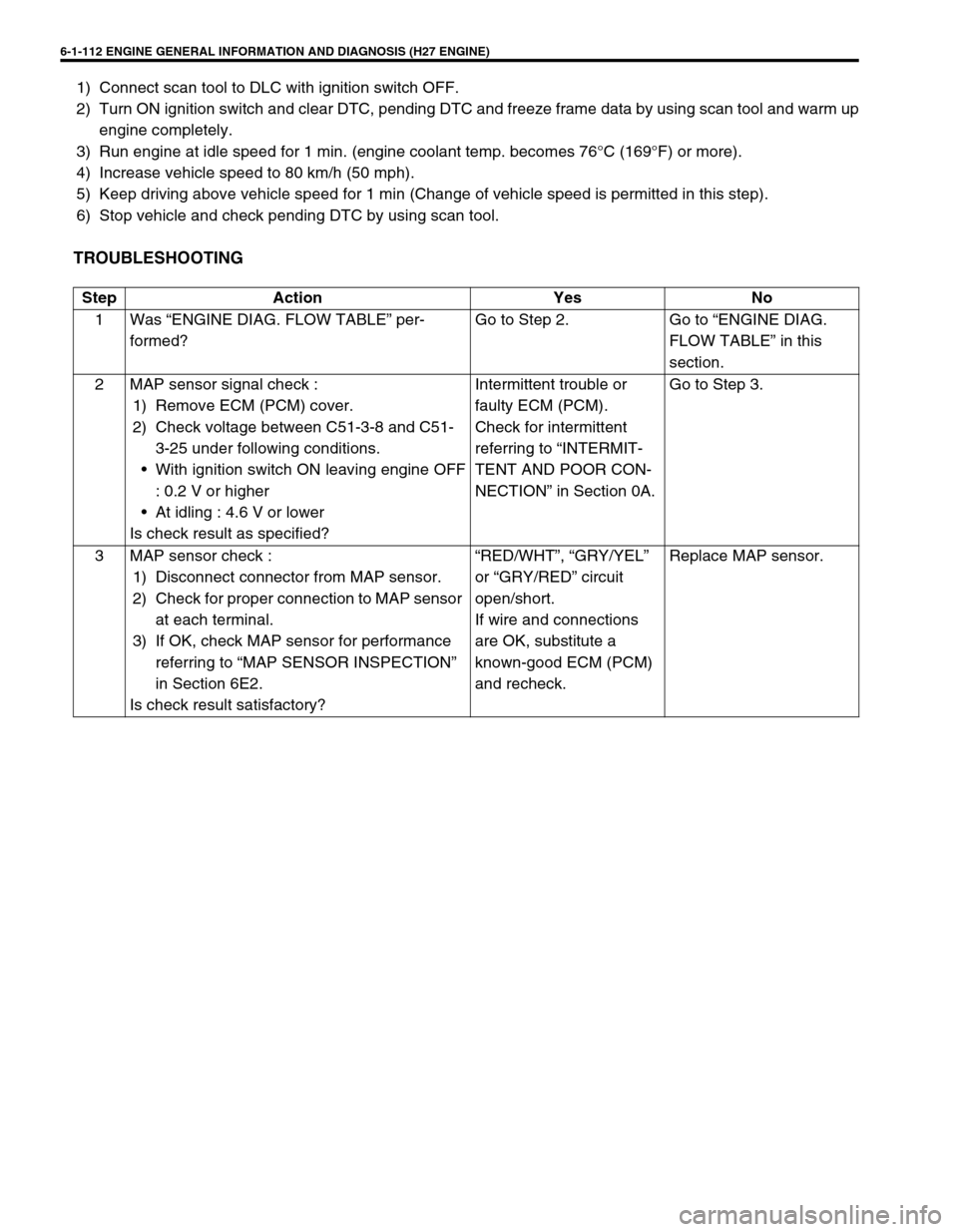

6-1-112 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and warm up
engine completely.
3) Run engine at idle speed for 1 min. (engine coolant temp. becomes 76°C (169°F) or more).
4) Increase vehicle speed to 80 km/h (50 mph).
5) Keep driving above vehicle speed for 1 min (Change of vehicle speed is permitted in this step).
6) Stop vehicle and check pending DTC by using scan tool.
TROUBLESHOOTING
Step Action Yes No
1Was “ENGINE DIAG. FLOW TABLE” per-
formed?Go to Step 2. Go to “ENGINE DIAG.
FLOW TABLE” in this
section.
2 MAP sensor signal check :
1) Remove ECM (PCM) cover.
2) Check voltage between C51-3-8 and C51-
3-25 under following conditions.
•With ignition switch ON leaving engine OFF
: 0.2 V or higher
•At idling : 4.6 V or lower
Is check result as specified?Intermittent trouble or
faulty ECM (PCM).
Check for intermittent
referring to “INTERMIT-
TENT AND POOR CON-
NECTION” in Section 0A.Go to Step 3.
3 MAP sensor check :
1) Disconnect connector from MAP sensor.
2) Check for proper connection to MAP sensor
at each terminal.
3) If OK, check MAP sensor for performance
referring to “MAP SENSOR INSPECTION”
in Section 6E2.
Is check result satisfactory?“RED/WHT”, “GRY/YEL”
or “GRY/RED” circuit
open/short.
If wire and connections
are OK, substitute a
known-good ECM (PCM)
and recheck.Replace MAP sensor.

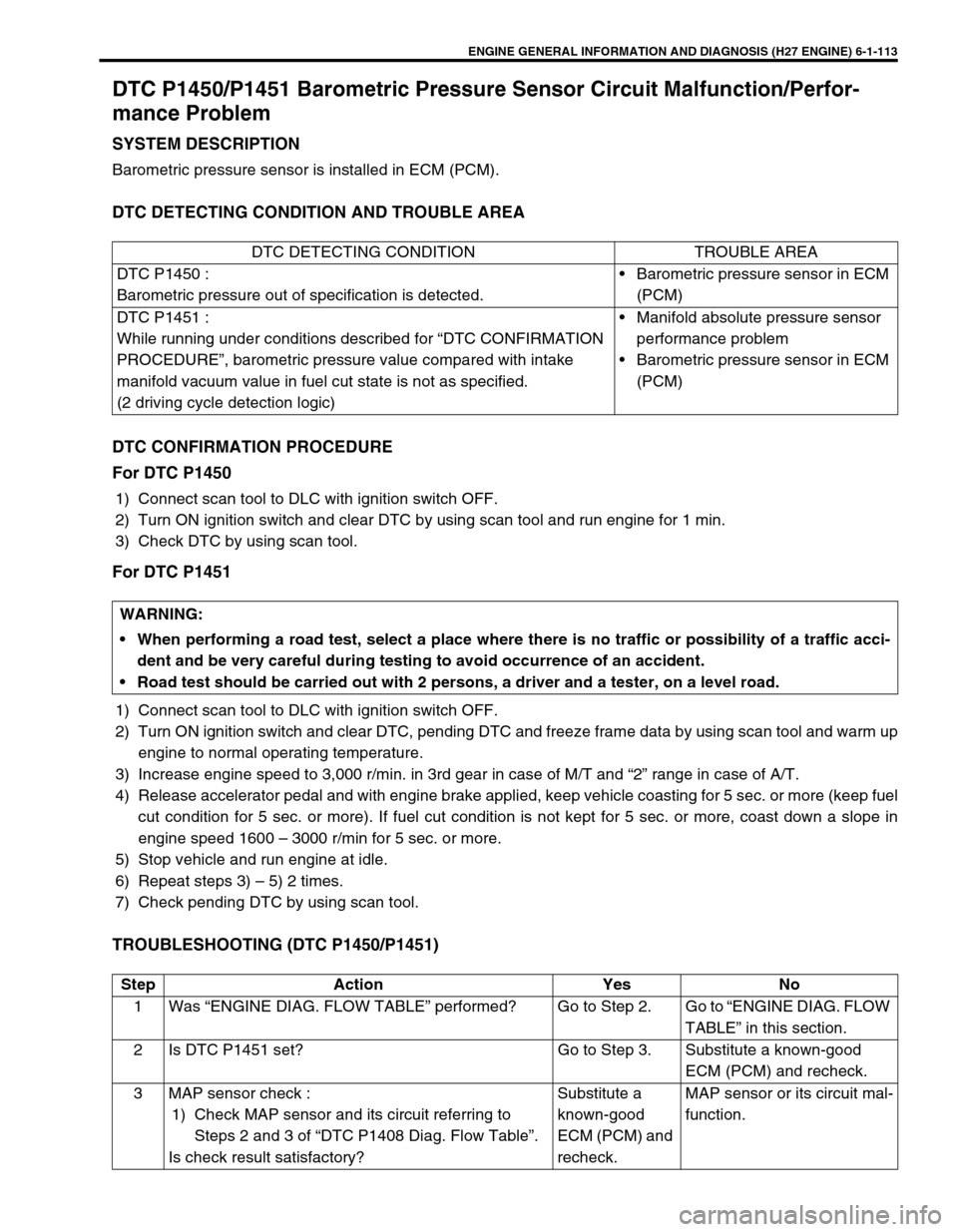

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-113
DTC P1450/P1451 Barometric Pressure Sensor Circuit Malfunction/Perfor-
mance Problem
SYSTEM DESCRIPTION
Barometric pressure sensor is installed in ECM (PCM).
DTC DETECTING CONDITION AND TROUBLE AREA
DTC CONFIRMATION PROCEDURE
For DTC P1450
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC by using scan tool and run engine for 1 min.
3) Check DTC by using scan tool.
For DTC P1451
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and warm up
engine to normal operating temperature.
3) Increase engine speed to 3,000 r/min. in 3rd gear in case of M/T and “2” range in case of A/T.
4) Release accelerator pedal and with engine brake applied, keep vehicle coasting for 5 sec. or more (keep fuel
cut condition for 5 sec. or more). If fuel cut condition is not kept for 5 sec. or more, coast down a slope in
engine speed 1600 – 3000 r/min for 5 sec. or more.
5) Stop vehicle and run engine at idle.
6) Repeat steps 3) – 5) 2 times.
7) Check pending DTC by using scan tool.
TROUBLESHOOTING (DTC P1450/P1451)
DTC DETECTING CONDITION TROUBLE AREA
DTC P1450 :
Barometric pressure out of specification is detected.•Barometric pressure sensor in ECM
(PCM)
DTC P1451 :
While running under conditions described for “DTC CONFIRMATION
PROCEDURE”, barometric pressure value compared with intake
manifold vacuum value in fuel cut state is not as specified.
(2 driving cycle detection logic)•Manifold absolute pressure sensor
performance problem
•Barometric pressure sensor in ECM
(PCM)
WARNING:
When performing a road test, select a place where there is no traffic or possibility of a traffic acci-
dent and be very careful during testing to avoid occurrence of an accident.
Road test should be carried out with 2 persons, a driver and a tester, on a level road.
Step Action Yes No
1Was “ENGINE DIAG. FLOW TABLE” performed? Go to Step 2. Go to “ENGINE DIAG. FLOW
TABLE” in this section.
2 Is DTC P1451 set? Go to Step 3. Substitute a known-good
ECM (PCM) and recheck.
3 MAP sensor check :
1) Check MAP sensor and its circuit referring to
Steps 2 and 3 of “DTC P1408 Diag. Flow Table”.
Is check result satisfactory?Substitute a
known-good
ECM (PCM) and
recheck.MAP sensor or its circuit mal-
function.

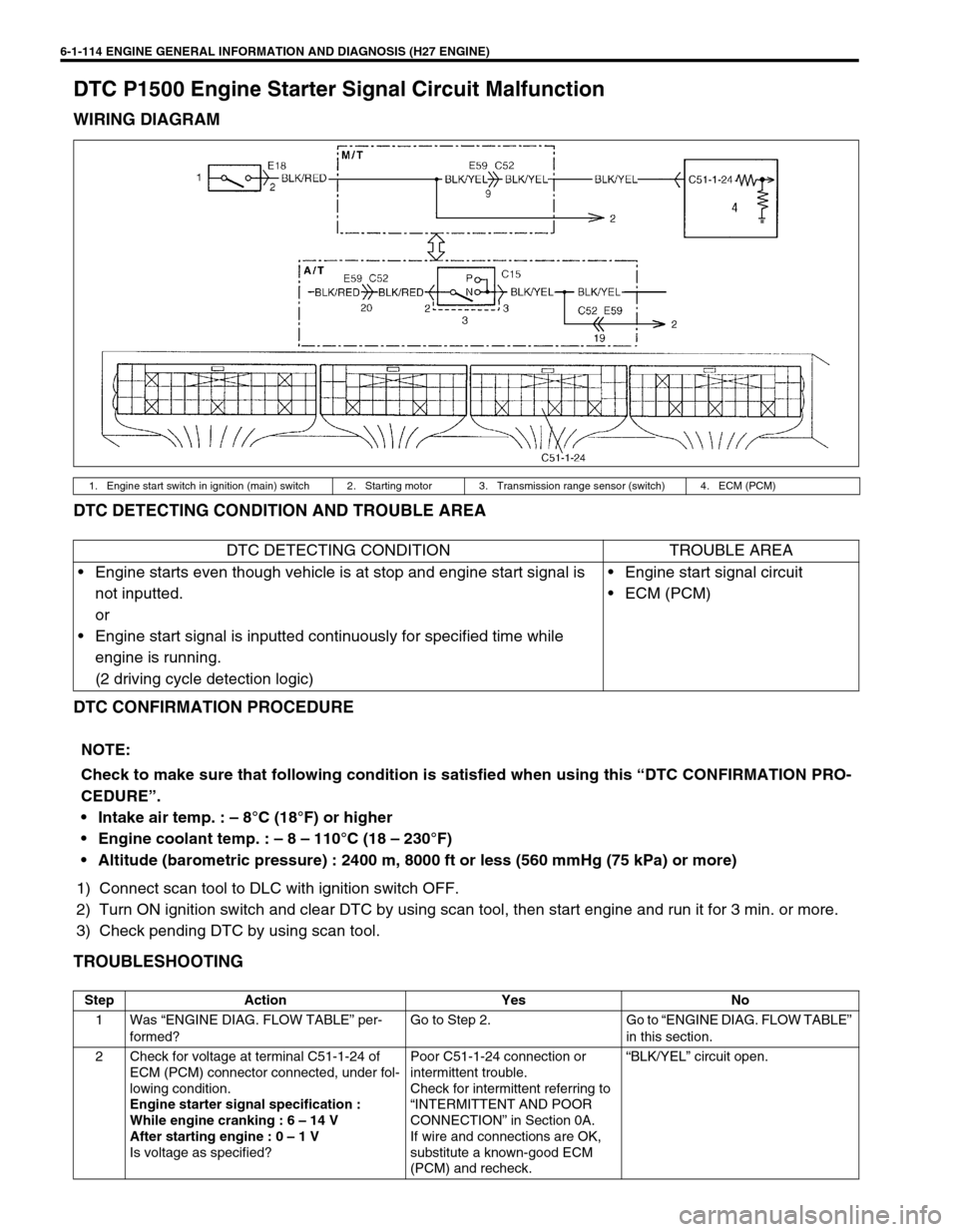

6-1-114 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
DTC P1500 Engine Starter Signal Circuit Malfunction
WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC by using scan tool, then start engine and run it for 3 min. or more.
3) Check pending DTC by using scan tool.
TROUBLESHOOTING
1. Engine start switch in ignition (main) switch 2. Starting motor 3. Transmission range sensor (switch) 4. ECM (PCM)
DTC DETECTING CONDITION TROUBLE AREA
•Engine starts even though vehicle is at stop and engine start signal is
not inputted.
or
•Engine start signal is inputted continuously for specified time while
engine is running.
(2 driving cycle detection logic)•Engine start signal circuit
•ECM (PCM)
NOTE:
Check to make sure that following condition is satisfied when using this “DTC CONFIRMATION PRO-
CEDURE”.
Intake air temp. : – 8°C (18°F) or higher
Engine coolant temp. : – 8 – 110°C (18 – 230°F)
Altitude (barometric pressure) : 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)
Step Action Yes No
1Was “ENGINE DIAG. FLOW TABLE” per-
formed?Go to Step 2. Go to “ENGINE DIAG. FLOW TABLE”
in this section.
2 Check for voltage at terminal C51-1-24 of
ECM (PCM) connector connected, under fol-
lowing condition.
Engine starter signal specification :
While engine cranking : 6 – 14 V
After starting engine : 0 – 1 V
Is voltage as specified?Poor C51-1-24 connection or
intermittent trouble.
Check for intermittent referring to
“INTERMITTENT AND POOR
CONNECTION” in Section 0A.
If wire and connections are OK,
substitute a known-good ECM
(PCM) and recheck.“BLK/YEL” circuit open.

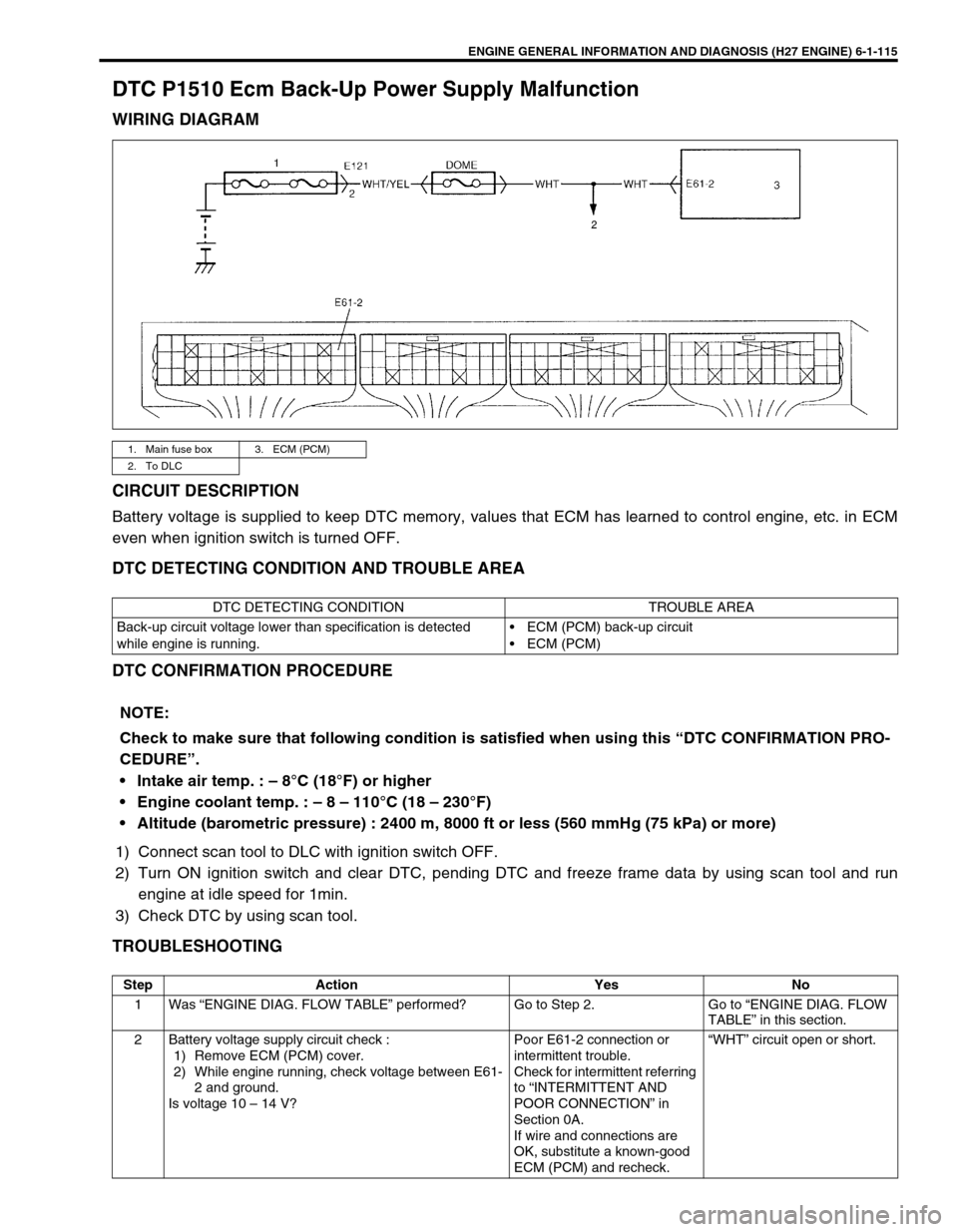

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-115
DTC P1510 Ecm Back-Up Power Supply Malfunction
WIRING DIAGRAM
CIRCUIT DESCRIPTION
Battery voltage is supplied to keep DTC memory, values that ECM has learned to control engine, etc. in ECM
even when ignition switch is turned OFF.
DTC DETECTING CONDITION AND TROUBLE AREA
DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run
engine at idle speed for 1min.
3) Check DTC by using scan tool.
TROUBLESHOOTING
1. Main fuse box 3. ECM (PCM)
2. To DLC
DTC DETECTING CONDITION TROUBLE AREA
Back-up circuit voltage lower than specification is detected
while engine is running.•ECM (PCM) back-up circuit
•ECM (PCM)
NOTE:
Check to make sure that following condition is satisfied when using this “DTC CONFIRMATION PRO-
CEDURE”.
Intake air temp. : – 8°C (18°F) or higher
Engine coolant temp. : – 8 – 110°C (18 – 230°F)
Altitude (barometric pressure) : 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)
Step Action Yes No
1Was “ENGINE DIAG. FLOW TABLE” performed? Go to Step 2. Go to “ENGINE DIAG. FLOW
TABLE” in this section.
2 Battery voltage supply circuit check :
1) Remove ECM (PCM) cover.
2) While engine running, check voltage between E61-
2 and ground.
Is voltage 10 – 14 V?Poor E61-2 connection or
intermittent trouble.
Check for intermittent referring
to “INTERMITTENT AND
POOR CONNECTION” in
Section 0A.
If wire and connections are
OK, substitute a known-good
ECM (PCM) and recheck.“WHT” circuit open or short.

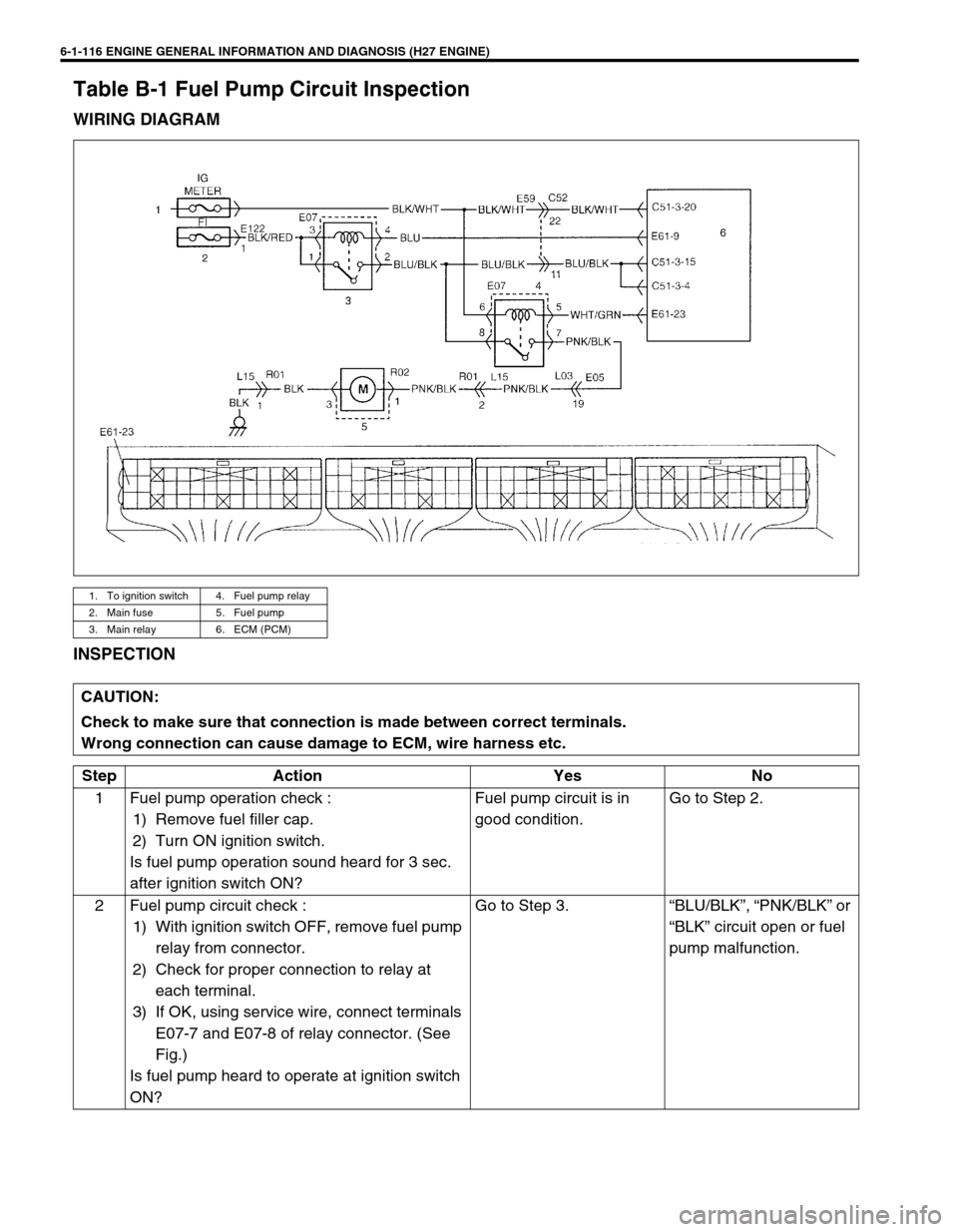

6-1-116 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
Table B-1 Fuel Pump Circuit Inspection
WIRING DIAGRAM
INSPECTION
1. To ignition switch 4. Fuel pump relay
2. Main fuse 5. Fuel pump
3. Main relay 6. ECM (PCM)
CAUTION:
Check to make sure that connection is made between correct terminals.
Wrong connection can cause damage to ECM, wire harness etc.
Step Action Yes No
1 Fuel pump operation check :
1) Remove fuel filler cap.
2) Turn ON ignition switch.
Is fuel pump operation sound heard for 3 sec.
after ignition switch ON?Fuel pump circuit is in
good condition.Go to Step 2.
2 Fuel pump circuit check :
1) With ignition switch OFF, remove fuel pump
relay from connector.
2) Check for proper connection to relay at
each terminal.
3) If OK, using service wire, connect terminals
E07-7 and E07-8 of relay connector. (See
Fig.)
Is fuel pump heard to operate at ignition switch
ON?Go to Step 3.“BLU/BLK”, “PNK/BLK” or
“BLK” circuit open or fuel
pump malfunction.

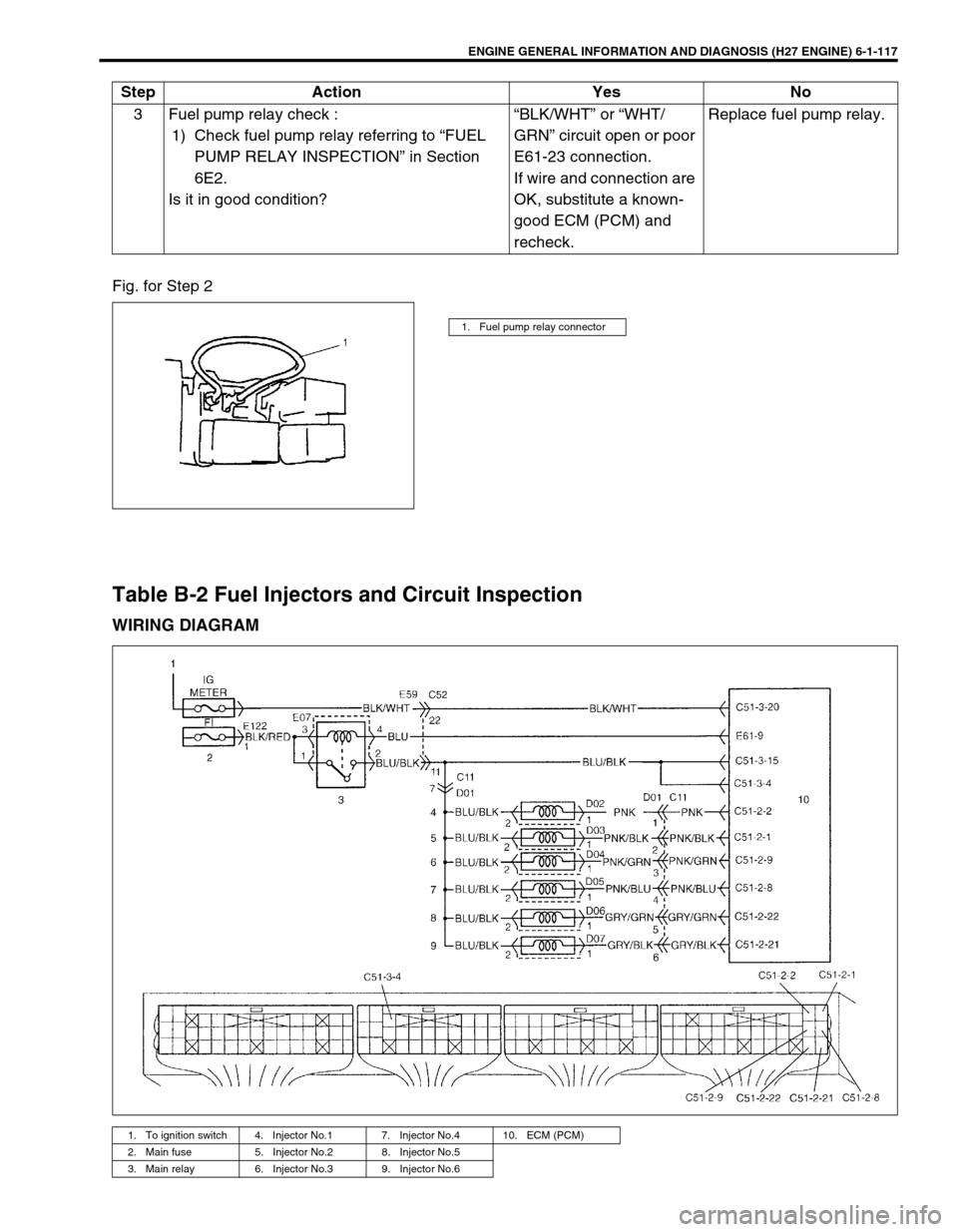

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-117
Fig. for Step 2
Table B-2 Fuel Injectors and Circuit Inspection
WIRING DIAGRAM
3 Fuel pump relay check :
1) Check fuel pump relay referring to “FUEL
PUMP RELAY INSPECTION” in Section
6E2.
Is it in good condition?“BLK/WHT” or “WHT/
GRN” circuit open or poor
E61-23 connection.
If wire and connection are
OK, substitute a known-
good ECM (PCM) and
recheck.Replace fuel pump relay. Step Action Yes No
1. Fuel pump relay connector
1. To ignition switch 4. Injector No.1 7. Injector No.4 10. ECM (PCM)
2. Main fuse 5. Injector No.2 8. Injector No.5
3. Main relay 6. Injector No.3 9. Injector No.6

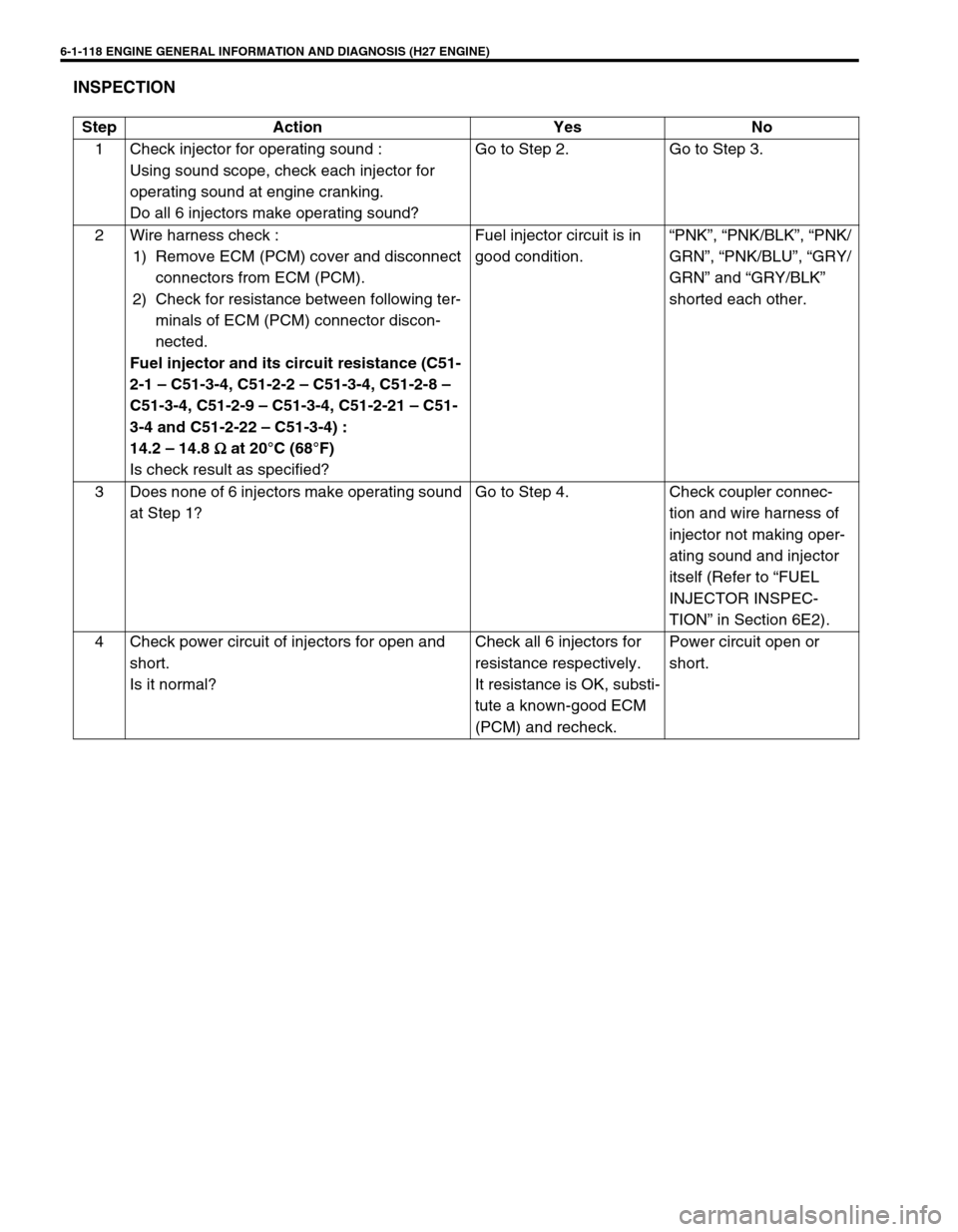

6-1-118 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
INSPECTION
Step Action Yes No
1 Check injector for operating sound :
Using sound scope, check each injector for
operating sound at engine cranking.
Do all 6 injectors make operating sound?Go to Step 2. Go to Step 3.
2 Wire harness check :
1) Remove ECM (PCM) cover and disconnect
connectors from ECM (PCM).
2) Check for resistance between following ter-
minals of ECM (PCM) connector discon-
nected.
Fuel injector and its circuit resistance (C51-
2-1 – C51-3-4, C51-2-2 – C51-3-4, C51-2-8 –
C51-3-4, C51-2-9 – C51-3-4, C51-2-21 – C51-
3-4 and C51-2-22 – C51-3-4) :
14.2 – 14.8
Ω
ΩΩ Ω at 20°C (68°F)
Is check result as specified?Fuel injector circuit is in
good condition.“PNK”, “PNK/BLK”, “PNK/
GRN”, “PNK/BLU”, “GRY/
GRN” and “GRY/BLK”
shorted each other.
3 Does none of 6 injectors make operating sound
at Step 1?Go to Step 4. Check coupler connec-
tion and wire harness of
injector not making oper-
ating sound and injector
itself (Refer to “FUEL
INJECTOR INSPEC-
TION” in Section 6E2).
4 Check power circuit of injectors for open and
short.
Is it normal?Check all 6 injectors for
resistance respectively.
It resistance is OK, substi-
tute a known-good ECM
(PCM) and recheck.Power circuit open or
short.

ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-119

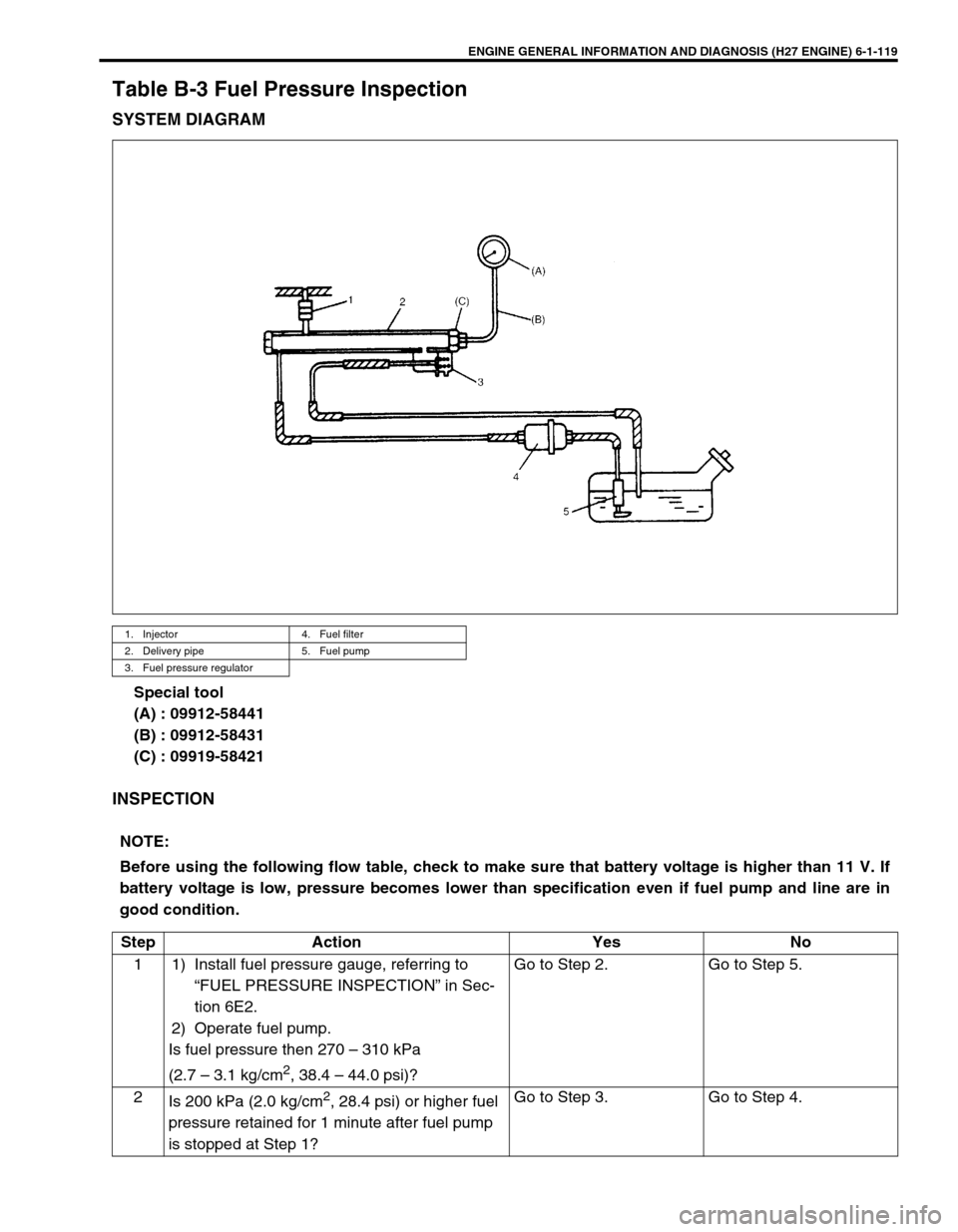

Table B-3 Fuel Pressure Inspection
SYSTEM DIAGRAM
Special tool
(A) : 09912-58441
(B) : 09912-58431
(C) : 09919-58421
INSPECTION
1. Injector 4. Fuel filter
2. Delivery pipe 5. Fuel pump
3. Fuel pressure regulator
NOTE:
Before using the following flow table, check to make sure that battery voltage is higher than 11 V. If
battery voltage is low, pressure becomes lower than specification even if fuel pump and line are in
good condition.
Step Action Yes No
1 1) Install fuel pressure gauge, referring to
“FUEL PRESSURE INSPECTION” in Sec-
tion 6E2.
2) Operate fuel pump.
Is fuel pressure then 270 – 310 kPa
(2.7 – 3.1 kg/cm
2, 38.4 – 44.0 psi)?Go to Step 2. Go to Step 5.
2
Is 200 kPa (2.0 kg/cm
2, 28.4 psi) or higher fuel
pressure retained for 1 minute after fuel pump
is stopped at Step 1?Go to Step 3. Go to Step 4.
