Page 281 of 656

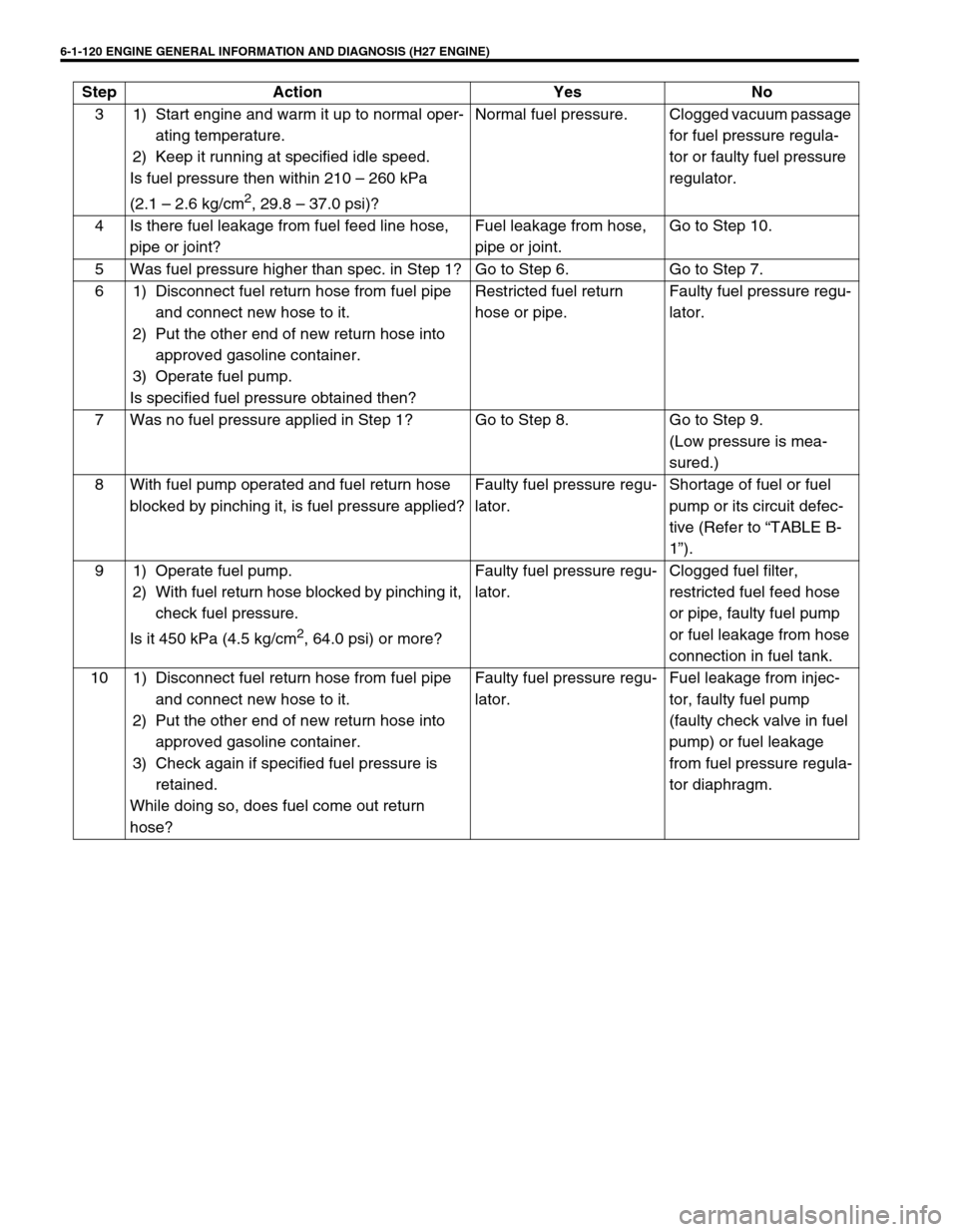

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6-1-120 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
3 1) Start engine and warm it up to normal oper-
ating temperature.
2) Keep it running at specified idle speed.
Is fuel pressure then with

Page 282 of 656

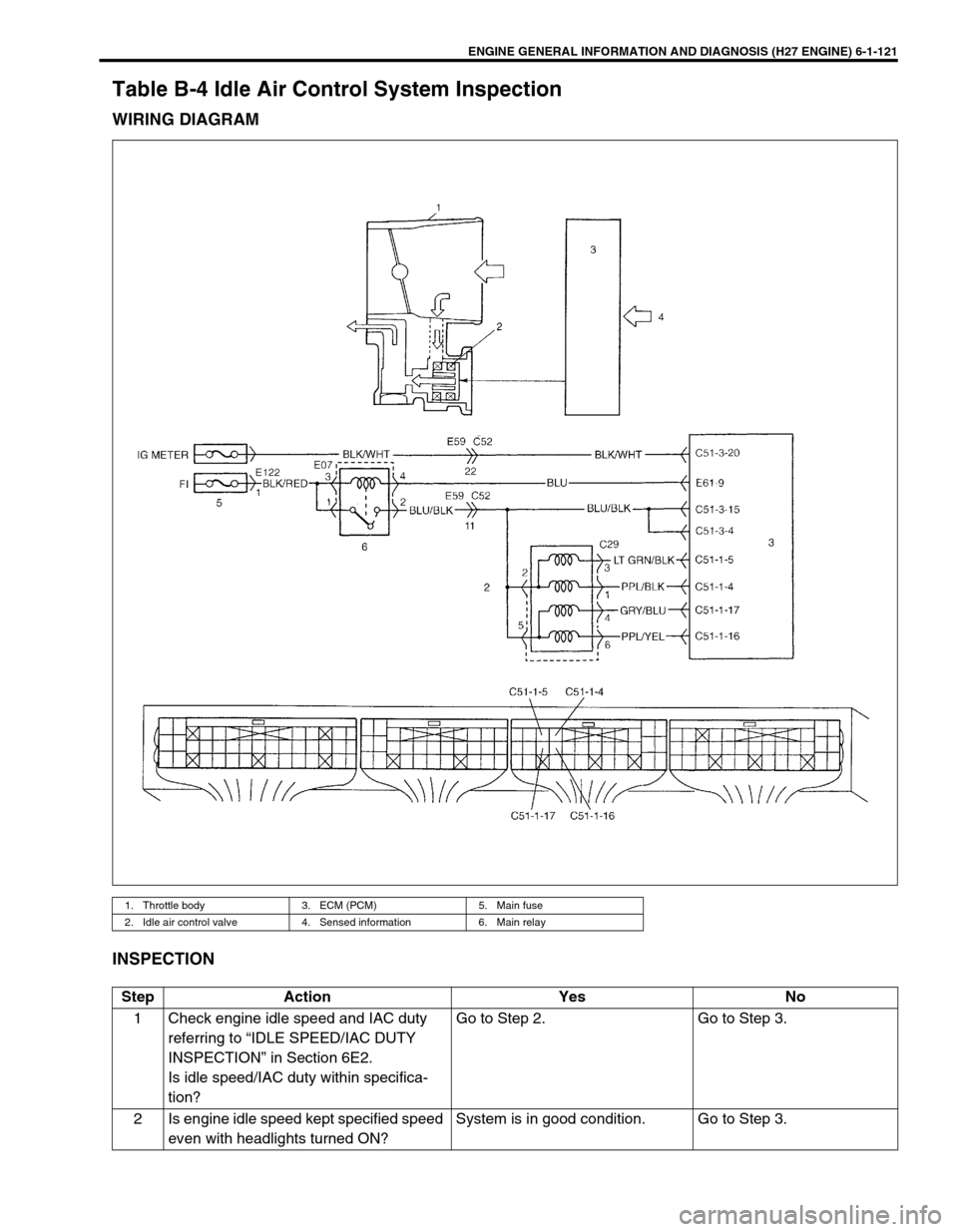

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-121
Table B-4 Idle Air Control System Inspection
WIRING DIAGRAM
INSPECTION
1. Throttle body 3. ECM (PCM) 5. Main fuse
2. Idle air control valv

Page 283 of 656

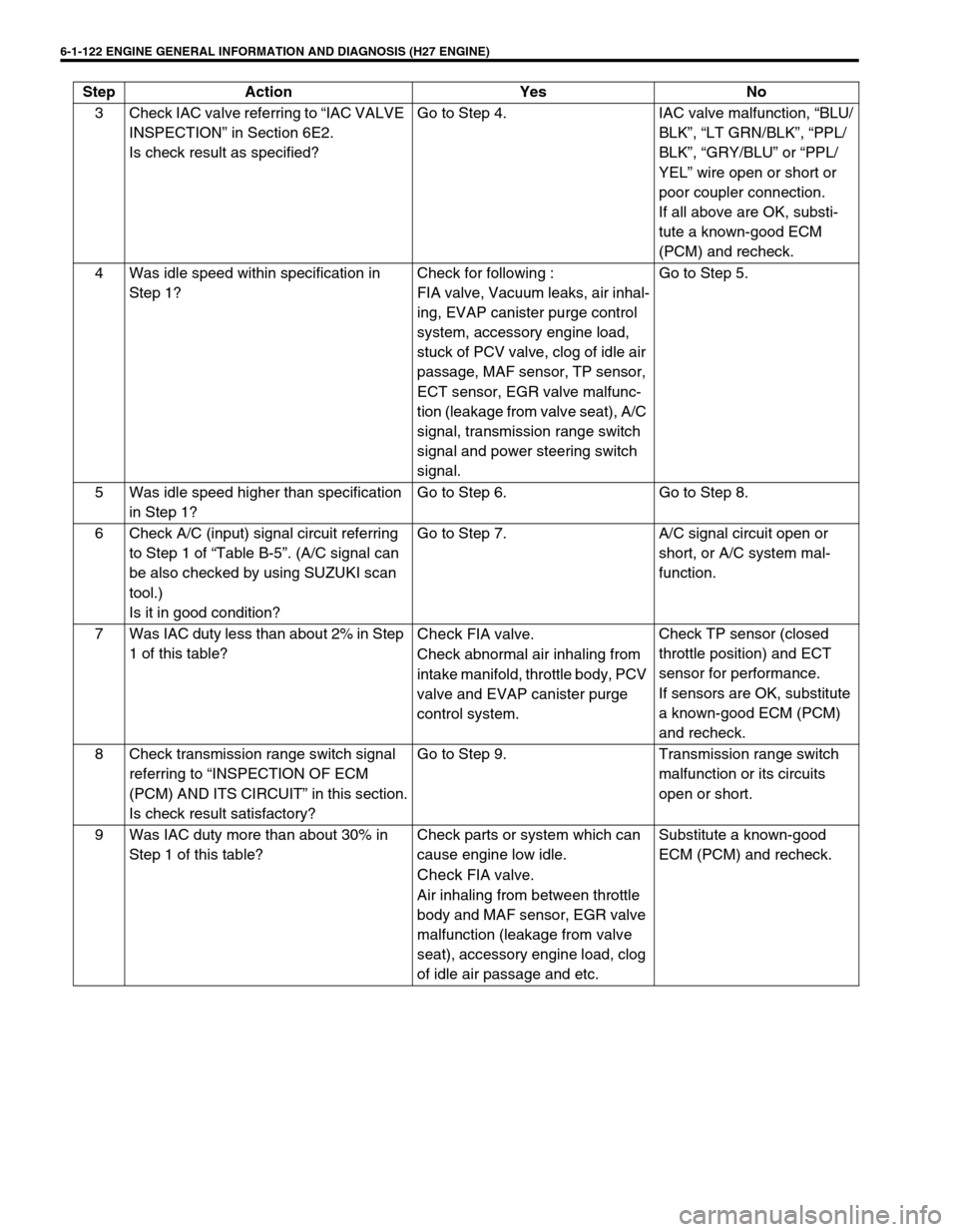

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6-1-122 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
3 Check IAC valve referring to “IAC VALVE
INSPECTION” in Section 6E2.
Is check result as specified?Go to Step 4. IAC valve malfunctio

Page 284 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-123

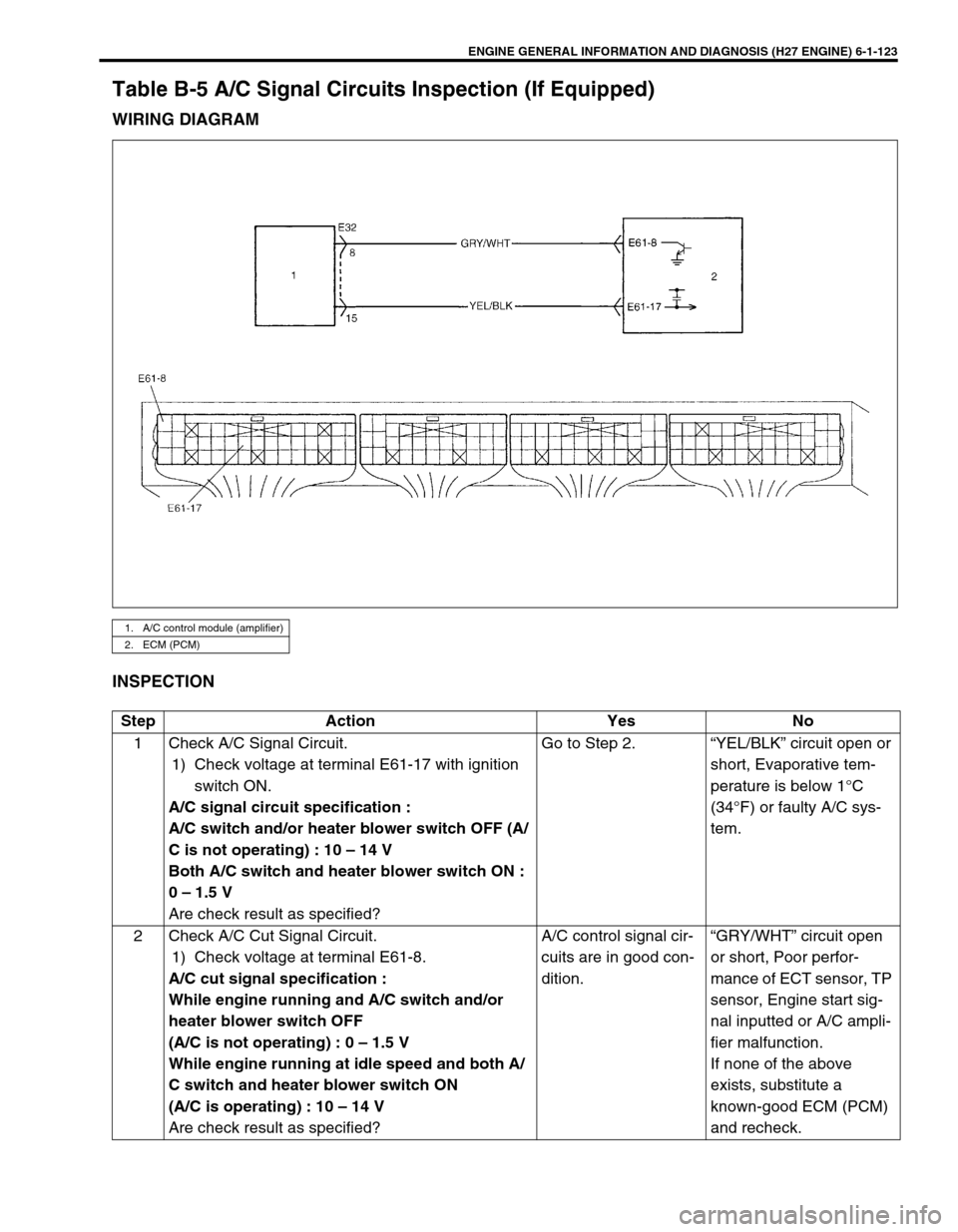

Table B-5 A/C Signal Circuits Inspection (If Equipped)
WIRING DIAGRAM
INSPECTION
1. A/C control module (amplifier)
2. ECM (PCM)
Step Actio

Page 285 of 656

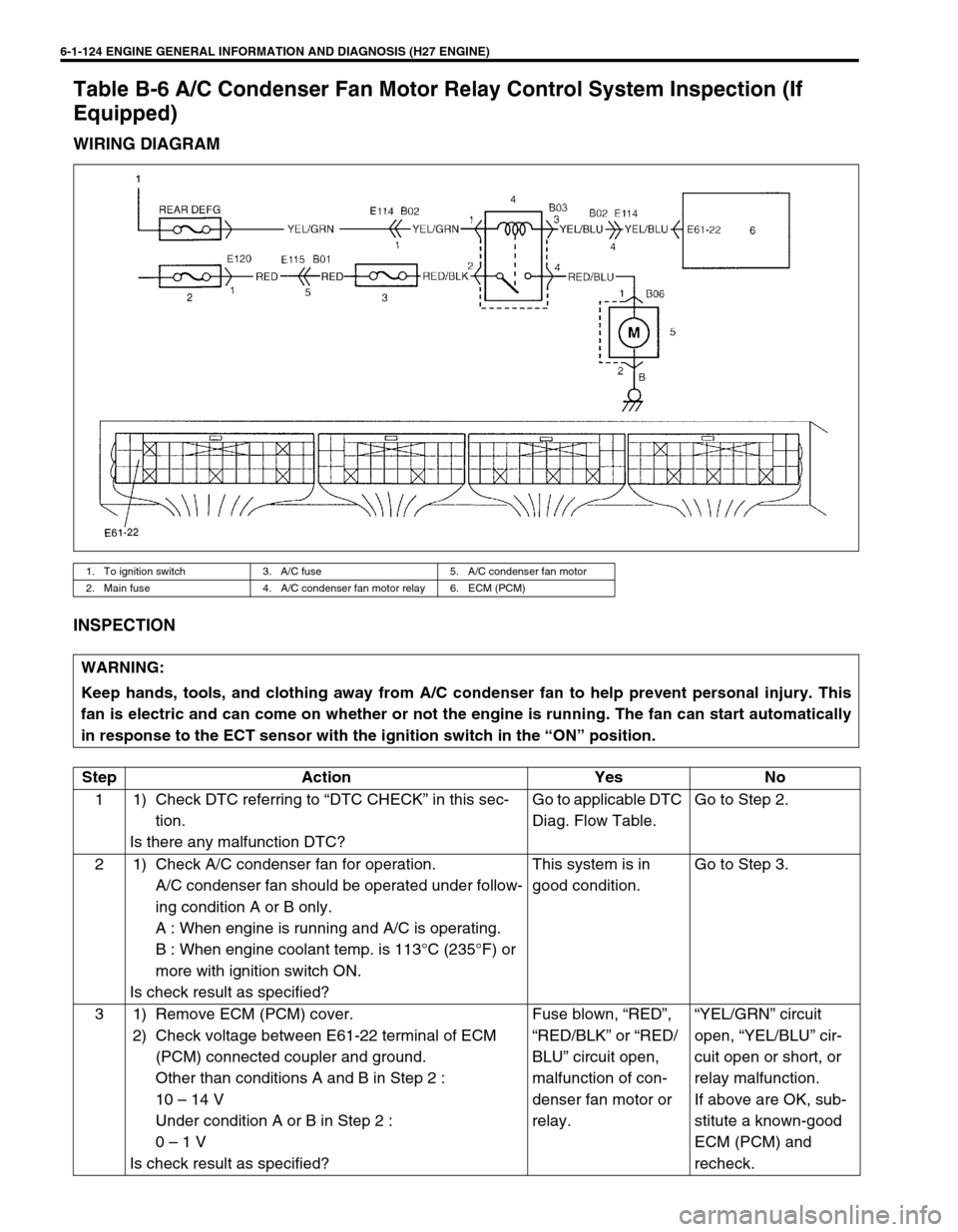

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6-1-124 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)
Table B-6 A/C Condenser Fan Motor Relay Control System Inspection (If
Equipped)
WIRING DIAGRAM
INSPECTION
1. To ignition switch 3. A/C fu

Page 286 of 656

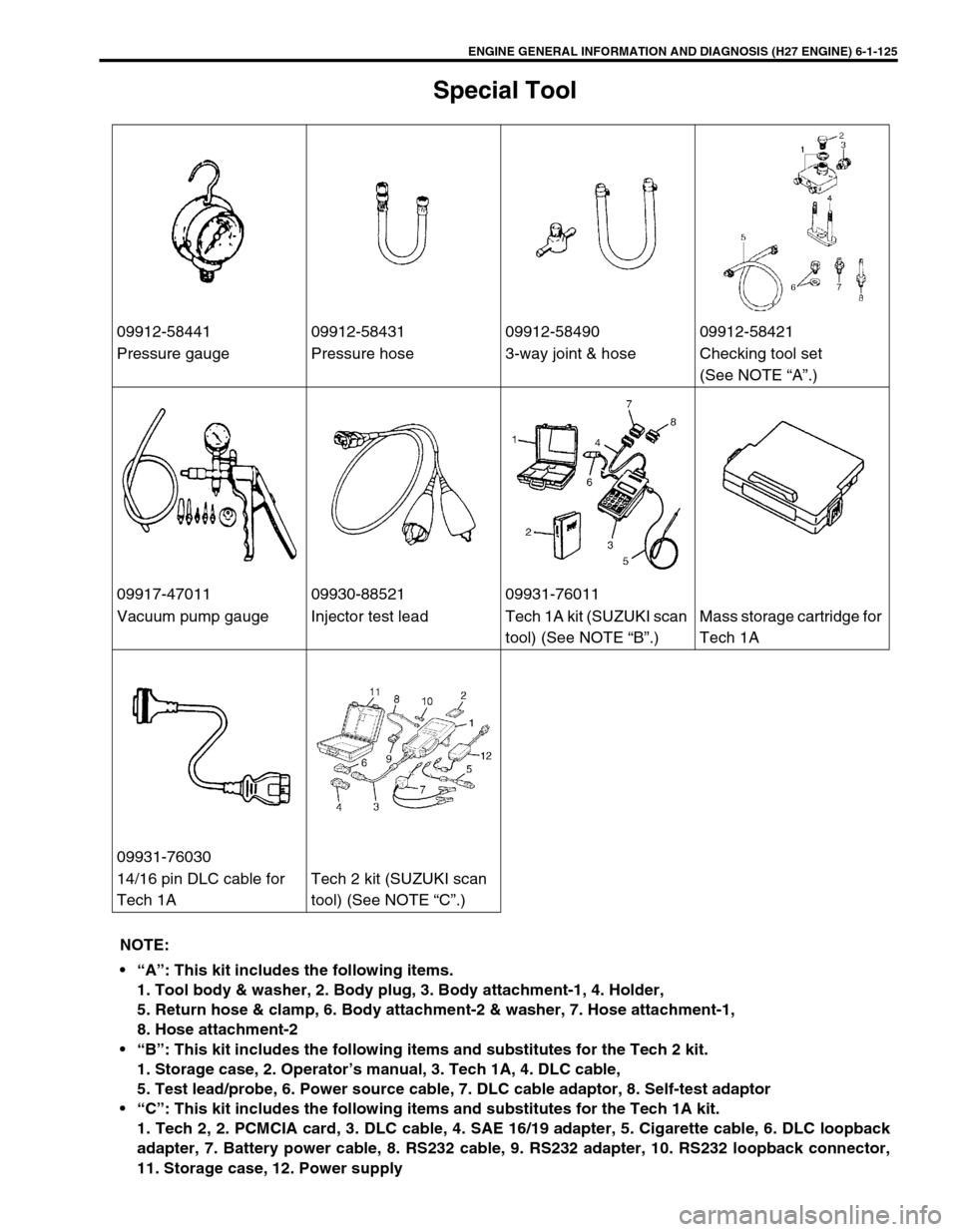

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE) 6-1-125
Special Tool
09912-58441 09912-58431 09912-58490 09912-58421
Pressure gauge Pressure hose 3-way joint & hose Checking tool set
(See NOTE

Page 287 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6-1-126 ENGINE GENERAL INFORMATION AND DIAGNOSIS (H27 ENGINE)

Page 288 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE MECHANICAL (H27 ENGINE) 6A2-1
6A2
SECTION 6A2
ENGINE MECHANICAL (H27 ENGINE)
CONTENTS
On-Vehicle Service........................................6A2-2
Throttle Body and Intake Manifold .........

Page 289 of 656

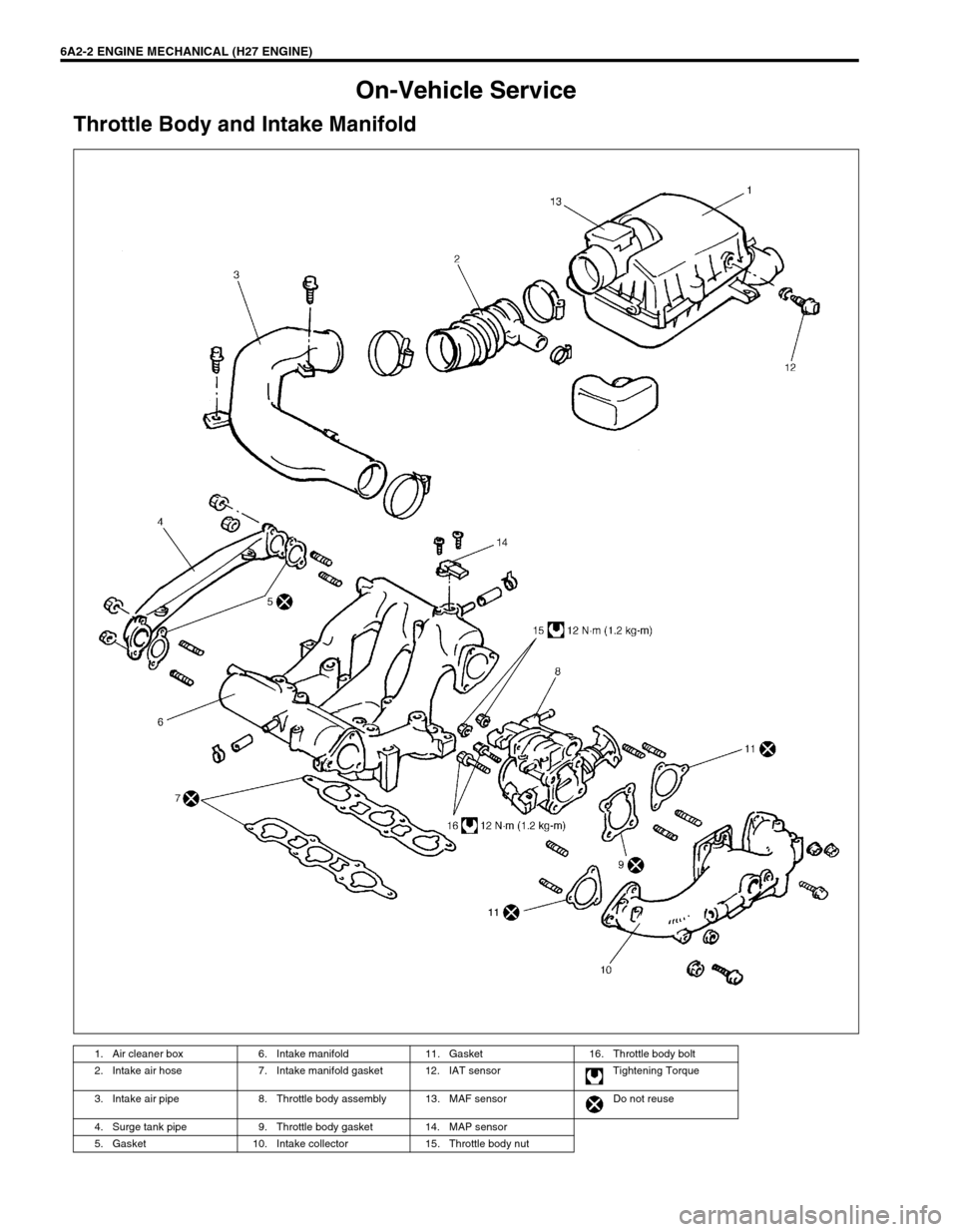

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6A2-2 ENGINE MECHANICAL (H27 ENGINE)
On-Vehicle Service
Throttle Body and Intake Manifold
1. Air cleaner box 6. Intake manifold 11. Gasket 16. Throttle body bolt
2. Intake air hose 7. Intake manifold

Page 290 of 656

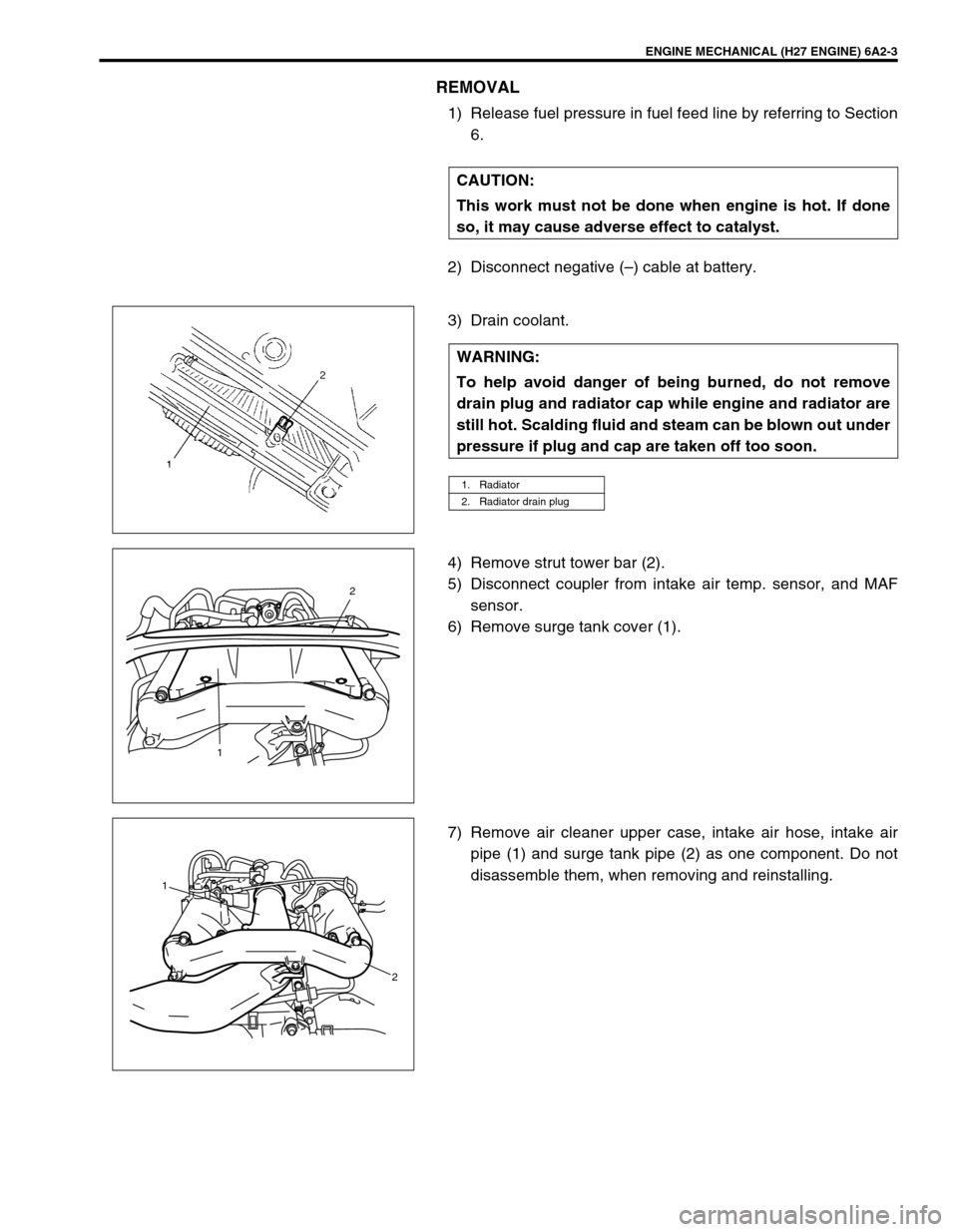

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE MECHANICAL (H27 ENGINE) 6A2-3
REMOVAL
1) Release fuel pressure in fuel feed line by referring to Section
6.
2) Disconnect negative (–) cable at battery.
3) Drain coolant.
4) Remove strut towe
