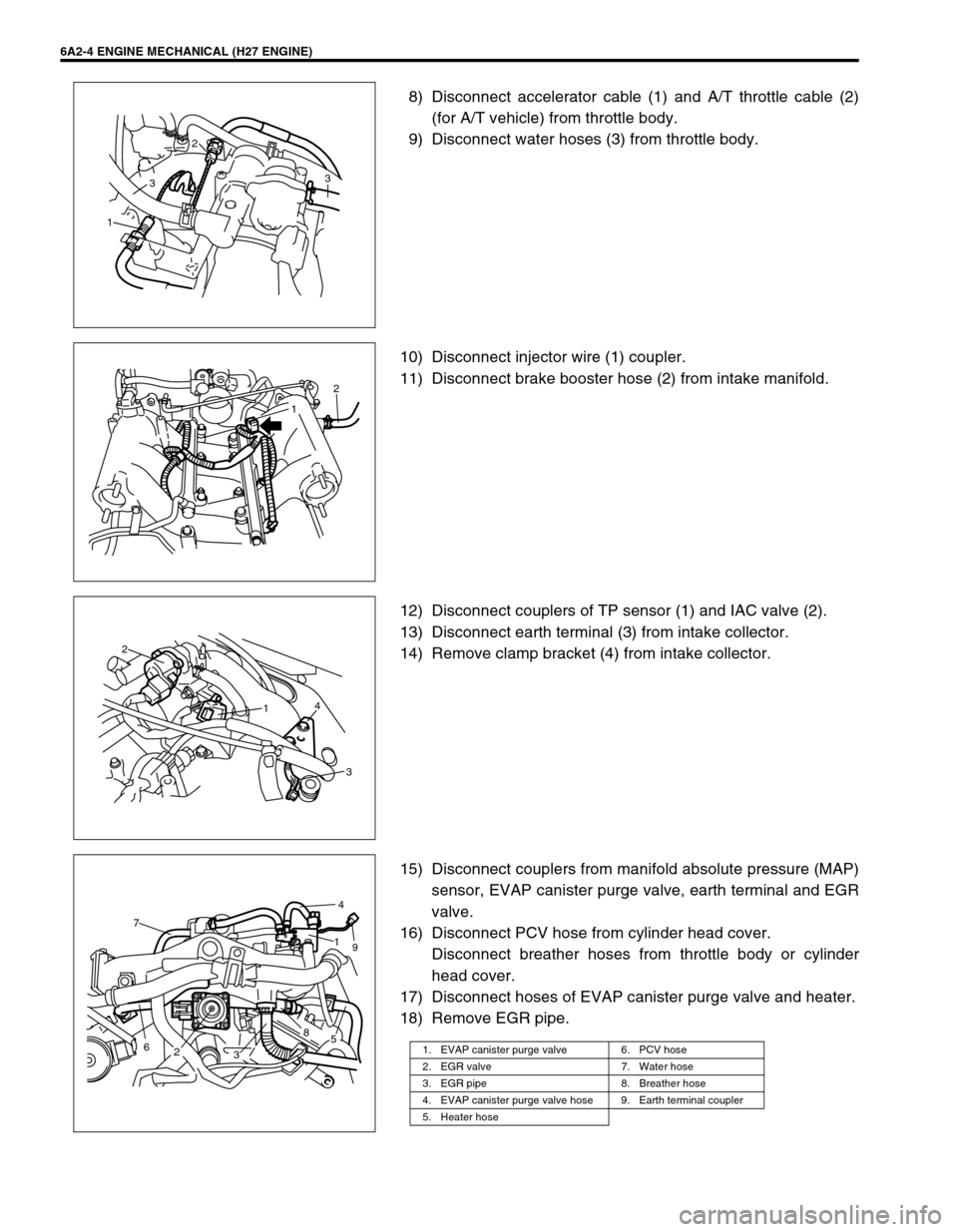

6A2-4 ENGINE MECHANICAL (H27 ENGINE)
8) Disconnect accelerator cable (1) and A/T throttle cable (2)
(for A/T vehicle) from throttle body.
9) Disconnect water hoses (3) from throttle body.
10) Disconnect injector wire (1) coupler.
11) Disconnect brake booster hose (2) from intake manifold.
12) Disconnect couplers of TP sensor (1) and IAC valve (2).
13) Disconnect earth terminal (3) from intake collector.
14) Remove clamp bracket (4) from intake collector.
15) Disconnect couplers from manifold absolute pressure (MAP)
sensor, EVAP canister purge valve, earth terminal and EGR
valve.
16) Disconnect PCV hose from cylinder head cover.
Disconnect breather hoses from throttle body or cylinder
head cover.
17) Disconnect hoses of EVAP canister purge valve and heater.
18) Remove EGR pipe.
12
33
2
1
2
14
3
1. EVAP canister purge valve 6. PCV hose
2. EGR valve 7. Water hose
3. EGR pipe 8. Breather hose
4. EVAP canister purge valve hose 9. Earth terminal coupler
5. Heater hose
9
4
1 7
6
2
35
8
Page 292 of 656

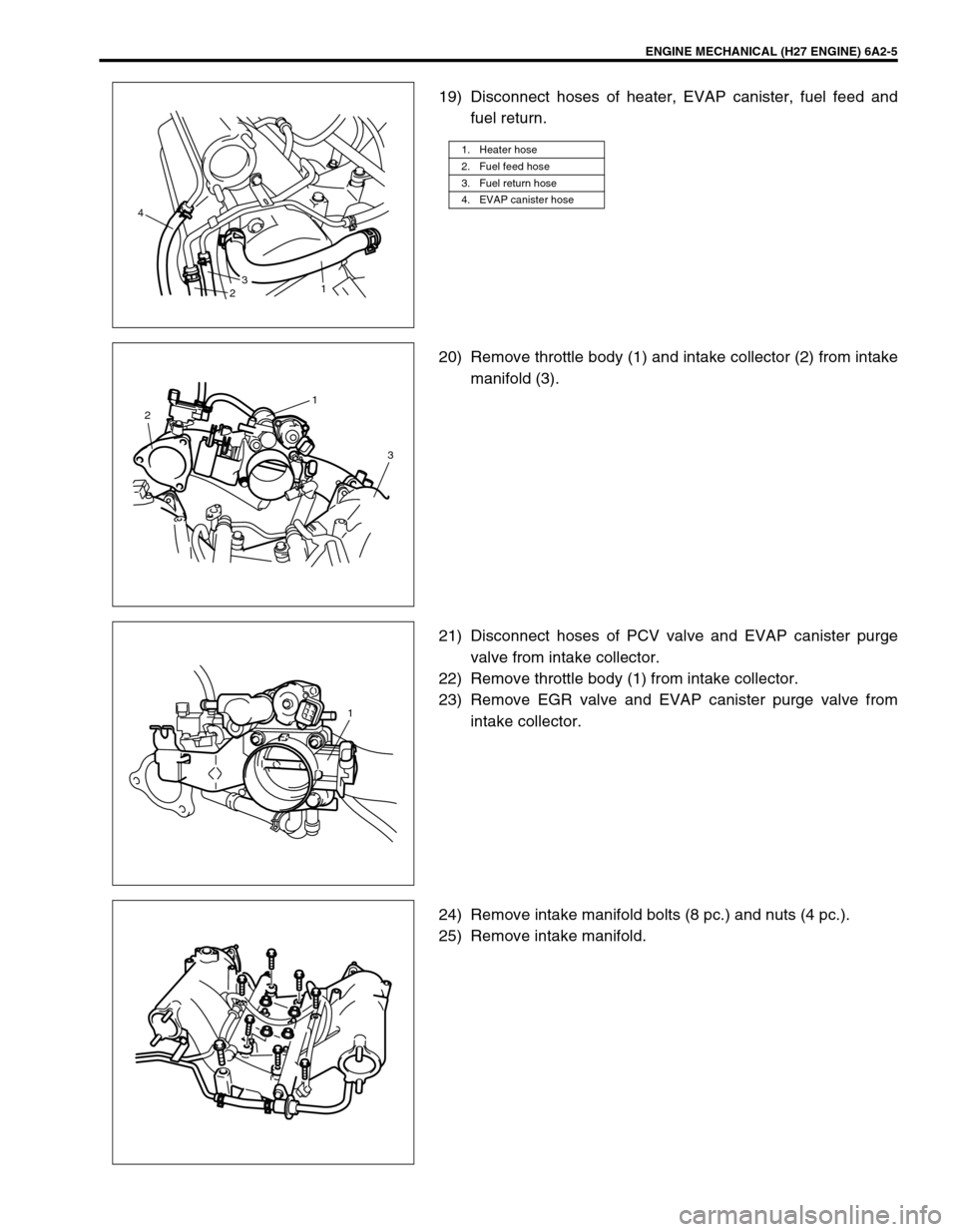

ENGINE MECHANICAL (H27 ENGINE) 6A2-5
19) Disconnect hoses of heater, EVAP canister, fuel feed and
fuel return.
20) Remove throttle body (1) and intake collector (2) from intake
manifold (3).
21) Disconnect hoses of PCV valve and EVAP canister purge
valve from intake collector.
22) Remove throttle body (1) from intake collector.
23) Remove EGR valve and EVAP canister purge valve from
intake collector.
24) Remove intake manifold bolts (8 pc.) and nuts (4 pc.).
25) Remove intake manifold.
1. Heater hose
2. Fuel feed hose
3. Fuel return hose
4. EVAP canister hose
13
2 4
1
3
2
1
Page 293 of 656

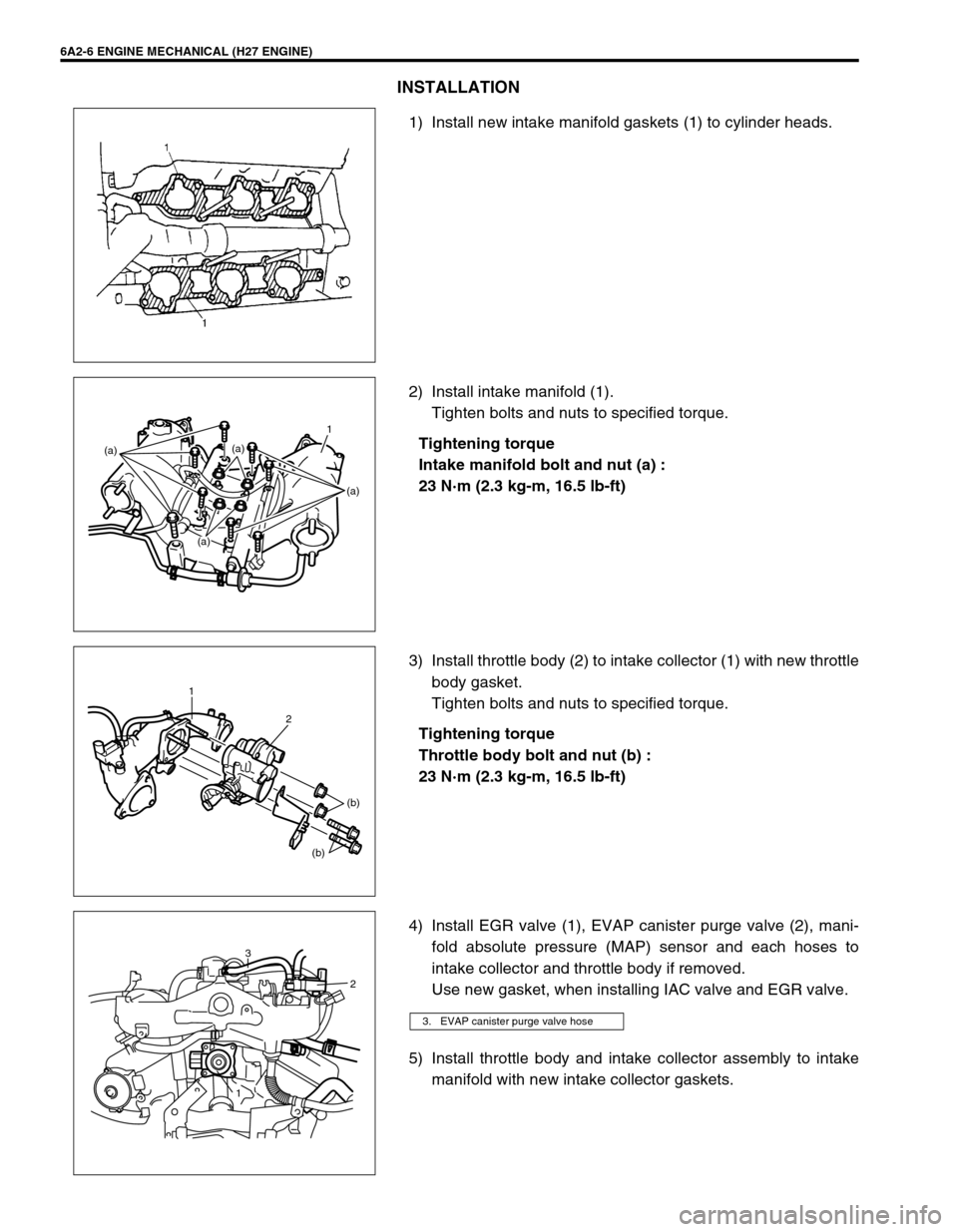

6A2-6 ENGINE MECHANICAL (H27 ENGINE)
INSTALLATION
1) Install new intake manifold gaskets (1) to cylinder heads.
2) Install intake manifold (1).
Tighten bolts and nuts to specified torque.
Tightening torque
Intake manifold bolt and nut (a) :
23 N·m (2.3 kg-m, 16.5 lb-ft)
3) Install throttle body (2) to intake collector (1) with new throttle
body gasket.
Tighten bolts and nuts to specified torque.
Tightening torque
Throttle body bolt and nut (b) :
23 N·m (2.3 kg-m, 16.5 lb-ft)
4) Install EGR valve (1), EVAP canister purge valve (2), mani-
fold absolute pressure (MAP) sensor and each hoses to
intake collector and throttle body if removed.
Use new gasket, when installing IAC valve and EGR valve.
5) Install throttle body and intake collector assembly to intake
manifold with new intake collector gaskets.
1
(a)
(a)(a)
(a)
2 1
(b)
(b)
3. EVAP canister purge valve hose
2
1
3
Page 294 of 656

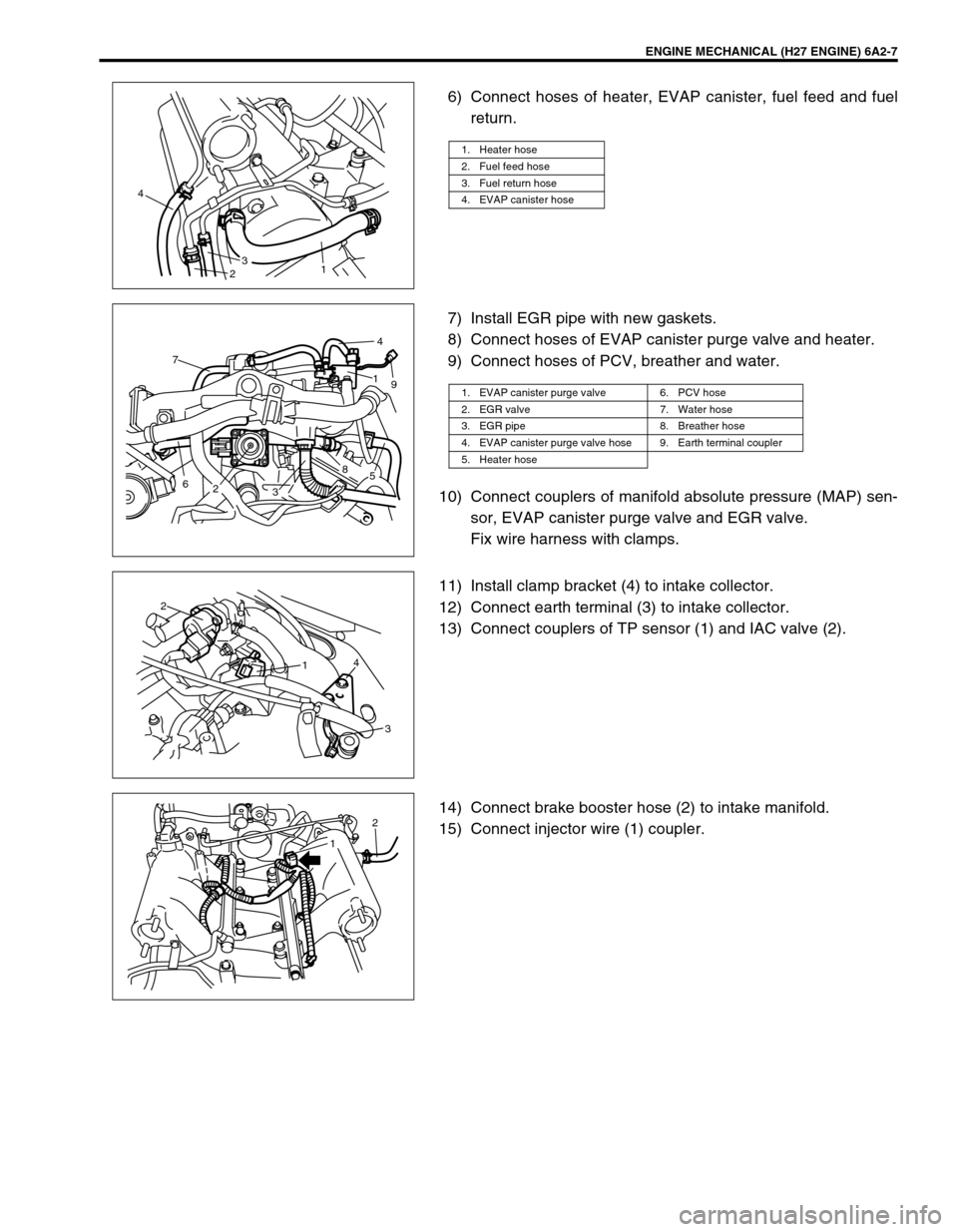

ENGINE MECHANICAL (H27 ENGINE) 6A2-7
6) Connect hoses of heater, EVAP canister, fuel feed and fuel
return.
7) Install EGR pipe with new gaskets.
8) Connect hoses of EVAP canister purge valve and heater.
9) Connect hoses of PCV, breather and water.
10) Connect couplers of manifold absolute pressure (MAP) sen-
sor, EVAP canister purge valve and EGR valve.
Fix wire harness with clamps.
11) Install clamp bracket (4) to intake collector.
12) Connect earth terminal (3) to intake collector.
13) Connect couplers of TP sensor (1) and IAC valve (2).
14) Connect brake booster hose (2) to intake manifold.
15) Connect injector wire (1) coupler.
1. Heater hose
2. Fuel feed hose
3. Fuel return hose
4. EVAP canister hose
13
2 4
1. EVAP canister purge valve 6. PCV hose
2. EGR valve 7. Water hose
3. EGR pipe 8. Breather hose
4. EVAP canister purge valve hose 9. Earth terminal coupler
5. Heater hose9
4
1 7
6
2
35
8
2
14
3
2
1
Page 295 of 656

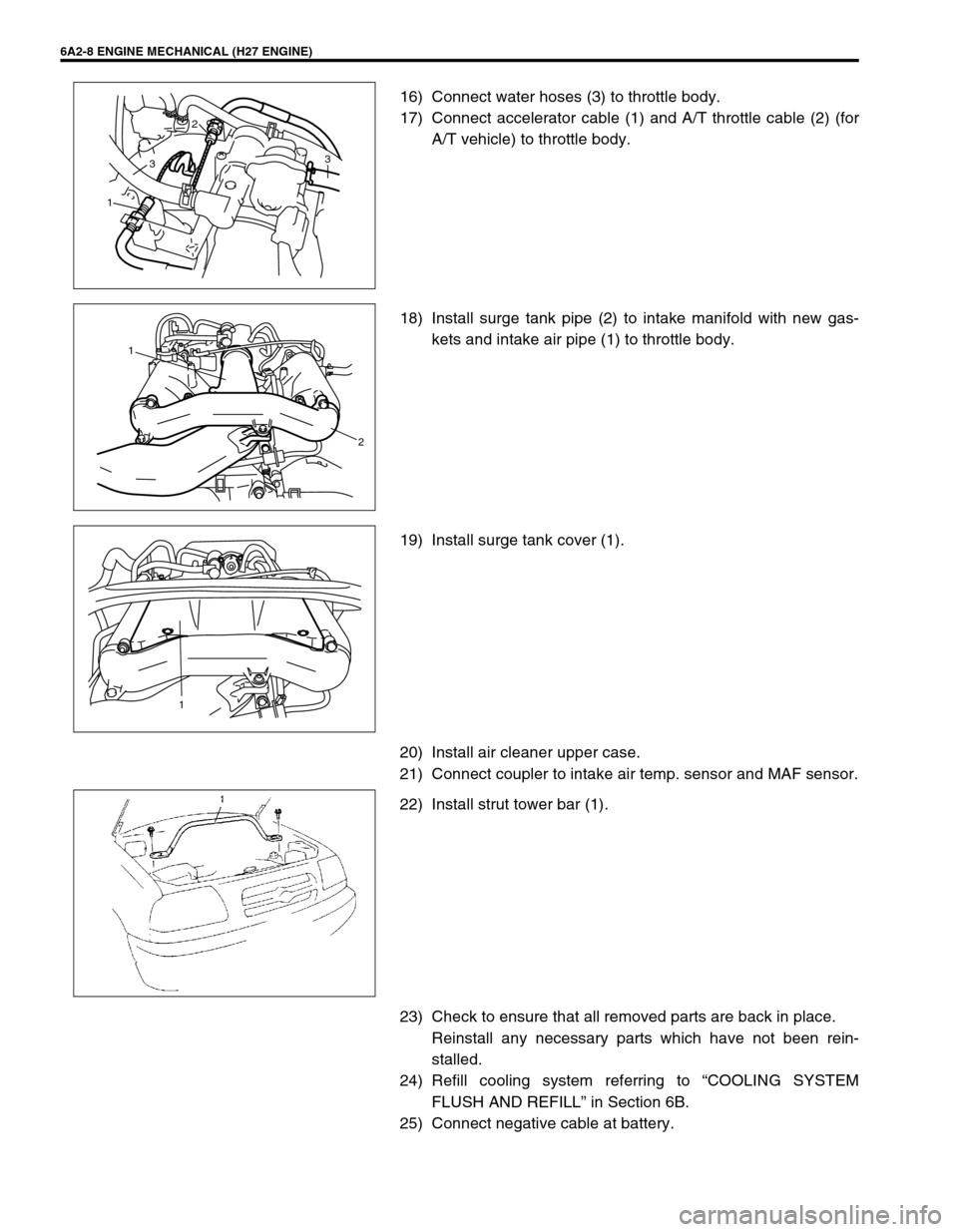

6A2-8 ENGINE MECHANICAL (H27 ENGINE)
16) Connect water hoses (3) to throttle body.
17) Connect accelerator cable (1) and A/T throttle cable (2) (for
A/T vehicle) to throttle body.
18) Install surge tank pipe (2) to intake manifold with new gas-
kets and intake air pipe (1) to throttle body.
19) Install surge tank cover (1).
20) Install air cleaner upper case.
21) Connect coupler to intake air temp. sensor and MAF sensor.
22) Install strut tower bar (1).
23) Check to ensure that all removed parts are back in place.
Reinstall any necessary parts which have not been rein-
stalled.
24) Refill cooling system referring to “COOLING SYSTEM
FLUSH AND REFILL” in Section 6B.
25) Connect negative cable at battery.
12
33
1
2
1
Page 296 of 656

ENGINE MECHANICAL (H27 ENGINE) 6A2-9
26) Upon completion of installation, verify that there is no fuel
leakage at each connection according to procedure
described in Section 6.
Exhaust Manifold
REMOVAL
1) Disconnect negative (–) cable at battery.
2) Remove air cleaner upper case and intake air hose if right
side exhaust manifold is removed.
3) Detach couplers from their bracket and disconnect oxygen
sensor lead wires at couplers. WARNING:
To avoid danger of being burned, do not service exhaust
system while it is still hot. Service should be performed
after system has cooled off.
1. Left (No.1) exhaust manifold
Right (No.2) exhaust manifold
2. Exhaust manifold cover
3. Exhaust No.1 pipe
A. Without WU-TWC
B. With WU-TWC
1. HO2S-1 (Green connector)
2. HO2S-2 (Black connector)
Page 297 of 656

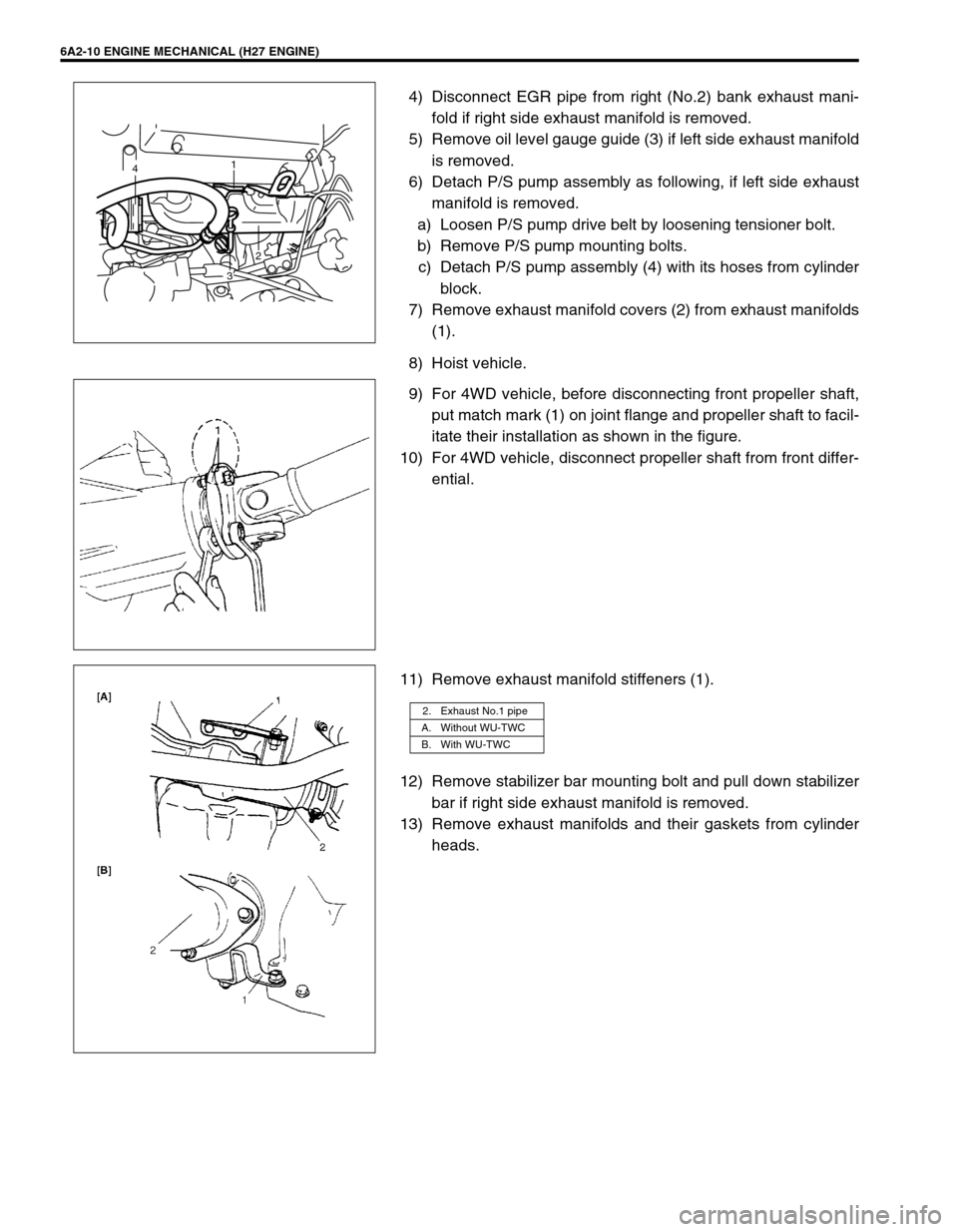

6A2-10 ENGINE MECHANICAL (H27 ENGINE)
4) Disconnect EGR pipe from right (No.2) bank exhaust mani-
fold if right side exhaust manifold is removed.
5) Remove oil level gauge guide (3) if left side exhaust manifold
is removed.
6) Detach P/S pump assembly as following, if left side exhaust
manifold is removed.
a) Loosen P/S pump drive belt by loosening tensioner bolt.
b) Remove P/S pump mounting bolts.
c) Detach P/S pump assembly (4) with its hoses from cylinder
block.
7) Remove exhaust manifold covers (2) from exhaust manifolds
(1).
8) Hoist vehicle.
9) For 4WD vehicle, before disconnecting front propeller shaft,
put match mark (1) on joint flange and propeller shaft to facil-
itate their installation as shown in the figure.
10) For 4WD vehicle, disconnect propeller shaft from front differ-
ential.
11) Remove exhaust manifold stiffeners (1).
12) Remove stabilizer bar mounting bolt and pull down stabilizer
bar if right side exhaust manifold is removed.
13) Remove exhaust manifolds and their gaskets from cylinder
heads.
1
4
32
2. Exhaust No.1 pipe
A. Without WU-TWC
B. With WU-TWC
Page 298 of 656

ENGINE MECHANICAL (H27 ENGINE) 6A2-11

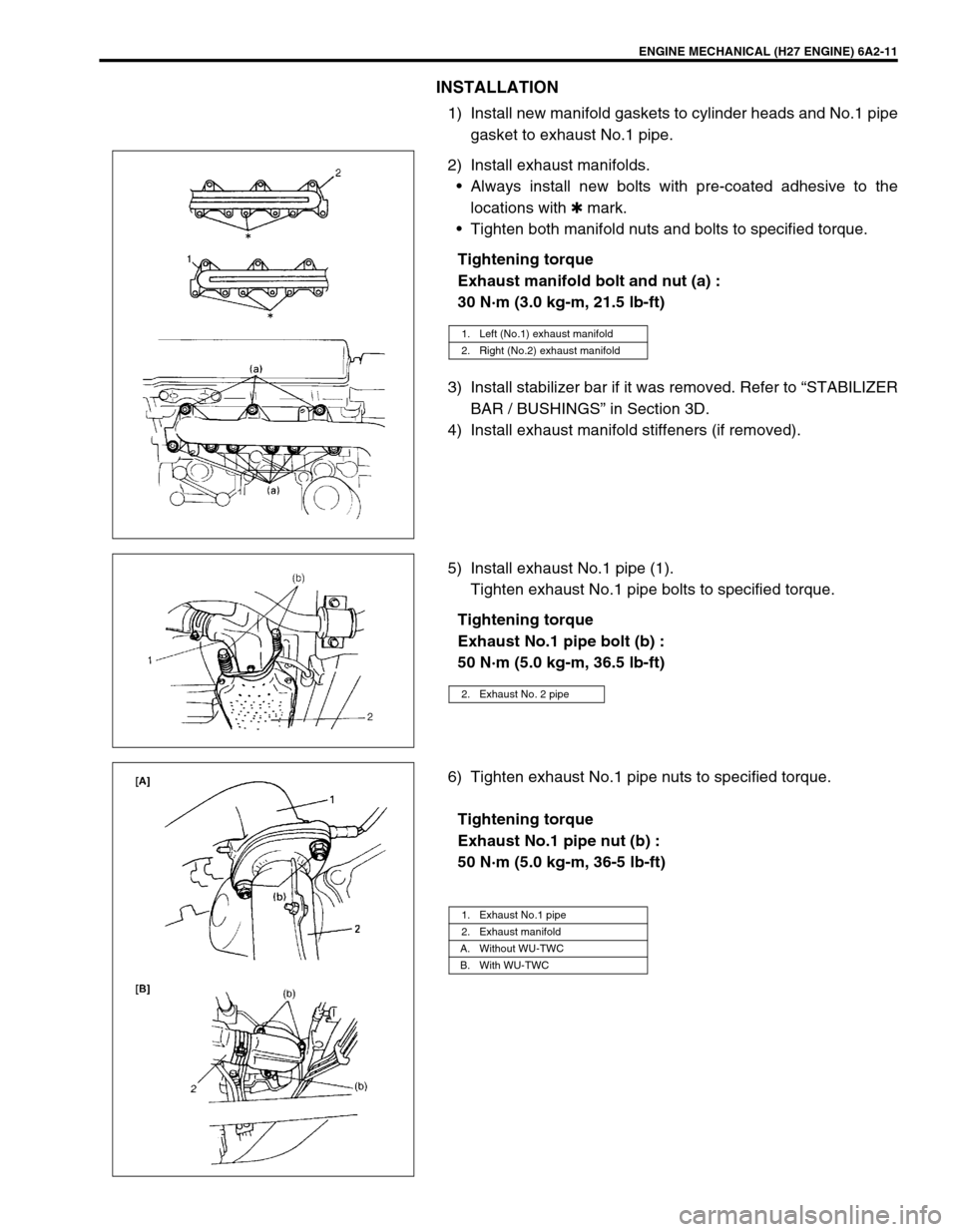

INSTALLATION
1) Install new manifold gaskets to cylinder heads and No.1 pipe
gasket to exhaust No.1 pipe.
2) Install exhaust manifolds.
•Always install new bolts with pre-coated adhesive to the
locations with ✱ mark.
•Tighten both manifold nuts and bolts to specified torque.
Tightening torque
Exhaust manifold bolt and nut (a) :
30 N·m (3.0 kg-m, 21.5 lb-ft)
3) Install stabilizer bar if it was removed. Refer to “STABILIZER
BAR / BUSHINGS” in Section 3D.
4) Install exhaust manifold stiffeners (if removed).
5) Install exhaust No.1 pipe (1).
Tighten exhaust No.1 pipe bolts to specified torque.
Tightening torque
Exhaust No.1 pipe bolt (b) :
50 N·m (5.0 kg-m, 36.5 lb-ft)
6) Tighten exhaust No.1 pipe nuts to specified torque.
Tightening torque
Exhaust No.1 pipe nut (b) :
50 N·m (5.0 kg-m, 36-5 lb-ft)
1. Left (No.1) exhaust manifold
2. Right (No.2) exhaust manifold
2. Exhaust No. 2 pipe
1. Exhaust No.1 pipe
2. Exhaust manifold
A. Without WU-TWC
B. With WU-TWC
Page 299 of 656

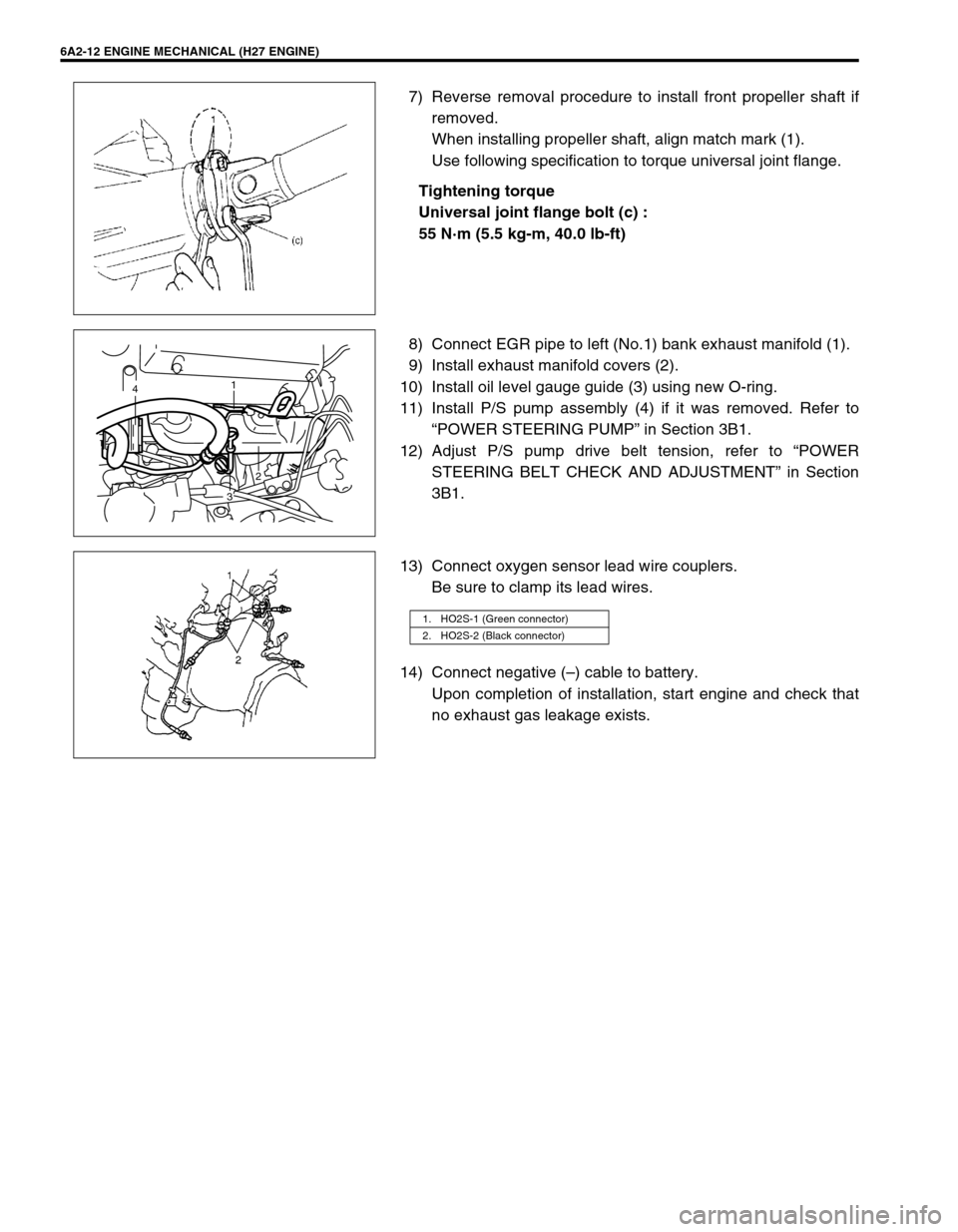

6A2-12 ENGINE MECHANICAL (H27 ENGINE)
7) Reverse removal procedure to install front propeller shaft if
removed.
When installing propeller shaft, align match mark (1).
Use following specification to torque universal joint flange.
Tightening torque
Universal joint flange bolt (c) :
55 N·m (5.5 kg-m, 40.0 lb-ft)
8) Connect EGR pipe to left (No.1) bank exhaust manifold (1).
9) Install exhaust manifold covers (2).
10) Install oil level gauge guide (3) using new O-ring.
11) Install P/S pump assembly (4) if it was removed. Refer to
“POWER STEERING PUMP” in Section 3B1.
12) Adjust P/S pump drive belt tension, refer to “POWER
STEERING BELT CHECK AND ADJUSTMENT” in Section
3B1.
13) Connect oxygen sensor lead wire couplers.
Be sure to clamp its lead wires.
14) Connect negative (–) cable to battery.
Upon completion of installation, start engine and check that
no exhaust gas leakage exists.
1
4
32
1. HO2S-1 (Green connector)
2. HO2S-2 (Black connector)
Page 300 of 656

ENGINE MECHANICAL (H27 ENGINE) 6A2-13

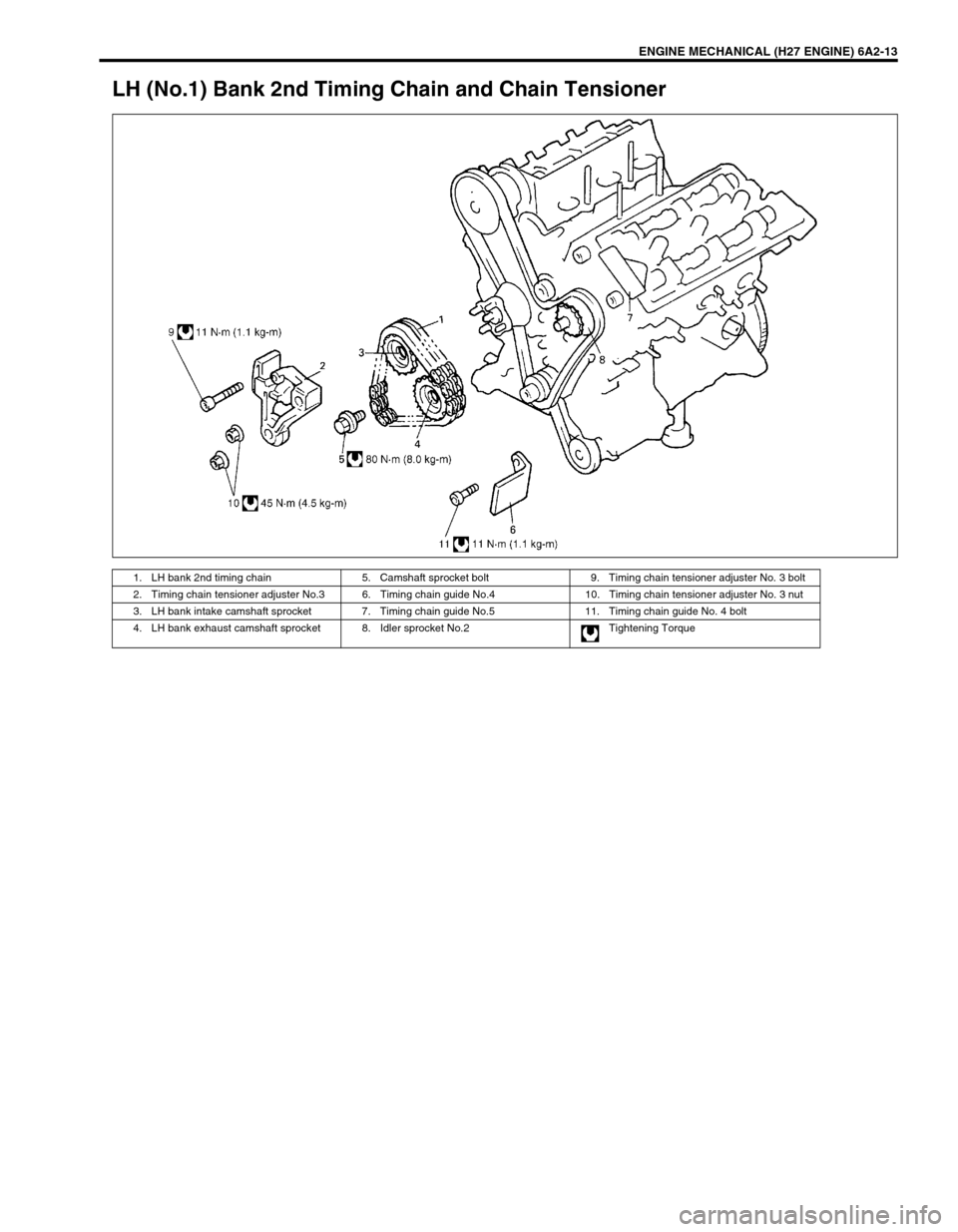

LH (No.1) Bank 2nd Timing Chain and Chain Tensioner
1. LH bank 2nd timing chain 5. Camshaft sprocket bolt 9. Timing chain tensioner adjuster No. 3 bolt
2. Timing chain tensioner adjuster No.3 6. Timing chain guide No.4 10. Timing chain tensioner adjuster No. 3 nut
3. LH bank intake camshaft sprocket 7. Timing chain guide No.5 11. Timing chain guide No. 4 bolt
4. LH bank exhaust camshaft sprocket 8. Idler sprocket No.2 Tightening Torque
