SUZUKI GRAND VITARA 1999 2.G Owners Manual 6E2-8 ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE)

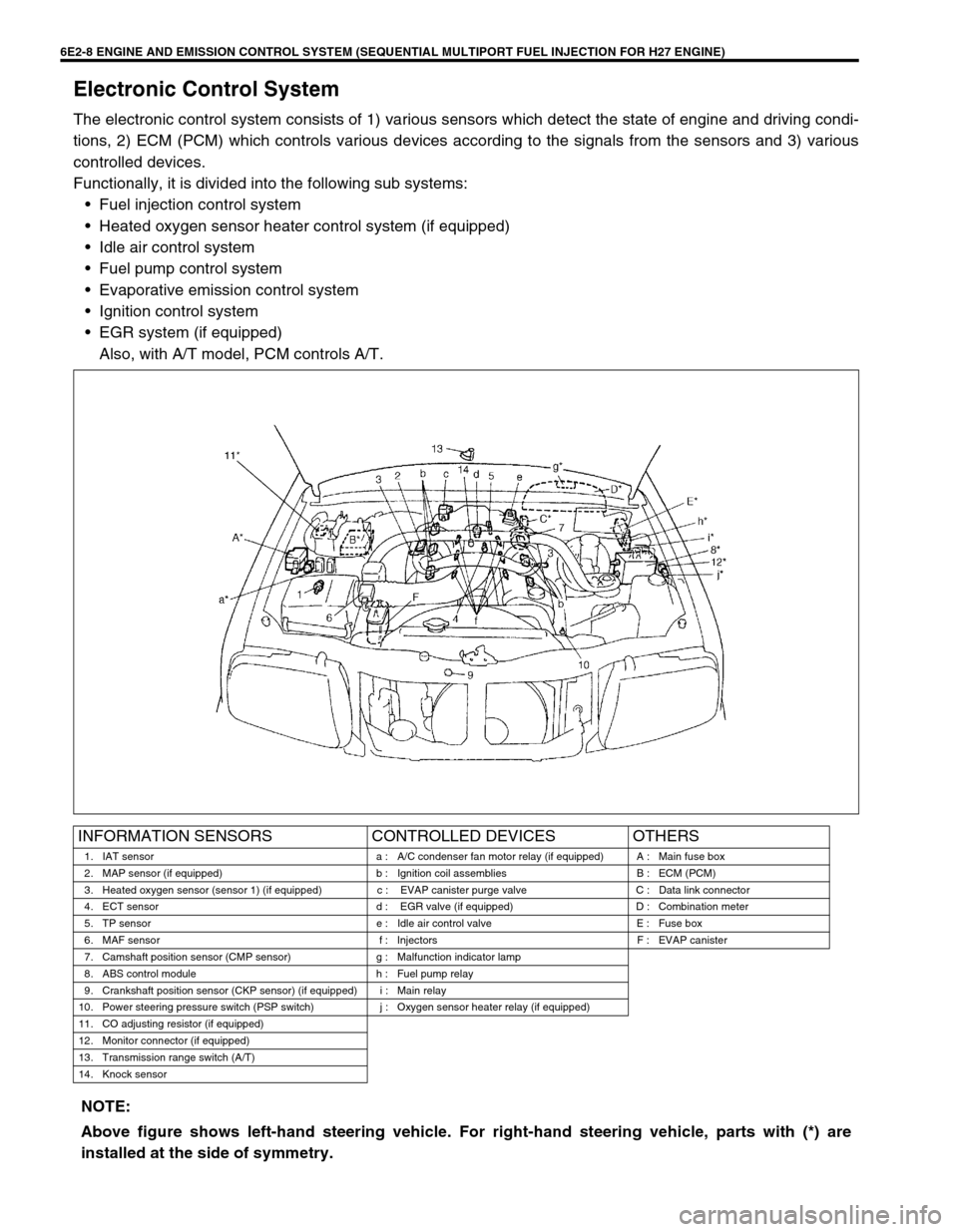

Electronic Control System
The electronic control system consists of 1) various sensors which detect the st

Page 342 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE) 6E2-9

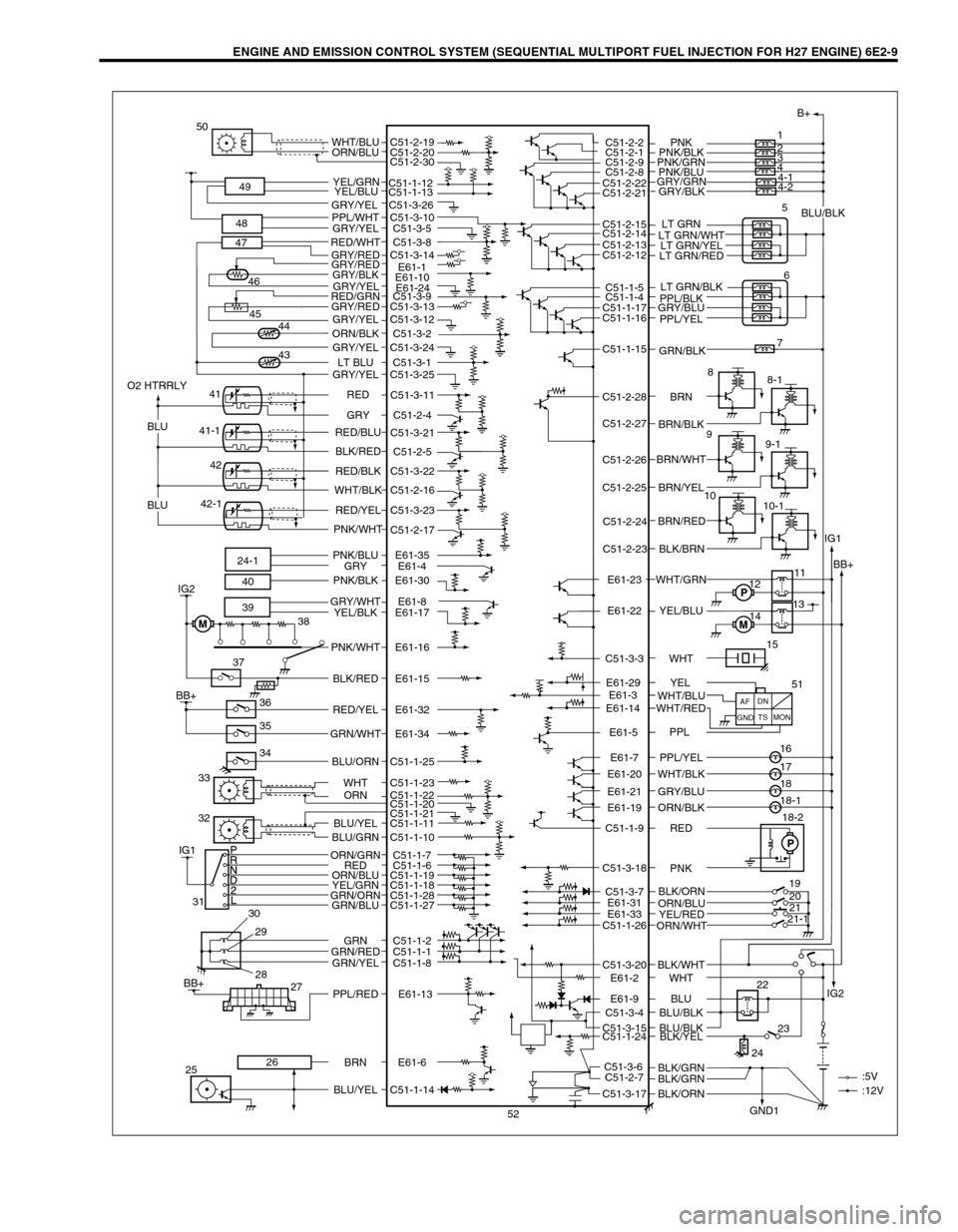

ORN/BLU
PPL/WHT
GRY/YEL
RED/WHT
GRY/RED
GRY/RED
GRY/BLK
RED/GRN
GRY/RED
GRY/YEL
ORN/BLK
LT BLU
GRY/YEL
PNK

Page 343 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6E2-10 ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE)
TERMINAL ARRANGEMENT OF ECM (PCM) CONNECTOR (VIEWED FROM HARNESS SIDE)
1. Fuel injector No.1 17.“O/D OF

Page 344 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE) 6E2-11

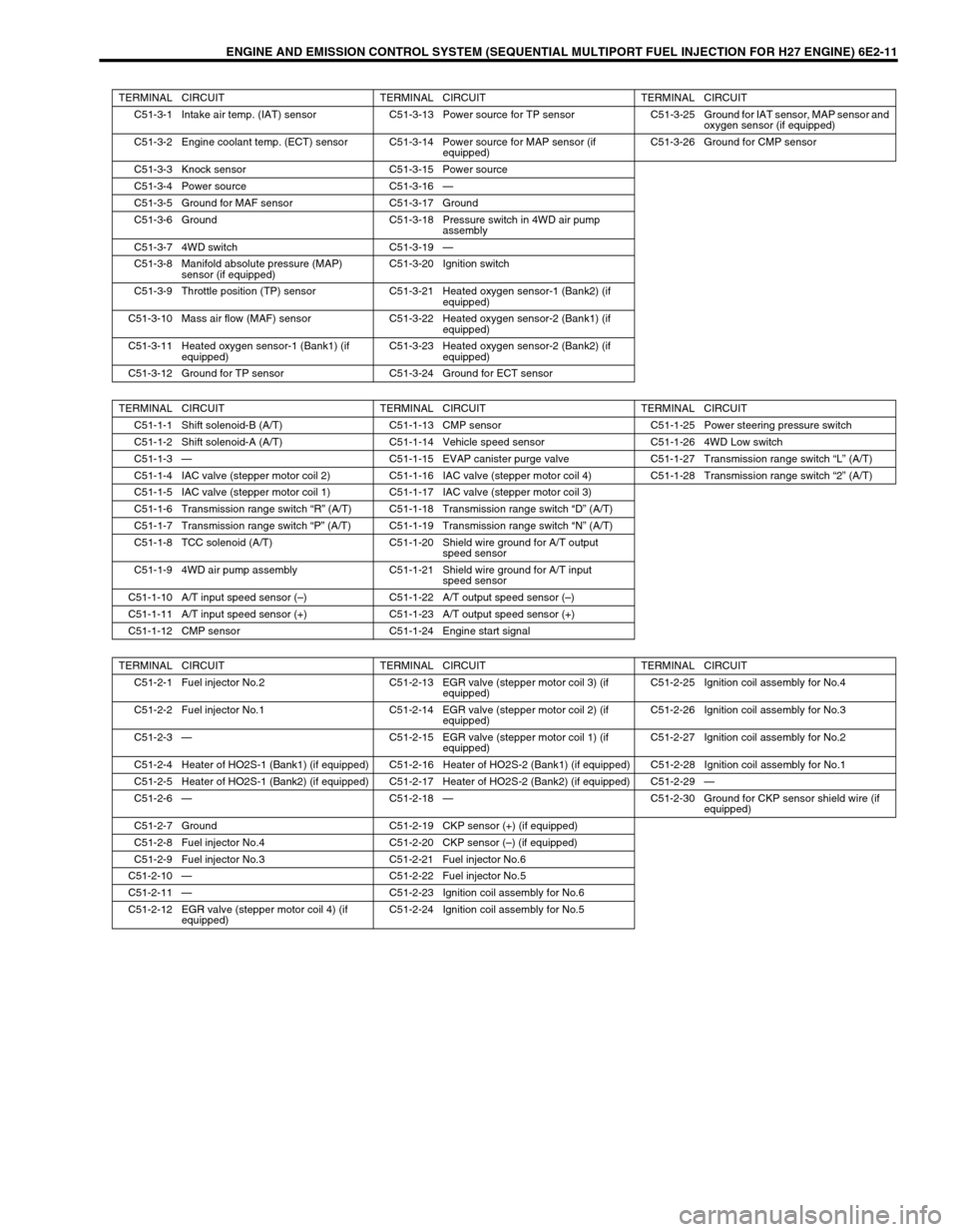

TERMINAL CIRCUIT TERMINAL CIRCUIT TERMINAL CIRCUIT
C51-3-1 Intake air temp. (IAT) sensor C51-3-13 Power s

Page 345 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6E2-12 ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE)

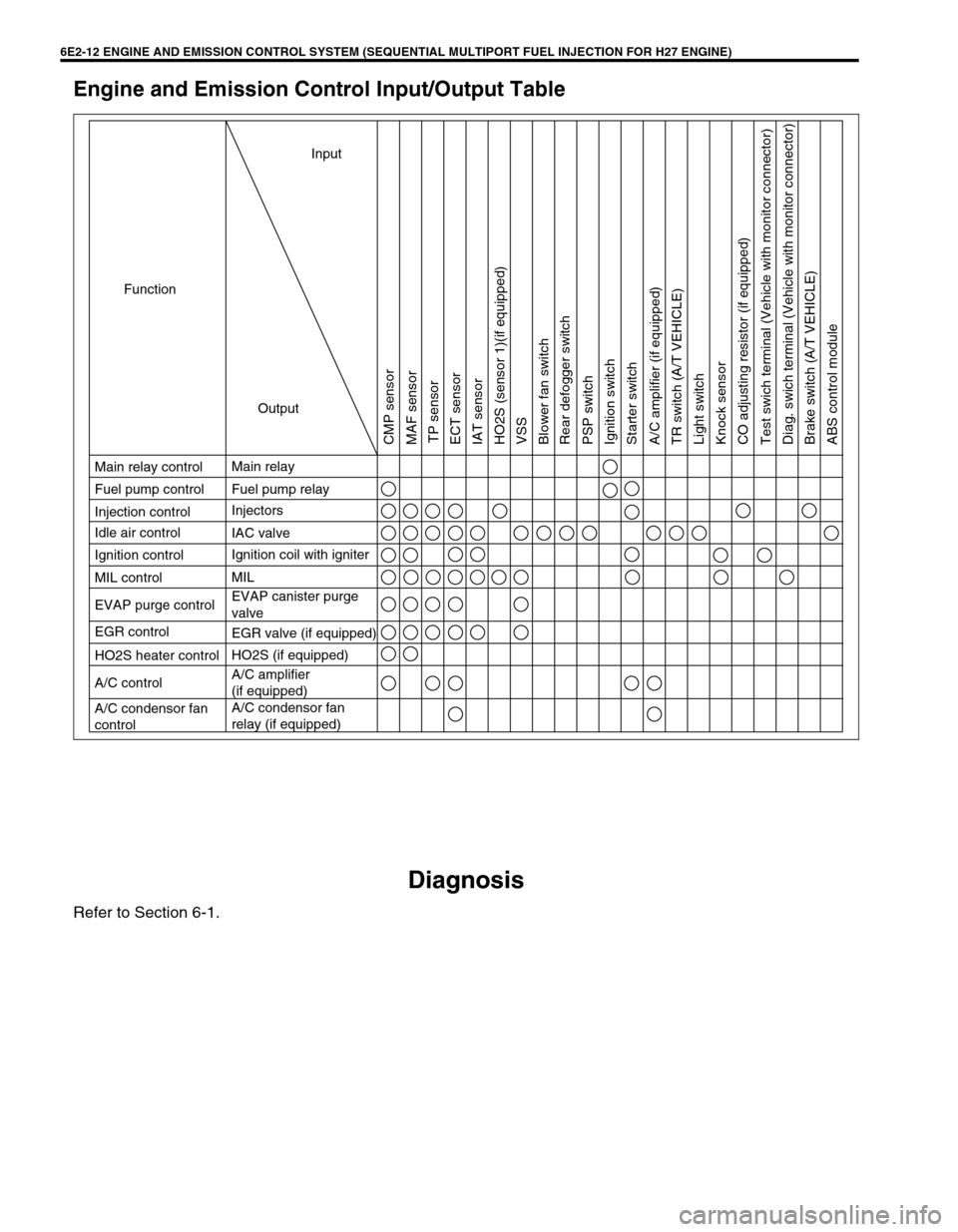

Engine and Emission Control Input/Output Table
Diagnosis
Refer to Section 6-1.
Ignition coil with igniter

Page 346 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE) 6E2-13

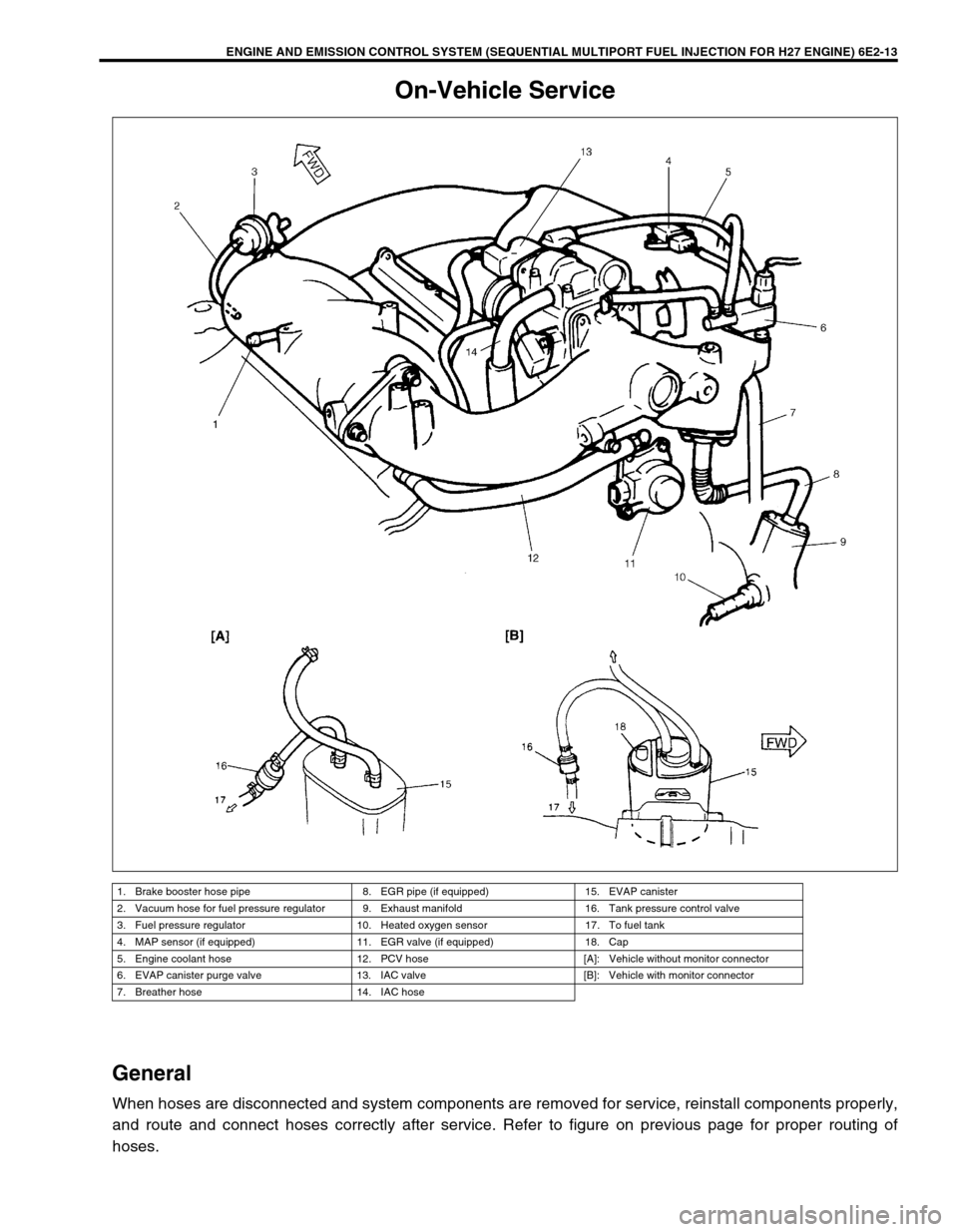

On-Vehicle Service
General
When hoses are disconnected and system components are removed for service, rei

Page 347 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6E2-14 ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE)

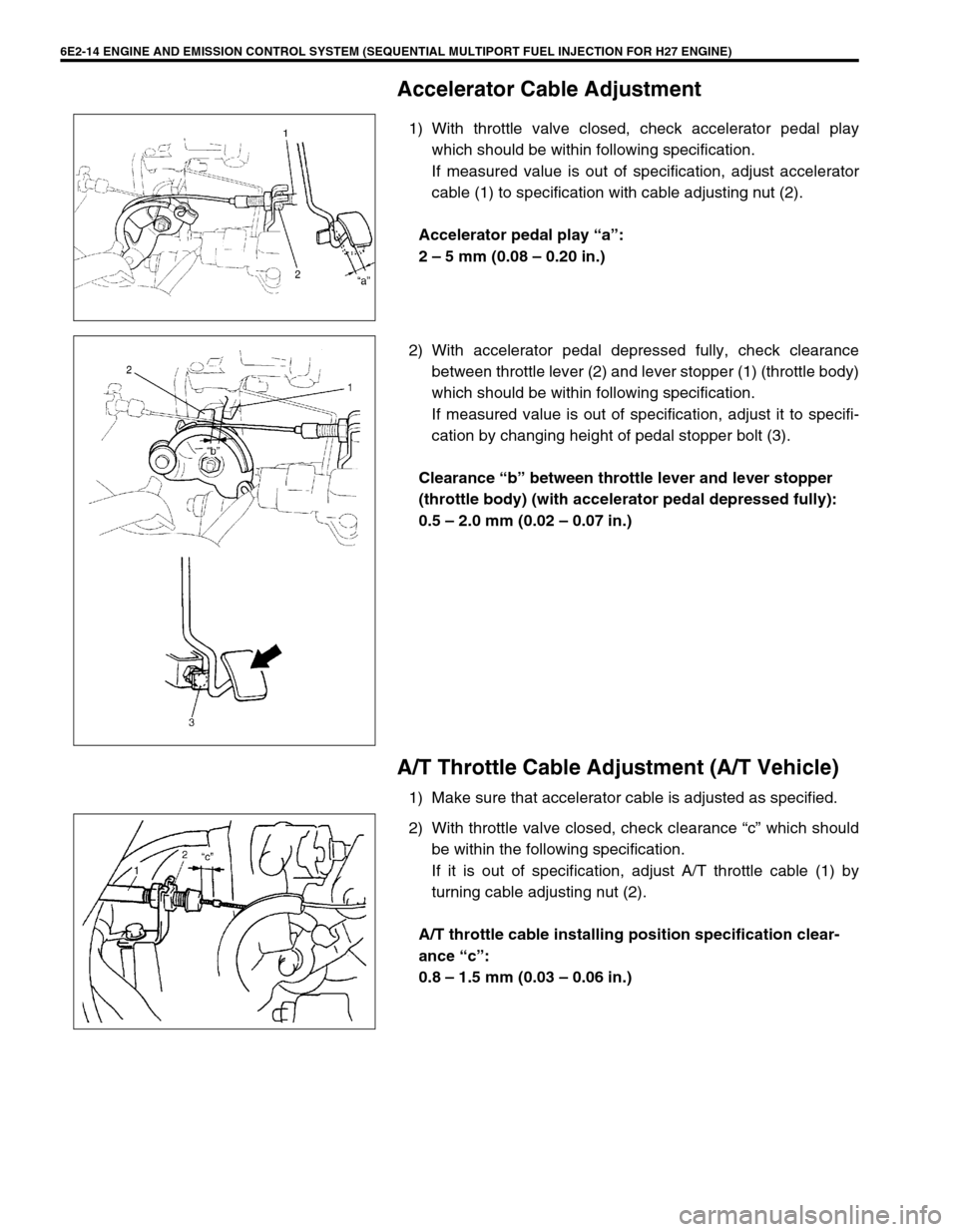

Accelerator Cable Adjustment
1) With throttle valve closed, check accelerator pedal play
which should be

Page 348 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE) 6E2-15

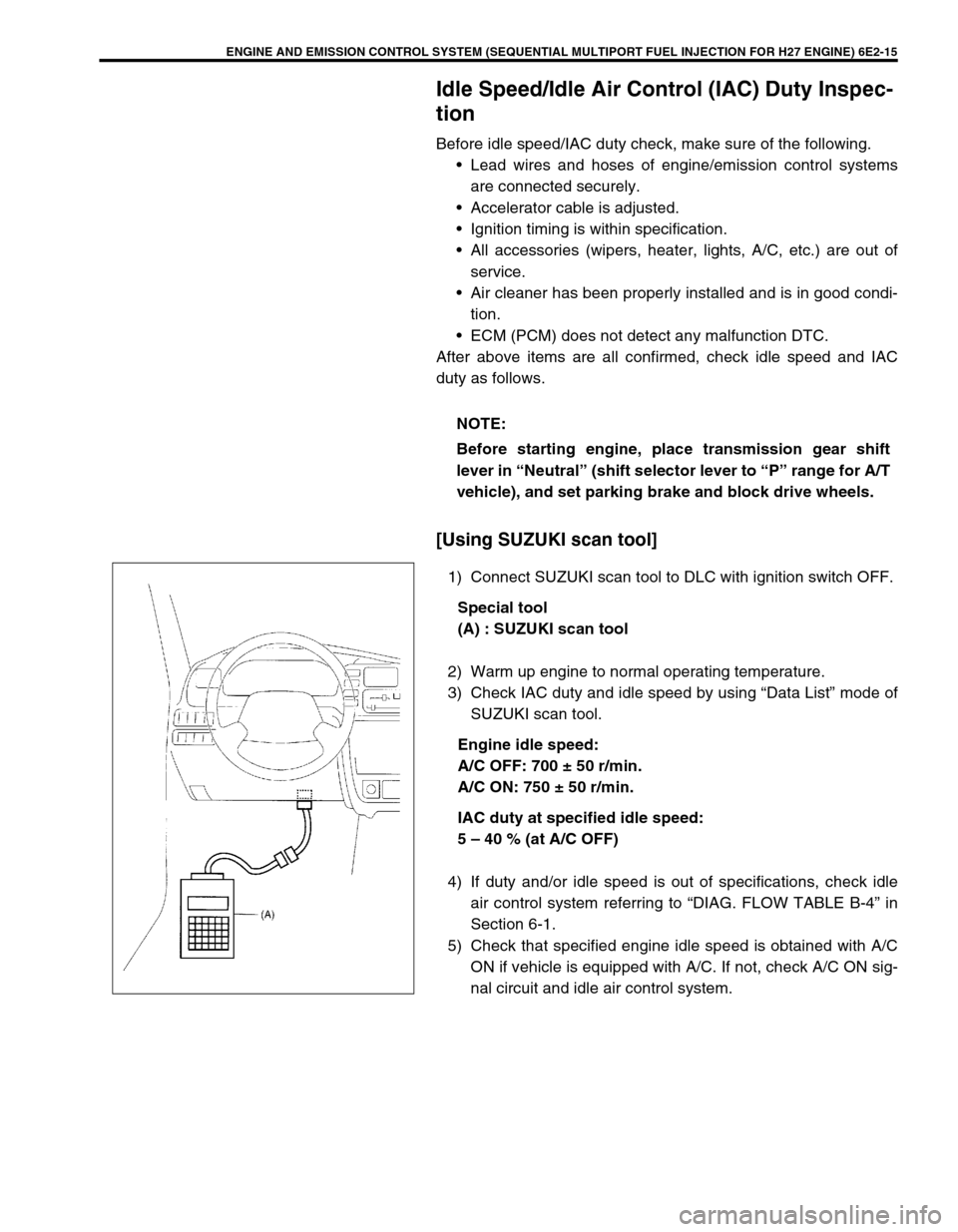

Idle Speed/Idle Air Control (IAC) Duty Inspec-
tion
Before idle speed/IAC duty check, make sure of the fo

Page 349 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6E2-16 ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE)

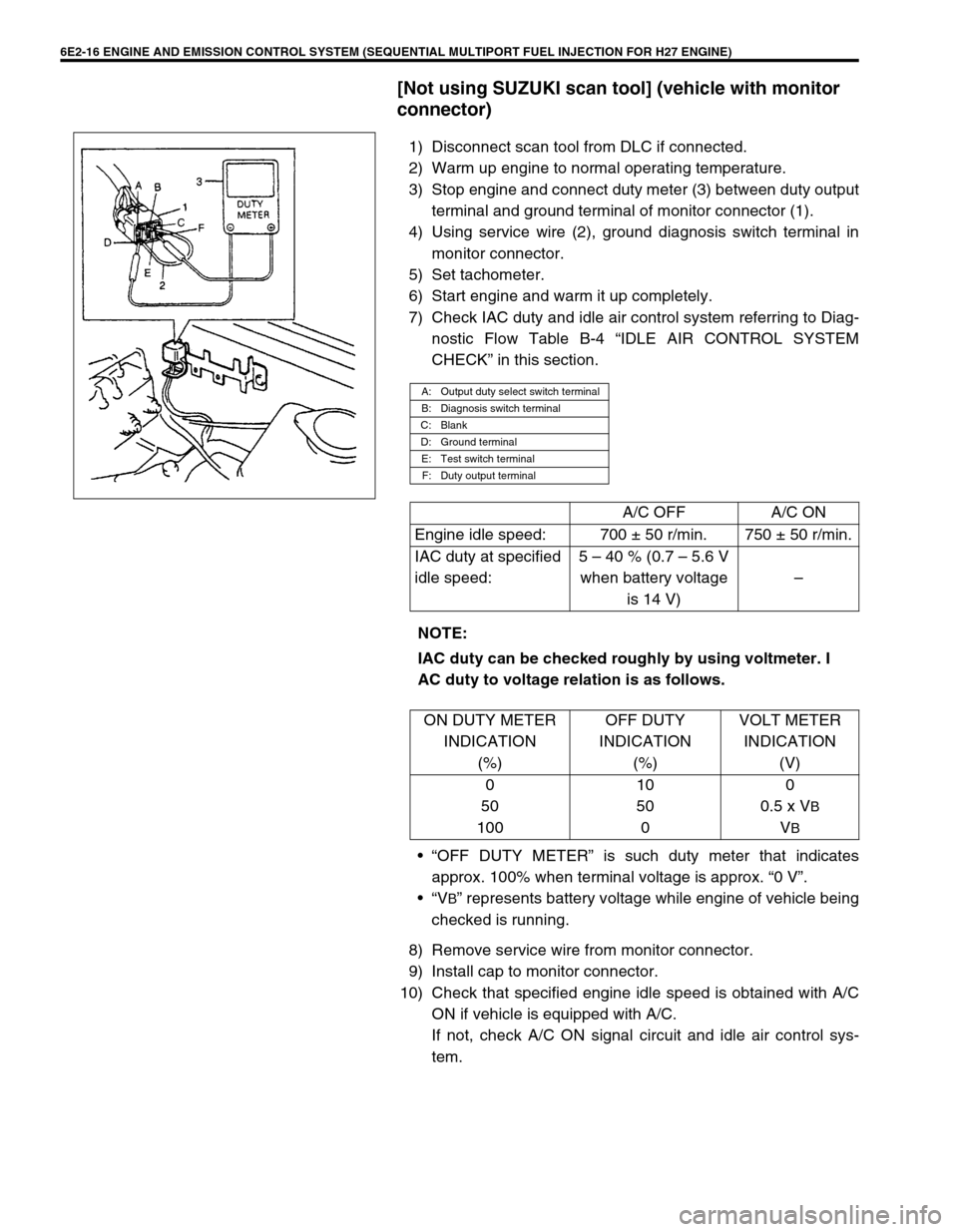

[Not using SUZUKI scan tool] (vehicle with monitor
connector)
1) Disconnect scan tool from DLC if connec

Page 350 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE) 6E2-17

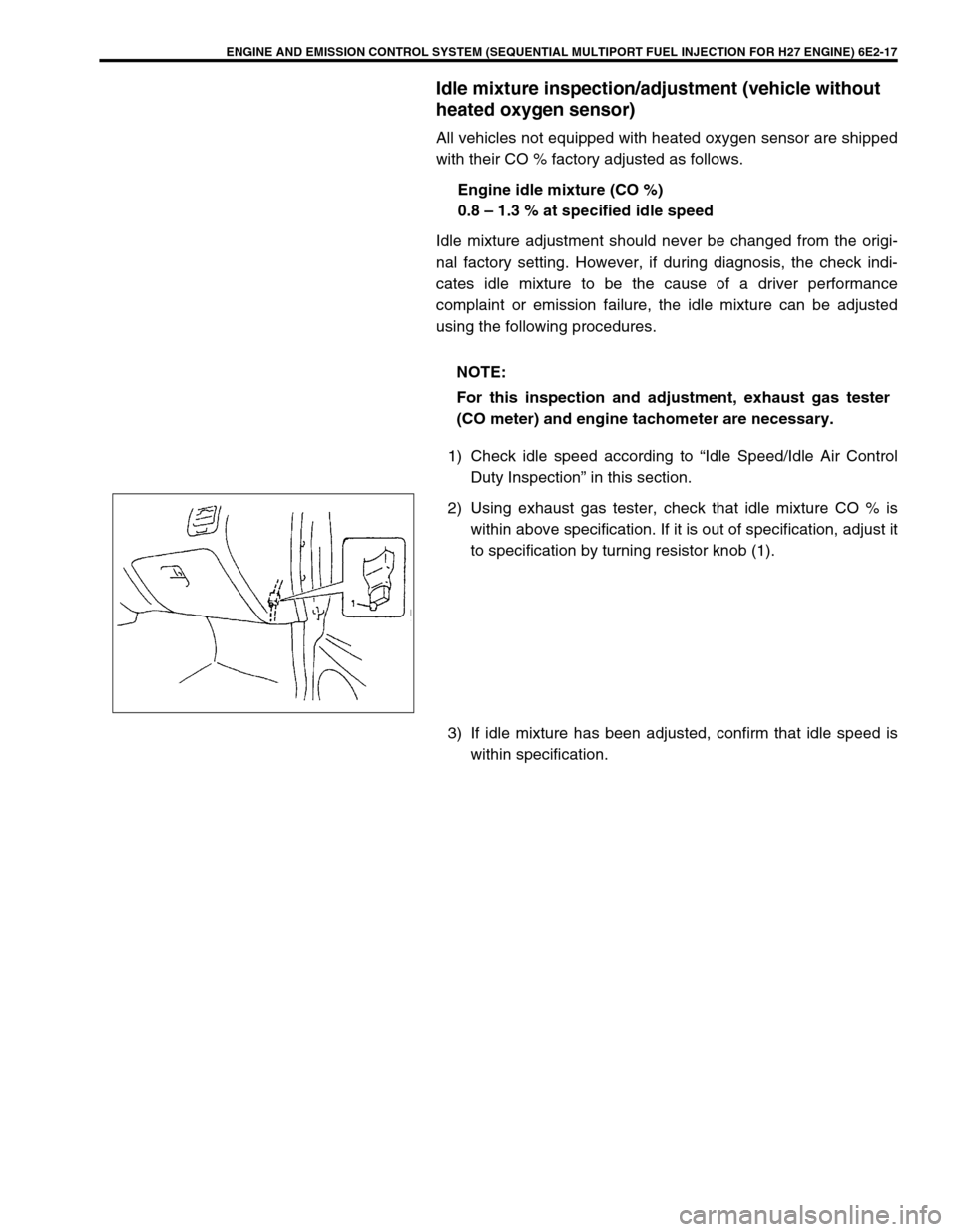

Idle mixture inspection/adjustment (vehicle without
heated oxygen sensor)
All vehicles not equipped with
