Page 331 of 656

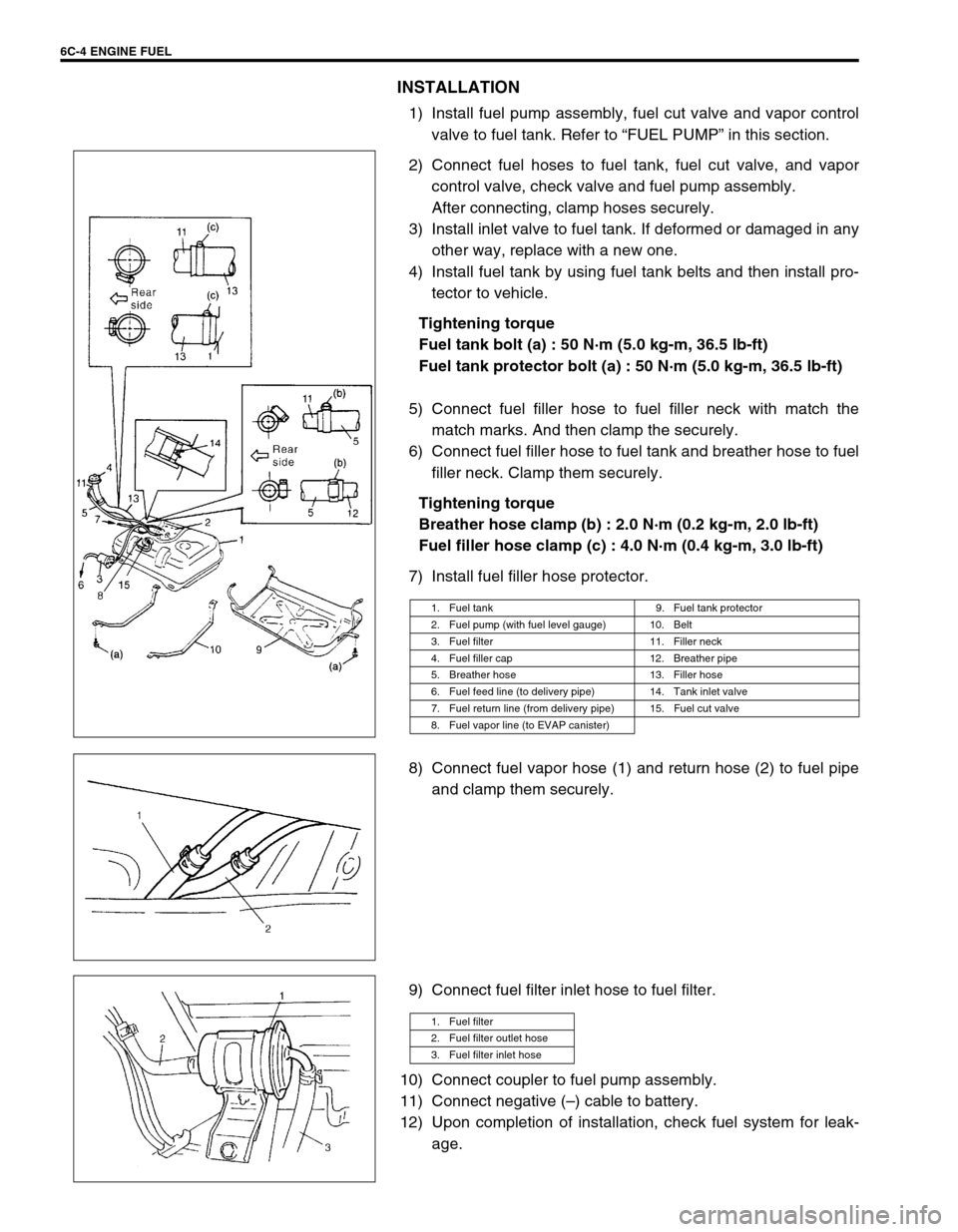

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6C-4 ENGINE FUEL
INSTALLATION
1) Install fuel pump assembly, fuel cut valve and vapor control
valve to fuel tank. Refer to “FUEL PUMP” in this section.
2) Connect fuel hoses to fuel tank, fuel cut

Page 332 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE FUEL 6C-5

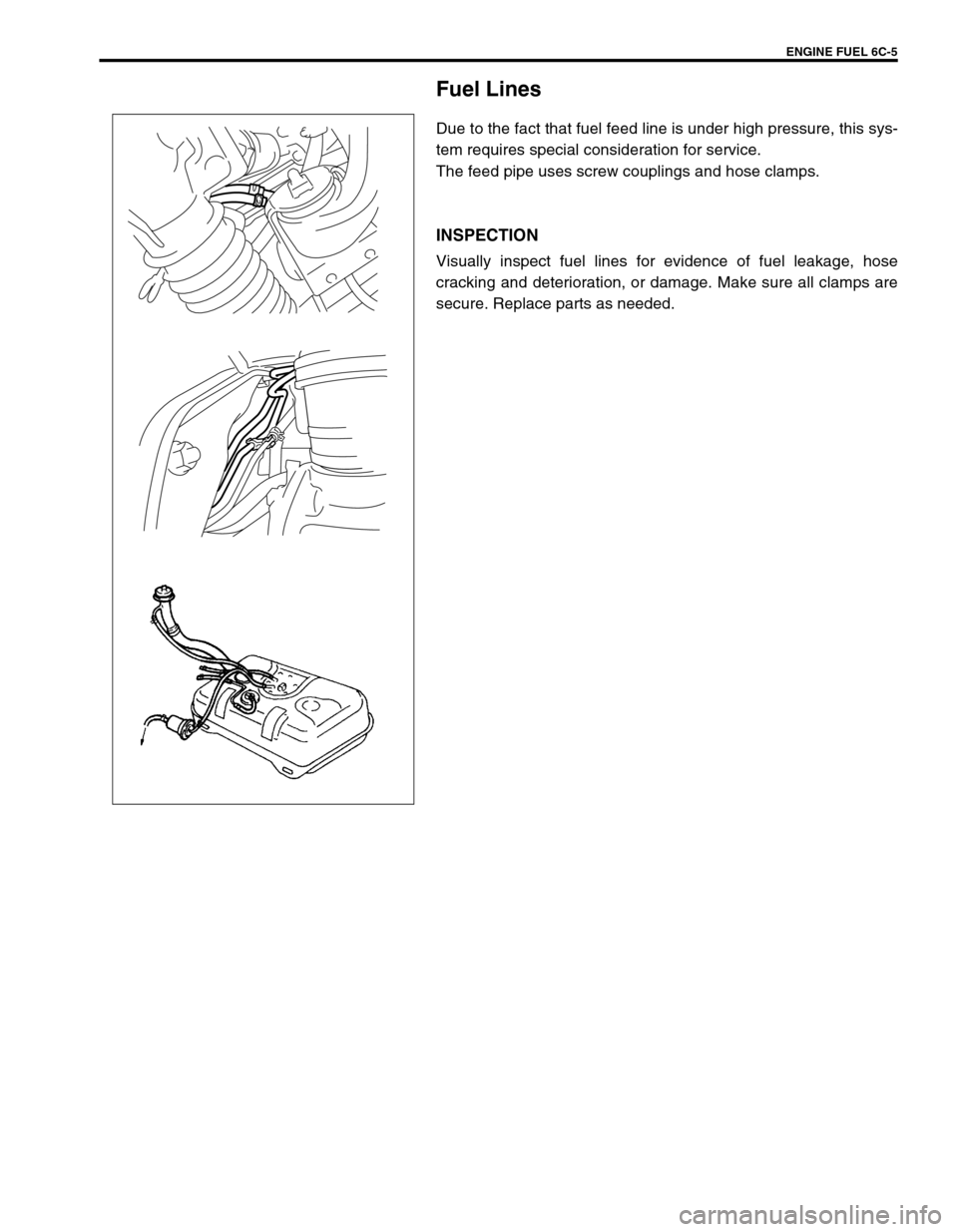

Fuel Lines
Due to the fact that fuel feed line is under high pressure, this sys-
tem requires special consideration for service.
The feed pipe uses screw couplings and hose clamps.
IN

Page 333 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6C-6 ENGINE FUEL

Page 334 of 656

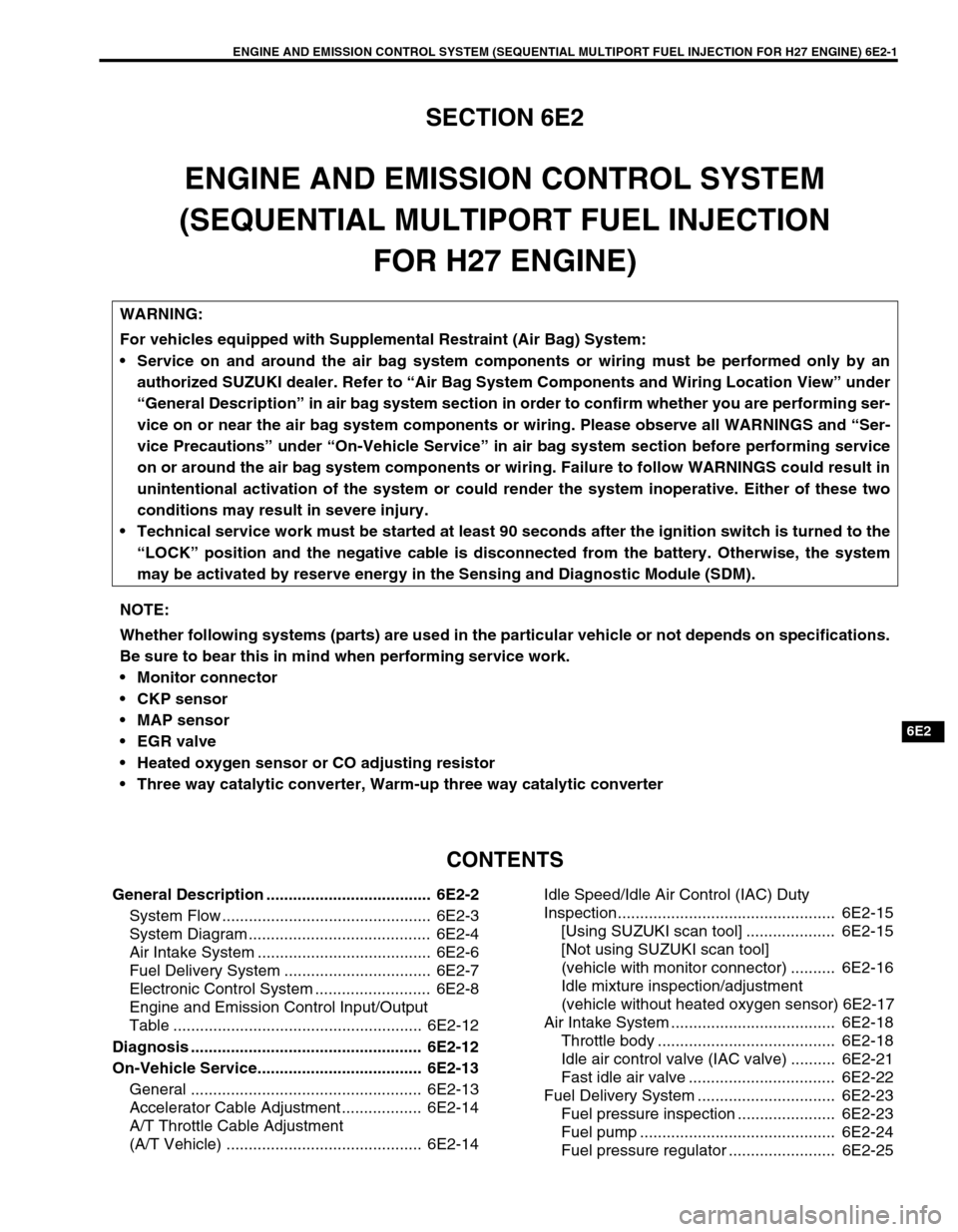

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE) 6E2-1
6E2
SECTION 6E2
ENGINE AND EMISSION CONTROL SYSTEM
(SEQUENTIAL MULTIPORT FUEL INJECTION
FOR H27 ENGINE)
CO

Page 335 of 656

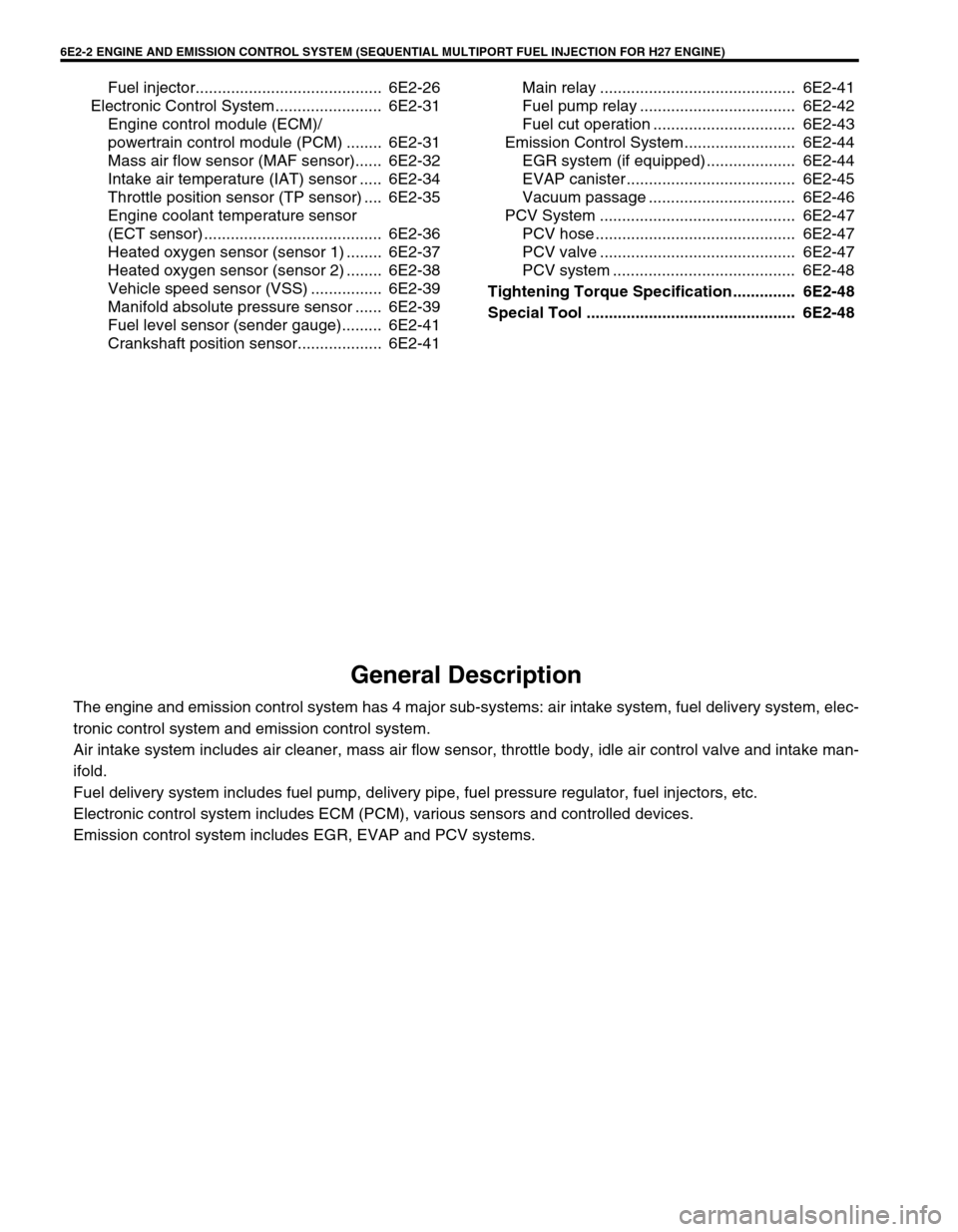

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6E2-2 ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE)
Fuel injector..........................................  6E2-26
Electronic Control System.................

Page 336 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE) 6E2-3
System Flow

Page 337 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6E2-4 ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE)
System Diagram

Page 338 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE) 6E2-5
1. Air cleaner 22. Fuel level sensor 39. A/C controller (if equipped)
2. Intake air temp. sensor  23. Moni

Page 339 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6E2-6 ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE)

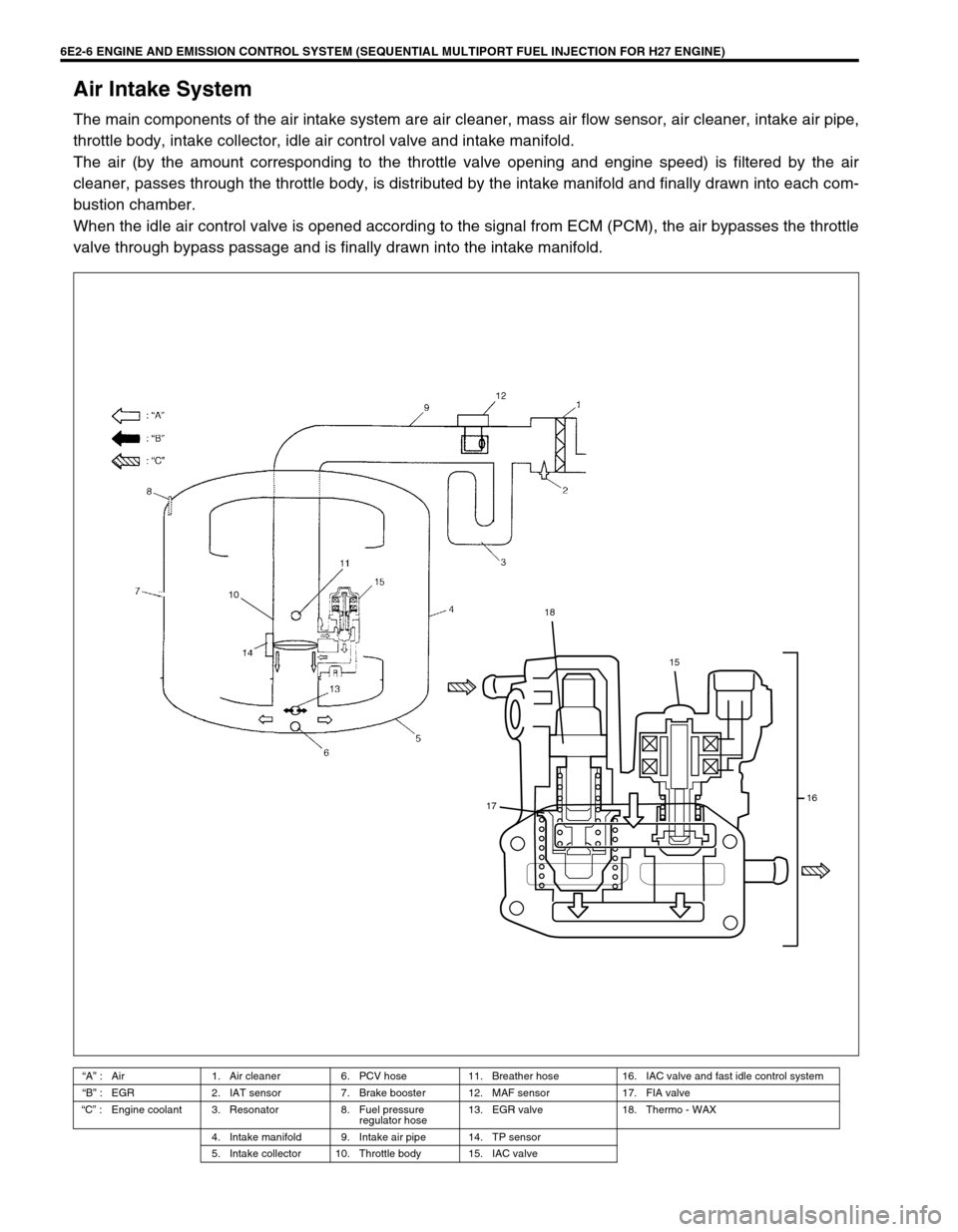

Air Intake System
The main components of the air intake system are air cleaner, mass air flow sensor, air

Page 340 of 656

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE AND EMISSION CONTROL SYSTEM (SEQUENTIAL MULTIPORT FUEL INJECTION FOR H27 ENGINE) 6E2-7

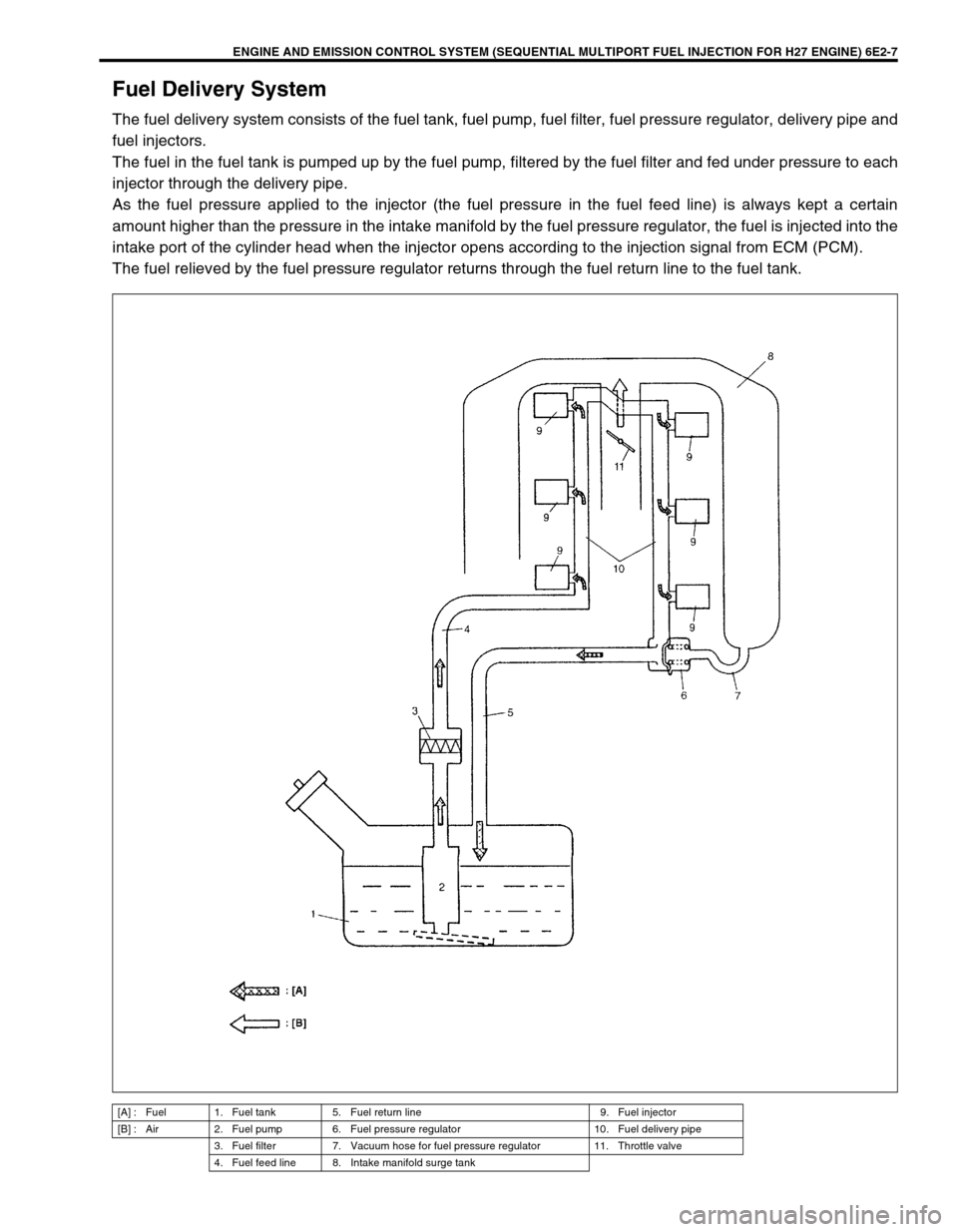

Fuel Delivery System
The fuel delivery system consists of the fuel tank, fuel pump, fuel filter, fuel pres
