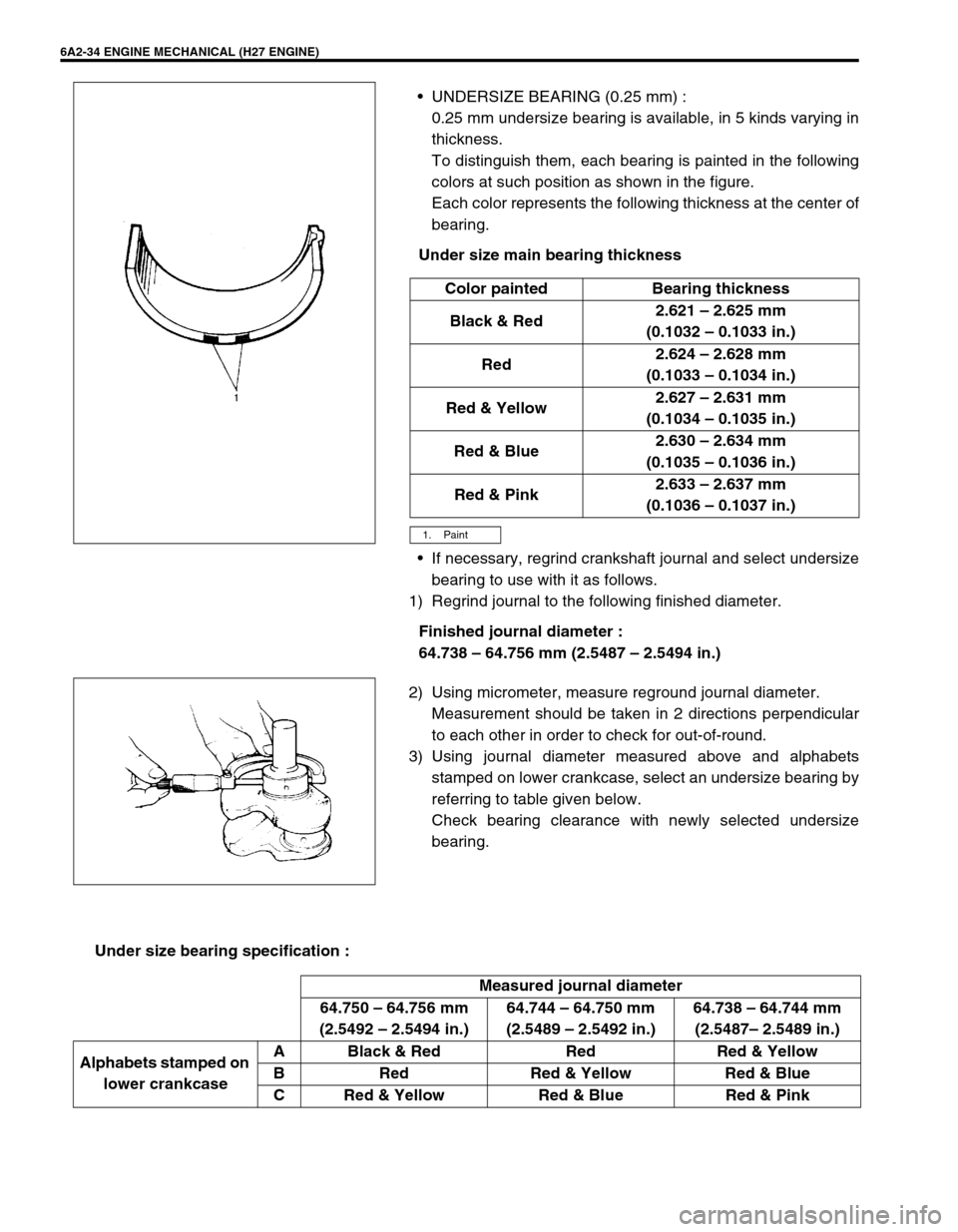

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6A2-34 ENGINE MECHANICAL (H27 ENGINE)
•UNDERSIZE BEARING (0.25 mm) :
0.25 mm undersize bearing is available, in 5 kinds varying in
thickness.
To distinguish them, each bearing is painted in the foll

Page 322 of 656

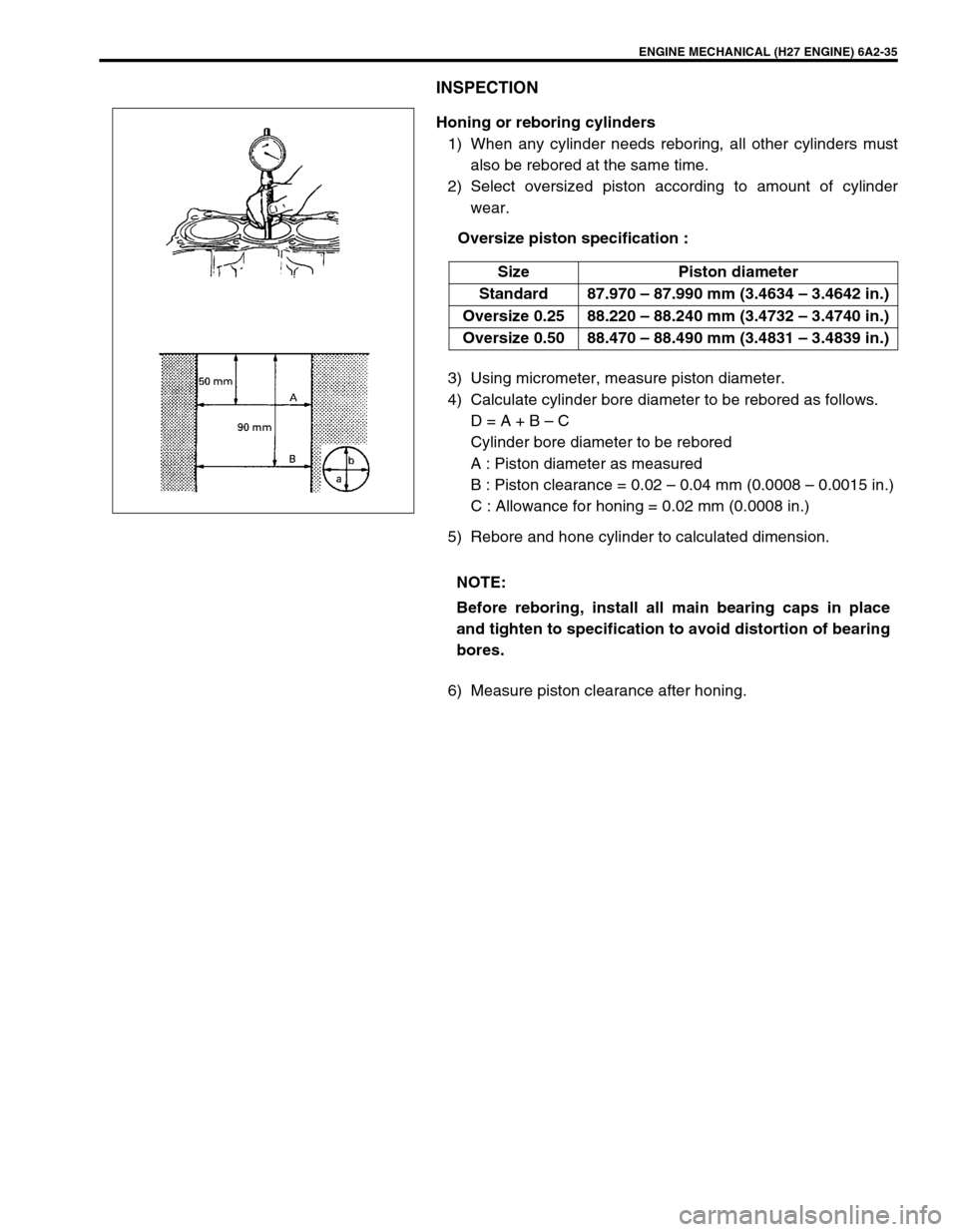

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE MECHANICAL (H27 ENGINE) 6A2-35
INSPECTION
Honing or reboring cylinders
1) When any cylinder needs reboring, all other cylinders must
also be rebored at the same time.
2) Select oversized piston

Page 323 of 656

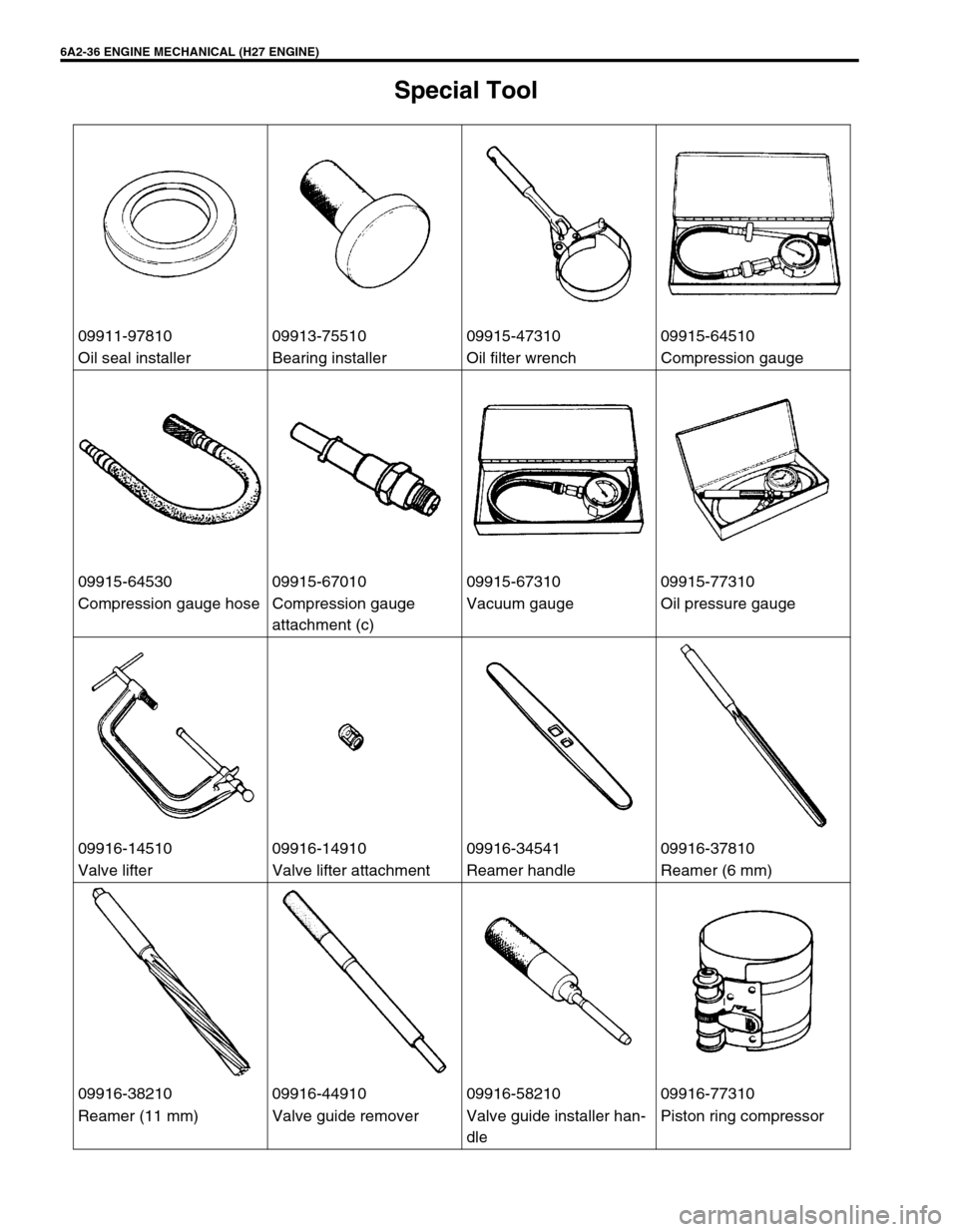

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6A2-36 ENGINE MECHANICAL (H27 ENGINE)
Special Tool
09911-97810 09913-75510 09915-47310 09915-64510
Oil seal installer Bearing installer Oil filter wrench Compression gauge
09915-64530 09915-67010 0991

Page 324 of 656

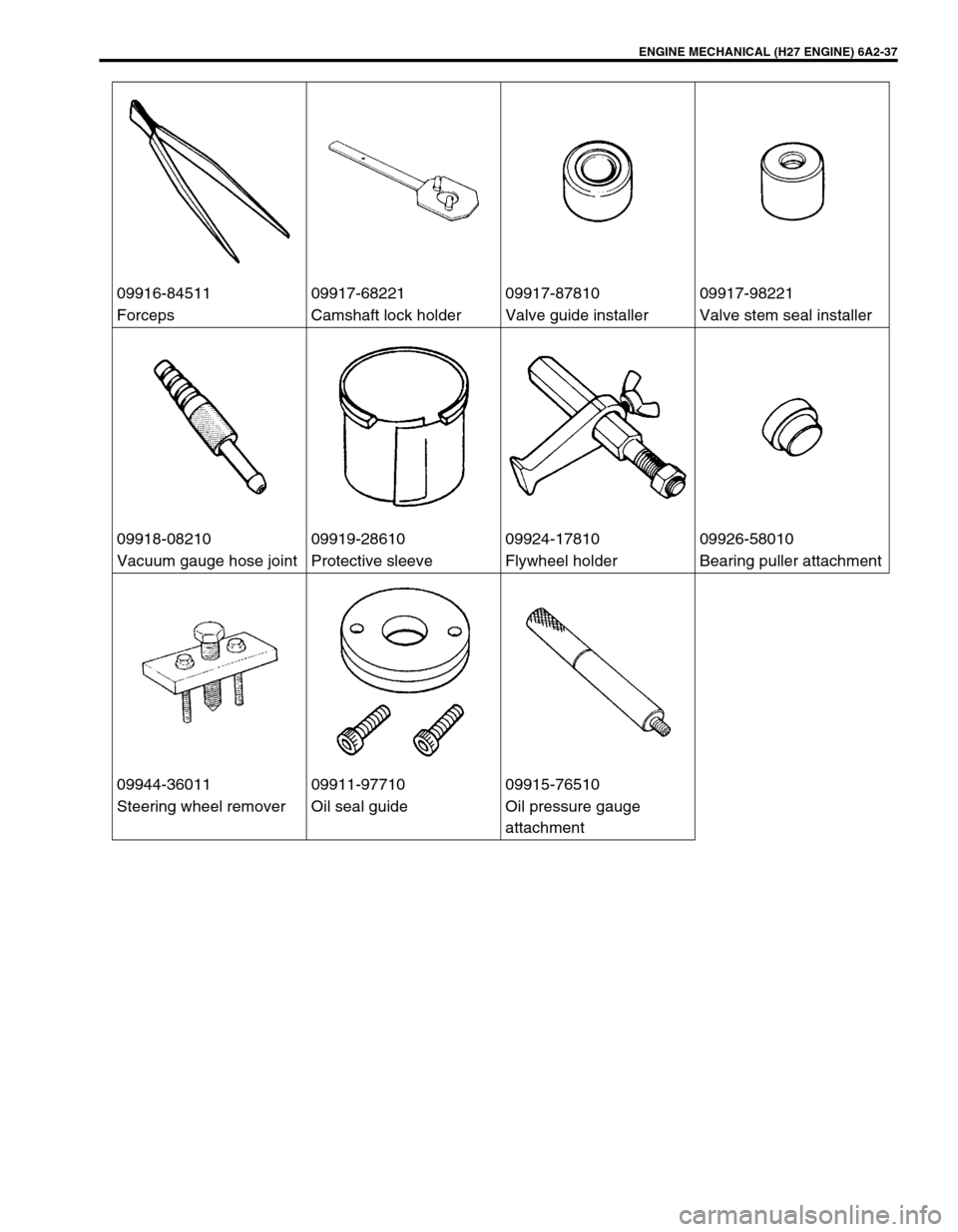

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE MECHANICAL (H27 ENGINE) 6A2-37
09916-84511 09917-68221 09917-87810 09917-98221
Forceps Camshaft lock holder Valve guide installer Valve stem seal installer
09918-08210 09919-28610 09924-17810 0

Page 325 of 656

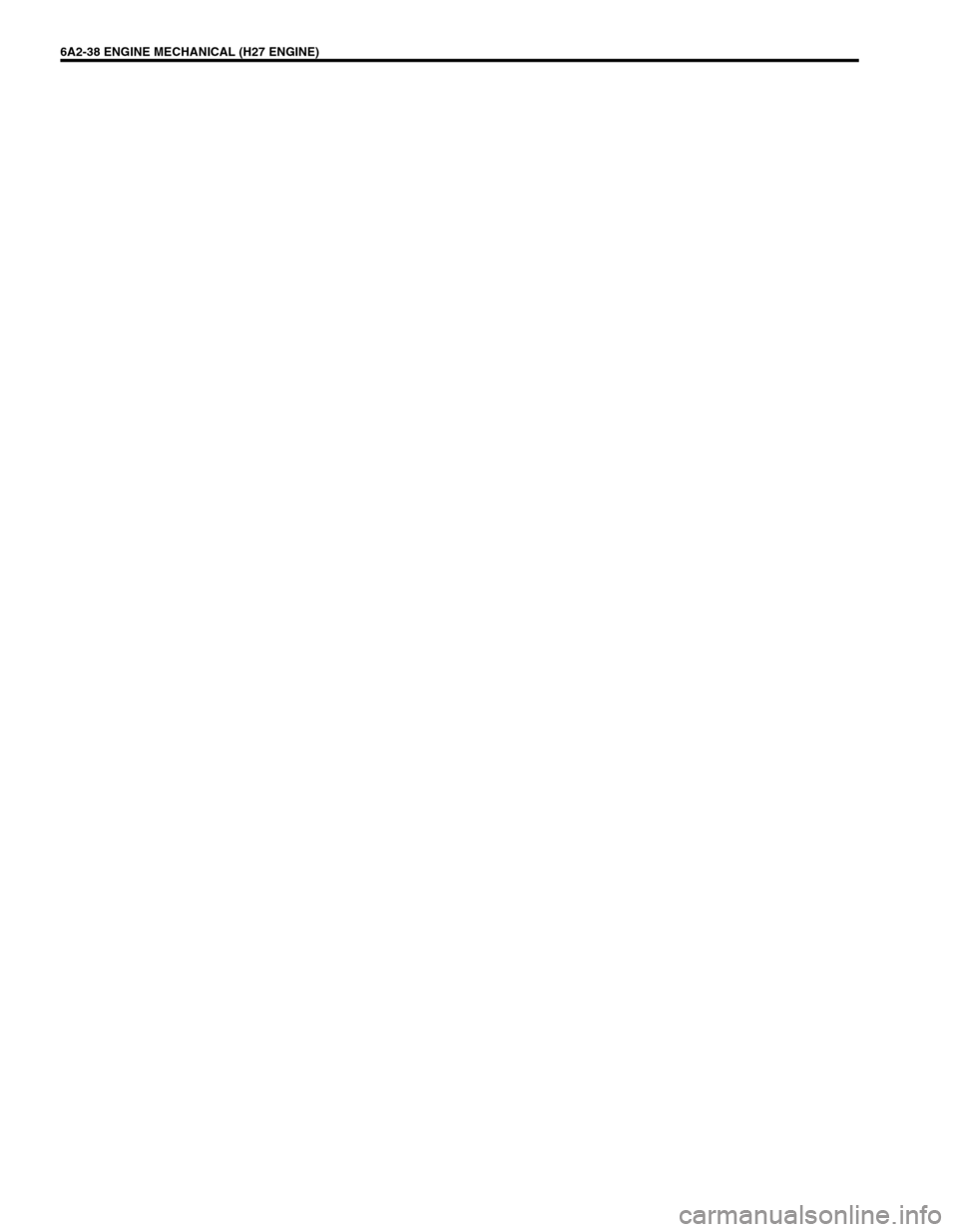

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6A2-38 ENGINE MECHANICAL (H27 ENGINE)

Page 326 of 656

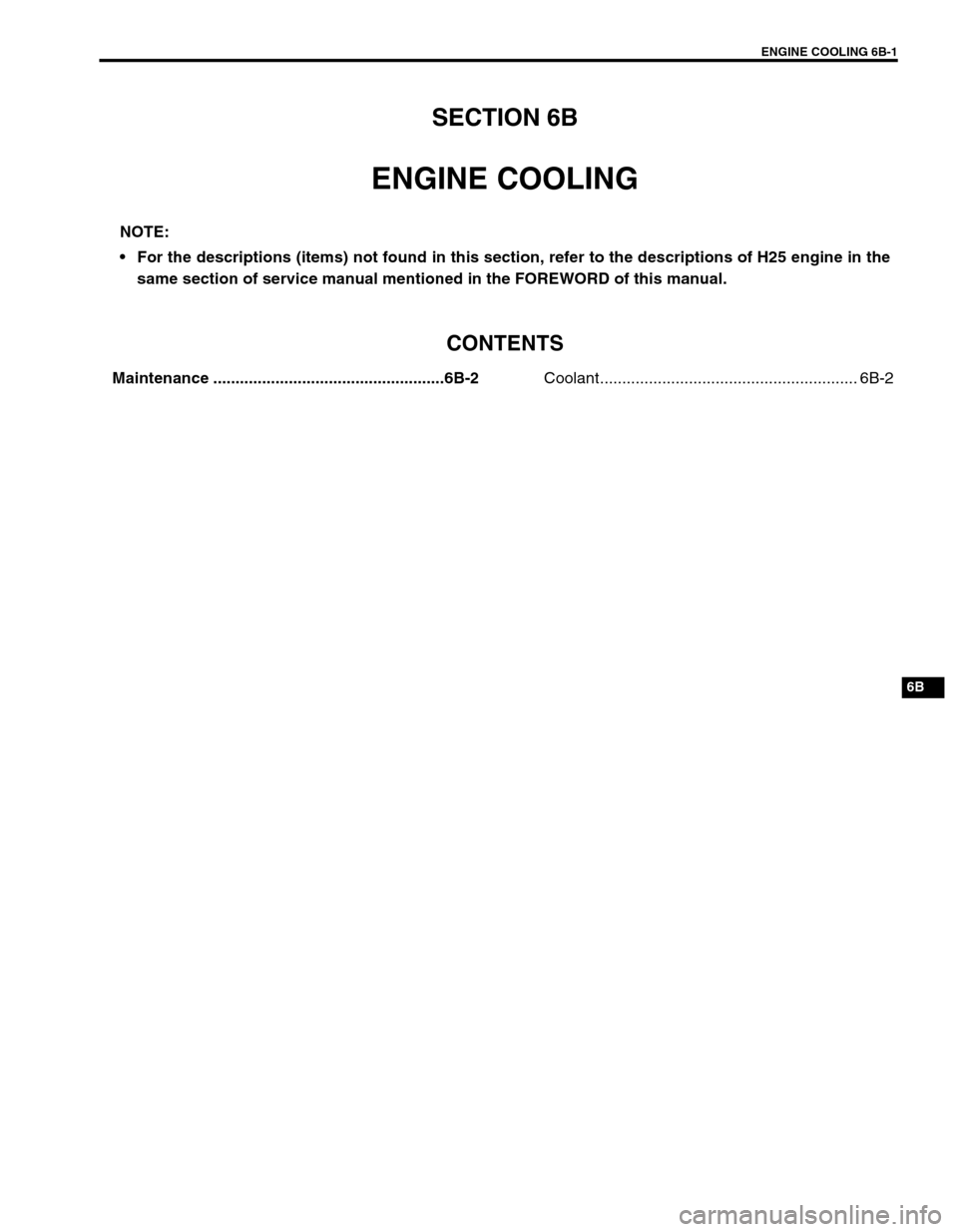

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE COOLING 6B-1
6B
SECTION 6B
ENGINE COOLING
CONTENTS
Maintenance ....................................................6B-2Coolant.......................................................... 6B-2
NO

Page 327 of 656

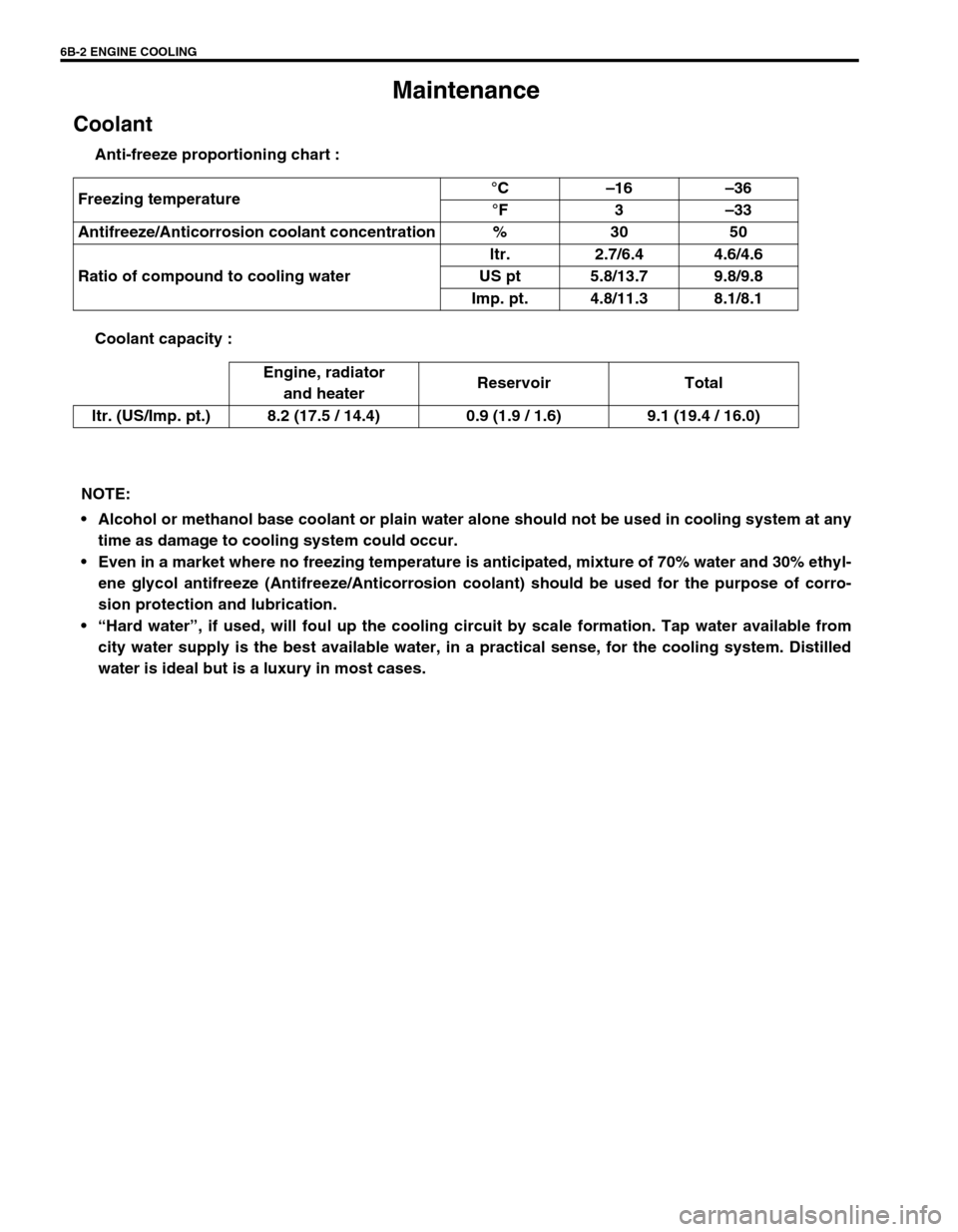

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6B-2 ENGINE COOLING
Maintenance
Coolant
Anti-freeze proportioning chart :
Coolant capacity : Freezing temperature°C–16–36
°F3–33
Antifreeze/Anticorrosion coolant concentration % 30 50
Ratio of

Page 328 of 656

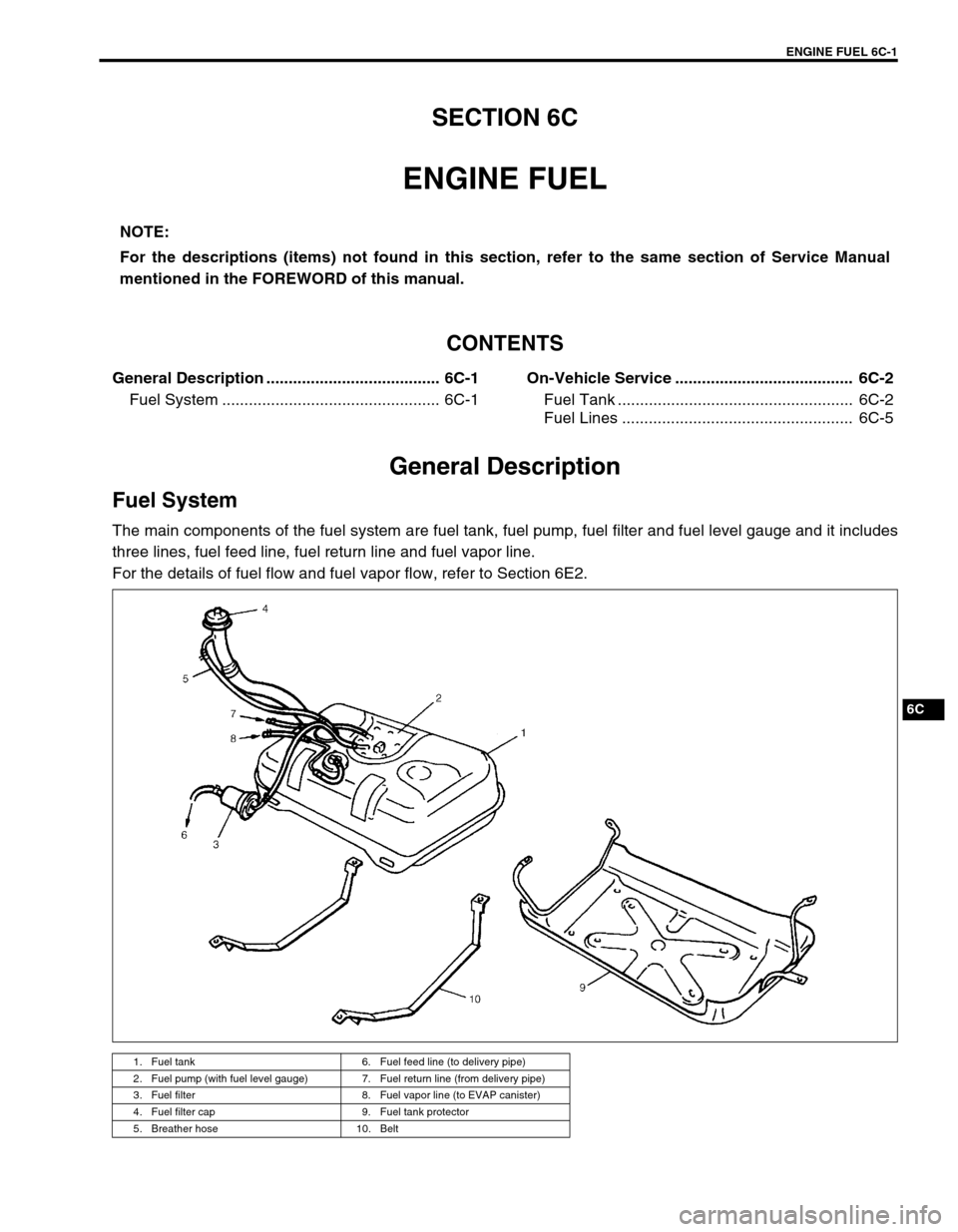

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE FUEL 6C-1
6C
SECTION 6C
ENGINE FUEL
CONTENTS
General Description ....................................... 6C-1
Fuel System ................................................. 6C-1On-Vehicle Servic

Page 329 of 656

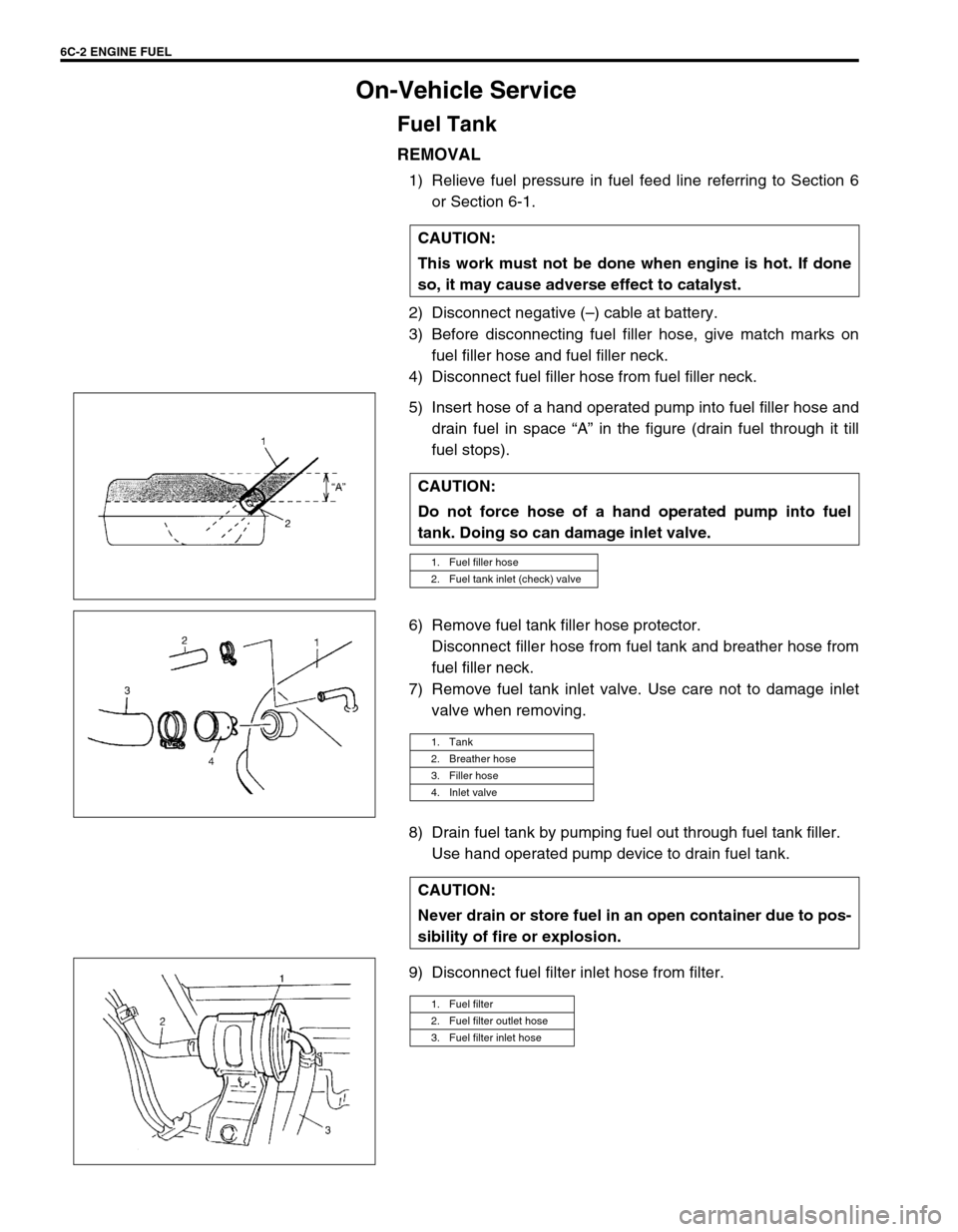

SUZUKI GRAND VITARA 1999 2.G Owners Manual 6C-2 ENGINE FUEL
On-Vehicle Service
Fuel Tank
REMOVAL
1) Relieve fuel pressure in fuel feed line referring to Section 6
or Section 6-1.
2) Disconnect negative (–) cable at battery.
3) Before disconn

Page 330 of 656

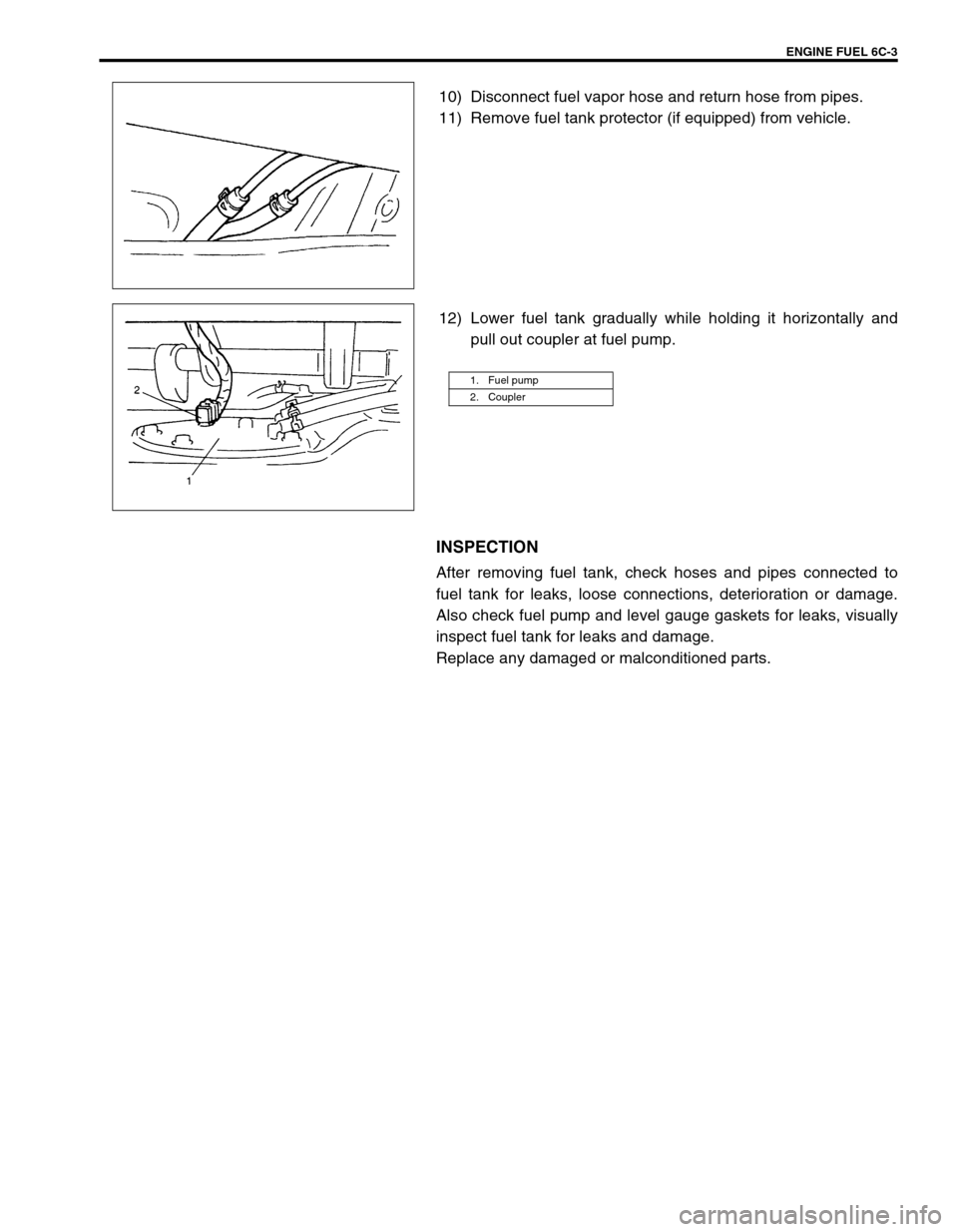

SUZUKI GRAND VITARA 1999 2.G Owners Manual ENGINE FUEL 6C-3
10) Disconnect fuel vapor hose and return hose from pipes.
11) Remove fuel tank protector (if equipped) from vehicle.
12) Lower fuel tank gradually while holding it horizontally and
p
