7-33
INSPECTION AND MAINTENANCE
54P00-01E

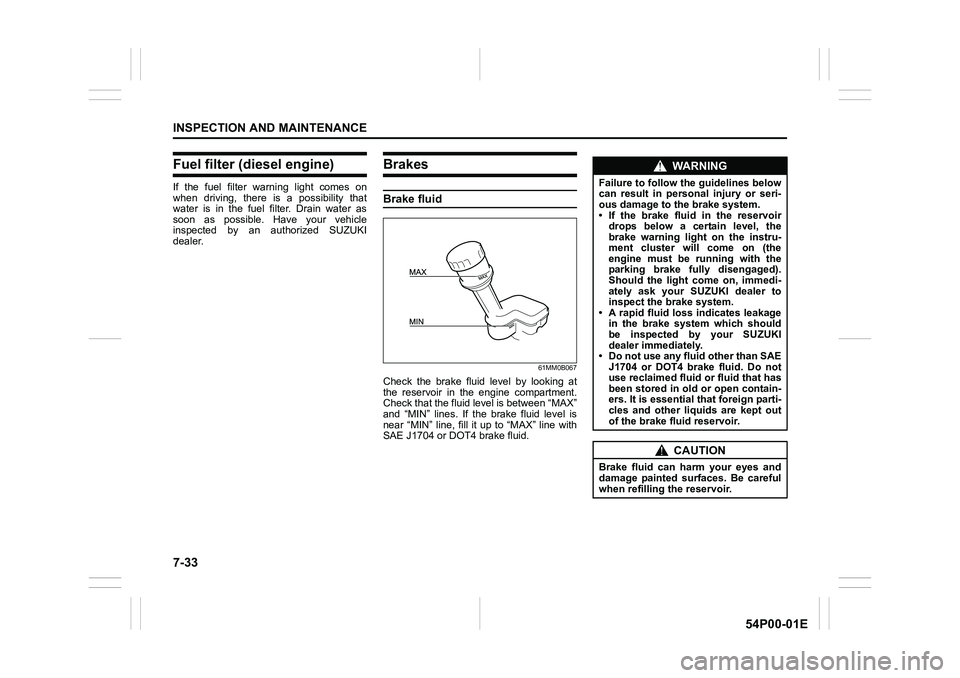

Fuel filter (diesel engine)
If the fuel filter warning light comes on
when driving, there is a possibility that
water is in the fuel filter. Drain water as
soon as possible. Have your vehicle
inspected by an authorized SUZUKI
dealer.
Brakes
Brake fluid
61MM0B067
Check the brake fluid level by looking at
the reservoir in the engine compartment.
Check that the fluid level is between “MAX”
and “MIN” lines. If the brake fluid level is
near “MIN” line, fill it up to “MAX” line with
SAE J1704 or DOT4 brake fluid.
WA R N I N G
Failure to follow the guidelines below
can result in personal injury or seri-
ous damage to the brake system.
• If the brake fluid in the reservoir
drops below a certain level, the
brake warning light on the instru-
ment cluster will come on (the
engine must be running with the
parking brake fully disengaged).
Should the light come on, immedi-
ately ask your SUZUKI dealer to
inspect the brake system.
• A rapid fluid loss indicates leakage
in the brake system which should
be inspected by your SUZUKI
dealer immediately.
• Do not use any fluid other than SAE
J1704 or DOT4 brake fluid. Do not
use reclaimed fluid or fluid that has
been stored in old or open contain-
ers. It is essential that foreign parti-
cles and other liquids are kept out
of the brake fluid reservoir.
CAUTION
Brake fluid can harm your eyes and
damage painted surfaces. Be careful
when refilling the reservoir.

7-34
INSPECTION AND MAINTENANCE
54P00-01E
NOTE:
With disc brakes, the fluid level can be
expected to gradually fall as the brake
pads wear.
Brake pedal
Check brake pedal stroke. If the stroke is
so large, have the brake system inspected
by your SUZUKI dealer. If you doubt the
brake pedal is at its normal height, check it
as follows:
54G108
Minimum distance between brake pedal
and floor carpet “a”: 59 mm (2.3 in.)
With the engine running, measure the dis-
tance between the brake pedal and floor
carpet when the pedal is depressed with
approximately 30 kg (66 lbs) of force. The
minimum distance required is as specified.
Since your vehicle’s brake system is self-
adjusting, there is no need for pedal
adjustment.
If the pedal to floor carpet distance as
measured above is less than the minimum
distance required, have your vehicle
inspected by your SUZUKI dealer.
NOTE:
When measuring the distance between the
brake pedal and floor wall, be sure not to
include the floor mat or rubber on the floor
wall in your measurement.
60G104S
WA R N I N G
Brake fluid is harmful or fatal if swal-
lowed, and harmful if it comes in con-
tact with skin or eyes. If swallowed,
do not induce vomiting. Immediately
contact a poison control center or a
physician. If brake fluid gets in eyes,
flush eyes with water and seek medi-
cal attention. Wash thoroughly after
handling. Solution can be poisonous
to animals. Keep out of reach of chil-
dren and animals.
WA R N I N G
If you experience any of the following
problems with your vehicle’s brake
system, have the vehicle inspected
immediately by your SUZUKI dealer.
• Poor braking performance
• Uneven braking (brakes not work-
ing uniformly on all wheels.)
• Excessive pedal travel
• Brake dragging
• Excessive noise

7-35
INSPECTION AND MAINTENANCE
54P00-01E
Parking brake
54G109
Ratchet tooth specification “b”:
4th – 9th
Lever pull force (1):
200 N (20 kg, 45 lbs)
Check the parking brake for proper adjust-
ment by counting the number of clicks
made by the ratchet teeth as you slowly
pull up on the parking brake lever to the
point of full engagement. The parking
brake lever should stop between the speci-
fied ratchet teeth and the rear wheels
should be securely locked. If the parking
brake is not properly adjusted or the
brakes drag after the lever has been fully
released, have the parking brake inspected
and/or adjusted by your SUZUKI dealer.
Brake discs
If the measured thickness or inner diame-
ter of the most worn part exceeds the
value indicated above, the parts should be
replaced with a new one. The measure-
ment involves disassembling each brake
and requires the use of a micrometer,
which must be done according to the
instructions described in the relevant ser-
vice manual or available from the relevant
repair information site.
Steering
68LM708
Steering wheel play “c”:
0 – 30 mm (0.0 – 1.2 in.)
Check the play of the steering wheel by
gently turning it from left to right and mea-
suring the distance that it moves before
you feel slight resistance. The play should
be between the specified values.
Check that the steering wheel turns easily
and smoothly without rattling by turning it
all the way to the right and to the left while
driving very slowly in an open area. If the
amount of free play is not as specified or
you find anything else to be wrong, an
inspection must be performed by your
SUZUKI dealer.
EXAMPLEBrake location Minimum thickness
Front wheels 20.0 mm (0.8 in.)
Rear wheels 8.0 mm (0.3 in.)
“c”
EXAMPLE

7-36
INSPECTION AND MAINTENANCE
54P00-01E

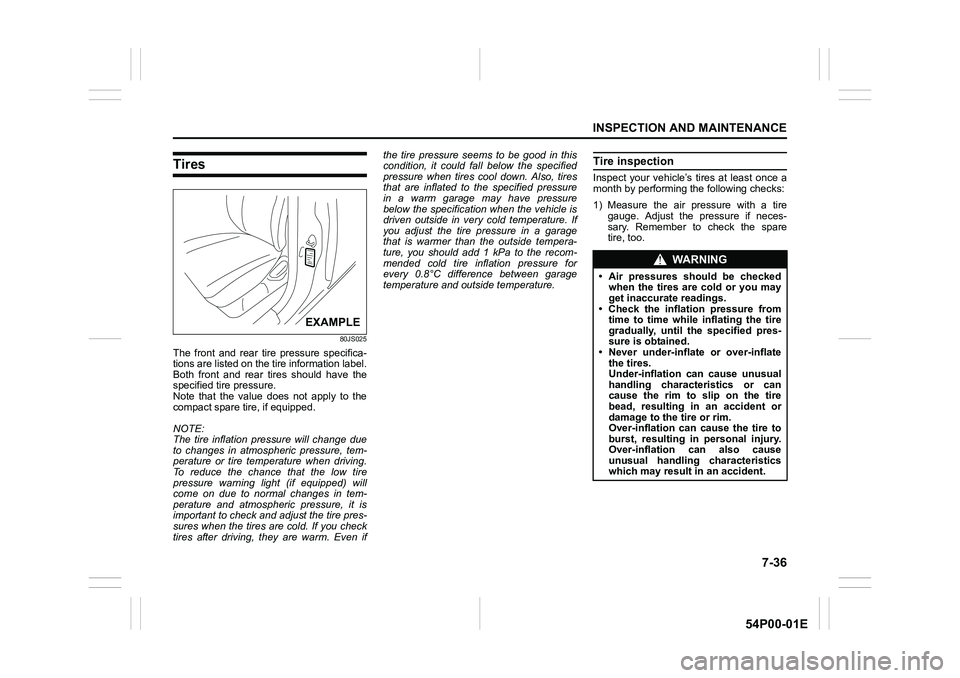

Tires
80JS025
The front and rear tire pressure specifica-
tions are listed on the tire information label.
Both front and rear tires should have the
specified tire pressure.
Note that the value does not apply to the
compact spare tire, if equipped.
NOTE:
The tire inflation pressure will change due
to changes in atmospheric pressure, tem-
perature or tire temperature when driving.
To reduce the chance that the low tire
pressure warning light (if equipped) will
come on due to normal changes in tem-
perature and atmospheric pressure, it is
important to check and adjust the tire pres-
sures when the tires are cold. If you check
tires after driving, they are warm. Even ifthe tire pressure seems to be good in this
condition, it could fall below the specified
pressure when tires cool down. Also, tires
that are inflated to the specified pressure
in a warm garage may have pressure
below the specification when the vehicle is
driven outside in very cold temperature. If
you adjust the tire pressure in a garage
that is warmer than the outside tempera-
ture, you should add 1 kPa to the recom-
mended cold tire inflation pressure for
every 0.8°C difference between garage
temperature and outside temperature.
Tire inspection
Inspect your vehicle’s tires at least once a
month by performing the following checks:
1) Measure the air pressure with a tire
gauge. Adjust the pressure if neces-
sary. Remember to check the spare
tire, too.
EXAMPLE
WA R N I N G
• Air pressures should be checked
when the tires are cold or you may
get inaccurate readings.
• Check the inflation pressure from
time to time while inflating the tire
gradually, until the specified pres-
sure is obtained.
• Never under-inflate or over-inflate
the tires.
Under-inflation can cause unusual
handling characteristics or can
cause the rim to slip on the tire
bead, resulting in an accident or
damage to the tire or rim.
Over-inflation can cause the tire to
burst, resulting in personal injury.
Over-inflation can also cause
unusual handling characteristics
which may result in an accident.

7-37
INSPECTION AND MAINTENANCE
54P00-01E
54G136
(1) Tread wear indicator
(2) Indicator location mark
2) Check that the depth of the tread
groove is more than 1.6 mm (0.06 in.).
To help you check this, the tires have
molded-in tread wear indicators in the
grooves. When the indicators appear
on the tread surface, the remaining
depth of the tread is 1.6 mm (0.06 in.)
or less and the tire should be replaced.
3) Check for abnormal wear, cracks and
damage. Any tires with cracks or other
damage should be replaced. If any tires
show abnormal wear, have them
inspected by your SUZUKI dealer.4) Check for loose wheel bolts.
5) Check that there are no nails, stones or
other objects sticking into the tires.
EXAMPLECAUTION
Hitting curbs and running over rocks
can damage tires and affect wheel
alignment. Have tires and wheel
alignment checked periodically by
your SUZUKI dealer.
WA R N I N G
• Your SUZUKI vehicle is equipped
with tires which are all the same
type and size. This is important to
ensure proper steering and han-
dling of the vehicle. Never mix tires
of different size or type on the four
wheels of your vehicle. The size
and type of tires used should be
only those approved by SUZUKI as
standard or optional equipment for
your vehicle.
• Replacing the wheels and tires
equipped on your vehicle with cer-
tain combinations of aftermarket
wheels and tires can significantly
change the steering and handling
characteristics of your vehicle.
• Therefore, use only those wheel
and tire combinations approved by
SUZUKI as standard or optional
equipment for your vehicle.
NOTICE
Replacing the original tires with tires
of a different size may result in false
speedometer or odometer readings.
Check with your SUZUKI dealer
before purchasing replacement tires
that differ in size from the original
tires.
NOTICE
For 4WD models, replacing a tire with
one of a different size, or using differ-
ent brands among the four tires can
result in damage to the drive train.

7-38
INSPECTION AND MAINTENANCE
54P00-01E
Tire rotation
4-tire rotation
54G114
To avoid uneven wear of your tires and to
prolong their life, rotate the tires as illus-
trated. Tires should be rotated every 10000
km (6000 miles). After rotation, adjust front
and rear tire pressures to the specification
listed on your vehicle’s tire information
label.
NOTE:
(For Mexico)
For additional instruction, refer to “SUP-
PLEMENT” section in the end of this book.
Compact spare tire (if equipped)
54G115
(1) Wear indicator
(2) Indicator location mark
Your vehicle comes equipped with a com-
pact spare tire. It is designed to save
space in your storage area, and its lighter
weight facilitates installing the spare tire
when getting a flat tire. It is only intended
for temporary emergency use, until the
conventional tire can be repaired or
replaced. The inflation pressure of the
compact spare tire should be checked at
least once a month. Use a quality pocket-
type inflation pressure gauge and set at
420 kPa (60 psi). At the same time, check
that the tire is stored securely. If it is not,
tighten it.Note that two or more compact spare tires
should not be used on one vehicle simulta-
neously.
WA R N I N G
The compact spare tire and wheel are
intended for temporary emergency
use only. Continuous use of this
spare can result in tire failure and
loss of control. Always observe these
precautions when using this spare:
• Your vehicle should be handled in a
different way when using this
spare.
• Do not exceed 80 km/h (50 mph).
• Replace this spare with a standard
tire and wheel as soon as possible.
• Use of this spare will reduce
ground clearance.
• Recommended air pressure for this
spare is 420 kPa (60 psi).
• Do not use tire chains on the com-
pact spare. If you must use tire
chains, rearrange the wheels so
standard tires and wheels are fitted
to the front axle.
• The compact spare tire has a much
shorter tread life than the conven-
tional tires on your vehicle.
Replace the tire as soon as the
tread wear indicator appears.
• When replacing the compact spare
tire, use a replacement tire with the
exact same size and construction.

7-39
INSPECTION AND MAINTENANCE
54P00-01E
Battery
52KM160
Your vehicle is equipped with a battery that
requires infrequent maintenance. You will
never have to add water. You should, how-
ever, periodically check the battery, battery
terminals and battery hold-down bracket
for corrosion. Remove corrosion using a
stiff brush and ammonia mixed with water,
or baking soda mixed with water. After
removing corrosion, rinse with clean water.
If your vehicle is not going to be driven for
a month or longer, disconnect the cable
from the negative terminal of the battery to
help prevent discharge.Battery replacement54P000704
NOTE:
(For diesel engine model)
To approach the battery, push the locks
and remove the suction pipe (1).
WA R N I N G
• Batteries produce flammable
hydrogen gas. Keep flames and
sparks away from the battery or an
explosion may occur. Never smoke
when working near the battery.
• When checking or servicing the
battery, disconnect the negative
cable. Be careful not to cause a
short circuit by allowing metal
objects to contact the battery posts
and the vehicle at the same time.
• To avoid harm to yourself or dam-
age to your vehicle or battery, fol-
low the jump-starting instructions
in “EMERGENCY SERVICE” sec-
tion if it is necessary to jump-start
your vehicle.
• Diluted sulfuric acid spilled from
battery can cause blindness or
severe burns. Use proper eye pro-
tection and gloves. Flush eyes or
body with ample water and get
medical care immediately if suf-
fered. Keep batteries out of reach
of children.
EXAMPLE
(1)
EXAMPLE

7-40
INSPECTION AND MAINTENANCE
54P00-01E
54P000705
To remove the battery:
1) Disconnect the negative cable (2).
2) Disconnect the positive cable (3).
3) Remove the bracket bolt (4) and
remove the bracket (5).
4) Remove the battery.
To install the battery:
1) Install the battery in the reverse order of
removal.
2) Tighten the bracket bolt and battery
cables securely.
NOTE:
When the battery is disconnected, some of
the vehicle’s functions will be initialized
and/or deactivated.
These functions must be required to reset
after the battery is reconnected.(Battery label)
54P000733
(6) Crossed-out wheeled bin symbol
(7) Chemical symbol of “Pb”The crossed-out wheeled bin symbol (5)
located on the battery label indicates that
the used battery should be collected sepa-
rately from ordinary household trash.
The chemical symbol of “Pb” (6) indicates
the battery contains more than 0.004%
lead.
By ensuring the used battery is disposed
of or recycled correctly, you will help pre-
vent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropri-
ate trash handling of the battery. The recy-
cling of materials will help to conserve
natural resources. For more detailed infor-
mation about disposing of or recycling the
used battery, consult your SUZUKI dealer.
(2)
(3)
(4)(5)EXAMPLEWA R N I N G
Batteries contain toxic substances
including sulfuric acid and lead. They
could have potential negative conse-
quences for the environment and
human health. Used batteries must
be disposed of or recycled according
to applicable rules or regulations and
must not be disposed of with ordi-
nary household trash. Make sure not
to tip over the battery when you
remove it from the vehicle. Other-
wise, sulfuric acid could run out and
you might get injury.
Pb
(6)
(7)

7-41
INSPECTION AND MAINTENANCE
54P00-01E
Fuses
Your vehicle has three types of fuses, as
described below:
Main fuse
The main fuse takes current directly from
the battery.
Primary fuses
These fuses are between the main fuse
and individual fuses, and are for electrical
load groups.
Individual fuses
These fuses are for individual electrical cir-
cuits.
To remove a fuse, use the fuse puller pro-
vided in the fuse box.
63J095
Fuses in engine compartment
61MM0B068
54P00070654P000707
(1)
(2)
(3)
(4)
(5)(6)
(7)
(8) (20)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)(21)
(22)
(23)
(24)
(25)
(26)(33)
(34)
(35)
(27)
(28)
(29)(36)
(30)(37) (31)
(32)
(38)
(39)
(40)
(41)
(42)
MAIN FUSE / PRIMARY FUSE
(1)50 A FL7 (GAS)
60 A FL7 (DIESEL)
(2)50 A FL6 (GAS)
80 A FL6 (DIESEL)
(3)
100 AFL5
(4)
80 AFL4
(5)
100 AFL3
(6)
60 AFL2 (GAS)
100 AFL2 (DIESEL)
(7)
100 AFL1 (GAS)
120 AFL1 (DIESEL)
(8) 7.5 A Ignition-1 signal 2
(43) (44) (45)

7-42
INSPECTION AND MAINTENANCE
54P00-01E
The main fuse, primary fuses and some of the
individual fuses are located in the engine
compartment. If the main fuse blows, no elec-
trical component will function. If a primary fuse
blows, no electrical component in the corre-
sponding load group will function. When
replacing the main fuse, a primary fuse or an
individual fuse, use a genuine SUZUKI
replacement.To remove a fuse, use the fuse puller pro-
vided in the fuse box. The amperage of each
fuse is shown in the back of the fuse box
cover. (9) 30 A Radiator fan 2
(10) 20 A Front fog light
(11) 7.5 A Headlight 2
(12) 25 A Headlight 3
(13) 25 A ESP
® control module
(14) 25 A Headlight
(15) 30 A Back up
(16) 30 A DCDC 2
(17) 40 A Ignition switch
(18) 40 A ESP
® motor
(19) 30 A Starting motor
(20) 7.5 A Transaxle 3
(21) 30 A Fuel heater
(22) 30 A Radiator fan
(23) 30 A Transaxle 2
(24) 40 A HY pump
(25) 30 A DCDC
(26) 30 A FI main (DIESEL)
(27) 20 AFI (GAS)
Fuel pump (DIESEL)
(28) 10 A Air compressor
(29) 15 A Transaxle 1
(30) 30 A Blower fan
(31) 15 A Transaxle 4
(32) 15 A Transaxle 5
(33) 7.5 A Starting signal
(34) 15 A Headlight (Left)
(35) 15 A Headlight high (Left)
(36) 7.5 A FI 2 (DIESEL)
(37) 20 A INJ DRV
(38) 15 A FI
(39) 15 A Headlight (Right)
(40) 15 A Headlight high (Right)
(41) 50 AIgnition switch 2
(DIESEL)
(42) 50 A Battery (DIESEL)
(43) 40 A Sub heater (DIESEL)
(44) 40 A Sub heater 3 (DIESEL)
(45) 40 A Sub heater 2 (DIESEL)
