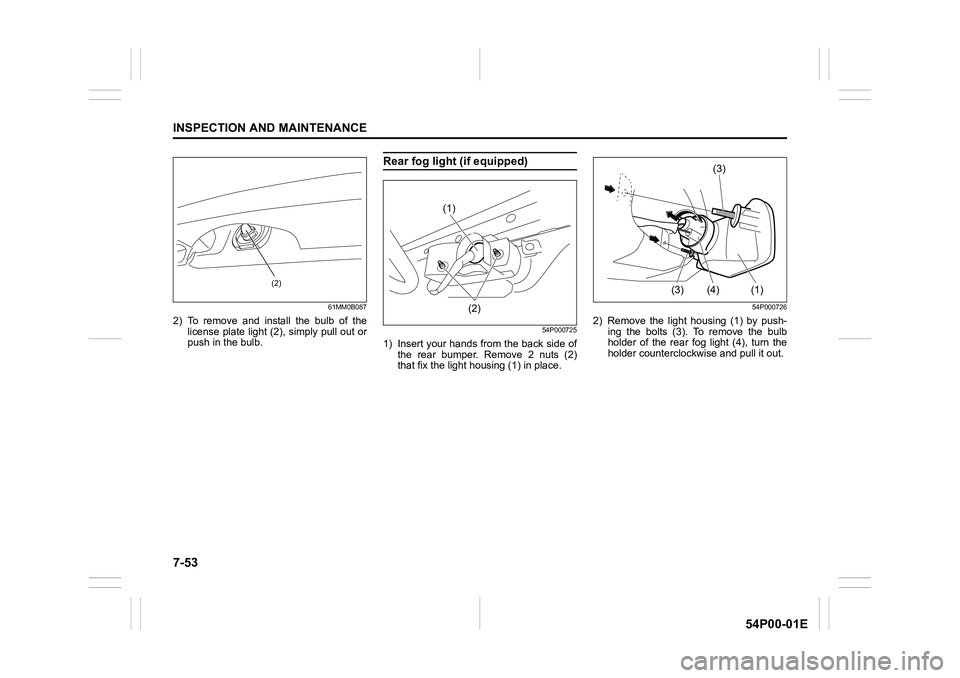

2) To remove and install the bulb of the
license plate light (2), simply pull out or
push in the bulb.
Rear fog light (if equipped)
54P000725
1) Insert your hands from the back side of
the rear bumper. Remove 2 nuts (2)
that fix the light housing (1) in place.
54P000726
2) Remove the light housing (1) by push-
ing the bolts (3). To remove the bulb
holder of the rear fog light (4), turn the
holder counterclockwise and pull it out.
(2)
(2) (1)
(1) (4) (3)(3)

7-54
INSPECTION AND MAINTENANCE
54P00-01E
54P000727
(5) Removal
(6) Installation

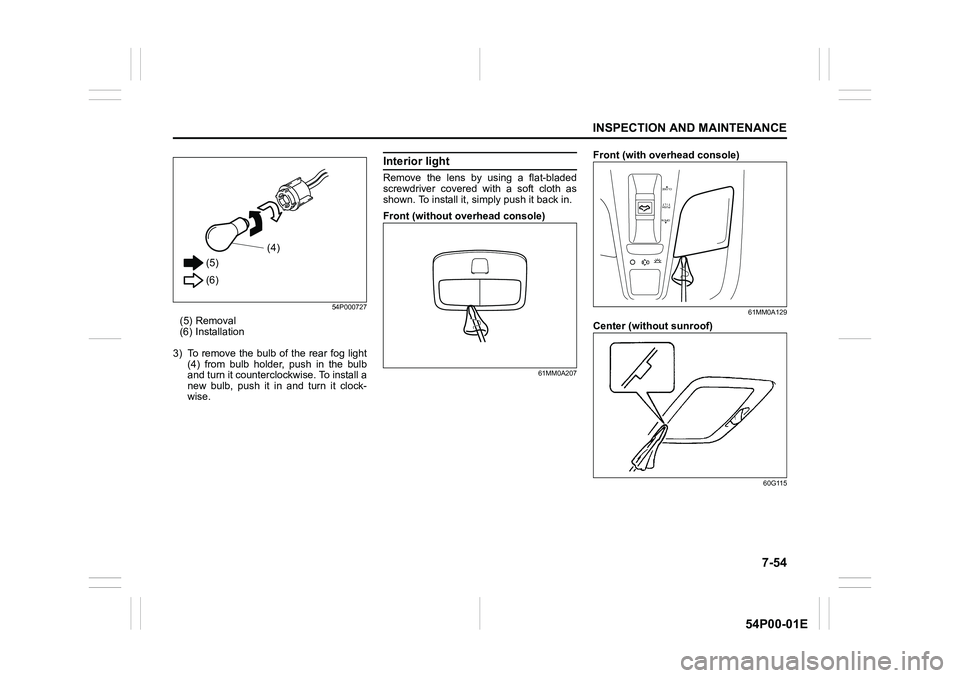

3) To remove the bulb of the rear fog light
(4) from bulb holder, push in the bulb
and turn it counterclockwise. To install a
new bulb, push it in and turn it clock-
wise.
Interior light
Remove the lens by using a flat-bladed
screwdriver covered with a soft cloth as
shown. To install it, simply push it back in.
Front (without overhead console)
61MM0A207
Front (with overhead console)
61MM0A129
Center (without sunroof)
60G115
(5)
(6)(4)
OPEN
PUSH
TILT
CLOSE

7-55
INSPECTION AND MAINTENANCE
54P00-01E
Center (with sunroof)
61MM0A130

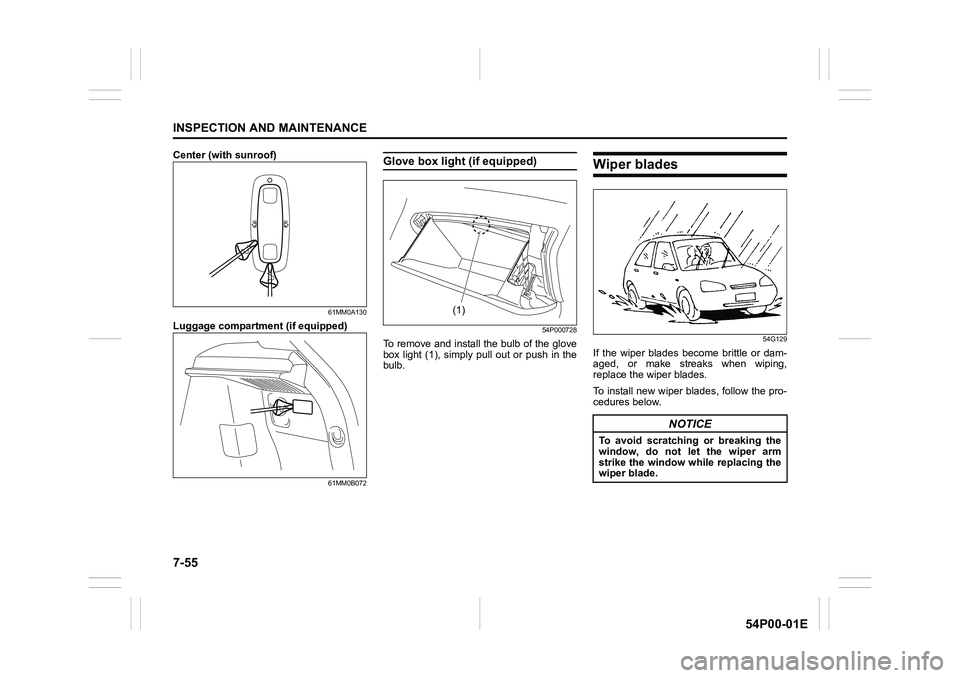

Luggage compartment (if equipped)
61MM0B072
Glove box light (if equipped)
54P000728
To remove and install the bulb of the glove
box light (1), simply pull out or push in the
bulb.
Wiper blades
54G129
If the wiper blades become brittle or dam-
aged, or make streaks when wiping,
replace the wiper blades.
To install new wiper blades, follow the pro-
cedures below.
(1)
NOTICE
To avoid scratching or breaking the
window, do not let the wiper arm
strike the window while replacing the
wiper blade.

7-56
INSPECTION AND MAINTENANCE
54P00-01E
NOTE:
Some wiper blades may be different from
the ones described here depending on
vehicle specifications. If so, consult your
SUZUKI dealer for proper replacement
method.

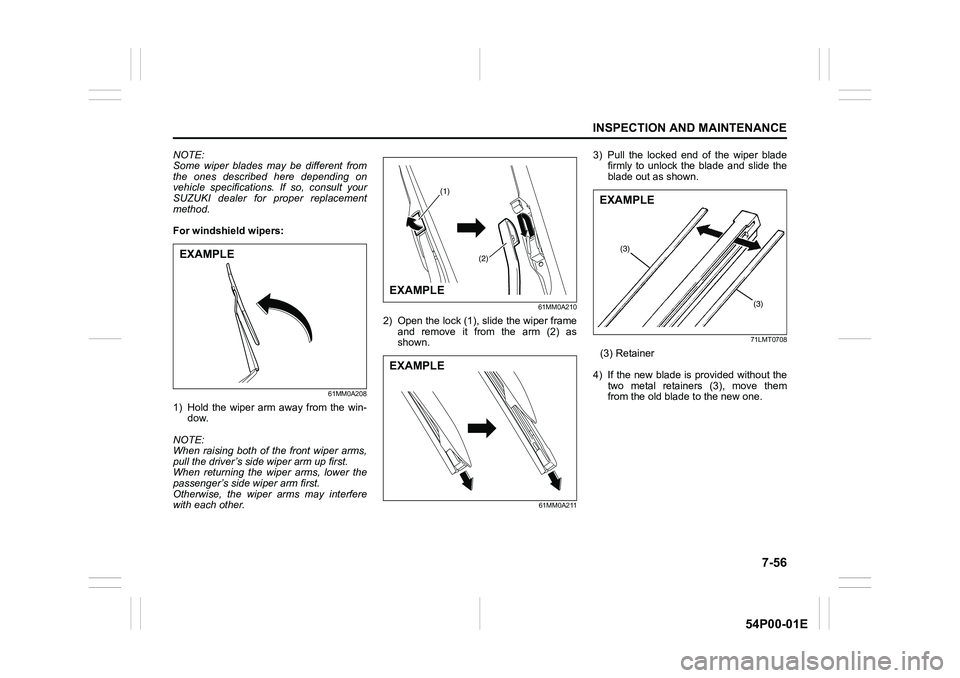

For windshield wipers:
61MM0A208
1) Hold the wiper arm away from the win-
dow.
NOTE:
When raising both of the front wiper arms,
pull the driver’s side wiper arm up first.
When returning the wiper arms, lower the
passenger’s side wiper arm first.
Otherwise, the wiper arms may interfere
with each other.
61MM0A210
2) Open the lock (1), slide the wiper frame
and remove it from the arm (2) as
shown.
61MM0A211
3) Pull the locked end of the wiper blade
firmly to unlock the blade and slide the
blade out as shown.
71LMT0708
(3) Retainer
4) If the new blade is provided without the
two metal retainers (3), move them
from the old blade to the new one.
EXAMPLE
(1)
(2)
EXAMPLE
EXAMPLE
(3)
(3)
EXAMPLE

7-57
INSPECTION AND MAINTENANCE
54P00-01E

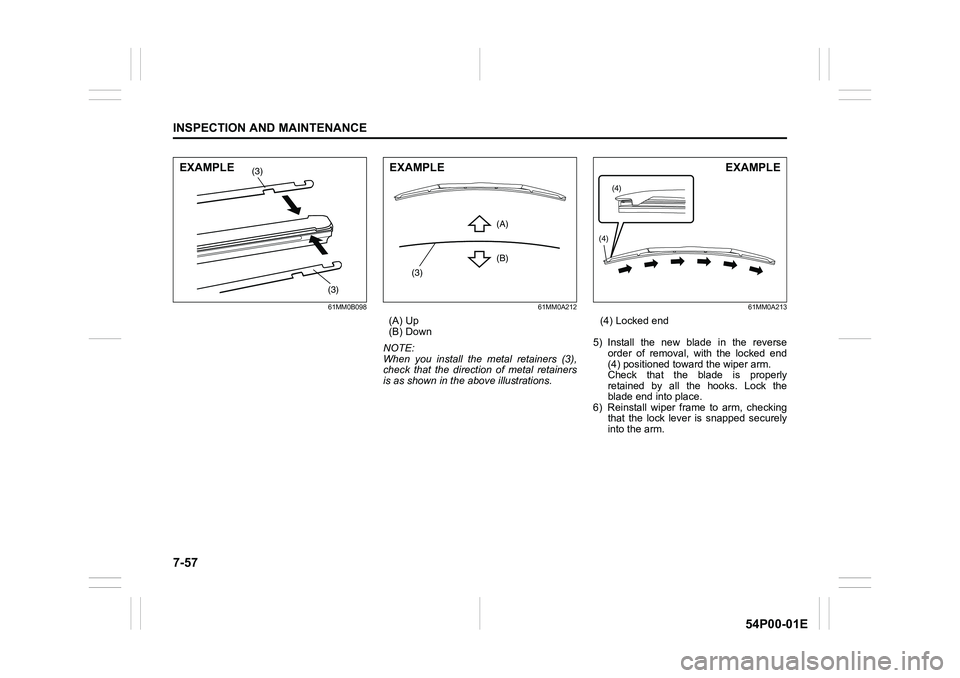

61MM0B098 61MM0A212
(A) Up
(B) Down
NOTE:
When you install the metal retainers (3),
check that the direction of metal retainers
is as shown in the above illustrations.
61MM0A213
(4) Locked end
5) Install the new blade in the reverse
order of removal, with the locked end
(4) positioned toward the wiper arm.
Check that the blade is properly
retained by all the hooks. Lock the
blade end into place.
6) Reinstall wiper frame to arm, checking
that the lock lever is snapped securely
into the arm.
(3)
(3)EXAMPLE
(3)(A)
(B)
EXAMPLE
(4)
(4)
EXAMPLE

7-58
INSPECTION AND MAINTENANCE
54P00-01E

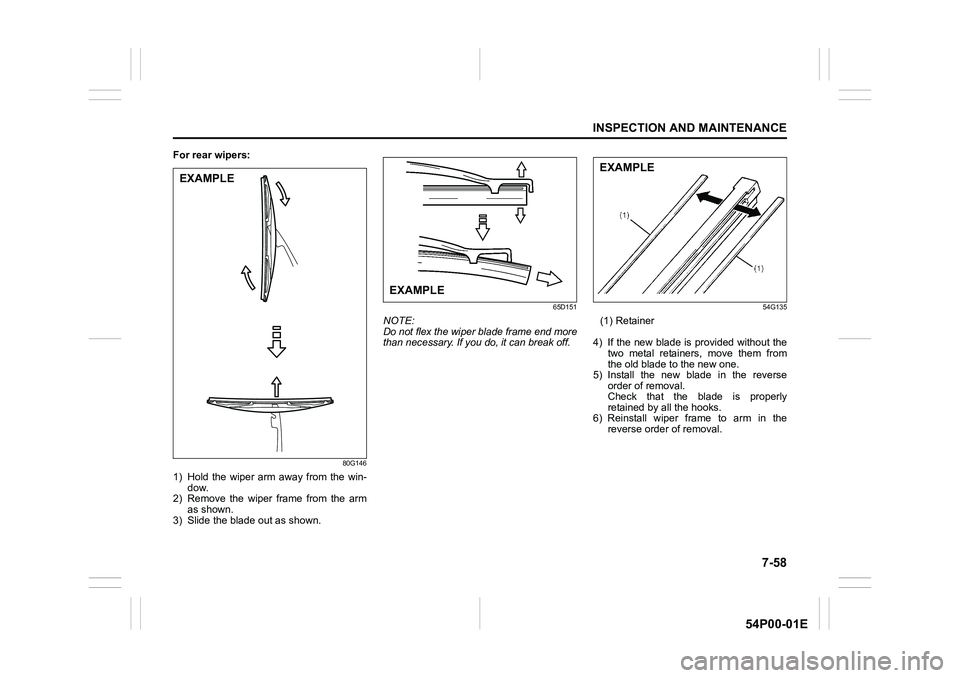

For rear wipers:
80G146
1) Hold the wiper arm away from the win-
dow.
2) Remove the wiper frame from the arm
as shown.
3) Slide the blade out as shown.
65D151
NOTE:
Do not flex the wiper blade frame end more
than necessary. If you do, it can break off.
54G135
(1) Retainer
4) If the new blade is provided without the
two metal retainers, move them from
the old blade to the new one.
5) Install the new blade in the reverse
order of removal.
Check that the blade is properly
retained by all the hooks.
6) Reinstall wiper frame to arm in the
reverse order of removal.
EXAMPLE
EXAMPLE
EXAMPLE

7-59
INSPECTION AND MAINTENANCE
54P00-01E

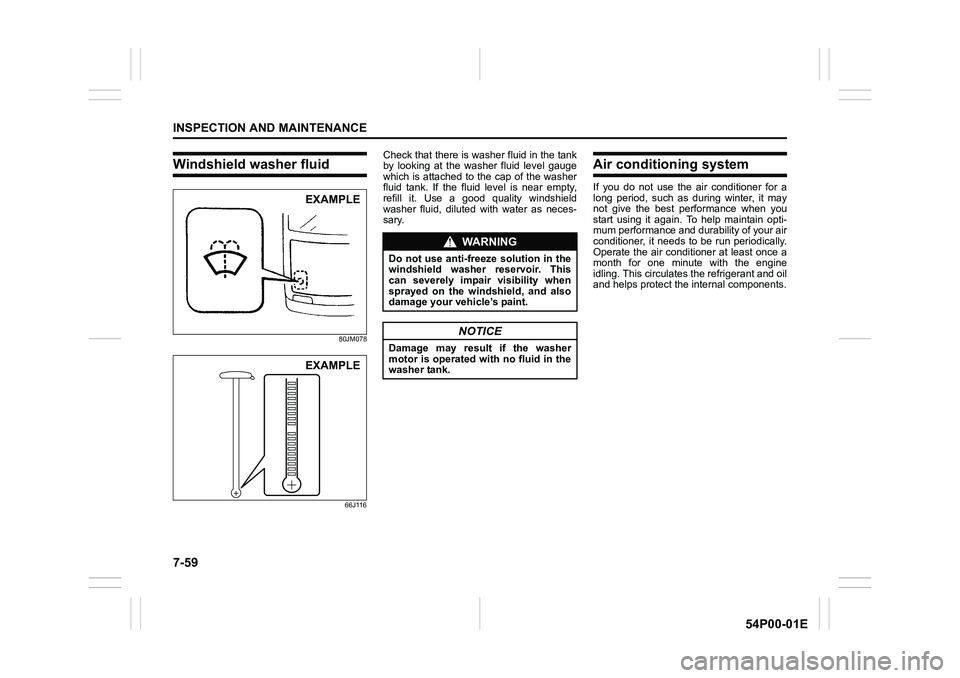

Windshield washer fluid
80JM078
66J116
Check that there is washer fluid in the tank
by looking at the washer fluid level gauge
which is attached to the cap of the washer
fluid tank. If the fluid level is near empty,
refill it. Use a good quality windshield
washer fluid, diluted with water as neces-
sary.Air conditioning system
If you do not use the air conditioner for a
long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain opti-
mum performance and durability of your air
conditioner, it needs to be run periodically.
Operate the air conditioner at least once a
month for one minute with the engine
idling. This circulates the refrigerant and oil
and helps protect the internal components.
EXAMPLE
EXAMPLE
WA R N I N G
Do not use anti-freeze solution in the
windshield washer reservoir. This
can severely impair visibility when
sprayed on the windshield, and also
damage your vehicle’s paint.
NOTICE
Damage may result if the washer
motor is operated with no fluid in the
washer tank.

7-60
INSPECTION AND MAINTENANCE
54P00-01E

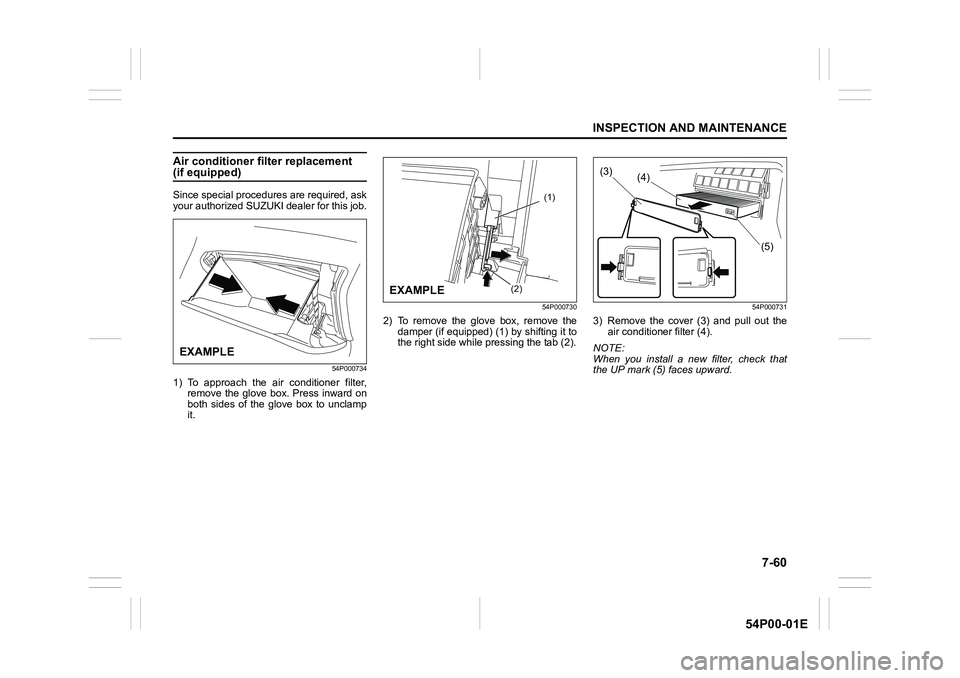

Air conditioner filter replacement (if equipped)
Since special procedures are required, ask
your authorized SUZUKI dealer for this job.
54P000734
1) To approach the air conditioner filter,
remove the glove box. Press inward on
both sides of the glove box to unclamp
it.
54P000730
2) To remove the glove box, remove the
damper (if equipped) (1) by shifting it to
the right side while pressing the tab (2).
54P000731
3) Remove the cover (3) and pull out the
air conditioner filter (4).
NOTE:
When you install a new filter, check that
the UP mark (5) faces upward.
EXAMPLE
(1)
(2)EXAMPLE
(3)(4)
(5)

7-61
INSPECTION AND MAINTENANCE
54P00-01E
MEMO
