NOTE:
Check that the fuse box always carries
spare fuses.
Fuses under dashboard
54P000708
61MM0B071
NOTE:
To approach the fuses, remove the screws
and remove the cover (1).
68LM701
WA R N I N G
If the main fuse or a primary fuse
blows, have your vehicle inspected
by an authorized SUZUKI dealer.
Always use a genuine SUZUKI
replacement. Never use a substitute
such as a wire even for a temporary
repair, or extensive electrical damage
and a fire can result.
EXAMPLE
BLOWNOK
EXAMPLE
(1)
PRIMARY FUSE
(1) 30 A Seat belt
(2) 20 A Power window timer
(3) 15 A Steering lock
(4) 20 A Rear defogger
(5) 20 A Sunroof
(6) 10 A DRL
(7) 10 A Heated mirror
(8) 7.5 A Starting signal
(9) 15 A Accessory socket 2
(10) 30 A Power window
(11) 10 A Hazard
(1)
(12)(10)
(13)
(36) (2) (3)
(4)
(5)(6)
(7) (8)(9)
(11) (14) (15)
(16) (17) (18) (19) (20) (21) (22)
(23) (24) (25) (26) (27) (28) (29)
(30) (31) (32) (33) (34) (35)

7-44
INSPECTION AND MAINTENANCE
54P00-01E
81A283
Headlight aiming
Since special procedures are required, ask
your authorized SUZUKI dealer for this job. (12) 7.5 A BCM

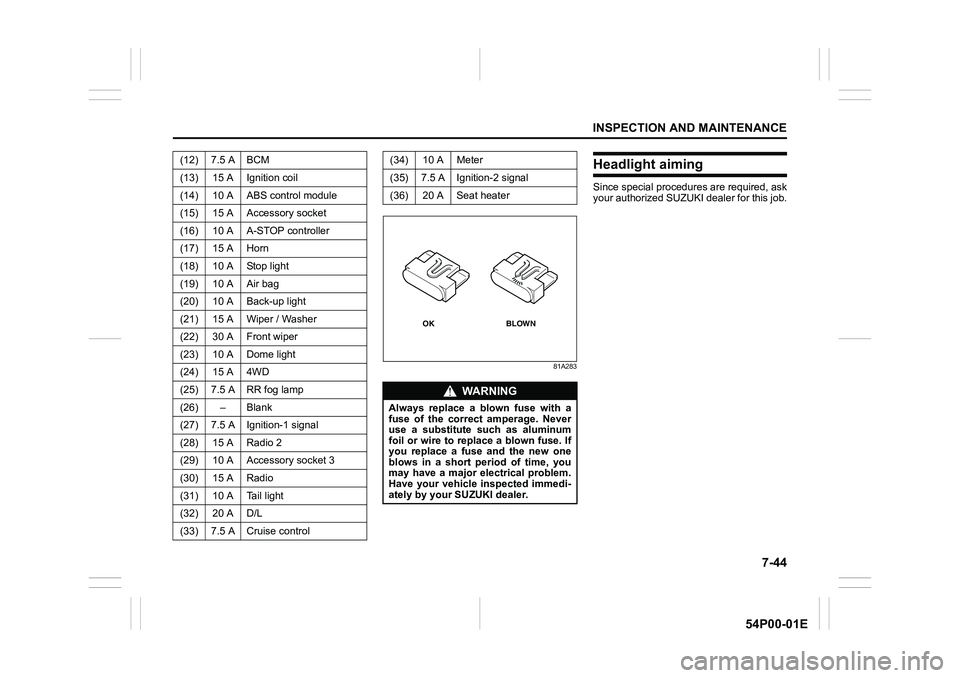

(13) 15 A Ignition coil
(14) 10 A ABS control module
(15) 15 A Accessory socket
(16) 10 A A-STOP controller
(17) 15 A Horn
(18) 10 A Stop light
(19) 10 A Air bag
(20) 10 A Back-up light
(21) 15 A Wiper / Washer
(22) 30 A Front wiper
(23) 10 A Dome light
(24) 15 A 4WD
(25) 7.5 A RR fog lamp
(26) – Blank
(27) 7.5 A Ignition-1 signal
(28) 15 A Radio 2
(29) 10 A Accessory socket 3
(30) 15 A Radio
(31) 10 A Tail light
(32) 20 A D/L
(33) 7.5 A Cruise control
(34) 10 A Meter
(35) 7.5 A Ignition-2 signal
(36) 20 A Seat heater
WA R N I N G
Always replace a blown fuse with a
fuse of the correct amperage. Never
use a substitute such as aluminum
foil or wire to replace a blown fuse. If
you replace a fuse and the new one
blows in a short period of time, you
may have a major electrical problem.
Have your vehicle inspected immedi-
ately by your SUZUKI dealer.
BLOWN OK

7-45
INSPECTION AND MAINTENANCE
54P00-01E
Bulb replacementHeadlights
54P000709
(1) Headlight (high beam)
(2) Headlight (low beam) (if equipped)
80JM071
Open the engine hood. Disconnect the
coupler by pushing the lock release. Turn
the bulb holder counterclockwise and
remove it.
CAUTION
• Light bulbs can be hot enough to
burn your finger right after turning
off lights. This is true especially for
halogen headlight bulbs. Replace
the bulbs after they become cool
enough.
• The headlight bulbs are filled with
pressurized halogen gas. They can
burst and injure you if they are hit
or dropped. Handle them carefully.
• To avoid injury by sharp-edged
parts of the body, wear gloves and
a long-sleeved shirt when replacing
light bulbs.
NOTICE
The oils from your skin may cause a
halogen bulb to overheat and burst
when the lights are on. Grasp a new
bulb with a clean cloth.
NOTICE
Frequent bulb replacement indicates
the need for an inspection of the elec-
trical system. This should be carried
out by your SUZUKI dealer.
(1) (2)
EXAMPLE

7-46
INSPECTION AND MAINTENANCE
54P00-01E
Side turn signal light (if equipped)
64J195

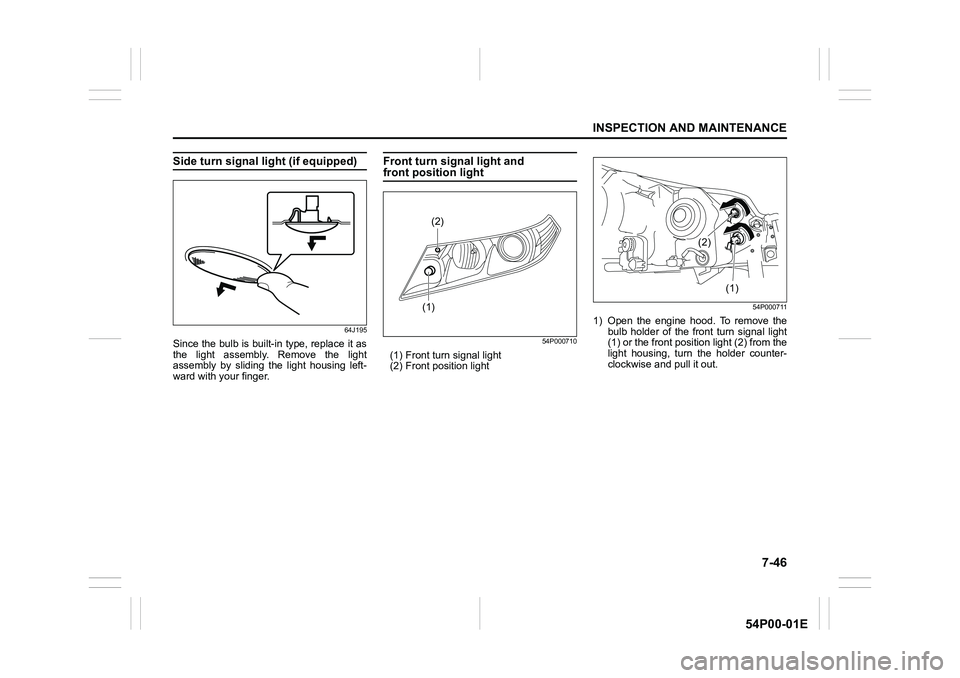

Since the bulb is built-in type, replace it as
the light assembly. Remove the light
assembly by sliding the light housing left-
ward with your finger.
Front turn signal light and front position light
54P000710
(1) Front turn signal light
(2) Front position light
54P000711
1) Open the engine hood. To remove the
bulb holder of the front turn signal light
(1) or the front position light (2) from the
light housing, turn the holder counter-
clockwise and pull it out.
(1)(2)
(1) (2)

7-47
INSPECTION AND MAINTENANCE
54P00-01E
61MM0B078
(3) Removal
(4) Installation

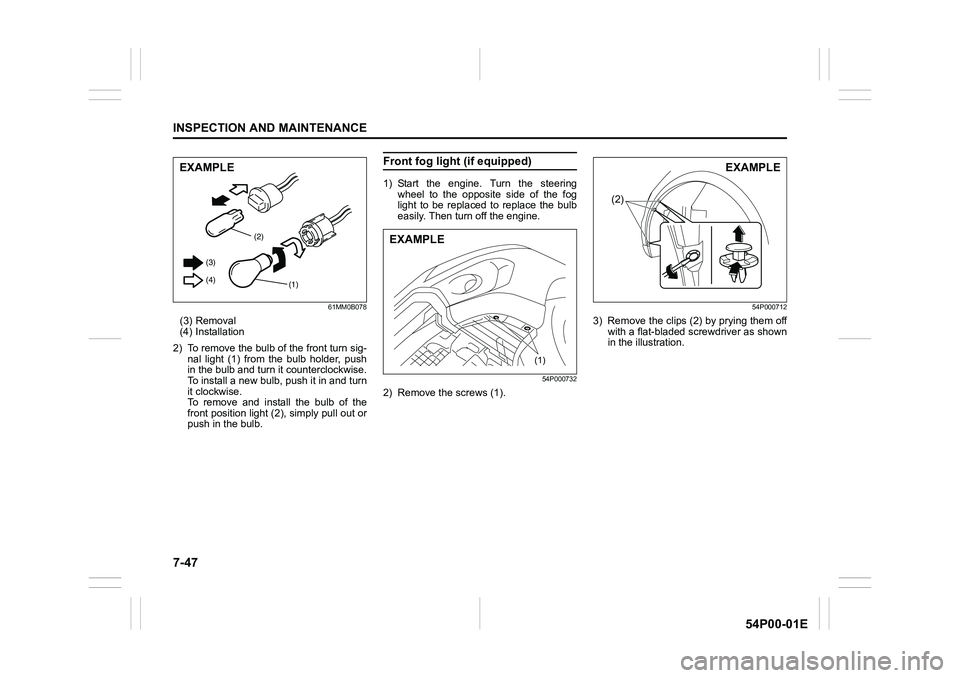

2) To remove the bulb of the front turn sig-
nal light (1) from the bulb holder, push
in the bulb and turn it counterclockwise.
To install a new bulb, push it in and turn
it clockwise.
To remove and install the bulb of the
front position light (2), simply pull out or
push in the bulb.
Front fog light (if equipped)

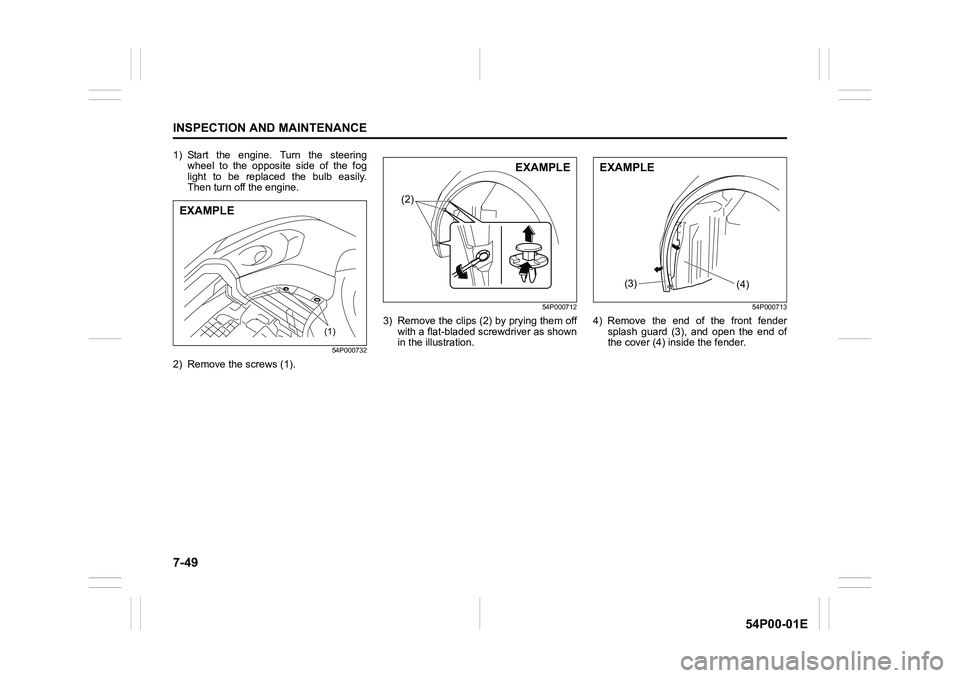

1) Start the engine. Turn the steering
wheel to the opposite side of the fog
light to be replaced to replace the bulb
easily. Then turn off the engine.
54P000732
2) Remove the screws (1).
54P000712
3) Remove the clips (2) by prying them off
with a flat-bladed screwdriver as shown
in the illustration.
(2)
(1) (3)
(4)
EXAMPLE
(1)
EXAMPLE
(2)
EXAMPLE

7-48
INSPECTION AND MAINTENANCE
54P00-01E
54P000713

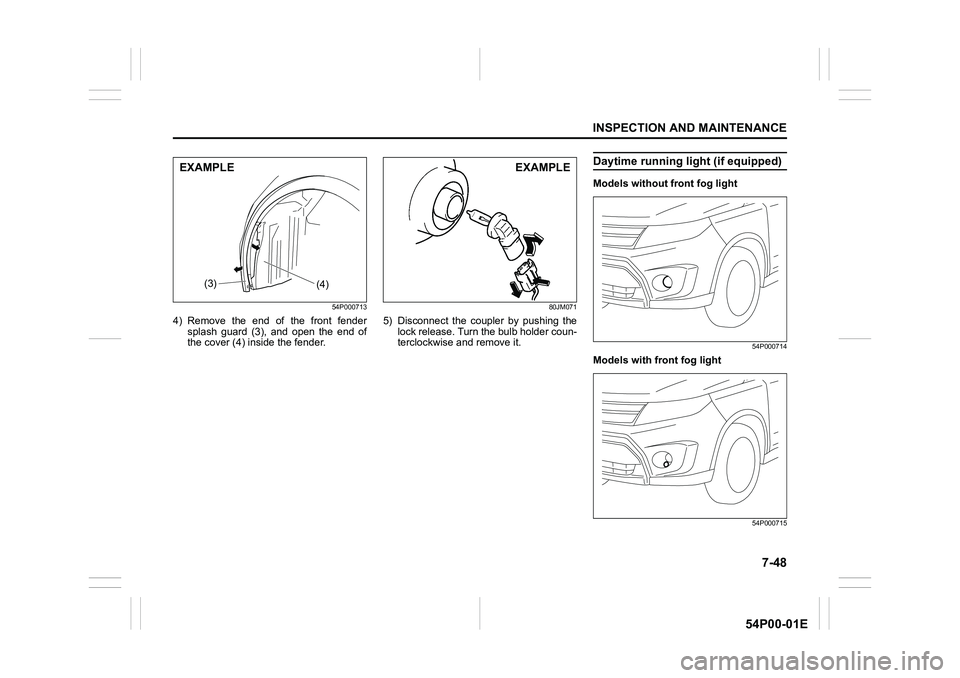

4) Remove the end of the front fender
splash guard (3), and open the end of
the cover (4) inside the fender.
80JM071
5) Disconnect the coupler by pushing the
lock release. Turn the bulb holder coun-
terclockwise and remove it.
Daytime running light (if equipped)
Models without front fog light
54P000714
Models with front fog light
54P000715
(3)(4)
EXAMPLEEXAMPLE

7-49
INSPECTION AND MAINTENANCE
54P00-01E
1) Start the engine. Turn the steering
wheel to the opposite side of the fog
light to be replaced the bulb easily.
Then turn off the engine.
54P000732
2) Remove the screws (1).
54P000712
3) Remove the clips (2) by prying them off
with a flat-bladed screwdriver as shown
in the illustration.
54P000713
4) Remove the end of the front fender
splash guard (3), and open the end of
the cover (4) inside the fender.(1)
EXAMPLE
(2)
EXAMPLE
(3)(4)
EXAMPLE

7-50
INSPECTION AND MAINTENANCE
54P00-01E
54P000716

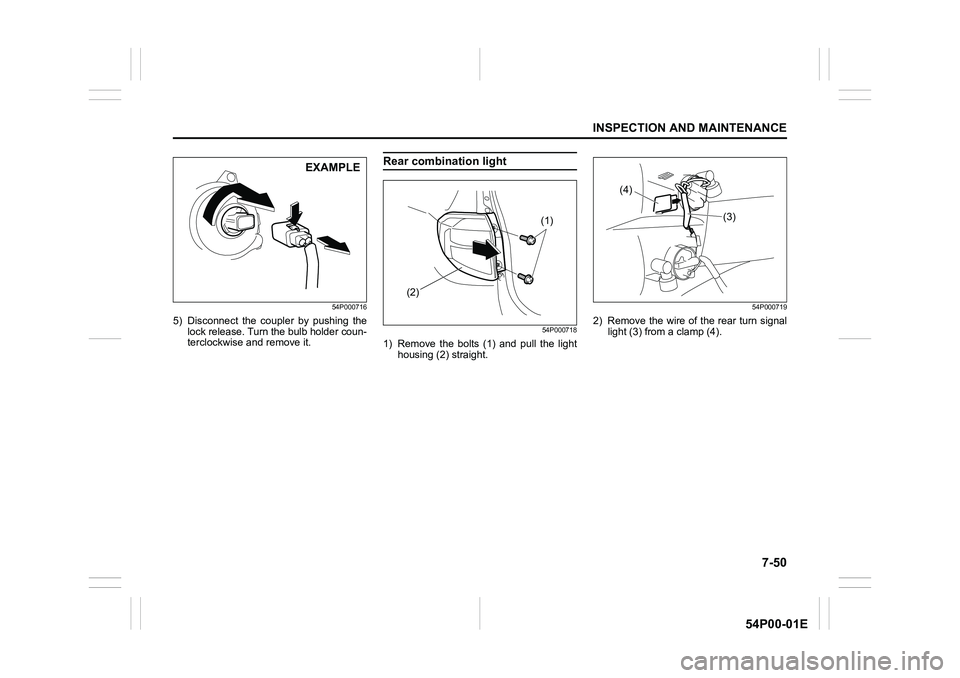

5) Disconnect the coupler by pushing the
lock release. Turn the bulb holder coun-
terclockwise and remove it.
Rear combination light
54P000718
1) Remove the bolts (1) and pull the light
housing (2) straight.
54P000719
2) Remove the wire of the rear turn signal
light (3) from a clamp (4).
EXAMPLE
(1)
(2)(3) (4)

7-51
INSPECTION AND MAINTENANCE
54P00-01E
54P000720

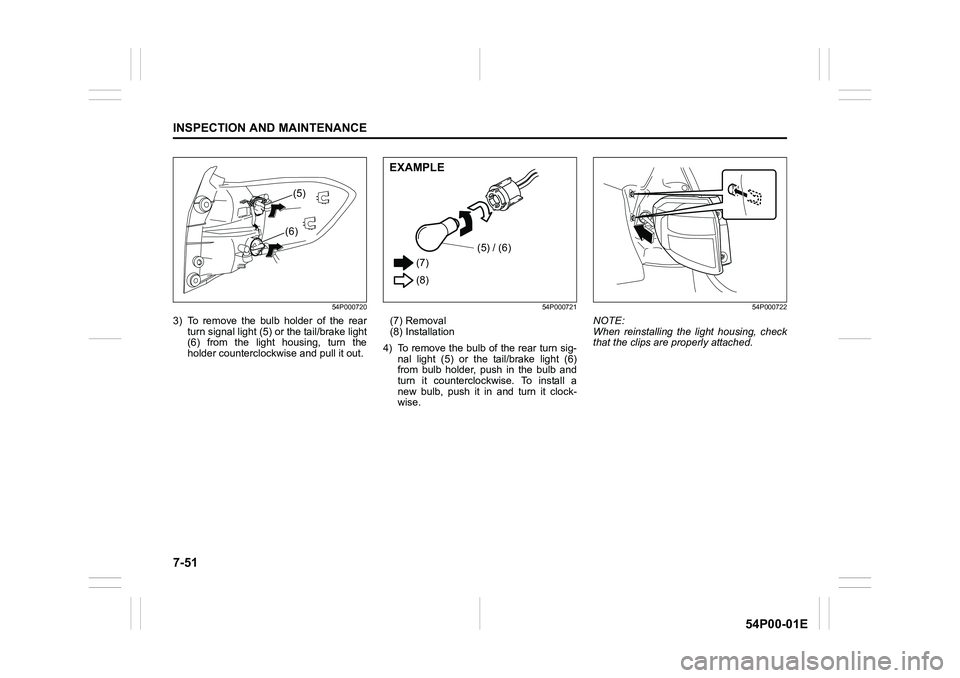

3) To remove the bulb holder of the rear
turn signal light (5) or the tail/brake light
(6) from the light housing, turn the
holder counterclockwise and pull it out.
54P000721
(7) Removal
(8) Installation
4) To remove the bulb of the rear turn sig-
nal light (5) or the tail/brake light (6)
from bulb holder, push in the bulb and
turn it counterclockwise. To install a
new bulb, push it in and turn it clock-
wise.
54P000722
NOTE:
When reinstalling the light housing, check
that the clips are properly attached.
(5)
(6)
(7)
(8)(5) / (6)
EXAMPLE

7-52
INSPECTION AND MAINTENANCE
54P00-01E
Reversing light
54P000723

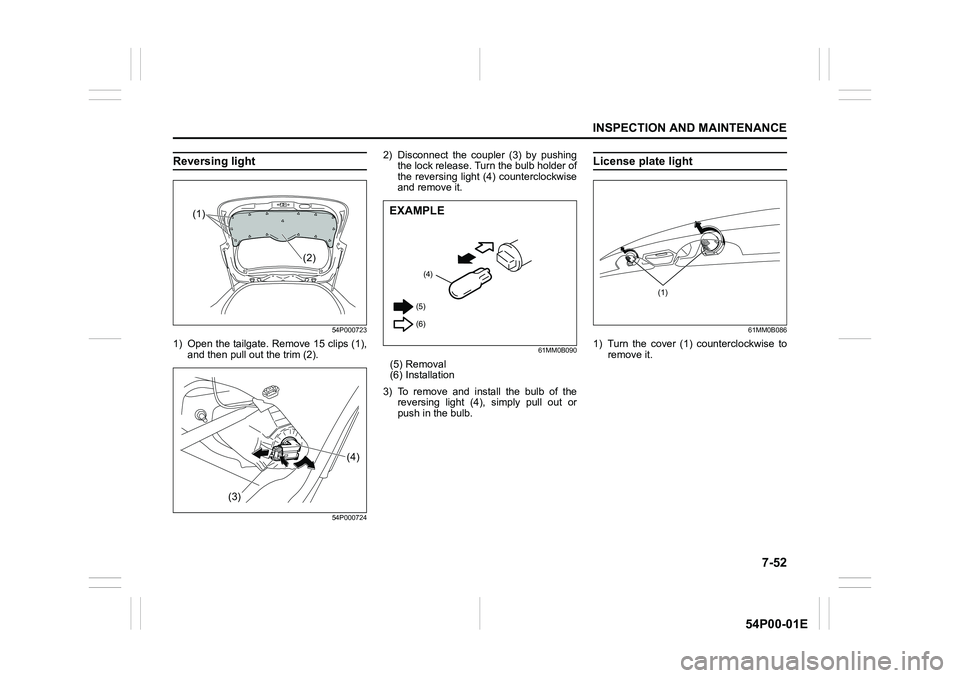

1) Open the tailgate. Remove 15 clips (1),
and then pull out the trim (2).
54P000724
2) Disconnect the coupler (3) by pushing
the lock release. Turn the bulb holder of
the reversing light (4) counterclockwise
and remove it.
61MM0B090
(5) Removal
(6) Installation
3) To remove and install the bulb of the
reversing light (4), simply pull out or
push in the bulb.
License plate light
61MM0B086
1) Turn the cover (1) counterclockwise to
remove it.
(1)
(2)
(3)(4)
(4)
(5)
(6)
EXAMPLE
(1)
