Page 61 of 482
2-39
BEFORE DRIVING
54P00-01E
65D608
65D609

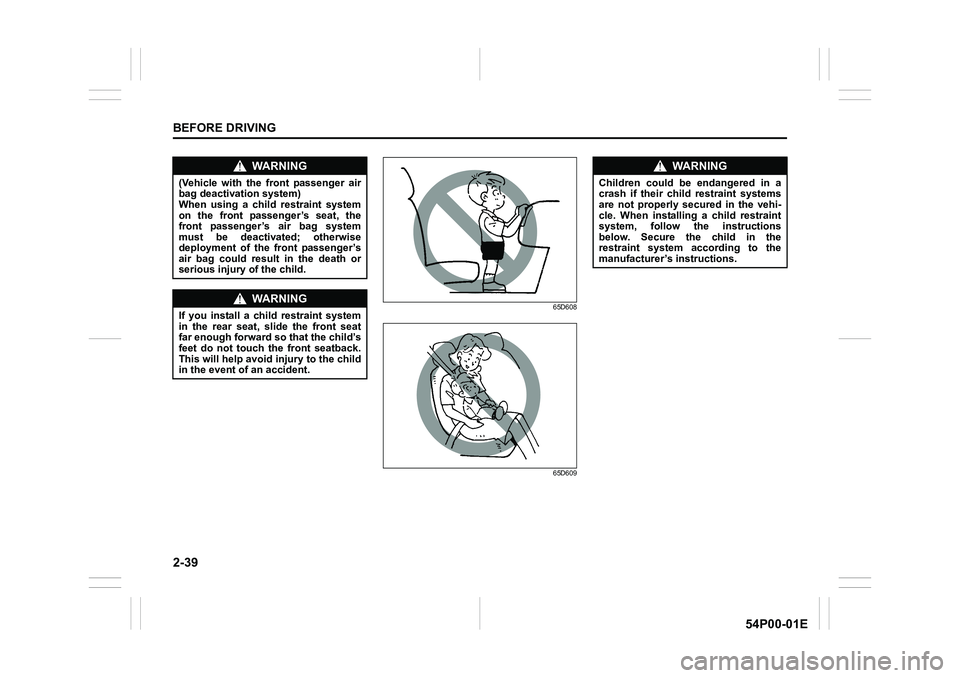

WA R N I N G
(Vehicle with the front passenger air
bag deactivation system)
When using a child restraint system
on the front passenger’s seat, the
front passenger’s air bag system
must be deactivated; otherwise
deployment of the front passenger’s
air bag could result in the death or
serious injury of the child.
WA R N I N G
If you install a child restraint system
in the rear seat, slide the front seat
far enough forward so that the child’s
feet do not touch the front seatback.
This will help avoid injury to the child
in the event of an accident.
WA R N I N G
Children could be endangered in a
crash if their child restraint systems
are not properly secured in the vehi-
cle. When installing a child restraint
system, follow the instructions
below. Secure the child in the
restraint system according to the
manufacturer’s instructions.
Page 62 of 482
2-40
BEFORE DRIVING
54P00-01E

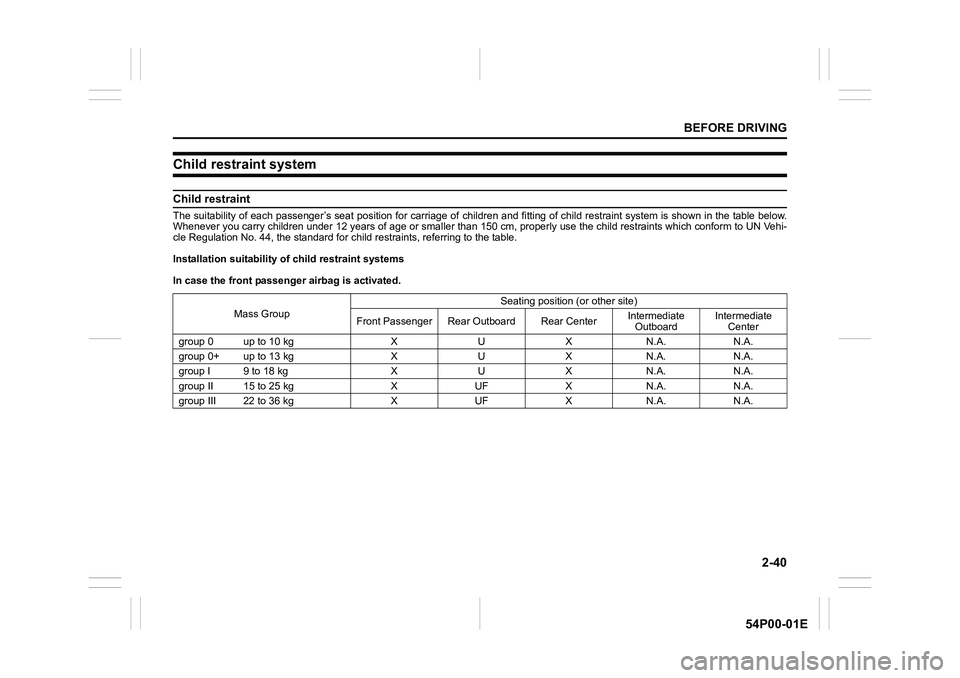

Child restraint system
Child restraint
The suitability of each passenger’s seat position for carriage of children and fitting of child restraint system is shown in the table below.
Whenever you carry children under 12 years of age or smaller than 150 cm, properly use the child restraints which conform to UN Ve h i -
cle Regulation No. 44, the standard for child restraints, referring to the table.
Installation suitability of child restraint systems
In case the front passenger airbag is activated.
Mass GroupSeating position (or other site)
Front Passenger Rear Outboard Rear CenterIntermediate
OutboardIntermediate
Center
group 0 up to 10 kg X U X N.A. N.A.
group 0+ up to 13 kg X U X N.A. N.A.
group I 9 to 18 kg X U X N.A. N.A.
group II 15 to 25 kg X UF X N.A. N.A.
group III 22 to 36 kg X UF X N.A. N.A.
Page 63 of 482
2-41
BEFORE DRIVING
54P00-01E
In case the front passenger airbag is deactivated.
Key of letters to be inserted in the above table:
U =Suitable for ‘universal’ category restraints approved for use in this mass group
UF =Suitable for forward-facing ‘universal’ category restraints approved for use in this mass group
L =Suitable for particular child restraints given on attached list.
These restraints may be of the ‘specific vehicle’, ‘restricted’ or ‘semi-universal’ categories.
B =Built-in restraint approved for this mass group
X =Seat position not suitable for children in this mass group
NOTE:
1) Front seat longitudinal adjustment should be rearmost position.
Front seat height adjustment should be upmost position if equipped.
NOTE:
‘universal’ is the category in UN Vehicle Regulation No. 44.Mass GroupSeating position (or other site)
Front Passenger Rear Outboard Rear CenterIntermediate
OutboardIntermediate
Center
group 0 up to 10 kg U
1)U X N.A. N.A.
group 0+ up to 13 kg U1)U X N.A. N.A.
group I 9 to 18 kg U1)U X N.A. N.A.
group II 15 to 25 kg UF1)UF X N.A. N.A.
group III 22 to 36 kg UF1)UF X N.A. N.A.
Page 64 of 482
2-42
BEFORE DRIVING
54P00-01E

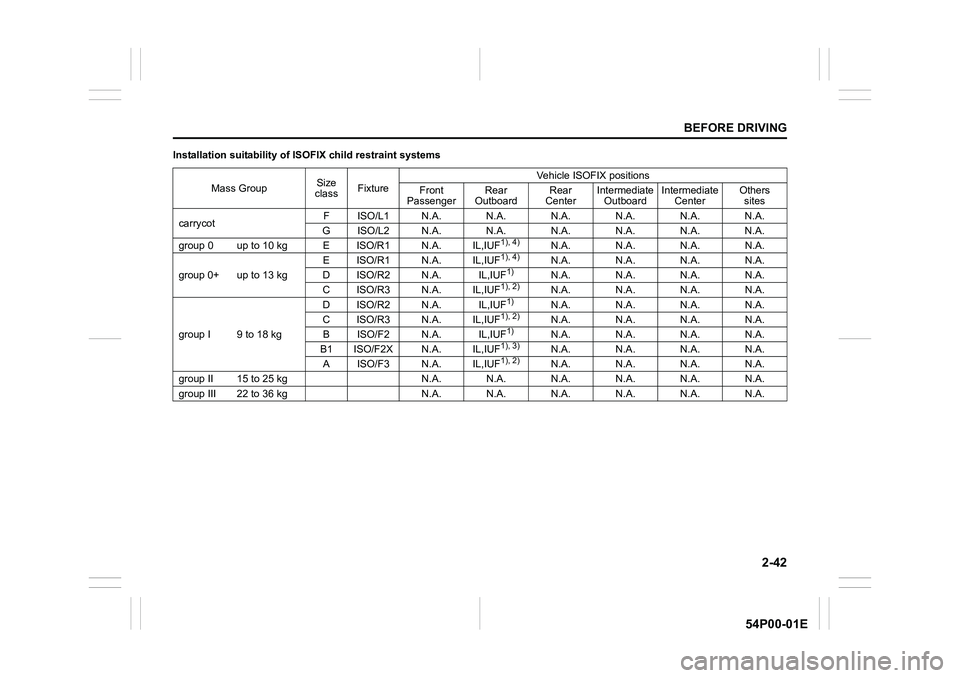

Installation suitability of ISOFIX child restraint systems
Mass GroupSize
classFixtureVehicle ISOFIX positions
Front
PassengerRear
OutboardRear
CenterIntermediate
OutboardIntermediate
CenterOthers
sites
carrycotFISO/L1N.A.N.A.N.A.N.A.N.A.N.A.
GISO/L2N.A.N.A.N.A.N.A.N.A.N.A.
group 0 up to 10 kg E ISO/R1 N.A. IL,IUF
1), 4)N.A. N.A. N.A. N.A.
group 0+ up to 13 kgE ISO/R1 N.A. IL,IUF1), 4)N.A. N.A. N.A. N.A.
D ISO/R2 N.A. IL,IUF1)N.A. N.A. N.A. N.A.
C ISO/R3 N.A. IL,IUF1), 2)N.A. N.A. N.A. N.A.
group I 9 to 18 kgD ISO/R2 N.A. IL,IUF1)N.A. N.A. N.A. N.A.
C ISO/R3 N.A. IL,IUF1), 2)N.A. N.A. N.A. N.A.
B ISO/F2 N.A. IL,IUF1)N.A. N.A. N.A. N.A.
B1 ISO/F2X N.A. IL,IUF1), 3)N.A. N.A. N.A. N.A.
A ISO/F3 N.A. IL,IUF1), 2)N.A. N.A. N.A. N.A.
group II 15 to 25 kg N.A. N.A. N.A. N.A. N.A. N.A.
group III 22 to 36 kg N.A. N.A. N.A. N.A. N.A. N.A.
Page 65 of 482
2-43
BEFORE DRIVING
54P00-01E

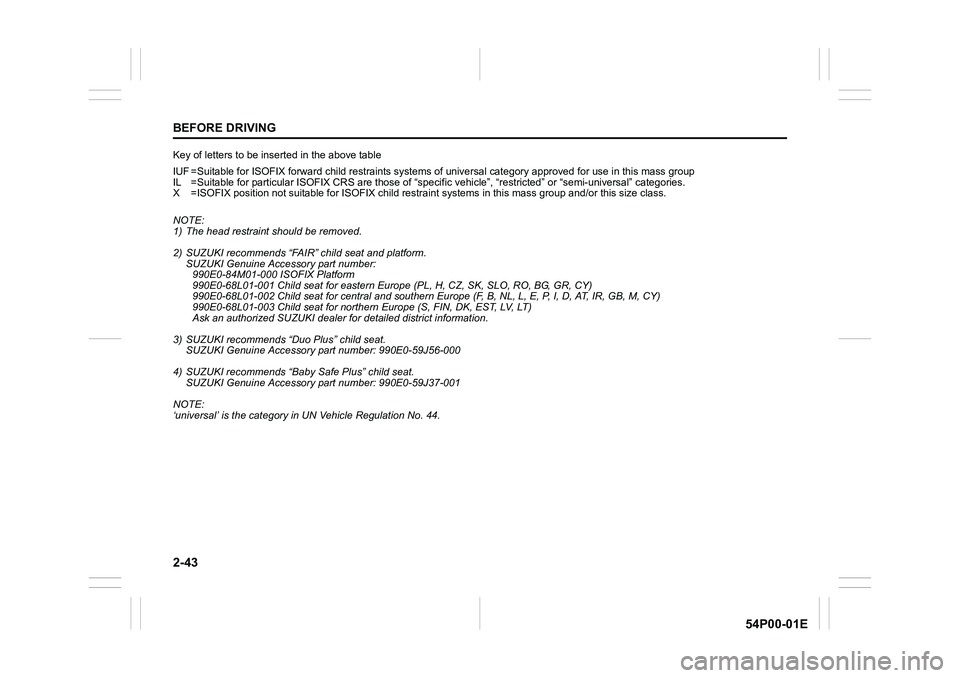

Key of letters to be inserted in the above table
IUF =Suitable for ISOFIX forward child restraints systems of universal category approved for use in this mass group
IL =Suitable for particular ISOFIX CRS are those of “specific vehicle”, “restricted” or “semi-universal” categories.
X =ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.
NOTE:
1) The head restraint should be removed.
2) SUZUKI recommends “FAIR” child seat and platform.
SUZUKI Genuine Accessory part number:
990E0-84M01-000 ISOFIX Platform
990E0-68L01-001 Child seat for eastern Europe (PL, H, CZ, SK, SLO, RO, BG, GR, CY)
990E0-68L01-002 Child seat for central and southern Europe (F, B, NL, L, E, P, I, D, AT, IR, GB, M, CY)
990E0-68L01-003 Child seat for northern Europe (S, FIN, DK, EST, LV, LT)
Ask an authorized SUZUKI dealer for detailed district information.
3) SUZUKI recommends “Duo Plus” child seat.
SUZUKI Genuine Accessory part number: 990E0-59J56-000
4) SUZUKI recommends “Baby Safe Plus” child seat.
SUZUKI Genuine Accessory part number: 990E0-59J37-001
NOTE:
‘universal’ is the category in UN Vehicle Regulation No. 44.
Page 66 of 482
2-44
BEFORE DRIVING
54P00-01E

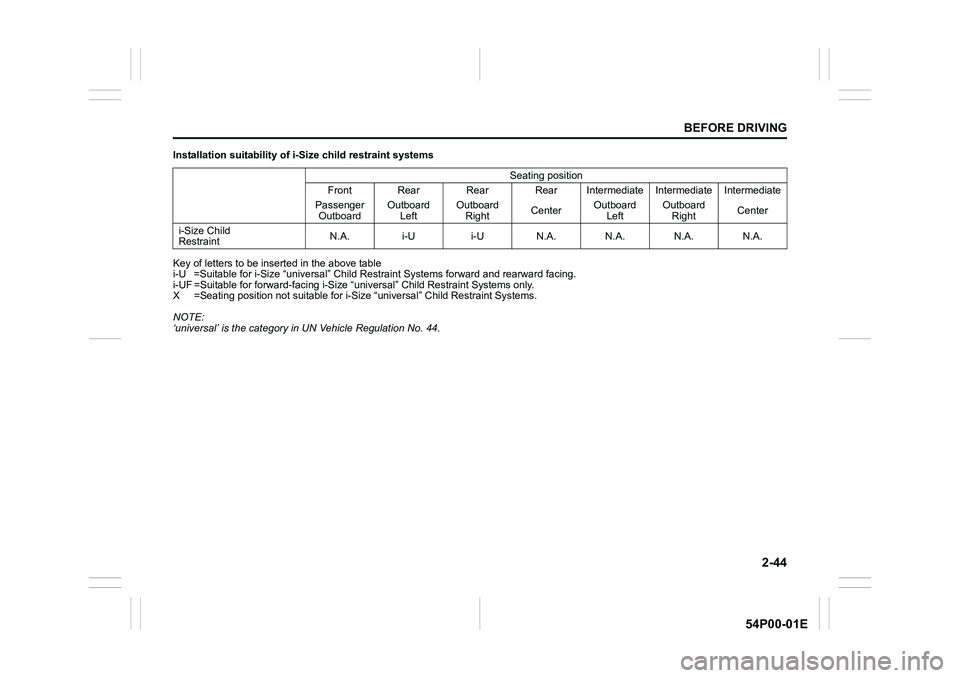

Installation suitability of i-Size child restraint systems
Key of letters to be inserted in the above table
i-U =Suitable for i-Size “universal” Child Restraint Systems forward and rearward facing.
i-UF =Suitable for forward-facing i-Size “universal” Child Restraint Systems only.
X =Seating position not suitable for i-Size “universal” Child Restraint Systems.
NOTE:
‘universal’ is the category in UN Vehicle Regulation No. 44.Seating position
Front Rear Rear Rear Intermediate Intermediate Intermediate
Passenger
OutboardOutboard
LeftOutboard
RightCenterOutboard
LeftOutboard
RightCenter
i-Size Child
RestraintN.A. i-U i-U N.A. N.A. N.A. N.A.
Page 67 of 482
2-45
BEFORE DRIVING
54P00-01E

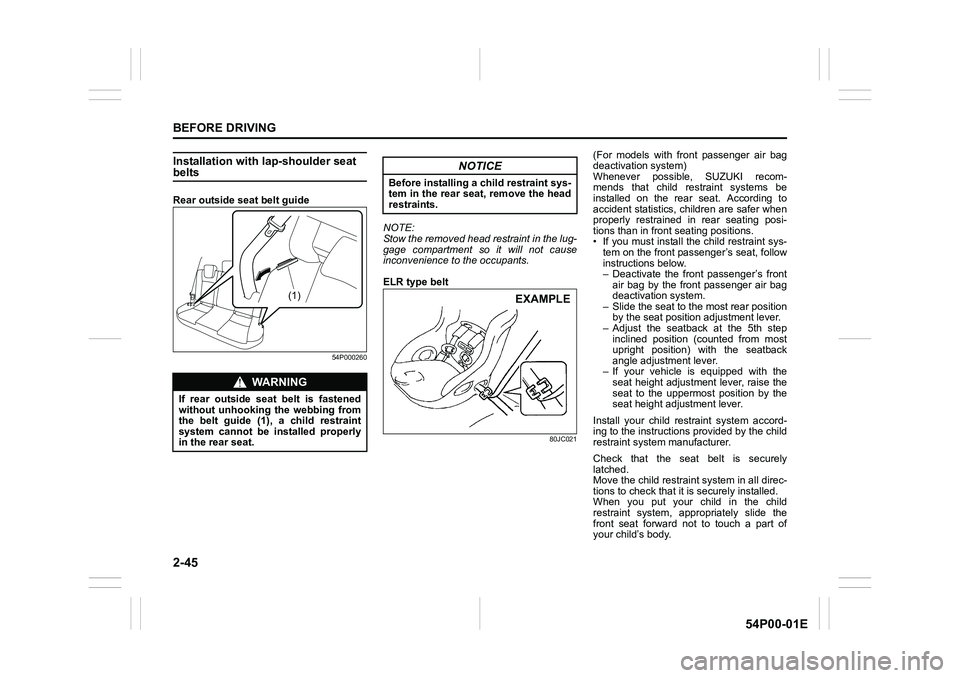

Installation with lap-shoulder seat belts
Rear outside seat belt guide
54P000260
NOTE:
Stow the removed head restraint in the lug-
gage compartment so it will not cause
inconvenience to the occupants.
ELR type belt
80JC021
(For models with front passenger air bag
deactivation system)
Whenever possible, SUZUKI recom-
mends that child restraint systems be
installed on the rear seat. According to
accident statistics, children are safer when
properly restrained in rear seating posi-
tions than in front seating positions.
• If you must install the child restraint sys-
tem on the front passenger’s seat, follow
instructions below.
– Deactivate the front passenger’s front
air bag by the front passenger air bag
deactivation system.
– Slide the seat to the most rear position
by the seat position adjustment lever.
– Adjust the seatback at the 5th step
inclined position (counted from most
upright position) with the seatback
angle adjustment lever.
– If your vehicle is equipped with the
seat height adjustment lever, raise the
seat to the uppermost position by the
seat height adjustment lever.
Install your child restraint system accord-
ing to the instructions provided by the child
restraint system manufacturer.
Check that the seat belt is securely
latched.
Move the child restraint system in all direc-
tions to check that it is securely installed.
When you put your child in the child
restraint system, appropriately slide the
front seat forward not to touch a part of
your child’s body.
WA R N I N G
If rear outside seat belt is fastened
without unhooking the webbing from
the belt guide (1), a child restraint
system cannot be installed properly
in the rear seat.
(1)
NOTICE
Before installing a child restraint sys-
tem in the rear seat, remove the head
restraints.
EXAMPLE
Page 68 of 482
2-46
BEFORE DRIVING
54P00-01E

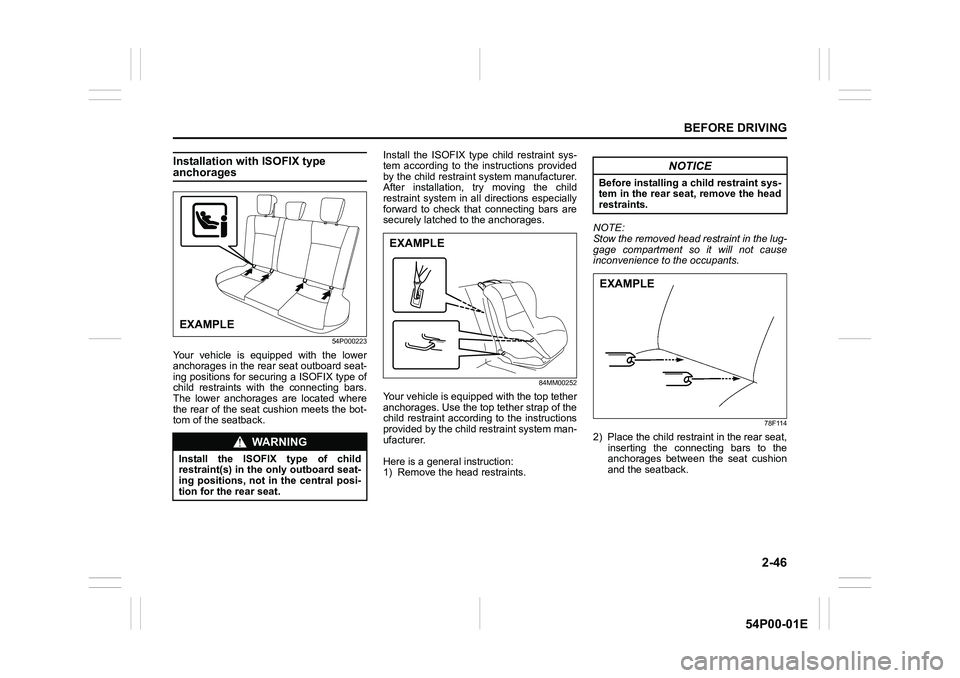

Installation with ISOFIX type anchorages
54P000223
Your vehicle is equipped with the lower
anchorages in the rear seat outboard seat-
ing positions for securing a ISOFIX type of
child restraints with the connecting bars.
The lower anchorages are located where
the rear of the seat cushion meets the bot-
tom of the seatback.Install the ISOFIX type child restraint sys-
tem according to the instructions provided
by the child restraint system manufacturer.
After installation, try moving the child
restraint system in all directions especially
forward to check that connecting bars are
securely latched to the anchorages.
84MM00252
Your vehicle is equipped with the top tether
anchorages. Use the top tether strap of the
child restraint according to the instructions
provided by the child restraint system man-
ufacturer.
Here is a general instruction:
1) Remove the head restraints.NOTE:
Stow the removed head restraint in the lug-
gage compartment so it will not cause
inconvenience to the occupants.
78F114
2) Place the child restraint in the rear seat,
inserting the connecting bars to the
anchorages between the seat cushion
and the seatback.WA R N I N G
Install the ISOFIX type of child
restraint(s) in the only outboard seat-
ing positions, not in the central posi-
tion for the rear seat.
EXAMPLE
EXAMPLE
NOTICE
Before installing a child restraint sys-
tem in the rear seat, remove the head
restraints.
EXAMPLE
Page 69 of 482
2-47
BEFORE DRIVING
54P00-01E
68LM268
3) Use your hands to carefully align the
connecting bar tips with the anchor-
ages. Take care not to pinch your fin-
gers.
54G184
4) Push the child restraint toward the anchor-
ages so that the connecting bar tips are
partially hooked to the anchorages. Use
your hands to confirm the position.
54G185
5) Grasp the front of the child restraint and
push the child restraint forcefully to
latch the connecting bars. Check that
they are securely latched by trying to
move the child restraint system in all
directions, especially forward.
6) Attach the top tether strap referring to
“Installation of child restraint with top
tether” section below.
When you put your child in the child
restraint system, appropriately slide the
front seat forward not to touch a part of
your child’s body.
Installation of child restraint with
top tether
54P000249
Some child restraint systems require the
use of a top tether strap. Top tether anchor-
age brackets are provided in your vehicle at
the locations shown in the illustrations.
The number of the top tether anchorage
brackets provided in your vehicle depends
on the vehicle specification. Install the child
restraint system as follows:
EXAMPLE
EXAMPLE
EXAMPLE
NOTICE
When installing a child restraint sys-
tem to the rear seat, adjust the front
seat position so that the front seat
does not interfere with the child
restraint system.
EXAMPLEFront
Page 70 of 482
2-48
BEFORE DRIVING
54P00-01E

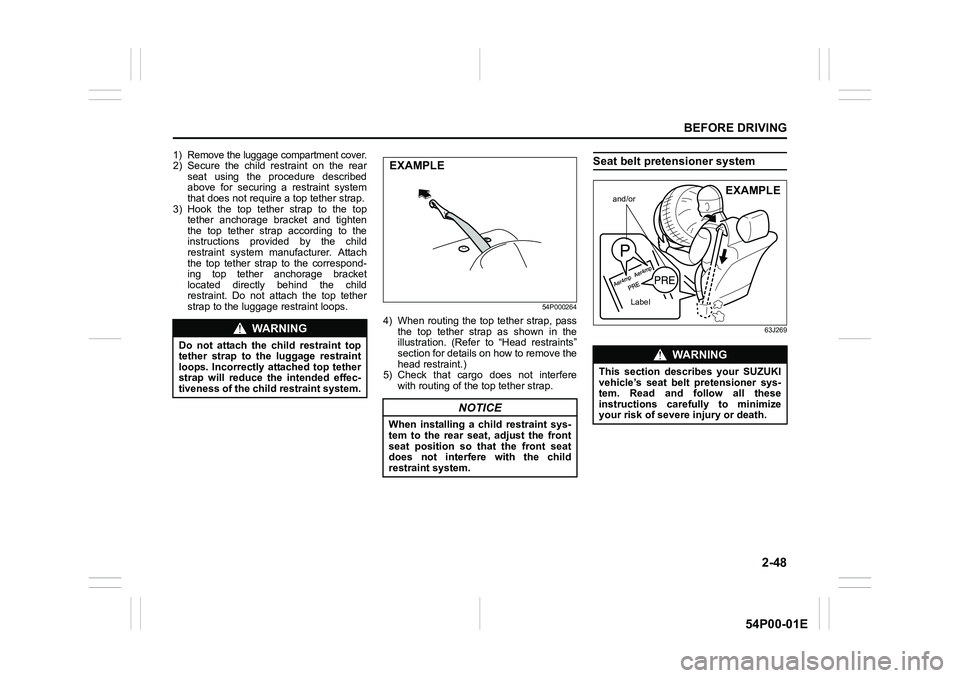

1) Remove the luggage compartment cover.2) Secure the child restraint on the rear
seat using the procedure described
above for securing a restraint system
that does not require a top tether strap.
3) Hook the top tether strap to the top
tether anchorage bracket and tighten
the top tether strap according to the
instructions provided by the child
restraint system manufacturer. Attach
the top tether strap to the correspond-
ing top tether anchorage bracket
located directly behind the child
restraint. Do not attach the top tether
strap to the luggage restraint loops.
54P000264
4) When routing the top tether strap, pass
the top tether strap as shown in the
illustration. (Refer to “Head restraints”
section for details on how to remove the
head restraint.)
5) Check that cargo does not interfere
with routing of the top tether strap.
Seat belt pretensioner system
63J269WA R N I N G
Do not attach the child restraint top
tether strap to the luggage restraint
loops. Incorrectly attached top tether
strap will reduce the intended effec-
tiveness of the child restraint system.
NOTICE
When installing a child restraint sys-
tem to the rear seat, adjust the front
seat position so that the front seat
does not interfere with the child
restraint system.
EXAMPLE
WA R N I N G
This section describes your SUZUKI
vehicle’s seat belt pretensioner sys-
tem. Read and follow all these
instructions carefully to minimize
your risk of severe injury or death.
and/or
Label
EXAMPLE
