Page 391 of 421

are spilled or leaked, clean and dry the
area immediately.
Park your vehicle in a dry, well-venti
lated area Do not park your vehicle in a damp, poorlyventilated area. If you often wash your vehicle in the garage and place it there in wet condition, your garage may be damp. The high humidity in the garage may cause or accelerate corrosion. A wet vehicle may corrode even in a heated garage if the ventilation is poor.
Use mud and gravel shields The use of mud and gravel shields will help protect your vehicle, especially if you frequently drive on gravel or salted roads. Full-size shields, which extend as close to the road as is practical, are the best. The fittings for such shields should also be corrosion resistant. Please check with your SUZUKI dealer for information on these
shields.
A WARNING
Do not apply additional undercoating or rust preventive coating on or around exhaust system components such as the catalytic converter and exhaust pipes. A fire could be started if the undercoating substance
becomes overheated.
APPEARANCE CARE
Vehicle cleaning
A WARNING
When cleaning the interior or exterior of the vehicle, do not use flammable solvents such as lacquer thinners, gasoline and benzene. Also, do not use cleaning materials such as bleaches and strong household detergents. The materials could cause personal injury or damage to
the vehicle.
8-2
Page 392 of 421

APPEARANCE CARE
Cleaning interior
Vinyl upholstery Prepare a solution of soap or mild detergent dissolved in warm water. Apply the solution to the vinyl with a sponge or soft cloth and let it soak for a few minutes to loosen dirt. · Rub the surface with a clean, damp cloth to remove dirt and the soap solution. If some dirt still remains on the surface, repeat this procedure.
Fabric upholstery Remove loose dirt with a vacuum cleaner. Using a mild soap solution, rub stained areas with a clean damp cloth. To remove soap, rub the areas again with a cloth dampened with water. Repeat this until the stain is removed, or use a commercial fabric cleaner for tougher stains. If you use a fabric cleaner, carefully follow the manufacturer's instructions and precautions.
Leather upholstery Remove loose dirt with a vacuum cleaner. Using a mild soap or saddle soap solution, wipe dirt off with a clean damp soft cloth. To remove soap, wipe the areas again with a soft cloth dampened with water. Wipe the areas dry with a soft dry cloth. Repeat this until the dirt or stain is removed, or use a commercial leather cleaner for tougher dirt or stains. If you use a leather cleaner, carefully follow the manufacturer's instructions and precautions. Do not use solvent type cleaners or abrasive cleaners.
NOTE: In order to keep leather upholstery looking good, it should be cleaned at least twice a year. If leather upholstery becomes wet, immediately wipe it dry with tissue paper or a soft cloth. Water may cause leather to harden and shrink if it is not wiped off. When parking on sunny days, select a shady place or use a sunshade. If leather upholstery is exposed to direct sunlight for a long time, it may disco/or and shrink. As is common with natural materials, leather is inherently irregular in grain and cowhide has spots in its natural state. These do not affect the performance of the leather in any way.
Seat belts Clean seat belts with a mild soap and water. Do not use bleach or dye on the belts. They may weaken the fabric in the belts.
Vinyl floor mats Ordinary dirt can be removed from vinyl with water or mild soap. Use a brush to help loosen dirt. After the dirt is loosened, rinse the mat thoroughly wtth water and dry it in the shade.
Carpets Remove dirt and soil as much as possible with a vacuum cleaner. Using a mild soap solution, rub stained areas with a clean damp cloth. To remove soap, rub the areas again with a cloth dampened with water. Repeat this until the stain is removed, or use a commercial carpet cleaner for tougher stains. If you use a carpet cleaner, carefully follow the manufacturer's instructions and precautions.
Instrument panel and console Remove loose dirt with a vacuum cleaner. Gently wipe dirt off with a tightly squeezed damp clean cloth. Repeat this until the dirt is removed.
Page 393 of 421

NOTICE
Do not use chemical products that contain silicon to wipe electrical components such as the air conditioning system, audio1 navigation system, or other switches. These will cause damage to the components.
NOTICE
Liquid such as liquid aromatics, soft drinks or juice may cause discoloration, wrinkles, and cracking to resin-based parts and textiles. Immediately wipe it dry with tissue paper or a soft cloth. Do not leave leather products with color, fur or vinyl products, etc. in your vehicle for long periods. It may cause discoloration or deterioration of interior.
Cleaning exterior
NOTICE
It is important that your vehicle be kept clean and free from dirt. Failure to keep your vehicle clean may result in fading of the paint or corrosion to various parts of the vehicle body.
Caring for aluminum wheels
NOTE: Do not use an acidic or alkaline detergent, or a cleaner containing petroleum solvent to wash aluminum wheels. These types of cleaner will cause permanent spots, disco/oration and cracks on finished surfaces and damage to center caps. Do not use a bristle brush and soap containing an abrasive material. These will damage finished surfaces.
APPEARANCE CARE
Washing
A WARNING
Never attempt to wash and wax your vehicle with the engine running. When cleaning the underside of the body and fender, where there may be sharp-edged parts, wear gloves and a long-sleeved shirt to protect your hands and arms from being cut. After washing your vehicle, care
fully test the brakes before driving to check that they have maintained their normal effectiveness.
8-4
Page 394 of 421

APPEARANCE CARE
Washing by hand
,r l'J J,
r,
60B212S
When washing the vehicle, park it in the place where direct sunlight does not fall on it as much as possible and follow the instructions below: 1) Flush the underside of body and wheel housings with pressurized water to remove mud and debris. Use plenty of water.
NOTICE
When washing the vehicle: • Avoid directing steam or hot water of more than 80°C (176°F) on plastic parts. To avoid damaging engine components, do not use pressurized water in the engine compartment.
8-5
2) Rinse the body to loosen the dirt. Remove dirt and mud from the body exterior with running water. You may use a soft sponge or brush. Do not use hard materials which can scratch the . paint or plastic. Remember that the headlight covers or lenses are made of plastic in many cases.
NOTICE
To avoid damage to the paint or plastic surface, do not wipe the dirt off without ample water. Follow the above procedure.
3) Wash the entire exterior with a mild detergent or car wash soap using a sponge or soft cloth. The sponge or cloth should be frequently soaked in the soap solution.
NOTICE
When using a commercial car wash product, observe the cautions specified by the manufacturer. Never use strong household detergents or soaps.
4) Once the dirt has been completely removed, rinse off the detergent with running water. 5) Wipe off the vehicle body with a wet chamois or cloth and allow it to dry in the shade.
6) Check carefully for damage to painted surfaces. If there is any damage, touch up the damage following the procedure below: 1. Clean all damaged spots and allow them to dry. 2. Stir the paint and touch up the damaged spots lightly using a small brush. 3. Allow the paint to dry completely.
Washing by an automatic car wash
NOTICE
If you use an automatic car wash, check that your vehicle's body parts, such as spoilers, cannot be damaged. If you are in doubt, consult the car wash operator for advice.
Page 395 of 421

Washing by a high-pressure cleaner
NOTICE
If you use a high-pressure cleaner, keep away the nozzle from your vehicle sufficiently. Bringing the nozzle to your vehicle too close or pointing the nozzle to the opening of front grill or bumper etc. can cause damage and malfunction of the vehicle body and parts. Pointing the nozzle to the weatherstrip of door glasses, doors and the sunroof (if equipped) can allow water to enter the cabin.
Waxing
After washing the vehicle, waxing and polishing are recommended to further protect and beautify the paint.
Only use waxes and polishes of good quality. When using waxes and polishes, observe the precautions specified by the manufacturers.
APPEARANCE CARE
8-6
Page 396 of 421

APPEARANCE CARE

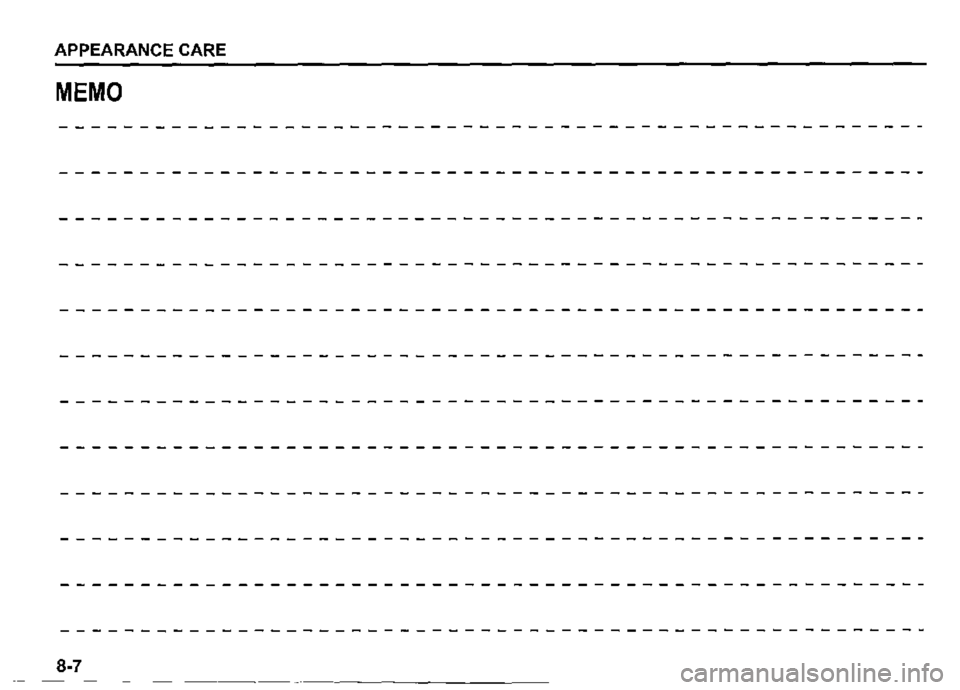

MEMO
8-7
Page 397 of 421

SPECIFICATION
SPECIFICATION
Vehicle identification .......................................................... 9-1
Fuel recommendation ......................................................... 9-2
Specifications ...................................................................... 9-3
-
Page 398 of 421

SPECIFICATION
Vehicle identification
Chassis serial number
78RB10001
9-1
for some vehicles)
00000
78RB10003
The chassis and/or engine serial numbers are used to register the vehicle. They are also used to assist a SUZUKI dealer when ordering or referring to special service information. Whenever you have occasion to consult a SUZUKI dealer, remember to identify your vehicle with this number. Should you find the number difficult to read, you will also find it on the identifica
tion plate.
Engine serial number
78RB10004
The engine serial number is stamped on the cylinder block as shown in the illustration.
Page 399 of 421

Fuel recommendation
78RB0901R
To avoid damaging catalytic converter, you must use unleaded gasoline with an octane number (RON) of 91 or higher (or 95 or higher if a "RON 95" label is attached on the fuel filler lid), which complies with the European standard EN228. Do not use gasoline with additives containing metal.This is identified by a label attached on fuel lid that states: "UNLEADED FUEL ONLY", "NUR UNVERBLEITES BENZIN", "ENDAST BLYFRI BENSIN" or "SOLO GASOLINA SIN PLOMO".
Gasoline-ethanol blends Blends of unleaded gasoline and ethanol (grain alcohol), also known as gasohol, are commercially available in certain areas. Blends of this type may be used in your vehicle if they are no more than 10% ethanol. Check that this gasoline-ethanol blend has octane ratings no lower than those recommended for the gasoline.
Use the recommended gasoline which conforms to the following labels.
NOTE: If you are not satisfied with the driveability or fuel economy of your vehicle when you use a gasoline-alcohol blend, you should switch back to unleaded gasoline containing no alcohol.
Gasoline containing MTBE (where legally available) Unleaded gasoline containing MTB_E (methyl tertiary butyl ether) may be used in your vehicle if the MTBE content 1s not greater than 15%. This oxygenated fuel does not contain alcohol.
SPECIFICATION
NOTICE
The fuel tank has an air space to allow for fuel expansion in hot weather. If you continue to add fuel after the filler nozzle has automati-cally shut off or an initial blowback occurs, the air chamber will become full. Exposure to heat when fully fuelled in this manner will result in leakage due to fuel expansion. To prevent such fuel leakage, stop filling after the filler nozzle has automati-cally shut off, or when initial vent blowback occurs, if using an alterna-tive non-automatic system.
NOTICE
Be careful not to spill fuel containing alcohol while refueling. If fuel is spilled on the vehicle body, wipe it up immediately. Fuels containing alco-hol can cause paint damage, which is not covered under the New Vehicle Limited Warranty.
NOTE: For the fuel recommendation of Chile, Panama and Argentina models, refer to "For Chile, Panama and Argentina" in the "SUPPLEMENT" section.
9-2
Page 400 of 421

SPECIFICATION
Specifications
NOTE: Specifications are subject to change without notice.
MIT: Manual transmission NT: Automatic transmission
ITEM: Dimensions UNIT: mm (in.)
Overall length 3625 (142.7) (Front bumper to spare tyre) 3645 (143.5) (Front bumper to spare wheel half cover)
Overall width 1645 (64.8)
Overall height 1720 (67.7)
Wheelbase 2250 (88.6)
Track I Front 1395 (54.9)
I Rear 1405 (55.3)
Ground clearance 210 (8.2)
9-3
