SUZUKI KIZASHI 2010 1.G User Guide

ILLUSTRATED TABLE OF CONTENTS
57L20-03E

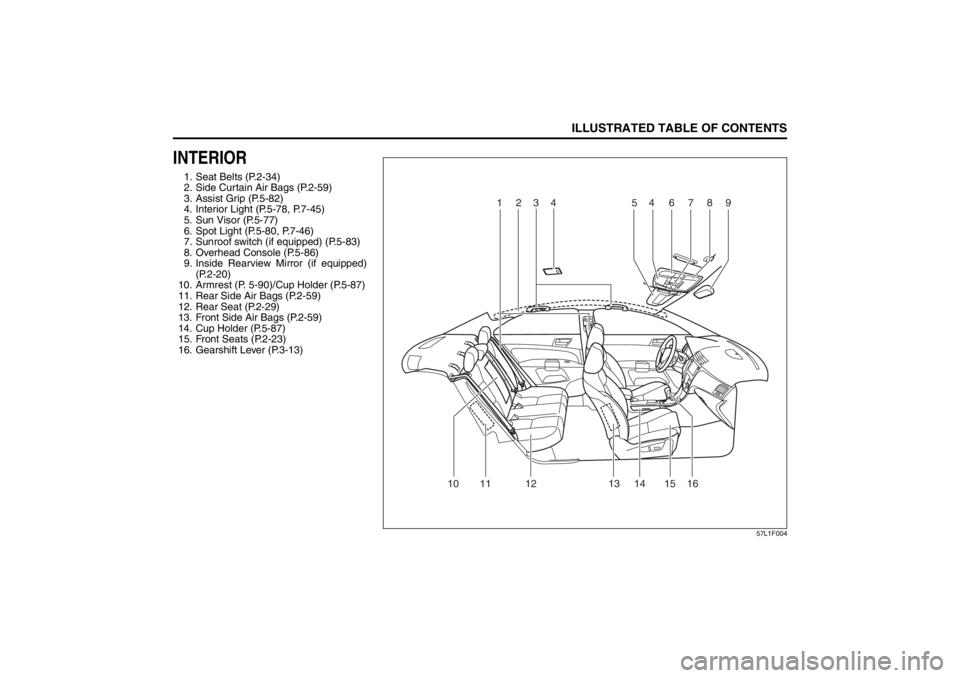

INTERIOR1. Seat Belts (P.2-34)
2. Side Curtain Air Bags (P.2-59)
3. Assist Grip (P.5-82)
4. Interior Light (P.5-78, P.7-45)
5. Sun Visor (P.5-77)
6. Spot Light (P.5-80, P.7-46)
7. Sunroof switch (if equipped) (P.5-83)
8. Overhead Console (P.5-86)
9. Inside Rearview Mirror (if equipped)(P.2-20)
10. Armrest (P. 5-90)/Cup Holder (P.5-87)
11. Rear Side Air Bags (P.2-59)
12. Rear Seat (P.2-29)
13. Front Side Air Bags (P.2-59)
14. Cup Holder (P.5-87)
15. Front Seats (P.2-23)
16. Gearshift Lever (P.3-13)
57L1F004
68
13
15
12
11
14
4
34 5
1
10
167 9
2

ILLUSTRATED TABLE OF CONTENTS
57L20-03E

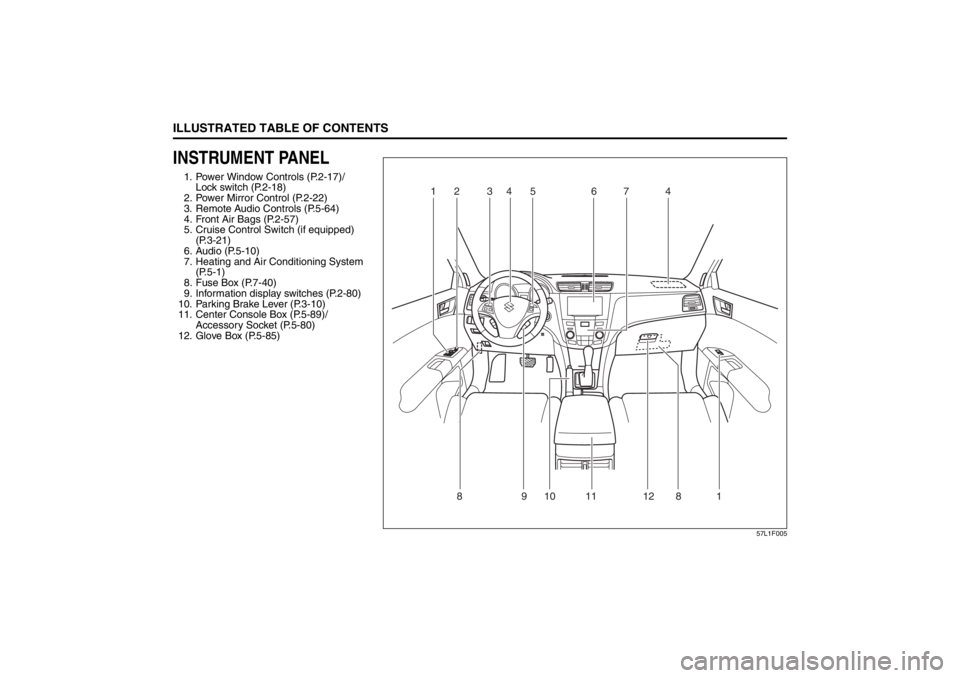

INSTRUMENT PANEL1. Power Window Controls (P.2-17)/Lock switch (P.2-18)
2. Power Mirror Control (P.2-22)
3. Remote Audio Controls (P.5-64)
4. Front Air Bags (P.2-57)
5. Cruise Control Switch (if equipped) (P.3-21)
6. Audio (P.5-10)
7. Heating and Air Conditioning System (P.5-1)
8. Fuse Box (P.7-40)
9. Information display switches (P.2-80)
10. Parking Brake Lever (P.3-10)
11. Center Console Box (P.5-89)/ Accessory Socket (P.5-80)
12. Glove Box (P.5-85)
57L1F005
9
8
10 12
11
8
1
1
7
4
4
3
5
6
2

ILLUSTRATED TABLE OF CONTENTS
57L20-03E

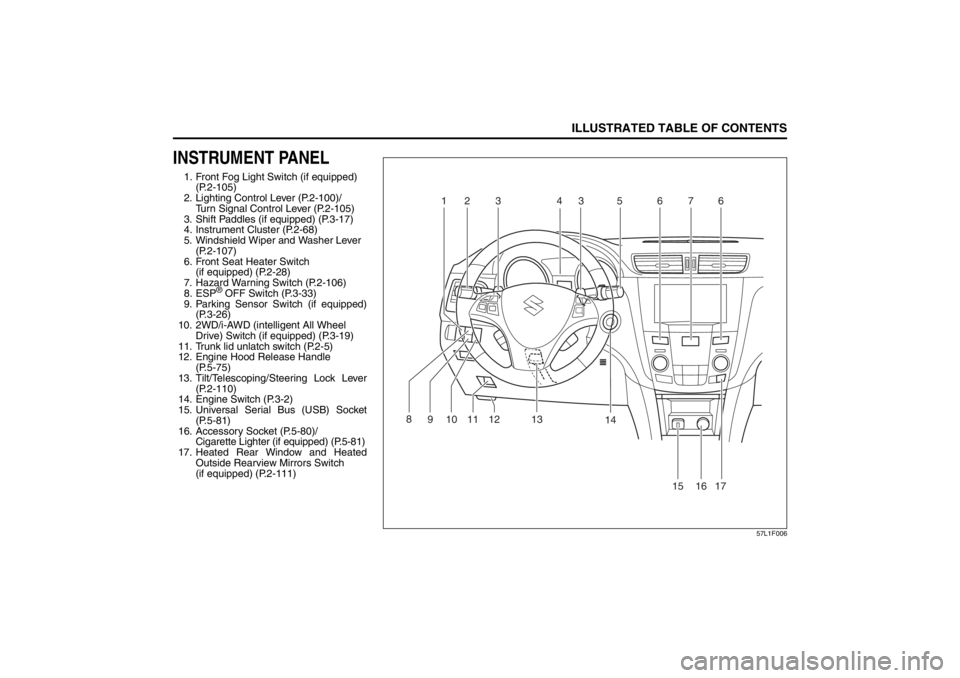

INSTRUMENT PANEL1. Front Fog Light Switch (if equipped)(P.2-105)
2. Lighting Control Lever (P.2-100)/ Turn Signal Control Lever (P.2-105)
3. Shift Paddles (if equipped) (P.3-17)
4. Instrument Cluster (P.2-68)
5. Windshield Wiper and Washer Lever (P.2-107)
6. Front Seat Heater Switch (if equipped) (P.2-28)
7. Hazard Warning Switch (P.2-106)
8. ESP
® OFF Switch (P.3-33)
9. Parking Sensor Switch (if equipped) (P.3-26)
10. 2WD/i-AWD (intelligent All Wheel Drive) Switch (if equipped) (P.3-19)
11. Trunk lid unlatch switch (P.2-5)
12. Engine Hood Release Handle (P.5-75)
13. Tilt/Telescoping/Steering Lock Lever (P.2-110)
14. Engine Switch (P.3-2)
15. Universal Serial Bus (USB) Socket (P.5-81)
16. Accessory Socket (P.5-80)/ Cigarette Lighter (if equipped) (P.5-81)
17. Heated Rear Window and Heated Outside Rearview Mirrors Switch
(if equipped) (P.2-111)
57L1F006
1
3
2
4
7
6
14
13
12
11
9 10
17
16
15
8 5
3
6

ILLUSTRATED TABLE OF CONTENTS
57L20-03E

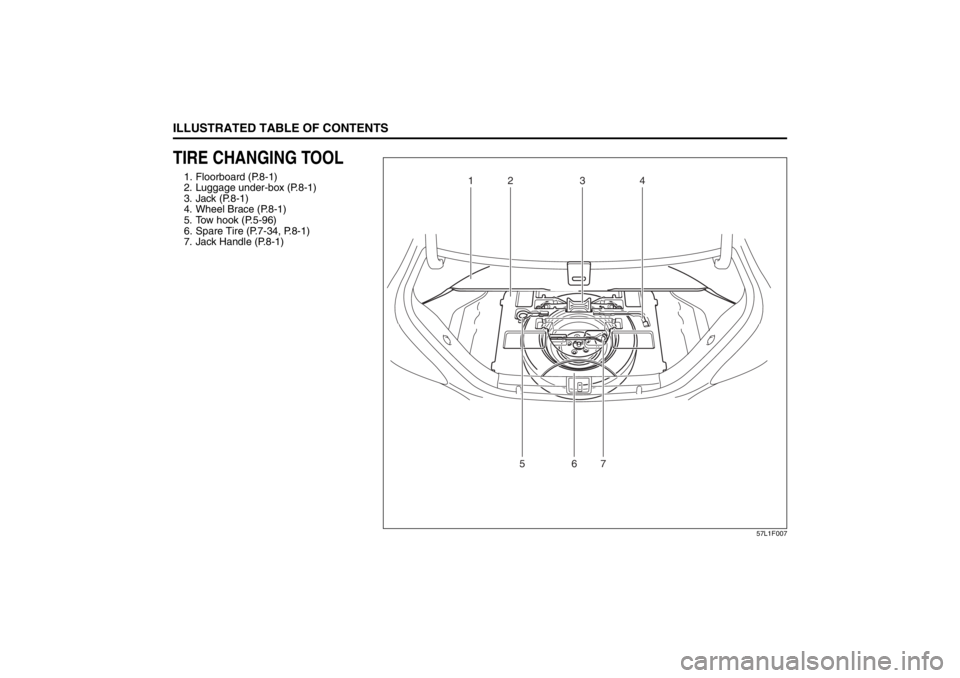

TIRE CHANGING TOOL1. Floorboard (P.8-1)
2. Luggage under-box (P.8-1)
3. Jack (P.8-1)
4. Wheel Brace (P.8-1)
5. Tow hook (P.5-96)
6. Spare Tire (P.7-34, P.8-1)
7. Jack Handle (P.8-1)
57L1F007
7
5
6
1
3
2
4

57L20-03E
LOCATION OF WARNING
MESSAGESRead and follow all of the warnings (labels
etc.) on your vehicle. Make sure you
understand all of them. Keep them on the
vehicle. Do not remove the messages for
any reason. If a label comes off or the
messages become difficult to be read,
have it corrected by your SUZUKI dealer.
1. Air bag warning labels
(on both sun visors)
2. Jacking warning label
3. Fuel filler cap message
4. Brake fluid cap message
5. Engine cooling fan warning label
6. Radiator cap warning label
7. Air conditioner warning label
8. Battery label
9. Compact spare tire warning label
(if equipped)
10. Side air bag warning label
11. Rear center head restraint warning
label
12. Jacking instruction warning label
13. Rear center seat belt warning label
14. Floor mat warning label (if equipped)
57L1F008
4
14
6
5
7
2
13
10
3
8
1
&TKXGT 2CUUGPIGT9
101011
1311
1010
12

57L20-03E
MEMO

FUEL RECOMMENDATION
1
57L20-03E
65D394
FUEL RECOMMENDATIONFuel Recommendation ........................................................ 1-1

1-1FUEL RECOMMENDATION
57L20-03E
Fuel Recommendation
60A004
Your vehicle requires regular unleaded
gasoline with a minimum rating of 87 pump
octane ((R + M)/2 method). In some areas,
the only fuels that are available are oxy-
genated fuels.
Oxygenated fuels which meet the mini-
mum octane requirement and the require-
ments described below may be used in
your vehicle without jeopardizing the New
Vehicle Limited Warranty.
NOTE:
Oxygenated fuels are fuels which contain
oxygen-carrying additives such as MTBE
or alcohol.
Gasoline Containing MTBEUnleaded gasoline containing MTBE
(methyl tertiary butyl ether) may be used in
your vehicle if the MTBE content is not
greater than 15%. This oxygenated fuel
does not contain alcohol.
Gasoline/Ethanol blends
Blends of unleaded gasoline and ethanol
(grain alcohol), also known as gasohol,
may be used in your vehicle if the ethanol
content is not greater than 10%.
Gasoline/Methanol blends
Fuels containing 5% or less methanol
(wood alcohol) may be suitable for use in
your vehicle if they contain cosolvents and
corrosion inhibitors. Do NOT USE fuels
containing more than 5% methanol under
any circumstances. Fuel system damage
or vehicle performance problems resulting
from the use of such fuels are not the
responsibility of SUZUKI and may not be
covered under the New Vehicle Limited
Warranty.
Fuel Pump LabelingIn some states, pumps that dispense oxy-
genated fuels are required to be labeled for
the type and percentage of oxygenate and
whether important additives are present.
Such labels may provide enough informa-
tion for you to determine if a particular
blend of fuel meets the requirements listed
above. In other areas, pumps may not be
clearly labeled as to the content or type of
oxygenate and additives. If you are not
sure that the fuel you intend to use meets
these requirements, check with the service
station operator or the fuel supplier.
NOTE:
To help clean the air, SUZUKI recom-
mends you use the oxygenated fuels.
However, if you are not satisfied with the
driveability or fuel economy of your vehicle
when you are using an oxygenated fuel,
switch back to the regular unleaded gaso-
line.
CAUTION
Be careful not to spill fuel containing
alcohol while refueling. If fuel is
spilled on the vehicle body, wipe it up
immediately. Fuels containing alco-
hol can cause paint damage, which is
not covered under the New Vehicle
Limited Warranty.
Fuel Recommendation: 1, 2

BEFORE DRIVING
2
57L20-03E
60G404
BEFORE DRIVINGKeys .................................................................................... 2-1
Immobilizer System .......................................................... 2-2
Door Locks ........................................................................ 2-3
Keyless Start System Remote Controller ....................... 2-6
Theft Deterrent Alarm System ......................................... 2-14
Windows ............................................................................ 2-17
Mirrors ................................................................................ 2-20
Front Seats ........................................................................ 2-23
Front Seat Heater (if equipped) ........................................ 2-28
Rear Seats .......................................................................... 2-29
Seat Belts and Child Restraint Systems ......................... 2-34
Supplemental Restraint System (air bags) ..................... 2-55
Instrument Cluster ............................................................ 2-68
Warning and Indicator Lights .......................................... 2-69
Speedometer ..................................................................... 2-78
Tachometer ........................................................................ 2-78
Fuel Gauge ......................................................................... 2-78
Temperature Gauge .......................................................... 2-79
Brightness Control ............................................................ 2-79
Information Display ........................................................... 2-80
Lighting Control Lever ...................................................... 2-100
Front Fog Light Switch (if equipped) .............................. 2-105
Turn Signal Control Lever ................................................ 2-105
Hazard Warning Switch .................................................... 2-106
Rain-sensing Wipers and Washer Lever ......................... 2-107
Tilt/Telescoping/Steering Lock Lever (if equipped) ....... 2-110
Horn .................................................................................... 2-111
Heated Rear Window and Heated Outside
Rearview Mirrors (if equipped) Switch ............................ 2-111

2-1BEFORE DRIVING
57L20-03E
Keys
57L21001

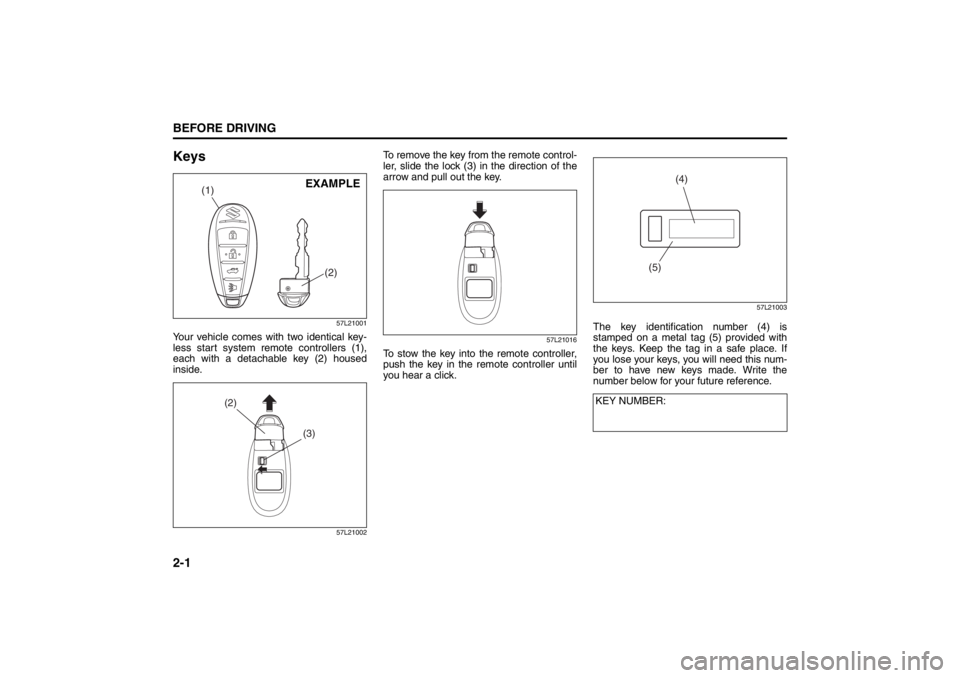

Your vehicle comes with two identical key-
less start system remote controllers (1),
each with a detachable key (2) housed
inside.
57L21002
To remove the key from the remote control-
ler, slide the lock (3) in the direction of the
arrow and pull out the key.
57L21016
To stow the key into the remote controller,
push the key in the remote controller until
you hear a click.
57L21003
The key identification number (4) is
stamped on a metal tag (5) provided with
the keys. Keep the tag in a safe place. If
you lose your keys, you will need this num-
ber to have new keys made. Write the
number below for your future reference.
(1)
(2)
EXAMPLE
(2)
(3)
KEY NUMBER:
(4)
(5)
Keys: 8
Door Locks: 3, 5, 8
