2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
% 7 I X Q F W L R Q R Q R I I % 7 3 R Z H U
Follow the instructions below to turn on/off
the Bluetooth
® function.
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Blue-
tooth”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “BT Power”,
and press the knob (1) to determine the
selection.
4) Press the TUNE FOLDER PUSH
SOUND knob (1) to select “BT Power
On” or “BT Power Off”.
NOTE:
• When the BT function is turned off, the
connection between this unit and the
registered phone in use will be discon-
nected.
• When selecting “Go Back”, the previous
menu will be displayed.
Page 202 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
% O X H W R R W K
Š D X G L R L I H T X L S S H G
64MS195
$ 8 ;
(4)
(3)
(1)
(2)(5)
6 W H H U L Q J V Z L W F K
' L V S O D \

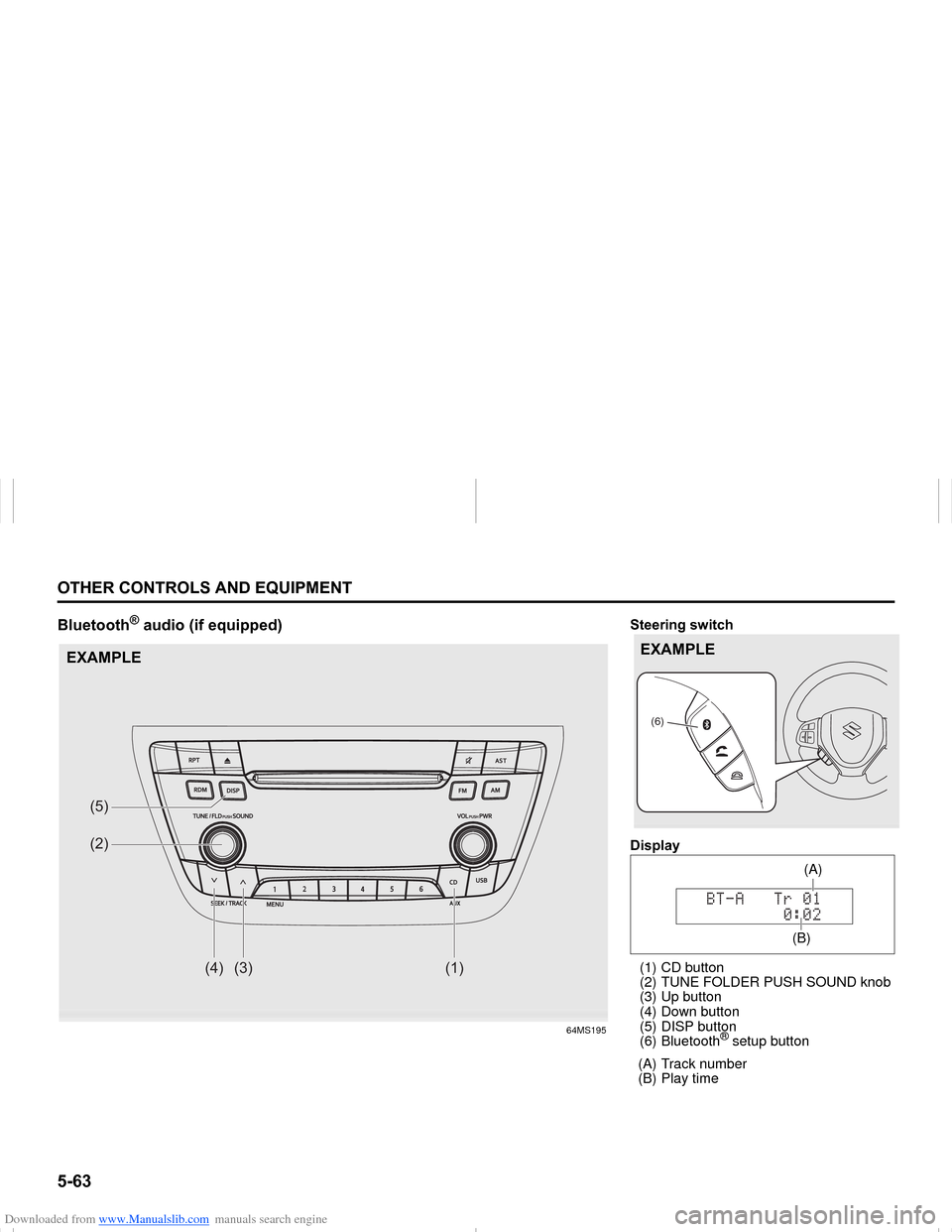

(1) CD button
(2) TUNE FOLDER PUSH SOUND knob
(3) Up button
(4) Down button
(5) DISP button
(6) Bluetooth
® setup button
(A) Track number
(B) Play time
(6)
(B)(A)
( ; $ 0 3 / ( ( ; $ 0 3 / (
Page 203 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
5 H J L V W U D W L R Q R I D X G L R G H Y L F H V
NOTE:
• To set up a new audio player, disconnect
the phone from the unit. Connect the
phone after audio player setup is com-
pleted if necessary.
• When failed to establish the connection
within 120 seconds, the connecting
operation will be canceled. Please try
again or refer to the audio player manual
for assistance with the pairing process.
1) Press the Bluetooth
® setup button (6).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “Setup Blue-
tooth”, and press the knob (2) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “Pairing”,
and press the knob (2) to determine the
selection.
4) Select “CAR AUDIO” from the Blue-
tooth
® menu of the audio player and
establish the pairing.
Refer to the manual of the audio player
in use for further information.
5) Enter the Passkey displayed on the unit
to the audio player.NOTE:
• When selecting “Go Back”, the previous
menu will be displayed.
• When additionally registering audio
devices, operate the same step from 1).
6 H O H F W L Q J W K H % O X H W R R W K
Š D X G L R P R G H
Press the CD button (1).
Each time the button is pressed, the mode
will change as follows: 6 H O H F W L Q J D J U R X S R Q O \ I R U V X S S R U W H G
P R G H O V
Turn the TUNE FOLDER PUSH SOUND
knob (2) to select a group. 6 H O H F W L Q J D W U D F N
• Press the Up button (3) to listen to the
next track.
• Press the Down button (4) twice to listen
to the previous track.
When the Down button (4) is pressed
once, the track currently being played
will start from the beginning again.
) D V W I R U Z D U G L Q J 5 H Z L Q G L Q J D W U D F N
• Hold down the Up button (3) to fast for-
ward the track.
• Hold down the Down button (4) to fast
rewind the track.
NOTE:
Some functions may not be available
depending on Bluetooth
® audio.
' L V S O D \ F K D Q J H
Press the DISP button (5).
Each time the button is pressed, display
will change as follows:
To use Bluetooth
® ready audio devices
with this unit, it is required to register the
devices.
CD
Bluetooth
® audio (if equipped)
AUX (if equipped)
Play time
Track name
Artist name
Album name
Page 204 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
NOTE:
If text data contains more than 12 charac-
ters, the “>” mark will appear at the right
end. Holding down the DISP button (5) for
1 second or longer can display the next
page.
6 H O H F W L R Q R I D X G L R G H Y L F H 6 H O H F W $ X G L R
Follow the instructions below to select an
audio device to be paired with from the
registered audio devices.
1) Press the Bluetooth
® setup button (6).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “Setup Blue-
tooth”, and press the knob (2) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “List Audio”,
and press the knob (2) to determine the
selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select an audio
device to be used, and press the knob
(2) to determine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “Select”, and
press the knob (2) to determine the
selection.
6) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “Confirm”,
and press the knob (2) to complete the
pairing.
NOTE:
• When selecting “Go Back”, the previous
menu will be displayed.• The phone will be disconnected when the
Bluetooth
® ready audio device is
selected.
/ L V W R I D X G L R G H Y L F H V / L V W $ X G L R
Follow the instructions below to display the
names of the registered audio devices in
sequence.
1) Press the Bluetooth
® setup button (6).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “Setup Blue-
tooth”, and press the knob (2) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “List Audio”,
and press the knob (2) to determine the
selection. The names of registered
audio devices will be displayed in
sequence.NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
3 D V V N H \ V H W W L Q J 6 H W 3 D V V N H \
Follow the instructions below to set the
security number (Passkey).
1) Press the Bluetooth
® setup button (6).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH SOUND
knob (2) to select “Setup Bluetooth”, and
press the knob (2) to determine the
selection.
3) Turn the TUNE FOLDER PUSH SOUND
knob (2) to select “Passkey”, and press
the knob (2) to determine the selection.
4) Turn the TUNE FOLDER PUSH SOUND
knob (2) to select “New Passkey”, and
press the knob (2) to determine the
selection.
5) Press or turn the TUNE FOLDER PUSH
SOUND knob (2) to select “Confirm”.
6) Turn the TUNE FOLDER PUSH SOUND
knob (2) to select a number for the first
digit, and press the knob (2) to deter-
mine the selection. Select and deter-
mine numbers for the second, third and
fourth digits in order in the same man-
ner. When not entering up to the eighth
digit, enter blanks for the successive dig-
its.
7) Turn the TUNE FOLDER PUSH SOUND
knob (2) to determine the passkey set-
ting.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
Page 205 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (

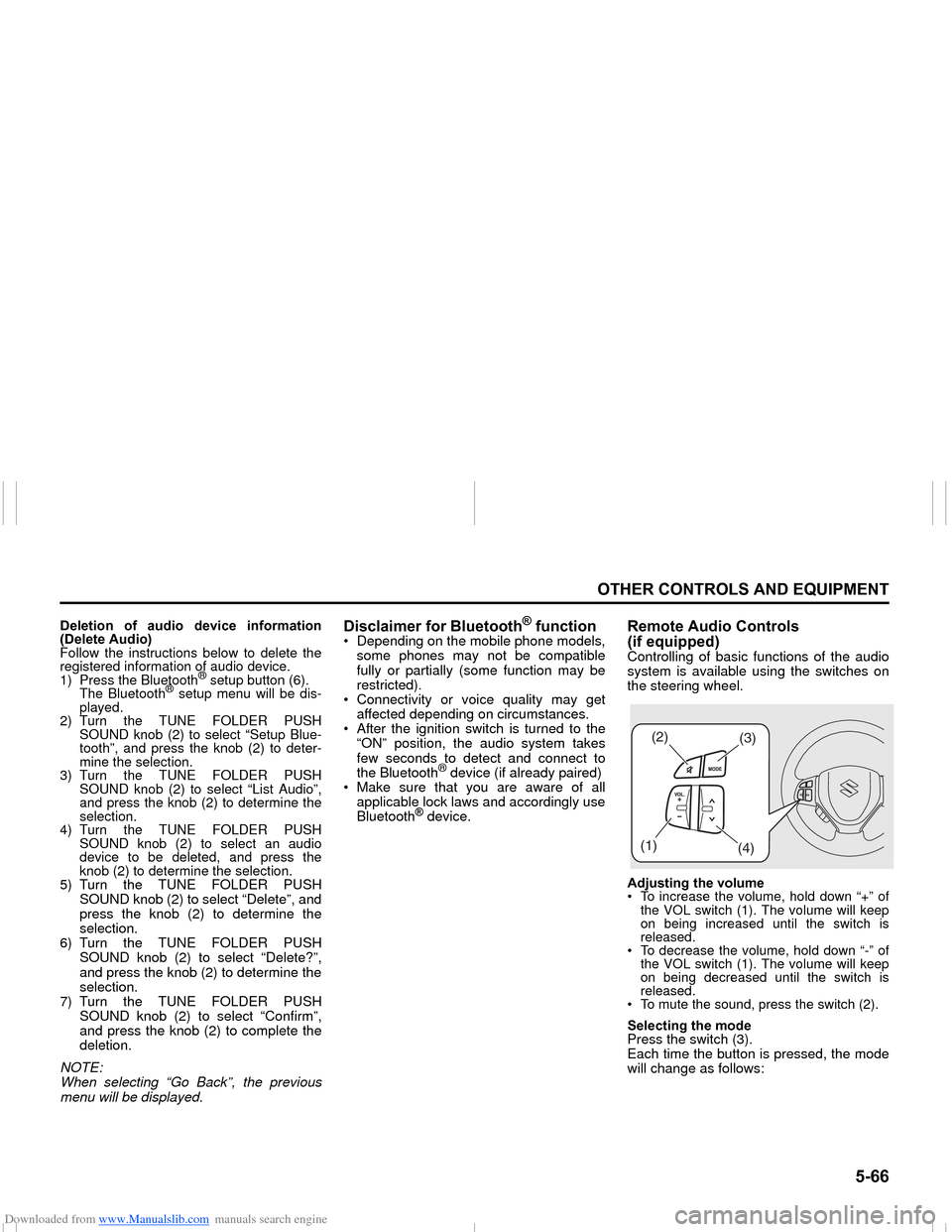

' H O H W L R Q R I D X G L R G H Y L F H L Q I R U P D W L R Q
' H O H W H $ X G L R
Follow the instructions below to delete the
registered information of audio device.
1) Press the Bluetooth
® setup button (6).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “Setup Blue-
tooth”, and press the knob (2) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “List Audio”,
and press the knob (2) to determine the
selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select an audio
device to be deleted, and press the
knob (2) to determine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “Delete”, and
press the knob (2) to determine the
selection.
6) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “Delete?”,
and press the knob (2) to determine the
selection.
7) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select “Confirm”,
and press the knob (2) to complete the
deletion.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
' L V F O D L P H U I R U % O X H W R R W K
Š I X Q F W L R Q
• Depending on the mobile phone models,
some phones may not be compatible
fully or partially (some function may be
restricted).
• Connectivity or voice quality may get
affected depending on circumstances.
• After the ignition switch is turned to the
“ON” position, the audio system takes
few seconds to detect and connect to
the Bluetooth
® device (if already paired)
• Make sure that you are aware of all
applicable lock laws and accordingly use
Bluetooth
Š device.
5 H P R W H $ X G L R & R Q W U R O V
L I H T X L S S H G Controlling of basic functions of the audio
system is available using the switches on
the steering wheel. $ G M X V W L Q J W K H Y R O X P H
• To increase the volume, hold down “+” of
the VOL switch (1). The volume will keep
on being increased until the switch is
released.
• To decrease the volume, hold down “-” of
the VOL switch (1). The volume will keep
on being decreased until the switch is
released.
• To mute the sound, press the switch (2). 6 H O H F W L Q J W K H P R G HPress the switch (3).
Each time the button is pressed, the mode
will change as follows:
(2)
(3)
(1)
(4)
Page 206 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (

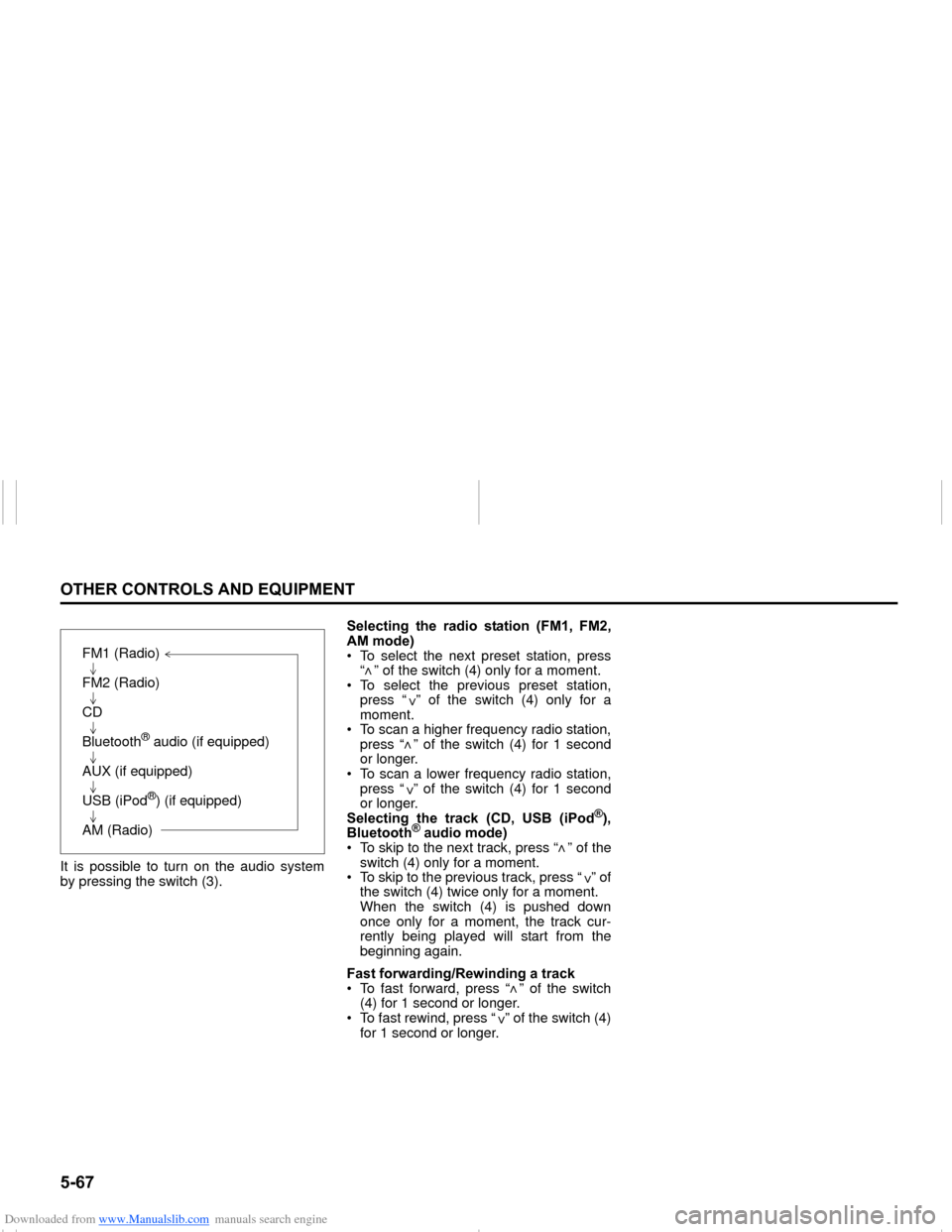

It is possible to turn on the audio system
by pressing the switch (3). 6 H O H F W L Q J W K H U D G L R V W D W L R Q ) 0 ) 0
$ 0 P R G H
• To select the next preset station, press
“ ” of the switch (4) only for a moment.
• To select the previous preset station,
press “ ” of the switch (4) only for a
moment.
• To scan a higher frequency radio station,
press “ ” of the switch (4) for 1 second
or longer.
• To scan a lower frequency radio station,
press “ ” of the switch (4) for 1 second
or longer.
6 H O H F W L Q J W K H W U D F N & ' 8 6 % L 3 R G
Š
% O X H W R R W K
Š D X G L R P R G H
• To skip to the next track, press “ ” of the
switch (4) only for a moment.
• To skip to the previous track, press “ ” of
the switch (4) twice only for a moment.
When the switch (4) is pushed down
once only for a moment, the track cur-
rently being played will start from the
beginning again.
) D V W I R U Z D U G L Q J 5 H Z L Q G L Q J D W U D F N
• To fast forward, press “ ” of the switch
(4) for 1 second or longer.
• To fast rewind, press “ ” of the switch (4)
for 1 second or longer. FM1 (Radio)
FM2 (Radio)
CD
Bluetooth
® audio (if equipped)
AUX (if equipped)
USB (iPod®) (if equipped)
AM (Radio)
<
<<<
<
<
<<
Page 207 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (

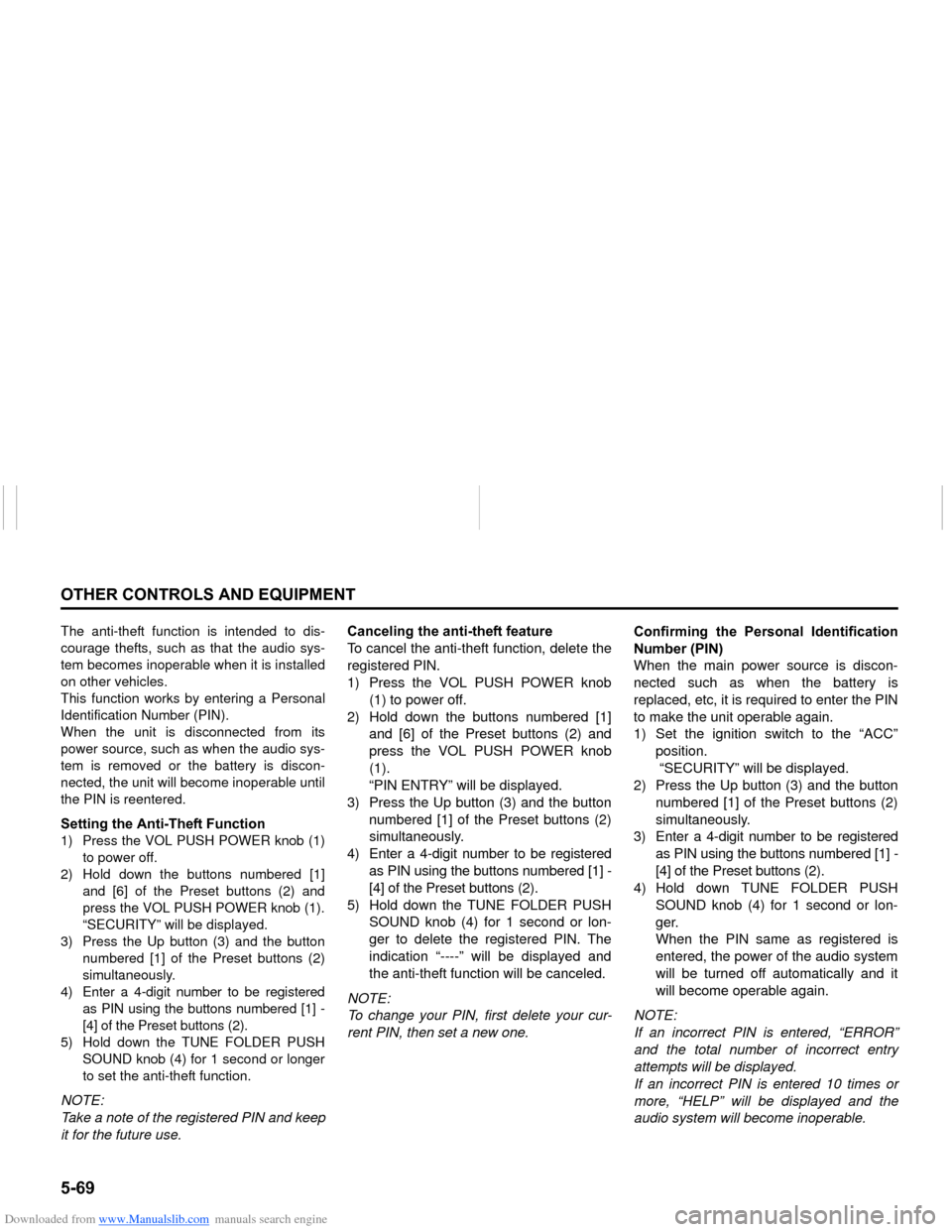

$ Q W L 7 K H I W ) H D W X U H
64MS196
$ 8 ;
(4)
(2)
(1)
(3)
(1) VOL PUSH POWER knob
(2) Preset buttons ([1] to [6])
(3) Up button
(4) TUNE FOLDER PUSH SOUND knob
( ; $ 0 3 / (
Page 208 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
The anti-theft function is intended to dis-
courage thefts, such as that the audio sys-
tem becomes inoperable when it is installed
on other vehicles.
This function works by entering a Personal
Identification Number (PIN).
When the unit is disconnected from its
power source, such as when the audio sys-
tem is removed or the battery is discon-
nected, the unit will become inoperable until
the PIN is reentered. 6 H W W L Q J W K H $ Q W L 7 K H I W ) X Q F W L R Q1) Press the VOL PUSH POWER knob (1)
to power off.
2) Hold down the buttons numbered [1]
and [6] of the Preset buttons (2) and
press the VOL PUSH POWER knob (1).
“SECURITY” will be displayed.
3) Press the Up button (3) and the button
numbered [1] of the Preset buttons (2)
simultaneously.
4) Enter a 4-digit number to be registered
as PIN using the buttons numbered [1] -
[4] of the Preset buttons (2).
5) Hold down the TUNE FOLDER PUSH
SOUND knob (4) for 1 second or longer
to set the anti-theft function.NOTE:
Take a note of the registered PIN and keep
it for the future use. & D Q F H O L Q J W K H D Q W L W K H I W I H D W X U H
To cancel the anti-theft function, delete the
registered PIN.
1) Press the VOL PUSH POWER knob
(1) to power off.
2) Hold down the buttons numbered [1]
and [6] of the Preset buttons (2) and
press the VOL PUSH POWER knob
(1).
“PIN ENTRY” will be displayed.
3) Press the Up button (3) and the button
numbered [1] of the Preset buttons (2)
simultaneously.
4) Enter a 4-digit number to be registered
as PIN using the buttons numbered [1] -
[4] of the Preset buttons (2).
5) Hold down the TUNE FOLDER PUSH
SOUND knob (4) for 1 second or lon-
ger to delete the registered PIN. The
indication “----” will be displayed and
the anti-theft function will be canceled.
NOTE:
To change your PIN, first delete your cur-
rent PIN, then set a new one. & R Q I L U P L Q J W K H 3 H U V R Q D O , G H Q W L I L F D W L R Q
1 X P E H U 3 , 1
When the main power source is discon-
nected such as when the battery is
replaced, etc, it is required to enter the PIN
to make the unit operable again.
1) Set the ignition switch to the “ACC”
position.
“SECURITY” will be displayed.
2) Press the Up button (3) and the button
numbered [1] of the Preset buttons (2)
simultaneously.
3) Enter a 4-digit number to be registered
as PIN using the buttons numbered [1] -
[4] of the Preset buttons (2).
4) Hold down TUNE FOLDER PUSH
SOUND knob (4) for 1 second or lon-
ger.
When the PIN same as registered is
entered, the power of the audio system
will be turned off automatically and it
will become operable again.
NOTE:
If an incorrect PIN is entered, “ERROR”
and the total number of incorrect entry
attempts will be displayed.
If an incorrect PIN is entered 10 times or
more, “HELP” will be displayed and the
audio system will become inoperable.
Page 209 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
% D W W H U \ , Q V W D O O D W L R QInstall a lithium battery (CR2025) with the poles facing the correct direction.
% D W W H U \ U H S O D F H P H Q W W L P L Q J
• When battery power is depleted, the button may not be operable. If the remote controller
does not operate, replace the battery and check the operation.
& D X W L R Q R Q E D W W H U \
• Be sure to follow the instructions to prevent battery leakage, over-heating, ignition or
explosion.
If battery leakage has occurred, wipe the
container first then install a new battery. If
the battery solution contacts the skin, wash
off with water completely.
& D X W L R Q R Q 5 H P R W H & R Q W U R O O H U• Do not leave the remote controller in an
area exposed to direct sunlight, such as
on the dashboard or steering wheel. The
remote controller may deform because of
the heat, (Be especially careful of the
dashboard exposed to direct sunlight in
the summer, as it will become extremely
hot).
: $ 5 1 , 1 *
Page 210 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (

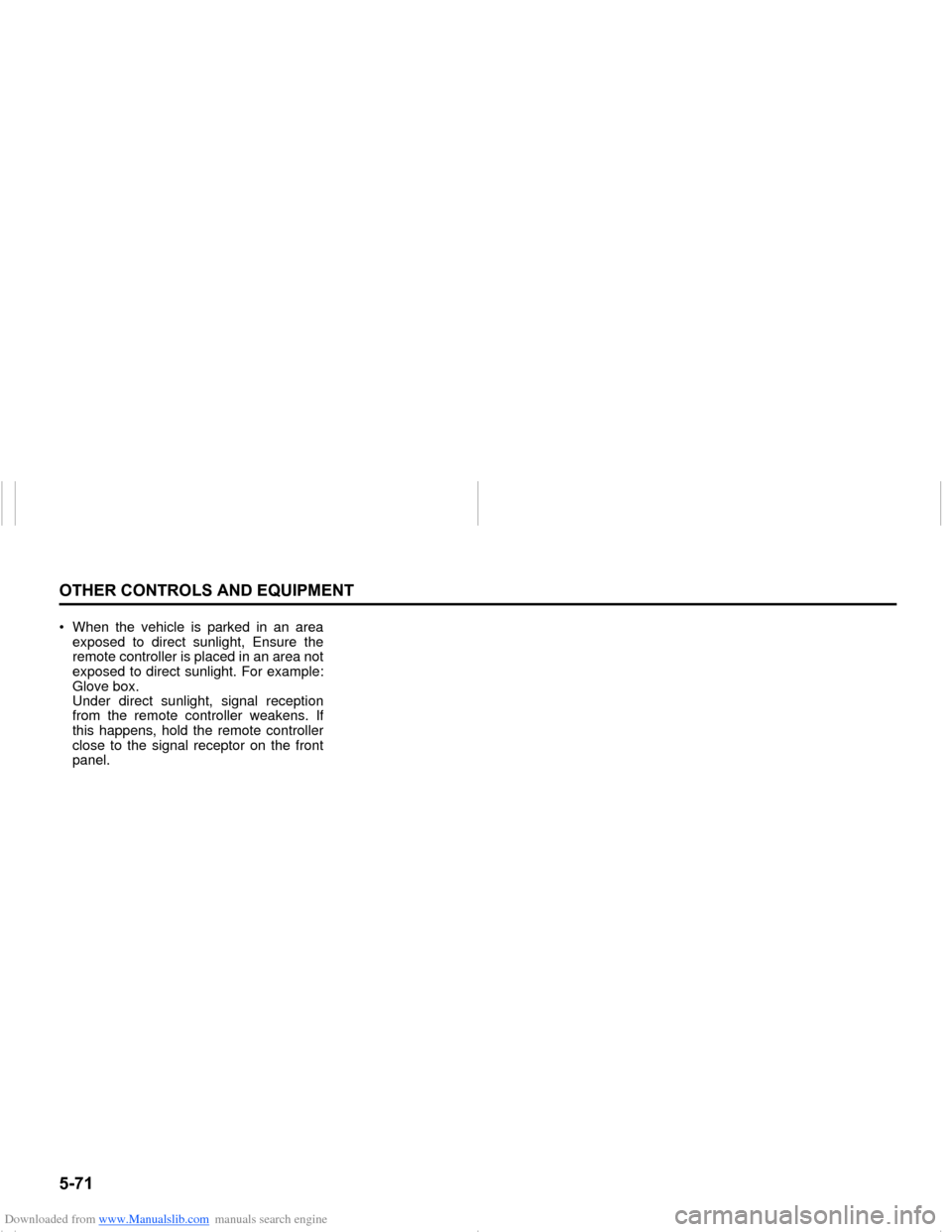

• When the vehicle is parked in an area
exposed to direct sunlight, Ensure the
remote controller is placed in an area not
exposed to direct sunlight. For example:
Glove box.
Under direct sunlight, signal reception
from the remote controller weakens. If
this happens, hold the remote controller
close to the signal receptor on the front
panel.
