2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
NOTE:
If text data contains more than 12 charac-
ters, the “>” mark will appear at the right
end. Holding down the DISP button (7) for
1 second or longer can display the next
page.
3 O D \ L Q J 0 R G H V H O H F W L R Q
1) Press the button numbered [6] of the
Preset buttons (8) for 1 second or lon-
ger.
2) Turn the TUNE FOLDER PUSH
SOUND knob (2).
Each time the knob is turned, the mode
will change as follows:
3) Press the TUNE FOLDER PUSH
SOUND knob (2) to select the desired
mode.
NOTE:
• When the button numbered [6] of the
Preset buttons (8) is pressed, the previ-
ous mode will be displayed.
1 R W H V R Q L 3 R G
Š
6 X S S R U W H G L 3 R G
Š
•iPod
® touch (5th generation)
•iPod® touch (4th generation)
•iPod® touch (3rd generation)
•iPod® touch (2nd generation)
•iPod® touch (1st generation)
•iPod® classic
•iPod® nano (7th generation)
•iPod® nano (6th generation)
•iPod® nano (5th generation)
•iPod® nano (4th generation)
•iPod® nano (3rd generation)
•iPod® nano (2nd generation)
•iPod® nano (1st generation)
•iPod® (5th generation)
•iPod® (6th generation)
•iPod®(6thPlus generation)
•iPhone® 6 / 6 plus
• iPhone® 5
• iPhone® 4S
• iPhone® 4
• iPhone® 3GS
• iPhone® 3G
• iPhone®
* Some functions may not be available
depending on the model of iPod
®.
*iPod
® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.
*iPhone® is a trademark of Apple Inc.,
registered in the U.S. and other coun-
tries.
* Apple is not responsible for the opera-
tion of this device or its compliance with
safety and regulatory standards. L 3 R G
Š F R Q Q H F W L R Q
• Make sure to detach the iPod
® after
pressing the engine switch to change the
ignition mode to “LOCK” (OFF) or the
ignition switch is turned to the “LOCK”
position. The iPod
® may not be shut
down when it is being connected and
may result in battery depletion.
• Please do not connect iPod
® accesso-
ries such as an iPod
® remote control or
headphones while connecting the iPod
®
with the unit. The unit may not operate
correctly.
PLAYLIST
ARTIST
ALBUM
SONGS
GENRE
Page 192 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
$ 8 ; ) X Q F W L R Q
64MS193
(1) CD button
$ 8 ;(1)
$ 8 ; F R Q Q H F W L R Q
To listen to auxiliary audio sources (sold
separately) through the unit, follow the
instruction below.
1) Connect the auxiliary audio source to
the AUX/USB socket (separately
attached) with an AUX cable.
2) Press the CD button (1).
Each time the button is pressed, the
mode will change as follows:
& $ 8 7 , 2 1
Page 193 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
NOTE:
• Please consult your place of purchase
for details about whether a given auxil-
iary audio source can be connected and
the proper auxiliary cord to use.
• The volume and tone controls of the
auxiliary audio source can be adjusted
on the unit.
• In AUX mode, the volume setting is dif-
ferent from another mode.
Page 194 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
% O X H W R R W K
Š + D Q G V ) U H H L I H T X L S S H G
64MS194
(1) TUNE FOLDER PUSH SOUND knob
(2) VOL PUSH POWER knob
(3) Preset buttons
(1)
(2)
AUX
(3)
6 W H H U L Q J V Z L W F K
(4) Bluetooth
® setup button
(5) Off Hook button
(6) On Hook button
(7) VOL switch
(4)(5)
(6)
(7)
( ; $ 0 3 / (
( ; $ 0 3 / ( ( ; $ 0 3 / (
Page 195 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (

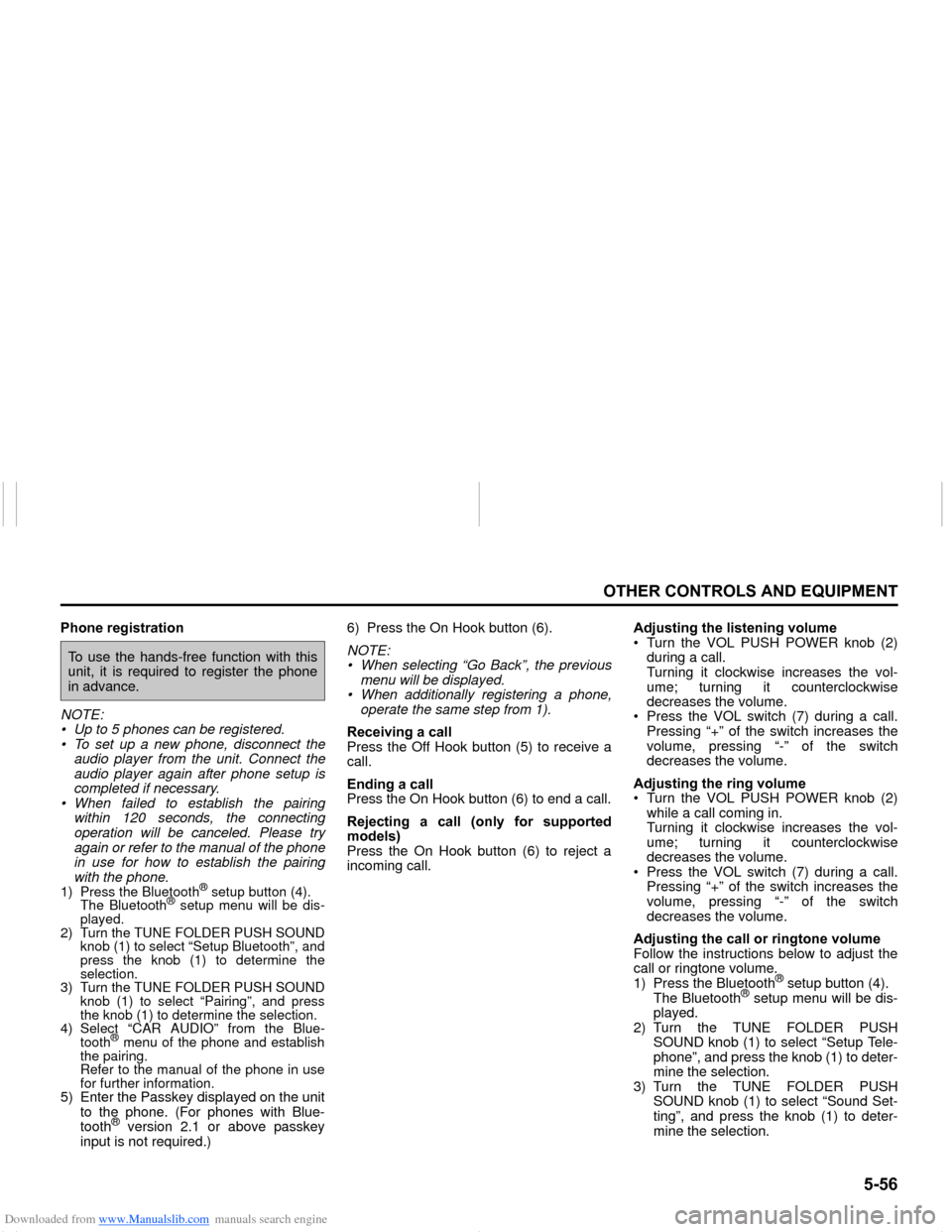

3 K R Q H U H J L V W U D W L R Q
NOTE:
• Up to 5 phones can be registered.
• To set up a new phone, disconnect the
audio player from the unit. Connect the
audio player again after phone setup is
completed if necessary.
• When failed to establish the pairing
within 120 seconds, the connecting
operation will be canceled. Please try
again or refer to the manual of the phone
in use for how to establish the pairing
with the phone.1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH SOUND
knob (1) to select “Setup Bluetooth”, and
press the knob (1) to determine the
selection.
3) Turn the TUNE FOLDER PUSH SOUND
knob (1) to select “Pairing”, and press
the knob (1) to determine the selection.
4) Select “CAR AUDIO” from the Blue-
tooth
® menu of the phone and establish
the pairing.
Refer to the manual of the phone in use
for further information.
5) Enter the Passkey displayed on the unit
to the phone. (For phones with Blue-
tooth
® version 2.1 or above passkey
input is not required.)6) Press the On Hook button (6).
NOTE:
• When selecting “Go Back”, the previous
menu will be displayed.
• When additionally registering a phone,
operate the same step from 1).
5 H F H L Y L Q J D F D O O
Press the Off Hook button (5) to receive a
call.
( Q G L Q J D F D O O
Press the On Hook button (6) to end a call.
5 H M H F W L Q J D F D O O R Q O \ I R U V X S S R U W H G
P R G H O V
Press the On Hook button (6) to reject a
incoming call. $ G M X V W L Q J W K H O L V W H Q L Q J Y R O X P H
• Turn the VOL PUSH POWER knob (2)
during a call.
Turning it clockwise increases the vol-
ume; turning it counterclockwise
decreases the volume.
• Press the VOL switch (7) during a call.
Pressing “+” of the switch increases the
volume, pressing “-” of the switch
decreases the volume.
$ G M X V W L Q J W K H U L Q J Y R O X P H
• Turn the VOL PUSH POWER knob (2)
while a call coming in.
Turning it clockwise increases the vol-
ume; turning it counterclockwise
decreases the volume.
• Press the VOL switch (7) during a call.
Pressing “+” of the switch increases the
volume, pressing “-” of the switch
decreases the volume.
$ G M X V W L Q J W K H F D O O R U U L Q J W R Q H Y R O X P H
Follow the instructions below to adjust the
call or ringtone volume.
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Tele-
phone”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Sound Set-
ting”, and press the knob (1) to deter-
mine the selection.
To use the hands-free function with this
unit, it is required to register the phone
in advance.
Page 196 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Call Vol-
ume” or “Ringtone Volume”, and press
the knob (1) to determine the selection.
The current call or ringtone volume will
be displayed.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select desired call
or ringtone volume, and press the knob
(1) to determine the selection.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
6 H O H F W L Q J W K H 5 L Q J W R Q H
Follow the instructions below to select a
ringtone.
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Tele-
phone”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Sound Set-
ting”, and press the knob (1) to deter-
mine the selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Ringtone”,
and press the knob (1) to determine the
selection.
The current ringtone will be sounded.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select desired ring-tone, and press the knob (1) to deter-
mine the selection.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
' L D O L Q J X V L Q J 0 L V V H G , Q F R P L Q J
2 X W J R L Q J & D O O V
Follow the instructions below to dial to the
last dialed number again.
NOTE:
Up to 10 phone numbers of the latest calls
can be stored. (10 each for dialed,
received and missed call)
1) Press the Off Hook button (5).
The Bluetooth
® phonebook menu will
be displayed.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Missed
Calls”, “Incoming Calls” or “Outgoing
Calls”, and press the knob (1) to deter-
mine the selection.
To dial from the dialed history or the
received history, select “Missed Calls”,
“Incoming Calls” or “Outgoing Calls”
respectively.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select the desired
number, and press the knob (1) to
determine the selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Dial”, and
press the knob (1) or the Off Hook but-
ton (5) to dial to the selected number.NOTE:
• When selecting “Go Back”, the previous
menu will be displayed.
• Pressing “Confirm” after selecting “Add
Speed Dial” can register the selected
number in the speed dial.
• Pressing “Confirm” after selecting
“Delete” can delete the selected number
from the call history.
' H O H W L R Q R I F D O O K L V W R U \
Follow the instructions below to delete a
missed/incoming/outgoing call history.
1) Press the Off Hook button (5).
The Bluetooth
® phonebook menu will
be displayed.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup
Phonebook”, and press the knob (1) to
determine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Delete His-
tory”, and press the knob (1) to deter-
mine the selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Missed
Calls”, “Incoming Calls”, or “Outgoing
Calls”, and press the knob (1) to deter-
mine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select a number to
be deleted or “ALL”, and press the knob
(1) to determine the selection.
6) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Delete?” or
Page 197 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
“Delete All?”, and press the knob (1) to
determine the selection.
7) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Confirm”,
and press the knob (1) to complete the
deletion.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
5 H J L V W U D W L R Q L Q 3 K R Q H E R R N
Registration of numbers in the phonebook.
Follow the instructions below to register
phone numbers in the Phonebook of the
unit.
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Tele-
phone”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup
Phonebook”, and press the knob (1) to
determine the selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Add Con-
tacts”, and press the knob (1) to deter-
mine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Overwrite
All” or “Add One Contact”, and press
the knob (1) to determine the selection.
The “Rest of Memory XXXX: Ok?” will
be displayed.6) Press or turn the TUNE FOLDER
PUSH SOUND knob (1) to select “Con-
firm”, and press the knob (1) to deter-
mine the selection.
7) Transfer contacts from the phone.
When the registration is completed, the
“Setup Phonebook” will be displayed.
NOTE:
• When selecting “Go Back” the previous
menu will be displayed.
• Up to 1000 numbers can be registered in
Phonebook.
7 U D Q V I H U R I F D O O K L V W R U \ & D O O + L V W R U \
Follow the instructions below to transfer
call history of the registered phone.
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Tele-
phone”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Call His-
tory”, and press the knob (1) to deter-
mine the selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Call His-
tory?”, and press the knob (1) to deter-
mine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Confirm”,
and press the knob (1) to transfer the
call history from the phone.NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
0 D N L Q J D F D O O E \ 3 K R Q H E R R N
Follow the instructions below to dial a num-
ber registered in Phonebook.
1) Press the Off Hook button (5).
The Bluetooth
® phonebook menu will
be displayed.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Phone-
book”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select the initial of
the name you would like to make a call,
and press the knob (1) to determine the
selection.
The registered numbers will be dis-
played in sequence. If names have
been registered together with numbers,
the names will be displayed.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Dial”, and
press the knob (1) to determine the
selection.
5) Press the Off Hook button (5).
The displayed number or the number
registered with the displayed name will
be dialed.
' H O H W L R Q R I U H J L V W H U H G G D W D ' H O H W H
( Q W U \
Follow the instructions below to delete a
number registered in Phonebook.
Page 198 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Tele-
phone”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup
Phonebook”, and press the knob (1) to
determine the selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Delete Con-
tacts”, and press the knob (1) to deter-
mine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select a number to
be deleted, and press the knob (1) to
determine the selection.
6) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Delete?”,
and press the knob (1) to determine the
selection.
7) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Confirm”,
and press the knob (1) to complete the
deletion.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
5 H J L V W U D W L R Q L Q V S H H G G L D O
Follow the instructions below to assign a
number to one of the Preset buttons to use
as the speed dial.1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Tele-
phone”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup
Phonebook”, and press the knob (1) to
determine the selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Add Speed
Dial”, and press the knob (1) to deter-
mine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select a number to
be assigned, and press the knob (1) to
determine the selection.
6) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Choose
Preset”, and press the knob (1) to
determine the selection.
7) Press one of the Preset buttons (3) to
which the selected number is to be
assigned. If a number is already
assigned to the selected button, a con-
firmation message will be displayed.
Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Confirm”,
and press the knob (1) to complete the
assignment.
When the assignment is completed, the
“Setup Phonebook” will be displayed.NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
2 Q H W R X F K F D O O 6 S H H G G L D O
Follow the instructions below to dial the
number assigned to each of the Preset
buttons (3).
1) Press the Off Hook button (5).
The Bluetooth
® phonebook menu will
be displayed.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Speed
Dials”, and press the knob (1) to deter-
mine the selection.
3) Press one of the Preset buttons (3).
When no number is assigned, “No
Entry” is displayed.
4) Press the Off Hook button (5).
The selected number will be dialed.
' H O H W L R Q R I V S H H G G L D O ' H O 6 S H H G ' L D O
To delete a number assigned for the speed
dial, follow the instructions below.
1) Press the Off Hook button (5).
The Bluetooth® phonebook menu will
be displayed.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Speed
Dials”, and press the knob (1) to deter-
mine the selection.
3) Press one of the Preset buttons (3) to
which the number to be deleted is
assigned.
“No Entry” appears if the number is not
registered.
Page 199 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Delete”, and
press the knob (1) to determine the
selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Del Speed
Dial”, and press the knob (1) to deter-
mine the selection.
6) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Confirm”,
and press the knob (1) to complete the
deletion.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
' L V S O D \ R I G H Y L F H G D W D ' H Y L F H 1 D P H
Follow the instructions below to display the
BD (Bluetooth
® Device) address and
device name.
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Blue-
tooth”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Bluetooth
Info”, and press the knob (1) to deter-
mine the selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Device
Name” or “Device Address”, and press
the knob (1) to display the device name
or the BD (Bluetooth
® Device) address.NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
5 H V H W W R W K H I D F W R U \ G H I D X O W V
Follow the instructions below to reset all
the settings to the factory defaults.
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Blue-
tooth”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Initialize”,
and press the knob (1) to determine the
selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “All Initial-
ize”, and press the knob (1) to deter-
mine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Confirm”,
and press the knob (1) to start the
reset.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
6 H O H F W L R Q R I S K R Q H 6 H O H F W 3 K R Q H
Follow the instructions below to select a
phone to be paired with from the registered
phones.1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Blue-
tooth”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “List Phone”,
and press the knob (1) to determine the
selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select a phone to
be paired with, and press the knob (1)
to determine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Select”, and
press the knob (1) to determine the
selection.
NOTE:
• When selecting “Go Back”, the previous
menu will be displayed.
• The Bluetooth® ready audio device will
be disconnected when the phone is
selected.
/ L V W R I S K R Q H V / L V W 3 K R Q H V
Follow the instructions below to display the
names of the registered phones in
sequence.
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Blue-
Page 200 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
tooth”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “List Phone”,
and press the knob (1) to determine the
selection.
The names of the registered phones
are displayed in sequence.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
3 D V V N H \ V H W W L Q J 6 H W 3 D V V N H \
Follow the instructions below to set the
security number (Passkey).
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Blue-
tooth”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Passkey”,
and press the knob (1) to determine the
selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “New Pass-
key”, and press the knob (1) to deter-
mine the selection.
5) Press or turn the TUNE FOLDER
PUSH SOUND knob (1) to select “Con-
firm”.
6) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select a number for
the first digit, and press the knob (1) todetermine the selection. Select and
determine numbers for the second,
third and fourth digits in order in the
same manner. When not entering up to
the eighth digit, enter blanks for the
successive digits.
7) Turn the TUNE FOLDER PUSH
SOUND knob (1) to determine the
passkey setting.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
' H O H W L R Q R I S K R Q H L Q I R U P D W L R Q ' H O H W H
3 K R Q H
Follow the instructions below to delete the
registered information of the phone.
1) Press the Bluetooth
® setup button (4).
The Bluetooth
® setup menu will be dis-
played.
2) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Setup Blue-
tooth”, and press the knob (1) to deter-
mine the selection.
3) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “List Phone”,
and press the knob (1) to determine the
selection.
4) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select a phone to
be deleted, and press the knob (1) to
determine the selection.
5) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Delete
Phone”, and press the knob (1) to
determine the selection.6) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Delete?”,
and press the knob (1) to determine the
selection.
7) Turn the TUNE FOLDER PUSH
SOUND knob (1) to select “Confirm”,
and press the knob (1) to determine the
selection.
NOTE:
When selecting “Go Back”, the previous
menu will be displayed.
