SUZUKI NEXA 2015 1.G Owners Manual
Manufacturer: SUZUKI, Model Year: 2015, Model line: NEXA, Model: SUZUKI NEXA 2015 1.GPages: 288, PDF Size: 8.02 MB

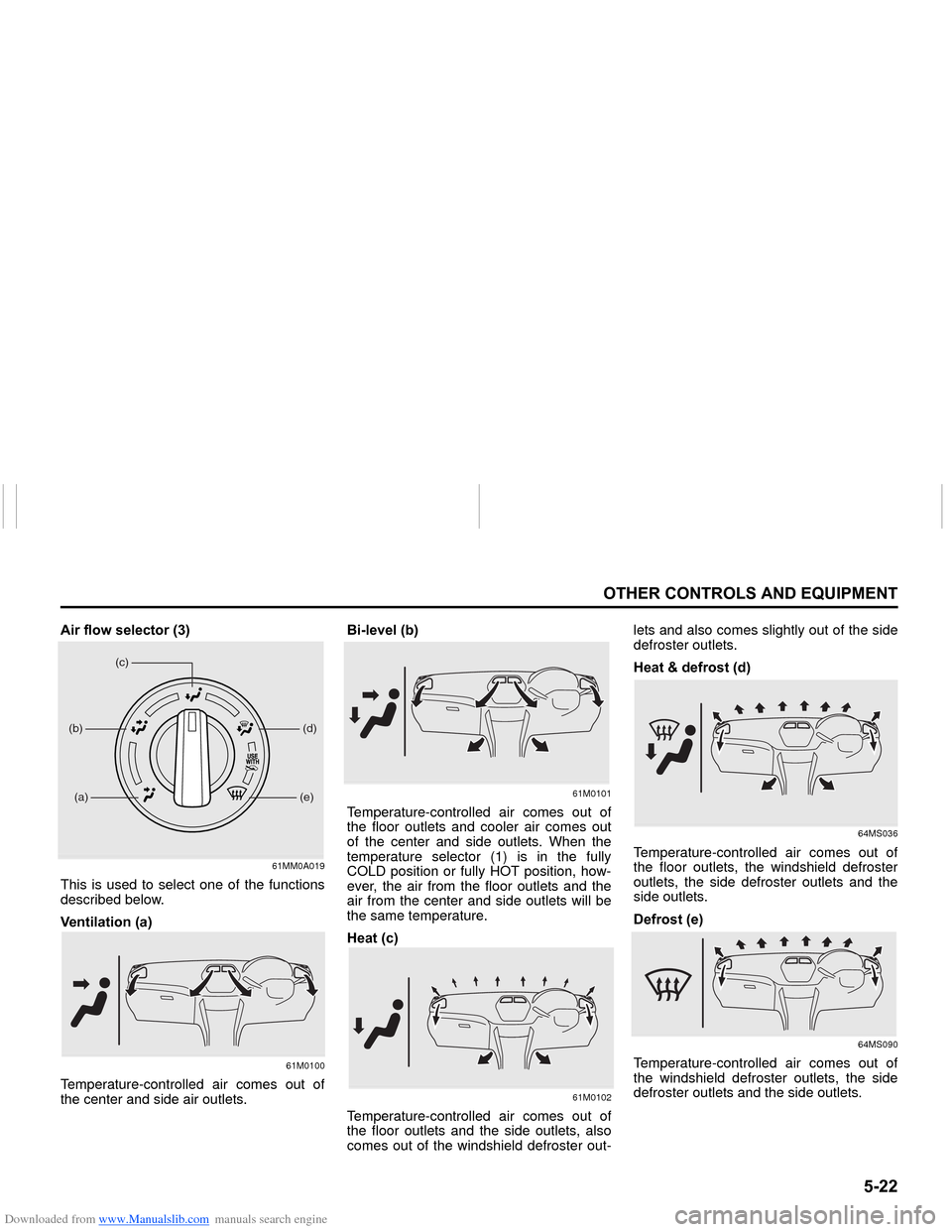

Page 161 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
$ L U I O R Z V H O H F W R U
61MM0A019
This is used to select one of the functions
described below.
9 H Q W L O D W L R Q D
61M0100
Temperature-controlled air comes out of
the center and side air outlets. % L O H Y H O E
61M0101
Temperature-controlled air comes out of
the floor outlets and cooler air comes out
of the center and side outlets. When the
temperature selector (1) is in the fully
COLD position or fully HOT position, how-
ever, the air from the floor outlets and the
air from the center and side outlets will be
the same temperature.
+ H D W F
61M0102
Temperature-controlled air comes out of
the floor outlets and the side outlets, also
comes out of the windshield defroster out-lets and also comes slightly out of the side
defroster outlets.
+ H D W G H I U R V W G
64MS036
Temperature-controlled air comes out of
the floor outlets, the windshield defroster
outlets, the side defroster outlets and the
side outlets.
' H I U R V W H
64MS090
Temperature-controlled air comes out of
the windshield defroster outlets, the side
defroster outlets and the side outlets.
(a)(b)
(e)(d)
(c)
Page 162 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
$ L U L Q W D N H V H O H F W R U
61MM0A020
This selector is used to select the following
modes.
) U H V K $ L U I
When this mode is selected, the indicator
light will go off and outside air is circulated
inside the cabin.
5 H F L U F X O D W H G $ L U J When this mode is selected, the indicator
light will come on, outside air is shut out and
inside air is recirculated. This mode is suit-
able when driving through dusty or polluted
air such as in a tunnel, or when attempting
to quickly cool down the interior.The "FRESH AIR" position (f) and RECIR-
CULATED AIR air position (g) are switched
alternately each time the air intake selector
is pushed.NOTE:
If you select the RECIRCULATED AIR posi-
tion (g) for an extended period of time, the
air in the vehicle can become contaminated.
Therefore, you should occasionally select
the “FRESH AIR” position (f).
$ L U F R Q G L W L R Q L Q J V Z L W F K To turn on the air conditioning system, set
the blower speed selector to the desired
blower speed position and push in the air
conditioning switch (5). With the air condi-
tioning switch operation, a indicator light will
come on when the air conditioning system
is on. To turn off the air conditioning system,
push the air conditioning switch again.
During operation of the air conditioner, you
may notice slight changes in engine speed.
These changes are normal, the system is
designed so that the compressor turns on
or off to maintain the desired temperature. Less operation of the compressor results
in better fuel economy.
6 \ V W H P 2 S H U D W L Q J , Q V W U X F W L R Q V 1 D W X U D O Y H Q W L O D W L R Q
Select the VENTILATION position (a) and
“FRESH AIR” position (f), the temperature
selector to the desired temperature posi-
tion, and turn off the blower. Fresh air will
flow through the vehicle during driving.
) R U F H G Y H Q W L O D W L R Q
The control settings are the same as for
natural ventilation except turning the
blower speed selector to turn on the
blower.
1 R U P D O K H D W L Q J X V L Q J R X W V L G H D L U
Select the HEAT position (c) and “FRESH
AIR” position (f), the temperature selector
to the desired temperature position and the
blower speed selector to the desired
blower speed position. Setting the blower
speed selector to a higher blower speed
position increases heating efficiency.
4 X L F N K H D W L Q J X V L Q J U H F L U F X O D W H G D L U
The control settings are the same as for
normal heating except selecting the
RECIRCULATED AIR air position (g). If
you use this heating method for an
extended period of time, the air in the vehi-
cle can become contaminated and the win-
dows can become misty. Therefore, use
this method only for quick heating and
change to the normal heating method as
soon as possible.
(f) (g)
Page 163 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
+ H D G F R R O H G ) H H W Z D U P H G K H D W L Q JSelect the BI-LVEL position (b) and “FRESH
AIR” position (f), the temperature selector to
the desired temperature position, and the
blower speed selector to the desired blower
speed position. Unless the temperature
selector is in the fully COLD position or fully
HOT position, the air that comes out of the
center and side outlets will be cooler than
the air that comes out of the floor outlets. 1 R U P D O F R R O L Q JSet the air flow selector to the VENTILATION
position (a), the temperature selector to the
desired temperature position and the blower
speed selector to the desired blower speed
position, and push in the air conditioning
switch (5) to turn on the air conditioning sys-
tem. Setting the blower speed selector to a
higher blower speed position increases cool-
ing efficiency.
You can switch the air intake selector to
either the “FRESH AIR” position (f) or
RECIRCULATED AIR position (g) as you
desire. Choosing the RECIRCULATED AIR
position (g) increases cooling efficiency.
4 X L F N F R R O L Q J X V L Q J U H F L U F X O D W H G D L U The control settings are the same as for
normal cooling except selecting the RECIR-
CULATED AIR position (g) and the highest
blower speed.NOTE:• If you select the recirculated air position
(g) for an extended period of time, the air
in the vehicle can become contaminated.
Therefore, you should occasionally select
the “FRESH AIR” position (f).
• If your vehicle has been left in the sun
with the windows closed, it will cool faster
if you open the windows briefly while you
operate the air conditioner with the air
intake selector at the “FRESH AIR” posi-
tion (f) and the blower at high speed.
' H K X P L G L I \ L Q JSet the air flow selector to a desired air flow
selector position, the temperature selector
to the desired temperature position and the
blower speed selector to the desired blower
speed position. Also select the “FRESH
AIR” position (f) and push in the air condi-
tioning switch (5) to turn on the air condi-
tioning system.NOTE:Because the air conditioner dehumidifies
the air, turning it on will help keep the win-
dows clear, even when blowing heated air
using the DEFROST position (e) or HEAT &
DEFROST position (d).
64MS091
NOTE:
If you need maximum defrosting:
• select the DEFROST position (e) and
“FRESH AIR” position (f),
• set the blower speed selector to HIGH, ( ; $ 0 3 / (
Page 164 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
• adjust the temperature selector to the
HOT end,
• push in the air conditioning switch (5) to
turn on the air conditioning system, and
• adjust the side outlets so the air blows
on the side windows. 0 D L Q W H Q D Q F HIf you do not use the air conditioner for a
long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain opti-
mum performance and durability of your air
conditioner, it needs to be run periodically.
Operate the air conditioner at least once a
month for one minute with the engine idling.
This circulates the refrigerant and oil and
helps protect the internal components.If your air conditioner is equipped with air
filters, clean or replace them as specified
in the “Maintenance Schedule” in the
“ , 1 6 3 ( & 7 , 2 1 $ 1 ' 0 $ , 1 7 ( 1 $ 1 & (
Page 165 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
$ X W R P D W L F + H D W L Q J D Q G $ L U & R Q G L W L R Q L Q J 6 \ V W H P
& O L P D W H & R Q W U R O , I H T X L S S H G ' H V F U L S W L R Q R I & R Q W U R O V
64MS050
(1) Temperature selector
(2) Blower speed selector
(3) Air intake selector
(4) “MODE” switch
(5) Defrost switch
(6) Air conditioning switch
(7) “OFF” switch
(8) “AUTO” switch(9) Display
2 ) ) $ 8 7 2
$ &
0 2 ' (
) 5 2 1 7 5 ( $ 5
(1)
(4) (9)
(8)(2)
(7)
(6)
(3) (5)
( ; $ 0 3 / (
7 H P S H U D W X U H V H O H F W R U
64MS051
Turn the temperature selector to adjust the
temperature. The display (9) shows the
selected temperature.
NOTE:
If you turn the temperature selector (1)
until “HI” or “LO” appears on the display,
the climate control system will operate at
maximum heating or cooling. The tempera-
ture of the air from the outlets may change
suddenly while “LO” or “HI” is displayed,
but this is normal.
NOTE:
When you change the units of temperature
in the information display, the automatic
heating and air conditioning system tem-
perature display units will be changed
automatically. Refer to “Information Dis-
play” in the “BEFORE DRIVING” section
for details.
(1)
Page 166 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
% O R Z H U V S H H G V H O H F W R U
64MS052
The blower speed selector (2) is used to
turn on the blower and to select blower
speed.
If the “AUTO” switch (8) is pushed, the
blower speed will vary automatically as the
climate control system maintains the
selected temperature.
$ L U L Q W D N H V H O H F W R U
64MS053
Push the air intake selector (3) to change
between the following modes.
If the “AUTO” switch (8) is pushed, the air
intake will vary automatically as the climate
control system maintains the selected tem-
perature.
NOTE:
When you select the recirculated air mode,
the automatic operation system is deacti-
vated if you push the “AUTO” switch (8).
5 ( & , 5 & 8 / $ 7 ( ' $ , 5 D
When this mode is selected, outside air is
shut off and inside air is recirculated. This
mode is suitable when driving through an
area with polluted air such as a tunnel, or
when attempting to quickly cool down the
vehicle.
) 5 ( 6 + $ , 5 E
When this mode is selected, outside air is
introduced.
The “FRESH AIR” position (b) and RECIR-
CULATED AIR position (a) are selected
alternately each time the air intake selector
is pushed.
NOTE:
If you select the RECIRCULATED AIR
position (a) for an extended period of time,
the air in the vehicle can become contami-
nated. Therefore, you should occasionally
select the “FRESH AIR” position (b). ³ 0 2 ' ( ´ V Z L W F K
64MS054
Push the “MODE” switch (4) to change
among the following functions. The indica-
tion of the selected mode appears on the
display.
If the “AUTO” switch (8) is pushed, the air
flow will vary automatically as the climate
control system maintains the selected tem-
perature.
9 H Q W L O D W L R Q F
61M0100
(2)
(b) (a)
(3)
0 2 ' (
(4)
(c)
(d)
(e)
(f)
Page 167 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
Temperature-controlled air comes out of
the center and side outlets.
% L O H Y H O G
61M0101
Temperature-controlled air comes out of
the floor, center and side outlets.
+ H D W H
61M0102
Temperature-controlled air comes out of
the floor outlets, also comes out of the
windshield defroster outlets and also
comes slightly out of the side defroster out-
lets and the side outlets. + H D W G H I U R V W I
61M0103
Temperature-controlled air comes out of
the floor outlets, the windshield defroster
outlets, the side defroster outlets and the
side outlets.
' H I U R V W V Z L W F K
64MS038
Push the defrost switch (5) to turn on the
defroster. ' H I U R V W
61M0106
Temperature-controlled air comes out of
the windshield defroster outlets, the side
defroster outlets and the side outlets.
NOTE:When you push the defrost switch (5), the
fresh air position (b) will be automatically
selected and the air conditioning switch will
automatically turn on (“A/C” will appear on
the display). In cold weather, air flows out of
the defroster outlets but the air conditioning
does not turn on even though the A/C indi-
cator comes on as well as the defrost indi-
cator.
(5)
FRONT
Page 168 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
$ L U F R Q G L W L R Q L Q J V Z L W F K
64MS055
The air conditioning switch (6) is used to
turn on and off the air conditioning system
only when the blower is on. To turn on the
air conditioning system, push in the switch;
“A/C” will appear on the display and the
indicator on the switch will come on. To turn
off the air conditioning system, push in the
switch again; “A/C” and the indicator will go
off.You can use the air conditioning switch (6)
to manually turn the air conditioner on or off
according to your preference. When you
turn the air conditioning switch off, the cli-
mate control system cannot lower the
inside temperature below outside tempera-
ture.
6 \ V W H P 2 S H U D W L Q J , Q V W U X F W L R Q V $ X W R P D W L F R S H U D W L R Q
64MS056
You can let the climate control system
work automatically. To set the system for
fully-automatic operation, follow the proce-
dure below.
1) Start the engine.
2) Push the “AUTO” switch (8).
3) Set the desired temperature by turning
the temperature selector (1).
The blower speed, air intake and air flow
are controlled automatically to maintain the
set temperature. However, the air flow is
not changed to the defrost position auto-
matically.
To turn the climate control system off, push
the “OFF” switch (7).NOTE:
If the “AUTO” on the display blinks, there is
a problem in the heating system and/or air
conditioning system. You should have the
system inspected by an D X W K R U L V H G 0 D U X W L
6 X ] X N L Z R U N V K R S.
NOTE:
• To find the temperature at which you are
most comfortable, start with the 25°C
(75°F) setting, for example.
• If you turn the temperature selector (1)
until “HI” or “LO” appears on the display,
the climate control system will operate at
maximum heating or cooling.
• To avoid blowing cold air in cold weather
or hot air in hot weather, the system will
delay turning on the blower until warmed
or chilled air is available.
• If your vehicle has been left in the sun
with the windows closed, it will cool
faster if you open the windows briefly.
• Even under automatic operation, you
can set individual selectors to the man-
ual mode. The manually selected func-
tions are maintained, and the other
functions remain under automatic opera-
tion.
• If the windshield and/or the front door
windows are fogged, push the defrost
switch (5) to turn on the defroster, or
push the “MODE” switch (4) to change
the air flow to the heat & defrost position
(f) to defog the windows.
A/C
(6)
0 2
(8)
(7)
2 ) ) $ 8 7 2
Page 169 of 288
Downloaded from www.Manualslib.com manuals search engine
2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
• To return the blower speed selector (2),
air intake selector (3), and “MODE”
switch (4) to automatic operation, push
the “AUTO” switch (8).
64MS149
Be careful not to cover the interior tem-
perature sensor (10) located between the
steering wheel and the climate control
panel, or the solar sensor (11) located at
the top of the central part of the dash-
board. These sensors are used by the
automatic system to regulate temperature.
0 D Q X D O R S H U D W L R Q
You can manually control the climate con-
trol system. Set the selectors to the
desired positions.
64MS091
NOTE:
If you need maximum defrosting:
• push the defrost switch (5) to turn on the
defroster (the air conditioning system will
come on and the fresh air position (b)
will be selected automatically),
• set the blower speed selector to HIGH,
• adjust the temperature selector to the
“HI” indication on the display, and
• adjust the side outlets so the air blows
on the side windows.
0 D L Q W H Q D Q F HIf you do not use the air conditioner for a
long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain opti-
mum performance and durability of your air
conditioner, it needs to be run periodically.
Operate the air conditioner at least once a
month for one minute with the engine
idling. This circulates the refrigerant and oil
and helps protect the internal components.
If your air conditioner is equipped with air
filters, clean or replace them as specified
in the “Maintenance Schedule” in the
Page 170 of 288
Downloaded from www.Manualslib.com manuals search engine 2 7 + ( 5 & 2 1 7 5 2 / 6 $ 1 ' ( 4 8 , 3 0 ( 1 7
0 6 (
5 D G L R $ Q W H Q Q D
63J055
The radio antenna on the roof is remov-
able. To remove the antenna, turn it coun-
terclockwise. To reinstall the antenna, turn
it clockwise firmly by hand.
, Q V W D O O D W L R Q R I 5 D G L R
) U H T X H Q F \ 7 U D Q V P L W W H U VWe recommend that you always ask a
D X W K R U L V H G 0 D U X W L 6 X ] X N L Z R U N V K R S about
frequency band, max output power,
antenna position at vehicle and specific
conditions for installation and/or use
before installing a radio transmitter in
your vehicle. Such equipments may
cause the electronic con-trol system to
malfunction if they are incor-rectly installed
or they are not suited for the vehicle.
NOTICE
7 R D Y R L G G D P D J H W R W K H U D G L R
D Q W H Q Q D
