6A1-70 ENGINE MECHANICAL (M13 ENGINE)
15) Remove exhaust No.1 pipe (1).
16) Disconnect right and left drive shaft joints from differential
gear referring to Section 4.
For engine and transmission removal, it is not necessary to
remove drive shafts from steering knuckle.
17) For 4WD vehicle, remove propeller shaft referring to Section
4B.
18) Remove generator referring to Section 6H.
19) Install lifting device.
20) Remove engine rear mounting bolts (1), engine left mounting
bracket nuts (2) and engine right mounting bolts (3).

ENGINE MECHANICAL (M13 ENGINE) 6A1-71
21) Before removing engine with transmission from body,
recheck to make sure all hoses, electric wires and cables are
disconnected from engine and transmission.
22) Lower engine with transmission from body.
23) Disconnect transmission from engine, referring to Section 7A
or 7B.
24) Remove clutch cover and clutch disk, referring to Section 7C
(M/T).
INSTALLATION
1) Install clutch cover and clutch disk referring to Section 7C.
2) Connect transmission to engine referring to Section 7A or
7B.
3) Lift engine with transmission into engine compartment, but
do not remove lifting device.
4) Install engine rear mounting bolts (1), engine left mounting
bracket nuts (2) and engine right mounting bolts (3).
Tighten these bolts and nuts to specified torque.
Tightening torque
Engine mounting bolts and nuts for M10
(a) : 55 N·m (5.5 kg-m, 40.0 lb-ft)
Engine mounting bolt for M12
(b) : 75 N·m (7.5 kg-m, 54.5 lb-ft)
5) Remove lifting device.NOTE:
Before lowering engine, to avoid damage to A/C com-
pressor, raise it through clearance made on engine
crankshaft pulley side. At this time, use care so that no
excessive force is applied to hoses.

6A1-72 ENGINE MECHANICAL (M13 ENGINE)
6) Install generator referring to Section 6H.
7) For 4WD vehicle, install propeller shaft referring to Section
4B.
8) Connect drive shaft joints referring to Section 4.
9) Install exhaust No.1 pipe and tighten pipe fasteners to speci-
fied torque.
Tightening torque
Exhaust No.1 pipe bolts (a) : 50 N·m (5.0 kg-m, 36.5 lb-ft)
10) Reverse disconnected hoses, cables and electric wires for
connection.
11) Install air cleaner assembly, resonator and hoses referring to
“AIR CLEANER ASSEMBLY AND RESONATOR”
12) Install A/C compressor to bracket (if equipped).
13) Adjust water pump belt tension referring to Section 6B.
14) Adjust A/C compressor belt tension (if equipped) referring to
Section 1B.
15) Adjust accelerator cable play referring to Section 6E1.
16) Check to ensure that all removed parts are back in place.
Reinstall any necessary parts which have not been rein-
stalled.
17) Refill cooling system with coolant engine with engine oil and
A/T with specified A/T fluid (vehicle with A/T).
18) Connect negative cable at battery.
19) Verify that there is no fuel leakage, coolant leakage, oil leak-
age, A/T fluid leakage (vehicle with A/T) and exhaust gas
leakage at each connection.

ENGINE MECHANICAL (M13 ENGINE) 6A1-73

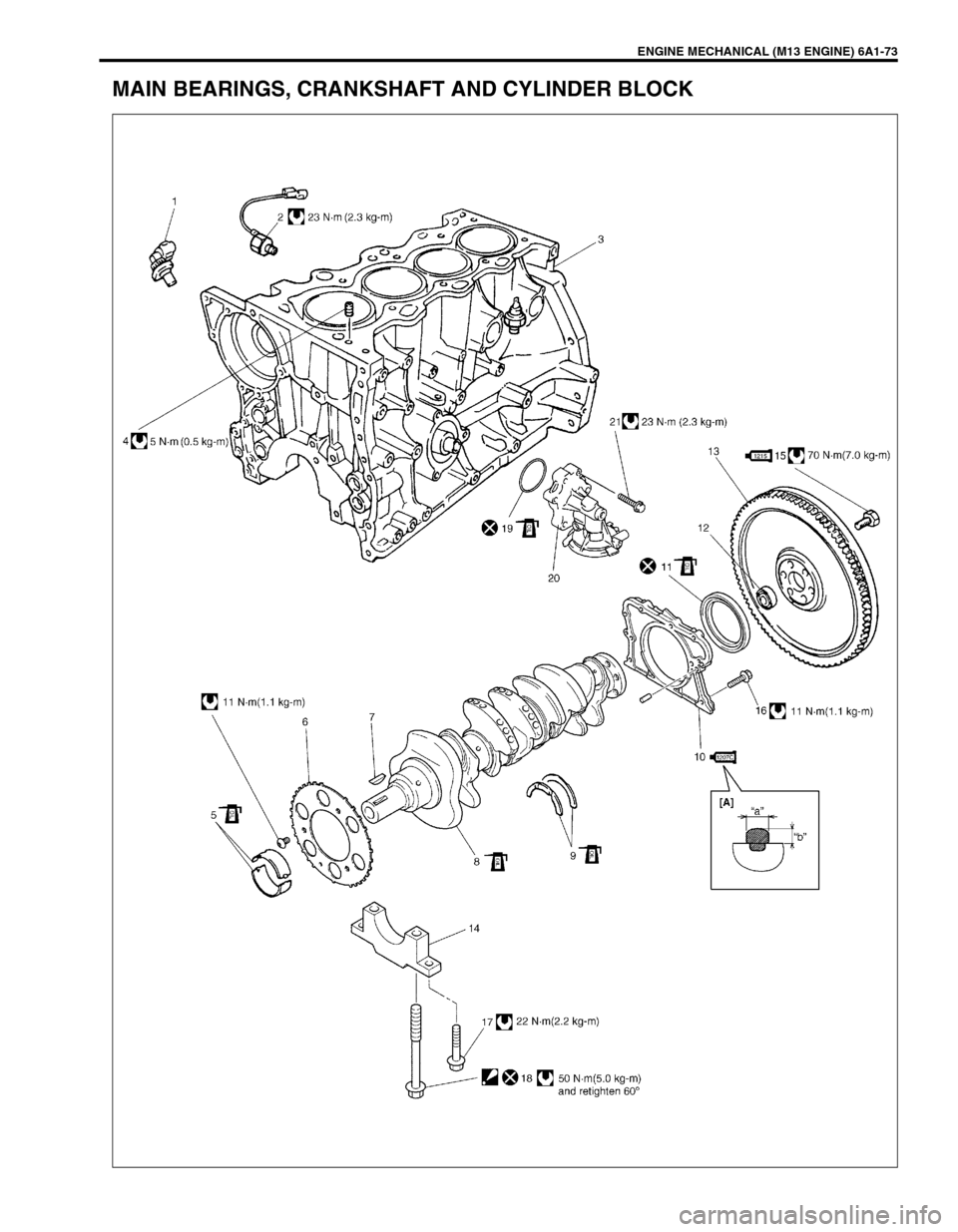

MAIN BEARINGS, CRANKSHAFT AND CYLINDER BLOCK

6A1-74 ENGINE MECHANICAL (M13 ENGINE)
REMOVAL
1) Remove engine assembly from vehicle as previously out-
lined.
2) Remove clutch flywheel (drive plate for A/T) by using special
tool.
Special tool
(A) : 09924-17810
3) Remove the following parts from engine as previously out-
lined.
Oil pan and oil pump strainer
Intake manifold and exhaust manifold
Cylinder head cover
Timing chain cover
Timing chain guide, chain tensioner adjuster, chain ten-
sioner, timing chain and crankshaft timing sprocket
Camshaft, tappet and shim
Cylinder head assembly
Piston and connecting rod
4) Remove rear oil seal housing (1).
[A] : Sealant application amount 4. Venturi plug 14. Main bearing cap
[B] : 1) Tighten all bolts to 50 N·m (5.0 kg-m)
2) Then, turn all bolts to 60°5. Main bearing 15. Flywheel mounting bolt
Tightening torque 6. Sensor plate 16. Rear oil seal housing mounting bolt
Do not reuse. 7. Crankshaft timing sprocket key 17. Main bearing mounting No.2 bolt
Apply engine oil to inside / sliding sur-
face.8. Crankshaft
18. Main bearing mounting No.1 bolt
Never reuse it due to plastic defor-
mation tightening bolt.
“a” : 3 mm (0.12 in.) 9. Thrust bearing 19. O-ring
“b” : 2 mm (0.08 in.) 10. Rear oil seal housing :
Apply sealant 99000-31150 to mating surface.20. Oil filter adapter case
1. CKP sensor (if equipped) 11. Rear oil seal 21. Oil filter adapter bolt
2. Knock sensor 12. Input shaft bearing
3. Cylinder block 13. Flywheel

ENGINE MECHANICAL (M13 ENGINE) 6A1-75
5) Loosen bearing cap No.1 and No.2 bolts in such order as
indicated in figure and remove them.
6) Remove crankshaft from cylinder block.
INSPECTION
Crankshaft
Crankshaft runout
Using a dial gauge, measure runout at center journal. Rotate
crankshaft slowly. If runout exceeds its limit, replace crankshaft.
Crankshaft runout
Limit : 0.04 mm (0.0016 in.)
Crankshaft thrust play
Measure this play with crankshaft set in cylinder block in the nor-
mal manner, that is with thrust bearing (1) and journal bearing
caps installed.
Thickness of crankshaft thrust bearing
Standard : 2.500 mm (0.0984 in.)
Oversize (0.125 mm (0.0049 in.)) : 2.563 mm (0.1009 in.)
Tighten bearing cap No.1 bolts (1) – (10) and No.2 bolts (11) –
(20) gradually as follows.
1) Tighten bolts (1) – (10) to 30 N·m (3.0 kg-m, 22.0 lb-ft)
according to numerical order in figure.
2) In the same manner as in Step 1), tighten them to 50 N·m
(5.0 kg-m, 36.5 lb-ft).
3) Tighten bolts (11) – (20) to 22 N·m (2.2 kg-m, 16.0 lb-ft)
according to numerical order in figure.
Tightening torque
Crank shaft bearing cap No.1 bolts (1) – (10)
: 50 N·m (5.0 kg-m, 36.5 lb-ft)
Crank shaft bearing cap No.2 bolts (11) – (20)
: 22 N·m (2.2 kg-m, 16.0 lb-ft)

6A1-76 ENGINE MECHANICAL (M13 ENGINE)
Use a dial gauge to read displacement in axial (thrust) direction of
crankshaft.
If its limit is exceeded, replace thrust bearing with new standard
one or oversize one to obtain standard thrust play.
Crankshaft thrust play
Standard : 0.11 – 0.31 mm (0.0043 – 0.0122 in.)
Limit : 0.35 mm (0.0138 in.)
Out-of-round and taper (uneven wear) of journals
An unevenly worn crankshaft journal shows up as a difference in
diameter at a cross section or along its length (or both). This dif-
ference, if any, is determined by taking micrometer readings. If
any one of journals is badly damaged or if amount of uneven wear
in the sense explained above exceeds its limit, regrind or replace
crankshaft.
Crankshaft out-of-round and taper
Limit : 0.01 mm (0.0004 in.)
Out-of-round : A – B
Taper : a – b
Main Bearings
General information
Service main bearings are available in standard size and
0.25 mm (0.0098 in.) undersize, and each of them has 5
kinds of bearings differing in tolerance.
Upper half of bearing (1) has an oil groove (2) as shown in
figure.
Install this half with oil groove to cylinder block.
Lower half of bearing does not have an oil groove.
Visual inspection
Check bearings for pitting, scratches, wear or damage.
If any malcondition is found, replace both upper and lower halves.
Never replace either half without replacing the other half.
Main bearing clearance
Check clearance by using gaging plastic according to the follow-
ing procedure.
1) Remove bearing caps.
2) Clean bearings and main journals.

ENGINE MECHANICAL (M13 ENGINE) 6A1-77
3) Place a piece of gaging plastic (1) the full width of bearing
(parallel to crankshaft) on journal, avoiding oil hole.
4) Tighten bearing cap No.1 bolts (1) – (10) and No.2 bolts (11)
– (20) gradually as follows.
a) Tighten bolts (1) – (10) to 30 N·m (3.0 kg-m, 22.0 lb-ft)
according to numerical order in figure.
b) In the same manner as in Step a), tighten them to 50 N·m
(5.0 kg-m, 36.5 lb-ft).
c) In the same manner as in step a), retighten them to 60°.
d) Tighten bolts (11) – (20) to 22 N·m (2.2 kg-m, 16.0 lb-ft)
according to numerical order in figure.
Tightening torque
Crank shaft bearing No.1 bolts (1) – (10)
: 50 N·m (5.0 kg-m, 36.5 lb-ft) and extra tighten 60°
Crank shaft bearing No.2 bolts (11) – (20)
: 22 N·m (2.2 kg-m, 16.0 lb-ft)
5) Remove bearing caps and using scale (1) on gaging plastic
(2) envelop, measure gaging plastic width at its widest point.
If clearance exceeds its limit, replace bearing. Always
replace both upper and lower inserts as a unit.
A new standard bearing may produce proper clearance. If
not, it will be necessary to regrind crankshaft journal for use
of 0.25 mm undersize bearing.
After selecting new bearing, recheck clearance.
Main bearing clearance
Standard : 0.025 – 0.045 mm (0.0010 – 0.0018 in.)
Limit : 0.065 mm (0.0026 in.)
NOTE:
Do not rotate crankshaft while gaging plastic is installed.
NOTE:
After checking main bearing clearance, make sure that
replace bearing cap No.1 bolts new one.

6A1-78 ENGINE MECHANICAL (M13 ENGINE)
Selection of main bearings
STANDARD BEARING :
If bearing is in malcondition, or bearing clearance is out of specifi-
cation, select a new standard bearing according to the following
procedure and install it.
1) First check journal diameter. As shown in figure, crank web
No.2 has stamped numbers.
Three kinds of numbers (“1”, “2” and “3”) represent the fol-
lowing journal diameters.
Stamped numbers on crank web No.2 represent journal
diameters marked with an arrow in figure respectively.
For example, stamped number “1” indicates that correspond-
ing journal diameter is 44.994 – 45.000 mm (1.7714 –
1.7717 in.).
Crankshaft journal diameter
2) Next, check bearing cap bore diameter without bearing. On
mating surface of cylinder block, five alphabets are stamped
as shown in figure.
Three kinds of alphabets (“A”, “B” and “C”) represent the fol-
lowing cap bore diameters.
Stamped alphabets on cylinder block represent bearing cap
bore diameter marked with an arrow in figure respectively.
For example, stamped “A” indicates that corresponding bear-
ing cap bore diameter is 49.000 – 49.006 mm (1.9291 –
1.9294 in.).
Crankshaft bearing cap boreStamped
numbersJournal diameter
1 44.994 – 45.000 mm (1.7714 – 1.7717 in.)
2 44.988 – 44.994 mm (1.7712 – 1.7714 in.)
3 44.982 – 44.988 mm (1.7709 – 1.7712 in.)
Stamped
alphabetBearing cap bore diameter
(without bearing)
A 49.000 - 49.006 mm (1.9291 - 1.9294 in.)
B 49.006 - 49.012 mm (1.9294 - 1.9296 in.)
C 49.012 - 49.018 mm (1.9296 - 1.9298 in.)

ENGINE MECHANICAL (M13 ENGINE) 6A1-79
3) There are five kinds of standard bearings differing in thick-
ness. To distinguish them, they are painted in the following
colors at the position as indicated in figure.
Each color indicated the following thickness at the center of
bearing.
Standard size of crankshaft main bearing thickness
4) From number stamped on crank web No.2 and alphabets
stamped on cylinder block, determine new standard bearing
to be installed to journal, by referring to table shown below.
For example, if number stamped on crank web No.2 is “1”
and alphabet stamped on cylinder block is “B”, install a new
standard bearing painted in “Purple” to its journal.
Specification of new standard crankshaft main bearing
size
5) Using scale (1) on gaging plastic (2), check bearing clear-
ance with newly selected standard bearing.
If clearance still exceeds its limit, use next thicker bearing
and recheck clearance.
6) When replacing crankshaft or cylinder block due to any rea-
son, select new standard bearings to be installed by referring
to number stamped on new crankshaft or alphabets stamped
on new cylinder block. Color painted Bearing thickness
Pink 1.990 – 1.994 mm (0.0783 – 0.0785 in.)
Purple 1.993 – 1.997 mm (0.0785 – 0.0786 in.)
Brown 1.996 – 2.000 mm (0.0786 – 0.0787 in.)
Green 1.999 – 2.003 mm (0.0787 – 0.0789 in.)
Black 2.002 – 2.006 mm (0.0788 – 0.0790 in.)
1. Paint
Number stamped on crank web
No.2 (Journal diameter)
123
Alphabet
stamped on cyl-
inder block
(Cap bore dia.)APink Purple Brown
B Purple Brown Green
C Brown Green Black
New standard bearing to be
installed.
