AIR BAG SYSTEM 10B-47
DISABLING AIR BAG SYSTEM
1) Turn steering wheel so that vehicle's wheels (front tires) and
pointing straight ahead.
2) Turn ignition switch to “LOCK” position and remove key.
3) Remove “AIR BAG” fuse (2) from fuse box (1).
4) Disconnect Yellow connector (3) of contact coil and combi-
nation switch assembly.
a) Release locking of lock lever.
b) After unlocked, disconnect connector.
5) If equipped with passenger air bag (inflator) module, pull out
glove box while pushing its stopper from both right and left
sides and disconnect Yellow connector (4) of passenger air
bag (inflator) module.
a) Release locking of lock lever.
b) After unlocked, disconnect connector.
ENABLING AIR BAG SYSTEM
1) Turn ignition switch to “LOCK” position and remove key.
2) Connect Yellow connector (1) of contact coil and combina-
tion switch assembly, and be sure to lock connector with lock
lever.
a) Connect connector.
b) Lock connector with lock lever.NOTE:
With “AIR BAG” fuse removed and ignition switch ON,
“AIR BAG” warning lamp will be ON.
This is normal operation and does not indicate a air bag
system malfunction.

10B-48 AIR BAG SYSTEM
3) If equipped with passenger air bag (inflator) module, connect
Yellow connector (1) of passenger air bag (inflator) module,
and be sure to lock connector with lock lever.
a) Connect connector.
b) Lock connector with lock lever.
4) Install glove box.
5) Install “AIR BAG” fuse to fuse box.
6) Turn ignition switch to ON position and verify that “AIR BAG”
warning lamp flashes 6 times and then turns OFF.
If it does not operate as described, perform “AIR BAG DIAG-
NOSTIC SYSTEM CHECK”.
HANDLING AND STORAGE
SDM
Never attempt disassembly of SDM.
When storing SDM, select a place where neither high tem-
perature nor high humidity is anticipated and oil, water and
dust are kept off.
If SDM has been dropped, replace it with a new one.
If installation part of SDM was damaged, repair that part
completely before reinstallation.
All SDM and mounting bracket fasteners must be carefully
torqued and the arrow must be pointed toward the front of
the vehicle to ensure proper operation of the air bag system.
WARNING:
Never power up air bag system when SDM is not rigidly
attached to the vehicle. Otherwise, personal injury may
result.
CAUTION:
After detecting one time of such collision as to meet
deployment conditions, the SDM must not be used. Refer
to “AIR BAG DIAGNOSTIC SYSTEM CHECK” when
checking the SDM.

AIR BAG SYSTEM 10B-49
LIVE (UNDEPLOYED) AIR BAG (INFLATOR) MODULES
Special care is necessary when handling and storing a live (unde-
ployed) air bag (inflator) modules.
The rapid gas generation produced during deployment of the air
bag could cause the air bag (inflator) module, or an object in front
of the air bag (inflator) module, to be thrown through the air in the
unlikely event of an accidental deployment.
Never attempt disassembly of the air bag (inflator) modules.
If any abnormality is found, be sure to replace it with new
one as an assembly.
When an abnormality is noted as existing in the live (unde-
ployed) air bag (inflator) module, be sure to deploy it before
discarding it.
When grease, cleaning agent, oil, water, etc., got on the air
bag (inflator) modules (driver and passenger), wipe it off
immediately with a dry cloth.
If air bag (inflator) module was dropped from a height of 90
cm (3 ft) or more, it should be replaced with a new one as an
assembly. WARNING:
Never attempt to measure the resistance of the air bag
(inflator) modules (driver and passenger). It is very dan-
gerous as the electric current from the tester may deploy
the air bag.
WARNING:
For handling and storage of a live air bag (inflator)
module, select a place where the ambient temperature
below 65
°
°° °C (150
°
°° °F), without high humidity and away
from electric noise.
When carrying a live air bag (inflator) module, make
sure the bag opening is pointed away from you. In
case of an accidental deployment, the bag will then
deploy with minimal chance of injury. Never carry the
air bag (inflator) module by the wires or connector on
the underside of the module.
Otherwise, personal injury may result.

10B-50 AIR BAG SYSTEM
LIVE (INACTIVATED) SEAT BELT PRETENSIONER
Special care is necessary when handling and storing a live (inac-
tivated) seat belt pretensioners.
Also, when the seat belt pretensioners activate, gas is generated
and the seat belt (1) is retracted into the retractor assembly (2)
quickly.
Note, therefore, that if they activate accidentally, the seat belt pre-
tensioners and other object(s) around them may be thrown
through the air.
Never attempt to disassemble the seat belt pretensioners
(retractor assembly).
If any abnormality is found, be sure to replace it with new
one as an assembly.
When an abnormality is noted as existing in the live (inacti-
vated) seat belt pretensioner, be sure to activate it before
discarding it.
When grease, cleaning agent oil, water, etc., got on the seat
belt pretensioners (retractor assembly), wipe it off immedi-
ately with a dry cloth.
If seat belt pretensioner was dropped from a height of 30 cm
(1 ft) or more, it should be replaced with a new one as an
assembly. WARNING:

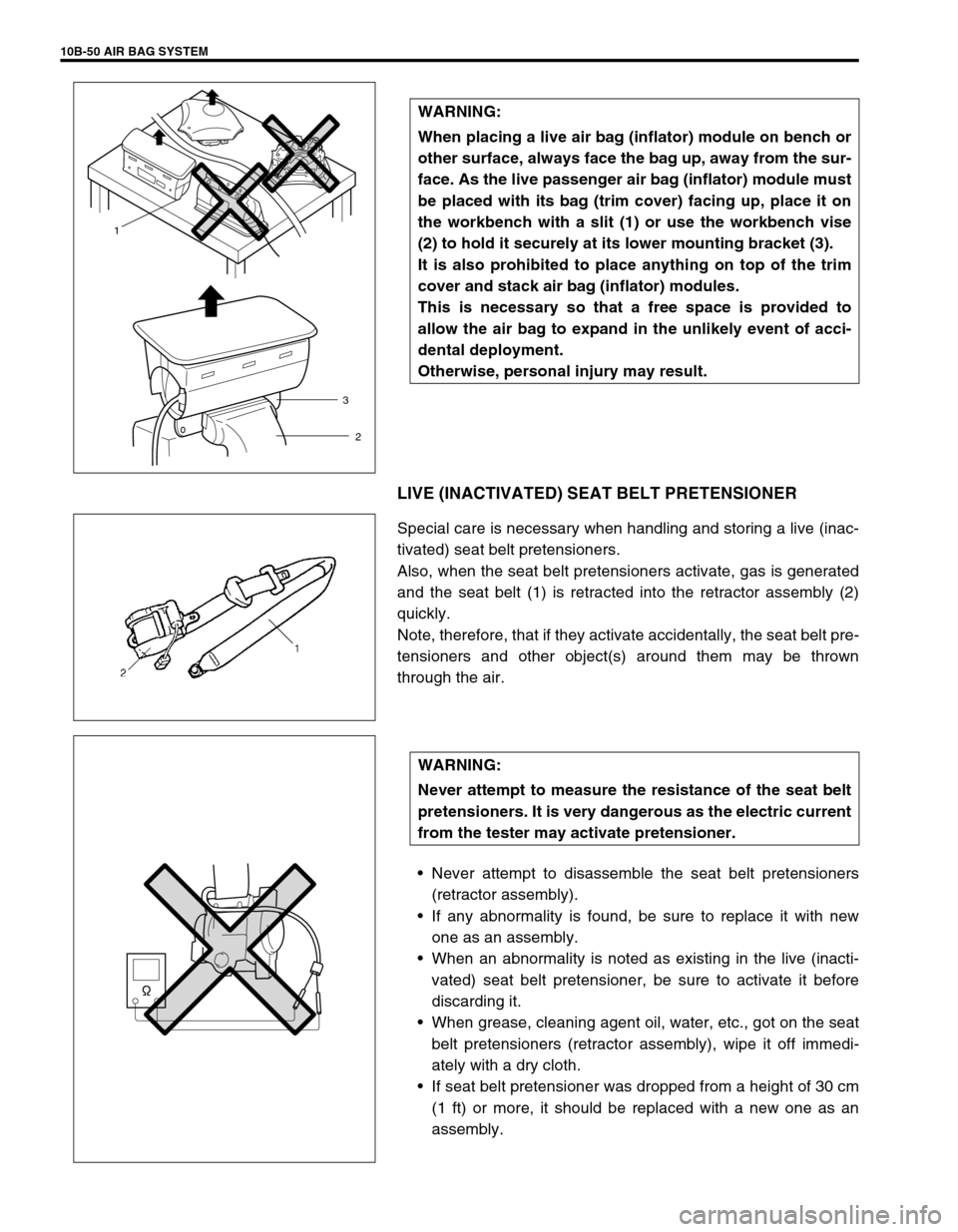

When placing a live air bag (inflator) module on bench or
other surface, always face the bag up, away from the sur-
face. As the live passenger air bag (inflator) module must
be placed with its bag (trim cover) facing up, place it on
the workbench with a slit (1) or use the workbench vise
(2) to hold it securely at its lower mounting bracket (3).
It is also prohibited to place anything on top of the trim
cover and stack air bag (inflator) modules.
This is necessary so that a free space is provided to
allow the air bag to expand in the unlikely event of acci-
dental deployment.
Otherwise, personal injury may result.
1
2 3
WARNING:
Never attempt to measure the resistance of the seat belt
pretensioners. It is very dangerous as the electric current
from the tester may activate pretensioner.

AIR BAG SYSTEM 10B-51
DEPLOYED AIR BAG (INFLATOR) MODULE AND ACTI-
VATED SEAT BELT PRETENSIONER
Refer to the procedure described under “DEPLOYED AIR BAG
(INFLATOR) MODULE AND ACTIVATED SEAT BELT PRETEN-
SIONER DISPOSAL”. WARNING:
For handling and storage of a live seat belt preten-
sioner, select a place where the ambient temperature
below 65
°
°° °C (150
°
°° °F), without high humidity and away
from electric noise.
Never carry the seat belt pretensioner by the wire or
connector of the pretensioner.
When placing a live seat belt pretensioner on the work-
bench or other surface, be sure not to lay it with its
exhaust hole (1) provided side facing down. It is also
prohibited to put something on its face with an exhaust
hole (1) or to put a seat belt pretensioner on top of
another.
Otherwise, personal injury may result.
WARNING:
The air bag (inflator) module and seat belt pretensioner
immediately after deployment/activation is very hot.
Wait for at least 30 minutes to cool it off before pro-
ceeding the work.
Do not apply water, oil, etc. to deployed air bag (infla-
tor) module and to activate seat belt pretensioner.
After an air bag (inflator) module has been deployed,
the surface of the air bag may contain a powdery resi-
due. This powder consists primarily of cornstarch
(used to lubricate the bag as it inflates) and by-prod-
ucts of the chemical reaction. As with many service
procedures, gloves and safety glasses should be
worn.
Wash your hands with mild soap and water after com-
pleting the work.

10B-52 AIR BAG SYSTEM
AIR BAG WIRE HARNESS AND CONNECTOR
Air bag wire harness (1) can be identified easily as it is covered
with a yellow protection tube. Be very careful when handling it.
When an open in air bag wire harness (1), damaged wire
harness, connector or terminal is found, replace wire har-
ness, connectors and terminals as an assembly.
When installing it, be careful so that the air bag wire harness
(1) is not caught or does not interfere with other parts.
Make sure all air bag system grounding points (2) are clean
and grounds are securely fastened for optimum metal-to-
metal contact. Poor grounding can cause intermittent prob-
lems that are difficult to diagnose.
DISPOSAL
Do not dispose of the live (undeployed) air bag (inflator) modules
and the live (inactivated) seat belt pretensioners. When disposal
is necessary, be sure to deploy/activate the air bag and seat belt
pretensioner according to deployment/activation procedure
described in “AIR BAG (INFLATOR) MODULE AND SEAT BELT
PRETENSIONER DISPOSAL”.
2
1
WARNING:
Failure to follow proper air bag (inflator) module and seat
belt pretensioner disposal procedures can result in air
bag deployment and pretensioner activation which could
cause personal injury. Undeployed air bag (inflator) mod-
ule and inactivated seat belt pretensioner must not be
disposed of through normal refuse channels.
The undeployed air bag (inflator) module and inactivated
seat belt pretensioner contain substances that can cause
severe illness or personal injury if the sealed container is
damaged during disposal.

AIR BAG SYSTEM 10B-53
REPAIRS AND INSPECTIONS REQUIRED AFTER AN ACCIDENT
ACCIDENT WITH DEPLOYMENT/ACTIVA-
TION - COMPONENT REPLACEMENT
The following components must be replaced.
Driver and passenger air bag (inflator) modules
Driver and passenger seat belt pretensioners
SDM
–Replace with new one as an assembly.
ACCIDENT WITH OR WITHOUT DEPLOY-
MENT/ACTIVATION - COMPONENT INSPEC-
TIONS
Certain air bag system components must be inspected after any
crash, whether the air bag system activated or not.
Those components are :
Steering column (1) and shaft joints
–Check for length, damage and bend according to “CHECK-
ING STEERING COLUMN FOR ACCIDENT DAMAGE” in
SECTION 3C.
If any faulty condition is found in above checks, replace faulty
part.
Steering column bracket (2) and capsules (3)
–Check for damage and bent.
If any faulty condition is found in above checks, replace faulty
part. CAUTION:
All air bag system components, including the electrical harness (component mounting points),
must be inspected after an accident. If any components are damaged or bent, they must be
replaced even if air bag system activation did not occur.
Never use air bag system parts from another vehicle.
Do not attempt to service the parts below. Service of these parts is by replacement only.
–Driver/Passenger air bag (inflator) module, Driver/Passenger seat belt pretensioner
–SDM
–Contact coil and combination switch assembly
–Air bag wire harness
Proper operation of the air bag system requires that any repairs to the vehicle structure return it to
its original production configuration.
CAUTION:
After detecting one time of such collision as to meet deployment conditions, the SDM must not be
used. Refer to “AIR BAG DIAGNOSTIC SYSTEM CHECK” when checking the SDM.

10B-54 AIR BAG SYSTEM
Steering wheel and driver air bag (inflator) module
–Check for damage or air bag (inflator) module fitness.
–Check trim cover (pad surface) for cracks.
–Check wire harness and connector for damage or tight-
ness.
If any faulty condition is found in above checks, replace faulty
part.
Contact coil and combination switch assembly
–Check wire harness and connectors for damage or tight-
ness.
–Check contact coil case for damage.
If any faulty condition is found in above checks, replace.
SDM and SDM plate
–Check for external damage such as deformation, scratch,
crack, peeled paint, etc.
–Check that SDM cannot be installed properly due to a
cause in itself. (There is a gap between SDM and SDM
plate, or it cannot be fixed securely.)
–Check that connector or lead wire of SDM has a scorching,
melting or damage.
–Check SDM connector and terminals for tightness.
–Check SDM sets a diagnostic trouble code (Refer to “DTC
CHECK”.) and the diagnostic table leads to a malfunction-
ing SDM.
If any faulty condition is found in above checks, replace.
Instrument panel member and reinforcement
–Check for any distortion, bending, cracking or other dam-
age.
If any faulty condition is found in above checks, replace.
Passenger air bag (inflator) module
–Check for dents, cracks, damage or fitness.
–Check trim cover for cracks or deformities.
–Check harness and connector for damage or tightness.
If any faulty condition is found in above checks, replace.

AIR BAG SYSTEM 10B-55
Air bag wire harness and connections
–Check for damages, deformities or poor connections.
(Refer to “INTERMITTENTS AND POOR CONNEC-
TIONS”.)
–Check wire harness clamps for tightness.
If any faulty condition is found, correct or replace.
Seat belt pretensioner
–Check for dents, cracks, damage or fitness
–Check harness and connector for damage or tightness.
If any faulty condition is found in above checks, replace.
Seat belts and mounting points
–Refer to “FRONT SEAT BELT WITH PRETENSIONER” in
SECTION 10.
“AIR BAG” warning lamp
–After vehicle is completely repaired, perform “AIR BAG
DIAGNOSTIC SYSTEM CHECK”.

10B-56 AIR BAG SYSTEM
SDM

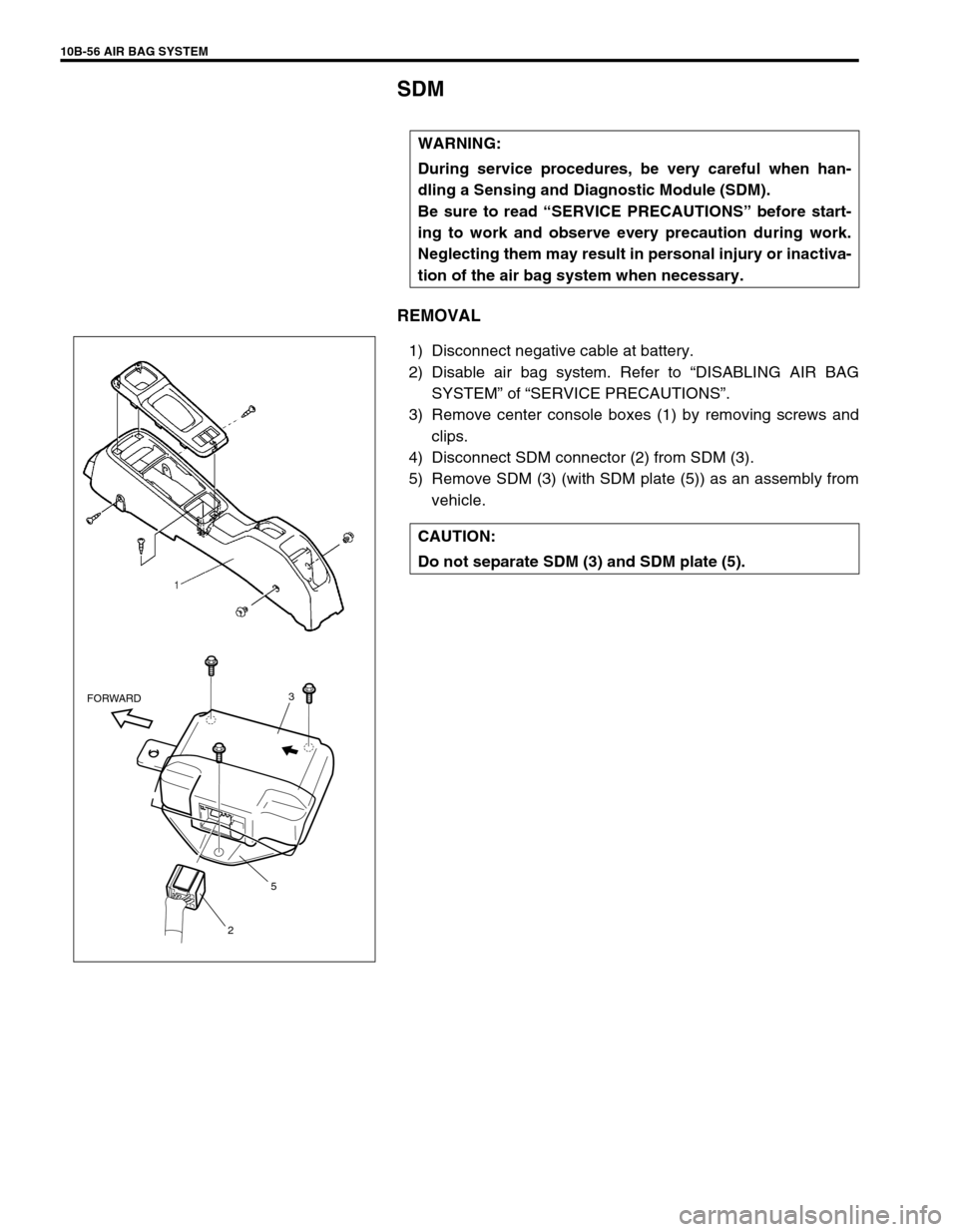

REMOVAL
1) Disconnect negative cable at battery.
2) Disable air bag system. Refer to “DISABLING AIR BAG
SYSTEM” of “SERVICE PRECAUTIONS”.
3) Remove center console boxes (1) by removing screws and
clips.
4) Disconnect SDM connector (2) from SDM (3).
5) Remove SDM (3) (with SDM plate (5)) as an assembly from
vehicle. WARNING:
During service procedures, be very careful when han-
dling a Sensing and Diagnostic Module (SDM).
Be sure to read “SERVICE PRECAUTIONS” before start-
ing to work and observe every precaution during work.
Neglecting them may result in personal injury or inactiva-
tion of the air bag system when necessary.
CAUTION:
Do not separate SDM (3) and SDM plate (5).
3
5
2 FORWARD
