AIR BAG SYSTEM 10B-37
Fig. for STEP 2
Fig. for STEP 3
Special tool
(A) : 09932-76010 3 1) With ignition switch OFF, disconnect “G39”
connector.
2) Check proper connection at “G39-1” (“RED”
wire) terminal.
3) If OK then ignition switch ON, and then
check voltage from “G39-1” (“RED” wire)
terminal on instrument panel harness to
body ground.
Is voltage 8 V or more?Repair poor connection,
high resistance in “RED”
or “BLK/YEL” circuit of air
bag harness or “AIR BAG”
fuse.Possibly faulty points are
as follows. Check each of
them and repair as neces-
sary.
Circuit from battery to
“G39” connector
Charging System
(Refer to DIAGNOSIS
in Section 6H)
4 1) With ignition switch OFF, reconnect SDM.
With ignition switch ON, is DTC B1032 current?Substitute a known-good
SDM and recheck.Check Charging System
and repair as necessary.
(Refer to DIAGNOSIS in
Section 6H) Step Action Yes No
1. Instrument panel harness side connector
2.“RED” wire terminal
NOTE:
Upon completion of inspection and repair work, perform following items.
Reconnect all air bag system components, ensure all components are properly mounted.
Clear diagnostic trouble codes (Refer to DTC CLEARANCE), if any.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.

10B-38 AIR BAG SYSTEM
DTC B1041 – DRIVER PRETENSIONER INITIATOR CIRCUIT RESISTANCE
HIGH
DTC B1042 – DRIVER PRETENSIONER INITIATOR CIRCUIT RESISTANCE
LOW
DTC B1043 – DRIVER PRETENSIONER INITIATOR CIRCUIT SHORT TO
GROUND
DTC B1044 – DRIVER PRETENSIONER INITIATOR CIRCUIT SHORT TO
POWER CIRCUIT
DTC B1045 – PASSENGER PRETENSIONER INITIATOR CIRCUIT RESIS-
TANCE HIGH
DTC B1046 – PASSENGER PRETENSIONER INITIATOR CIRCUIT RESIS-
TANCE LOW
DTC B1047 – PASSENGER PRETENSIONER INITIATOR CIRCUIT SHORT TO
GROUND
DTC B1048 – PASSENGER PRETENSIONER INITIATOR CIRCUIT SHORT TO
POWER CIRCUIT

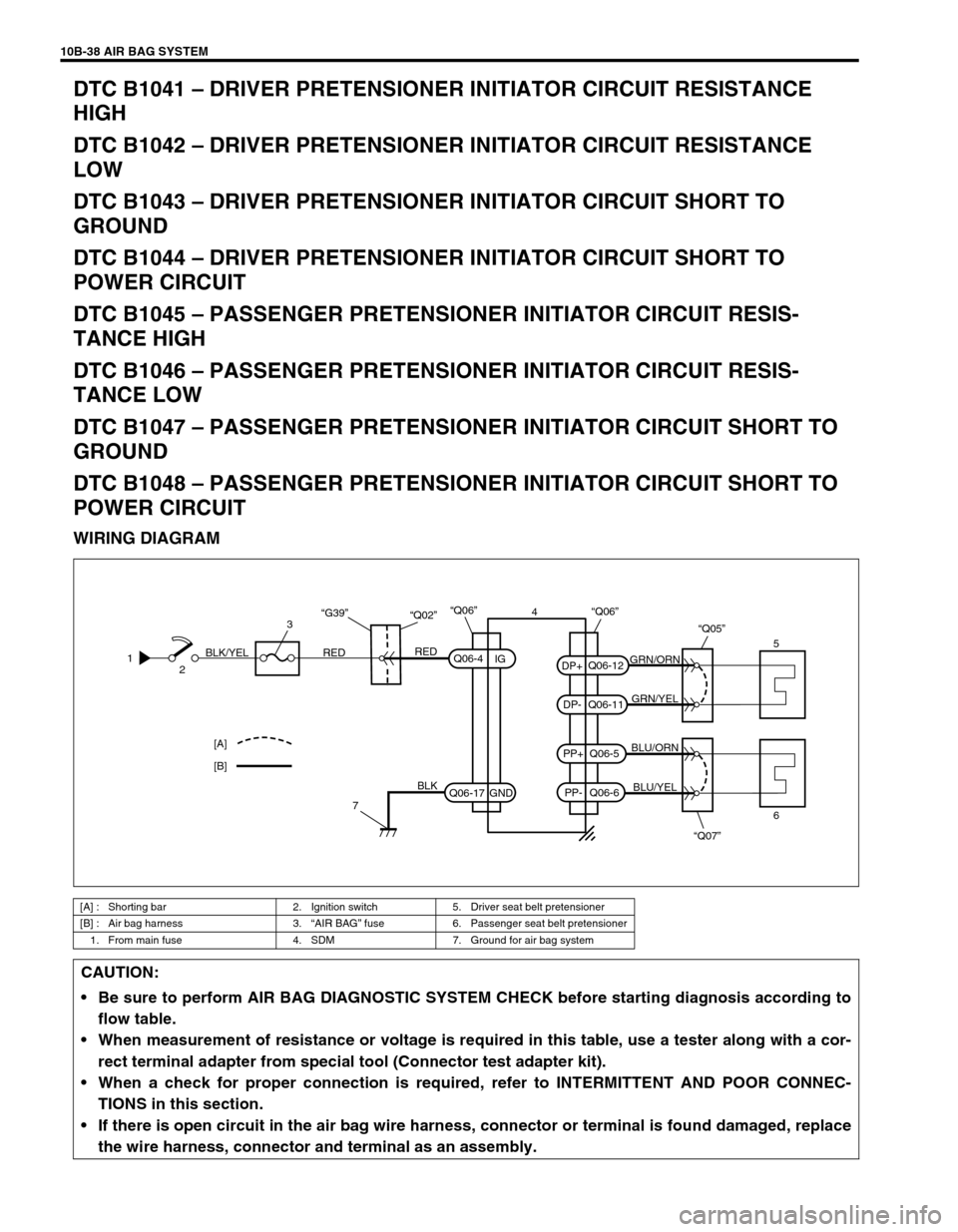

WIRING DIAGRAM
[A] : Shorting bar 2. Ignition switch 5. Driver seat belt pretensioner
[B] : Air bag harness 3.“AIR BAG” fuse 6. Passenger seat belt pretensioner
1. From main fuse 4. SDM 7. Ground for air bag system
GRN/ORN
GRN/YEL
BLU/ORN
BLU/YEL
“Q07” “Q05”
Q06-12
Q06-11
Q06-5
Q06-6 PP- PP+ DP- DP+
“Q06”
5
6 [A]
[B]1
2RED BLK/YELRED
3
7
BLK“Q06”
Q06-4
Q06-17IG
GND4
“G39”“Q02”
CAUTION:
Be sure to perform AIR BAG DIAGNOSTIC SYSTEM CHECK before starting diagnosis according to
flow table.
When measurement of resistance or voltage is required in this table, use a tester along with a cor-
rect terminal adapter from special tool (Connector test adapter kit).
When a check for proper connection is required, refer to INTERMITTENT AND POOR CONNEC-
TIONS in this section.
If there is open circuit in the air bag wire harness, connector or terminal is found damaged, replace
the wire harness, connector and terminal as an assembly.

AIR BAG SYSTEM 10B-39
DTC WILL SET WHEN
DTC B1041 and B1045 :
The resistance of driver or passenger seat belt pretensioner initiator circuit is above a specified value for speci-
fied time.
DTC B1042 and B1046 :
The resistance of driver or passenger seat belt pretensioner initiator circuit is below a specified value for speci-
fied time.
DTC B1043 and B1047 :
The voltage measured at driver or passenger seat belt pretensioner initiator circuit is below a specified value for
specified time.
DTC B1044 and B1048 :
The voltage measured at driver or passenger seat belt pretensioner initiator circuit is above a specified value for
specified time.
TABLE TEST DESCRIPTION
DTC B1041, B1042, B1043, B1044, B1045, B1046, B1047 and B1048 :
STEP 1 : Check whether malfunction is in seat belt pretensioner.
STEP 2 : Check seat belt pretensioner initiator circuit in air bag harness.
DIAGNOSTIC FLOW TABLE
DTC B1041 and B1045 :
Step Action Yes No
1 1) With ignition switch OFF, remove center
pillar inner garnish of applicable side then
disconnect seat belt pretensioner connec-
tor.
2) Check proper connection to applicable
seat belt pretensioner at terminals in
“Q05” or “Q07” connector.
3) If OK then connect Special Tool (B) to
seat belt pretensioner connector discon-
nected at the step 1.
With ignition switch ON, is DTC B1041 or
B1045 still current?Go to step 2. Ignition switch OFF.
Replace seat belt preten-
sioner (Refer to Section 10).
2 1) With ignition switch OFF, disconnect
SDM.
2) Check proper connection to SDM at termi-
nals “Q06-11” and “Q06-12” or “Q06-6”
and “Q06-5”.
3) If OK then measure resistance between
“Q06-11” and “Q06-12” terminals or “Q06-
6” and “Q06-5” terminals with connected
Special Tool (B).
Is resistance 4.5 Ω or less?Substitute a known-
good SDM and recheck.DTC B1041 :
Repair high resistance or
open in “GRN/ORN” or
“GRN/YEL” wire circuit.
DTC B1045 :
Repair high resistance or
open in “BLU/YEL” or “BLU/
ORN” wire circuit.

10B-40 AIR BAG SYSTEM
Fig. for STEP 1 and 2
Fig. for STEP 2
Special tool
(A) : 09932-76010
(B) : 09932-75010
DTC B1042 and B1046 :
[A] : For DTC B1041
[B] : For DTC B1045
NOTE:
Upon completion of inspection and repair work, perform following items.
Reconnect all air bag system components, ensure all components are properly mounted.
Clear diagnostic trouble codes (Refer to DTC CLEARANCE), if any.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
Step Action Yes No
1 1) With ignition switch OFF, remove center pil-
lar inner garnish of applicable side then dis-
connect seat belt pretensioner connector.
2) Check proper connection to applicable seat
belt pretensioner at terminals in “Q05” or
“Q07” connector.
3) If OK then connect Special Tool (B) to seat
belt pretensioner connector disconnected at
the step 1.
With ignition switch ON, is DTC B1042 or
B1046 still current?Go to step 2. Ignition switch OFF.
Replace seat belt preten-
sioner (Refer to Section
10).

AIR BAG SYSTEM 10B-41
Fig. for STEP 1 and 2
Fig. for STEP 2
Special tool
(A) : 09932-76010
(B) : 09932-75010 2 1) With ignition switch OFF, disconnect SDM.
2) Check proper connection to SDM at termi-
nals “Q06-11” and “Q06-12” or “Q06-6” and
“Q06-5”.
3) If OK then measure resistance between
“Q06-11” and “Q06-12” terminals or “Q06-
06” and “Q06-05” terminals with connected
Special Tool (B).
Is resistance 1.4 Ω or more?Substitute a known-good
SDM and recheck.DTC B1042 :
Repair short from “GRN/
ORN” wire circuit to
“GRN/YEL” wire circuit or
from “GRN/ORN” or
“GRN/YEL” wire circuit to
other wire circuit.
DTC B1046 :
Repair short from “BLU/
YEL” wire circuit to “BLU/
ORN” wire circuit or from
“BLU/YEL” or “BLU/ORN”
wire circuit to other wire
circuit. Step Action Yes No
[A] : For DTC B1042
[B] : For DTC B1046
NOTE:
Upon completion of inspection and repair work, perform following items.
Reconnect all air bag system components, ensure all components are properly mounted.
Clear diagnostic trouble codes (Refer to DTC CLEARANCE), if any.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.

10B-42 AIR BAG SYSTEM
DTC B1043 and B1047 :
Fig. for STEP 1 and 2
Fig. for STEP 2
Special tool
(A) : 09932-76010
(B) : 09932-75010 Step Action Yes No
1 1) With ignition switch OFF, remove center pil-
lar inner garnish of applicable side then dis-
connect seat belt pretensioner connector.
2) Check proper connection to applicable seat
belt pretensioner at terminals in “Q05” or
“Q07” connector.
3) If OK then connect Special Tool (B) to seat
belt pretensioner connector disconnected at
the step 1.
With ignition switch ON, is DTC B1043 or
B1047 still current?Go to step 2. Ignition switch OFF.
Replace seat belt pretensioner
(Refer to Section 10).
2 1) With ignition switch OFF, disconnect Spe-
cial Tool (B) and SDM.
2) Measure resistance between “Q06-11” or
“Q06-6” and body ground.
Is resistance 10 Ω or more?Substitute a
known-good SDM
and recheck.DTC B1043 :
Repair short “GRN/YEL” or “GRN/
ORN” wire circuit to ground.
DTC B1047 :
Repair short from “BLU/YEL” or
“BLU/ORN” wire circuit to ground.
[A] : For DTC B1043
[B] : For DTC B1047

AIR BAG SYSTEM 10B-43
DTC B1044 and B1048 :
Fig. for STEP 1 and 2NOTE:
Upon completion of inspection and repair work, perform following items.
Reconnect all air bag system components, ensure all components are properly mounted.
Clear diagnostic trouble codes (Refer to DTC CLEARANCE), if any.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
Step Action Yes No
1 1) With ignition switch OFF, remove center
pillar inner garnish of applicable side then
disconnect seat belt pretensioner connec-
tor.
2) Check proper connection to applicable
seat belt pretensioner at terminals in
“Q05” or “Q07” connector.
3) If OK then connect Special Tool (B) to
seat belt pretensioner connector discon-
nected at the step 1.
With ignition switch ON, is DTC B1044 or
B1048 still current?Go to step 2. Ignition switch OFF.
Replace seat belt preten-
sioner (Refer to Section 10).
2 1) With ignition switch OFF, disconnect Spe-
cial Tool (B) and SDM.
2) Measure voltage from “Q06-12” or “Q06-
5” terminal to body ground.
With ignition switch ON, is voltage 1 V or
less?Substitute a known-
good SDM and recheck.DTC B1044 :
Repair short “GRN/ORN” or
“GRN/YEL” wire circuit to
power circuit.
DTC B1048 :
Repair short from “BLU/YEL”
or “BLU/ORN” wire circuit to
power circuit.

10B-44 AIR BAG SYSTEM
Fig. for STEP 2
Special tool
(A) : 09932-76010
(B) : 09932-75010
DTC B1051 – FRONTAL CRASH DETECTED (SYSTEM ACTIVATION COM-
MAND OUTPUTTED)
DTC WILL SET WHEN
The SDM detects a frontal crash of sufficient force to warrant activation of the air bag system. (SDM outputs a
deployment command.)
TABLE TEST DESCRIPTION
STEP 1 : Check that DTC B1051 has been set although air bag has not been deployed.
STEP 2 : Check that DTC has been set due to failure of SDM.
[A] : For DTC B1044
[B] : For DTC B1048
NOTE:
Upon completion of inspection and repair work, perform following items.
Reconnect all air bag system components, ensure all components are properly mounted.
Clear diagnostic trouble codes (Refer to DTC CLEARANCE), if any.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
NOTE:
Before executing items in this table, be sure to perform AIR BAG DIAGNOSTIC SYSTEM CHECK.
Step Action Yes No
1 1) Ignition switch OFF.
Has air bag system deployed?Replace components and
perform inspections as
directed in “REPAIRS
AND INSPECTIONS
REQUIRED AFTER AN
ACCIDENT”.Go to step 2.

AIR BAG SYSTEM 10B-45
DTC B1071 - INTERNAL SDM FAULT
DTC WILL SET WHEN
An internal SDM fault is detected by SDM.
DTC B1013 – SYSTEM SPECIFICATIONS DIFFERENT FROM SDM SPECIFICA-
TIONS
DTC WILL SET WHEN
Specifications of the air bag system differ from those of SDM.2 1) Inspect front of vehicle and undercarriage
for signs of impact.
Are there signs of impact?Replace components and
perform inspections as
directed in “REPAIRS
AND INSPECTIONS
REQUIRED AFTER AN
ACCIDENT”.Substitute a known-good
SDM and recheck. Step Action Yes No
NOTE:
Upon completion of inspection and repair work, perform following items.
Reconnect all air bag system components, ensure all components are properly mounted.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
NOTE:
Before executing items below, be sure to perform AIR BAG DIAGNOSTIC SYSTEM CHECK.
NOTE:
DTC B1071 can never be cleared once it has been set.
Ignition switch OFF.
Replace SDM.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK.
NOTE:
Before executing items below, be sure to perform AIR BAG DIAGNOSTIC SYSTEM CHECK.
Ignition switch OFF.
Replace SDM.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK.

10B-46 AIR BAG SYSTEM
ON-VEHICLE SERVICE
SERVICE PRECAUTIONS
SERVICE AND DIAGNOSIS
WARNING/CAUTION labels are attached on each part of air bag system components (SDM, air bag (inflator)
modules and seat belt pretensioners). Be sure to follow the instructions.
Many of service procedures require disconnection of “AIR BAG” fuse and air bag (inflator) module(s) (driver
and passenger) from initiator circuit to avoid an accidental deployment.
Do not apply power to the air bag system unless all components are connected or a diagnostic chart
requests it, as this will set a diagnostic trouble code (DTC).
The “AIR BAG DIAGNOSTIC SYSTEM CHECK” must be the starting point of any air bag diagnostics. The
“AIR BAG DIAGNOSTIC SYSTEM CHECK” will verify proper “AIR BAG” warning lamp operation and will
lead you to the correct table to diagnose any air bag malfunctions. Bypassing these procedures may result
in extended diagnostic time, incorrect diagnosis, and incorrect parts replacements.
Never use air bag component parts from another vehicle.
If the vehicle will be exposed to temperatures over 93°C (200°F) (for example, during a paint baking pro-
cess), remove the air bag system components beforehand to avoid component damage or unintended sys-
tem activation.
When handling the air bag (inflator) modules (driver and passenger), seat belt pretensioners (driver and
passenger) or SDM, be careful not to drop it or apply an impact to it. If an excessive impact was applied
(e.g., SDM is dropped, air bag (inflator) module is dropped from a height of 90 cm (3 ft) or more, seat belt
pretensioner (retractor assembly) is dropped from a height of 30 cm (1 ft) or more), never attempt disassem-
bly or repair but replace it with a new one.
When using electric welding, be sure to disconnect air bag (inflator) module connectors (driver and passen-
ger) and seat belt pretensioner connectors (driver and passenger) respectively.
When applying paint around the air bag system related parts, use care so that the harness or connector will
not be exposed to the paint mist.
Never expose air bag system component parts directly to hot air (drying or baking the vehicle after painting)
or flames. WARNING:
If the air bag system and another vehicle system both need repair, Suzuki recommends that the air
bag system be repaired first, to help avoid unintended air bag system activation.
Do not modify the steering wheel, dashboard or any other on or around air bag system compo-
nents. Modifications can adversely affect air bag system performance and lead to injury.
Failure to follow procedures could result in possible air bag system activation, personal injury or
unneeded air bag system repairs.
WARNING:
When performing service on or around air bag system components or air bag wiring, follow the proce-
dures listed in the following pages to temporarily disable the air bag system.
Failure to follow procedures could result in possible air bag system activation, personal injury or
unneeded air bag system repairs.
