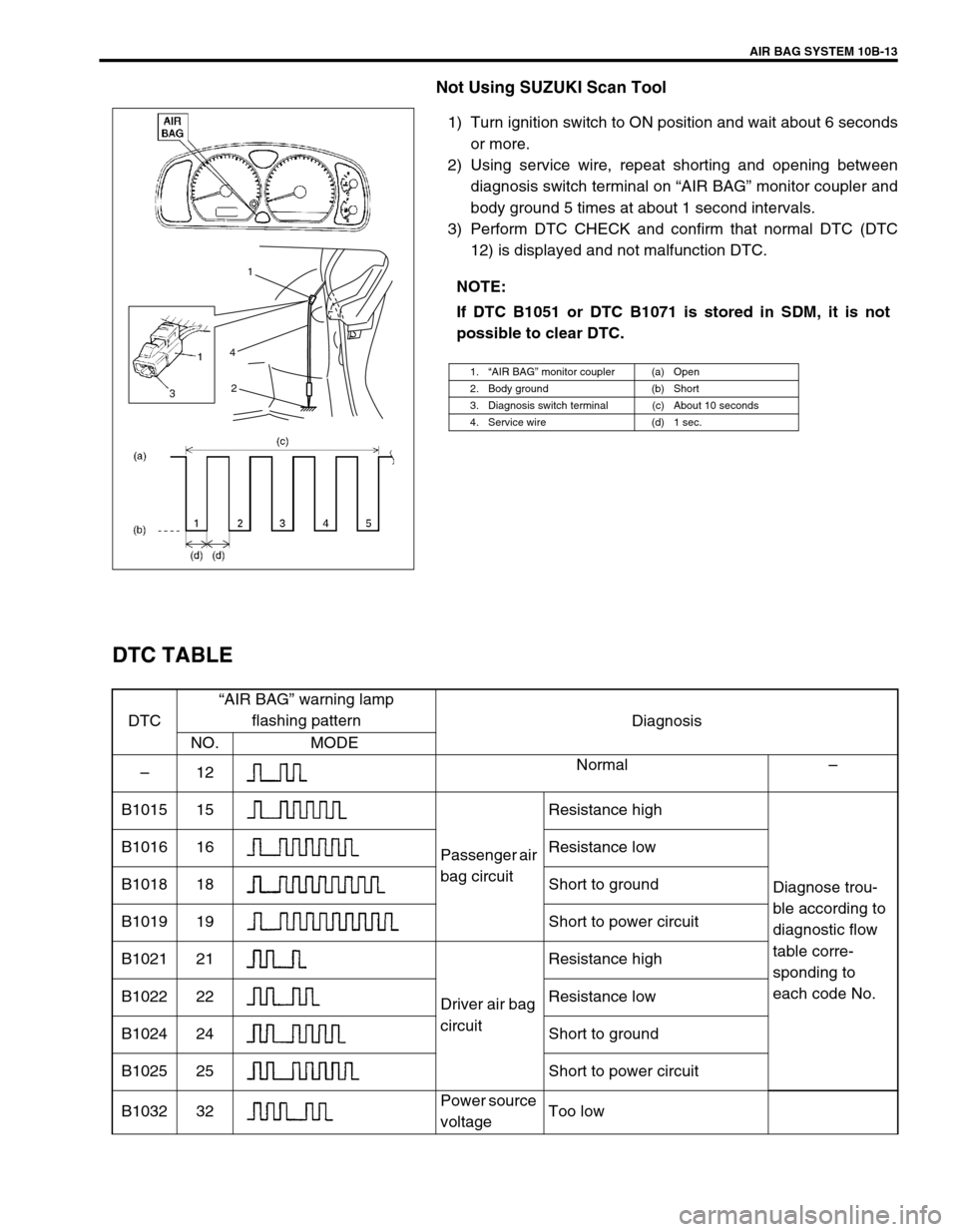

AIR BAG SYSTEM 10B-13
Not Using SUZUKI Scan Tool
1) Turn ignition switch to ON position and wait about 6 seconds
or more.
2) Using service wire, repeat shorting and opening between
diagnosis switch terminal on “AIR BAG” monitor coupler and
body ground 5 times at about 1 second intervals.
3) Perform DTC CHECK and confirm that normal DTC (DTC
12) is displayed and not malfunction DTC.
DTC TABLE
NOTE:
If DTC B1051 or DTC B1071 is stored in SDM, it is not
possible to clear DTC.
1.“AIR BAG” monitor coupler (a) Open
2. Body ground (b) Short
3. Diagnosis switch terminal (c) About 10 seconds
4. Service wire (d) 1 sec.
1
4
2
DTC“AIR BAG” warning lamp
flashing pattern
Diagnosis
NO. MODE
–12Normal–
B1015 15
Passenger air
bag circuitResistance high
Diagnose trou-
ble according to
diagnostic flow
table corre-
sponding to
each code No. B1016 16 Resistance low
B1018 18 Short to ground
B1019 19 Short to power circuit
B1021 21
Driver air bag
circuitResistance high
B1022 22 Resistance low
B1024 24 Short to ground
B1025 25 Short to power circuit
B1032 32Power source
voltageToo low
