Specifications
Tightening Torque SpecificationsS6RW0D5107001
NOTE
The specified tightening torque is also described in the following.
“Select Cable Components”
“Automatic Transaxle Unit Components”
“Automatic Transaxle Assembly Components”
“Oil Pump Assembly Components”
“Transaxle Rear Cover (O/D and 2nd Coast Brake Piston) Assembly Components”
“Valve Body Assembly Components”
“Differential Assembly Components”

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fasteners Information in Section 0A”. Fastening partTightening torque
Note
N⋅mkgf-mlb-ft
A/T fluid drain plug 17 1.7 12.5) / ) / )
Transmission range sensor bolt 5.5 0.55 4.0) / )
Output shaft speed sensor (VSS) bolt 13 1.3 9.5) / )
Input shaft speed sensor bolt 5.5 0.55 4.0) / )
Valve body harness connector bolt 5.5 0.55 4.0) / )
Shift solenoid bolt 11 1.1 8.0)
Oil strainer bolt 10 1.0 7.5) / )
Oil pan bolt 7.0 0.7 5.0) / )
Engine oil pan bolt 55 5.5 40.0)
Transaxle and engine fastening bolt 85 8.5 61.5)
Transaxle and engine fastening nut 85 8.5 61.5)
Drive plate to torque converter bolt 19 1.9 14.0)
Transaxle housing lower plate bolt 11 1.1 8.0)
Oil pump subassembly bolt 10 1.0 7.5)
Rear cover plug 7.5 0.75 5.5)
Solenoid valve bolt 11 1.1 8.0)
Final gear bolt 78 7.8 56.5)
Torque converter housing plug 7.5 0.75 5.5)
Lubrication tube clamp bolt 5.5 0.55 4.0)
Fluid reservoir RH plate bolt 5.5 0.55 4.0)
Torque converter housing bolt 33 3.3 24.0) / ) / )
Manual detent spring bolt 10 1.0 7.5)
Parking lock pawl bracket bolt 7.5 0.75 5.5)
Rear cover bolt 25 2.5 18.0)
Fluid reservoir LH plate bolt 10 1.0 7.5)
Oil pump assembly bolt 25 2.5 18.0)
Transaxle case plug 7.5 0.75 5.5)
Valve body bolt 11 1.1 8.0)
Fluid cooler pipe union 25 2.5 18.0)
Fluid cooler pipe union bolt 35 3.5 25.5)
Fluid cooler pipe bracket bolt 10 1.0 7.5)
Fluid filler tube bolt 10 1.0 7.5)
Select cable bracket bolt 23 2.3 17.0)
Select cable clamp bolt 13 1.3 9.5)
Transmission range sensor lock nut 7 0.7 5.0)
Manual select lever nut 13 1.3 9.5)

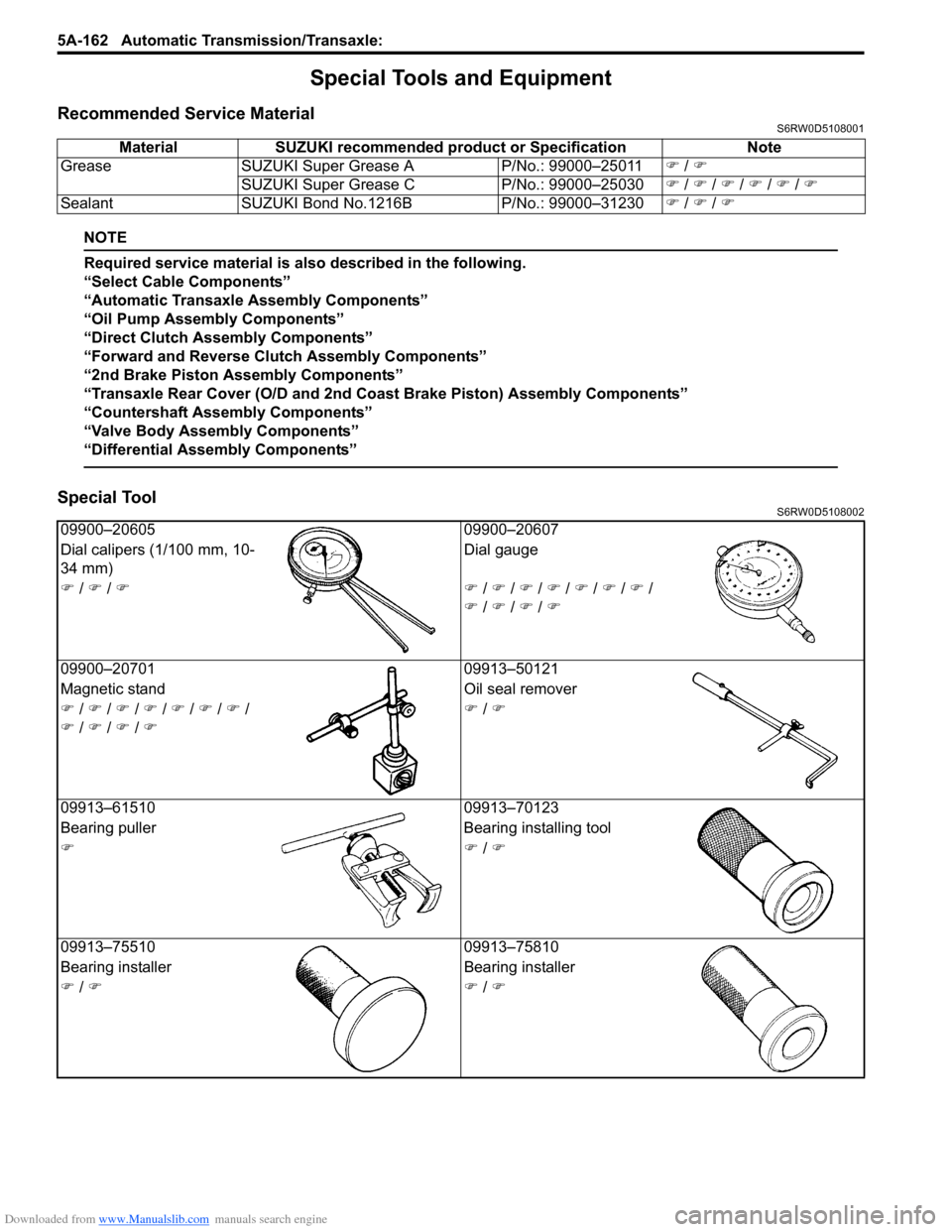

Downloaded from www.Manualslib.com manuals search engine 5A-162 Automatic Transmission/Transaxle:
Special Tools and Equipment
Recommended Service MaterialS6RW0D5108001
NOTE
Required service material is also described in the following.
“Select Cable Components”
“Automatic Transaxle Assembly Components”
“Oil Pump Assembly Components”
“Direct Clutch Assembly Components”
“Forward and Reverse Clutch Assembly Components”
“2nd Brake Piston Assembly Components”
“Transaxle Rear Cover (O/D and 2nd Coast Brake Piston) Assembly Components”
“Countershaft Assembly Components”
“Valve Body Assembly Components”
“Differential Assembly Components”

Special ToolS6RW0D5108002
Material SUZUKI recommended product or Specification Note
Grease SUZUKI Super Grease A P/No.: 99000–25011) / )
SUZUKI Super Grease C P/No.: 99000–25030) / ) / ) / ) / ) / )
Sealant SUZUKI Bond No.1216B P/No.: 99000–31230) / ) / )
09900–20605 09900–20607
Dial calipers (1/100 mm, 10-
34 mm)Dial gauge
) / ) / )) / ) / ) / ) / ) / ) / ) /
) / ) / ) / )
09900–20701 09913–50121
Magnetic stand Oil seal remover
) / ) / ) / ) / ) / ) / ) /
) / ) / ) / )) / )
09913–61510 09913–70123
Bearing puller Bearing installing tool
)) / )
09913–75510 09913–75810
Bearing installer Bearing installer
) / )) / )
