SUZUKI SX4 2006 1.G Service Workshop Manual

Downloaded from www.Manualslib.com manuals search engine Rear Brakes: 4C-6

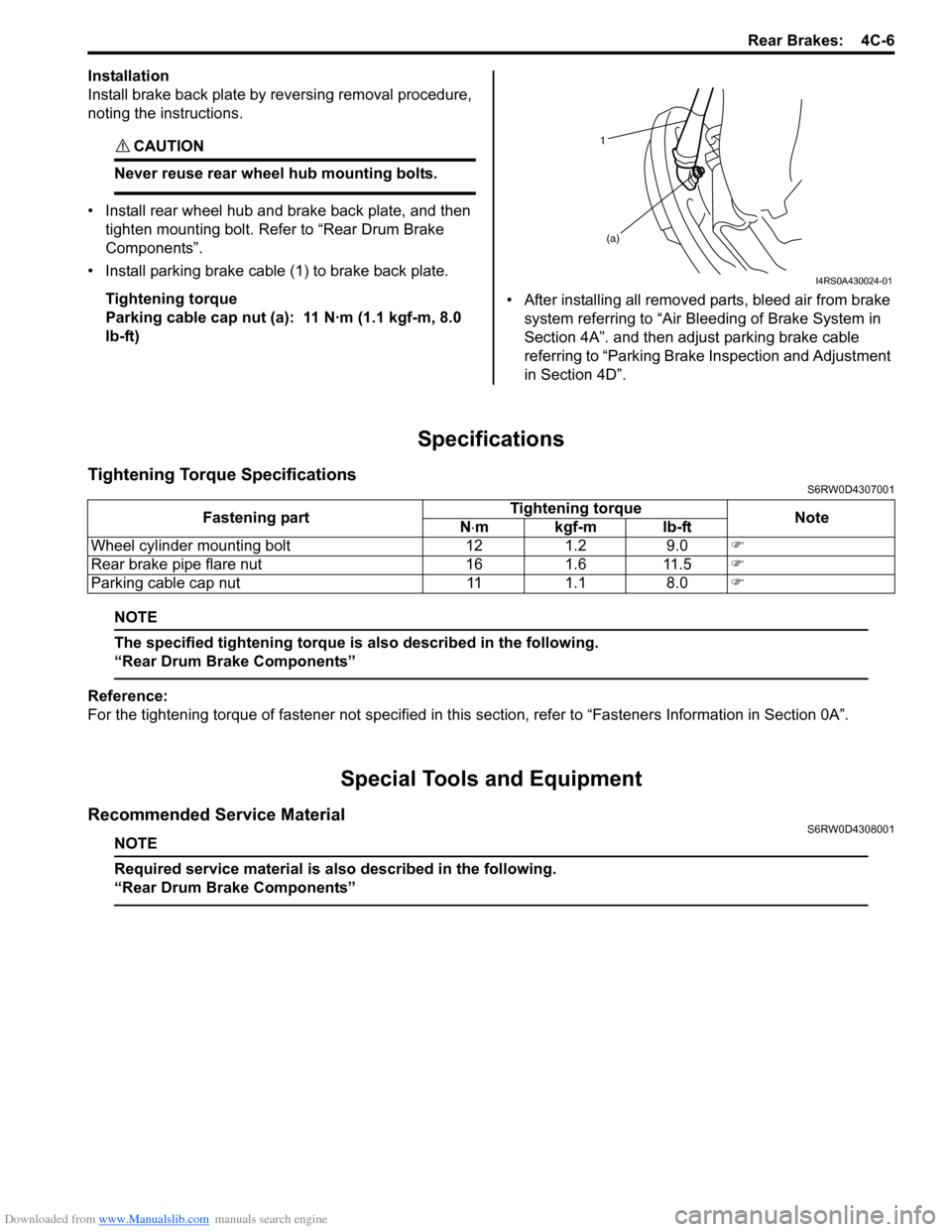

Installation
Install brake back plate by reversing removal procedure,
noting the instructions.
CAUTION!
Never reuse rear wheel hub mounting bolts.

• Install rear wheel hub and brake back plate, and then
tighten mounting bolt. Refer to “Rear Drum Brake
Components”.
• Install parking brake cable (1) to brake back plate.
Tightening torque
Parking cable cap nut (a): 11 N·m (1.1 kgf-m, 8.0
lb-ft)• After installing all removed parts, bleed air from brake
system referring to “Air Bleeding of Brake System in
Section 4A”. and then adjust parking brake cable
referring to “Parking Brake Inspection and Adjustment
in Section 4D”.
Specifications
Tightening Torque SpecificationsS6RW0D4307001
NOTE
The specified tightening torque is also described in the following.
“Rear Drum Brake Components”

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fasteners Information in Section 0A”.
Special Tools and Equipment
Recommended Service MaterialS6RW0D4308001
NOTE
Required service material is also described in the following.
“Rear Drum Brake Components”

1
(a)
I4RS0A430024-01
Fastening partTightening torque
Note
N⋅mkgf-mlb-ft
Wheel cylinder mounting bolt 12 1.2 9.0)
Rear brake pipe flare nut 16 1.6 11.5)
Parking cable cap nut 11 1.1 8.0)

Downloaded from www.Manualslib.com manuals search engine 4D-1 Parking Brake:
Brakes

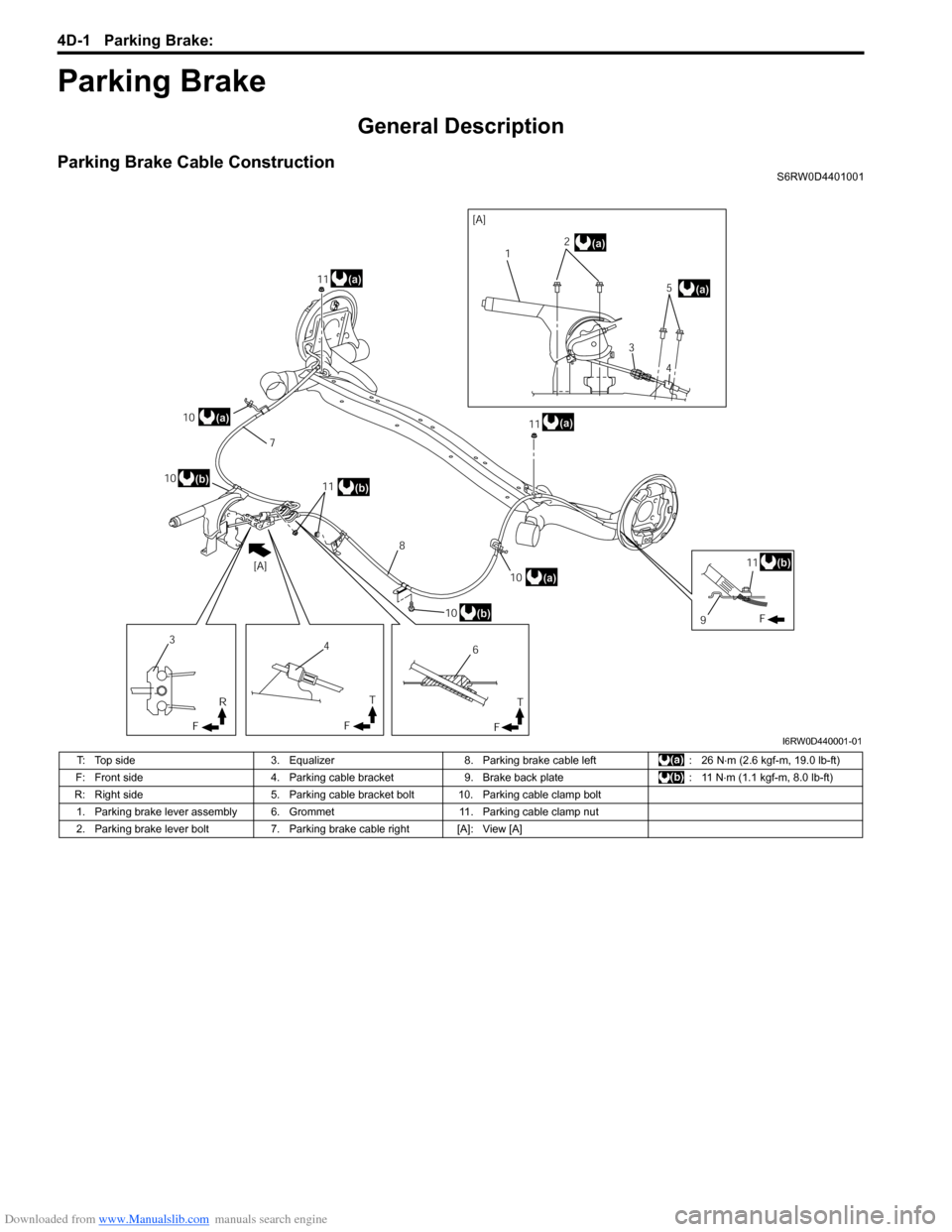

Parking Brake
General Description
Parking Brake Cable ConstructionS6RW0D4401001
46
FT
T
F F R 3[A]
F9
(a)2
(a)5
1
3
4 [A]
(a)10
(a)10
(b)11(b)
(b)10 10
11
11(a)
(a)
11
7
8
(b)
I6RW0D440001-01
T: Top side 3. Equalizer 8. Parking brake cable left : 26 N⋅m (2.6 kgf-m, 19.0 lb-ft)
F: Front side 4. Parking cable bracket 9. Brake back plate : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
R: Right side 5. Parking cable bracket bolt 10. Parking cable clamp bolt
1. Parking brake lever assembly 6. Grommet 11. Parking cable clamp nut
2. Parking brake lever bolt 7. Parking brake cable right [A]: View [A]

Downloaded from www.Manualslib.com manuals search engine Parking Brake: 4D-2

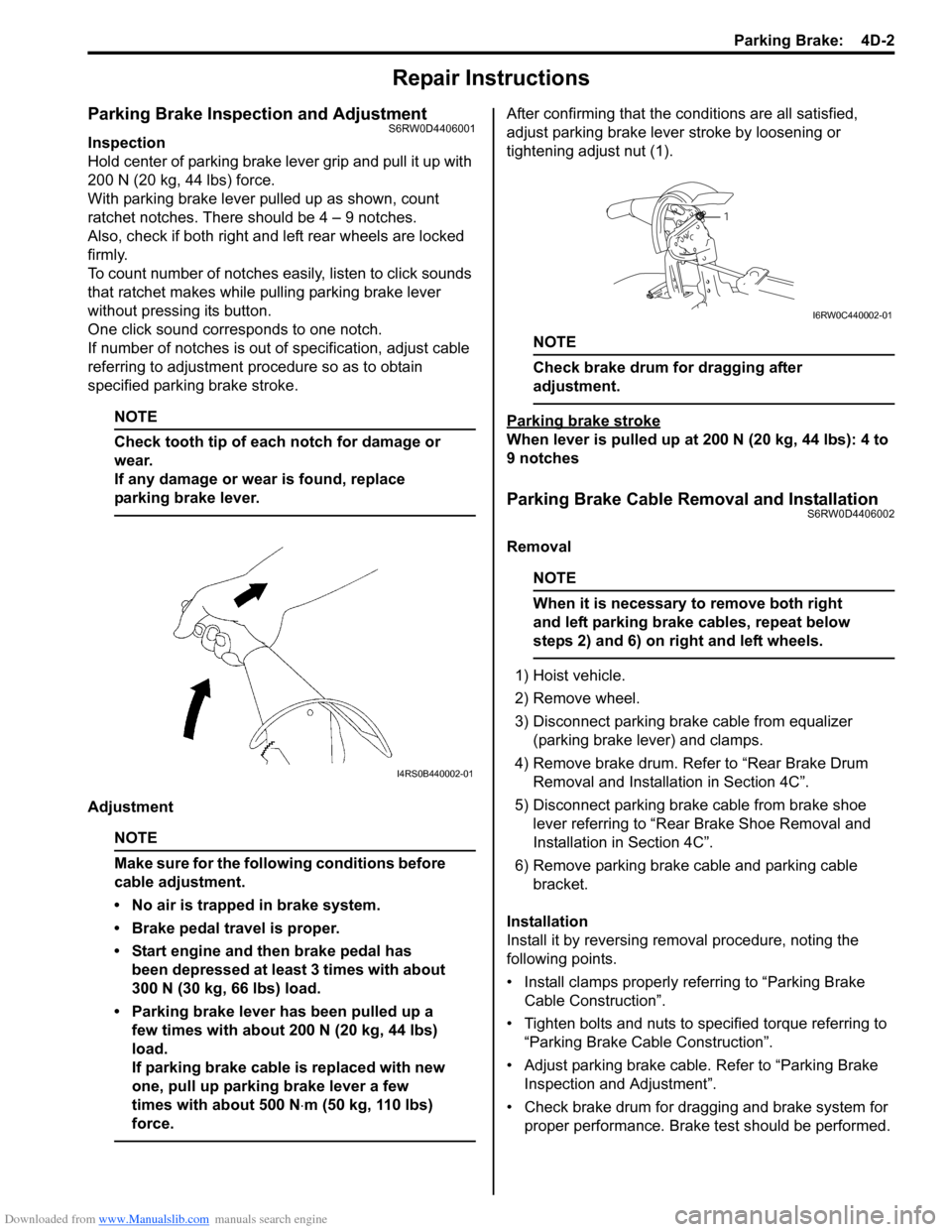

Repair Instructions
Parking Brake Inspection and AdjustmentS6RW0D4406001
Inspection
Hold center of parking brake lever grip and pull it up with
200 N (20 kg, 44 lbs) force.
With parking brake lever pulled up as shown, count
ratchet notches. There should be 4 – 9 notches.
Also, check if both right and left rear wheels are locked
firmly.
To count number of notches easily, listen to click sounds
that ratchet makes while pulling parking brake lever
without pressing its button.
One click sound corresponds to one notch.
If number of notches is out of specification, adjust cable
referring to adjustment procedure so as to obtain
specified parking brake stroke.
NOTE
Check tooth tip of each notch for damage or
wear.
If any damage or wear is found, replace
parking brake lever.

Adjustment
NOTE
Make sure for the following conditions before
cable adjustment.
• No air is trapped in brake system.
• Brake pedal travel is proper.
• Start engine and then brake pedal has
been depressed at least 3 times with about
300 N (30 kg, 66 lbs) load.
• Parking brake lever has been pulled up a
few times with about 200 N (20 kg, 44 lbs)
load.
If parking brake cable is replaced with new
one, pull up parking brake lever a few
times with about 500 N⋅m (50 kg, 110 lbs)
force.

After confirming that the conditions are all satisfied,
adjust parking brake lever stroke by loosening or
tightening adjust nut (1).
NOTE
Check brake drum for dragging after
adjustment.

Parking brake stroke
When lever is pulled up at 200 N (20 kg, 44 lbs): 4 to
9 notches
Parking Brake Cable Removal and InstallationS6RW0D4406002
Removal
NOTE
When it is necessary to remove both right
and left parking brake cables, repeat below
steps 2) and 6) on right and left wheels.

1) Hoist vehicle.
2) Remove wheel.
3) Disconnect parking brake cable from equalizer
(parking brake lever) and clamps.
4) Remove brake drum. Refer to “Rear Brake Drum
Removal and Installation in Section 4C”.
5) Disconnect parking brake cable from brake shoe
lever referring to “Rear Brake Shoe Removal and
Installation in Section 4C”.
6) Remove parking brake cable and parking cable
bracket.
Installation
Install it by reversing removal procedure, noting the
following points.
• Install clamps properly referring to “Parking Brake
Cable Construction”.
• Tighten bolts and nuts to specified torque referring to
“Parking Brake Cable Construction”.
• Adjust parking brake cable. Refer to “Parking Brake
Inspection and Adjustment”.
• Check brake drum for dragging and brake system for
proper performance. Brake test should be performed.
I4RS0B440002-01
1
I6RW0C440002-01

Downloaded from www.Manualslib.com manuals search engine 4D-3 Parking Brake:

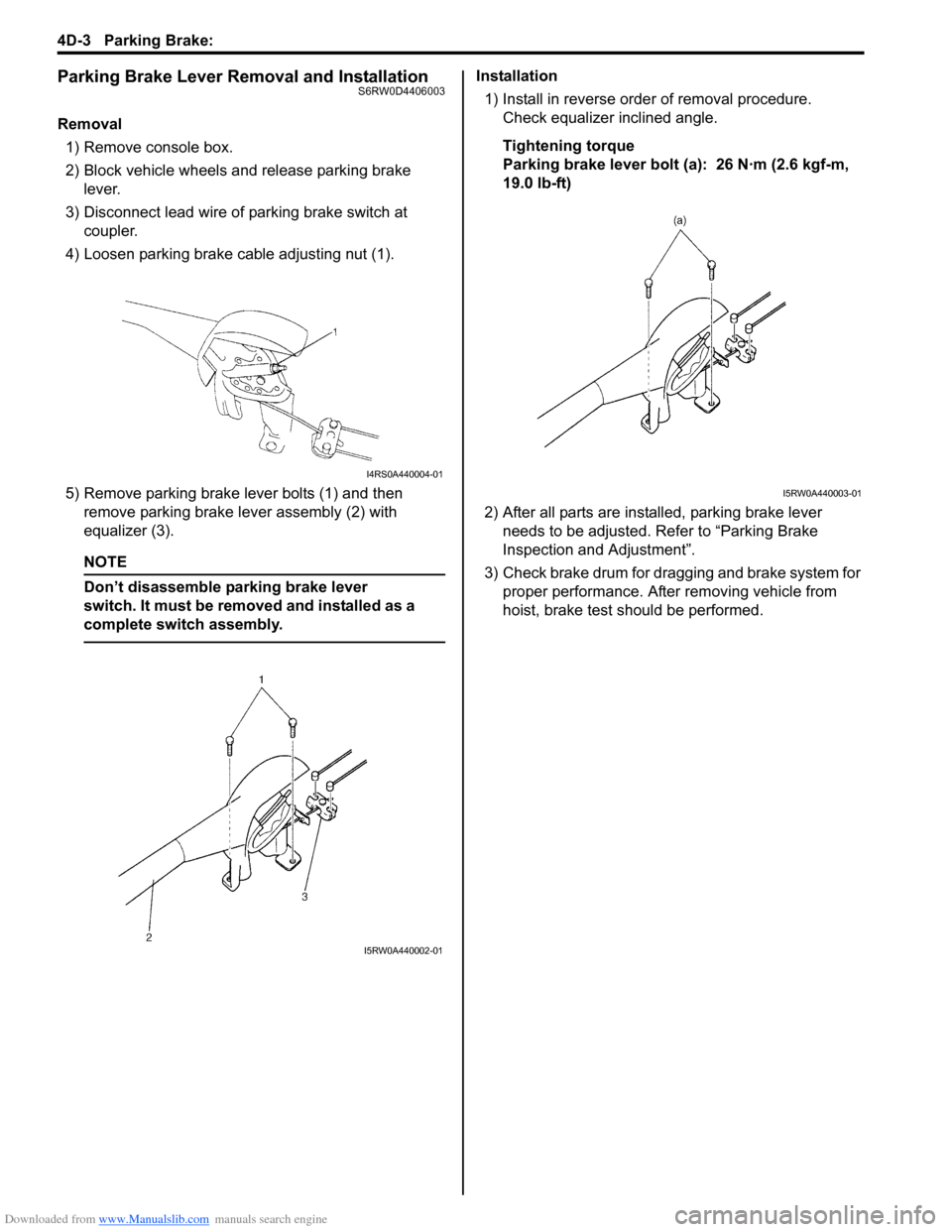

Parking Brake Lever Removal and InstallationS6RW0D4406003
Removal
1) Remove console box.
2) Block vehicle wheels and release parking brake
lever.
3) Disconnect lead wire of parking brake switch at
coupler.
4) Loosen parking brake cable adjusting nut (1).
5) Remove parking brake lever bolts (1) and then
remove parking brake lever assembly (2) with
equalizer (3).
NOTE
Don’t disassemble parking brake lever
switch. It must be removed and installed as a
complete switch assembly.

Installation
1) Install in reverse order of removal procedure.
Check equalizer inclined angle.
Tightening torque
Parking brake lever bolt (a): 26 N·m (2.6 kgf-m,
19.0 lb-ft)
2) After all parts are installed, parking brake lever
needs to be adjusted. Refer to “Parking Brake
Inspection and Adjustment”.
3) Check brake drum for dragging and brake system for
proper performance. After removing vehicle from
hoist, brake test should be performed.
I4RS0A440004-01
I5RW0A440002-01
I5RW0A440003-01

Downloaded from www.Manualslib.com manuals search engine Parking Brake: 4D-4

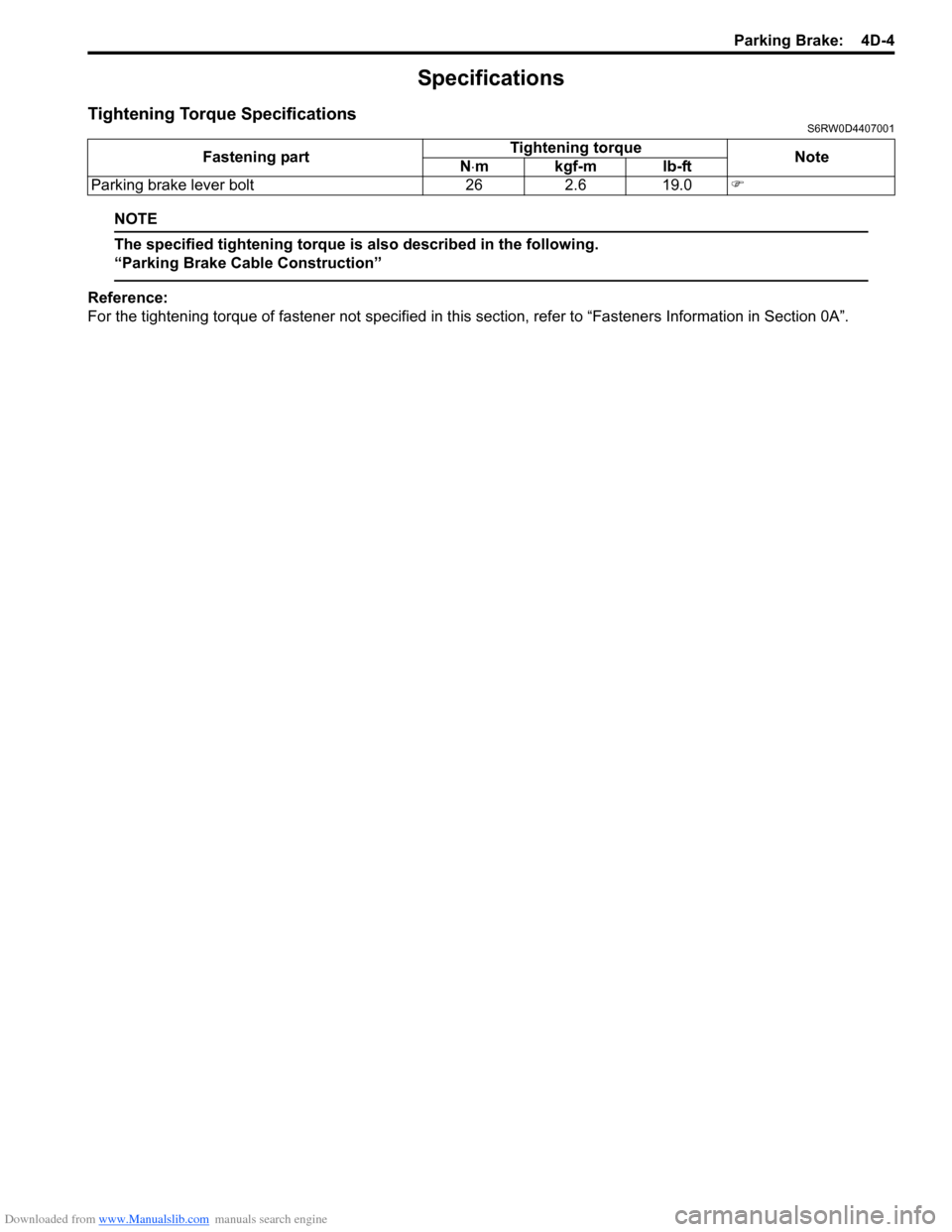

Specifications
Tightening Torque SpecificationsS6RW0D4407001
NOTE
The specified tightening torque is also described in the following.
“Parking Brake Cable Construction”

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fasteners Information in Section 0A”. Fastening partTightening torque
Note
N⋅mkgf-mlb-ft
Parking brake lever bolt 26 2.6 19.0)

Downloaded from www.Manualslib.com manuals search engine 4E-1 ABS:
Brakes
ABS
Precautions
Precautions in Diagnosing TroublesS6RW0D4500001
To ensure that the trouble diagnosis is done accurately
and smoothly, observe the following and follow “ABS
Check”.
• Diagnostic information stored in ABS control module
memory can be cleared as well as checked by using
SUZUKI scan tool. Before using scan tool, read its
Operator's (Instruction) Manual carefully to have good
understanding as to what functions are available and
how to use it.
• If the vehicle was operated in any of the following
ways, ABS warning light may light momentarily but
this does not indicate anything abnormal in ABS.
– The vehicle was driven with parking brake pulled.
– The vehicle was driven with brake dragging.
– The vehicle was stuck in mud, sand, etc.
– Wheel spin occurred while driving.
– Wheel(s) was rotated while the vehicle was jacked
up.
• Be sure to read “Precautions for Electrical Circuit
Service in Section 00” and “Precaution for CAN
Communication System in Section 00” before
inspection and observe what is written there.
• Be sure to use the trouble diagnosis procedure as
described in “ABS Check”. Failure to follow it may
result in incorrect diagnosis. (Some other diagnosis
trouble code may be stored by mistake in the memory
of ABS control module during inspection.)• When disconnecting ABS hydraulic unit / control
module connector (1), pull up lock lever (2) of
connector.
When connecting, set the connector on ABS hydraulic
unit / control module assembly and pull down the lock
lever (2) until it locks.
• Communication of ECM, BCM, combination meter,
4WD control module (if equipped), keyless start
control module (if equipped), TCM (if equipped), data
link connector and ABS control module is established
by CAN (Control Area Network).
Therefore, be sure to read “Precautions for Installing
Mobile Communication Equipment in Section 00”
before inspection and handling CAN communication
line.
Precautions in On-Vehicle ServiceS6RW0D4500002
When connector is connected to ABS hydraulic unit /
control module assembly, do not disconnect connectors
of sensors with ignition switch ON. Otherwise, DTC will
be set in ABS control module.
[A]: Disconnect C: Pull up to disconnect
[B]: Connect D: Pull down to connect
2 1
CD
[A]
[B]
I5RW0A450001-01

Downloaded from www.Manualslib.com manuals search engine ABS: 4E-2
General Description
ABS DescriptionS6RW0D4501001
The ABS (Antilock Brake System) controls the fluid
pressure applied to the wheel cylinder of each brake
from the master cylinder so that each wheel is not locked
even when hard braking is applied.
This ABS has also the following function.
While braking is applied, but before ABS control
becomes effective, braking force is distributed between
the front and rear so as to prevent the rear wheels from
being locked too early for better stability of the vehicle.
The main component parts of this ABS include the
following parts in addition to those of the conventional
brake system.
• Wheel speed sensor which senses revolution speed
of each wheel and outputs its signal.
Rear wheel speed sensor of 4WD vehicle is
integrated in rear wheel hub assembly and supplied
as rear wheel hub assembly part.
Front wheel speed sensor and rear wheel speed
sensor of 2WD model are separated from wheel hub
assembly and supplied as spare parts.
• ABS warning light which lights to inform abnormality
when system fails to operate properly.• ABS hydraulic unit / control module assembly is
incorporated ABS control module, ABS hydraulic unit
(actuator assembly), solenoid valve power supply
driver (transistor), solenoid valve driver (transistor),
pump motor driver (transistor).
– ABS control module which sends operation signal
to ABS hydraulic unit to control fluid pressure
applied to each wheel cylinder based on signal
from each wheel speed sensor so as to prevent
wheel from locking.
– ABS hydraulic unit which operates according to
signal from ABS control module to control fluid
pressure applied to wheel cylinder of each 4
wheels.
– Solenoid valve power supply driver (transistor)
which supplies power to solenoid valve in ABS
hydraulic unit.
– Solenoid valve driver (transistor) which controls
each solenoid valves in ABS hydraulic unit.
– Pump motor driver (transistor) which supplies
power to pump motor in ABS hydraulic unit.
• G sensor which detects body deceleration speed for
4WD model.
This ABS is equipped with Electronic Brake force
Distribution (EBD) system that controls a fluid pressure
of rear wheels to best condition, which is the same
function as that of proportioning valve, by the signal from
wheel sensor independently of change of load due to
load capacity and so on. And if the EBD system fails to
operate properly, the brake warning light lights to inform
abnormality.

Downloaded from www.Manualslib.com manuals search engine 4E-3 ABS:
ABS Hydraulic Unit / Control Module Assembly
Description
S6RW0D4501002
ABS control module is a component of ABS hydraulic
unit / control module assembly and has the following
functions.
Self-Diagnosis Function
ABS control module diagnoses conditions of the system
component parts (whether or not there is any
abnormality) all the time and indicates the results
(warning of abnormality occurrence and DTC) through
the ABS warning light as described.• When ignition switch is turned ON, ABS warning light
lights for 2 seconds to check its circuit.
• When no abnormality has been detected (the system
is in good condition), ABS warning light turns OFF
after 2 seconds.
• When an abnormality in the system is detected, ABS
warning light lights and the area where that
abnormality lies is stored in the memory of EEPROM
in ABS control module.
CAN Communication System DescriptionS6RW0D4501003
Refer to “CAN Communication System Description in Section 1A” for CAN communication system description. ABS
control module communicates control data with each control module as follows.
ABS Control Module Transmission Data
1
I4RS0A450001-01
Wheel speed signal (Front-right)
Wheel speed signal (Front-left)
Wheel speed signal (Rear-right)
Wheel speed signal (Rear-left)
ABS active
ABS indication
EBD indicationCombination Meter
TransmitDATA
ABS control module ECM 4WD control module
I7RW01450001-06

Downloaded from www.Manualslib.com manuals search engine ABS: 4E-4
Schematic and Routing Diagram
ABS SchematicS6RW0D4502001
13
2
8
6
5 7
12
4
15
17
1614
9
18
19
11 10
20
21221323
INPUTOUTPUT
ABS control module
Wheel speed sensor (LR)
Wheel speed sensor (RF)
G sensor
(4WD model only)Wheel speed sensor (LF)Pump motor
driver (transistor)
Solenoid valve power
supply driver (transistor)Hydraulic unit
Pump motor
LF inlet solenoid valve
LF outlet solenoid valve
LR inlet solenoid valve
LR outlet solenoid valve
RF inlet solenoid valve
RF outlet solenoid valve
RR inlet solenoid valve
RR outlet solenoid valve
“ABS” warning lamp
“EBD” warning lamp
(Brake warning lamp)Data link connector
ABS hydraulic unit/control
module assembly
Wheel speed sensor (RR)
Brake light switch
CAN driver
Combination meter
Wheel speed signal
ECM
Wheel speed signal
ABS avtive signal
ABS avtive signal
4WD control module
(4WD model only)
Solenoid valve
driver (transistor)
I7RW01450016-01

Downloaded from www.Manualslib.com manuals search engine 4E-5 ABS:
ABS Wiring Circuit DiagramS6RW0D4502002 1. ABS hydraulic unit / control module assembly 9. Brake light switch 17. Wheel speed sensor (Left-rear)
2. ABS control module 10. ABS warning light 18. Battery
3. ABS hydraulic unit 11. EBD warning light (Brake warning light) 19. Ignition switch
4. Solenoid valve power supply driver (transistor)12. Light driver module 20. G sensor (4WD model)
5. Solenoid valve driver (transistor) 13. Data link connector 21. ECM
6. Pump motor driver (transistor) 14. Wheel speed sensor (Right-front) 22. Combination meter
7. Solenoid valve 15. Wheel speed sensor (Left-front) 23. 4WD control module
8. Pump motor 16. Wheel speed sensor (Right-rear)
BLU
WHT12VGRN/ORN 34
30E08-9
RED
WHT26
WHT/RED
12V
E08-7
19GRN
GRN
E08-16
12V
21REDRED/BLK
12V
BLKWHTE08-22 E08-11
23BLKWHTLT GRN/BLKLT GRN
12V
E08-10 E08-21
E08-23
E08-26
E08-1E08-12
24BLKWHT
12V
YELBRNE08-19 E08-2027
1 2
E08-6
9
9
9
WHTRED
12VE08-25
M
BLK
BLK
WHT/BLUWHT/RED
WHT/BLUE08-24
WHT
E08 [C] [A]
1
2
3
4
5
6
7 12
13
14
15
16
17
18
19
20
21
228
9
10
11
23
24
25
26
GRN/WHT
22
12V
BLKWHTWHTWHT/BLKE08-17 E08-18
GRN/ORN28
2033
31
29
25
32
GRN/YELE08-3GRN/BLK10
8
17
18
+BB
RED/BLKRED/BLK
REDWHTREDWHT
RED
BLK
WHT
14 13 12 76 5
1516
REDWHT
11
RED
WHT
9 9
E08-13E08-2
99
I6RW0D450004-01
