Page 651 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle:  5A-3

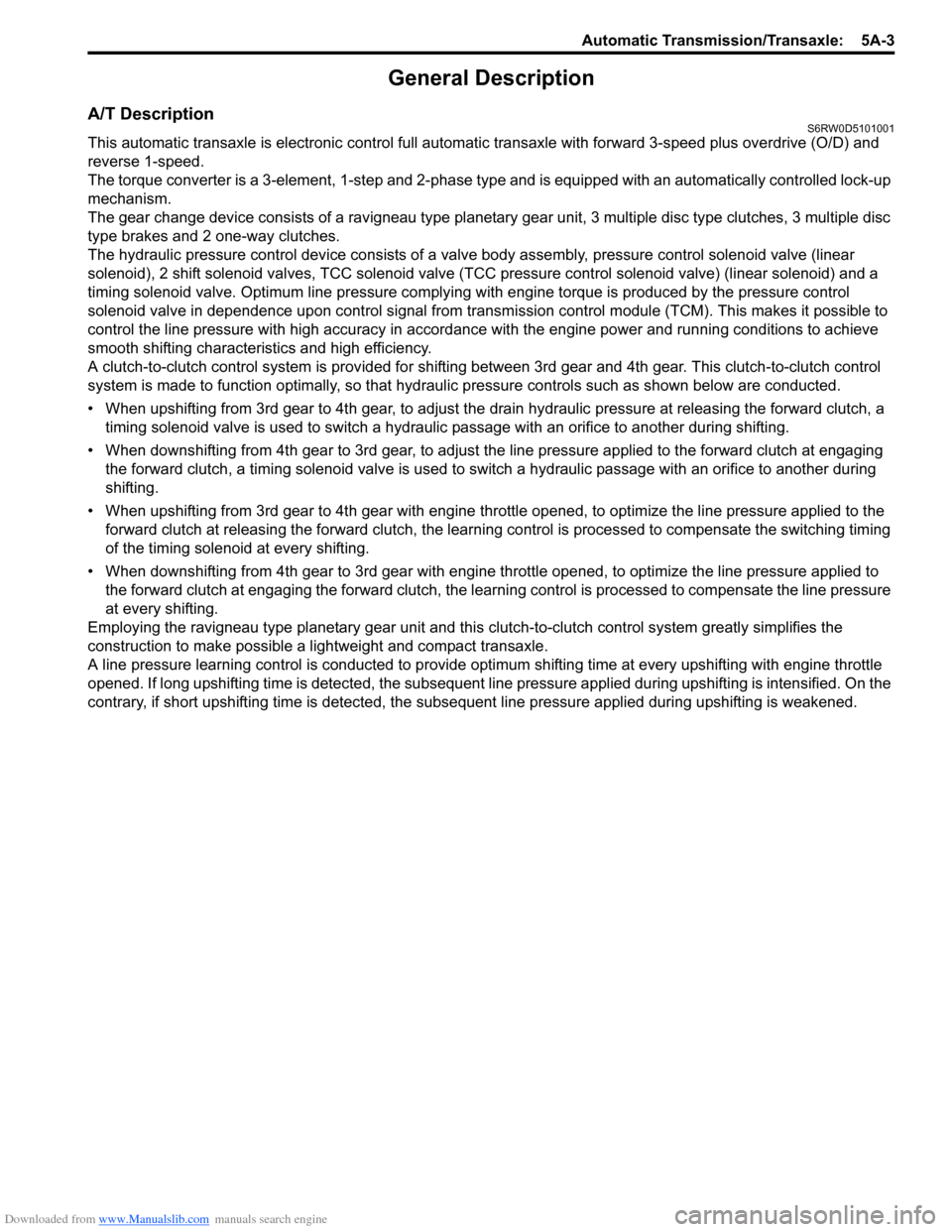

General Description
A/T DescriptionS6RW0D5101001
This automatic transaxle is electronic control full au

Page 652 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 5A-4 Automatic Transmission/Transaxle:
I5RW0C510070-01
1. Drive plate 11. 1st and reverse brake 21. Rear sun gear
2. Torque converter clutch (

Page 653 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle:  5A-5

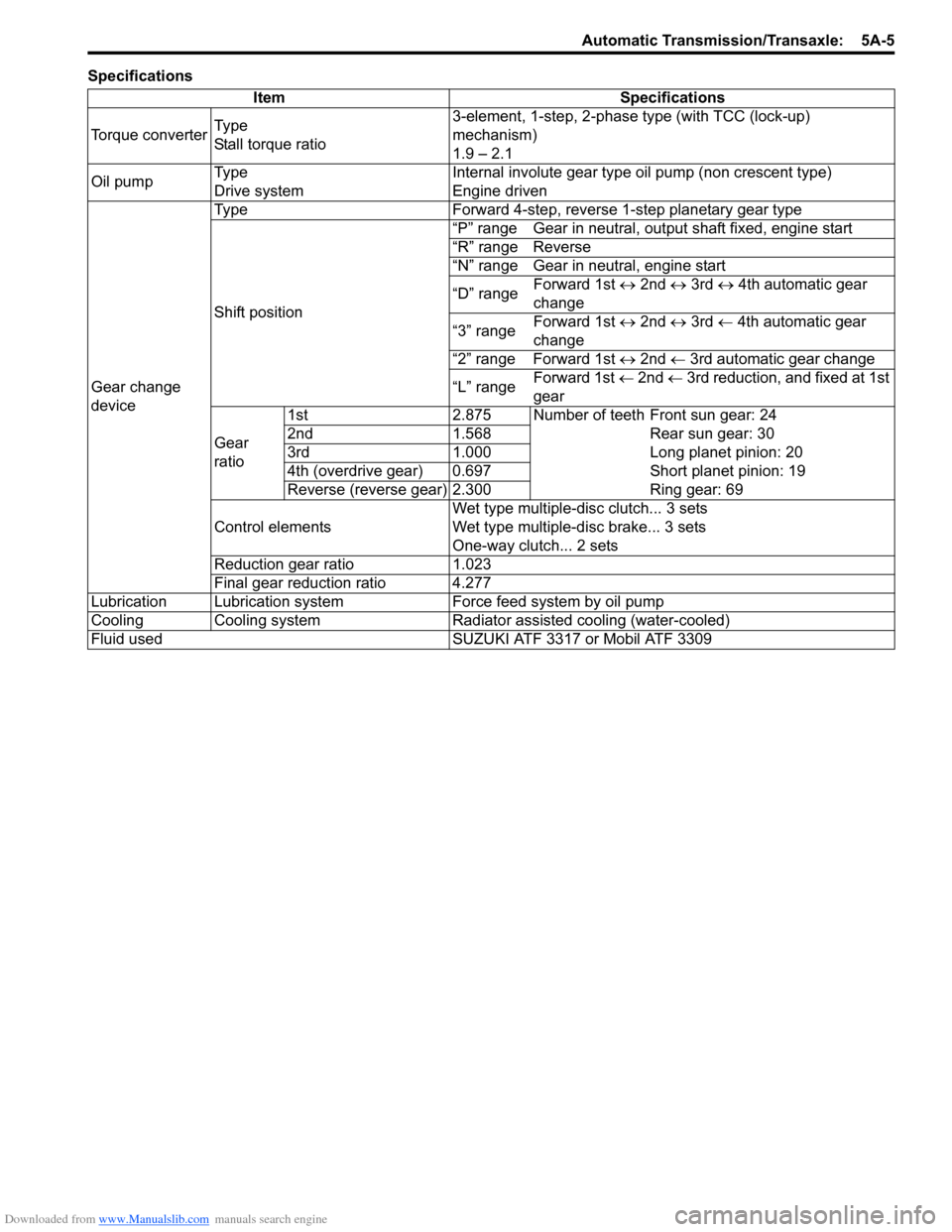

Specifications
Item Specifications
Torque converterTy p e
Stall torque ratio3-element, 1-step, 2-phas

Page 654 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 5A-6 Automatic Transmission/Transaxle:

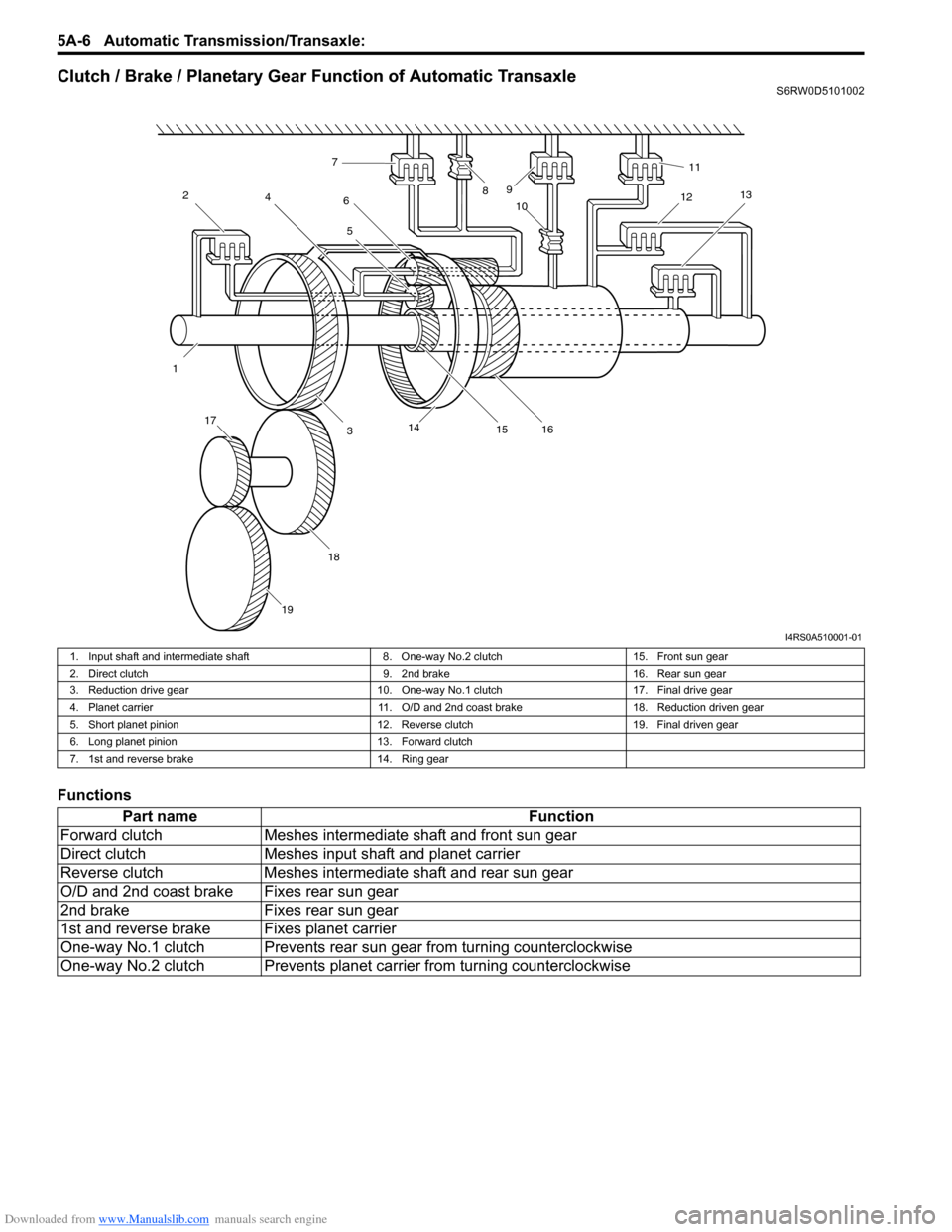

Clutch / Brake / Planetary Gear Function of Automatic TransaxleS6RW0D5101002
Functions
12
4
3 5 6 7
89

Page 655 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle:  5A-7
Table of Component OperationS6RW0D5101003
�{: ON
×: OFF
�U: ON only when TCC is operating
A/T Diagnosi

Page 656 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 5A-8 Automatic Transmission/Transaxle:
On-Board Diagnostic System DescriptionS6RW0D5101005
NOTE
There are two types of OBD system
depending o

Page 657 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle:  5A-9

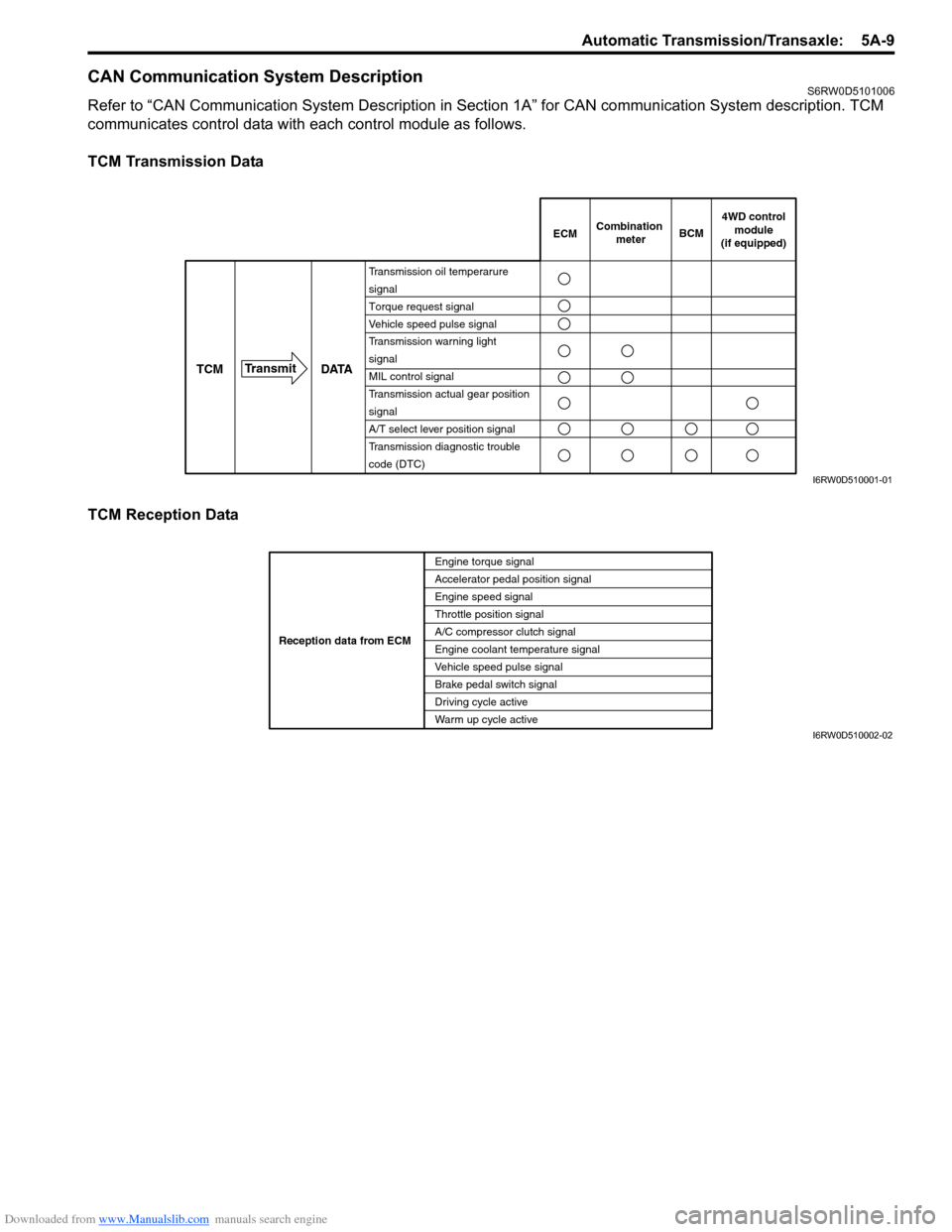

CAN Communication System DescriptionS6RW0D5101006
Refer to “CAN Communication System Description in S

Page 658 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 5A-10 Automatic Transmission/Transaxle:
Schematic and Routing Diagram
Transmission Control Module (TCM) Wiring DiagramS6RW0D5102001
12V
12V
12

Page 659 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle:  5A-11

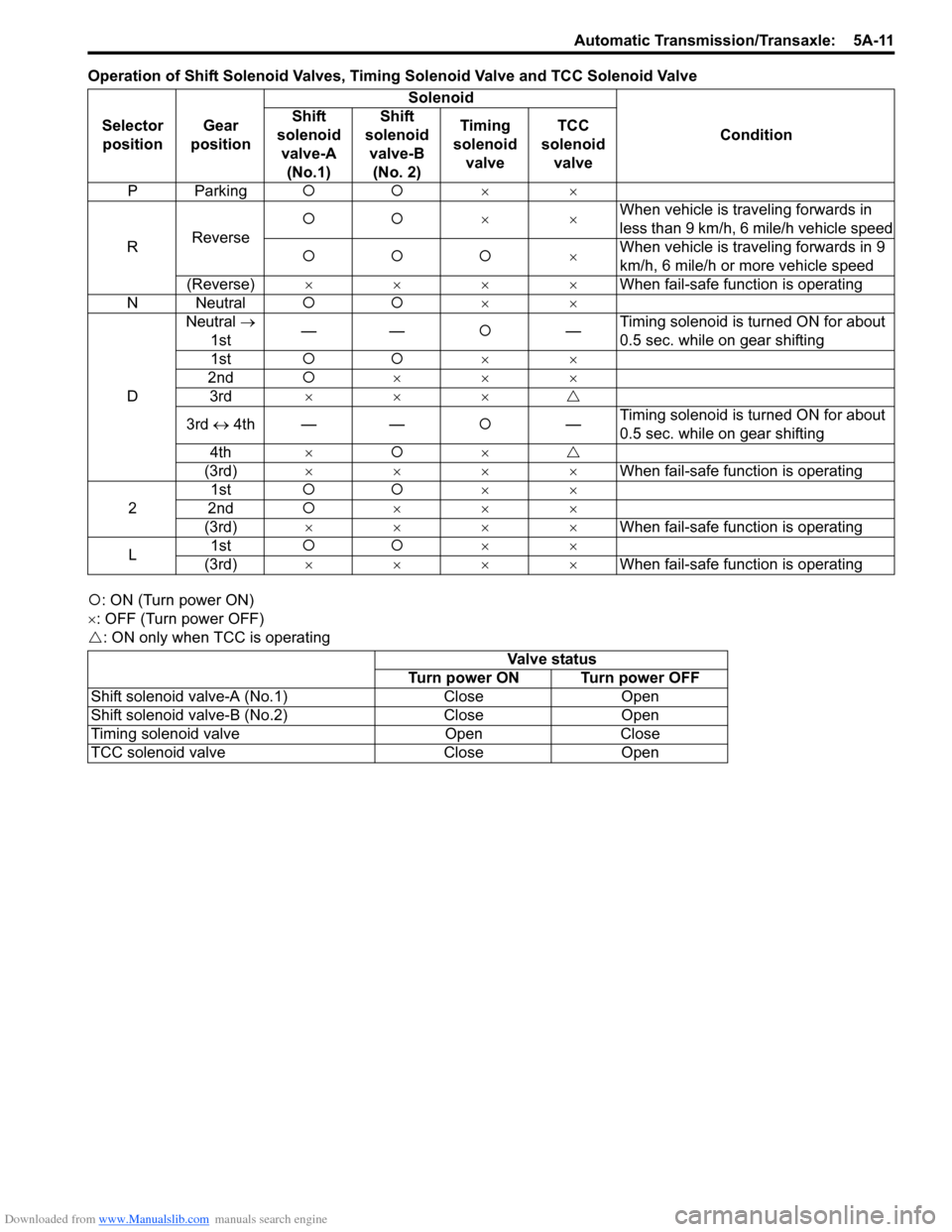

Operation of Shift Solenoid Valves, Timing Solenoid Valve and TCC Solenoid Valve
�{: ON (Turn power ON

Page 660 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 5A-12 Automatic Transmission/Transaxle:

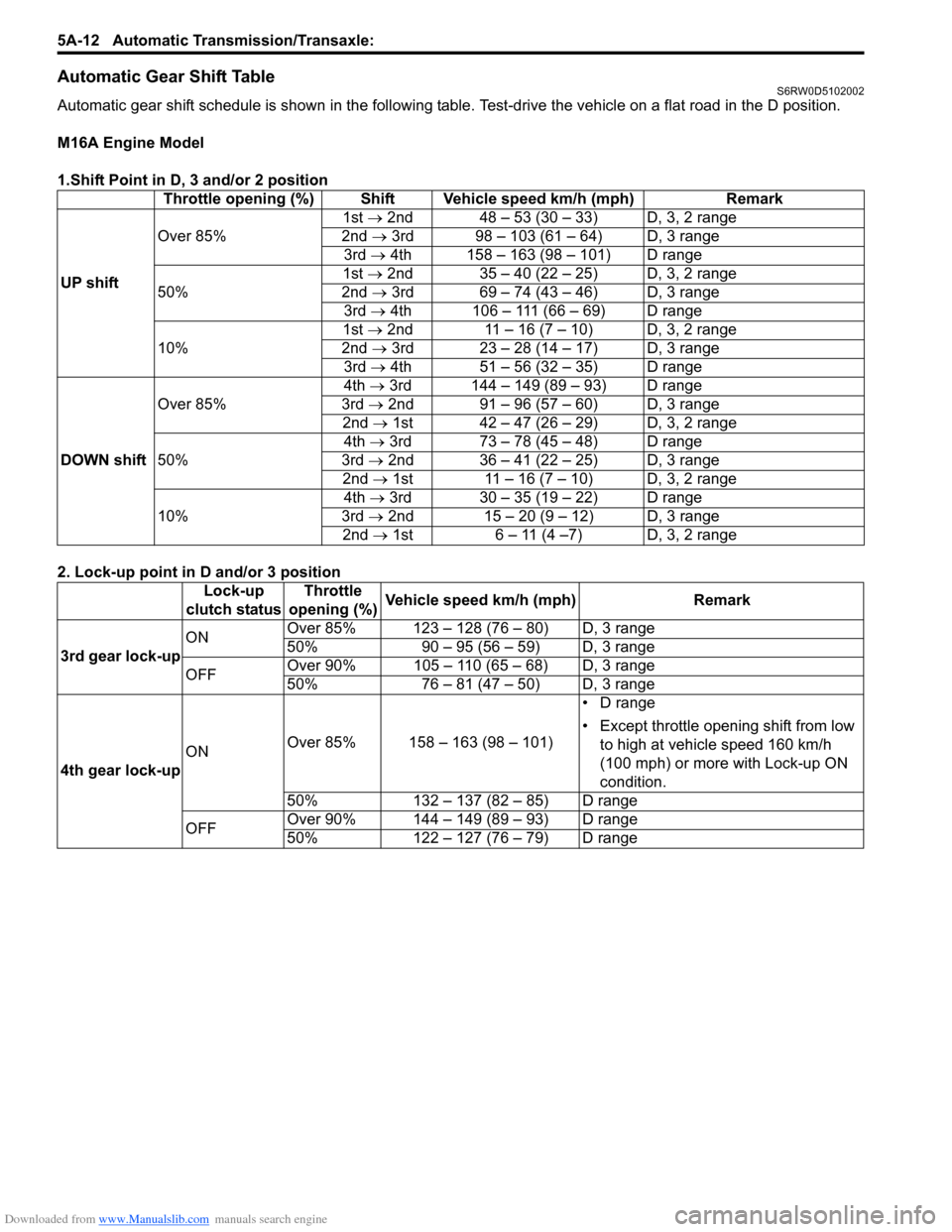

Automatic Gear Shift TableS6RW0D5102002
Automatic gear shift schedule is shown in the following table.
