TESLA MODEL Y 2020 Owner´s Manual

Controlling the Passenger Front Airbag
Model Y has an occupancy sensor in the front passenger seat that controls the status of the front airbag.
NOTE: The occupancy classification system (OCS) meets the regulatory requirement of FMVSS 208 and
automatically detects when
inflating the passenger front airbag would be unnecessary or potentially harmful.
WARNING: Seating an infant in a rear facing child safety seat on a seat equipped with an operational airbag
can cause serious injury or death.
Object ClassificationOCS Passenger
Airbag Status*Indicator statusNotesEmptyOFFPASSENGER AIRBAG OFF ObjectOFF or ONPASSENGER AIRBAG OFF or
PASSENGER AIRBAG ONDepends on material/
contents.Rear facing child seat
designed for children up to a
year oldOFFPASSENGER AIRBAG OFF20 lbs (9 kg) or lessForward facing child seatOFFPASSENGER AIRBAG OFF35 lbs (16 kg) or lessChild in a booster seatOFF or ONPASSENGER AIRBAG OFF or
PASSENGER AIRBAG ON20-100 lbs (9-45 kg)*Large childOFF or ONPASSENGER AIRBAG OFF or
PASSENGER AIRBAG ON 5th percentile female or
larger (by weight)ONPASSENGER AIRBAG ONOver approximately 100 lbs
(45 kg)
*If the passenger airbag status indicator does not match the situation, do not use the seat. The passenger must
ride in a
different seat. Contact Tesla Service.
NOTE: It takes approximately six seconds after you power on Model Y for the occupant classification system (OCS)
to report accurate status of the front passenger airbag. As a result, when you
first power on Model Y, even in
situations when it should be OFF because the seat is occupied by a weight of
20 lbs (9 kg) or less, it will take the
touchscreen approximately six seconds to display the status, PASS AIRBAG OFF. If it fails to do so, contact Tesla
Service and do not seat a child in the front passenger seating position.
To make sure the sensing system can correctly detect occupancy status, eliminate the following:

WARNING: If seating a child in the front passenger seat is legally permissible in your market region, it is the
driver

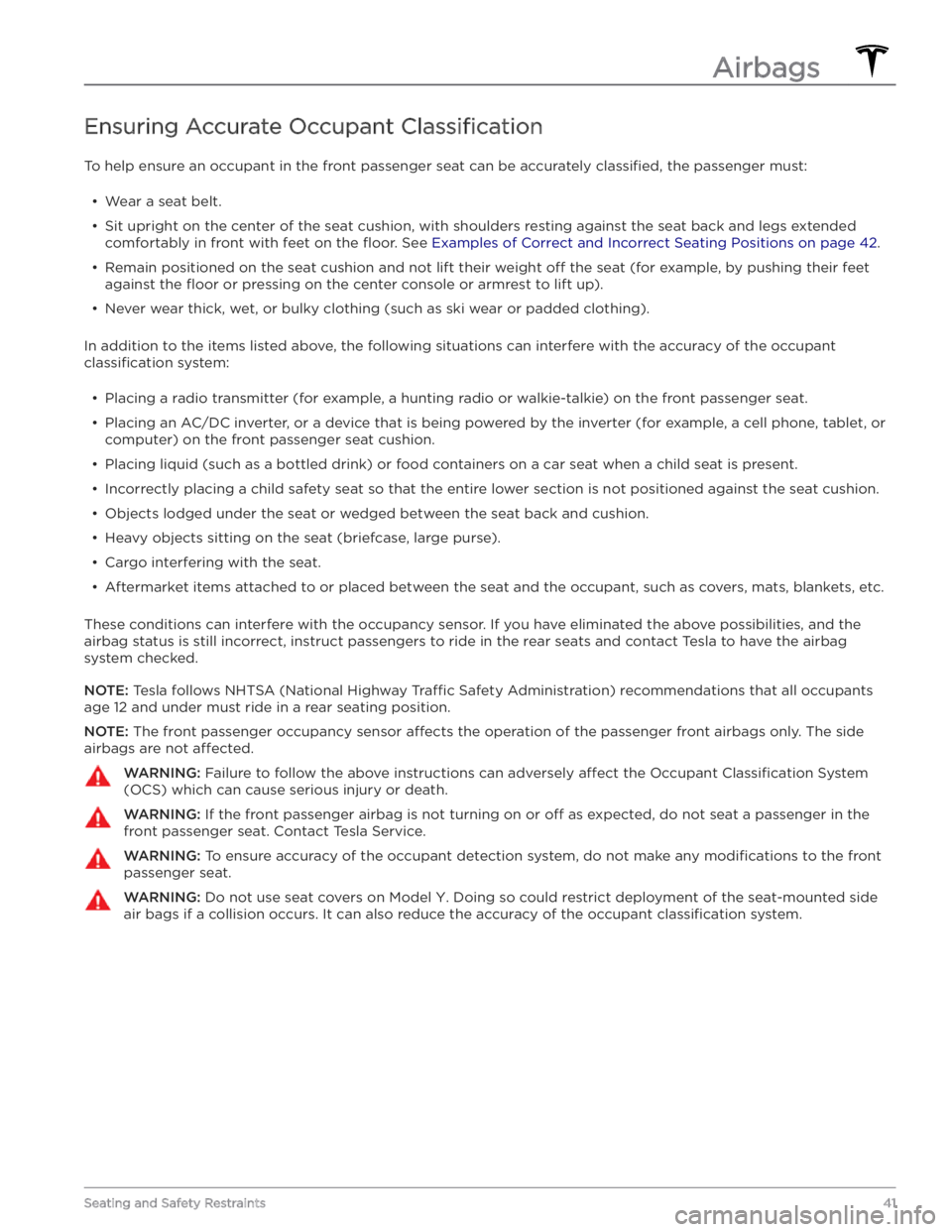

Ensuring Accurate Occupant Classification
To help ensure an occupant in the front passenger seat can be accurately classified, the passenger must:

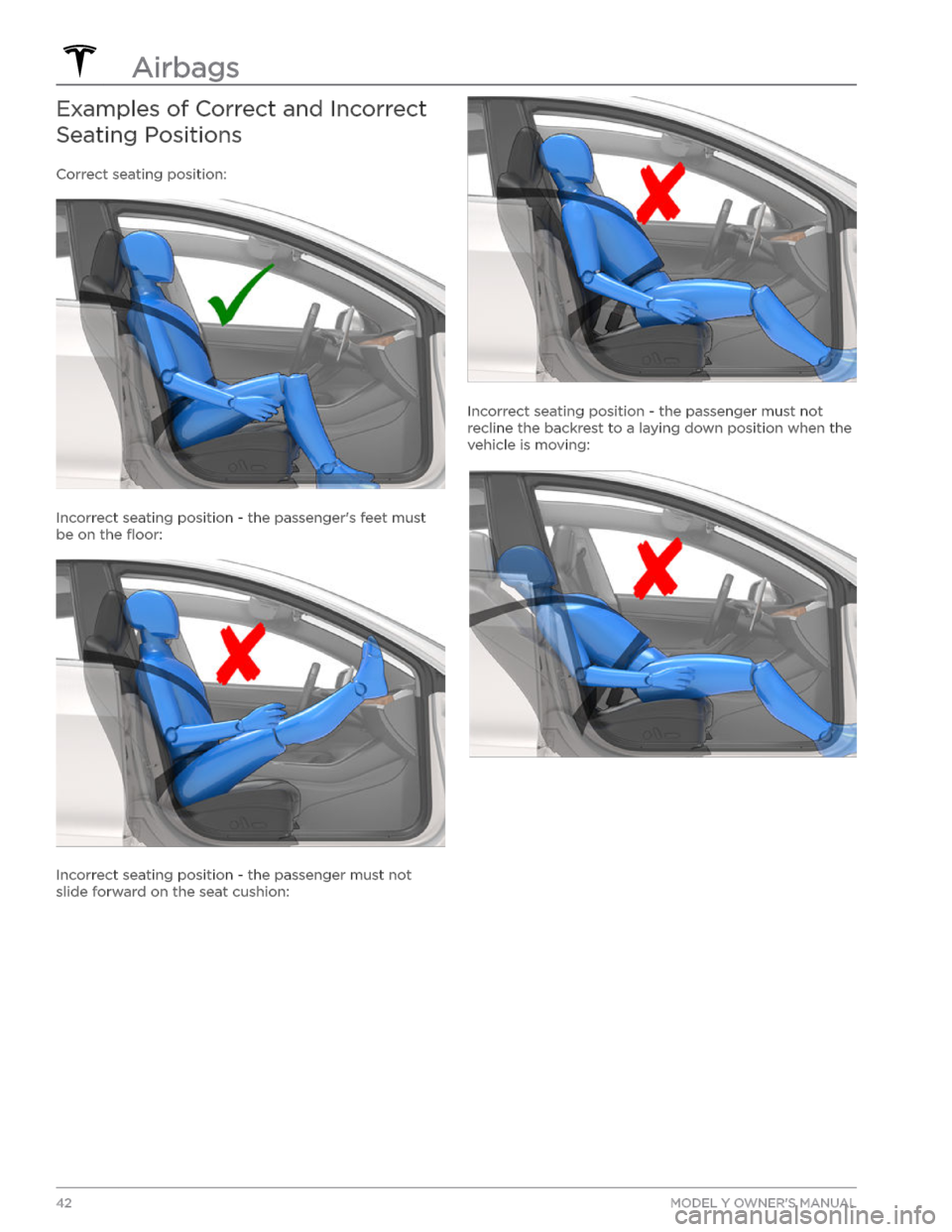

Examples of Correct and Incorrect
Seating Positions
Correct seating position:
Incorrect seating position - the passenger

Inflation EffectsWARNING: When airbags inflate, a fine powder is
released. This powder can irritate the skin and
should be thoroughly flushed from the eyes and
from any cuts or abrasions.
After inflation, the airbags deflate to provide a gradual
cushioning
effect for the occupants and to ensure the
driver’s forward vision is not obscured.
If airbags have inflated, or if your vehicle has been in a
collision, your vehicle requires servicing before it will power up. In addition, your airbags, seat belt pre-tensioners and any associated components must be checked, and if necessary, replaced. Contact Tesla
Service immediately.
In a collision, in addition to the airbags inflating:

Creating a Driver Profile
When you first adjust the driver’s seat, steering wheel,
or driver’s side mirror, the touchscreen prompts you to create a driver
profile to save these adjustments. Your
profile also saves some of the preferences you make
using the touchscreen

Scroll Buttons
A scroll button is located on each side of the steering wheel. Use your thumb to press this button to the right or left. You can also press the button or roll it up or down.
1.
Use the left scroll button to:


The only way to really know which option you like best is
to try them.
Horn
To sound the horn, press the center pad on the steering wheel.
Steering Wheel
47Driving

Adjusting Exterior Mirrors
Adjust the exterior mirrors by touching Controls > Quick
Controls > Mirrors. You can choose which mirror you
would like to adjust by selecting
Left or Right on the
touchscreen. Use the left scroll button on the steering wheel to adjust the mirror to its desired position:
NOTE: You can also press the left scroll button to
change which mirror you are adjusting.
