seat adjustment TESLA ROADSTER 2008 Owners Manual

3-1

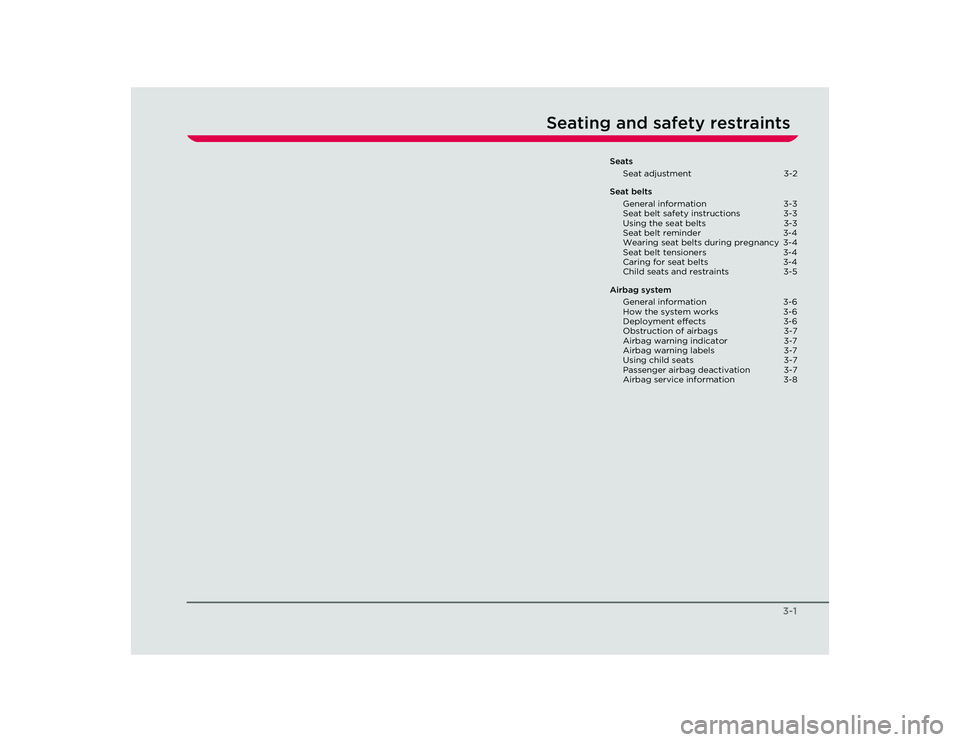

Seating and safety restraints
SeatsSeat adjustment 3-2
Seat belts General information 3-3
Seat belt safety instructions 3-3
Using the seat belts 3-3
Seat belt reminder 3-4
Wearing seat belts during pregnancy 3-4
Seat belt tensioners 3-4
Caring for seat belts 3-4
Child seats and restraints 3-5
Airbag system General information 3-6
How the system works 3-6
Deployment effects 3-6
Obstruction of airbags 3-7
Airbag warning indicator 3-7
Airbag warning labels 3-7
Using child seats 3-7
Passenger airbag deactivation 3-7
Airbag service information 3-8
Roadster OHB.book Page 1 Thursday, October 2, 2008 8:59 AM

Seats3-2Seating and safety restra
ints
Seating and Safety Restraints

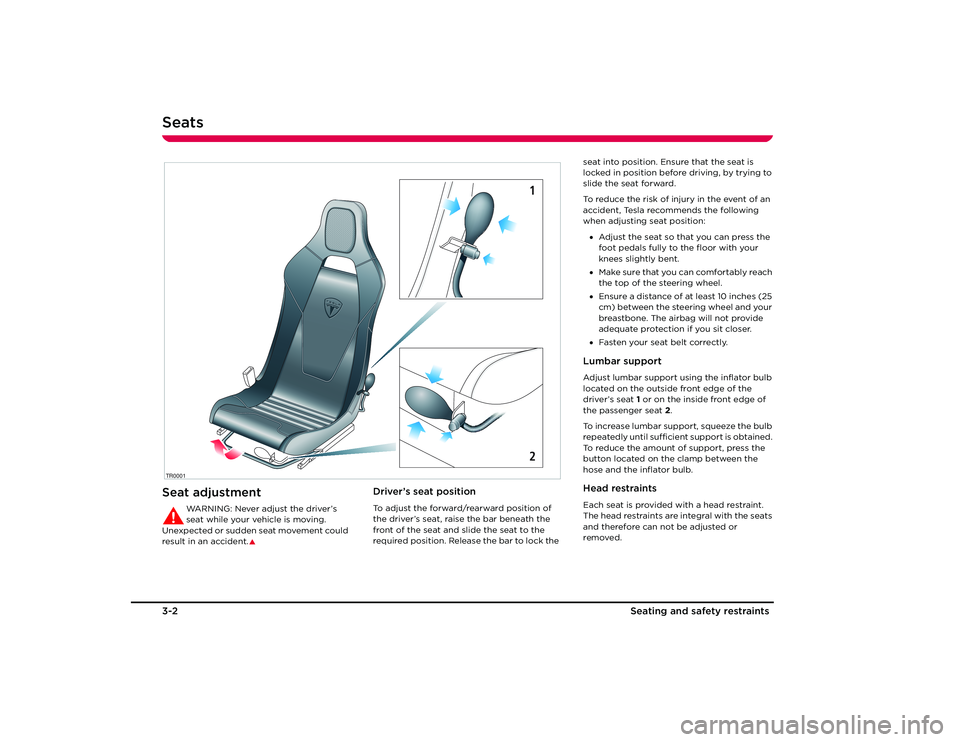

Seat adjustment
WARNING: Never adjust the driver’s
seat while your vehicle is moving.
U n ex p e c t e d o r s u d d e n s e at m ove m e n t co u l d
result in an accident.
S
Driver’s seat positionTo adjust the forward/rearward position of
the driver’s seat, raise the bar beneath the
front of the seat and slide the seat to the
required position. Release the bar to lock the
TR0001
12
seat into position. Ensure that the seat is
locked in position before driving, by trying to
slide the seat forward.
To reduce the risk of injury in the event of an
accident, Tesla recommends the following
when adjusting seat position:
• Adjust the seat so that you can press the
foot pedals fully to the floor with your
knees slightly bent.
• Make sure that you can comfortably reach
the top of the steering wheel.
• Ensure a distance of at least 10 inches (25
cm) between the steering wheel and your
breastbone. The airbag will not provide
adequate protection if you sit closer.
• Fasten your seat belt correctly.Lumbar supportAdjust lumbar support using the inflator bulb
located on the outside front edge of the
driver’s seat 1 or on the inside front edge of
the passenger seat 2 .
To increase lumbar support, squeeze the bulb
repeatedly until sufficie nt support is obtained.
To reduce the amount of support, press the
button located on the clamp between the
hose and the inflator bulb.Head restraintsEach seat is provided with a head restraint.
The head restraints are integral with the seats
and therefore can not be adjusted or
removed.
Roadster OHB.book Page 2 Th ursday, October 2, 2008 8:59 AM

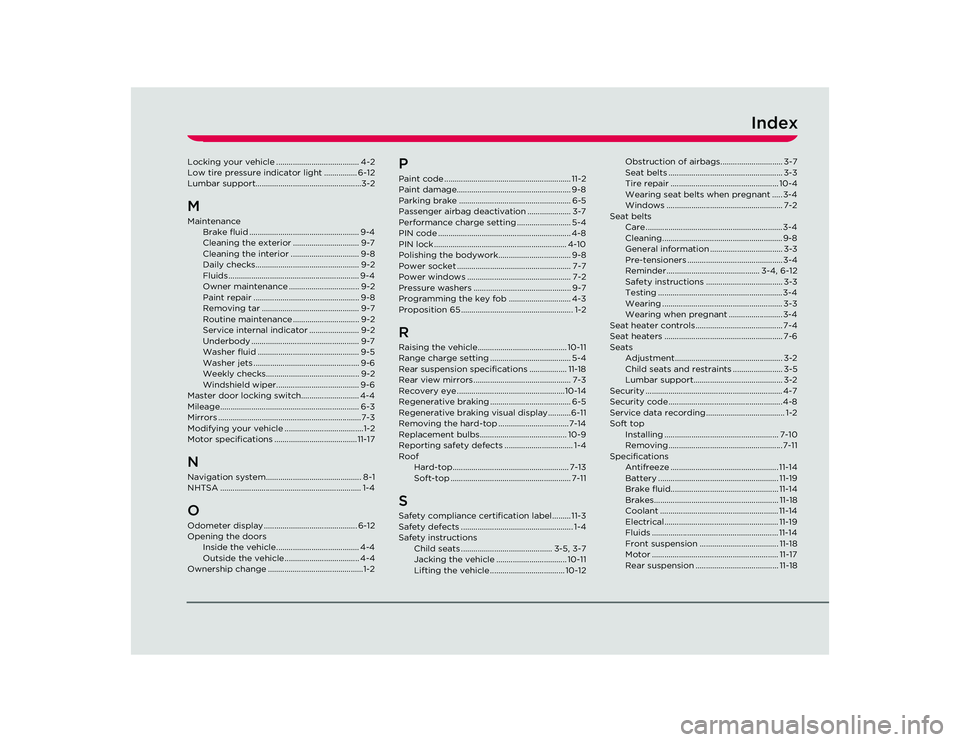

Index
Locking your vehicle ........................................ 4-2
Low tire pressure indicator light ................ 6-12
Lumbar support...................................................3-2MMaintenanceBrake fluid ..................................................... 9-4
Cleaning the exterior ................................ 9-7
Cleaning the interior ................................. 9-8
Daily checks.................................................. 9-2
Fluids ............................................................... 9-4
Owner maintenance .................................. 9-2
Paint repair ................................................... 9-8
Removing tar ............................................... 9-7
Routine maintenance ................................ 9-2
Service internal indicator ........................ 9-2
Underbody .................................................... 9-7
Washer fluid ................................................. 9-5
Washer jets ................................................... 9-6
Weekly checks............................................. 9-2
Windshield wiper........................................ 9-6
Master door locking switch............................ 4-4
Mileage................................................................... 6-3
Mirrors .....................................................................7-3
Modifying your vehicle ......................................1-2
Motor specifications ........................................11-17NNavigation system.............................................. 8-1
NHTSA .................................................................... 1-4OOdometer display ............................................. 6-12
Opening the doors Inside the vehicle........................................ 4-4
Outside the vehicle .................................... 4-4
Ownership change ..............................................1-2
PPaint code ............................................................. 11-2
Paint damage....................................................... 9-8
Parking brake ...................................................... 6-5
Passenger airbag deactivation ..................... 3-7
Performance charge setting .......................... 5-4
PIN code ................................................................ 4-8
PIN lock ................................................................ 4-10
Polishing the bodywork................................... 9-8
Power socket ....................................................... 7-7
Power windows .................................................. 7-2
Pressure washers ............................................... 9-7
Programming the key fob .............................. 4-3
Proposition 65 ...................................................... 1-2RRaising the vehicle........................................... 10-11
Range charge setting ....................................... 5-4
Rear suspension specifications .................. 11-18
Rear view mirrors............................................... 7-3
Recovery eye ....................................................10-14
Regenerative braking ....................................... 6-5
Regenerative braking visual display ...........6-11
Removing the hard-top ..................................7-14
Replacement bulbs.......................................... 10-9
Reporting safety defects ................................. 1-4
Roof Hard-top........................................................ 7-13
Soft-top .......................................................... 7-11SSafety compliance certification label......... 11-3
Safety defects ...................................................... 1-4
Safety instructionsChild seats ............................................ 3-5, 3-7
Jacking the vehicle .................................. 10-11
Lifting the vehicle .................................... 10-12 Obstruction of airbags.............................. 3-7
Seat belts ....................................................... 3-3
Tire repair .................................................... 10-4
Wearing seat belts when pregnant ..... 3-4
Windows ........................................................ 7-2
Seat belts Care .................................................................. 3-4
Cleaning.......................................................... 9-8
General information ................................... 3-3
Pre-tensioners .............................................. 3-4
Reminder............................................. 3-4, 6-12
Safety instructions ..................................... 3-3
Testing ............................................................ 3-4
Wearing .......................................................... 3-3
Wearing when pregnant .......................... 3-4
Seat heater controls.......................................... 7-4
Seat heaters ......................................................... 7-6
Seats Adjustment.................................................... 3-2
Child seats and restraints ........................ 3-5
Lumbar support........................................... 3-2
Security .................................................................. 4-7
Security code .......................................................4-8
Service data recording...................................... 1-2
Soft top Installing ....................................................... 7-10
Removing .......................................................7-11
Specifications Antifreeze .................................................... 11-14
Battery .......................................................... 11-19
Brake fluid.................................................... 11-14
Brakes............................................................ 11-18
Coolant ......................................................... 11-14
Electrical....................................................... 11-19
Fluids ............................................................. 11-14
Front suspension ...................................... 11-18
Motor ............................................................. 11-17
Rear suspension ........................................ 11-18
