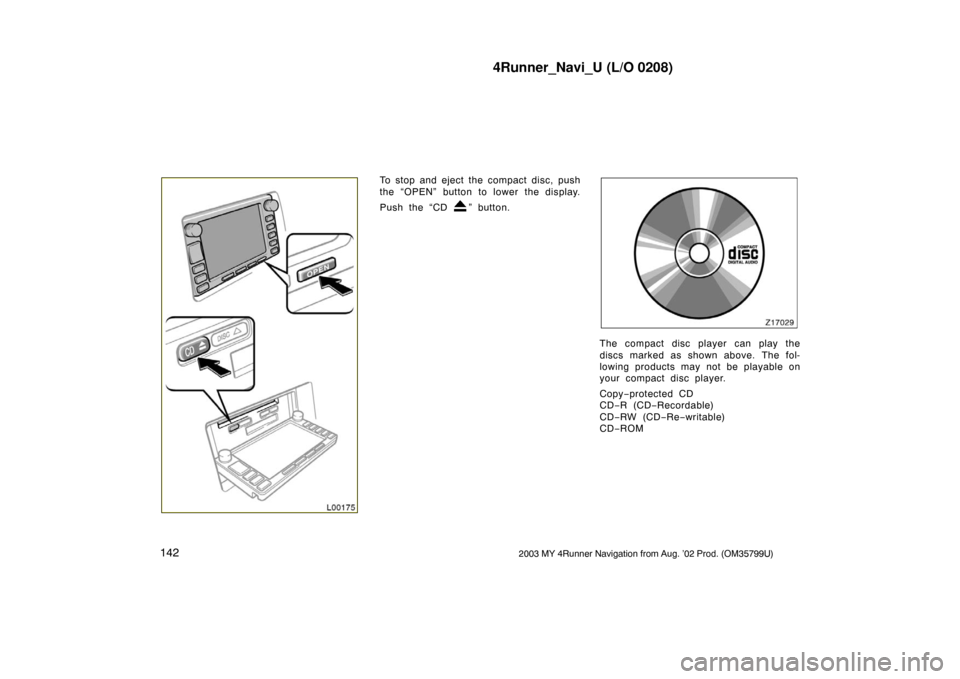

(g) Your DVD player
If your Toyota is equipped with a DVD
player with changer, it can play selected
discs or continuously play all the discs
set in the magazine.
When you set discs into the magazine,
make sure they face in the correct way.
If not, “DISC CHECK” and the disc num-
ber appears on the screen.
NOTICE
Never try to disassemble or oil any
part of the DVD player. Do not insert
anything except appropriate discs
into the magazine.
The player is intended for use with 12
cm (4.7 in.) discs only.
L00171
(a) Listening to the radio
Push these buttons to choose either
an AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
L00170
Turn the knob clockwise to step up
the station band or counterclockwise
to step down.
Your radio automatically changes to ste-
reo reception when a stereo broadcast is
received. “ST” appears on the screen. If
the signal becomes weak, the radio re-
duces the amount of channel separation
to prevent the weak signal from creating
noise. If the signal becomes extremely
weak, the radio switches from stereo to
mono reception. In this case, “ST” disap-
pears from the screen.
—Radio operation

4Runner_Navi_U (L/O 0208)
1342003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

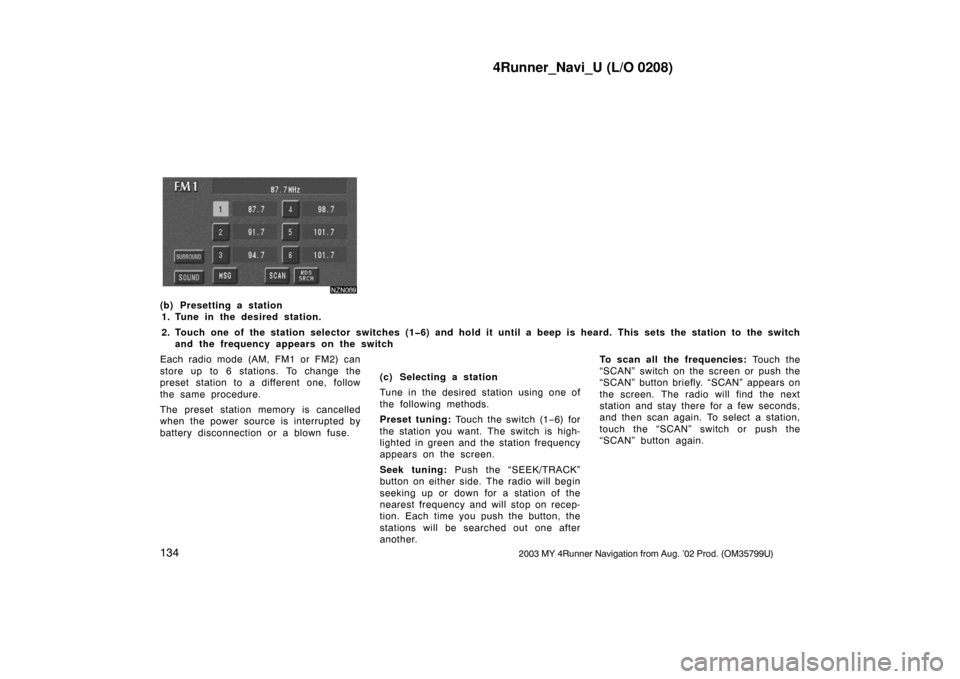

(b) Presetting a station1. Tune in the desired station.
2. Touch one of the station selector switch es (16) and hold it until a beep is heard. This sets the station to the switch
and the frequency appears on the switch
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the
preset station to a different one, follow
the same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse. (c) Selecting a station
Tune in the desired station using one of
the following methods.
Preset tuning: Touch the switch (1
−6) for
the station you want. The switch is high-
lighted in green an d the station frequency
appears on the screen.
Seek tuning: Push the “SEEK/TRACK”
button on either side. The radio will begin
seeking up or down for a station of the
nearest frequency and will stop on recep-
tion. Each time you push the button, the
stations will be searched out one after
another. To scan all the frequencies:
Touch the
“SCAN” switch on the screen or push the
“SCAN” button briefly. “SCAN” appears on
the screen. The radio will find the next
station and stay ther e for a few seconds,
and then scan again. To select a station,
touch the “SCAN” switch or push the
“SCAN” button again.

4Runner_Navi_U (L/O 0208)
1352003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
To scan the preset stations: Touch the
“SCAN” switch on the screen or push the
“SCAN” button for longer than 2 seconds.
“P. SCAN” appears on the screen. The
radio will tune in the next preset station,
stay there for a few seconds, and then
move to the next preset station. To select
a station, touch the “SCAN” switch or
push the “SCAN” button again.
(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode pro-
vides you to receive text messages from
radio stations that utilize RDS transmit-
ters.
When RDS is on, the radio can
—only select stations of a particular pro-
gram type,
—display messages from radio stations,
—search for a stronger signal station,
—search for local stations broadcasting
the same network as the vehicle travels,
—receive announcements concerning lo-
cal and national emergencies (even if
RDS function is turned off).
RDS features are available for the use
only on FM stations which broadcast RDS
information. “RDS SRCH” (RDS search) switch
This switch allows you to search all avail-
able RDS stations out of the entire FM
band and sort them by program type
(See following “TYPE” switch for details
on program types).
By touching this button at the FM mode,
RDS is turned on and the radio is
switched to FM type mode. During the
program type search, “RDS SEARCH” will
be shown on the screen. Also at this
time, “FM TYPE” will appear on the
screen to indicate that the station selec-
tor switches are for program type.
After searching for all the available RDS
stations, the radio will activate the pre-
viously used program type. If the pre-
viously used program type is not avail-
able, or if the radio has not yet
performed a program type search, the
radio will activate the first available pro-
gram type that has stations in memory.
The radio will preset the stations of the
current program type into the preset but-
tons.
These are accessible through the “TYPE”
switch. If more than 6 stations are found,
the radio will load the 6 strongest sta-
tions signal of the program type into the
presets.

4Runner_Navi_U (L/O 0208)
1362003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
If no RDS stations are found, “No RDS
Stations Found” will be displayed and the
beep sounds. Then the radio will return
to the previous FM mode and frequency.

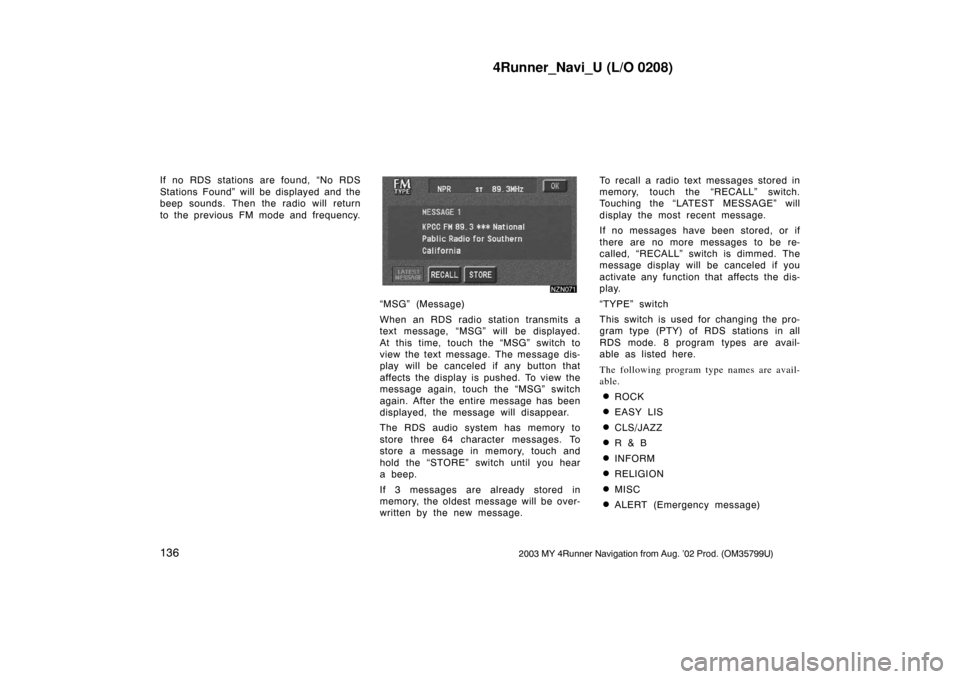

NZN071
“MSG” (Message)
When an RDS radio station transmits a
text message, “MSG” will be displayed.
At this time, touch the “MSG” switch to
view the text message. The message dis-
play will be canceled if any button that
affects the display is pushed. To view the
message again, touch the “MSG” switch
again. After the entire message has been
displayed, the message will disappear.
The RDS audio system has memory to
store three 64 character messages. To
store a message in memory, touch and
hold the “STORE” switch until you hear
a beep.
If 3 messages are already stored in
memory, the oldest message will be over-
written by the new message.To recall a radio text messages stored in
memory, touch the “RECALL” switch.
Touching the “LATEST MESSAGE” will
display the most recent message.
If no messages have been stored, or if
there are no more messages to be re-
called, “RECALL” switch is dimmed. The
message display will be canceled if you
activate any function that affects the dis-
play.
“TYPE” switch
This switch is used for changing the pro-
gram type (PTY) of RDS stations in all
RDS mode. 8 program types are avail-
able as listed here.
The following program type names are avail-
able.
ROCK
EASY LIS
CLS/JAZZ
R & B
INFORM
RELIGION
MISC
ALERT (Emergency message)

4Runner_Navi_U (L/O 0208)
1372003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
L00179
(e) Traffic broadcast station search
“TRAF” button
This button turns the traffic broadcast
station search feature on and off when
you are turning the FM radio on.
During a traffic broadcast station search,
“TRAF SEEK” will display. If the radio
finds a traffic broadcast station, it will
stop searching. If no traffic broadcast
stations are found, “NOTHING” will dis-
play.L00172
(a) Playing a cassette tape
To insert a cassette tape, push the
“OPEN” button to lower the display.
Put the cassette tape in the slot with
the exposed tape side to the right and
lightly push it in.
The player will automatically start when
you insert the cassette tape. At this time,
“Tape” appears on the screen.
If a metal or chrome equivalent cassette
tape is put in the cassette player, the
player will automatically adapt to it and
“MTL” appears on the screen.
CAUTION
Do not place anything on the
opened display, as such items may
be thrown about in the compart-
ment and possibly injure people in
the vehicle during sudden braking
or in an accident.
To reduce the chance of injury in
case of an accident or sudden
stop while driving, keep the dis-
play closed.
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
—Cassette tape player
operation

4Runner_Navi_U (L/O 0208)
1382003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
NOTICE
Do not obstruct the display while it
is moving. It could damage your au-
dio system.

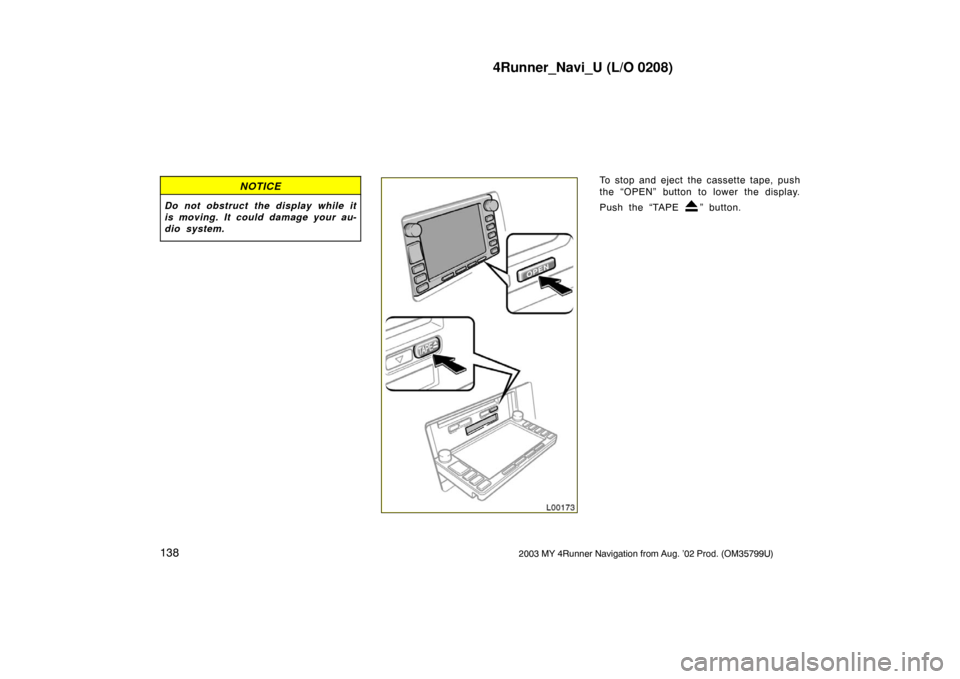

L00173
To stop and eject the cassette tape, push
the “OPEN” button to lower the display.
Push the “TAPE
” button.

4Runner_Navi_U (L/O 0208)
1392003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
L00177
Push the “TAPE” button if a cassette
tape is already in the slot.
Dolby Noise Reduction
∗ feature: If you
are listening to a tape that was recorded
with Dolby
∗ Noise Reduction, touch the
“
” switch on the screen. The symbol
is highlighted in green.
The Dolby NR mode reduces tape noise by
about 10 dB. For best sound reproduction,
play your tapes with the Dolby NR on or off
according to the mode used for recording the
tape.
To play a tape recorded without Dolby NR,
touch the switch once again.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
(b) Manual program selection
Program switch: Touch the “
”
switch on the screen to select the other
side of a cassette tape. The display indi-
cates which side is currently selected ( \b
indicates top side, indicates bottom
side).
Fast forward switch: Touch the “”
switch on the screen to fast forward a
cassette tape. “FF” appears on the
screen.
To stop fast forwarding, touch the same
switch or push the “TAPE” button.
Rewind switch: Touch the “” switch
on the lower side to rewind a tape.
“REW” appears on the screen.
To stop rewinding, touch the same switch
or push the “TAPE” button.
Autoreverse feature: After the cassette
player reaches the end of a tape, it auto-
matically reverses and begins to play the
other side, regardless of whether the cas-
sette was playing or fast forwarding.

4Runner_Navi_U (L/O 0208)
1402003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
(c) Automatic program selection
“RPT” switch: The repeat feature auto-
matically replays the current program.
Touch the “RPT” switch while the pro-
gram is playing. When the program ends,
it will automatically be rewound and re-
played. Touch the switch again to turn off
the repeat feature.
There must be at least 3 seconds of
blank space between programs for the
repeat feature to work correctly.
“SKIP” switch: The skip feature allows
you to fast forward past long stretches of
blank tape. This is especially useful at
the end of cassettes.
Touch the “SKIP” switch. The player will
automatically skip any blank portions of 15
seconds or more and play the next program.
To cancel it, touch the switch once again.
L00176
“SEEK/TRACK” button: The automatic
program selection feature allows you to
program your cassette player to skip for-
ward or backward to locate the track you
want to listen to. You can skip up to 9
programs at a time.
Push the upper side of this button to skip
forward. “FF” and the number will appear
on the screen. Push the button until the
number of programs you want to skip
appears on the screen. After that, the
player will automatically skip forward.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play. Push the lower side of this button to skip
backward. Push the button until “REW”
and the number of programs you want to
skip appears on the screen.
If you set “REW 1”, the player will
rewind to the beginning of the current
program.
When counting the number of pro-
grams you want to rewind, remember
to count the current program as well.
For example, if you want to rewind to
a program that is two before the pro-
gram you are listening to, push this
button until “REW 3” appears on the
screen.
When the beginning of the tape is
reached, the player automatically resumes
normal play.
There must be at least 3 seconds of
blank space between programs for this
feature to work correctly.
“RPT”, “SKIP” and Automatic program
selection features: These features may
not work well with some spoken word,
live or classical recordings.

4Runner_Navi_U (L/O 0208)
1412003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
L00174
(a) Playing a compact disc
To insert a compact disc, push the
“OPEN” button to lower the display.
Put the compact disc in the slot with
the label side up.
The player will automatically start when
you insert the compact disc. At this time,
“CD” appears on the screen.
If the label faces down, the disc cannot be
played. In this case, “CD ERROR” appears
on the screen.
CAUTION
Do not place anything on the
opened display, as such items may
be thrown about in the compart-
ment and possibly injure people in
the vehicle during sudden braking
or in an accident.
To reduce the chance of injury in
case of an accident or sudden
stop while driving, keep the dis-
play closed.
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct th e display while it
is moving. It could damage your au-
dio system.
—Compact disc player
operation

4Runner_Navi_U (L/O 0208)
1422003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
L00175
To stop and eject the compact disc, push
the “OPEN” button to lower the display.
Push the “CD
” button.
The compact disc player can play the
discs marked as shown above. The fol-
lowing products may not be playable on
your compact disc player.
Copy−protected CD
CD− R (CD −Recordable)
CD− RW (CD −Re− writable)
CD− ROM
