TOYOTA 4RUNNER 2003 N210 / 4.G Navigation Manual

4Runner_Navi_U (L/O 0208)
1032003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

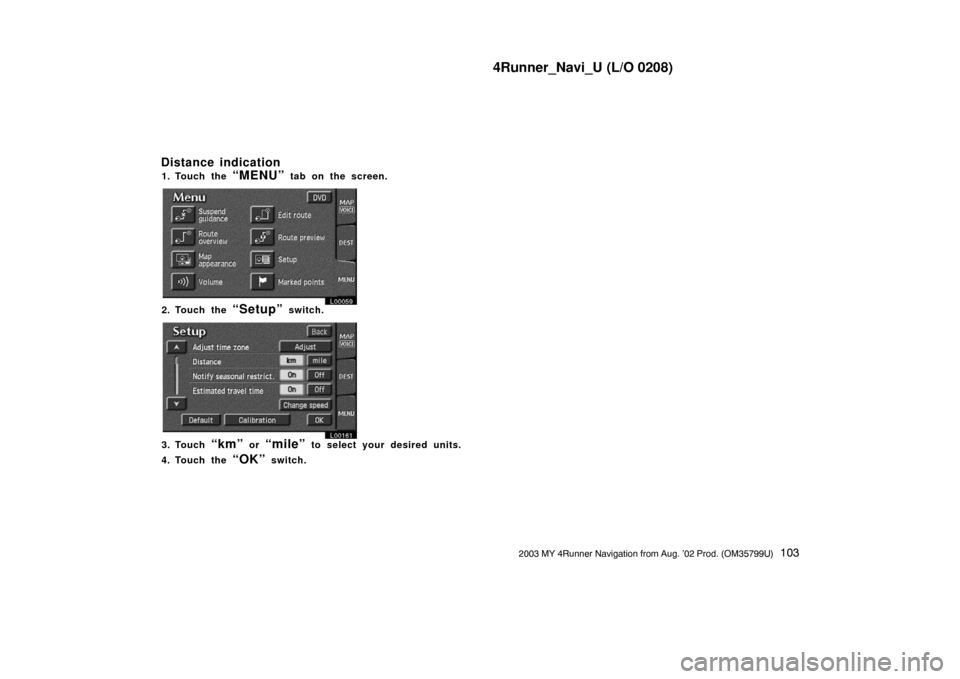

1. Touch the “MENU” tab on the screen.
L00059
2. Touch the “Setup” switch.
L00161
3. Touch “km” or “mile” to select your desired units.
4. Touch the
“OK” switch.
Distance indication

4Runner_Navi_U (L/O 0208)
1042003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
1. Touch the “MENU” tab on the screen.
L00059
2. Touch the “Setup” switch.
L00149
Notification of seasonal
restrictions

4Runner_Navi_U (L/O 0208)
1052003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
3. Touch the “On” switch of the “Notify seasonal restrict”. Touch the “OK” switch. The screen returns to the previous
map.
L00150

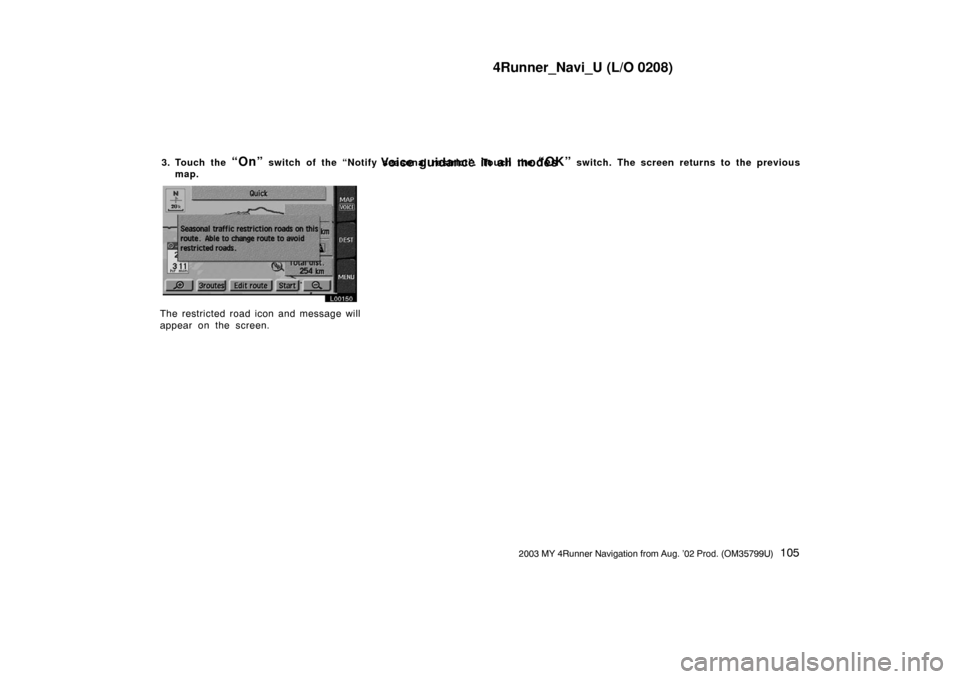

The restricted road icon and message will
appear on the screen.
Voice guidance in all modes

4Runner_Navi_U (L/O 0208)
1062003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
1. Touch the “MENU” tab on the screen.
L00059
2. Touch the “Setup” switch.
L00164
3. Touch the “On” switch on the right of “Voice guide in all mode”.

4Runner_Navi_U (L/O 0208)
1072003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
1. Touch the “MENU” tab on the screen.
L00059
2. Touch the “Setup” switch.
L00147
3. Touch the “On” switch on the right of “Current street name”.
Current street name

4Runner_Navi_U (L/O 0208)
1082003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

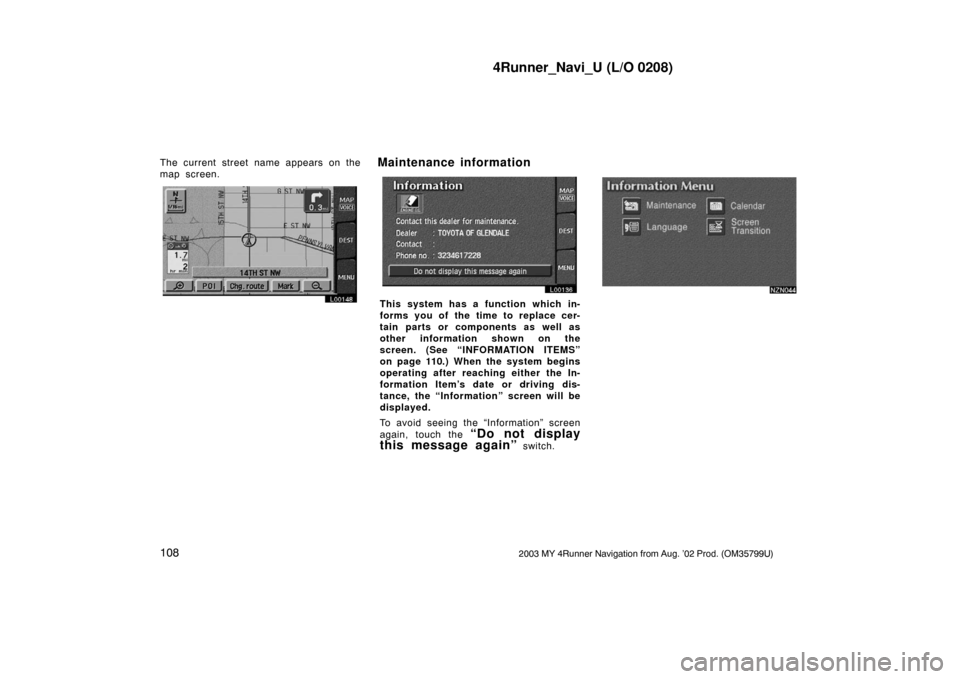

The current street name appears on the
map screen.
L00148L00136
This system has a function which in-
forms you of the time to replace cer-
tain parts or components as well as
other information shown on the
screen. (See “INFORMATION ITEMS”
on page 110.) When the system begins
operating after reaching either the In-
formation Item’s date or driving dis-
tance, the “Information” screen will be
displayed.
To avoid seeing the “Information” screen
again, touch the
“Do not display
this message again”
switch.
NZN044
Maintenance information

4Runner_Navi_U (L/O 0208)
1092003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

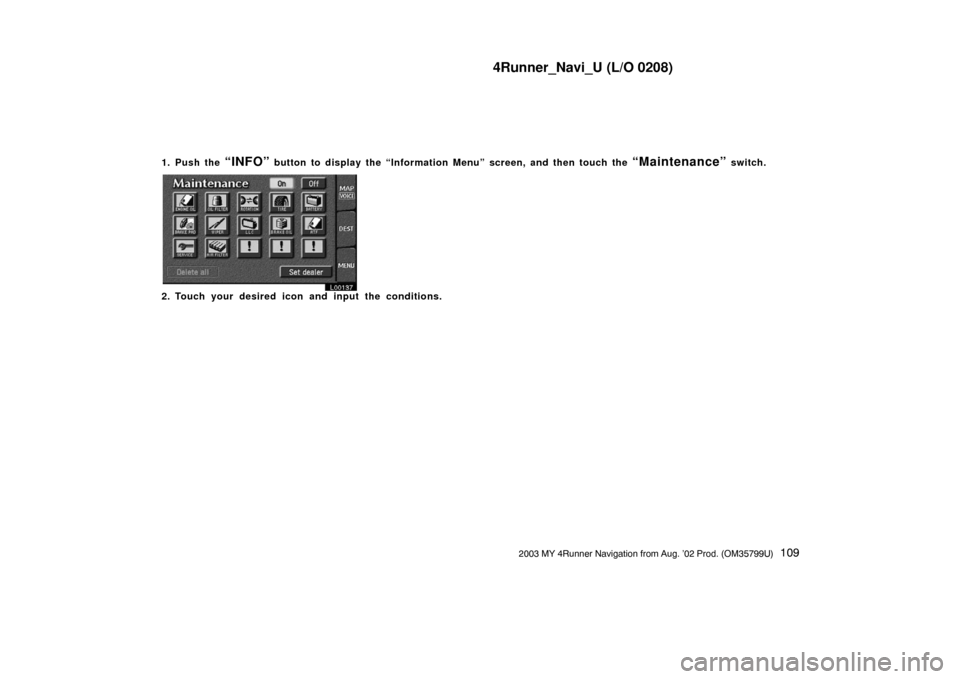

1. Push the “INFO” button to display the “Information Menu” screen, and then touch the “Maintenance” switch.
L00137
2. Touch your desired icon and input the conditions.

4Runner_Navi_U (L/O 0208)
11 02003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
L00138
Date: Input the next maintenance date.
Distance: Input the driving distance until
the next maintenance check. You can in-
put up to five digits for the driving dis-
tance.
When you touch the
“!” switch on the
screen, the screen changes to display the
“Change name” screen. Touch the keys to
input your desired name and then input
the conditions.
After you input the information, touch the
“OK” switch. The screen returns to the
“Maintenance” screen. The icon color will
change to green after the date and driv-
ing distance are input. The icon color will
change to orange when your vehicle
needs to be serviced. The following
switches appear on the “Maintenance”
screen. Delete all:
Cancel all conditions which
have been input.
Reset all: Reset all items which satisfy
either condition.
Touch the
“Off” switch on the “Mainte-
nance” screen, and the “Information”
screen will no longer be displayed.
INFORMATION
 For scheduled ma intenance infor-
mation, please refer to the “Sched-
uled Maintenance Guide” or “Own-
er’s Manual Supplement”.
 Depending on your driving or the
road conditions, the system may
have a timelag between the data
which has been input and the actu-
al date and driving distance.
INFORMATION ITEMS
Oil change
Replace oil filter
Rotate tires
Replace tires
Replace battery
Replace brake linings
Replace wiper blades
Replace engine coolant

4Runner_Navi_U (L/O 0208)
1112003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
Replace brake fluid
Replace ATF
Scheduled maintenance
Replace air filter
Personal
L00137
You can register your dealer’s name
and address. Touch the
“Set
dealer”
switch on the Maintenance
screen.
L00139
1. Enter your dealer’s location address in the same way as you input any destination. (See pages 10 through 24.)
Dealer setting(a) Registering dealer

4Runner_Navi_U (L/O 0208)
11 22003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
L00140

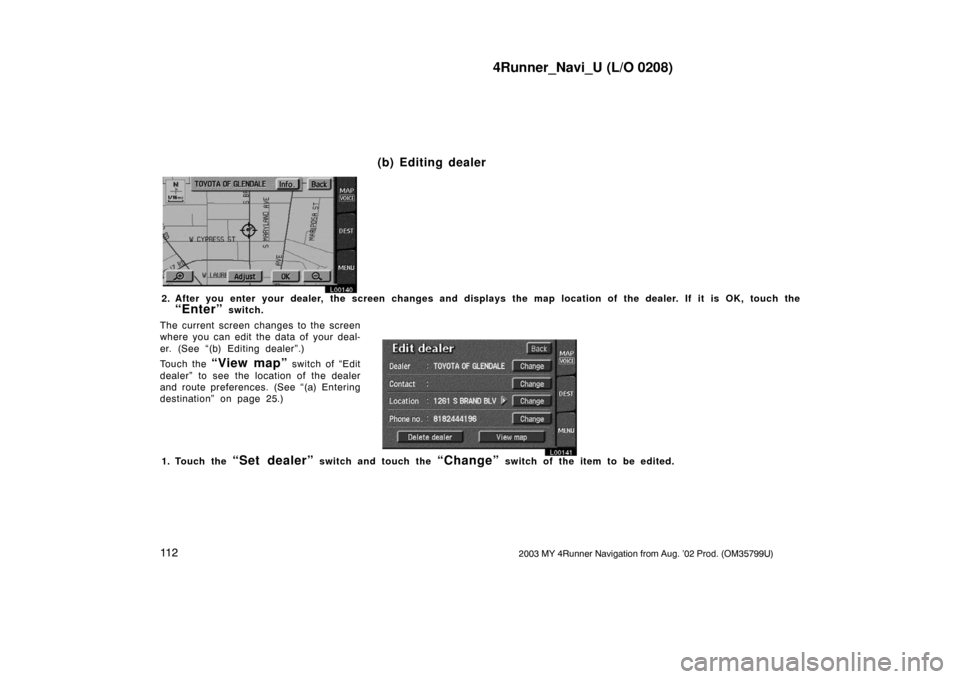

2. After you enter your dealer, the screen changes and displays the map location of the dealer. If it is OK, touch the
“Enter” switch.
The current screen changes to the screen
where you can edit the data of your deal-
er. (See “(b) Editing dealer”.)
Touch the
“View map” switch of “Edit
dealer” to see the location of the dealer
and route preferences. (See “(a) Entering
destination” on page 25.)
L00141
1. Touch the “Set dealer” switch and touch the “Change” switch of the item to be edited.
(b) Editing dealer
