TOYOTA 4RUNNER 2004 N210 / 4.G Navigation Manual

4Runner_Navi_U (L/O 0308)
93
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
The tire change calibration function
should be used when the tires are re-
placed. This will adjust for any pos-
sible change in tire circumference from
the old tires to the new ones. If this
procedure is not performed when tires
are replaced, the current vehicle posi-
tion mark may become incorrect.
To execute the fast distance tire calibra-
tion procedure, touch the
“Tire
change”
switch on the “Calibration”
screen.

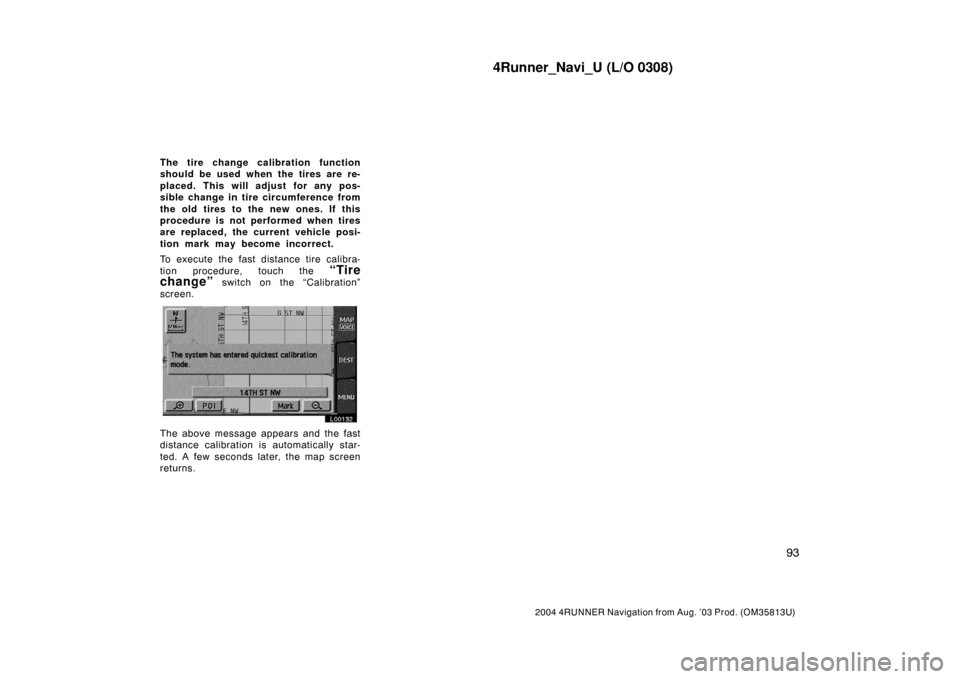

L00132
The above message appears and the fast
distance calibration is automatically star-
ted. A few seconds later, the map screen
returns.

4Runner_Navi_U (L/O 0308)
94
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
MORE ADVANCED FUNCTIONS
Convenient features
Setup95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map color96 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto reroute97 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Estimated travel time98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting time zone102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance indication105 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notification of seasonal restrictions106 . . . . . . . . . . . . . . . . . . . . . . . . .
Voice guidance in all modes107 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current street name109 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance information11 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer setting11 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calendar with memo11 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION III

4Runner_Navi_U (L/O 0308)
95
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
You can set the values shown on the
Setup screen.
1. Touch the
“MENU” tab on the screen.
L00059
2. Touch the “Setup” switch to display the “Setup” screen. Select your desired items you want to set. Selected items
will be highlighted in green.
L00147
3. Touch the “OK” switch on the screen and the previous screen returns.
To default: Touch the
“Default”
switch on the screen. All of the settings
can be defaulted.
Map color (day or night): You can se-
lect your desired map color.Auto reroute: You can set the system
will or will not automatically search for a
new route to the destination.Estimated travel time: You can set to
display the time required to reach the
destination on the road guidance screen.
Adjust time zone: You can select your
desired time zone.
Setup

4Runner_Navi_U (L/O 0308)
96
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Distance: You can change “km” or
“miles” to display your desired units.
Notify seasonal restrict: You can select
to notify or not to notify a seasonal re-
striction.
Voice guidance in all modes: You can
set the voice guide in all mode or not.
Current street name: You can select to
show or not to show a current street
name on the map screen.
1. Touch the
“MENU” tab on the screen.
2. Touch the
“Setup” switch.

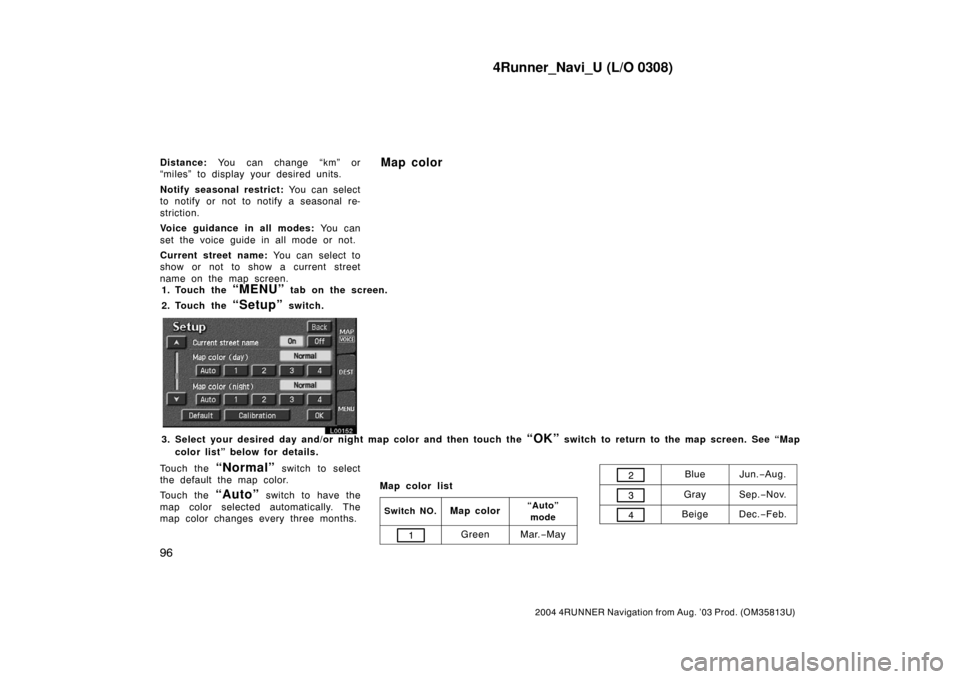

L00152
3. Select your desired day and/or night map color and then touch the “OK” switch to return to the map screen. See “Map
color list” below for details.
Touch the
“Normal” switch to select
the default the map color.
Touch the
“Auto” switch to have the
map color selected automatically. The
map color changes every three months.Map color list
Switch NO.Map color“Auto”
mode
1GreenMar.−May
2BlueJun.−Aug.
3GraySep.−Nov.
4BeigeDec.−Feb.
Map color

4Runner_Navi_U (L/O 0308)
97
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
When the auto reroute feature is
turned on, the system will automatical-
ly search for a new route to the des-
tination if you leave the guidance
route. This feature does not operate
while you are driving on roads where
the guidance is not available.
Auto reroute

4Runner_Navi_U (L/O 0308)
98
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

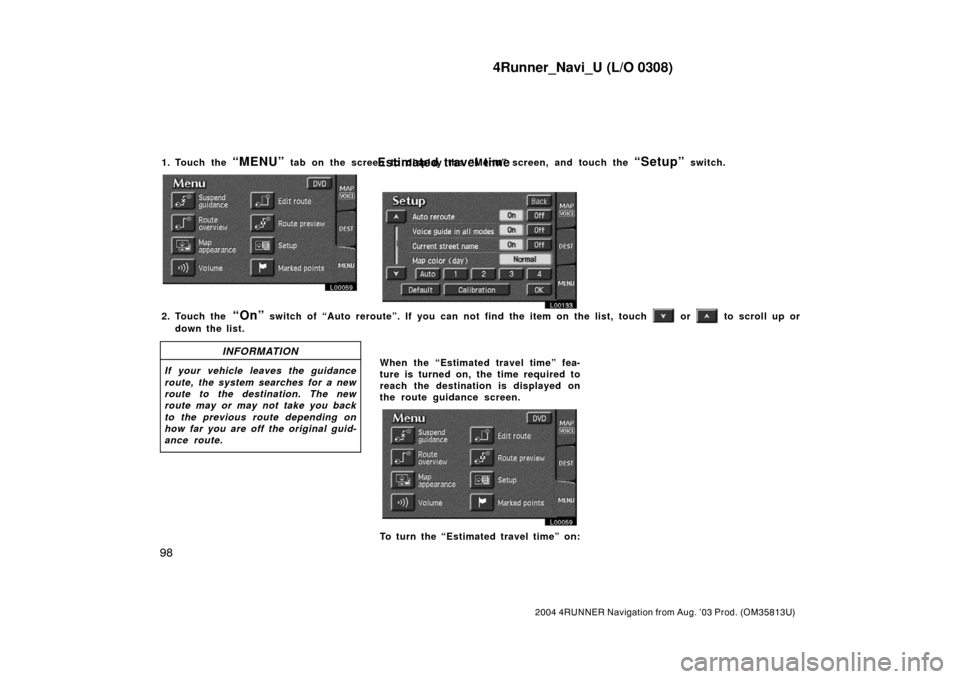

1. Touch the “MENU” tab on the screen to display the “Menu” screen, and touch the “Setup” switch.
L00059
L00133
2. Touch the “On” switch of “Auto reroute”. If you can not find the item on the list, touch or to scroll up or
down the list.
INFORMATION
If your vehicle leaves the guidance
route, the system searches for a new
route to the destination. The new
route may or may not take you back
to the previous route depending on
how far you are off the original guid-
ance route.When the “Estimated travel time” fea-
ture is turned on, the time required to
reach the destination is displayed on
the route guidance screen.
L00059
To turn the “Estimated travel time” on:
Estimated travel time

4Runner_Navi_U (L/O 0308)
99
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
1. Touch the “MENU” tab on the screen to display the “Menu” screen, and touch the “Setup” switch.

4Runner_Navi_U (L/O 0308)
100
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

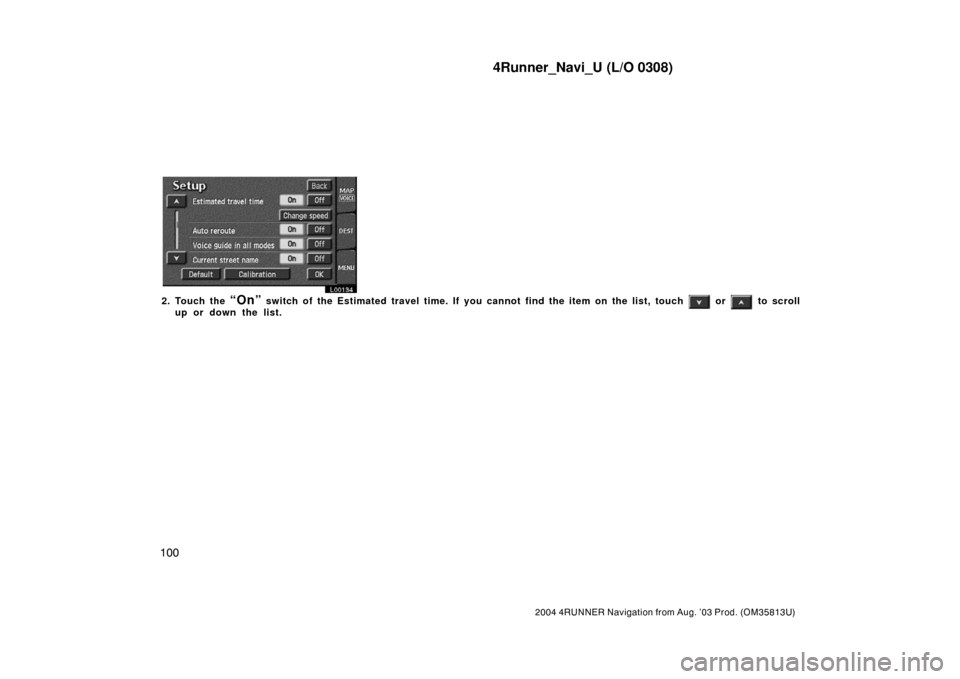

L00134
2. Touch the “On” switch of the Estimated travel time. If you cannot find the item on the list, touch or to scroll
up or down the list.

4Runner_Navi_U (L/O 0308)
101
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

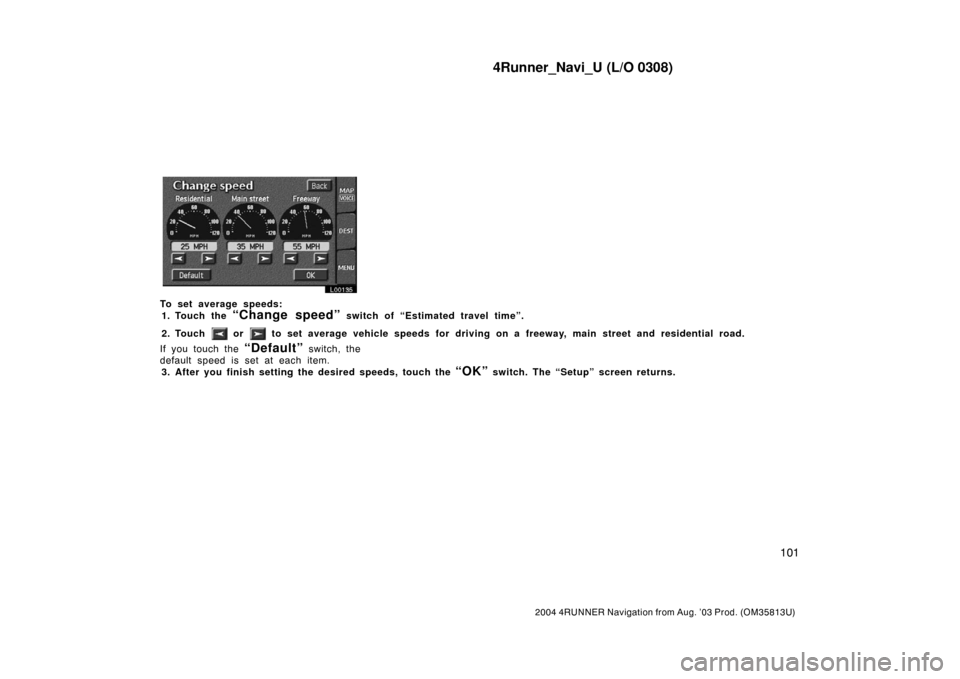

L00135
To set average speeds:
1. Touch the
“Change speed” switch of “Estimated travel time”.
2. Touch
or to set average vehicle speeds for driving on a freeway, main street and residential road.
If you touch the
“Default” switch, the
default speed is set at each item.
3. After you finish setting the desired speeds, touch the
“OK” switch. The “Setup” screen returns.

4Runner_Navi_U (L/O 0308)
102
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
INFORMATION
The displayed time to the destina-
tion is the approximate driving time
calculated based on the speeds
you selected and your actual posi-
tion along the guidance route.
The time shown may vary greatly
depending on your progress along
the route (which may be affected
by road conditions such as traffic
jams, construction work, etc.)
Up to 99 hours 59 minutes can be
displayed.
Adjusting time zone
