TOYOTA 4RUNNER 2004 N210 / 4.G Navigation Manual

4Runner_Navi_U (L/O 0308)
143
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
(a) Playing a compact disc
To insert a compact disc, push the
“OPEN” button to lower the display.
Put the compact disc in the slot with
the label side up.
The player will automatically start when
you insert the compact disc. At this time,
“CD” appears on the screen.
If the label faces down, the disc cannot
be played. In this case, “CD ERROR”
appears on the screen.
CAUTION
Do not place anything on the
opened display, as such items may
be thrown about in the compart-
ment and possibly injure people in
the vehicle during sudden braking
or in an accident.
To reduce the chance of injury in
case of an accident or sudden
stop while driving, keep the dis-
play closed.
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct the display while it
is moving. It could damage your au-
dio system.
L00175

4Runner_Navi_U (L/O 0308)
144
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
To stop and eject the compact disc, push
the “OPEN” button to lower the display.
Push the “CD
” button.

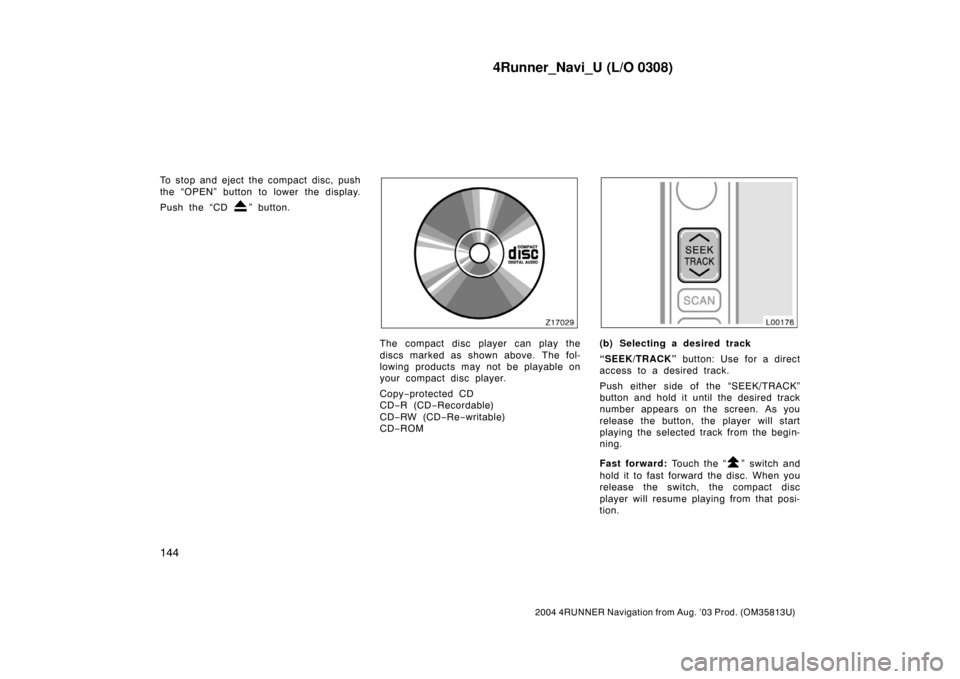

The compact disc player can play the
discs marked as shown above. The fol-
lowing products may not be playable on
your compact disc player.
Copy−protected CD
CD−R (CD−Recordable)
CD−RW (CD−Re−writable)
CD−ROM
L00176
(b) Selecting a desired track
“SEEK/TRACK” button: Use for a direct
access to a desired track.
Push either side of the “SEEK/TRACK”
button and hold it until the desired track
number appears on the screen. As you
release the button, the player will start
playing the selected track from the begin-
ning.
Fast forward: Touch the “
” switch and
hold it to fast forward the disc. When you
release the switch, the compact disc
player will resume playing from that posi-
tion.

4Runner_Navi_U (L/O 0308)
145
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Reverse: Touch the “” switch and hold
it to reverse the disc. When you release
the switch, the compact disc player will
resume playing.

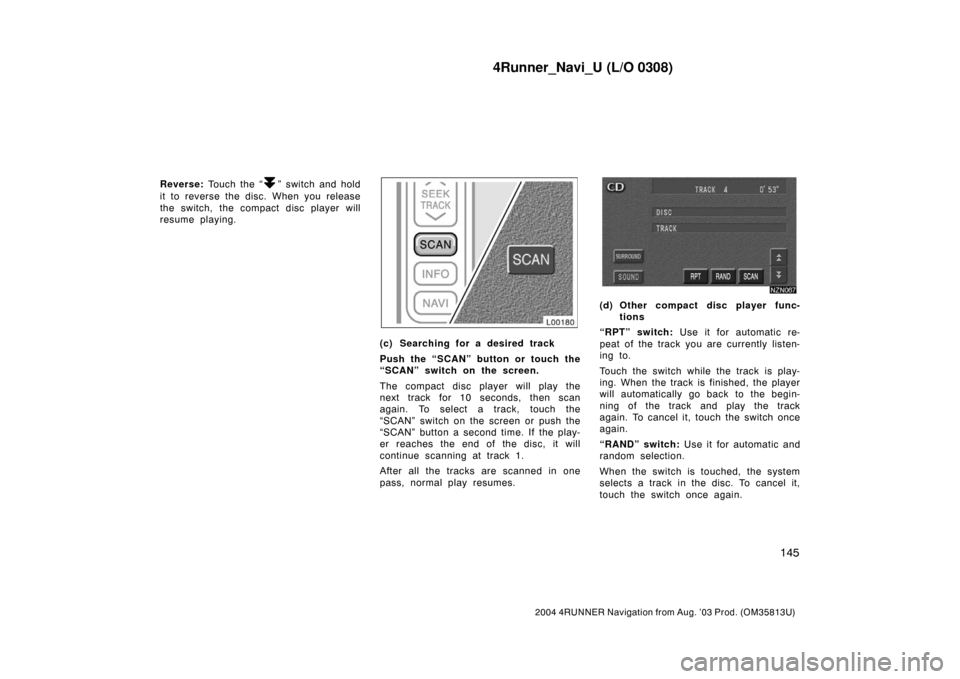

L00180
(c) Searching for a desired track
Push the “SCAN” button or touch the
“SCAN” switch on the screen.
The compact disc player will play the
next track for 10 seconds, then scan
again. To select a track, touch the
“SCAN” switch on the screen or push the
“SCAN” button a second time. If the play-
er reaches the end of the disc, it will
continue scanning at track 1.
After all the tracks are scanned in one
pass, normal play resumes.
(d) Other compact disc player func-
tions
“RPT” switch: Use it for automatic re-
peat of the track you are currently listen-
ing to.
Touch the switch while the track is play-
ing. When the track is finished, the player
will automatically go back to the begin-
ning of the track and play the track
again. To cancel it, touch the switch once
again.
“RAND” switch: Use it for automatic and
random selection.
When the switch is touched, the system
selects a track in the disc. To cancel it,
touch the switch once again.

4Runner_Navi_U (L/O 0308)
146
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
(e) If the player malfunctions
If “CD ERROR” appears on the screen,
audio signals of the disc cannot be read
or the system has trouble. Push the
“DISC” button once again.
If the player does not operate, check that
the disc surface is not soiled or dama-
ged. If the disc is O.K., the temperature
of the player’s internal mechanism may
be raised because of high external tem-
perature. Remove the disc from the play-
er to cool it.
If the player still does not operate, have
it checked by your Toyota dealer.
Audio remote controls

4Runner_Navi_U (L/O 0308)
147
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

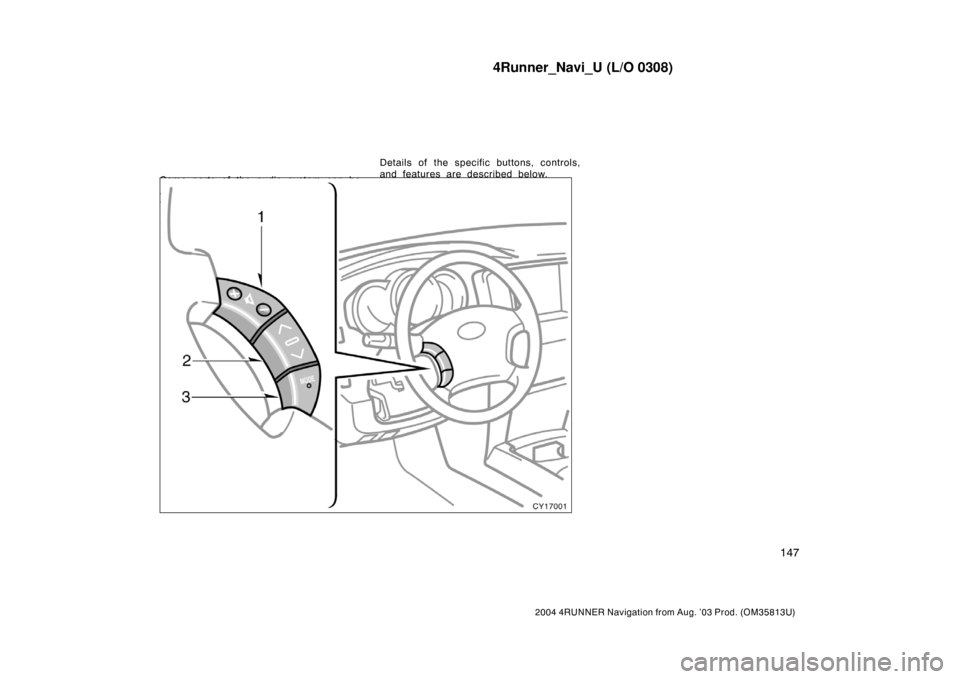

Some parts of the audio system can be
adjusted with the button on the steering
wheel.Details of the specific buttons, controls,
and features are described below.
1. Volume control button
2. “” button
3. “MODE” button
CY17001

4Runner_Navi_U (L/O 0308)
148
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
1. Volume control button
Push “+” to increase the volume. The
volume continues to increase while the
button is being pressed.Push “−” to decrease the volume. The
volume continues to decrease while the
button is being pressed.
2. “” button (Seek, search, track)
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “” or “”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “” or “” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
Cassette tape player
This switch has the following features—
To skip to a different track in either direc-
tion:
Quickly push and release the “” or “”
side of the switch. “FF 1” or “REW 1” will
appear on the display.Next, push either side of the track switch
until the track you want to listen to is
set. If you push the switch ten times, the
skip function will turn off. (You can skip
up to nine tracks at a time.)
When counting the number of the tracks
you want to rewind, remember to count
the current track as well. For example, if
you want to rewind to a song that is two
before the song you are listening to,
push the “” side of the button three
times.
If you push the track button further than
you wanted to, push the other side of the
button. The track number will be in-
creased or reduced.
The track number you select is not valid
if it is higher than the number of the
tracks remaining on the current side of
the cassette.
When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side.

4Runner_Navi_U (L/O 0308)
149
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
There must be at least 3 seconds of
blank space between tracks for the
switch to work correctly. In addition, the
feature may not work well with some spo-
ken, live, or classical recordings.
To f a s t−forward or reverse:
Push and hold the “” side of the switch
to fast−forward a cassette tape. “FF” will
appear on the display. Push and hold the
“” side of the switch to rewind a tape.
“REW” will appear on the display.
To stop the tape while it is fast−forward-
ing, push the “” side of the switch. To
stop the tape while it is rewinding, push
the “” side of the switch.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast−forwards completely,
the cassette will play the other side of
the tape using the auto−reverse feature.
Compact disc player
Use this switch to skip up or down to a
different track in either direction.
Quickly push and release the “” or “”
side of the switch until the track you
want to listen to is set. If you want to
return to the beginning of the current
track, push the “” side of the switch
once, quickly.

4Runner_Navi_U (L/O 0308)
150
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
3. “MODE” button
Push the “MODE” button to select an
audio mode. Each time you push this
button, the system changes between the
radio, cassette tape player and compact
disc player.
To turn the audio system on, push the
“MODE” button.
To turn the audio system off, push and
hold the “MODE” button until the system
turns off.
NOTICE
To ensure the correct audio system
operation:
Be careful not to spill beverages
over the system.
Do not put anything other than a
cassette tape or compact disc into
the slot.
The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the system
which you are listening to. Howev-
er, this does not indicate a mal-
function.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.
Here are some common reception prob-
lems that probably do not indicate a
problem with your radio:
FM
Fading and drifting stations—Generally,
the effective range of FM is about 40 km
(25 miles). Once outside this range, you
may notice fading and drifting, which in-
crease with the distance from the radio
transmitter. They are often accompanied
by distortion.
Multi−path—FM signals are reflective,
making it possible for two signals to
reach your antenna at the same time. If
this happens, the signals will cancel each
other out, causing a momentary flutter or
loss of reception.
Car audio system operating
hints

4Runner_Navi_U (L/O 0308)
151
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at
night. These reflected signals can inter-
fere with those received directly from the
radio station, causing the radio station to
sound alternately strong and weak.
Station interference—When a reflected
signal and a signal received directly from
a radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the
broadcast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.CARING FOR YOUR CASSETTE
PLAYER AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts reg-
ularly.
A dirty tape head or tape path can
decrease sound quality and tangle
your cassette tapes. The easiest way
to clean them is by using a cleaning
tape. (A wet type is recommended.)
Use high−quality cassettes.
Low−quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto−reversing. They can
also get stuck or tangled in the cas-
sette player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total
playing time longer than 100 minutes
(50 minutes per side). The tape used
in these cassettes is thin and could
get stuck or tangled in the cassette
player.
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Your compact disc player is intended
for use with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from work-
ing. On hot days, use the air condi-
tioning to cool the vehicle interior be-
fore you use the players.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact
disc player, the players may not play
even though they appear to be wor-
king. Remove the disc from the player
and wait until it dries.

4Runner_Navi_U (L/O 0308)
152
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
CAUTION
Compact disc players use an invis-
ible laser beam which could cause
hazardous radiation exposure if di-
rected outside the unit. Be sure to
operate the players correctly.
Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copy−protected CD
CD−R (CD−Recordable)
CD−RW (CD−Re−writable)
CD−ROM
Z17038
Special shaped discs
Z17039
Low quality discs
